product image

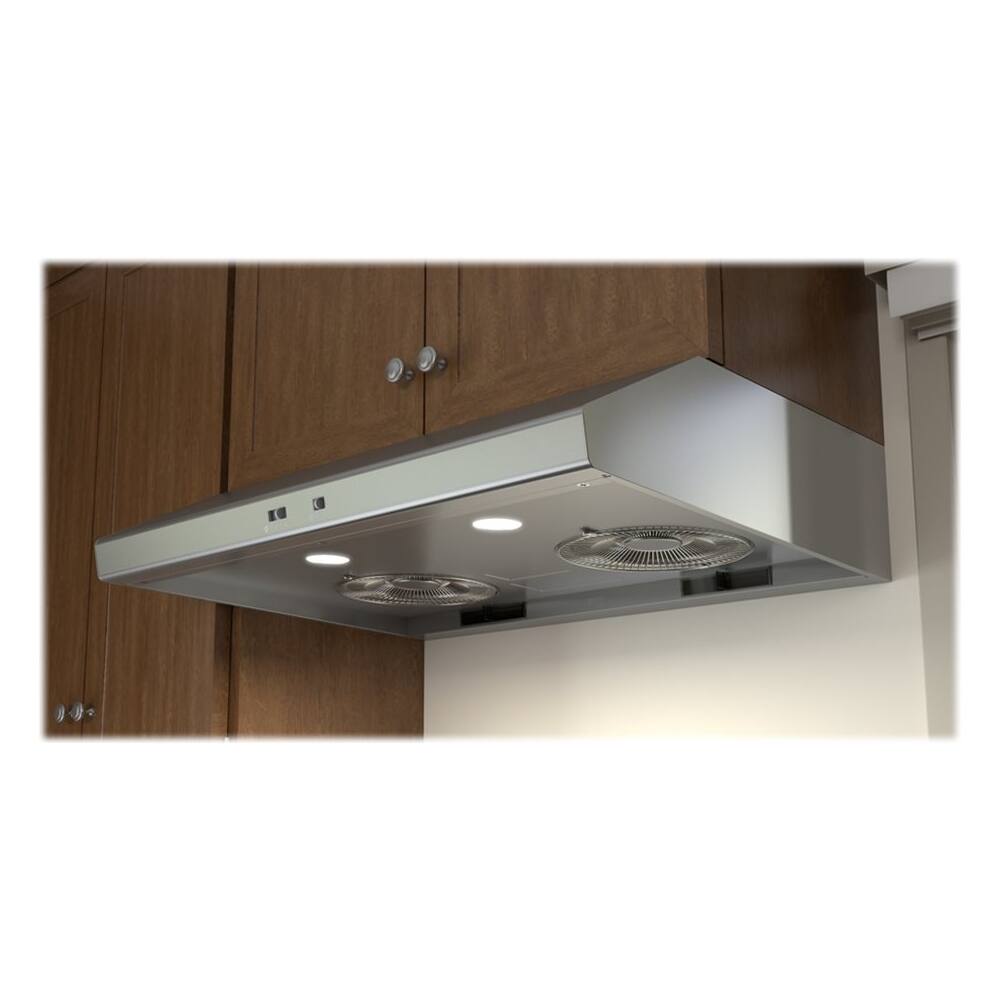

Zephyr - 36 inches - Under cabinet Range Hood - Stainless Steel

Model: AK6536BS
SKU: 4584031
This item is no longer available in new condition. See similar items below
  • Key Specs
    • Product Height: 6 2/5 inches (The out of box height of the item. Height is measured as the vertical distance from the bottom of the item to the top as it would be primarily used or placed.)
    • Product Width: 35 7/10 inches (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
    • Product Depth: 22 1/5 inches (The out of box depth of the item. Depth is measured as the distance from the front of the item to the back as it would be primarily used or placed.)
    • Exhaust Vent Location: Top/Rear
    • Vent Type: Ducted
    • Color Finish: Stainless steel
  • General
    • Product Name: Power Cyclone 36" Externally Vented Range Hood
    • Brand: Zephyr
    • Model Number: AK6536BS
    • Color: Stainless Steel
    • Color Finish: Stainless steel
  • Dimensions
    • Product Height: 6 2/5 inches (The out of box height of the item. Height is measured as the vertical distance from the bottom of the item to the top as it would be primarily used or placed.)
    • Minimum Installation Height Above Cooktop: 24 inches
    • Maximum Installation Height Above Cooktop: 32 inches
    • Product Width: 35 7/10 inches (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
    • Product Depth: 22 1/5 inches (The out of box depth of the item. Depth is measured as the distance from the front of the item to the back as it would be primarily used or placed.)
    • Standardized Width: 36 inches (An approximated measurement (exact width may differ slightly) determined by the manufacturer in accordance with industry standards. Standardized sizes are intended to assist consumers when purchasing appliances and planning for installation.)
    • Product Weight: 34.5 pounds (The out of box weight of the item.)
  • Features
    • Exhaust Vent Location: Top/Rear
    • Vent Type: Ducted
    • Range Hood Type: Under cabinet
    • Number of Fan Speeds: 3
    • Integrated Light(s): true
    • Bulb Type Required: Halogen
    • Bulb(s) Included: true
    • Maximum Bulb Wattage: 70 watts
  • Electrical Specification
    • Amperage: 2.4 amperes (Strength of electrical current.)
    • Voltage: 120 volts (Amount of power needed to support an electrical current.)
  • Certifications Listings & Approvals
    • Product Safety Certifications and Standard(s): UL Listed (Lists the applicable certifications and/or standards, as stated by the manufacturer, in which the product has met the requirements for the assurance of quality and safety.)
  • Other
    • UPC: 646328004612

Vent kitchen odors effortlessly with this Zephyr Cyclone under-cabinet range hood. It quietly removes hot air and grease with its centrifugal blower, and residue collects in dishwasher-safe cups during the self-cleaning process for easy disposal. Use the energy-saving delay-off function on this 36-inch Zephyr Cyclone under-cabinet range hood to keep air moving longer.

  • Centrifugal blower with 600 cfm exhaust capacity: Quickly pull smoke and cooking odors out of the air.
  • 3 fan-speed settings: Allow you to adjust ventilation to meet your needs.
  • Mechanical controls: Offer simple operation.
  • Dual halogen lights: Illuminate the cooktop below with bright or subtle lighting for better visibility while cooking.
  • Top and rear exhaust: Allow the option of connecting the duct work to either the top or the rear of the hood.
  • Stainless steel finish: Offers a sleek, stylish look.
  • Designed to fit standard 6" round ductwork: For ease of installation.
Whats Included
  • Zephyr Power Cyclone 36" Externally Vented Range Hood

Q: How do I change the halogen light bulb o. The zephyr range hood?

A: Hello, thank you for your inquiry! On model AK6536BS there are LumiLight LED & LED Light Strips. In the unlikely event that your LumiLight LED or LED light strip fails, please contact Zephyr at [email protected] to order replacement parts. -Zephyr

Q: our Zephyr over head fan comes on as if it is on a timer....on/off. I see nothing on the pad or the remote to effect. How do I program this out or is a default setting?

A: Hello, It sounds like this may require a service call. Please contact our service department at 888.880.8368 ext. 1003 or email [email protected]. We would like to learn more and resolve your concerns promptly! – Zephyr
