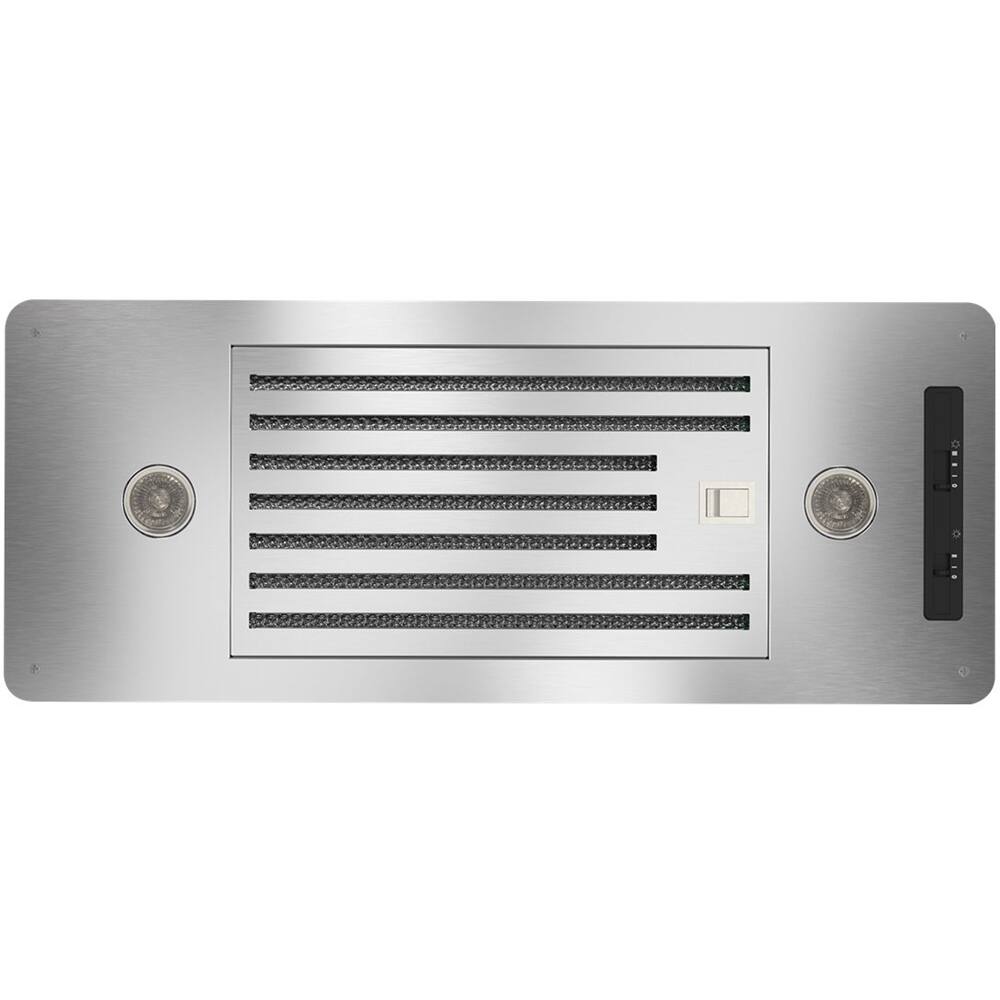

Zephyr - 28 inches - Stainless steel
- Key Specs
- Product Height: 11 1/2 inches (The out of box height of the item. Height is measured as the vertical distance from the bottom of the item to the top as it would be primarily used or placed.)
- Product Width: 27 3/5 inches (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
- Product Depth: 11 1/5 inches (The out of box depth of the item. Depth is measured as the distance from the front of the item to the back as it would be primarily used or placed.)
- Exhaust Vent Location: Top
- Vent Type: Ducted
- Color Finish: Stainless steel
- General
- Product Name: Tornado I 27 in. External Range Hood with Light in Stainless Steel
- Brand: Zephyr
- Model Number: AK8100AS-BF
- Color Finish: Stainless steel
- Dimensions
- Product Height: 11 1/2 inches (The out of box height of the item. Height is measured as the vertical distance from the bottom of the item to the top as it would be primarily used or placed.)
- Product Width: 27 3/5 inches (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
- Product Depth: 11 1/5 inches (The out of box depth of the item. Depth is measured as the distance from the front of the item to the back as it would be primarily used or placed.)
- Standardized Width: 28 inches (An approximated measurement (exact width may differ slightly) determined by the manufacturer in accordance with industry standards. Standardized sizes are intended to assist consumers when purchasing appliances and planning for installation.)
- Duct Shape: Round
- Round Duct Diameter: 6 inches
- Features
- Exhaust Vent Location: Top
- Vent Type: Ducted
- Number of Fan Speeds: 3
- Integrated Light(s): true
- Bulb Type Required: Halogen
- Bulb(s) Included: true
- Maximum Bulb Wattage: 70 watts
- Filter Info
- Filter Material: Other
- Electrical Specification
- Amperage: 3.3 amperes (Strength of electrical current.)
- Voltage: 120 volts (Amount of power needed to support an electrical current.)
- Other
- UPC: 646328006401
Tornado I provides muscle and flexibility in a small, barely-visible package beneath your customizable vent hood canopy. This 600-CFM power pack features dual-level halogen lighting, 3-speed blower, a newly updated hybrid baffle filter and an angled housing unit for a better fit with any built-in canopy. An optional stainless steel liner extends and protects your cabinetry.
- Powerful 600 CFM Blower: Quickly pull smoke and cooking odors out of the air.
- Hybrid baffle filters: Allow you to adjust ventilation to meet your needs.
- Optional ductless recirculating kit: Offer simple operation.
- 3 Speed Mechanical Slide Controls: Illuminate the cooktop below with bright or subtle lighting for better visibility while cooking.
- Compatible Appliances: AK0800AS, AK0836AS, MUA006A, Z0B0040
- Designed to fit standard 6" round ductwork: For ease of installation.
Whats Included
- Zephyr Core Collection Tornado I 28" Externally Vented Range Hood
Product Manuals
Q: Can you use a rectangle (3-1/4x10) exhaust vent rather than a 6" round duct out the top of unit?
A: Hello, Thanks for your question! You would need to start with the 6 inch round as the duct attaches to the motor collar itself then they can transition to a rectangular, but unfortunately you can't start with rectangular due to the duct attaching directly to the motor. You can find more detailed information on our website https://zephyronline.com/product/tornado-i-range-hood-insert/. Thank you for your inquiry! - Zephyr
