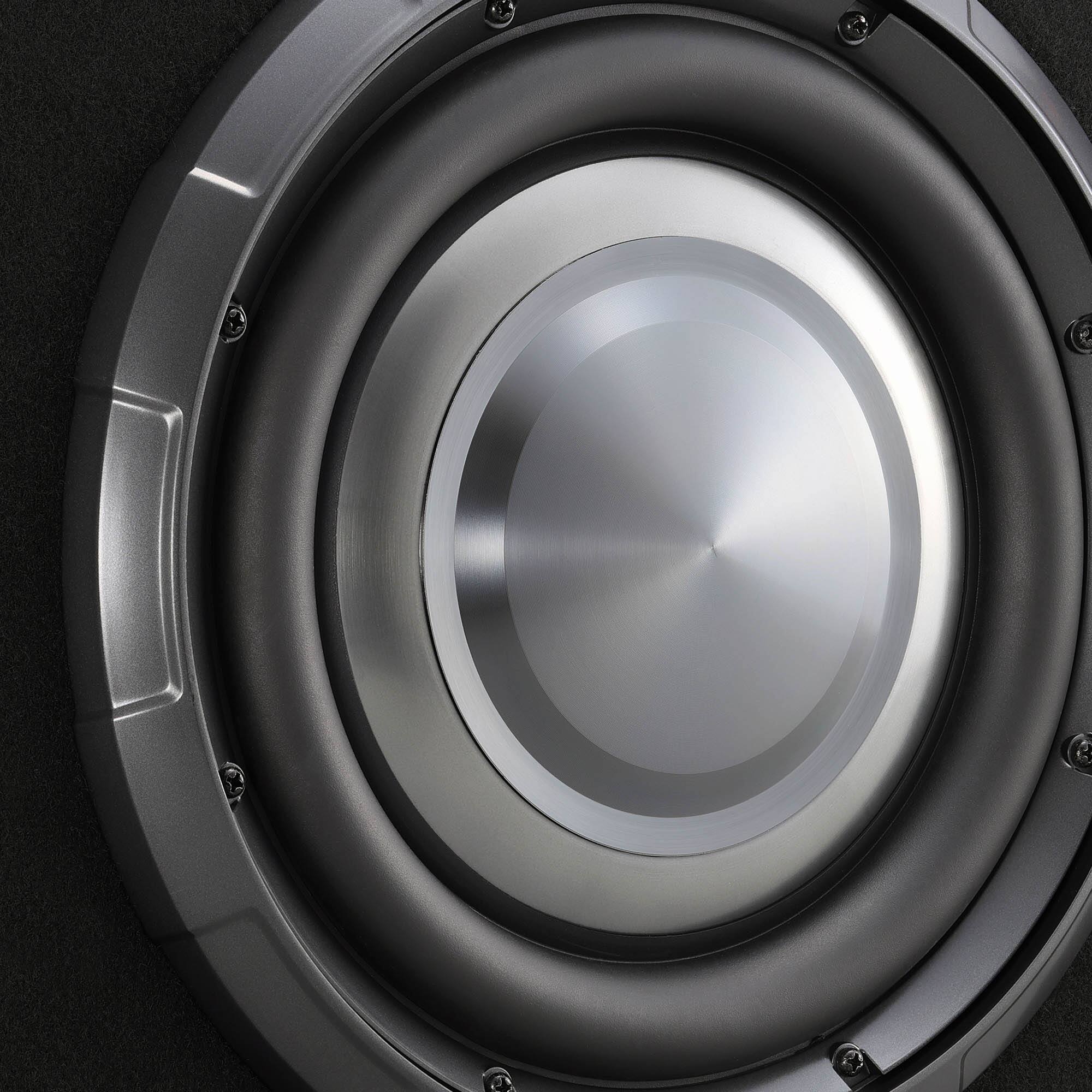

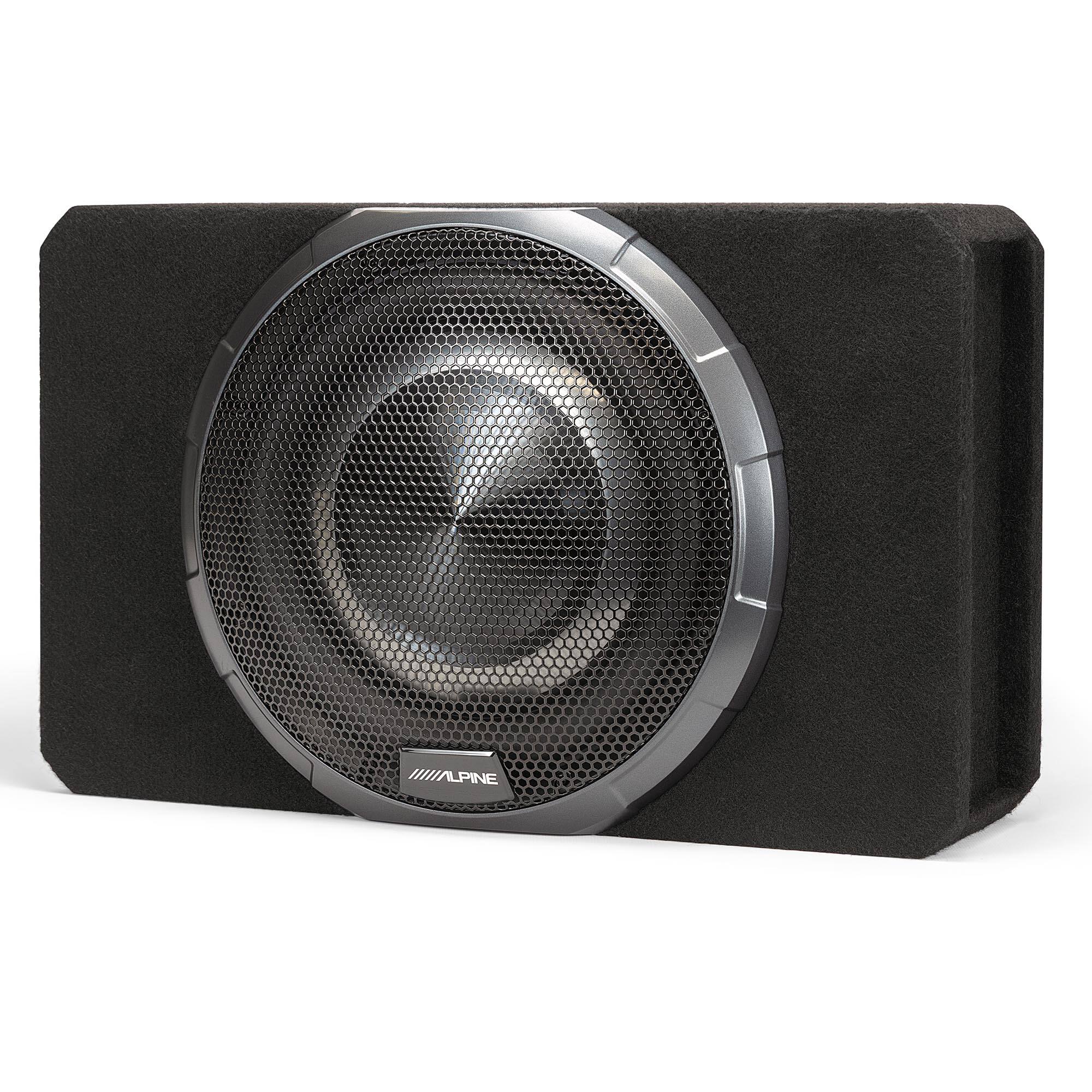

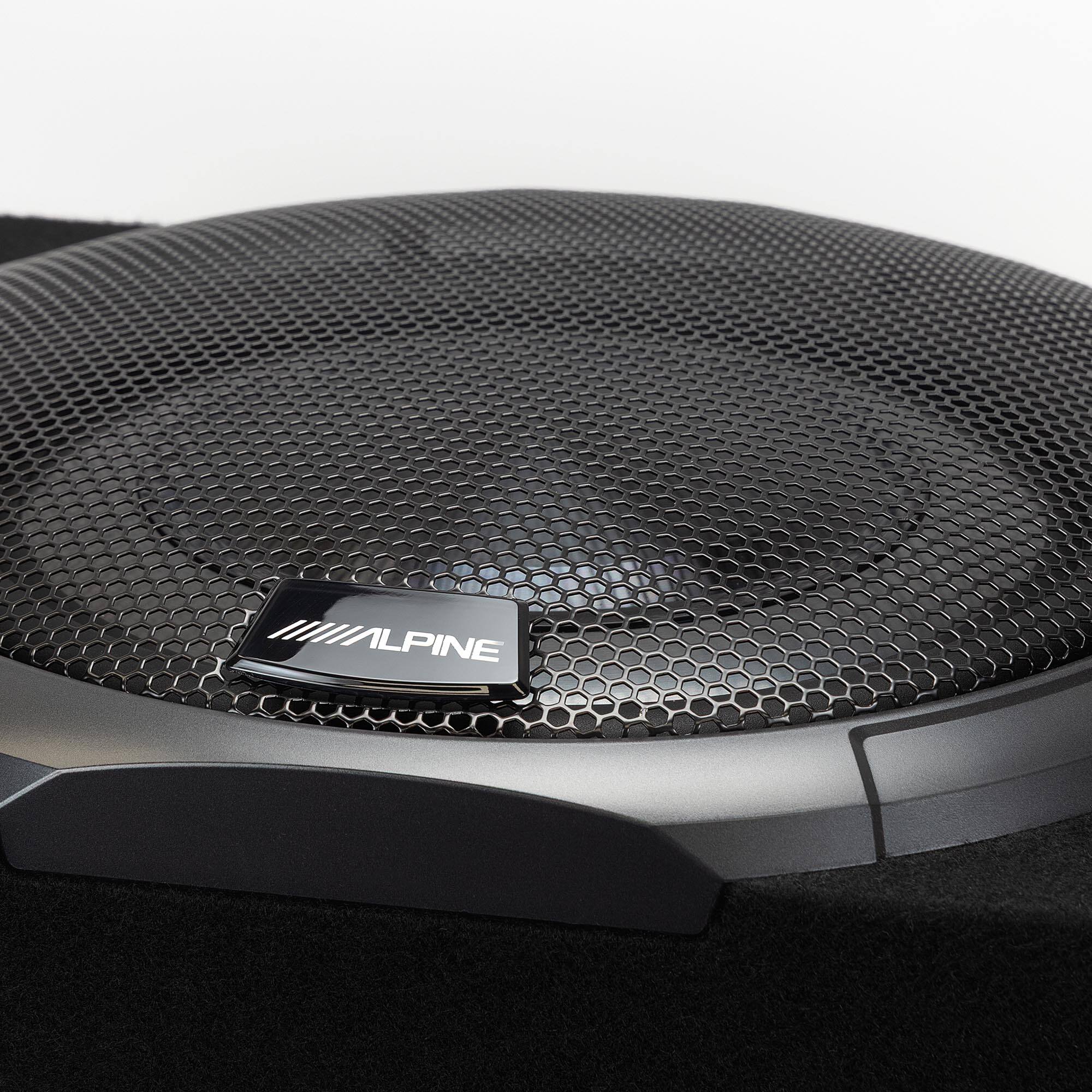

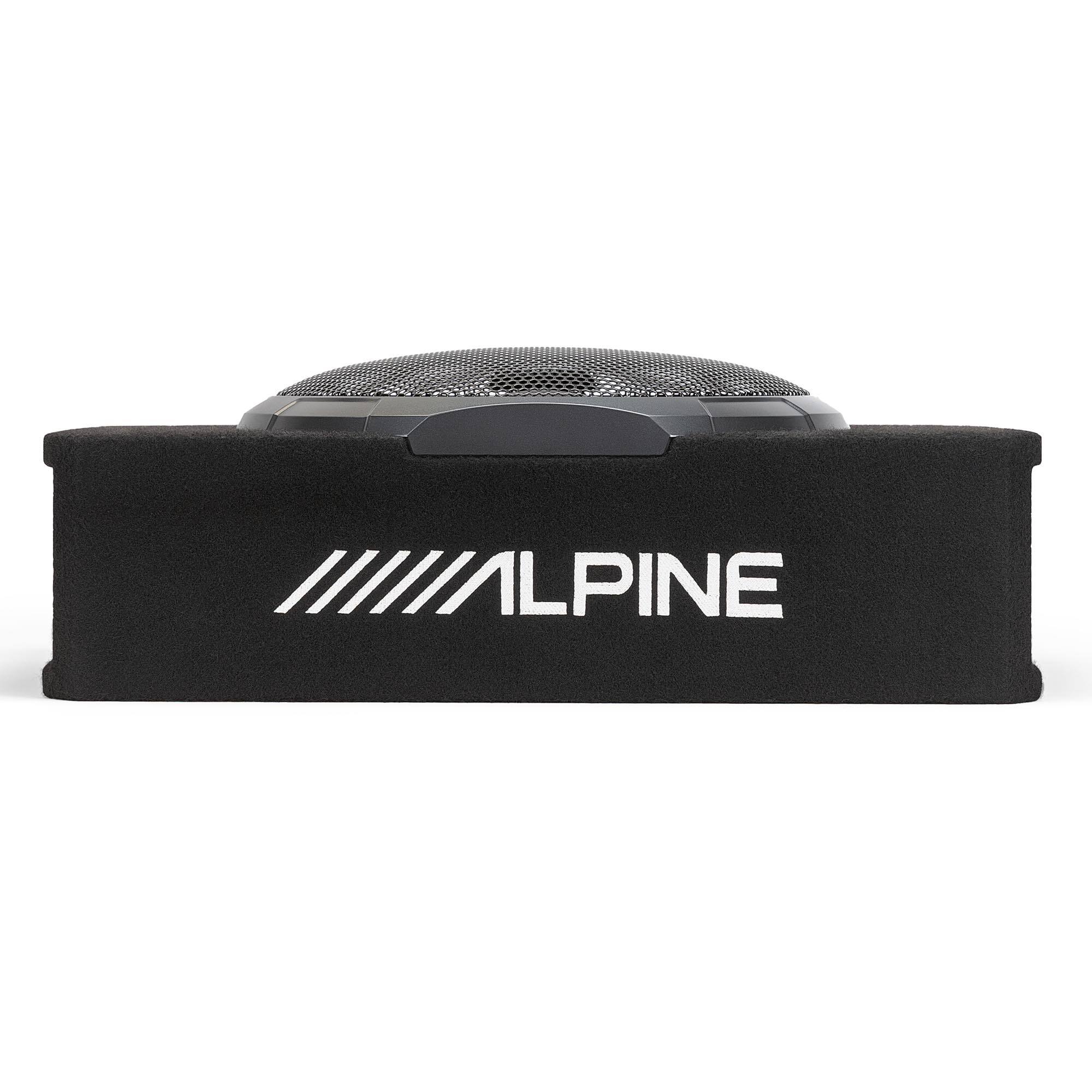

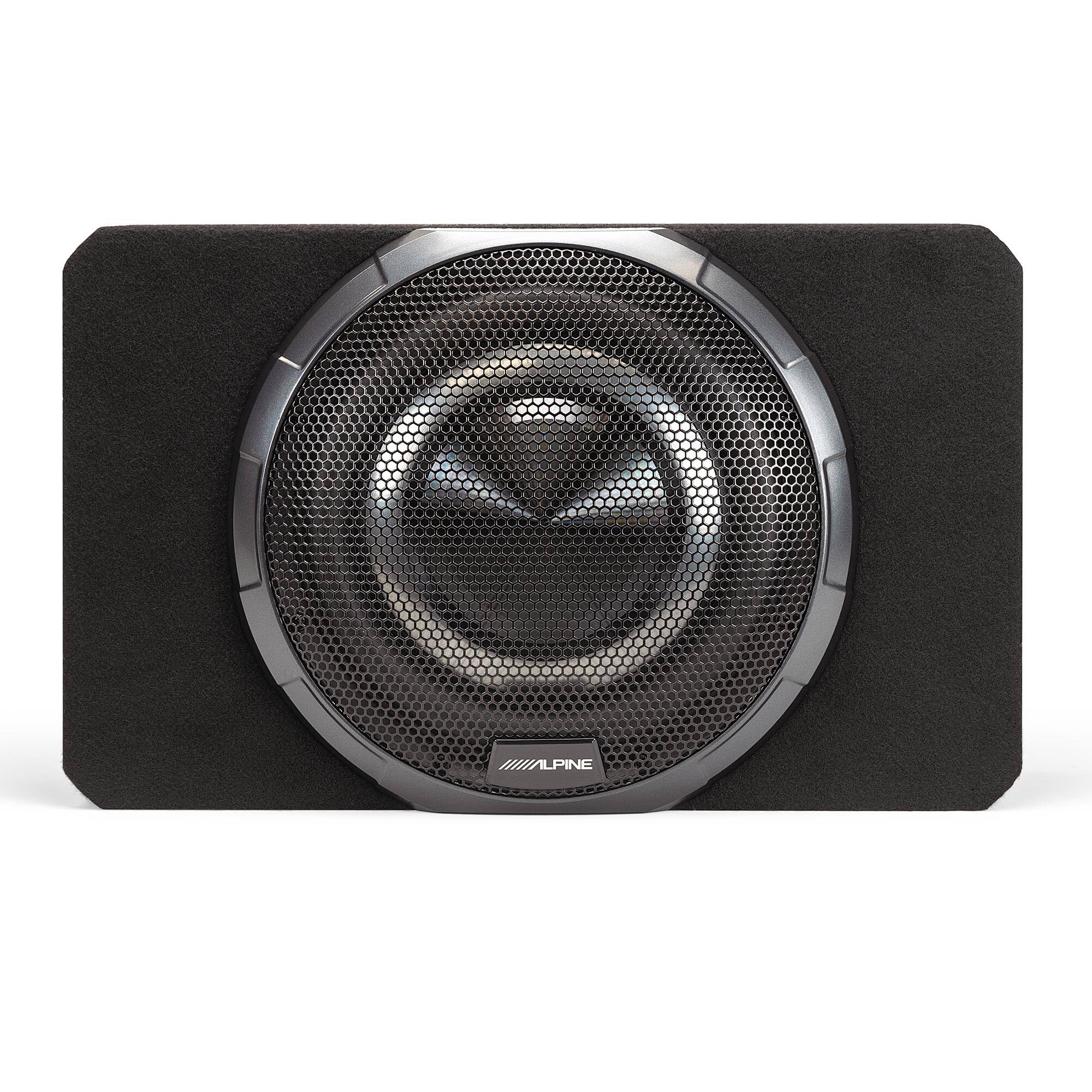

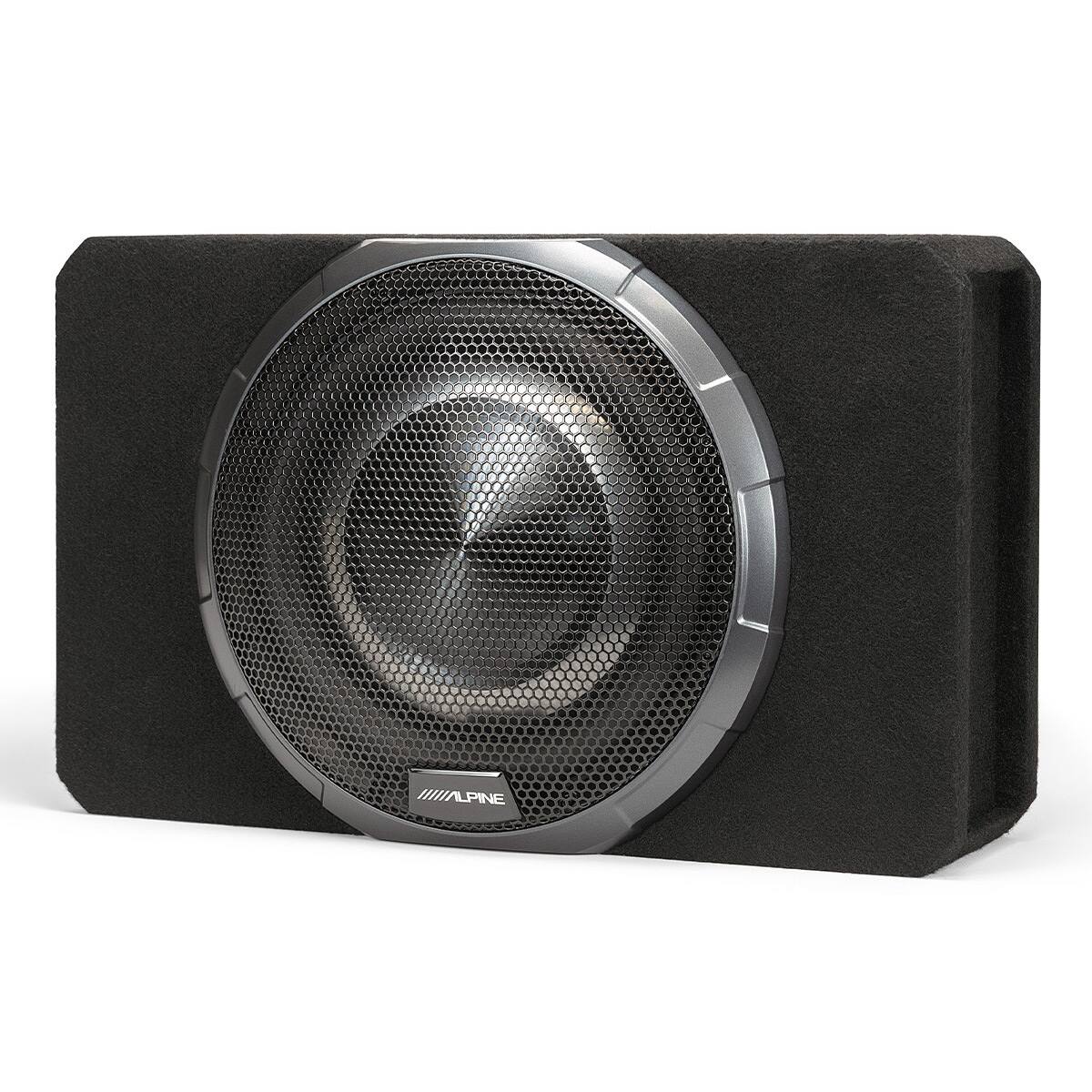

Alpine - PWV-SB10 10" BassRev™ Powered Subwoofer Enclosure - Black/Gray
More Buying Options from Marketplace sellers
- General
- Brand: Alpine
- Model Number: PWV-SB10
- Product Name: Alpine PWV-SB10 10" BassRev™ Powered Subwoofer Enclosure
- Color: Black/Gray
- Warranty
- Warranty - Parts: 1-Year Manufacturer Warranty
- Warranty - Labor: None
- Other
- Box Covering Material: Carpet
- Box Material: MDF
- Number Of Speakers Held: 1
- Product Width: 7.000 inches (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
- Product Height: 11.000 inches (The out of box height of the item. Height is measured as the vertical distance from the bottom of the item to the top as it would be primarily used or placed.)
- Product Depth: 18.500 inches (The out of box depth of the item. Depth is measured as the distance from the front of the item to the back as it would be primarily used or placed.)
- Product Weight: 22.0 pounds (The out of box weight of the item.)
- Enclosure Type: Sealed
- UPC: 793276001962

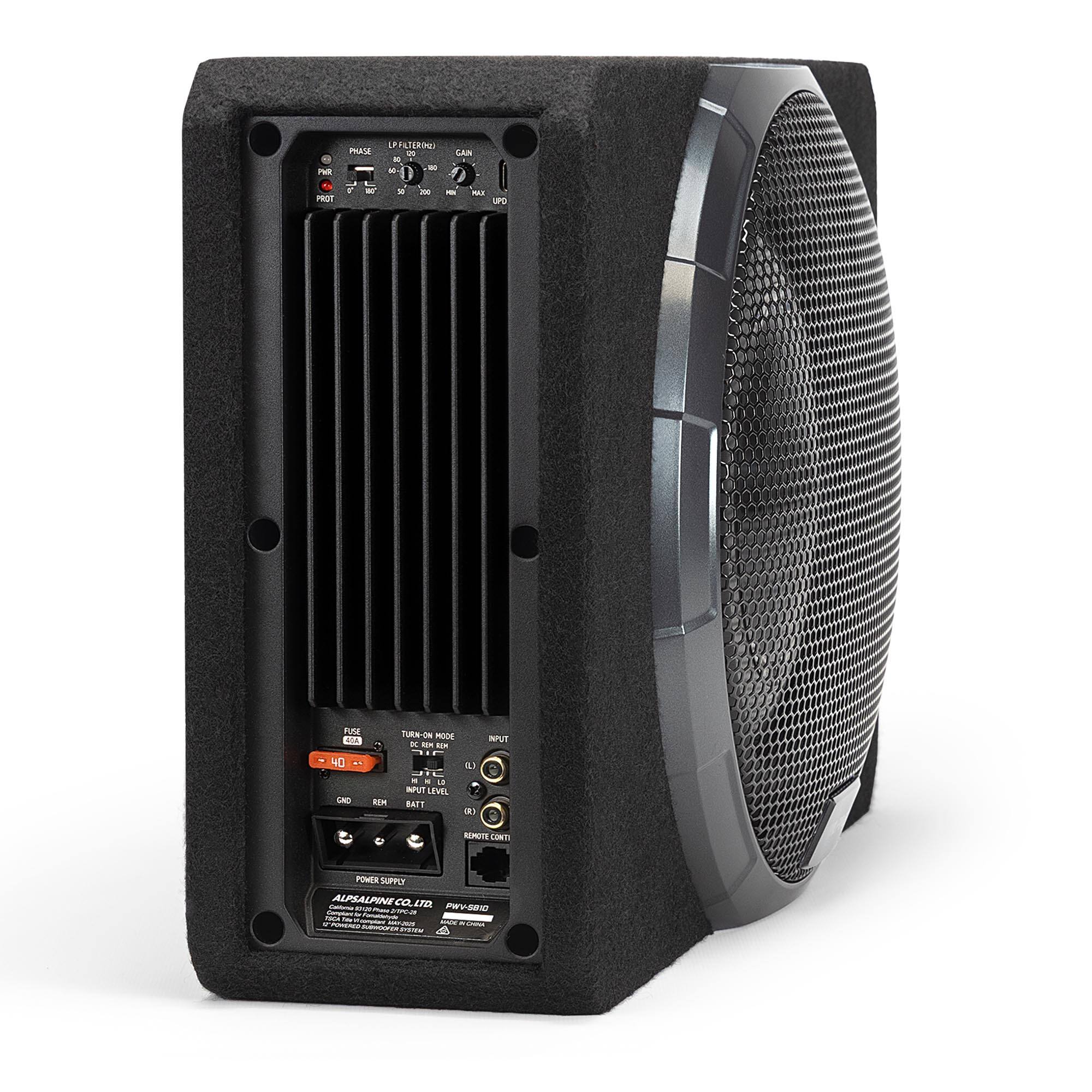

Bring your music to life with the Alpine PWV-SB10, a high-performance 10" powered subwoofer built for deep, impactful bass. With a powerful built-in amplifier delivering 400W RMS (200W x 2) and a dual 4-ohm voice coil design, this subwoofer delivers strong, controlled low frequencies with impressive clarity. Engineered with a sealed enclosure and a wide frequency response of 31–200 Hz, the PWV-SB10 ensures tight, distortion-free bass that enhances any genre of music. Fine-tune your sound with a variable low-pass filter (50–200 Hz), phase selector (0°/180°), and a remote level control for on-the-fly adjustments. Whether you're upgrading a factory system or building a custom setup, the PWV-SB10 offers clean, powerful bass and flexible tuning in one sleek package—the perfect blend of Alpine quality and low-end performance. Specifications: Performance Amplifier Power Output RMS Per Channel, Ref.: 4 ohm, 14.4V: 400 W (200 W x 2) Speaker Diaphragm size nominal 10 inch (25 cm) Speaker Impedance Dual Voice Coil 4 Ohm + 4 Ohm Speaker Power Handling RMS/Peak: 200W + 200W/400W + 400W Frequency Response +0/-3dB: 31-200 Hz Enclosure Type: Sealed Control Input Impedance: >10 kOhms Input Sensitivity RCA Input Ref.: Rated Power into 4 Ohms: Hi Level: 0.5 - 10V. Lo level: 0.2 - 2.0V Phase Selector 2 position: 0°/180° Crossover Variable LPF: 50 - 200 Hz (-24 dB/oct.) Remote Level Linear Attenuation 0 to -20dB General Dimensions Width: 470mm (18 1/2") Height: 282 mm (11") Depth without grille: 126 mm (5") Depth including grille: 170 mm (6 3/4") Weight: 9.7 kg (21 lb 6.4 oz)
- Key Feature: Preloaded BassRev Subwoofer
- Key Feature: Built-in powered DSP amplifier with OPTIM Sync technology
- Key Feature: Shallow footprint for flexible fitment
- Key Feature: Sealed enclosure
- Key Feature: Carpeted MDF enclosure with double brace structure
Whats Included
- 1x Alpine PWV-SB10 10" BassRev™ Powered Subwoofer Enclosure
