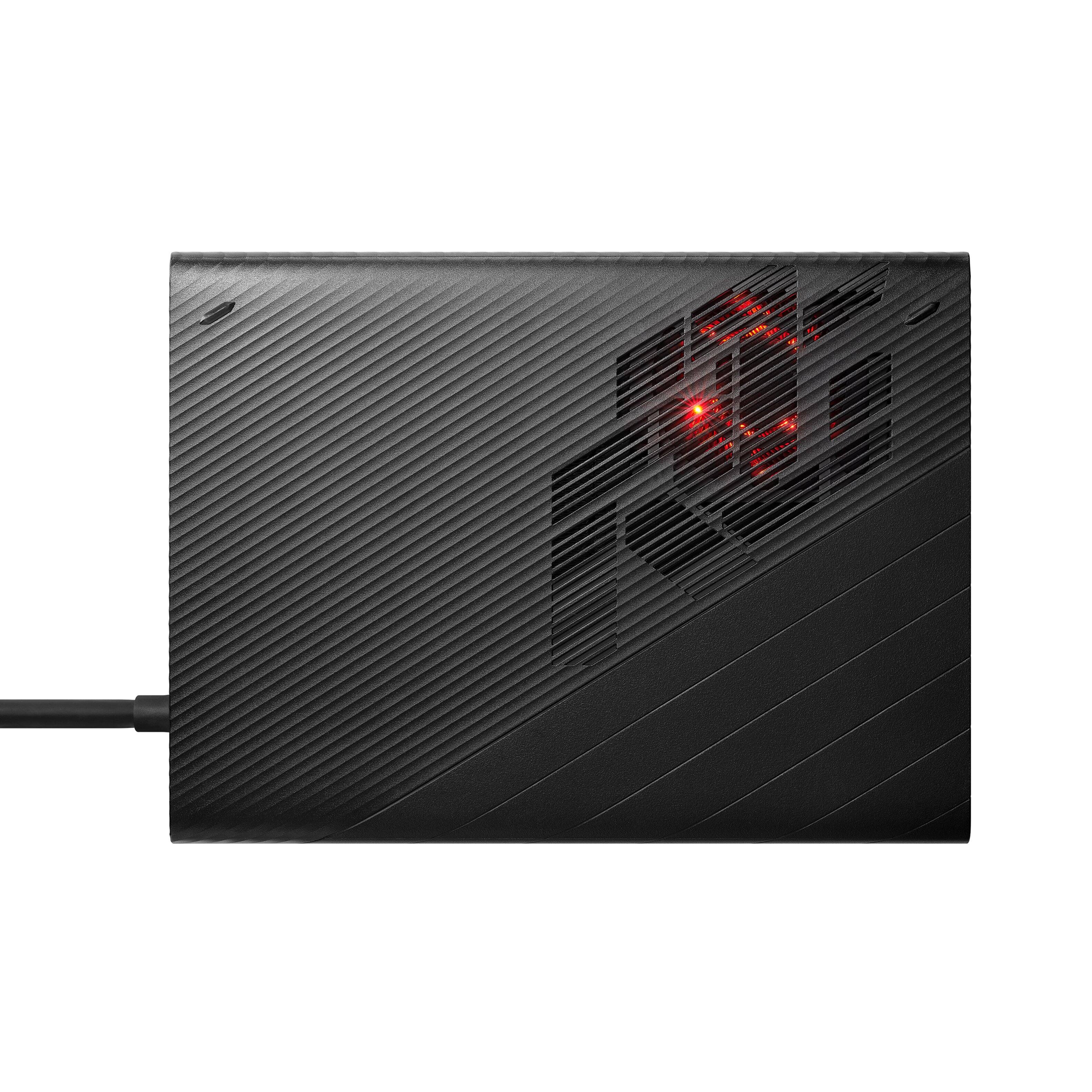

ASUS - ROG XG Mobile eGPU Dock - NVIDIA GeForce RTX 3080 Laptop GPU - Black
- Key Specs
- GPU Base Clock Frequency: 1.35 gigahertz (The minimum rate at which the graphics controller is guaranteed to operate.)
- GPU Boost Clock Frequency: 1.81 gigahertz (The maximum ideal rate at which the graphics controller is able to operate, typically only for a short period of time.)
- DisplayPort Ports: 1 x DisplayPort (The number and type of DisplayPort outputs the product has.)
- HDMI Ports: 1 x HDMI (The number and type of HDMI outputs the product has.)
- Maximum Number of Displays Supported: 3
- Advanced Graphics Rendering Technique(s): DLSS (Deep Learning Super Sampling), Ray tracing (Imaging technology designed to improve graphics rendering.)
- GPU Video Memory (RAM): 16 gigabytes (Random-access memory (RAM) is a GPU’s, or graphics cards, short-term data storage, which allows active information to be accessed quickly. The size and type of RAM determines how efficiently the GPU can handle large amounts of information at one time. For example, larger amounts of RAM for gaming or video editing increases performance.)
- GPU Video Memory Type (RAM): GDDR6 (Each type of RAM delivers a different level of speed, bandwidth, energy efficiency and performance.)
- Slot Size: External GPU (A graphics card only requires one PCIe/PCI slot for connection to the motherboard but, depending on size, may block other slots. The slot size listed by the manufacturer is therefore not an exact measurement of the card's size but an indication of how much clearance will be available after it is installed.)
- Product Height: 30.48 millimeters (The out of box height of the item. Height is measured as the vertical distance from the bottom of the item to the top as it would be primarily used or placed.)
- Product Width: 154.94 millimeters (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
- Product Length: 208.28 millimeters (The out of box length of the item. Length is measured as the longest dimension of the item.)
- Graphics Processing Unit (GPU): NVIDIA GeForce RTX 3080 (Often referred to as a graphics card, a graphics processing unit (GPU) is the electronic circuitry responsible for manipulating and processing computer graphics/images and accelerating video decoding. Ultimately, a powerful GPU will provide a boost for anything involving visuals, including games, graphic design, and video editing.)
- General
- Product Name: ROG XG Mobile eGPU Dock - NVIDIA GeForce RTX 3080 Laptop GPU
- Brand: ASUS
- GPU Chipset Manufacturer: NVIDIA
- Graphics Processing Unit (GPU): NVIDIA GeForce RTX 3080 (Often referred to as a graphics card, a graphics processing unit (GPU) is the electronic circuitry responsible for manipulating and processing computer graphics/images and accelerating video decoding. Ultimately, a powerful GPU will provide a boost for anything involving visuals, including games, graphic design, and video editing.)
- Model Number: GC31S-004
- Color: Black
- Performance
- GPU Base Clock Frequency: 1.35 gigahertz (The minimum rate at which the graphics controller is guaranteed to operate.)
- GPU Boost Clock Frequency: 1.81 gigahertz (The maximum ideal rate at which the graphics controller is able to operate, typically only for a short period of time.)
- Cooling System: Fan (A computer's CPU generates heat while operating and requires a cooling system to keep internal components functioning properly. Air cooling uses fans to draw in cool air and exhaust hot air, while liquid cooling uses coolant-filled tubes and water blocks to regulate internal temperature more efficiently.)
- Connectivity
- DisplayPort Ports: 1 x DisplayPort (The number and type of DisplayPort outputs the product has.)
- HDMI Ports: 1 x HDMI (The number and type of HDMI outputs the product has.)
- Display
- Maximum Number of Displays Supported: 3
- Advanced Graphics Rendering Technique(s): DLSS (Deep Learning Super Sampling), Ray tracing (Imaging technology designed to improve graphics rendering.)
- Memory
- GPU Video Memory (RAM): 16 gigabytes (Random-access memory (RAM) is a GPU’s, or graphics cards, short-term data storage, which allows active information to be accessed quickly. The size and type of RAM determines how efficiently the GPU can handle large amounts of information at one time. For example, larger amounts of RAM for gaming or video editing increases performance.)
- GPU Video Memory Type (RAM): GDDR6 (Each type of RAM delivers a different level of speed, bandwidth, energy efficiency and performance.)
- GPU Video Memory Base Clock Frequency (RAM): 1.75 gigahertz
- Compatibility
- Slot Size: External GPU (A graphics card only requires one PCIe/PCI slot for connection to the motherboard but, depending on size, may block other slots. The slot size listed by the manufacturer is therefore not an exact measurement of the card's size but an indication of how much clearance will be available after it is installed.)
- Operating System Compatibility: Windows
- Power
- Total Graphics Power: 150 watts
- Recommended Power Supply: 280 watts
- Dimensions
- Product Height: 30.48 millimeters (The out of box height of the item. Height is measured as the vertical distance from the bottom of the item to the top as it would be primarily used or placed.)
- Product Width: 154.94 millimeters (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
- Product Length: 208.28 millimeters (The out of box length of the item. Length is measured as the longest dimension of the item.)
- Product Weight: 2.2 pounds (The out of box weight of the item.)
- Other
- UPC: 192876894347
The ROG XG Mobile External GPU Dock reinvents external graphics by combining performance and versatility with true portability. Pair the XG Mobile with an ROG Flow Z13, X13, or X16 device for one of the most versatile and complete systems. Despite being 6% of the size of typical eGPUs, this device harnesses a NVIDIA GeForce RTX 3080 Laptop GPU clocked to 1810MHz at 150W with ROG Boost. Our exclusive interface avoids common bottlenecks and adds dedicated bandwidth for an integrated I/O hub. The built-in adapter powers the eGPU and laptop so you can travel light.
- Go for Pro-Level Speed: ROG XG Mobile harnesses up to a NVIDIA GeForce RTX 3080 GPU clocked to 1810MHz at 150W with ROG Boost.
- Amp Up Your Play: Direct PCIe 3.0 x8 connection to the CPU dedicates 63Gb/s of bandwidth just to the graphics processor, beating Thunderbolt by 57.5%*.
- Adapt to Anything: Plug in all your favorite displays, peripherals, and more with 4x USB 3.2 Type-A Ports, 1x HDMI 2.0b, 1x DP 1.4, 1x Gigabit LAN, and 1x SD Card Reader.
- Go for Pro-Level Speed: The ROG XG Mobile is the ultimate choice for flexible gaming and content creation.
- Light Even Under Load: The ROG XG Mobile is the lightest and most compact external GPU in the world at just 6% of the size of typical eGPUs built for desktop graphics cards.
- Full Power: 280W Total Power for maximum gaming, creation, and more.
Whats Included
- ROG GC31S XG Mobile GPU Dock
A: Yes, the GC31S-004 is supported on the ASUS ROG Flow X16, please ensure Windows, chipset and video drivers are up to date.
A: The XG Mobile 3080 performs similarly to a 3080 laptop with the ally. Tested it with 3D Mark and it gets just shy of 13000 in Time Spy.
A: You have probably answered your own question already, but yes, the dock is a legitimate gpu solution. It really increases the capability and performance of my laptop vs the internal 3050 card.
Q: I have a rog strix g531g is this compatible?
A: No, it only works with machines in the Flow range, which have a special port to support this dock. Which currently is the Flow X13, Flow Z13, and Flow X16.
Q: To anyone that has purchased this item…do you like it?
A: I love it. It allows my laptop to render 3D scenes that even my desktop can't due to the 16GB of VRAM. It's amazing.
Q: Can this work on the legion go
A: No, it has a proprietary connector, so it only works with ASUS products.
Q: Does this support HDMI2.1 VRR and Gsync?
A: I'm not sure about the HDMI 2 but it does support Gsync on the laptop screen. If your second monitor does have Gsync it might
A: Supply and demand in all truth. Performance is varied on title. However, most games prefer nividia hardware
