Microsoft - Surface USB4 Dock - Black
Insignia™ - 6' USB-C to HDMI Cable - Black$27.99
More Buying Options
Related Item
About This Item
- Key Specs
- Maximum Number of Displays Supported: 2
- Maximum Supported Resolution: 4K (2160p)
- Number of DisplayPort Outputs (Total): 0
- Number of Thunderbolt Ports (Total): 0
- Passthrough Power: true (Indicates whether the device allows power to passthrough, possibly with some loss, to another device, typically to charge that other device.)
- General
- Brand: Microsoft
- Model Number: EP2-19862
- Product Name: Surface USB4 Dock
- Color: Black
- Display
- Maximum Number of Displays Supported: 2
- Maximum Supported Resolution: 4K (2160p)
- Ports
- Display Connector(s): Display connection via USB port, 1 x HDMI 2.1 (The number and type of connectors used to connect to an external display.)
- Number of DisplayPort Outputs (Total): 0
- Number of HDMI Ports (Total): 1
- Number of Thunderbolt Ports (Total): 0
- Number of VGA Ports: 0 (VGA (Video Graphics Adapter or Video Graphics Array) is a display standard that transmits via analog signals. This type of interface is typically used to connect a computer to a display device such as a monitor, projector, or TV.)
- Number Of Ethernet Ports: 1
- Number of USB Ports (Total): 4
- USB Ports: 4 x USB-C, 1 x USB-A (The number and type of USB ports the product has.)
- Headphone Jack: false (The device features an interface that allows for the connection of headphones.)
- Microphone Input: false (The device features an input for connecting an external microphone.)
- Memory Card Slot: false
- Power
- Powered: true
- Power Supply Included: true
- Power Supply Input: USB-C
- Maximum Input Power: 100 watts (The maximum amount of power allowed to come into the device.)
- Passthrough Power: true (Indicates whether the device allows power to passthrough, possibly with some loss, to another device, typically to charge that other device.)
- Power Supply Output: USB-C (The connector type(s) used by the device to send electrical power to another device.)
- Maximum Output Power: 65 watts (The maximum amount of power produced or allowed to flow through the device.)
- Compatibility
- Brand Compatibility: Microsoft
- Model Compatibility: Surface Pro (11th Edition) / X / 9 (Intel / Wi-Fi / 5G) / 8 / 7+ / 7, Surface Laptop (7th Edition) / 5 / 4 / 3, Surface Laptop Go 2, Surface Laptop Go
- Features
- Cable Lock Slot: Kensington Security Slot (K-Slot)
- Indicator Light(s): true

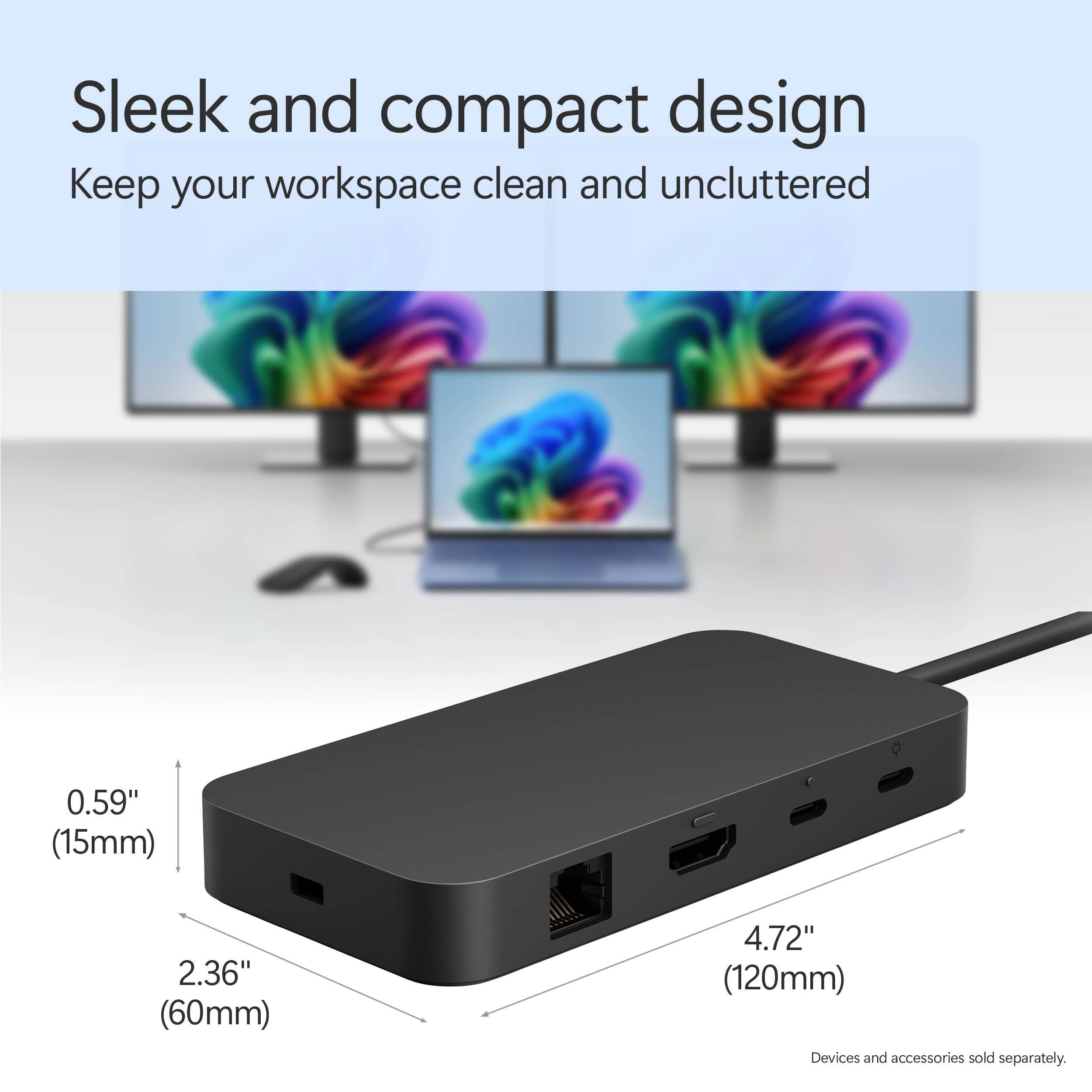

- Dimensions
- Product Height: 0.59 inches (The out of box height of the item. Height is measured as the vertical distance from the bottom of the item to the top as it would be primarily used or placed.)
- Product Length: 4.72 inches (The out of box length of the item. Length is measured as the longest dimension of the item.)
- Product Width: 2.36 inches (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
- Product Weight: 1.34 ounces (The out of box weight of the item.)
- Warranty
- Warranty - Parts: 1 year
- Warranty - Labor: 1 year
- Other
- UPC: 196388442867

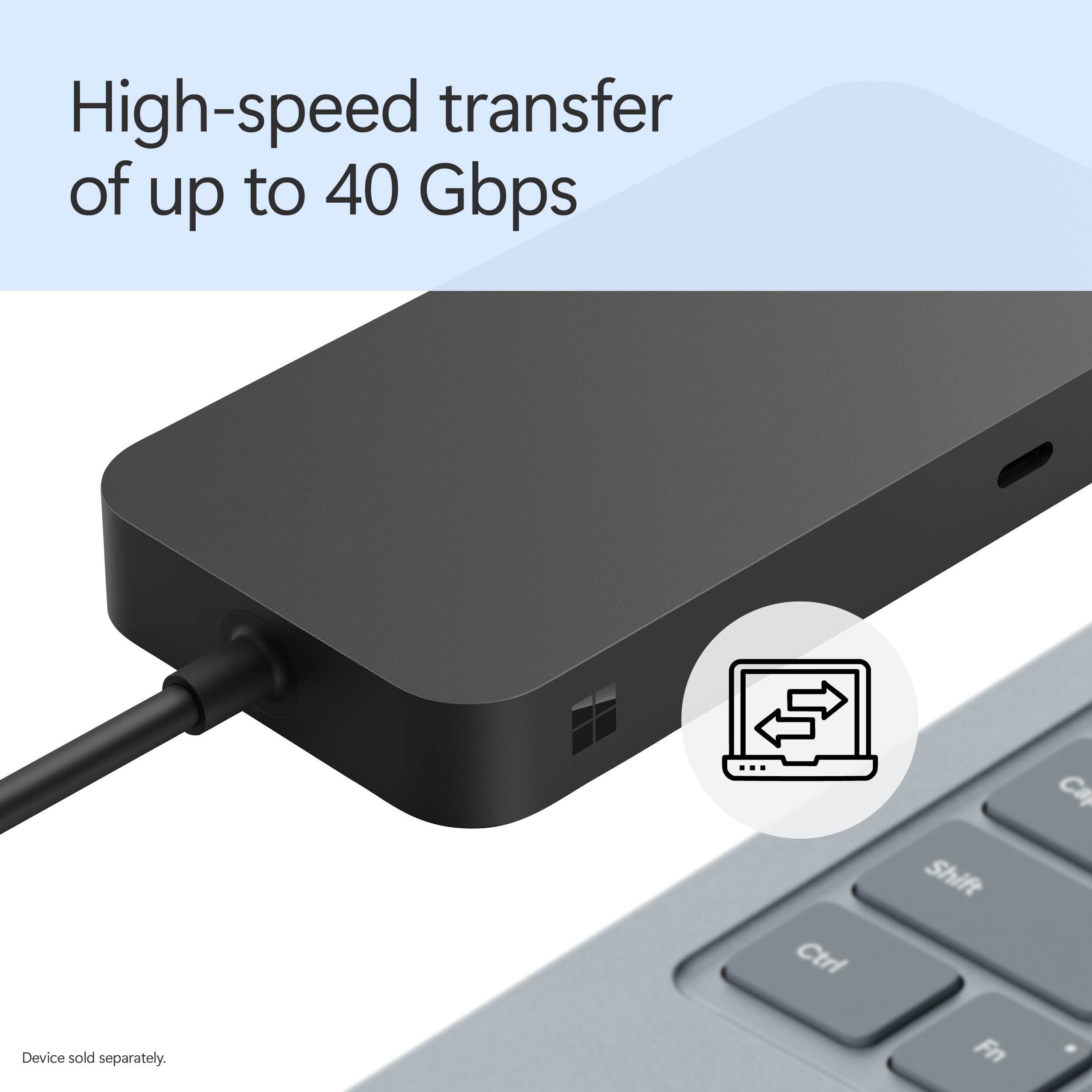

Optimize your workspace with Surface USB4 Dock, the essential dock for productivity and connectivity. Connect and power your device and accessories with 65W power delivery, ensuring peak performance throughout the workday. Surface USB4 Dock offers fast data transfer of up to 40 Gbps in a compact powerhouse. Surface USB4 Dock is the perfect blend of speed, power, and versatility.
- The essential dock for productivity and connectivity: Peak performance with the power of USB4. One single USB-C² ³/ USB4 cable powers your device and adds the productivity you need. Take Surface devices from low to full battery with up to 65W of power passthrough. Enjoy high-speed data transfer of up to 40 Gbps¹‒ 4x faster than USB-C/USB 3.2. Supports GIGa Ethernet, ensuring fast and reliable connection keeping you productive.

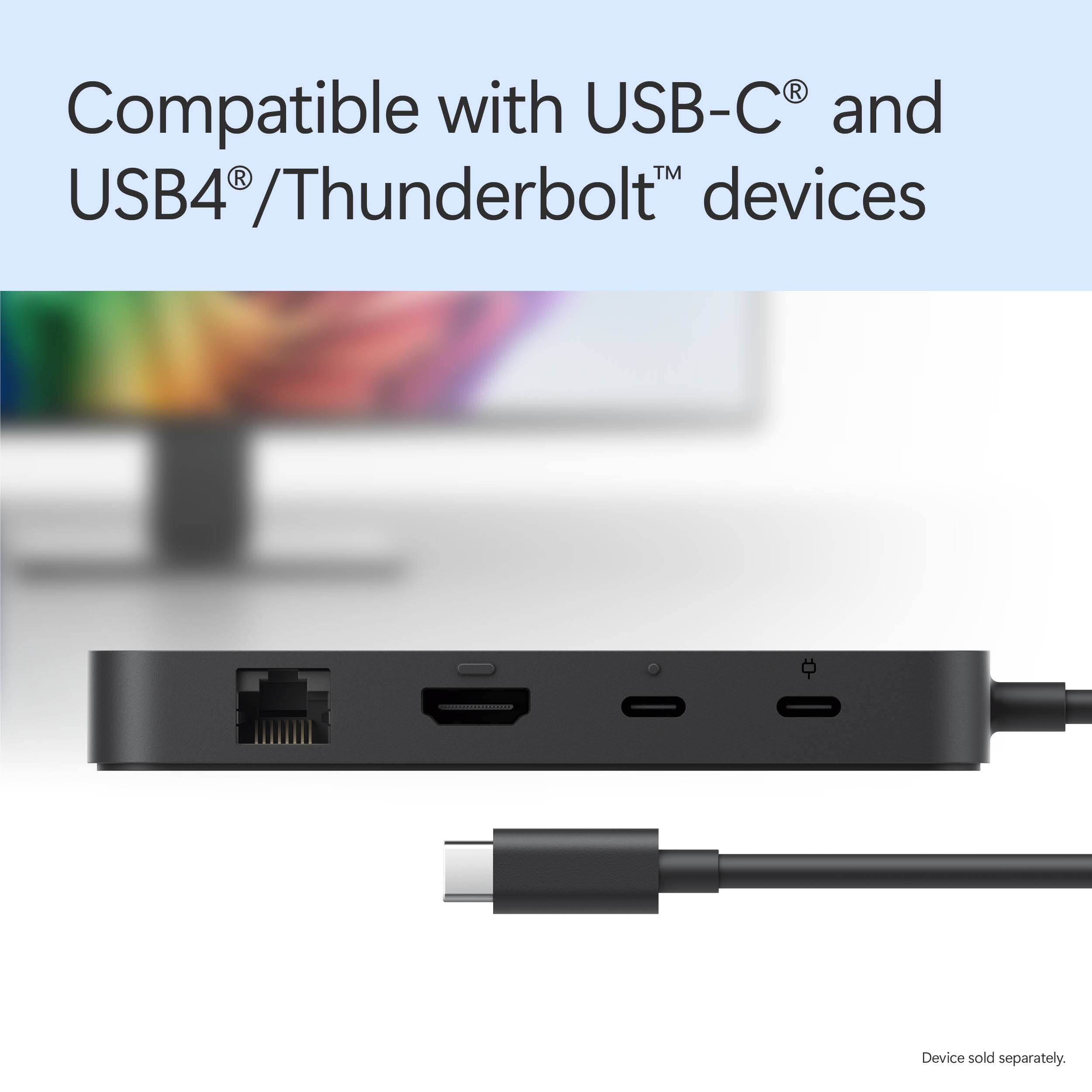

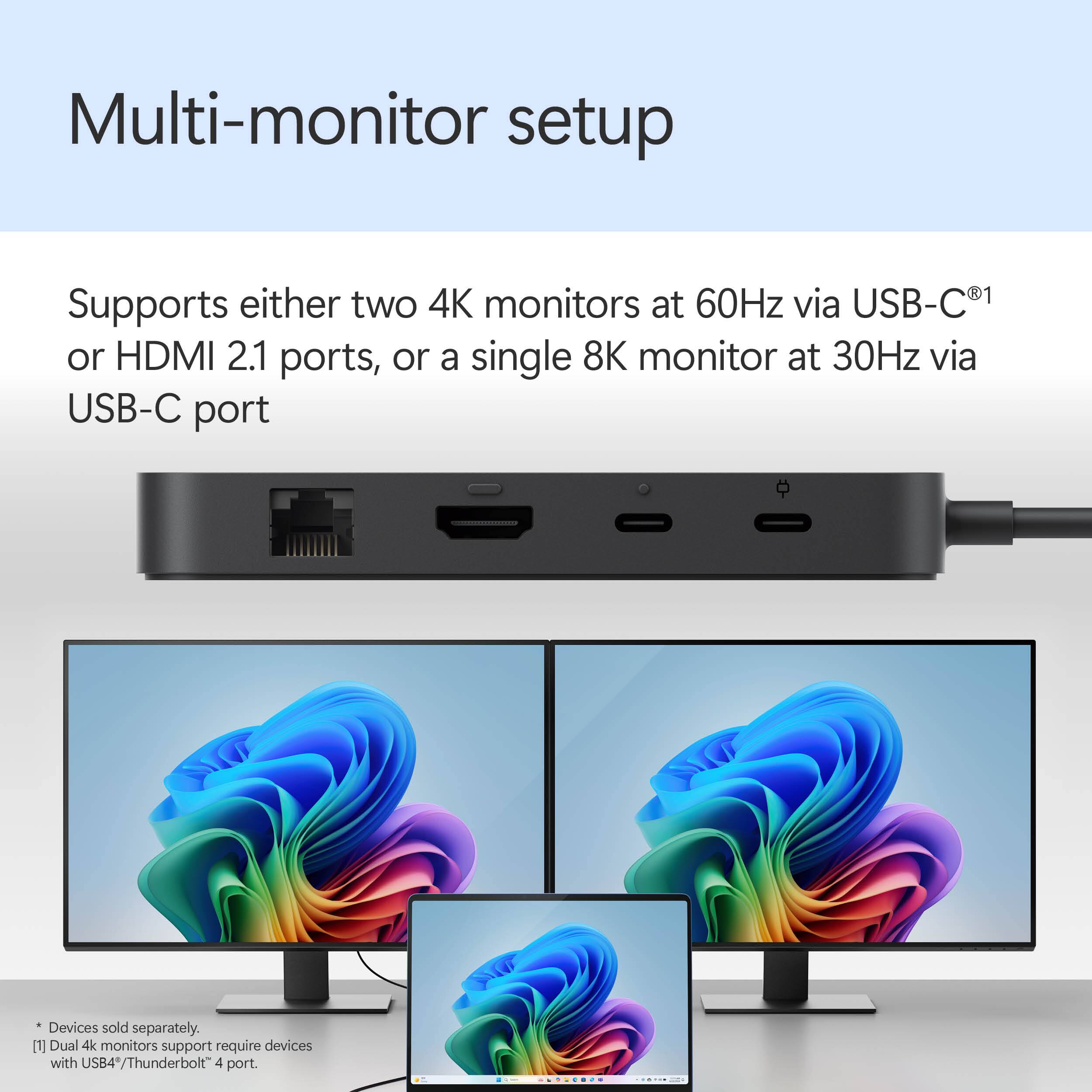

- Elevate your set up: Supports either two 4K monitors² at 60Hz via USB-C² ³ or HDMI 2.1 ports, or a single 8K monitor at 30Hz via USB-C port. Compatible with USB-C devices. Designed to work with Surface Devices including Surface Pro 8, 9, Pro (11th Edition), Laptop 5, 6, and Laptop (7th Edition). Compatible with any USB-C and USB4 /Thunderbolt 4 devices.
- Inclusive Design: Most frequently used ports are positioned at the front for effortless access and connectivity. Rear-facing ports are distinguishable by their tactile cues providing user-friendly port functionality.
- The essential dock for productivity and connectivity: Peak performance with the power of USB4. One single USB-C² ³/ USB4 cable powers your device and adds the productivity you need. Take Surface devices from low to full battery with up to 65W of power passthrough. Enjoy high-speed data transfer of up to 40 Gbps¹‒ 4x faster than USB-C/USB 3.2. Supports GIGa Ethernet, ensuring fast and reliable connection keeping you productive.
- Elevate your set up: Supports either two 4K monitors² at 60Hz via USB-C² ³ or HDMI 2.1 ports, or a single 8K monitor at 30Hz via USB-C port. Compatible with USB-C devices. Designed to work with Surface Devices including Surface Pro 8, 9, Pro (11th Edition), Laptop 5, 6, and Laptop (7th Edition). Compatible with any USB-C and USB4 /Thunderbolt 4 devices.
- Inclusive Design: Most frequently used ports are positioned at the front for effortless access and connectivity. Rear-facing ports are distinguishable by their tactile cues providing user-friendly port functionality.
Whats Included
- Surface USB4 Dock
- Power Supply
- Surface USB4 Dock
- Power Supply
Disclaimers
- ¹Surface USB4 Dock is compatible with USB-C devices. However, when connected, it operates at the speeds and capabilities of the USB-C port. USB-C/USB 3.2 connection supports one external display up to 4K at 60Hz (when supported by device and display). Or you can daisy chain more monitors.
- ²Requires device with USB4/Thunderbolt 4 port and a supported device and display.
- ³USB-C is a registered trademark of USB implementers Forum.
- ¹Surface USB4 Dock is compatible with USB-C devices. However, when connected, it operates at the speeds and capabilities of the USB-C port. USB-C/USB 3.2 connection supports one external display up to 4K at 60Hz (when supported by device and display). Or you can daisy chain more monitors.
- ²Requires device with USB4/Thunderbolt 4 port and a supported device and display.
- ³USB-C is a registered trademark of USB implementers Forum.
Q: Does the dock have a headphone jack?
A: No, the dock does not have a headphone jack.
Q: How many monitors does the dock support?
A: The dock supports either two 4K monitors at 60Hz via USB-C or HDMI 2.1 ports, or a single 8K monitor at 30Hz via USB-C port.
Q: Is a power supply included with the dock?
A: Yes, a power supply is included.
Q: What is the maximum data transfer speed of this dock?
A: The Surface USB4 Dock offers high-speed data transfer of up to 40 Gbps, which is 4x faster than USB-C/USB 3.2.
Q: How many USB ports are there on the Surface Dock?
A: The dock has 4 USB-C ports.
Q: Does this dock have a Kensington lock slot?
A: Yes, it has a Kensington Security Slot (K-Slot).
Q: What is the maximum power output of this dock?
A: The maximum output power is 65 watts.
