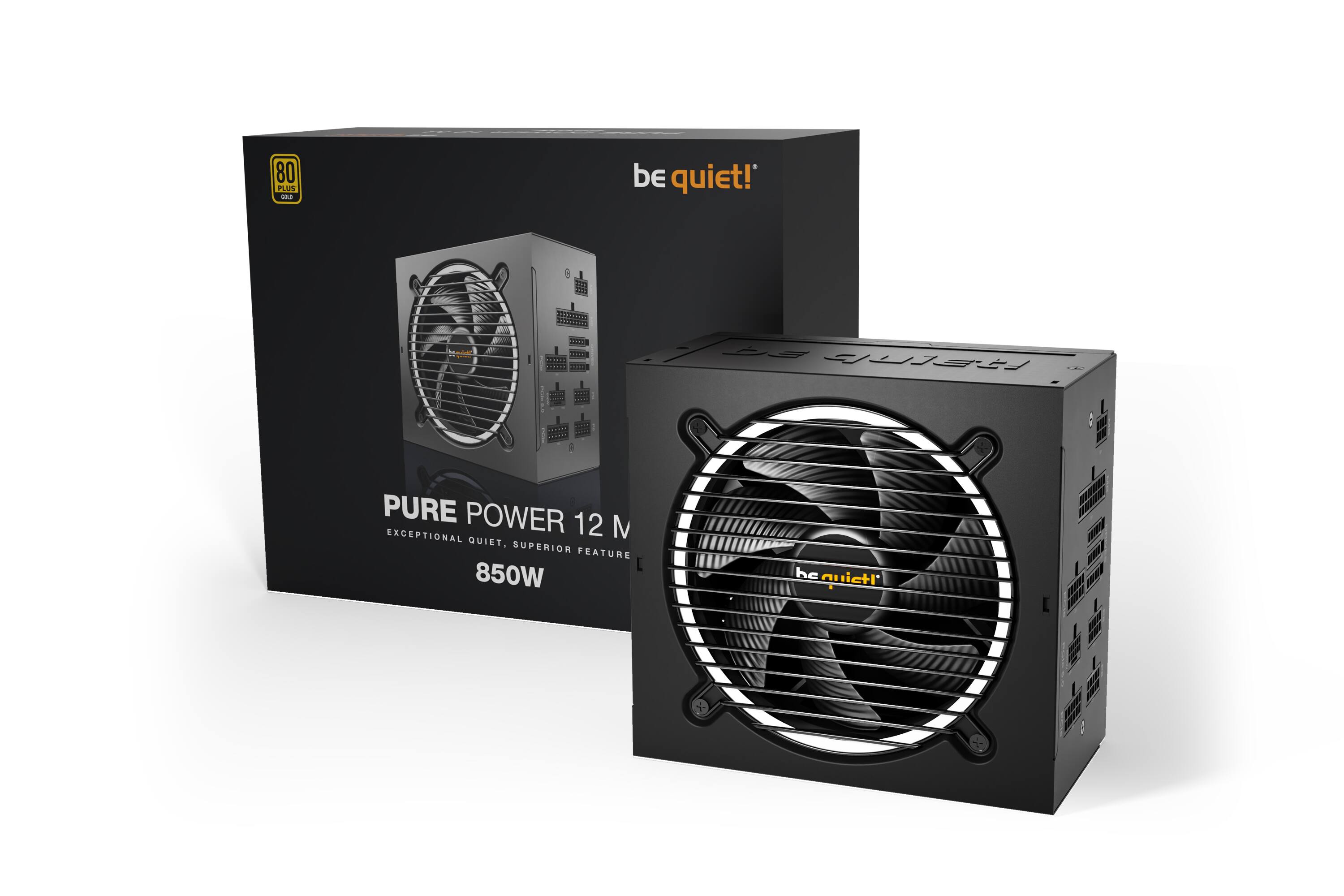

be quiet! - Pure Power 12 M 850W ATX 80 Plus Gold Modular Power Supply - Black
Wattage
850 wattsSpecifications
- Wattage850 wattsModularFully modularEnergy Efficiency80 PLUS GoldATX ConnectorATX 20+4 Pin CablePCIe Connector4x PCIe 8-PIN (6+2)EPS12V Connector1
- Key Specs
- Wattage: 850 watts (Measurement of electrical power.)
- Modular: Fully modular
- Energy Efficiency: 80 PLUS Gold (Computer and server power supplies with the 80 PLUS certification are tested for operating efficiency at 10, 20, 50, and 100% of rated load. If a product tests at least 80% efficient, it qualifies for the base level 80 PLUS certification. Bronze, Silver, Gold, Platinum, and Titanium level certifications are given to products with even higher efficiency ratings.)
- ATX Connector: ATX 20+4 Pin Cable (The configuration of the connector as it connects a computer power supply unit to an ATX motherboard.)
- PCIe Connector: 4x PCIe 8-PIN (6+2) (The configuration of the connector as it connects a computer power supply unit to a PCIe (Peripheral Component Interconnect Express) motherboard interface.)
- EPS12V Connector: 1 (The configuration of the connector as it connects a computer power supply unit to a EPS12V motherboard interface.)
- PCI Express Version: PCI Express 5.0
- Form Factor: ATX (The size, arrangement, and physical configuration of the product.)
- Product Length: 160 millimeters (The out of box length of the item. Length is measured as the longest dimension of the item.)
- General
- Brand: be quiet!
- Model Number: BN505
- Product Name: Pure Power 12 M 850W ATX 80 Plus Gold Modular Power Supply
- Color: Black
- Power
- Wattage: 850 watts (Measurement of electrical power.)
- Modular: Fully modular
- Energy Efficiency: 80 PLUS Gold (Computer and server power supplies with the 80 PLUS certification are tested for operating efficiency at 10, 20, 50, and 100% of rated load. If a product tests at least 80% efficient, it qualifies for the base level 80 PLUS certification. Bronze, Silver, Gold, Platinum, and Titanium level certifications are given to products with even higher efficiency ratings.)
- Power Cord Included: true (Connects your product to an electrical outlet, allowing for immediate use (provided that other installation requirements are met).)
- Connectivity
- ATX Connector: ATX 20+4 Pin Cable (The configuration of the connector as it connects a computer power supply unit to an ATX motherboard.)
- PCIe Connector: 4x PCIe 8-PIN (6+2) (The configuration of the connector as it connects a computer power supply unit to a PCIe (Peripheral Component Interconnect Express) motherboard interface.)
- EPS12V Connector: 1 (The configuration of the connector as it connects a computer power supply unit to a EPS12V motherboard interface.)
- PCI Express Version: PCI Express 5.0
- Form Factor: ATX (The size, arrangement, and physical configuration of the product.)
- Dimensions
- Product Height: 86 millimeters (The out of box height of the item. Height is measured as the vertical distance from the bottom of the item to the top as it would be primarily used or placed.)
- Product Width: 150 millimeters (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
- Product Length: 160 millimeters (The out of box length of the item. Length is measured as the longest dimension of the item.)
- Product Weight: 110 ounces (The out of box weight of the item.)
- Warranty
- Warranty - Parts: 10 Year Limited Warranty
- Warranty - Labor: 10 Year Limited Warranty
- Other
- UPC: 4260052189795
Pure Power 12 is be quiet!’s entry in the ATX 3 era. The PSU series is fully equipped with high-class technology such as LLC topology and up to 5 PCI express connectors for both PCIe 5.1 GPUs and GPUs with PCIe 6+2 connectors. It can handle power excursions up to double its rated power with ease. This makes Pure Power 12 the perfect choice for all who strive for a PSU with high performance and yet very low noise for their current- or next-gen graphics card.
- 80 PLUS Gold Certified: Pure Power 12 M 850W is certified 80 PLUS Gold with an outstanding efficiency rating of up to 93.2%
- Future-proof with ATX 3.1: Pure Power 12 M 850W is an ATX 3.1 PSU and comes with both native integration of the 12V-2x6 connector for next-generation PCIe 5.1 graphics cards, and PCIe 6+2-pin connectors for support of current-gen GPUs.
- Dual Independent 12V Rails: Pure Power 12 M offers 850W of continuous power with 2 independent 12V rails.
- Unprecedented silent operation: The exceptionally silent 120mm be quiet! fan is temperature-controlled to strike the best balance between effective cooling and quietness.
- Modular Cables: Pure Power 12 M 850W simplifies cable management and routing for a tidy-looking system.
