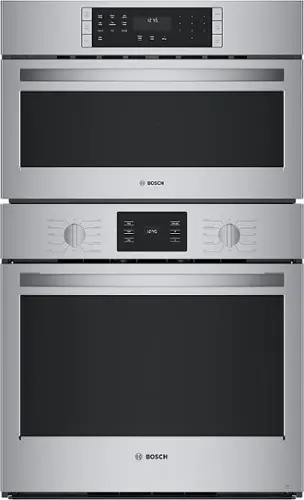

Bosch - 500 Series 30" Built-In Double Electric Combination Microwave and Wall Oven with Convection - Stainless Steel
Need-haul away?
Related Item
Specifications
- Color FinishStainless steelProduct Height49 inchesProduct Width29 3/4 inchesProduct Depth24 1/2 inchesDepth Without Handle24 1/2 inchesDepth With Handle26 5/8 inches
- Key Specs
- Color Finish: Stainless steel
- Product Height: 49 inches (The out of box height of the item. Height is measured as the vertical distance from the bottom of the item to the top as it would be primarily used or placed.)
- Product Width: 29 3/4 inches (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
- Product Depth: 24 1/2 inches (The out of box depth of the item. Depth is measured as the distance from the front of the item to the back as it would be primarily used or placed.)
- Depth Without Handle: 24 1/2 inches (Measurement from the back of the product to its front (with door closed), not including handle.)
- Depth With Handle: 26 5/8 inches (Measurement from the back of the product to its front (with door closed), including the handle.)
- Oven 1 Convection: true (A fan and exhaust system that circulate air to heat the entire oven interior consistently for baking and roasting.)
- Oven 2 Convection: false (A fan and exhaust system that circulate air to heat the entire oven interior consistently for baking and roasting.)
- App Compatible: false (The product can be connected to a program or software application on a mobile device, which then receives collected data from the product.)
- General
- Brand: Bosch
- Model Number: HBL5754UC
- Product Name: 500 Series 30" Built-In Double Electric Combination Microwave and Wall Oven with Convection
- Color: Stainless Steel
- Color Finish: Stainless steel
- Vendor Collection: Bosch 500 Series (Part of a line of different product types, like kitchen appliances.)
- Dimensions
- Product Height: 49 inches (The out of box height of the item. Height is measured as the vertical distance from the bottom of the item to the top as it would be primarily used or placed.)
- Product Width: 29 3/4 inches (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
- Product Depth: 24 1/2 inches (The out of box depth of the item. Depth is measured as the distance from the front of the item to the back as it would be primarily used or placed.)
- Standardized Width: 30 inches (An approximated measurement (exact width may differ slightly) determined by the manufacturer in accordance with industry standards. Standardized sizes are intended to assist consumers when purchasing appliances and planning for installation.)
- Depth Without Handle: 24 1/2 inches (Measurement from the back of the product to its front (with door closed), not including handle.)
- Depth With Handle: 26 5/8 inches (Measurement from the back of the product to its front (with door closed), including the handle.)
- Depth With Door 90 Degrees Open: 46 7/8 inches (Measurement from the back of the product to its front, with the door open at a 90-degree angle.)
- Product Weight: 272 pounds (The out of box weight of the item.)
- Cut-Out Dimensions
- Cut-Out Height: 48 5/8 inches (Minimum required height of the installation location for a standard installation of the product. This measurement will help you determine if the appliance will fit into the desired space and have the clearance necessary for proper operational use. Please refer to the manufacturer’s installation documentation for detailed measurement requirements.)
- Cut-Out Width: 28 1/2 inches (Minimum required width of the installation location for a standard installation of the product. This measurement will help you determine if the appliance will fit into the desired space and have the clearance necessary for proper operational use. Please refer to the manufacturer’s installation documentation for detailed measurement requirements.)
- Cut-Out Depth: 23 1/2 inches (Minimum required depth of the installation location for a standard installation of the product. This measurement will help you determine if the appliance will fit into the desired space and have the clearance necessary for proper operational use. Please refer to the manufacturer’s installation documentation for detailed measurement requirements.)
- Capacity
- Oven 1 Capacity: 4.6 cubic feet
- Oven 2 Capacity: 4.6 cubic feet
- Features
- Oven Type: Microwave and wall oven combination
- Oven Power Source: Electric
- Auto Shut-Off: true (Feature automatically turns off the product.)
- Control Type: Touchpad
- Clock Display: true
- Oven Light: true
- Wireless Connectivity: None (The manner in which a device sends data to another device over a short distance without the use of wires or cables.)
- Turntable Diameter: 12 3/4 inches
- Removable Turntable: true
- Turntable: true (Rotating plate within the microwave cooking cavity that helps foods cook more evenly.)
- Design
- Display Type: LED
- Functions
- Sabbath Mode: true (This mode complies with the rules of Halakha and allows Shabbat-observant people to use the appliance on the Shabbat and other Jewish holidays.)
- Delay Clean Option: true
- Keep Warm Setting: true
- Variable Broil: true (This feature allows you to change the temperature of the broil function, which provides more versatility and control when preparing your favorite foods.)
- Timer: true
- Time Bake: true (Allows you to program the appliance to run at a pre-determined time and automatically turn off when baking time is finished. Plan for mealtime or entertaining by setting your oven to start baking at a convenient time and reduce the worry of overcooking your food with the automatic shut off feature.)
- Rapid Preheat: true
- Oven 1
- Oven 1 Location: Lower
- Oven 1 Interior Height: 9 7/8 inches
- Oven 1 Interior Width: 16 1/2 inches
- Oven 1 Interior Depth: 16 1/2 inches
- Oven 1 Convection: true (A fan and exhaust system that circulate air to heat the entire oven interior consistently for baking and roasting.)
- Oven 1 Convection Type: Convection (Convection adds a fan system to the two heating elements for continuous air motion and efficient cooking. True convection adds a third heating element to the fan system, for even more uniform heating.)
- Oven 1 Window: true
- Oven 1 Cleaning Method: Self-High Heat Cleaning (There are several ways to clean the inside of your oven. Depending on the model, it might require manual cleaning or have a self-clean function. Self-clean functions use either high heat or steam to break down grease and food debris within the cooking cavity.)
- Number of Oven 1 Rack Positions: 1
- Number of Oven 1 Racks: 1
- Oven 1 Bake Element: 600 watts
- Oven 1 Broil Element: 1750 watts
- Oven 2
- Oven 2 Location: Upper
- Oven 2 Interior Height: 17 13/16 inches
- Oven 2 Interior Width: 24 1/8 inches
- Oven 2 Interior Depth: 18 inches
- Oven 2 Convection: false (A fan and exhaust system that circulate air to heat the entire oven interior consistently for baking and roasting.)
- Oven 2 Convection Type: Convection (Convection adds a fan system to the two heating elements for continuous air motion and efficient cooking. True convection adds a third heating element to the fan system, for even more uniform heating.)
- Oven 2 Window: true
- Oven 2 Cleaning Method: Manual (There are several ways to clean the inside of your oven. Depending on the model, it might require manual cleaning or have a self-clean function. Self-clean functions use either high heat or steam to break down grease and food debris within the cooking cavity.)
- Number of Oven 2 Rack Positions: 6
- Number of Oven 2 Racks: 2
- Oven 2 Bake Element: 2400 watts
- Oven 2 Broil Element: 3800 watts
- Electrical
- Amperage: 40 amperes (Strength of electrical current.)
- Voltage: 240 volts (Amount of power needed to support an electrical current.)
- Wattage: 9600 watts (Measurement of electrical power.)
- Amperage At 208 Volts: true
- Amperage At 240 Volts: true
- Kilowatt Rating At 208 Volts: true
- Kilowatt Rating At 240 Volts: true
- Included
- Power Cord Included: false (Connects your product to an electrical outlet, allowing for immediate use (provided that other installation requirements are met).)
- Certifications Listings & Approvals
- ADA Compliant: false (Meets standards set by the Disabilities Act (ADA) Standards for Accessible Design)
- Product Safety Certifications and Standard(s): CSA Listed (Lists the applicable certifications and/or standards, as stated by the manufacturer, in which the product has met the requirements for the assurance of quality and safety.)
- Chemical Disclosures: Free of PFAS, PFOA, lead, and cadmium. For more information about PFAS chemicals, visit https://bshpersona.com/productdisclosures/. Libre de PFAS, PFOA, plomo, y cadmio. Para obtener más información sobre las sustancias químicas PFAS, visite https://bshpersona.com/productdisclosures/. (The disclosure of Per- and Polyfluorinated Substances (PFAS) and/or other chemicals.)
- Warranty
- Warranty - Parts: 1-year
- Warranty - Labor: 1 year
- Compatibility
- App Compatible: false (The product can be connected to a program or software application on a mobile device, which then receives collected data from the product.)
- Other
- UPC: 825225962564

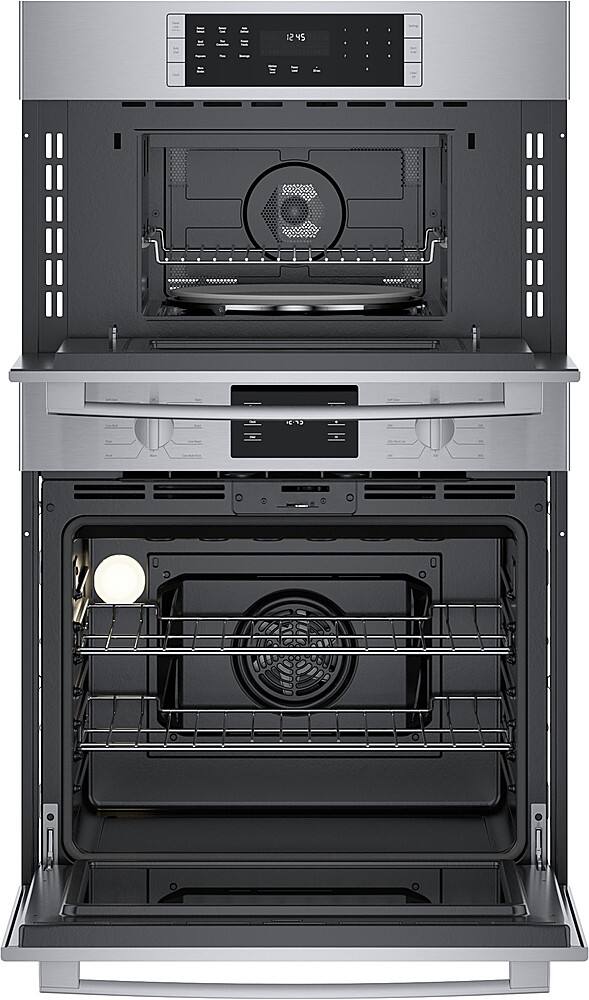

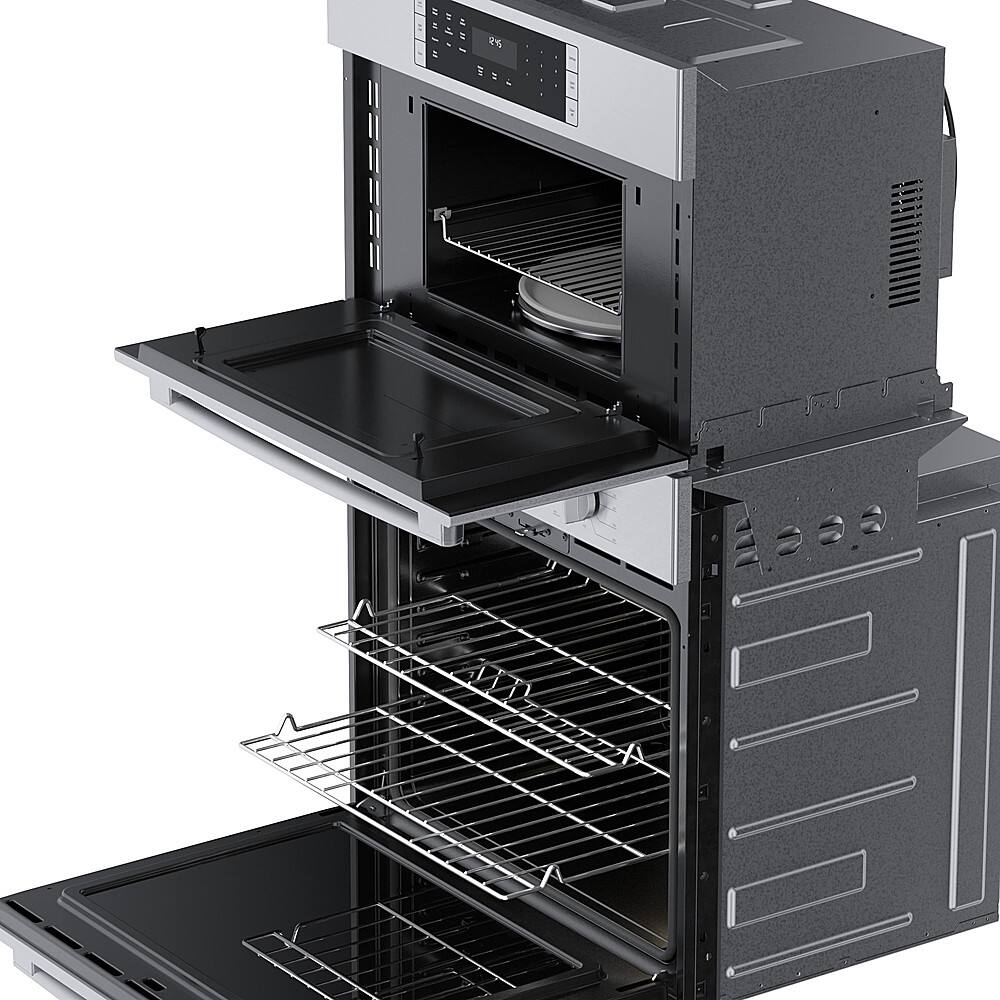

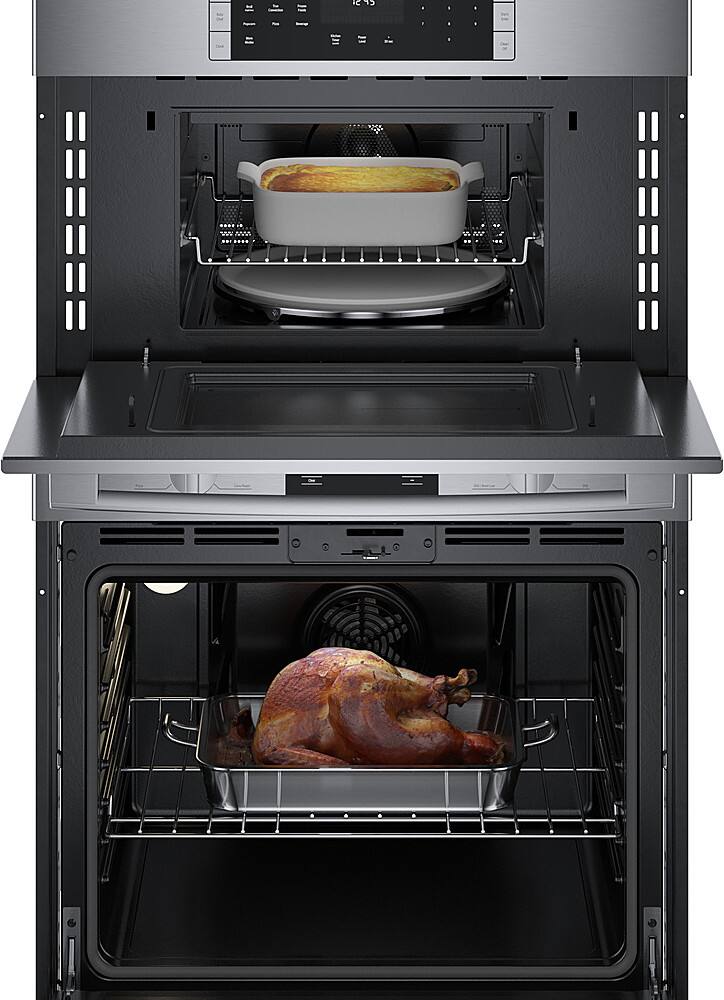

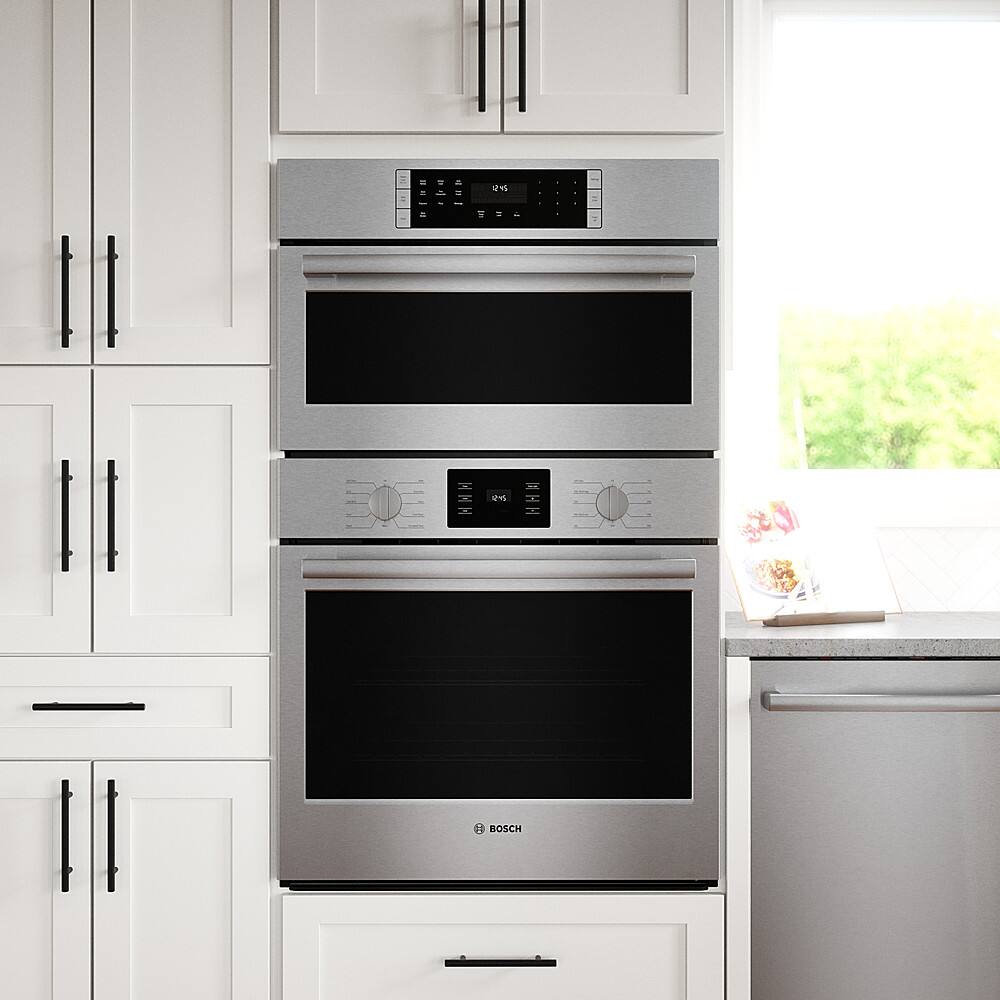

The Bosch 30" stainless steel Speed Combination Oven combines your favorite kitchen tools into one appliance. The upper speed oven functions as both a microwave and a convection oven so you have cooking flexibility. Use the lower wall oven to bake, broil, roast, proof and even as a warming drawer. Convection Pro ensures food is always cooked evenly, no matter where you place your pan. Varied capacity options allow enough space to cook everyday meals or for a crowd. Easily maintain the oven with the Self-Clean option which makes cleanup simple and convenient.
- Large capacity: With capacities of 1.6 cu. ft upper speed oven and 4.6 cu. ft. lower oven allows enough space to cook everyday meals or for a crowd.

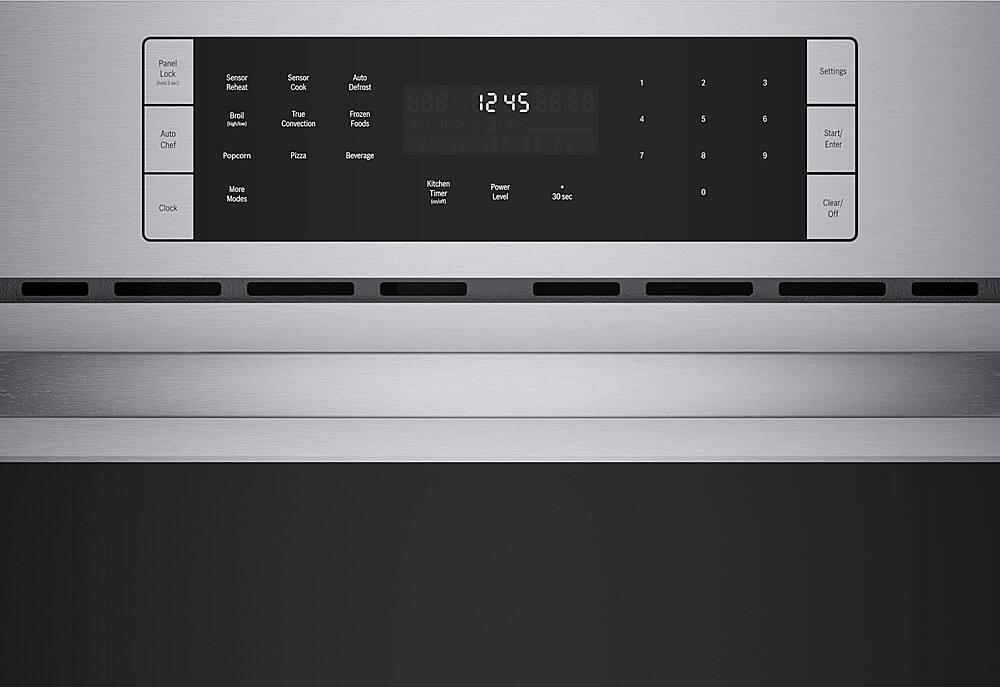

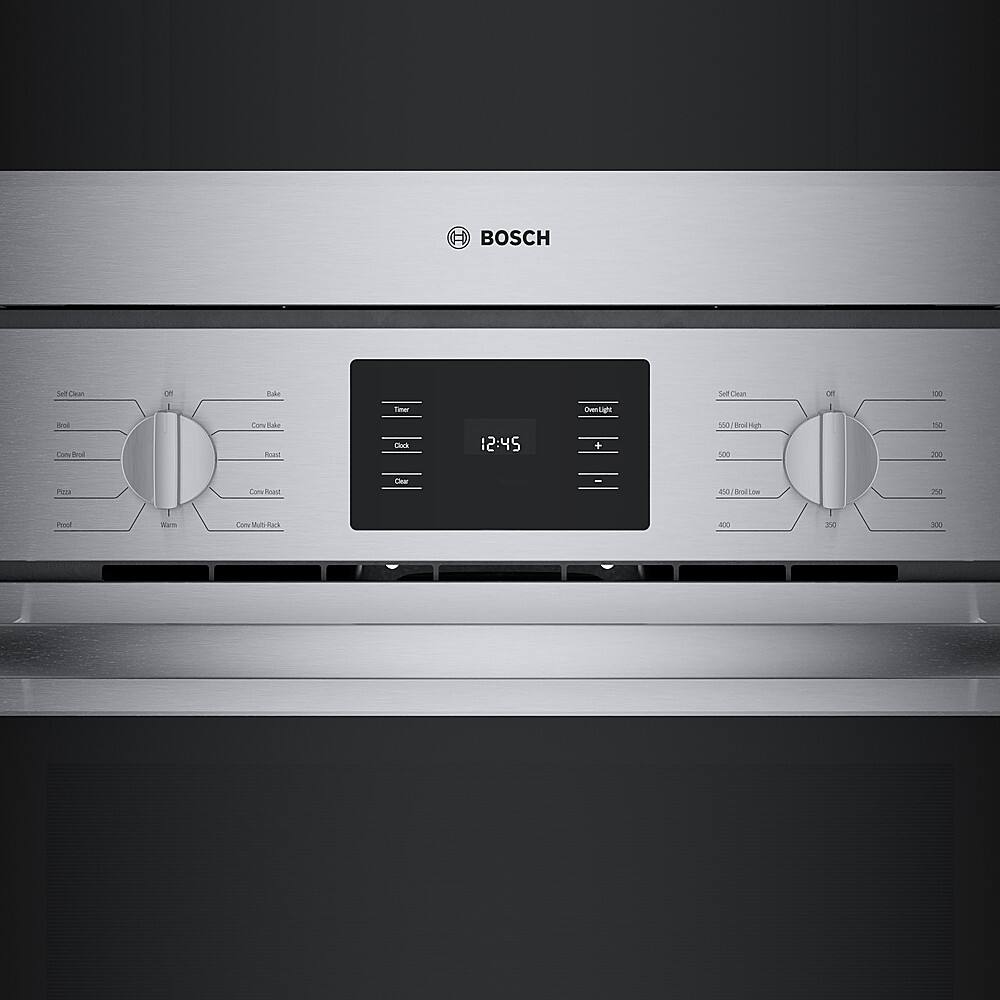

- Sleek control panel: Upper speed oven has an easy to use touch control panel, and the lower oven has premium, heavy-duty knobs.
- Speed Combination Oven: 2-in-1 microwave and convection upper oven with 9 SpeedChef programs to simplify cooking with fast results.
- European convection: Lower oven with Convection Pro has a third heating element and a fan to evenly circulate heat and cook food quickly.
- Even bake results: Get even, consistent results every time, no matter where you place your pan.
- Exceptional broil coverage: A 12 pass broil element sears, browns, and chars meats and casseroles to perfection.
- Warm mode: Keep food warm without overcooking until ready to serve by using the warm mode.
- Automatic lock features: Keep your home safe by avoiding accidental or unsupervised use of the upper speed oven with the panel lock feature, and the lower oven has an automatic locking feature in self-cleaning mode.
- Various self-clean cycles: 2, 3, and 4 hour self-clean cycles available saving time and energy.
- Large window: Large transparent oven window lets you easily monitor the cooking progress without opening the door.
- Bright interior light: 1 upper and lower interior oven lights provide visibility into the cavity so you can see your meal's cooking progress.
Whats Included
- 500 Series 30" Built-In Electric Convection Wall Oven with Built-In Microwave
- Metal turntable
- 2 x standard racks
- Square rack
- Ceramic cooking tray
- Owners manual
Q: Does this oven have a self-cleaning feature?
A: Yes, this oven offers a variety of self-clean cycles, including 2, 3, and 4-hour options to save you time and energy.
Q: Does the oven have a large capacity?
A: Yes, it has a large capacity with a 1.6 cu. ft. upper speed oven and a 4.6 cu. ft. lower oven, providing ample space for both everyday meals and larger gatherings.
A: This is a speed combination oven that functions as both a microwave and convection oven.
Q: Are there any safety features on this oven?
A: Yes, the oven is equipped with automatic lock features for safety. The upper speed oven has a panel lock to prevent accidental or unsupervised use, while the lower oven automatically locks during the self-cleaning mode.
Q: How does the convection technology in this oven work?
A: The lower oven utilizes European convection with a third heating element and a fan to ensure heat is circulated evenly for faster and more consistent cooking.
Q: Can I keep food warm in this oven without overcooking it?
A: Yes, the oven includes a warm mode that maintains food temperature without further cooking until you're ready to serve.
A: HI CJ, thank you for your question and interest in Model:HBL57M52UC. Here are all of the dimensions for this Oven: Overall appliance dimensions: (HxWxD)(in) 49" x 29 3/4" x 24 1/2". Required cutout size – Standard: (HxWxD) (in)48 5/8" x 28 1/2" x 23 1/2". Required cutout size – Flush: (HxWxD) (in) 49 1/8" x 30" x 24 1/2".
