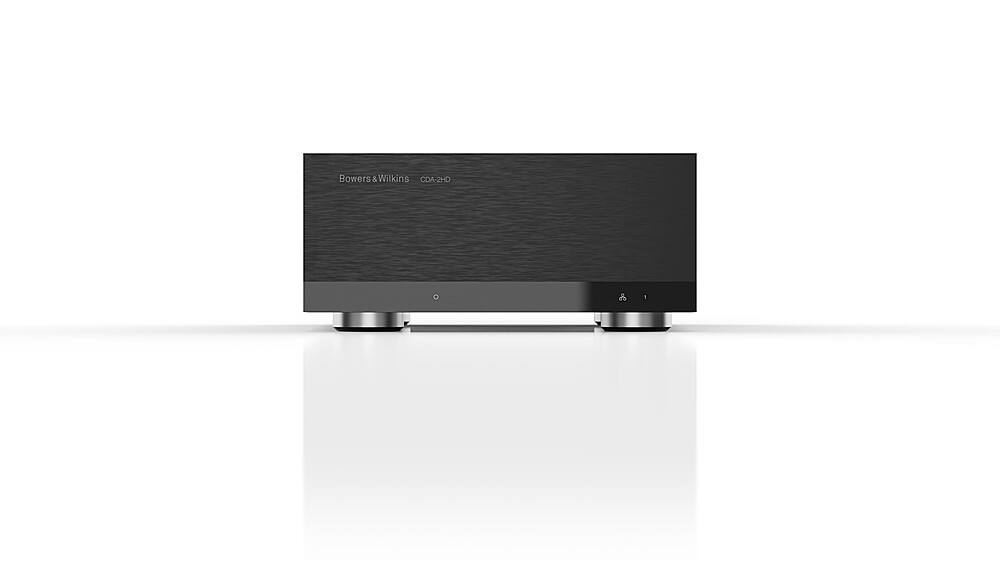

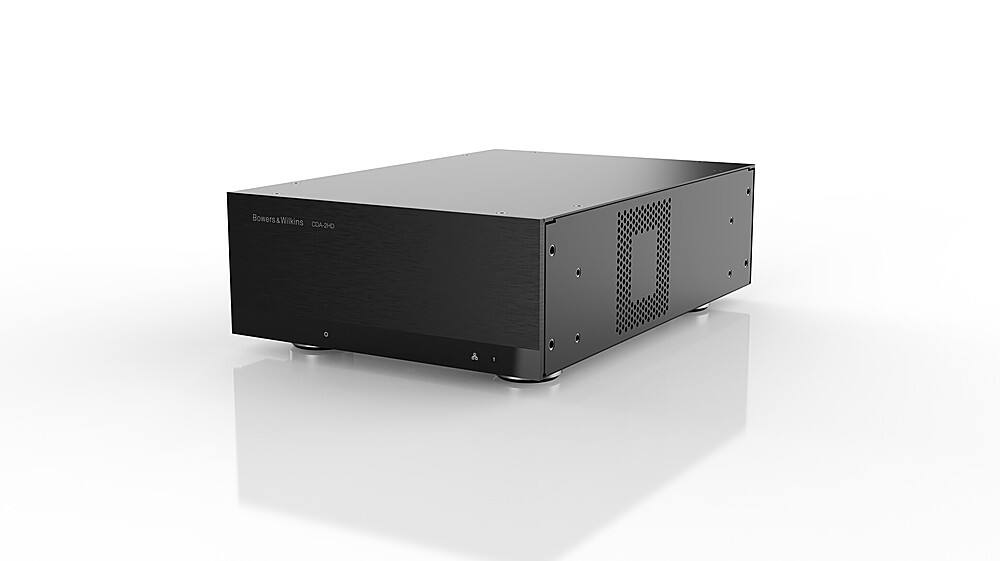

Bowers & Wilkins - CDA-2HD 500W 2-Channel DSP Amplifier - Black
Related Item
Specifications
- Continuous Watts x Channel @ Ohms250W x 2 @ 8 OhmsNumber of Channels2Network Connector(s)No network connectors
- Key Specs
- Continuous Watts x Channel @ Ohms: 250W x 2 @ 8 Ohms
- Number of Channels: 2 (The number of discrete channels of sound output. This can be a single number or multiple numbers separated by decimal(s). The first number is the primary, horizontally directed audio channels. The number after the first decimal, if applicable, is the number of subwoofer outputs or channels. The number after the second decimal, if applicable, is the number of height or atmospheric channels designed to immerse the listener by producing overhead sound effects.)
- Network Connector(s): No network connectors
- General
- Brand: Bowers & Wilkins
- Model Number: CDA-2HD
- Product Name: CDA-2HD 500W 2-Channel DSP Amplifier
- Color: Black
- Audio
- Continuous Watts x Channel @ Ohms: 250W x 2 @ 8 Ohms
- Maximum Watts x Channel @ Ohms: 500W x 2 @ 4 Ohms (This is the maximum load the speaker, subwoofer or amp can drive.)
- Total Power Handling: 1000 watts (How much amplifier (amplified) power (wattage) that can be handled before damaging the product.)
- Number of Channels: 2 (The number of discrete channels of sound output. This can be a single number or multiple numbers separated by decimal(s). The first number is the primary, horizontally directed audio channels. The number after the first decimal, if applicable, is the number of subwoofer outputs or channels. The number after the second decimal, if applicable, is the number of height or atmospheric channels designed to immerse the listener by producing overhead sound effects.)
- Minimum Frequency Response: 10 hertz (Describes the maximum range of frequencies or musical tones a product can reproduce, from very low tones to very high treble tones. The minimum frequency or musical tone the speaker can reproduce. High treble tones have higher frequencies while low tones and deep bass have lower frequencies.)
- Total Harmonic Distortion: 1 percent (Measurement of the harmonic sound distortion. The lower the percentage, the cleaner the sound.)
- Maximum Frequency Response: 30 kilohertz (Describes the maximum range of frequencies or musical tones a product can reproduce, from very low tones to very high treble tones. The maximum frequency or musical tone the speaker can reproduce. High treble tones have higher frequencies while low tones and deep bass have lower frequencies.)
- Amplifier Class: D (An amplifier's mode of operation, specifically the conditions in which its electrical current flows for the duration of an audio signal, determines its class. Each class has its strengths and weaknesses when it comes to power efficiency, levels of crossover distortion, and overall sound quality.)
- Amplifier Type: Power amplifiers
- Audio
- Impedance: 3 (Describes the resistance of an electric signal throughout the system. Devices with low impedance require less power to deliver optimal signals but are more at risk for damage from overloading. Higher impedance requires more power but is more protected from overload damage.)
- Inputs
- Video Only Inputs: No video only inputs (The number and type of video signal only inputs the product has.)
- Network Connector(s): No network connectors
- Line-Level Inputs: true (Also referred to as low-level inputs. Enables the amplifier to receive a sound signal from another device via RCA cables.)
- Outputs
- Speaker Connection Type: RCA
- Video Only Outputs: No video only outputs (The number and type of video signal only outputs the product has.)
- Features
- Bridgeable: true (Bridging an amplifier increases the power it supplies to the speaker(s).)
- Dimensions
- Product Height: 3.9 inches (The out of box height of the item. Height is measured as the vertical distance from the bottom of the item to the top as it would be primarily used or placed.)
- Product Width: 12.64 inches (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
- Product Depth: 8.57 inches (The out of box depth of the item. Depth is measured as the distance from the front of the item to the back as it would be primarily used or placed.)
- Product Weight: 7.58 pounds (The out of box weight of the item.)
- Warranty
- Warranty - Parts: 2 years
- Warranty - Labor: 2 years
- Other
- UPC: 714346339969

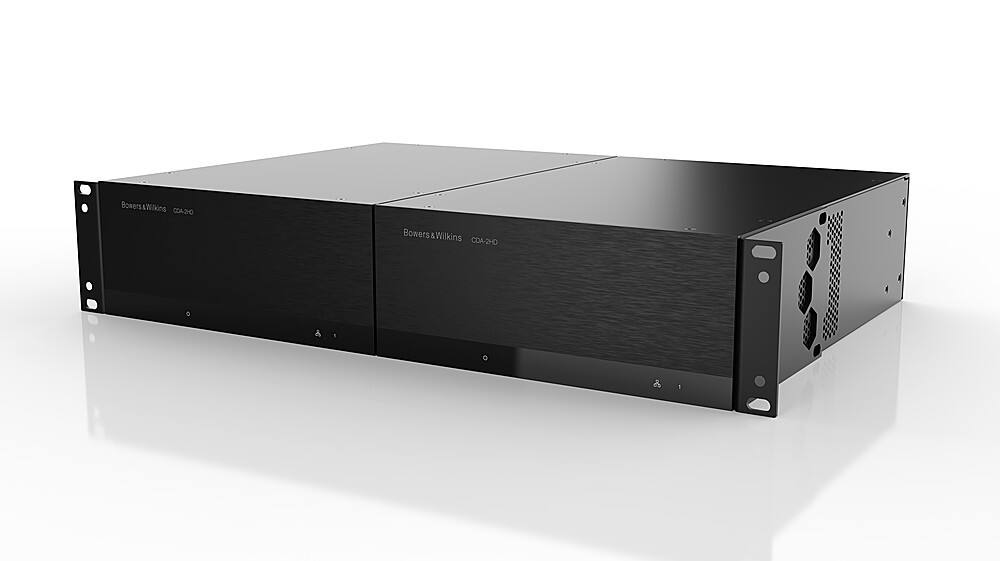

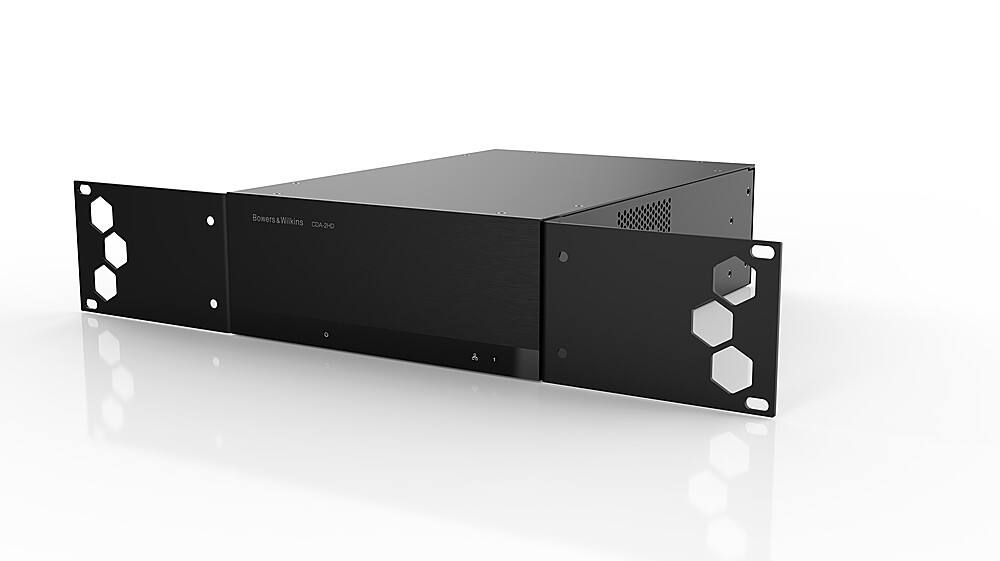

If it is the power you need in a sleek, stylish, and compact package, the Bowers and Wilkins CDA-2HD Amplifier is the right choice for you. Equipped with Digital Signal Processor (DSP), the amp is optimized to work with a vast selection of products and offers dynamic EQ for Bowers and Wilkins subwoofers. This amp can deliver 500W of Class D amplification into 2 channels and can be bridged to deliver 1000W to drive large speakers. With a half-rack width 2U size, the CDA-2HD takes up a minimum of rack space. It features dual-zone audio and is compatible with both older and newer versions of Bowers and Wilkins products. The slim amplifier has a wide variety of connectivity options such as analog and digital inputs, (2) RCA phono sockets, ethernet, and more. This is the right upgrade for your expanding home entertainment system, as well as the perfect starting point for your new one.
- Powerful Home Amplifier: Featuring Digital Signal Processing (DSP) which offers optimization for a variety of products, the Bowers and Wilkins CDA-2HD Amplifier provides control over IP and configuration and offers dynamic EQ for Bowers and Wilkins subwoofers
- Your Audio Driving Force: This high-power audio amplifier can deliver 500W of efficient Class D amplification to two channels, driving even the most demanding audio systems. It can also be run in bridged mode, delivering 1000W of power when you need it
- Discreet, Efficient Design: With a half-rack width 2U size, the CDA-2HD’s minimalist and seamless design complements your home aesthetics. of your current home entertainment system or your future one. Perfect for those looking to upgrade an in-situ installation or planning a new one

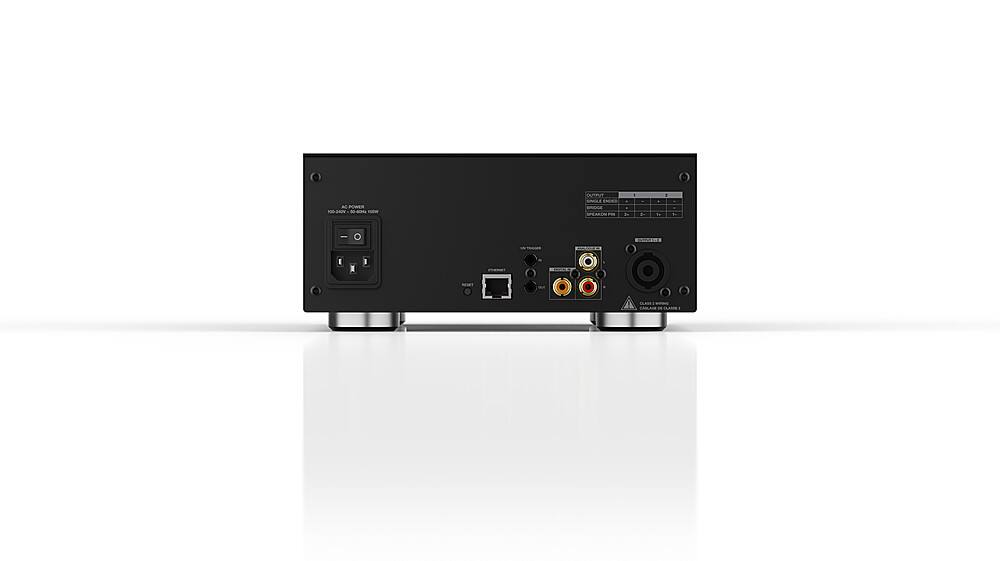

- Versatile Compatibility: Featuring dual-zone audio, this audio amplifier comes with analog and digital inputs, (2) RCA inputs, (2) 12V trigger controls, and more, through which you can connect a wide variety of legacy and upcoming Bowers and Wilkins products
- More than 5 Decades of Audio Excellence: With a rich history of delivering exceptional audio quality, Bowers & Wilkins constantly develop new-age, innovative designs backed up by extensive R&D to manufacture premium home audio speakers and headphones
- Powerful Home Amplifier: Featuring Digital Signal Processing (DSP) which offers optimization for a variety of products, the Bowers and Wilkins CDA-2HD Amplifier provides control over IP and configuration and offers dynamic EQ for Bowers and Wilkins subwoofers
- Your Audio Driving Force: This high-power audio amplifier can deliver 500W of efficient Class D amplification to two channels, driving even the most demanding audio systems. It can also be run in bridged mode, delivering 1000W of power when you need it
- Discreet, Efficient Design: With a half-rack width 2U size, the CDA-2HD’s minimalist and seamless design complements your home aesthetics. of your current home entertainment system or your future one. Perfect for those looking to upgrade an in-situ installation or planning a new one
- Versatile Compatibility: Featuring dual-zone audio, this audio amplifier comes with analog and digital inputs, (2) RCA inputs, (2) 12V trigger controls, and more, through which you can connect a wide variety of legacy and upcoming Bowers and Wilkins products
- More than 5 Decades of Audio Excellence: With a rich history of delivering exceptional audio quality, Bowers & Wilkins constantly develop new-age, innovative designs backed up by extensive R&D to manufacture premium home audio speakers and headphones
Whats Included
- Installation Guide
- Metal Brackets
- Silica Gel
- Installation Guide
- Metal Brackets
- Silica Gel
Q: What are the dimensions of the amplifier?
A: The amplifier is 12.64 inches wide, 3.9 inches high, and 8.57 inches deep.
Q: Can the amplifier be used with older Bowers and Wilkins products?
A: This amplifier is compatible with both older and newer versions of Bowers and Wilkins products.
Q: Are there any other connectivity options besides RCA phono sockets?
A: This amplifier has a wide variety of connectivity options including analog and digital inputs, ethernet, and more.
Q: Does the amplifier have any digital inputs?
A: The slim amplifier has a wide variety of connectivity options such as analog and digital inputs.
Q: What is the amplifier's total harmonic distortion?
A: The total harmonic distortion for the CDA-2HD 500W 2-Channel DSP Amplifier is 1 percent.
Q: What is the maximum frequency response of the amplifier?
A: The maximum frequency response of the amplifier is 30 kilohertz.
