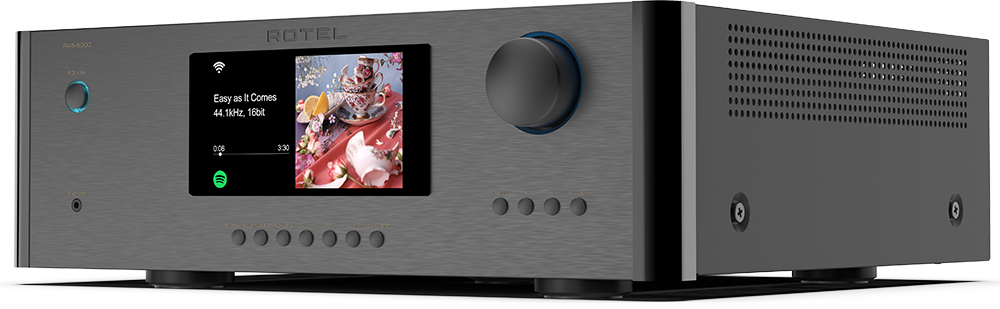

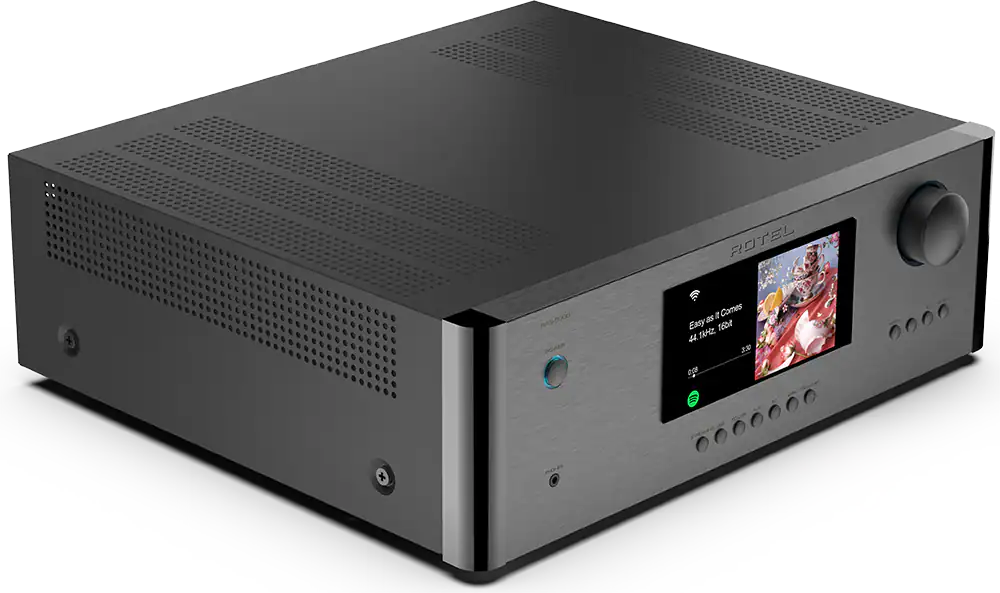

Rotel - RAS-5000 Amplified Streamer - Black
Color
BlackRelated Item
Specifications
- Continuous Watts x Channel @ Ohms140 Watts x 2 @ 8 OhmsNumber of Channels2Number of Audio Zones1Audio Only Inputs1 x Optical digital audio, 1 x Coaxial digital audio, Unbalanced RCANetwork Connector(s)1 x LANPreamp OutputsYes
- Key Specs
- Continuous Watts x Channel @ Ohms: 140 Watts x 2 @ 8 Ohms
- Number of Channels: 2 (The number of discrete channels of sound output. This can be a single number or multiple numbers separated by decimal(s). The first number is the primary, horizontally directed audio channels. The number after the first decimal, if applicable, is the number of subwoofer outputs or channels. The number after the second decimal, if applicable, is the number of height or atmospheric channels designed to immerse the listener by producing overhead sound effects.)
- Number of Audio Zones: 1 (Audio zones, typically designated by rooms in a home, are areas in which all speakers are dependent on the same sound source. Whether a zone encompasses one or multiple rooms, the receiver or preamp/processor is used to control all aspects of its audio and is able to select which zones receive sound.)
- Audio Only Inputs: 1 x Optical digital audio, 1 x Coaxial digital audio, Unbalanced RCA
- Network Connector(s): 1 x LAN
- Preamp Outputs: true
- Wireless Connectivity: Wi-Fi (The manner in which a device sends data to another device over a short distance without the use of wires or cables.)
- General
- Brand: Rotel
- Model Number: RAS-5000 Black
- Product Name: RAS-5000 Amplified Streamer
- Color: Black
- Audio
- Continuous Watts x Channel @ Ohms: 140 Watts x 2 @ 8 Ohms
- Maximum Watts x Channel @ Ohms: 220 Watts x 2 @ 4 Ohms (This is the maximum load the speaker, subwoofer or amp can drive.)
- Total Power Handling: 220 watts (How much amplifier (amplified) power (wattage) that can be handled before damaging the product.)
- Number of Channels: 2 (The number of discrete channels of sound output. This can be a single number or multiple numbers separated by decimal(s). The first number is the primary, horizontally directed audio channels. The number after the first decimal, if applicable, is the number of subwoofer outputs or channels. The number after the second decimal, if applicable, is the number of height or atmospheric channels designed to immerse the listener by producing overhead sound effects.)
- Number of Audio Zones: 1 (Audio zones, typically designated by rooms in a home, are areas in which all speakers are dependent on the same sound source. Whether a zone encompasses one or multiple rooms, the receiver or preamp/processor is used to control all aspects of its audio and is able to select which zones receive sound.)
- Minimum Frequency Response: 10 hertz (Describes the maximum range of frequencies or musical tones a product can reproduce, from very low tones to very high treble tones. The minimum frequency or musical tone the speaker can reproduce. High treble tones have higher frequencies while low tones and deep bass have lower frequencies.)
- Total Harmonic Distortion: 0.03 percent (Measurement of the harmonic sound distortion. The lower the percentage, the cleaner the sound.)
- Maximum Frequency Response: 100 kilohertz (Describes the maximum range of frequencies or musical tones a product can reproduce, from very low tones to very high treble tones. The maximum frequency or musical tone the speaker can reproduce. High treble tones have higher frequencies while low tones and deep bass have lower frequencies.)
- Amplifier Class: AB (An amplifier's mode of operation, specifically the conditions in which its electrical current flows for the duration of an audio signal, determines its class. Each class has its strengths and weaknesses when it comes to power efficiency, levels of crossover distortion, and overall sound quality.)
- Amplifier Type: Integrated amplifiers
- Signal-to-Noise Ratio (SNR): 103 decibels (The ratio of the desired signal's strength to the level of background noise. A ratio higher than 1:1, which equates to greater than 0 decibels, indicates more signal than noise.)
- Bass Boost: Variable (Circuitry that boosts the bass response of the amplifier, improving audio reproduction enhancing the sound of low frequencies. Fixed boost means the level of bass response is preset, whereas variable boost allows the user to make adjustments.)
- Inputs
- Audio Only Inputs: 1 x Optical digital audio, 1 x Coaxial digital audio, Unbalanced RCA
- Video Only Inputs: No video only inputs (The number and type of video signal only inputs the product has.)
- Audio/Video Inputs: 1 x HDMI (The number and type of HDMI inputs the product has.)
- Network Connector(s): 1 x LAN
- Line-Level Inputs: true (Also referred to as low-level inputs. Enables the amplifier to receive a sound signal from another device via RCA cables.)
- Outputs
- Preamp Outputs: true
- Speaker Connection Type: RCA
- Video Only Outputs: No video only outputs (The number and type of video signal only outputs the product has.)
- Features
- App Compatible: true (The product can be connected to a program or software application on a mobile device, which then receives collected data from the product.)
- Connectivity
- Wireless Multi-Room Audio: true (Technology that allows multiple speakers and/or soundbars to be connected wirelessly and play audio in separate rooms.)
- Wireless Multi-Room Technology: Apple AirPlay 2, Google Cast (Proprietary technology that allows multiple speakers and/or soundbars to be connected wirelessly and play audio in separate rooms.)
- Wireless Connectivity: Wi-Fi (The manner in which a device sends data to another device over a short distance without the use of wires or cables.)
- Dimensions
- Product Height: 6 inches (The out of box height of the item. Height is measured as the vertical distance from the bottom of the item to the top as it would be primarily used or placed.)
- Product Width: 17 inches (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
- Product Depth: 17 inches (The out of box depth of the item. Depth is measured as the distance from the front of the item to the back as it would be primarily used or placed.)
- Product Weight: 35 pounds (The out of box weight of the item.)
- Warranty
- Warranty - Parts: 5 years
- Warranty - Labor: 5 Years
- Other
- UPC: 672563281006
The RAS-5000 is an all-in-one Integrated Amplifier solution connecting all popular music sources with a near endless supply of online music.
- All-In-One Audio System: The RAS-5000 streams your favorite music services from computer, tablet and phone directly to your speakers. You can also seamlessly play music, watch movies and enjoy games in high resolution using the HDMI ARC connection.
- Robust Class AB 220W Power Amplification: Powered by a custom engineered toroidal transformer the Class AB amplification ensures rich, controlled bass energy with exceptionally refined, authentic mid-range and high frequencies.
- Supports Popular Streaming Services: Spotify, Tidal, Qobuz, Airplay 2, Google Cast, Roon and thousands of Internet Radio Stations effortlessly stream directly to the RAS-5000.
- HDMI Audio Playback: Watch to your favorite movies, listen to music and play games with ultra-high resolution audio directly from your TV using the HDMI ARC.
- Legacy Source Support: CD Players, Tuners, Computer Audio and even turntables with line-level outputs intuitively connect to the Analog, Coaxial, Optical and PC-USB connections.
- All-In-One Audio System: The RAS-5000 streams your favorite music services from computer, tablet and phone directly to your speakers. You can also seamlessly play music, watch movies and enjoy games in high resolution using the HDMI ARC connection.
- Robust Class AB 220W Power Amplification: Powered by a custom engineered toroidal transformer the Class AB amplification ensures rich, controlled bass energy with exceptionally refined, authentic mid-range and high frequencies.
- Supports Popular Streaming Services: Spotify, Tidal, Qobuz, Airplay 2, Google Cast, Roon and thousands of Internet Radio Stations effortlessly stream directly to the RAS-5000.
- HDMI Audio Playback: Watch to your favorite movies, listen to music and play games with ultra-high resolution audio directly from your TV using the HDMI ARC.
- Legacy Source Support: CD Players, Tuners, Computer Audio and even turntables with line-level outputs intuitively connect to the Analog, Coaxial, Optical and PC-USB connections.
Whats Included
- Rotel RAS-5000 Amplifier
- Power Cord
- Manual
- Remote
- Rotel RAS-5000 Amplifier
- Power Cord
- Manual
- Remote
Q: What is the frequency response range of the amplifier?
A: The maximum frequency response is 100 kilohertz and the minimum frequency response is 10 hertz.
Q: How many channels does the amplifier have?
A: This amplifier has two channels.
Q: What is the warranty period for the amplifier?
A: The parts and labor warranty for the amplifier is 5 years.
Q: What is the total power handling of the amplifier?
A: The total power handling of the amplifier is 220 watts.
Q: What is the weight of the amplifier?
A: The product weight is 34.6 pounds.
Q: What streaming services are compatible with the amplifier?
A: The Rotel RAS-5000 is compatible with Spotify Connect, Tidal Connect, and Internet Radio streaming services.
Q: What are the dimensions of the amplifier?
A: The Rotel RAS-5000 amplifier has a width of 16.97 inches, a depth of 16.74 inches, and a height of 5.66 inches.
