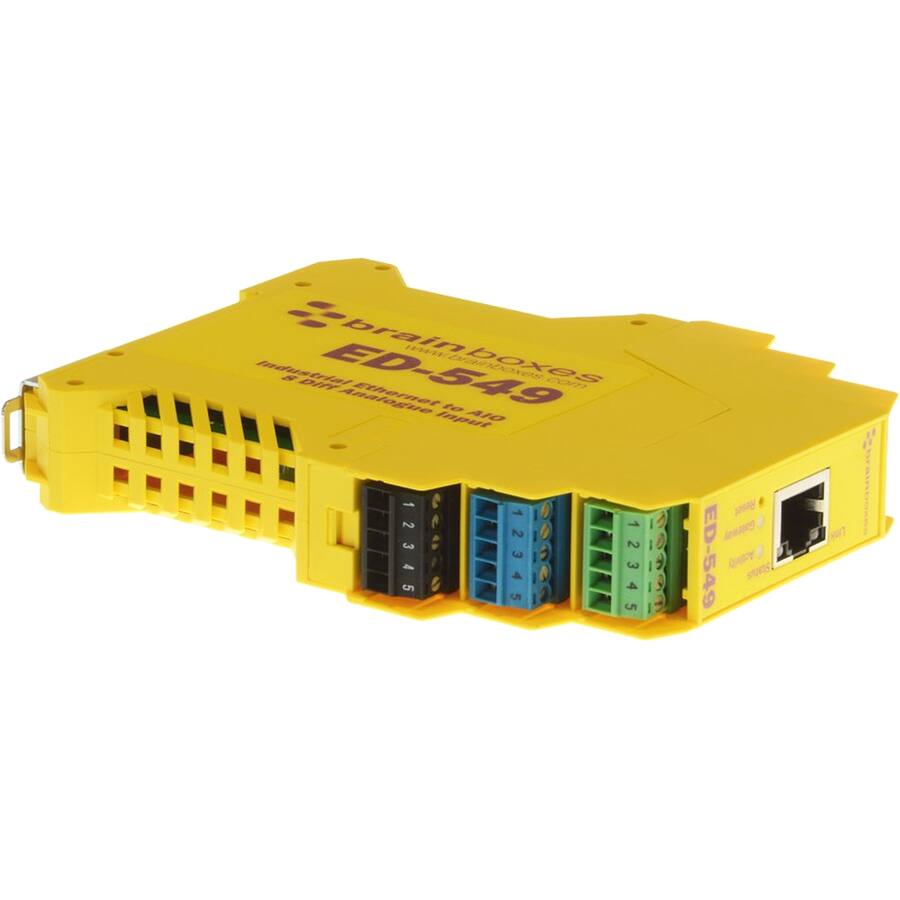

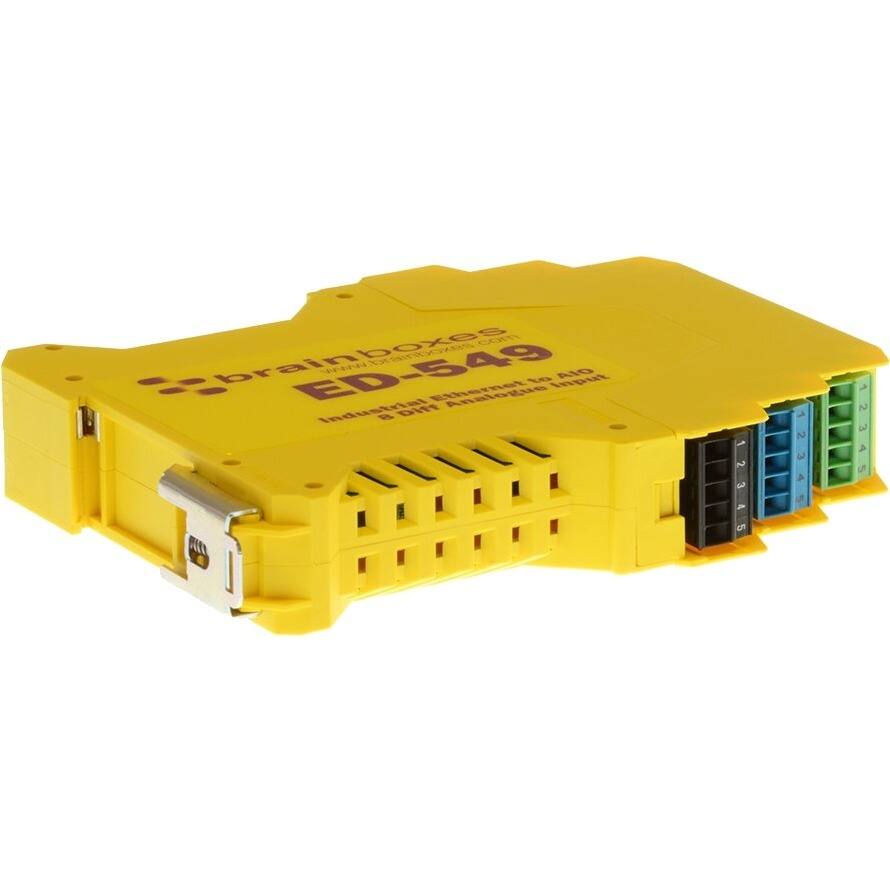

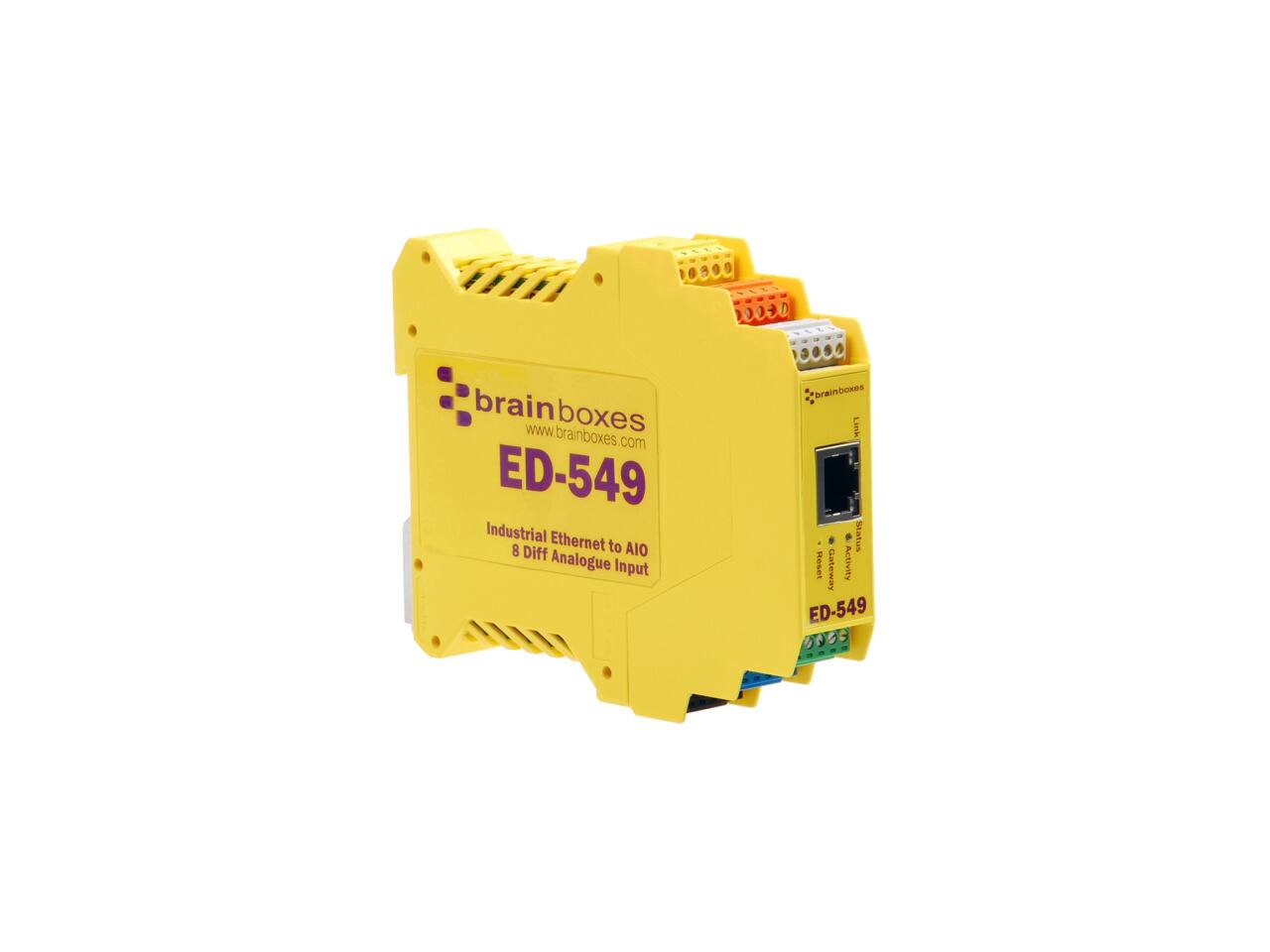

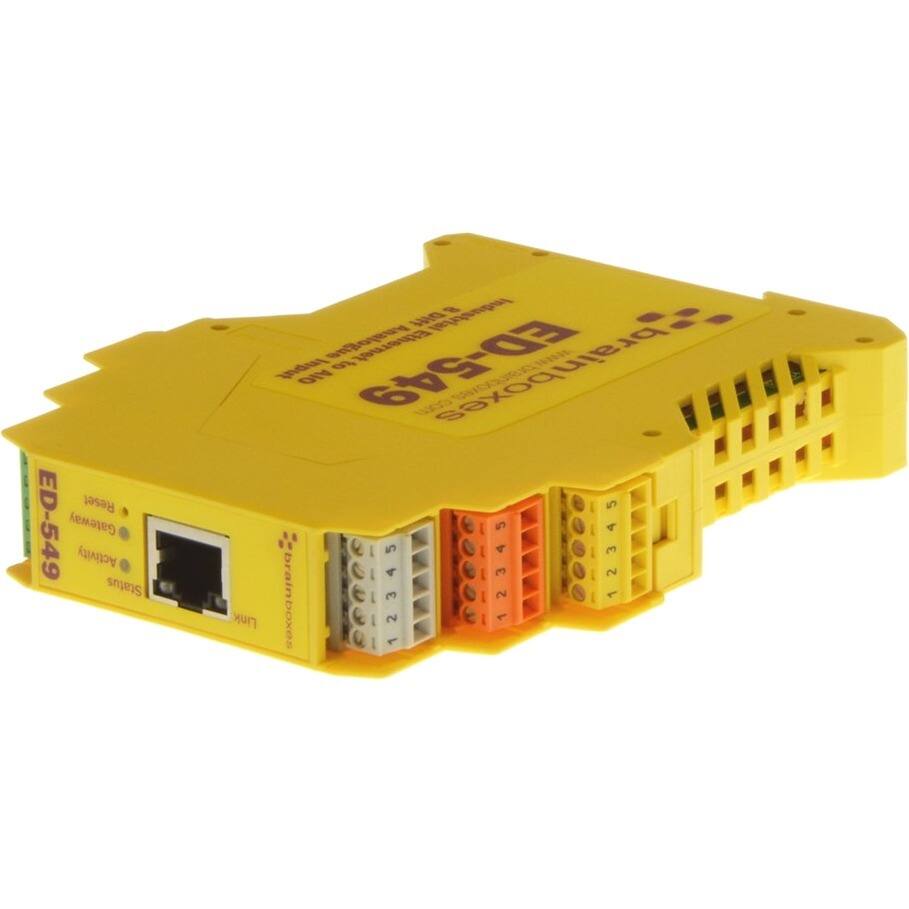

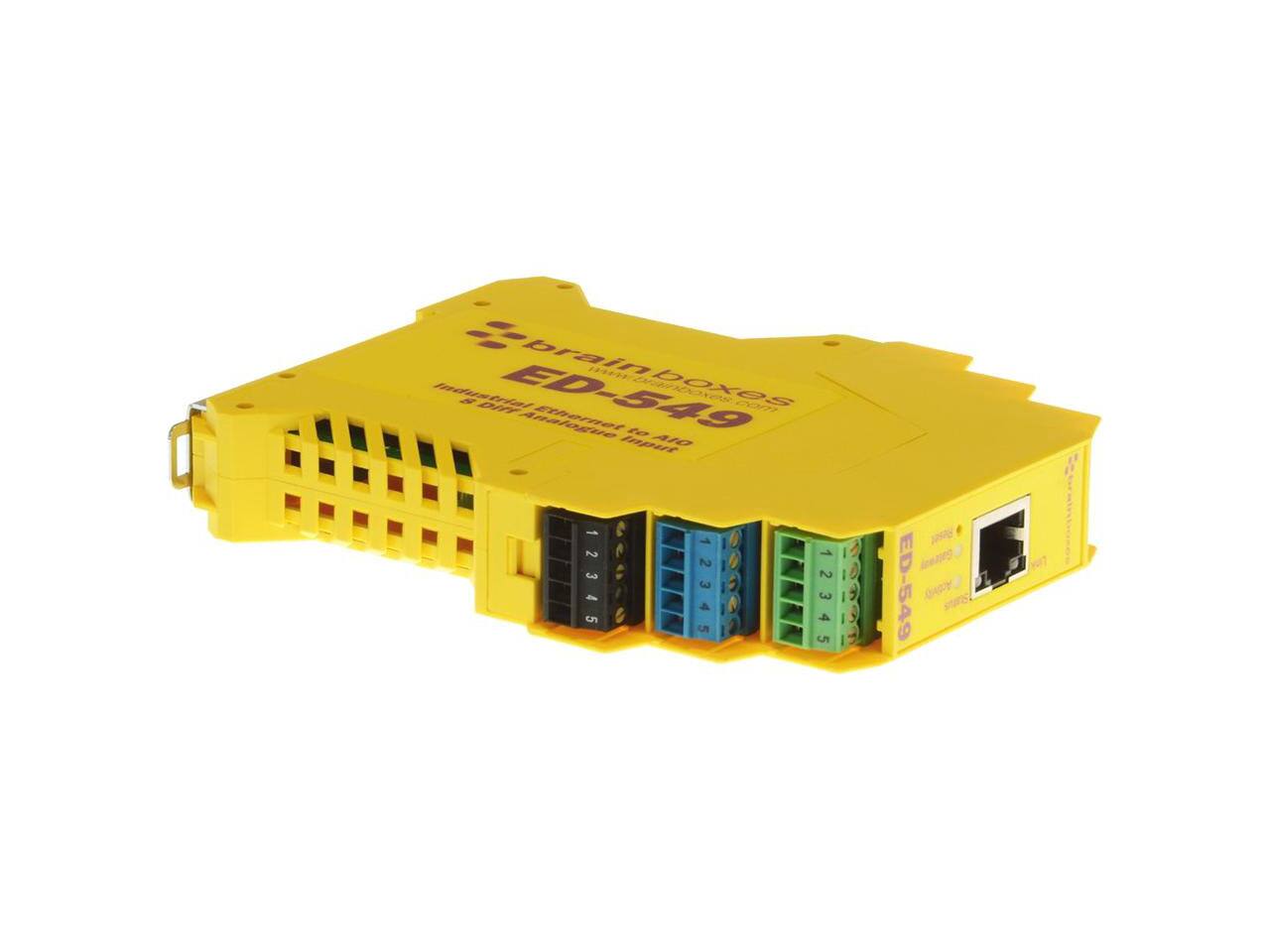

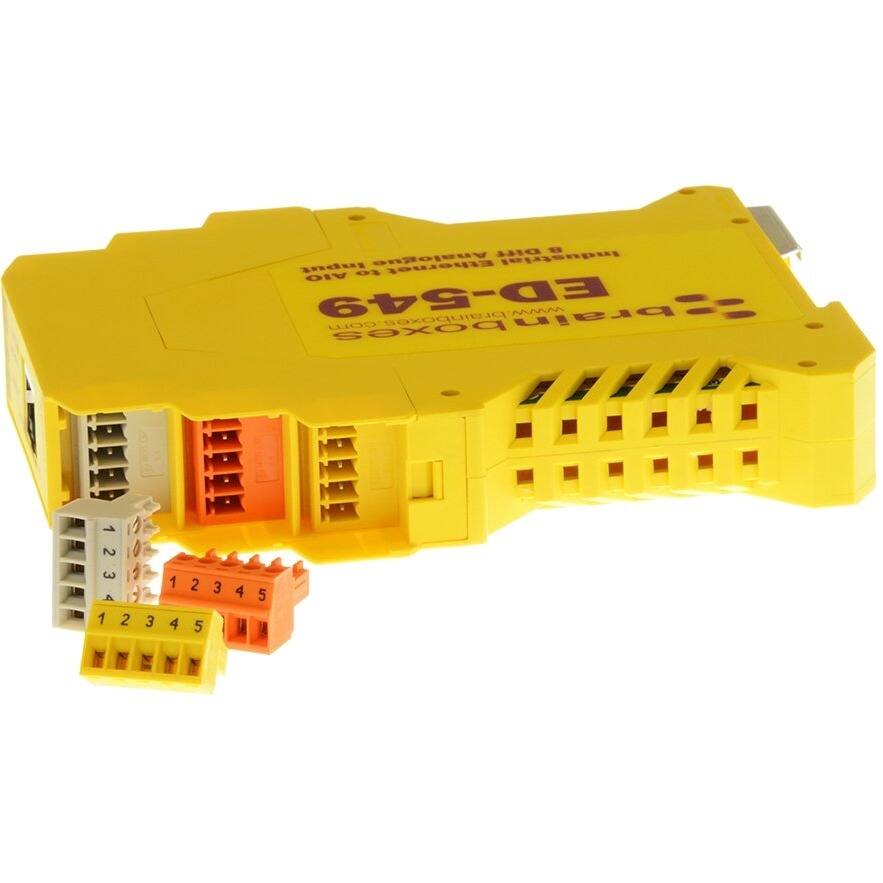

Brainboxes - Ethernet to 8 Analogue Inputs + RS485 Gateway
Reviews coming soon
About this product
The Ethernet to 8 Analogue Inputs + RS485 Gateway is a versatile device designed for high-precision measurements of voltages and currents in industrial environments. It features eight differential analogue inputs, each individually configurable for voltage or current inputs with programmable gain, supporting a wide range of input signals. The built-in Programmable Gain Amplifier (PGA) allows for full-scale measurements from as low as ±75mV with 12-bit resolution across all inputs. Additionally, the device includes a configurable RS485 Serial Gateway Port, which can function as an ASCII Gateway Port or RS485 HD Serial Port, facilitating integration with various industrial devices. With a wide operating temperature range of -40°C to +80°C (-40°F to +176°F), it is suitable for harsh environments. The compact design, measuring 5.0 x 4.0 x 0.9 inches (128 x 102 x 23 mm) with a width of 22.6mm, allows for DIN rail mounting, making it ideal for space-constrained installations.

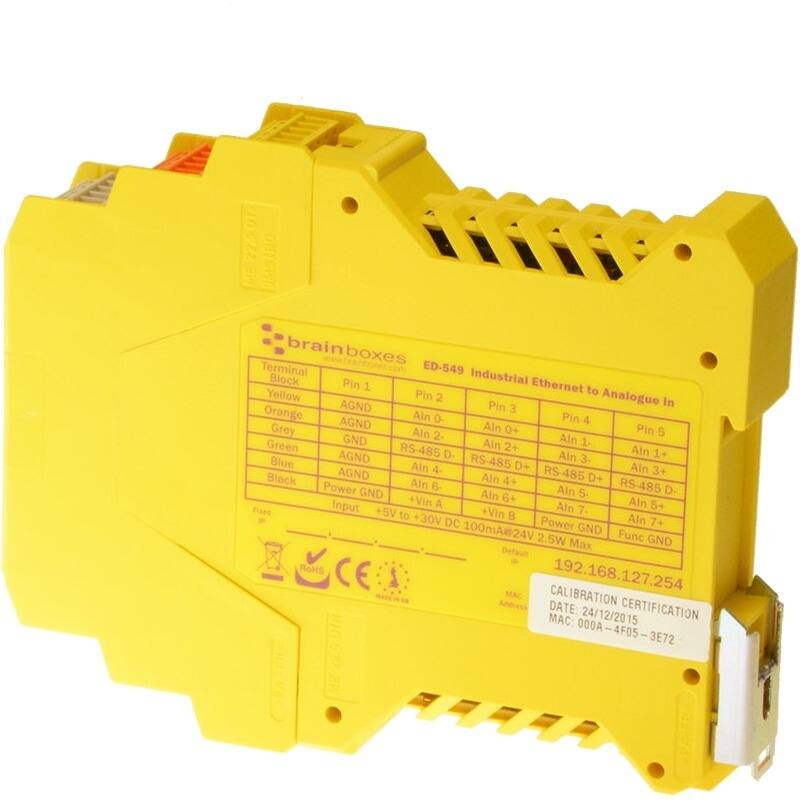

8 Differential Analogue Inputs
Individually configurable for voltage or current inputs with programmable gain, supporting voltage ranges from ±75mV to ±10V and current ranges from ±20mA, 0-20mA, or 4-20mA.
Programmable Gain Amplifier (PGA)
Allows full-scale measurements from as low as ±75mV with 12-bit resolution across all 8 analogue inputs.
RS485 Serial Gateway Port
Configurable as an ASCII Gateway Port or RS485 HD Serial Port, enabling integration with various industrial devices.
Wide Operating Temperature Range
Designed to operate in harsh environments with a temperature range of -40°C to +80°C (-40°F to +176°F).

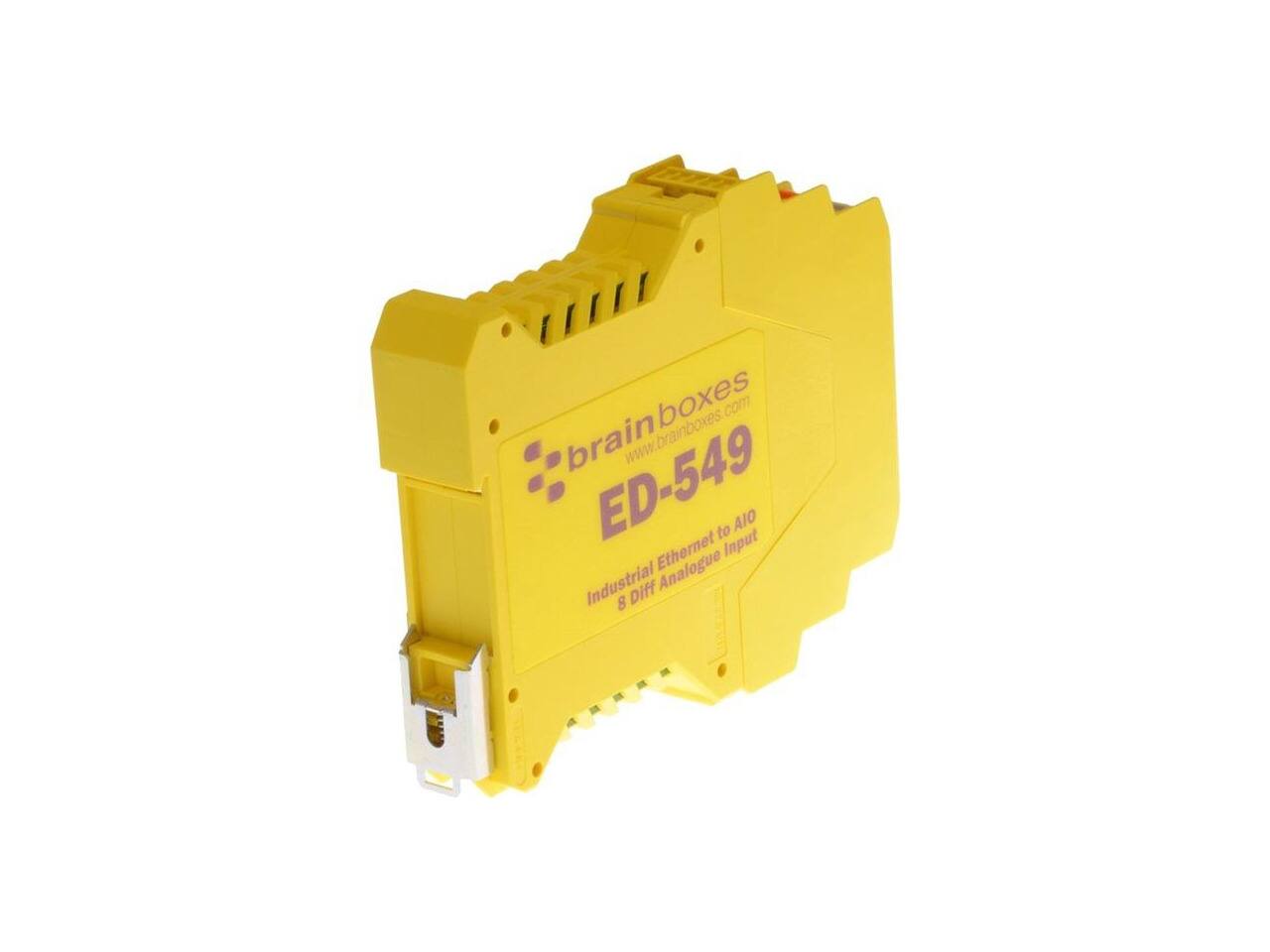

DIN Rail Mountable
Compact design with dimensions of 5.0 x 4.0 x 0.9 inches (128 x 102 x 23 mm) and a width of 22.6mm, suitable for space-constrained installations.
- Number of LAN Ports1
