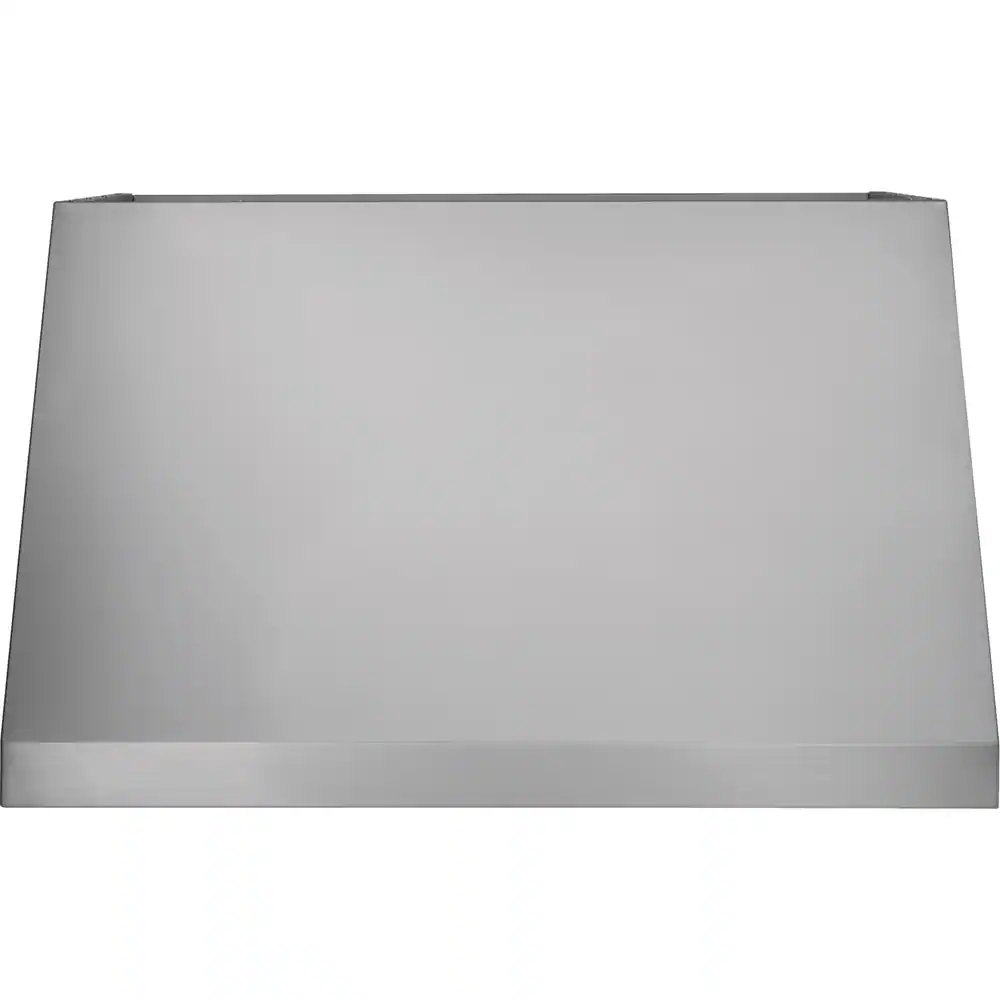

Café - 36 inches - Externally Vented - Under cabinet Range Hood - Stainless steel
Model: CVW93612MSS
SKU: 6283632
This item is no longer available in new condition. See similar items below
- Key Specs
- Color Finish: Stainless steel
- Product Height: 18 inches (The out of box height of the item. Height is measured as the vertical distance from the bottom of the item to the top as it would be primarily used or placed.)
- Product Width: 36 inches (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
- Product Depth: 21 inches (The out of box depth of the item. Depth is measured as the distance from the front of the item to the back as it would be primarily used or placed.)
- Exhaust Vent Location: Top
- Vent Type: Ducted
- Vent Style: External (External vents pull air from the room and move it directly outside through a dedicated duct system. Recirculating vents pull the air through a filter so that it can be cleaned before being recycled back into the room. Convertible vents can be reconfigured from external ventilation to recirculating via installation of certain parts.)
- General
- Brand: Café
- Model Number: CVW93612MSS
- Product Name: 36" Externally Vented Range Hood
- Color: Stainless steel
- Color Finish: Stainless steel
- Dimensions
- Product Height: 18 inches (The out of box height of the item. Height is measured as the vertical distance from the bottom of the item to the top as it would be primarily used or placed.)
- Minimum Installation Height Above Cooktop: 36 inches
- Product Width: 36 inches (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
- Product Depth: 21 inches (The out of box depth of the item. Depth is measured as the distance from the front of the item to the back as it would be primarily used or placed.)
- Standardized Width: 36 inches (An approximated measurement (exact width may differ slightly) determined by the manufacturer in accordance with industry standards. Standardized sizes are intended to assist consumers when purchasing appliances and planning for installation.)
- Product Weight: 54 pounds (The out of box weight of the item.)
- Duct Shape: Round
- Round Duct Diameter: 7 inches
- Features
- Exhaust Vent Location: Top
- Vent Type: Ducted
- Vent Style: External (External vents pull air from the room and move it directly outside through a dedicated duct system. Recirculating vents pull the air through a filter so that it can be cleaned before being recycled back into the room. Convertible vents can be reconfigured from external ventilation to recirculating via installation of certain parts.)
- Range Hood Type: Under cabinet
- Number of Fan Speeds: 4
- Control Type: Dial
- Delay Shut-Off: false (Use this feature after cooking to continue ventilating any fumes or odors. When time's up, the operation automatically shuts off.)
- Auto Fan Shut-Off: true
- Remote Control: false
- Integrated Light(s): true
- Number of Light Levels: 2
- Bulb Type Required: Halogen
- Bulb(s) Included: true
- Performance
- Maximum Air Flow Capacity: 590 cubic feet per minute (Maximum amount of air that the appliance can ventilate at its highest setting.)
- Maximum Operating Sound Level: 7.5 sones (The perceived intensity of the operating sound produced by the product at its highest setting. The higher the sone rating, the louder the noise level.)
- Minimum Operating Sound Level: 0.4 sones (The perceived intensity of the operating sound produced by the product at its lowest setting. The higher the sone rating, the louder the noise level.)
- Filter Info
- Filter Material: Other
- Dishwasher-Safe Filter: true
- Removable Grease Filter: true
- Electrical Specification
- Amperage: 3.9 amperes (Strength of electrical current.)
- Voltage: 120 volts (Amount of power needed to support an electrical current.)
- Warranty
- Warranty - Parts: 1 Year
- Warranty - Labor: 1 Year
- Other
- UPC: 084691839187
Keep smoke, odors, grease and moisture from your kitchen with the vertical exhaust of this 36-inch Café commercial hood. Its four-speed fan provides versatile operation for different cooking chores, and the 590-cfm venting system delivers quick, powerful performance. Focus clearly on your work space with the dual halogen cooktop lighting of this Café commercial hood.
- 590-cfm venting system: Make sure everyone is focused only on your food with a 590-cfm venting system that removes smoke, grease, odors and moisture from the air.
- Four-speed fan control: Adjust your vents to match your cooking techniques with four-speed fan control that removes grease, odors and moisture.
- Vertical exhaust: Enjoy a fresh-smelling kitchen all the time with a vertical exhaust that takes smoke, grease, odors and moisture away from the cooktop.
- Dual halogen cooktop lighting: Clearly watch the progress of preparing your favorite meals with dual halogen cooktop lighting that brightly illuminates the cooking surface.
- Night light: See your way through midnight snacking with a night light that softly illuminates the cooktop and surrounding areas.
- Removable grease filter: Keep your clean-up to a minimum with a removable grease filter that helps eliminate hand scrubbing.
- 590-cfm venting system: Make sure everyone is focused only on your food with a 590-cfm venting system that removes smoke, grease, odors and moisture from the air.
- Four-speed fan control: Adjust your vents to match your cooking techniques with four-speed fan control that removes grease, odors and moisture.
- Vertical exhaust: Enjoy a fresh-smelling kitchen all the time with a vertical exhaust that takes smoke, grease, odors and moisture away from the cooktop.
- Dual halogen cooktop lighting: Clearly watch the progress of preparing your favorite meals with dual halogen cooktop lighting that brightly illuminates the cooking surface.
- Night light: See your way through midnight snacking with a night light that softly illuminates the cooktop and surrounding areas.
- Removable grease filter: Keep your clean-up to a minimum with a removable grease filter that helps eliminate hand scrubbing.
Whats Included
- Café 36" Externally Vented Range Hood
- Owner's Manual
- Café 36" Externally Vented Range Hood
- Owner's Manual
A: Hi, Thanks for asking! We appreciate your interest and we'd like to help. We recommend looking at the Product Datasheet for the complete dimensions of this Externally Vented Range Hood. You can find them here: https://files.bbystatic.com/1p7Z7b2KIpiILEchV90%2BZQ%3D%3D/508794FA-A43B-4183-8AD9-3BD6695DA0B6.pdf Hope this helps! -Sylvia@Cafe
Q: What is the DB for each setting?
A: Hello Jae - Thank you for the excellent question. We are happy to share more about this amazing vent hood. When rating our hoods, we do not use dBAs but sones instead. The sones at the highest setting are 7.5 and at regular working speed it is 0.4. We hope this helps. Please let us know if you have any more questions. - John@GEA
A: Hi Lindyjpeterson - We offer an optional matte white chimney kit that can be added to this model. It will accommodate a ten foot ceiling. The part number for this is UXCH4NWM. - Trey@Cafe
