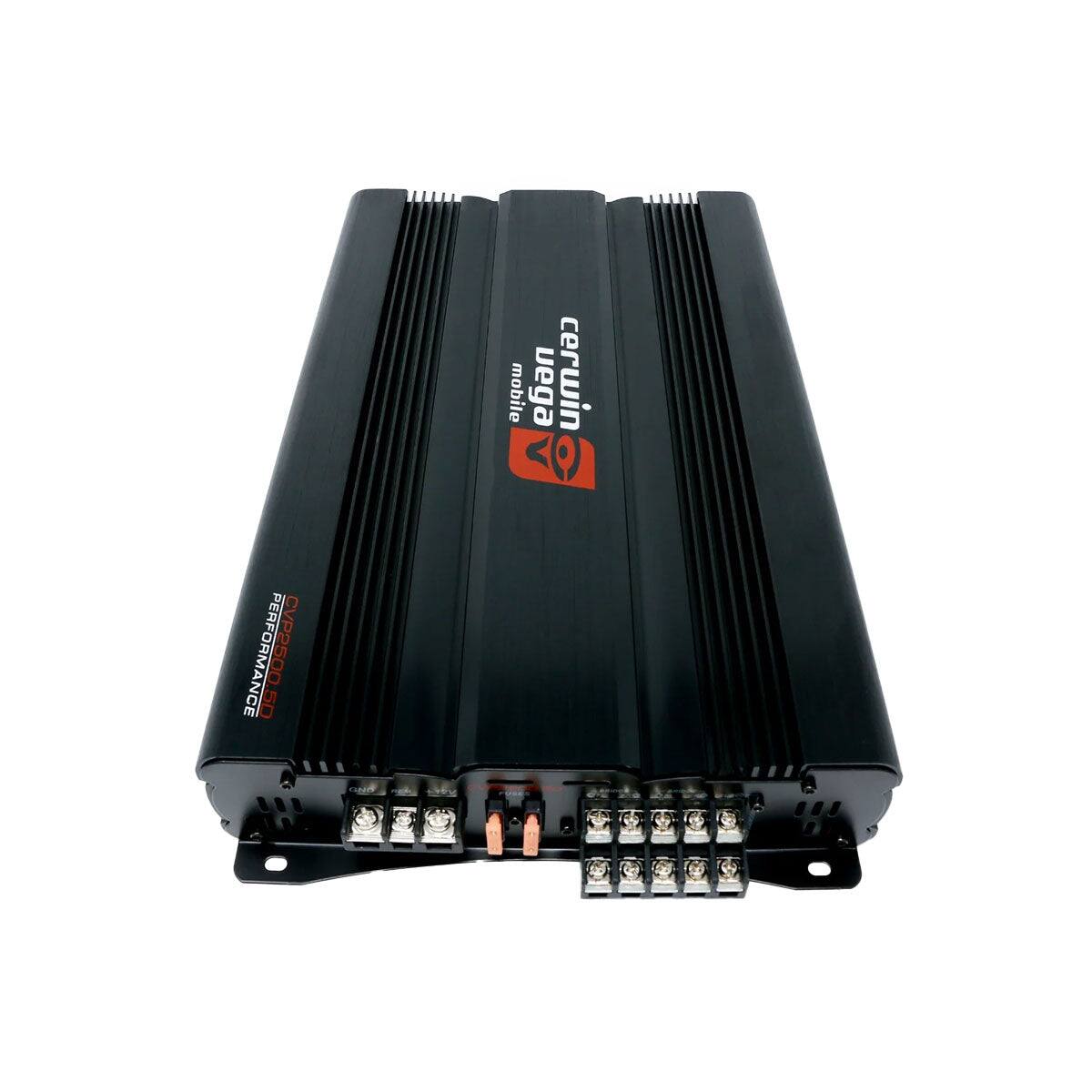

Cerwin Vega - CVP2500.5D CVP Series 5-Channel Class AB Full Range Amplifier - Black
Cerwin Vega - CVP2500.5D CVP Series 5-Channel Class AB Full Range Amplifier - Black
Related Item
Specifications
- Amplifier ClassABNumber Of Channels5Bass BoostVariable
- Key Specs
- Amplifier Class: AB (An amplifier's mode of operation, specifically the conditions in which its electrical current flows for the duration of an audio signal, determines its class. Each class has its strengths and weaknesses when it comes to power efficiency, levels of crossover distortion, and overall sound quality.)
- Number Of Channels: 5
- Bass Boost: Variable (Circuitry that boosts the bass response of the amplifier, improving audio reproduction enhancing the sound of low frequencies. Fixed boost means the level of bass response is preset, whereas variable boost allows the user to make adjustments.)
- General
- Brand: Cerwin Vega
- Model Number: CVP2500.5D
- Product Name: Cerwin Vega - CVP2500.5D CVP Series 5-Channel Class AB Full Range Amplifier
- Color: Black
- Audio Power
- Amplifier Class: AB (An amplifier's mode of operation, specifically the conditions in which its electrical current flows for the duration of an audio signal, determines its class. Each class has its strengths and weaknesses when it comes to power efficiency, levels of crossover distortion, and overall sound quality.)
- Audio
- Number Of Channels: 5
- Bass Boost: Variable (Circuitry that boosts the bass response of the amplifier, improving audio reproduction enhancing the sound of low frequencies. Fixed boost means the level of bass response is preset, whereas variable boost allows the user to make adjustments.)
- Dimensions
- Product Height: 2.25 inches (The out of box height of the item. Height is measured as the vertical distance from the bottom of the item to the top as it would be primarily used or placed.)
- Product Width: 9.38 inches (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
- Product Depth: 14.97 inches (The out of box depth of the item. Depth is measured as the distance from the front of the item to the back as it would be primarily used or placed.)
- Product Weight: 0.01 pounds (The out of box weight of the item.)
- Warranty
- Warranty - Parts: 1 year
- Warranty - Labor: 1 year
- Other
- UPC: 847169050169
The Cerwin-Vega CVP Performance Series Amplifiers bring legendary Cerwin-Vega sound to your vehicle at an unbeatable value. Designed with the budget-conscious in mind, the CVP series combines affordability, reliability, and high-performance engineering to deliver an incredible sound experience that doesn’t compromise on quality or power.Whether you’re upgrading your ride with pounding bass or enhancing overall sound clarity, the CVP Series Amplifiers have you covered. With Cerwin-Vega’s signature commitment to quality and performance, these amplifiers are the perfect choice for audiophiles who want a sound system that’s as bold as their personality.The Cerwin-Vega CVP Series Amplifiers deliver the right power, the right price, and the right performance. Elevate your car audio experience with the sound that moves you—without breaking the bank.

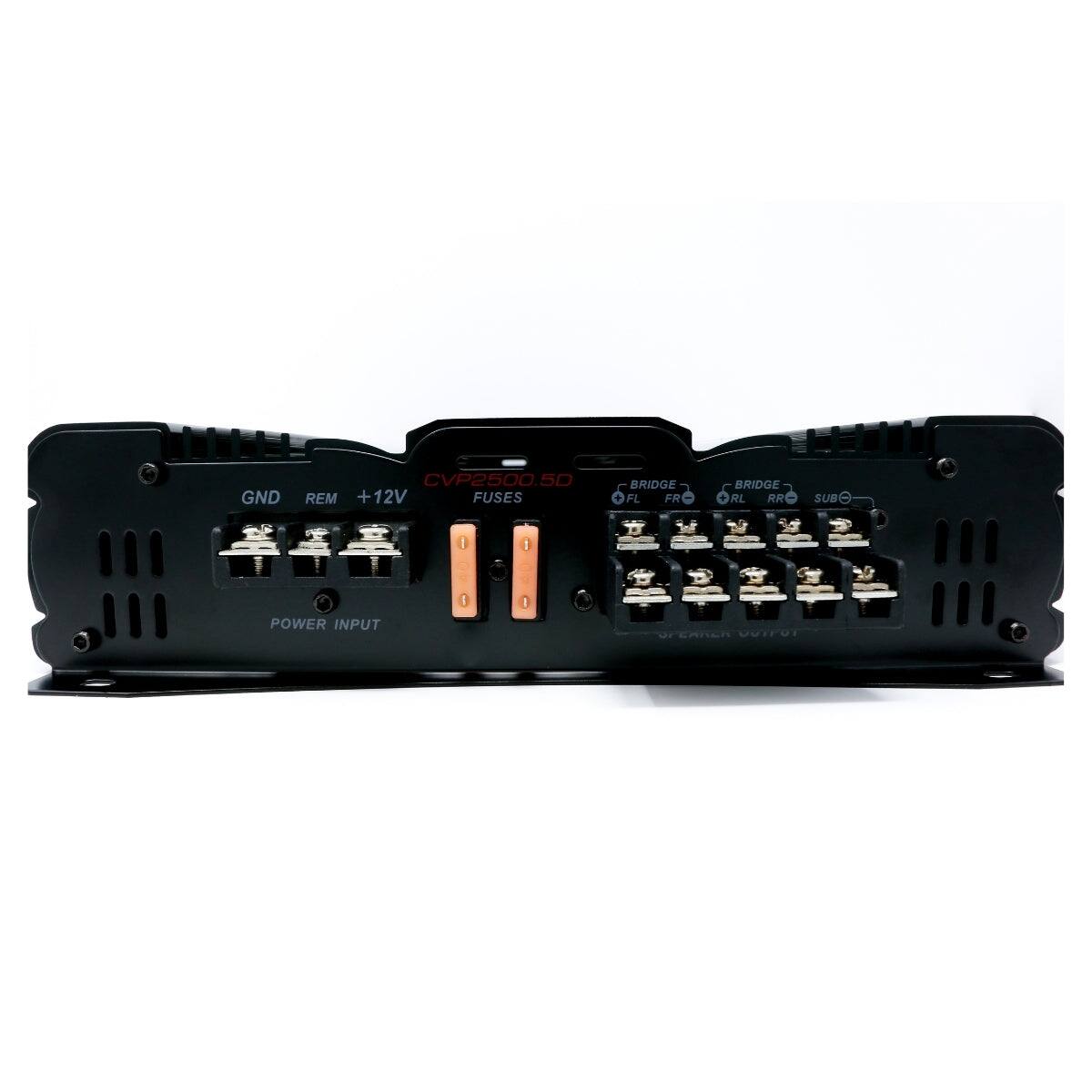

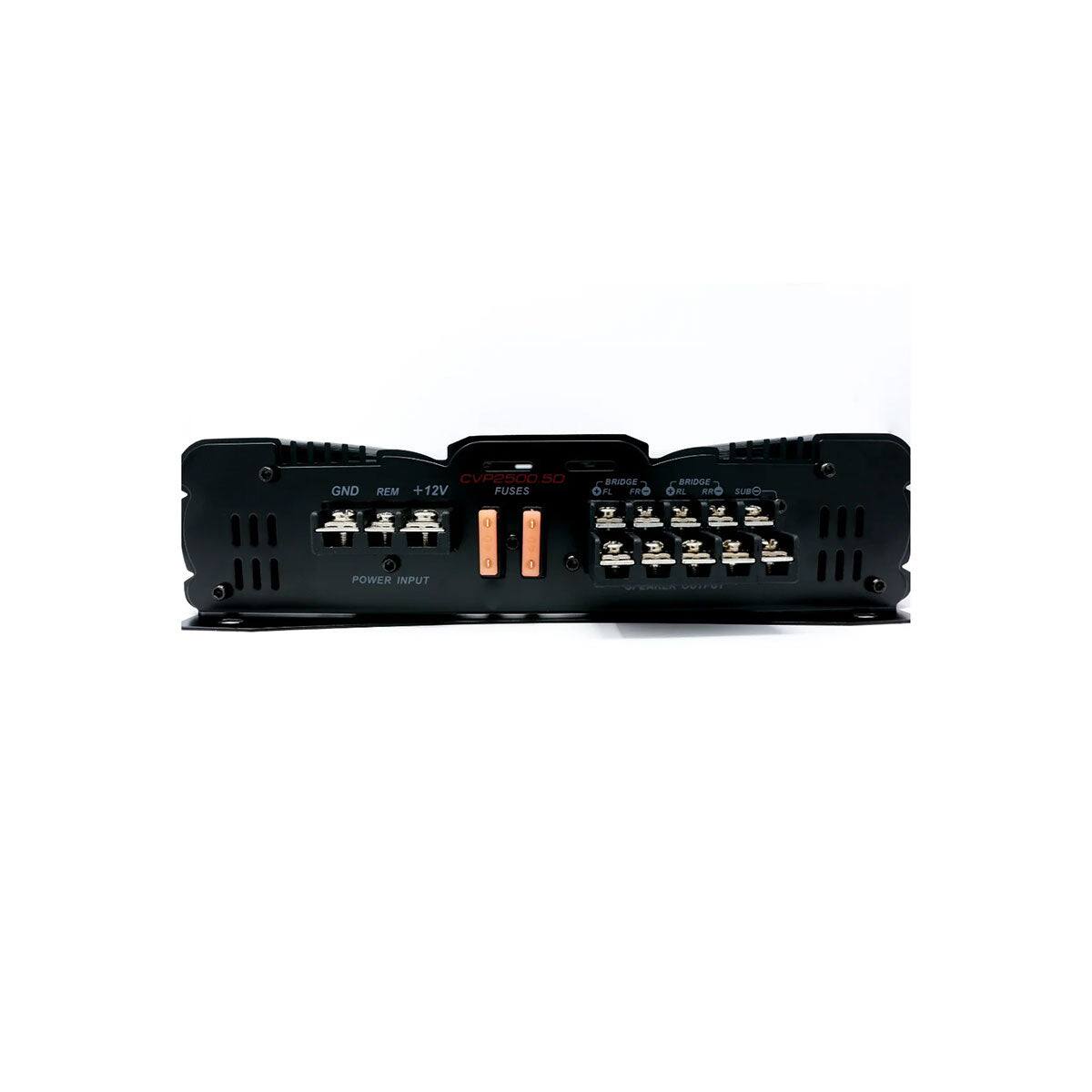

- POWER RATING: RMS Power @ 2Ω: 85W x 4/300W x 1 RMS Power @ 4Ω: 65W x 4/185W x 1 RMS Power Bridged @ 4Ω: 180W x 2/185W x 1 POWER SUPPLY Power Supply: Full PWM Power Supply Threshold: 10.0V-16.0V (DC) Idle Current: (1.0A) DISTORTION THD (1KHz @4Ω): <1% S/N Ratio (A weighted @1W): >90dBA S/N Ratio (A weighted @FP): >105dBA
- INPUT SENSITIVITY: Low Input Level: 200mV-6V High Input Level: 200mV-6V INPUT IMPEDANCE Low Input Level: 20 KΩ High Input Level: OUTPUT STAGE Output Impedance: 2Ω/4Ω Damping Factor: 100 Bandwidth (-3dB): 10Hz-32KHz/10Hz-400Hz

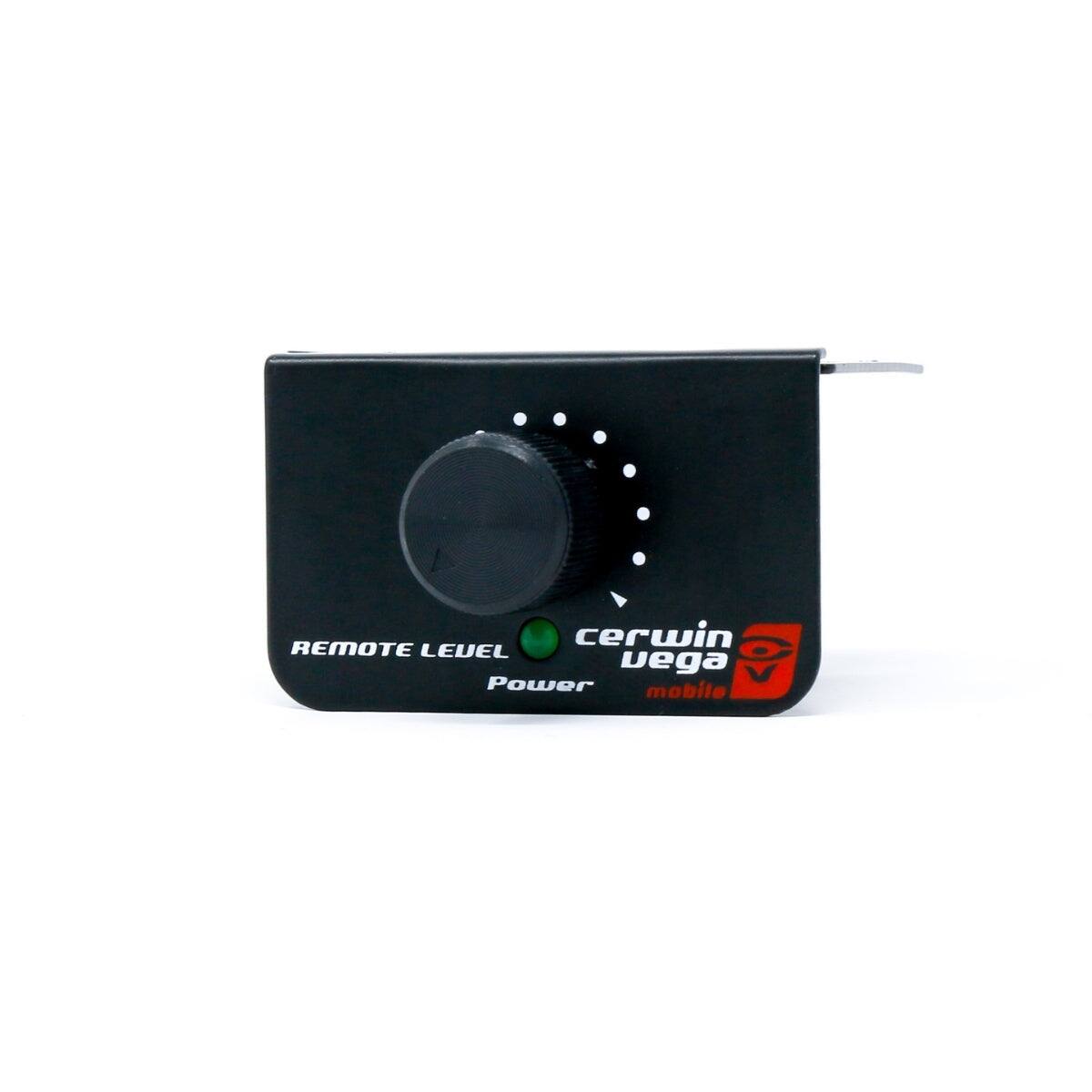

- CROSSOVER (-12dB/Oct): Variable High-Pass: 40Hz-400Hz Variable Low-Pass: 40Hz-400Hz Variable Sub-Sonic: FUSE RATINGS ATC: 40A x 2 DIMENSIONS L x W x H: 14.97”x 9.38”x 2.25” (380mm x 238mm x 57mm) FEATURES LED Power/Protection Indicator Bass Boost: 0dB-12dB Bass Volume Control Included MFR #: CVP2500.5D
- POWER RATING: RMS Power @ 2Ω: 85W x 4/300W x 1 RMS Power @ 4Ω: 65W x 4/185W x 1 RMS Power Bridged @ 4Ω: 180W x 2/185W x 1 POWER SUPPLY Power Supply: Full PWM Power Supply Threshold: 10.0V-16.0V (DC) Idle Current: (1.0A) DISTORTION THD (1KHz @4Ω): <1% S/N Ratio (A weighted @1W): >90dBA S/N Ratio (A weighted @FP): >105dBA
- INPUT SENSITIVITY: Low Input Level: 200mV-6V High Input Level: 200mV-6V INPUT IMPEDANCE Low Input Level: 20 KΩ High Input Level: OUTPUT STAGE Output Impedance: 2Ω/4Ω Damping Factor: 100 Bandwidth (-3dB): 10Hz-32KHz/10Hz-400Hz
- CROSSOVER (-12dB/Oct): Variable High-Pass: 40Hz-400Hz Variable Low-Pass: 40Hz-400Hz Variable Sub-Sonic: FUSE RATINGS ATC: 40A x 2 DIMENSIONS L x W x H: 14.97”x 9.38”x 2.25” (380mm x 238mm x 57mm) FEATURES LED Power/Protection Indicator Bass Boost: 0dB-12dB Bass Volume Control Included MFR #: CVP2500.5D
- POWER RATING: RMS Power @ 2Ω: 85W x 4/300W x 1 RMS Power @ 4Ω: 65W x 4/185W x 1 RMS Power Bridged @ 4Ω: 180W x 2/185W x 1 POWER SUPPLY Power Supply: Full PWM Power Supply Threshold: 10.0V-16.0V (DC) Idle Current: (1.0A) DISTORTION THD (1KHz @4Ω): <1% S/N Ratio (A weighted @1W): >90dBA S/N Ratio (A weighted @FP): >105dBA
- INPUT SENSITIVITY: Low Input Level: 200mV-6V High Input Level: 200mV-6V INPUT IMPEDANCE Low Input Level: 20 KΩ High Input Level: OUTPUT STAGE Output Impedance: 2Ω/4Ω Damping Factor: 100 Bandwidth (-3dB): 10Hz-32KHz/10Hz-400Hz
- CROSSOVER (-12dB/Oct): Variable High-Pass: 40Hz-400Hz Variable Low-Pass: 40Hz-400Hz Variable Sub-Sonic: FUSE RATINGS ATC: 40A x 2 DIMENSIONS L x W x H: 14.97”x 9.38”x 2.25” (380mm x 238mm x 57mm) FEATURES LED Power/Protection Indicator Bass Boost: 0dB-12dB Bass Volume Control Included MFR #: CVP2500.5D
Whats Included
- amp
- amp
- amp
