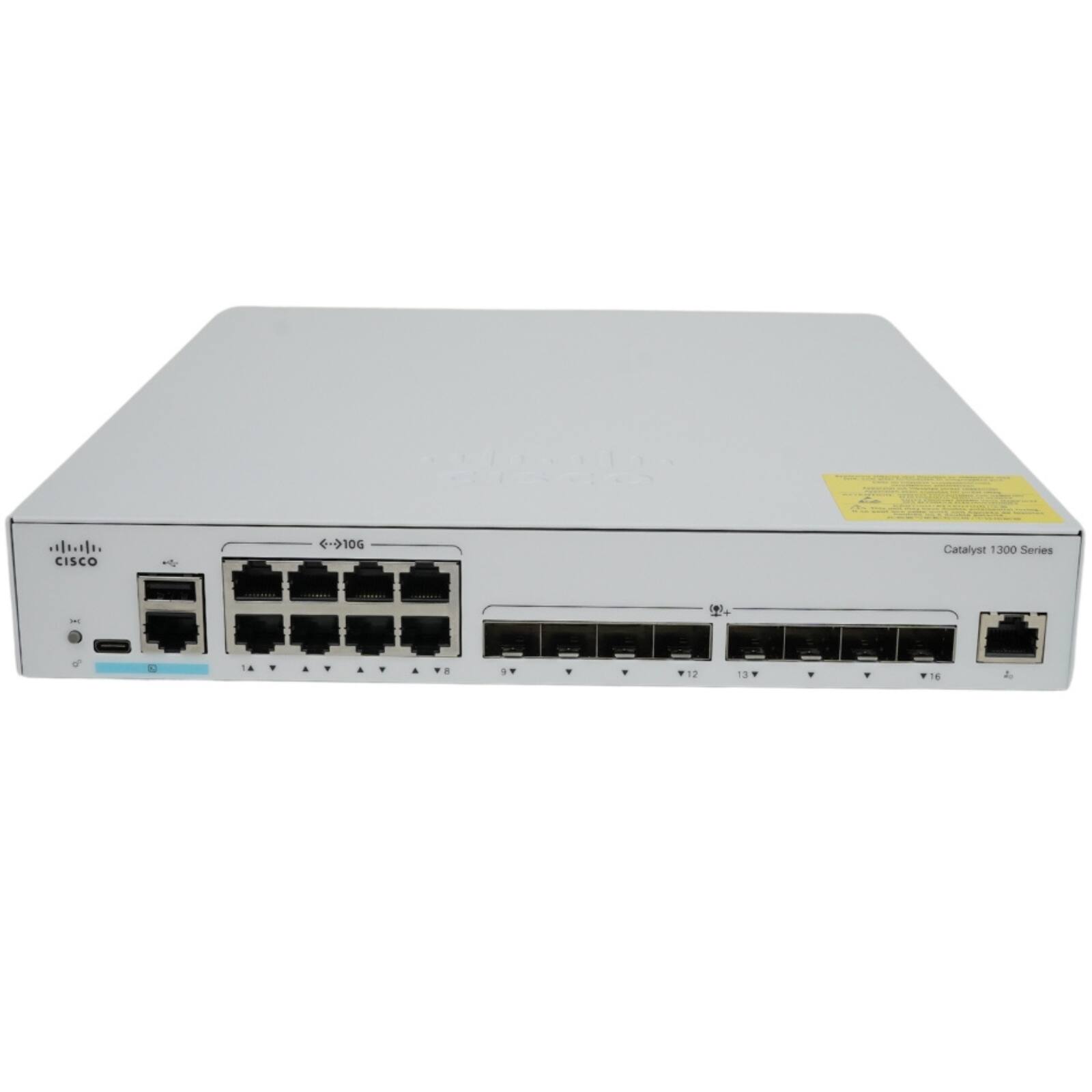

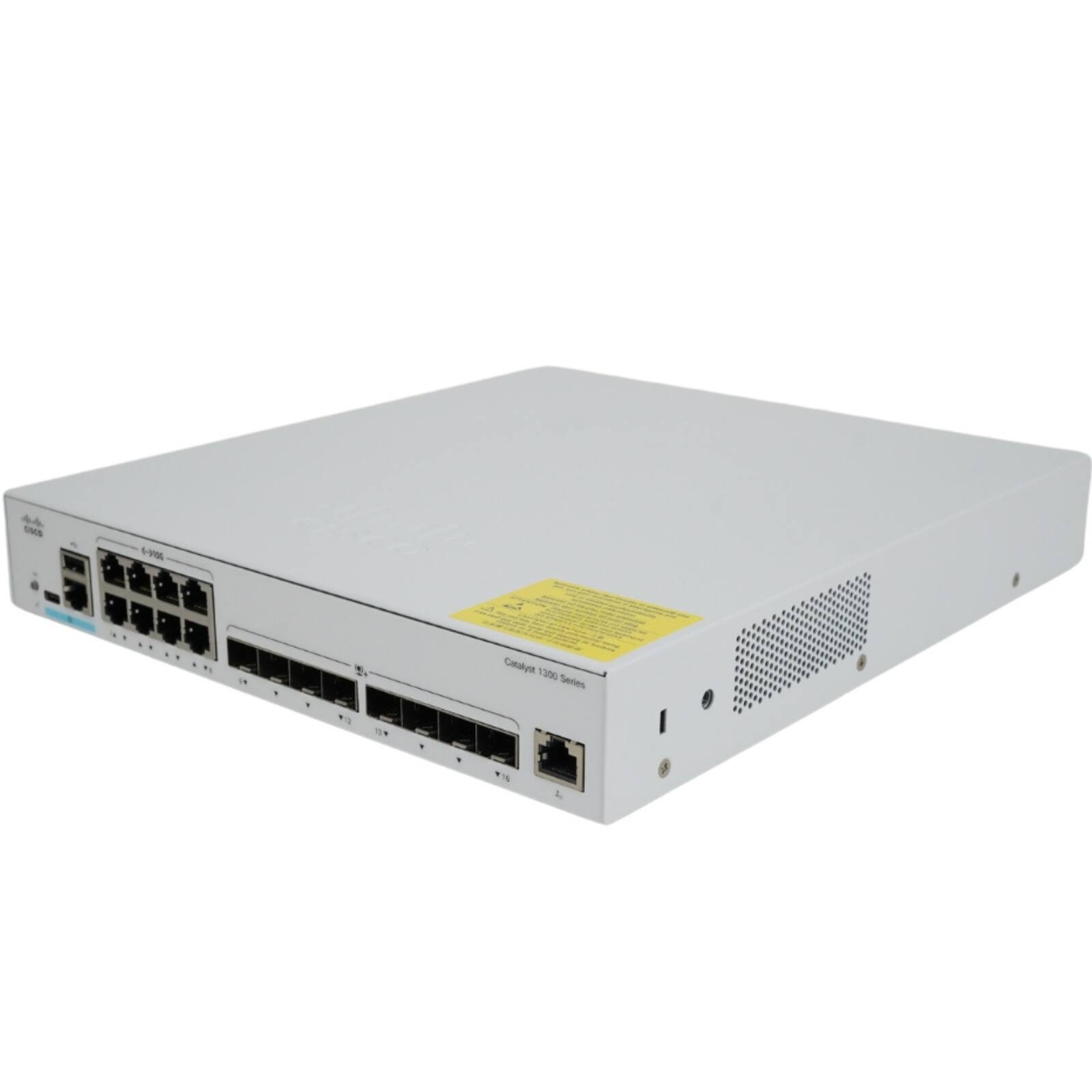

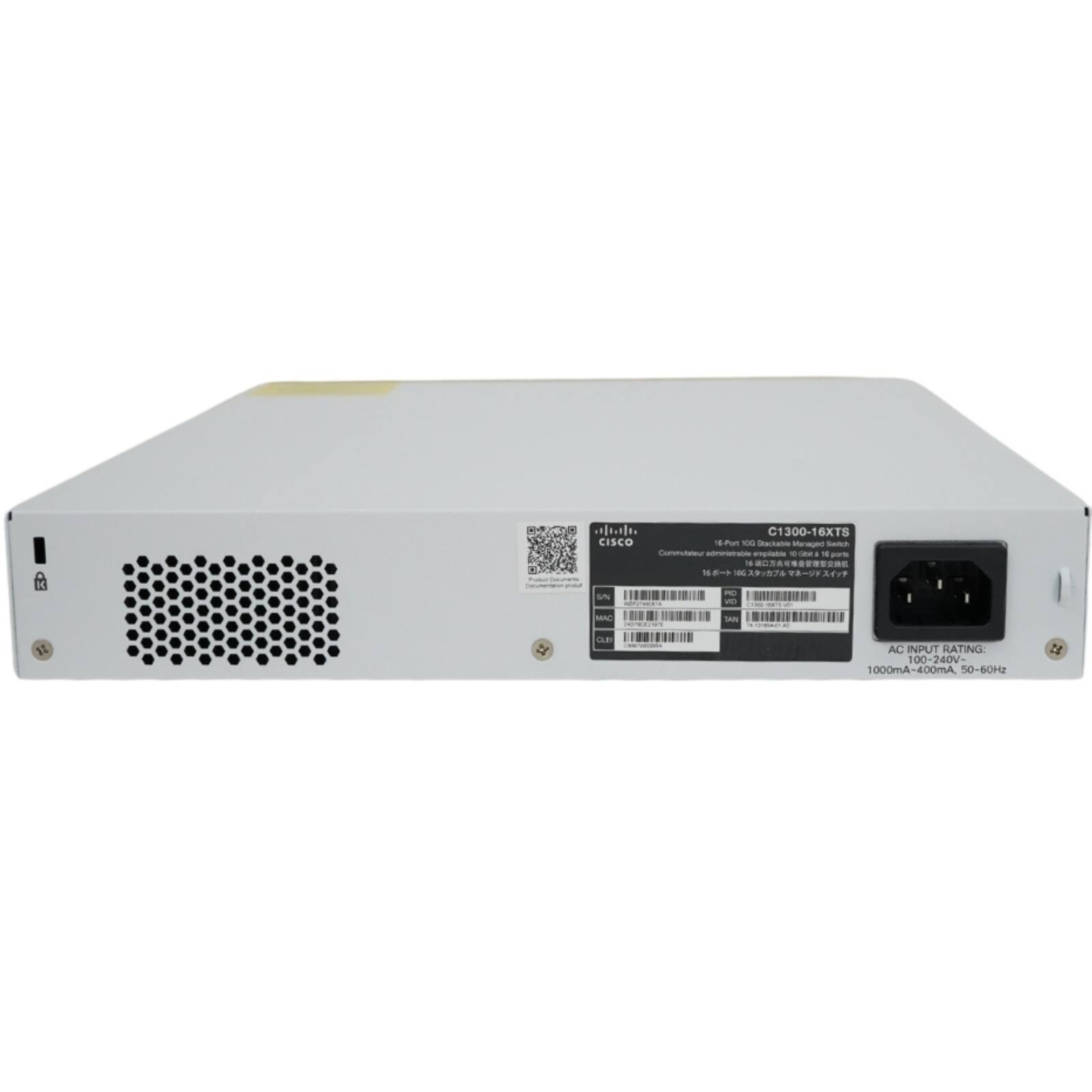

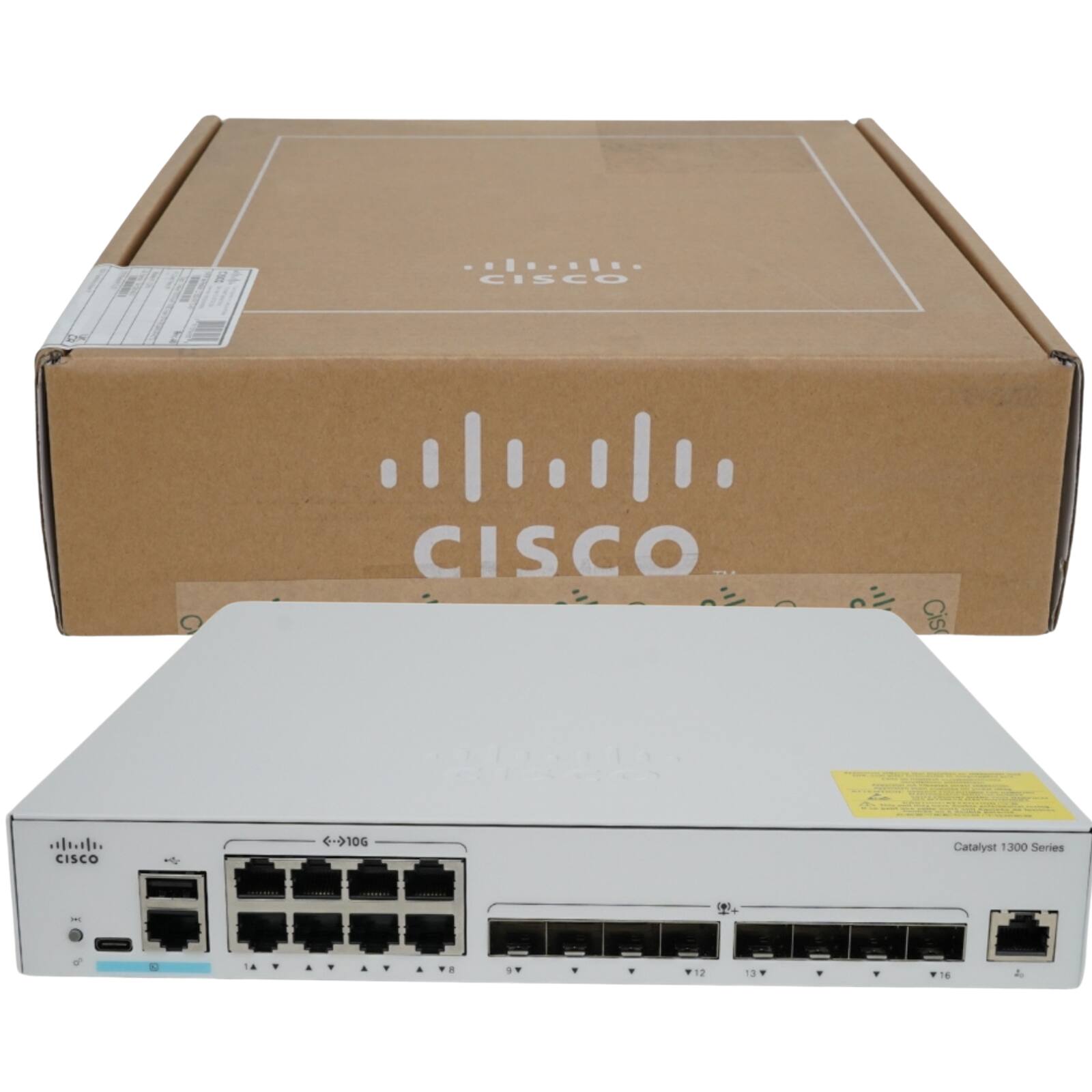

Cisco - C1300-16XTS 16-Port 10G Managed Layer 2-3 Switch, 8-Port RJ-45, 8-Port SFP Plus, 320 Gbps, Stackable, 1U Rack - Gray
Related Item
Specifications
- Number of PoE (Power over Ethernet) Ports0Form FactorRack mountable (mount kit included)Maximum Data Speed10000 megabits per secondSwitch Management TypeFully managedNumber of LAN Ports16
- Key Specs
- Number of PoE (Power over Ethernet) Ports: 0 (Allow connection of a single cable that provides both data connection and electrical power (Power over Ethernet).)
- Form Factor: Rack mountable (mount kit included)
- Maximum Data Speed: 10000 megabits per second
- Switch Management Type: Fully managed (Unmanaged switches don't require user configuration and are typically used for basic connectivity. Managed switches have more features and can be configured by the user for custom network use.)
- Number of LAN Ports: 16 (Number of devices able to be connected to the Local Area Network (LAN). LAN ports allow wired connections to other networking devices (wireless access points, range extenders, etc.) in order to share the internet connection received through a WAN port.)
- General
- Brand: Cisco
- Model Number: C1300-16XTS
- Product Name: C1300-16XTS 16-Port 10G Managed Layer 2-3 Switch, 8-Port RJ-45, 8-Port SFP Plus, 320 Gbps, Stackable, 1U Rack
- Color: Gray
- Network
- Quality Of Service (QoS) Traffic Prioritization: true (Allows a user to manage a device's network performance by configuring the types of traffic that receive top priority for transmission. High priority functions and applications receive maximum network performance, while low priority traffic receives minimum performance.)
- Routing Protocol: RIPv1, RIPv2, Policy-Based Routing (PBR), Static IP Routing, CIDR (The protocol used for communicating and distributing information in a computer network.)
- Uplinking Capability: true (Devices with an uplink port are capable of connecting to other networking devices, such as switches and hubs, to expand the network. For example, two switches may be connected together in a larger network using a daisy-chain setup.)
- Ethernet Standard: 10/100/1000/10000 (Each standard is a variation of the IEEE 802.3 set of computer networking technologies known as Ethernet. New versions evolved to include higher bandwidth, different physical media, and other new and improved features. Standards are often denoted by speeds (in Megabits per second). For example, a 10/100/1000 Ethernet port transmits at 10 Mbps, 100 Mbps, and 1000 Mbps (1 Gbps).)
- Certifications Listings & Approvals
- ENERGY STAR Certified: false (Devices carrying the ENERGY STAR service mark, such as computer products and peripherals, kitchen appliances, and other products, generally use 20% to 30% less energy than required by federal standards.)
- Features
- Auto Detecting: true
- Auto Speed Sensing: true
- Ports
- Auto Sending Ports: true (Automatically send incoming signals to the correct destination.)
- Speed
- Gigabit Ethernet Speed: true (Supports the gigabit Ethernet networking standard, which has a data rate of at least one gigabit per second, or 1,000 Mbps.)
- Compatibility
- System Requirements: Web browser (Chrome, Firefox, Edge, Safari); Category 5e or better Ethernet cable; TCP/IP and network OS (Windows, Linux, or Mac OS X) (The software that a product must have for it to be able to integrate with another product.)
- Additional Dimensions
- Height (Rack Units): 1U
- Dimensions
- Product Height: 1.73 inches (The out of box height of the item. Height is measured as the vertical distance from the bottom of the item to the top as it would be primarily used or placed.)
- Product Length: 12 inches (The out of box length of the item. Length is measured as the longest dimension of the item.)
- Product Width: 11 inches (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
- Product Weight: 6 pounds (The out of box weight of the item.)
- Warranty
- Warranty - Parts: 1 year
- Warranty - Labor: None
- Other
- UPC: 889728521482
The Cisco Catalyst C1300-16XTS is a fixed, enterprise-class Layer 3 managed network switch built for small and medium-sized businesses and branch offices. It delivers a non-blocking switching capacity of 320 Gbps and a forwarding rate of 238.1 Mpps across 16 total 10 Gigabit ports: 8 x 10GBASE-T copper RJ-45 ports and 8 x 10G SFP+ fiber slots, plus a dedicated 1 GE out-of-band management port. Both copper and SFP+ ports support 10 Gigabit and 1 Gigabit speeds. The switch supports front-panel hardware stacking of up to 8 units (up to 200 ports managed as a single system) within the Catalyst 1300 Family 2 stacking group. Advanced Layer 3 features include RIPv2 dynamic routing, policy-based routing, up to 990 static IPv4 routes, and full IPv6 support. Security features span IEEE 802.1X, DHCP snooping, dynamic ARP inspection, IP Source Guard, ACLs with 1024 rules, DoS prevention, and TACACS+/RADIUS authentication. QoS provides 8 hardware queues with strict priority and WRR scheduling. Managed via Cisco Business Dashboard, web GUI, CLI, SNMP v1/v2c/v3, and Cisco Business mobile app. Rack-mountable 1U chassis runs on customized Linux OS with 1 GB DDR4 RAM and 512 MB flash. Operating temperature -5 to 50 degrees C. UL 62368, CE, FCC Part 15 Class A certified.
- 16-Port All-10G Switching, 320 Gbps Non-Blocking: Every port operates at 10 Gigabit speeds — 8 x 10GBASE-T RJ-45 copper ports and 8 x 10G SFP+ fiber slots, plus a dedicated 1 GE out-of-band management port. Non-blocking switching capacity of 320 Gbps with a 238.1 Mpps forwarding rate ensures wire-speed performance across all 16 ports simultaneously, ideal for bandwidth-intensive SMB and branch networks.
- Hardware Stacking Up to 8 Switches, 200 Ports: Front-panel hardware stacking supports up to 8 Catalyst 1300 Family 2 switches (C1300-12XT-2X, C1300-12XS, C1300-16XTS, C1300-24XS, C1300-24XT, C1300-24XTS) managed as a single system with one IP address and up to 200 total ports. Features unified data, control, and management planes, ring and chain stacking topologies, hot swap, and fast stack failover for high availability.
- Full Layer 3 Routing: RIPv2, PBR, Static Routes: Layer 3 routing capabilities include RIPv2 dynamic routing, policy-based routing (PBR) for flexible IPv4/IPv6 traffic steering, up to 990 static IPv4 routes, and 128 IP interfaces. VLAN support spans up to 4093 VLANs, Voice VLAN, Q-in-Q, Private VLAN, and GVRP/GARP for automatic VLAN propagation. Ideal for segmenting networks without relying solely on upstream routers.
- Enterprise Security: 802.1X, ACLs, DoS, RADIUS: Comprehensive security suite includes IEEE 802.1X port access authentication, dynamic ARP inspection, DHCP snooping, IP Source Guard, up to 1024 ACL rules (ingress and egress), storm control, DoS prevention, TACACS+/RADIUS, SSH v1/v2, SSL/HTTPS, and IPv6 First Hop Security with RA guard, ND inspection, and DHCPv6 guard. Multiple CLI privilege levels (1, 7, 15) and Secure Sensitive Data (SSD) protect business-critical configurations.
- Cisco Business Dashboard, Web GUI, CLI, SNMP: Managed via Cisco Business Dashboard (embedded probe, no separate hardware needed), Cisco Business mobile app, intuitive web GUI (HTTP/HTTPS), full text-view CLI, and SNMP v1/v2c/v3. Supports Cisco Network Plug and Play for near-zero-touch deployment, RMON, sFlow, port mirroring, RSPAN, dual firmware images for resilient upgrades, and Bluetooth dongle support for wireless CLI/GUI access via laptop or tablet.
Whats Included

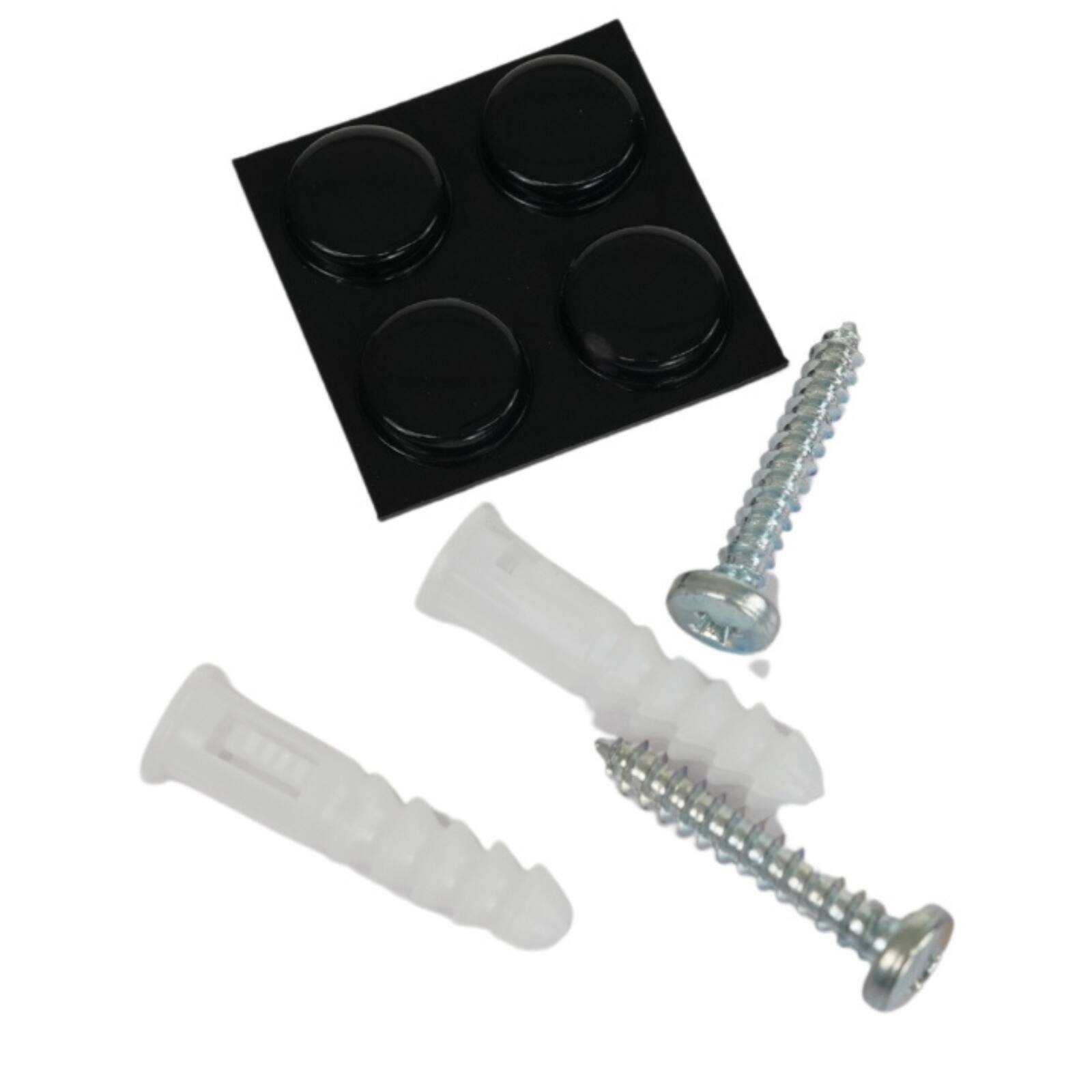

- Switch, Mounting kit
