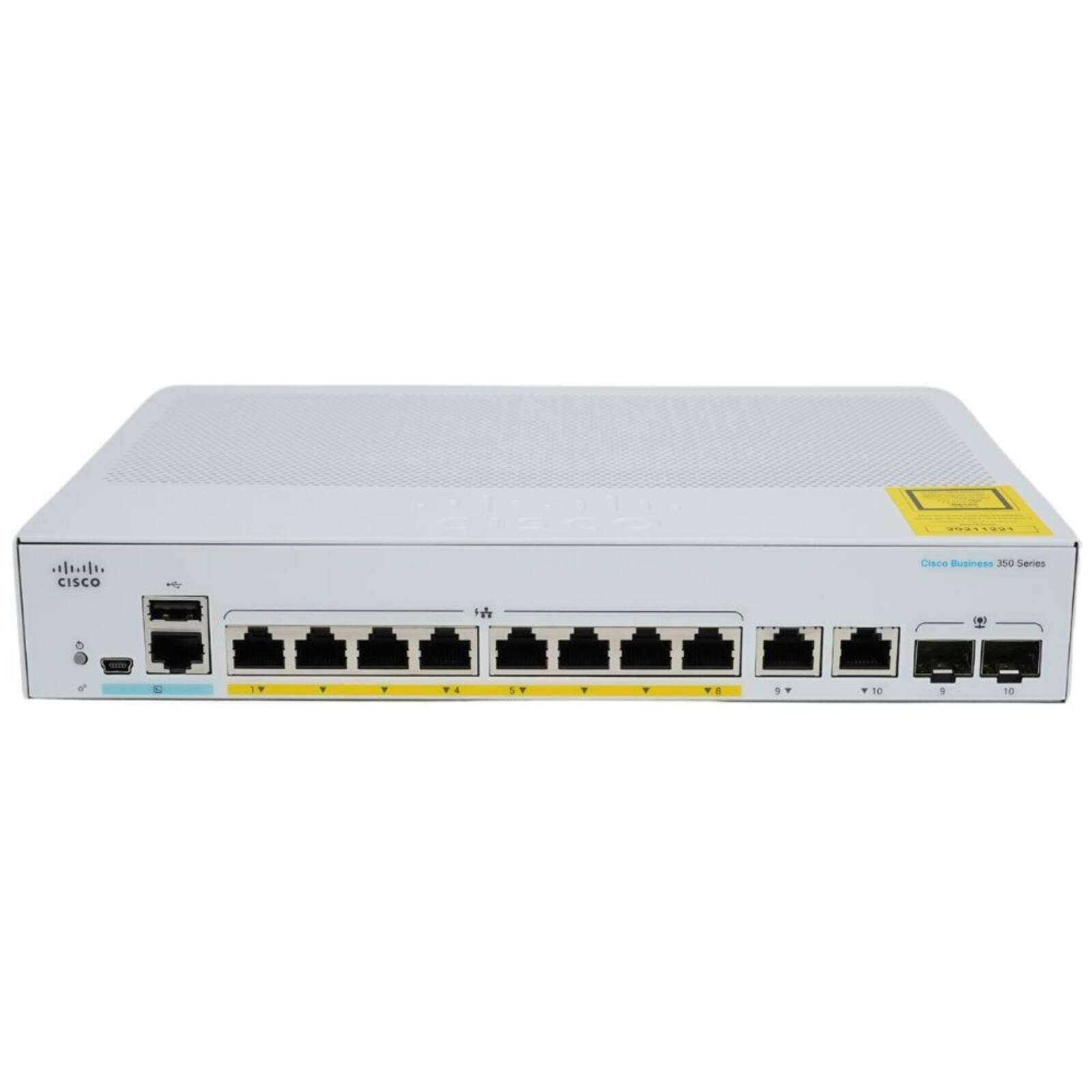

Cisco - CBS350-8P-E-2G 8-Port Gigabit PoE+ Managed Switch with 2 Gigabit RJ45/SFP Combo Uplinks, Layer 2/3, 20 Gbps - Gray
Cisco - CBS350-8P-E-2G 8-Port Gigabit PoE+ Managed Switch with 2 Gigabit RJ45/SFP Combo Uplinks, Layer 2/3, 20 Gbps - Gray
Reviews coming soon
FREE shipping to
Specifications
- Number of PoE (Power over Ethernet) Ports8Form FactorRack mountable (mount kit included)Maximum Data Speed1000 megabits per secondSwitch Management TypeFully managedNumber of LAN Ports8
- Key Specs
- Number of PoE (Power over Ethernet) Ports: 8 (Allow connection of a single cable that provides both data connection and electrical power (Power over Ethernet).)
- Form Factor: Rack mountable (mount kit included)
- Maximum Data Speed: 1000 megabits per second
- Switch Management Type: Fully managed (Unmanaged switches don't require user configuration and are typically used for basic connectivity. Managed switches have more features and can be configured by the user for custom network use.)
- Number of LAN Ports: 8 (Number of devices able to be connected to the Local Area Network (LAN). LAN ports allow wired connections to other networking devices (wireless access points, range extenders, etc.) in order to share the internet connection received through a WAN port.)
- General
- Brand: Cisco
- Model Number: CBS350-8P-E-2G
- Product Name: CBS350-8P-E-2G 8-Port Gigabit PoE+ Managed Switch with 2 Gigabit RJ45/SFP Combo Uplinks, Layer 2/3, 20 Gbps
- Color: Gray
- Network
- Quality Of Service (QoS) Traffic Prioritization: true (Allows a user to manage a device's network performance by configuring the types of traffic that receive top priority for transmission. High priority functions and applications receive maximum network performance, while low priority traffic receives minimum performance.)
- Routing Protocol: Static Routing, OSPF, RIP, BGP, IPv4, IPv6 (The protocol used for communicating and distributing information in a computer network.)
- Uplinking Capability: true (Devices with an uplink port are capable of connecting to other networking devices, such as switches and hubs, to expand the network. For example, two switches may be connected together in a larger network using a daisy-chain setup.)
- Ethernet Standard: 10/100/1000 (Each standard is a variation of the IEEE 802.3 set of computer networking technologies known as Ethernet. New versions evolved to include higher bandwidth, different physical media, and other new and improved features. Standards are often denoted by speeds (in Megabits per second). For example, a 10/100/1000 Ethernet port transmits at 10 Mbps, 100 Mbps, and 1000 Mbps (1 Gbps).)
- Certifications Listings & Approvals
- ENERGY STAR Certified: false (Devices carrying the ENERGY STAR service mark, such as computer products and peripherals, kitchen appliances, and other products, generally use 20% to 30% less energy than required by federal standards.)
- Features
- Auto Detecting: true
- Auto Speed Sensing: true
- Ports
- Auto Sending Ports: true (Automatically send incoming signals to the correct destination.)
- Speed
- Gigabit Ethernet Speed: true (Supports the gigabit Ethernet networking standard, which has a data rate of at least one gigabit per second, or 1,000 Mbps.)
- Compatibility
- System Requirements: Web browser for GUI management; Cisco Business Dashboard (free) for cloud management; compatible with Windows, macOS, Linux; SNMP management software optional (The software that a product must have for it to be able to integrate with another product.)
- Voice Assistant Built-in: No (A digital assistant built into the device that uses voice commands to answer questions and control smart devices.)
- Additional Dimensions
- Height (Rack Units): 1U
- Dimensions
- Product Height: 1.73 inches (The out of box height of the item. Height is measured as the vertical distance from the bottom of the item to the top as it would be primarily used or placed.)
- Product Length: 7.28 inches (The out of box length of the item. Length is measured as the longest dimension of the item.)
- Product Width: 10.56 inches (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
- Product Weight: 3.37 pounds (The out of box weight of the item.)
- Warranty
- Warranty - Parts: 1 year
- Other
- UPC: 889728293532
Built for small and medium business networks, this fully managed Gigabit PoE+ switch powers and connects IP phones, wireless access points, and security cameras while delivering enterprise-grade control and security. It includes 8 10/100/1000 PoE+ ports with a 60W total PoE budget plus 2 Gigabit copper/SFP combo uplink ports for flexible fiber or copper uplinks, and it is rack-mountable for clean deployments. With a 20.0 Gbps nonblocking switching capacity and 14.88 Mpps forwarding performance, it supports fast, reliable voice, video, and data traffic. Advanced features such as VLAN segmentation, link aggregation, QoS, and security controls help protect and optimize your network, while IEEE 802.3az Energy Efficient Ethernet reduces power usage during low-traffic periods. The fanless design enables silent operation in offices, retail spaces, classrooms, and wiring closets, and the compact chassis measures 10.56 x 7.28 x 1.73 inches with 100–240V, 50–60 Hz external power support.
- 8 Gigabit PoE+ Ports with 60W Total PoE Budget: Power and connect compatible PoE devices using a single Ethernet cable. This model provides 8 Gigabit PoE+ ports with 60W total PoE budget for devices like IP phones, access points, and cameras.
- Wire-Speed Switching Performance Up to 20 Gbps: Designed for fast, reliable connectivity with wire-speed, nonblocking architecture. Delivers up to 20 Gbps switching capacity and 14.88 Mpps forwarding for low-latency traffic flow across the network.
- Advanced VLAN Segmentation and Multicast Optimization: Support complex network segmentation with up to 4,094 VLANs plus voice VLAN (with appropriate QoS treatment) and IGMP snooping to limit multicast traffic to only the requesters for efficient streaming and surveillance deployments.
- Layer 3 Routing with Static Routes for Growing Networks: Add smarter traffic control with wirespeed IPv4/IPv6 routing and Layer 3 interfaces. Supports up to 990 static routes and up to 128 IP interfaces to enable scalable inter-VLAN routing and efficient network design.
- Enterprise Security and Simple Cisco Business Management: Protect access and reduce attack surface with IEEE 802.1X authentication plus DHCP snooping, IP Source Guard, and Dynamic ARP Inspection. Manage and monitor with Cisco Business Dashboard embedded probe support and the Cisco Business mobile app.
Whats Included

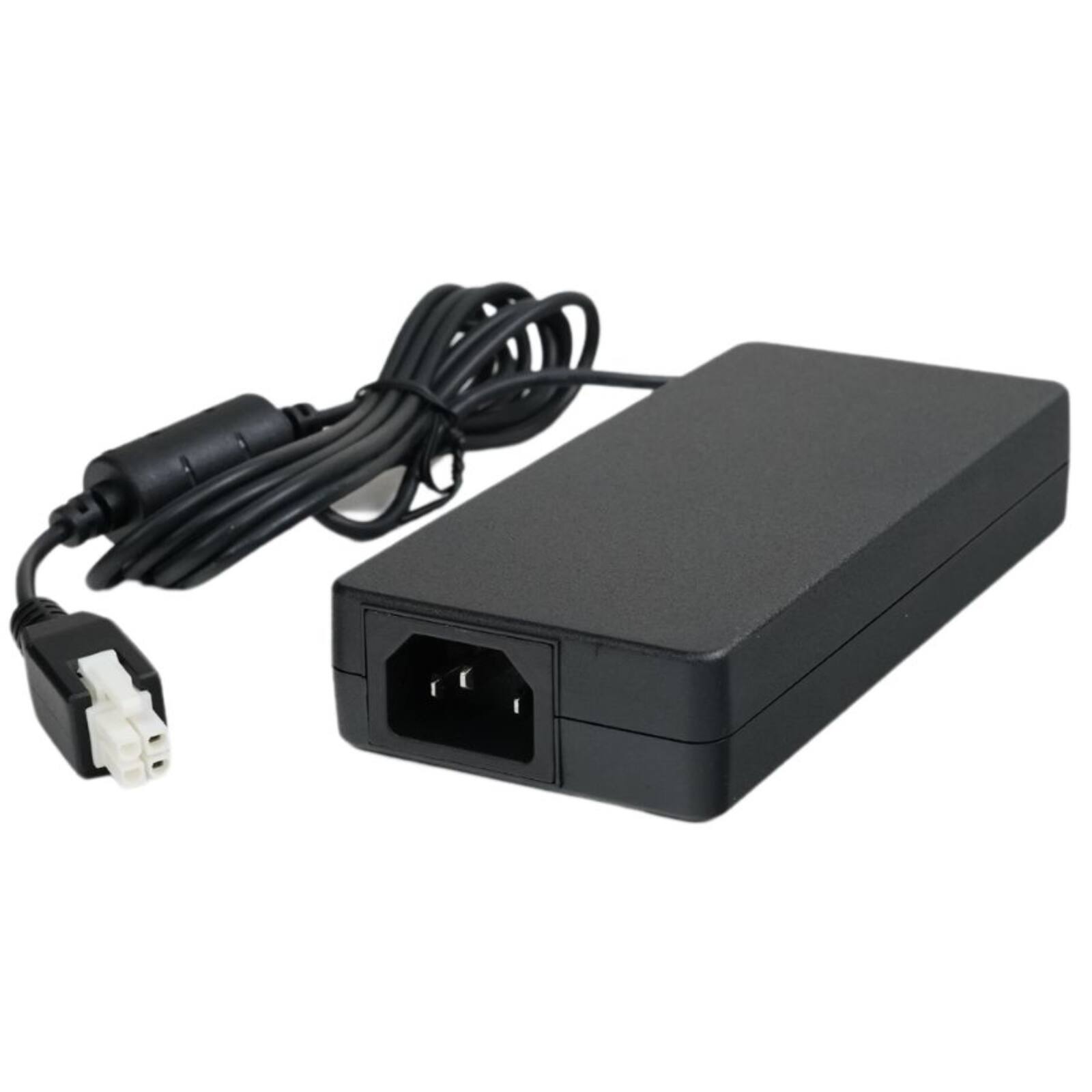

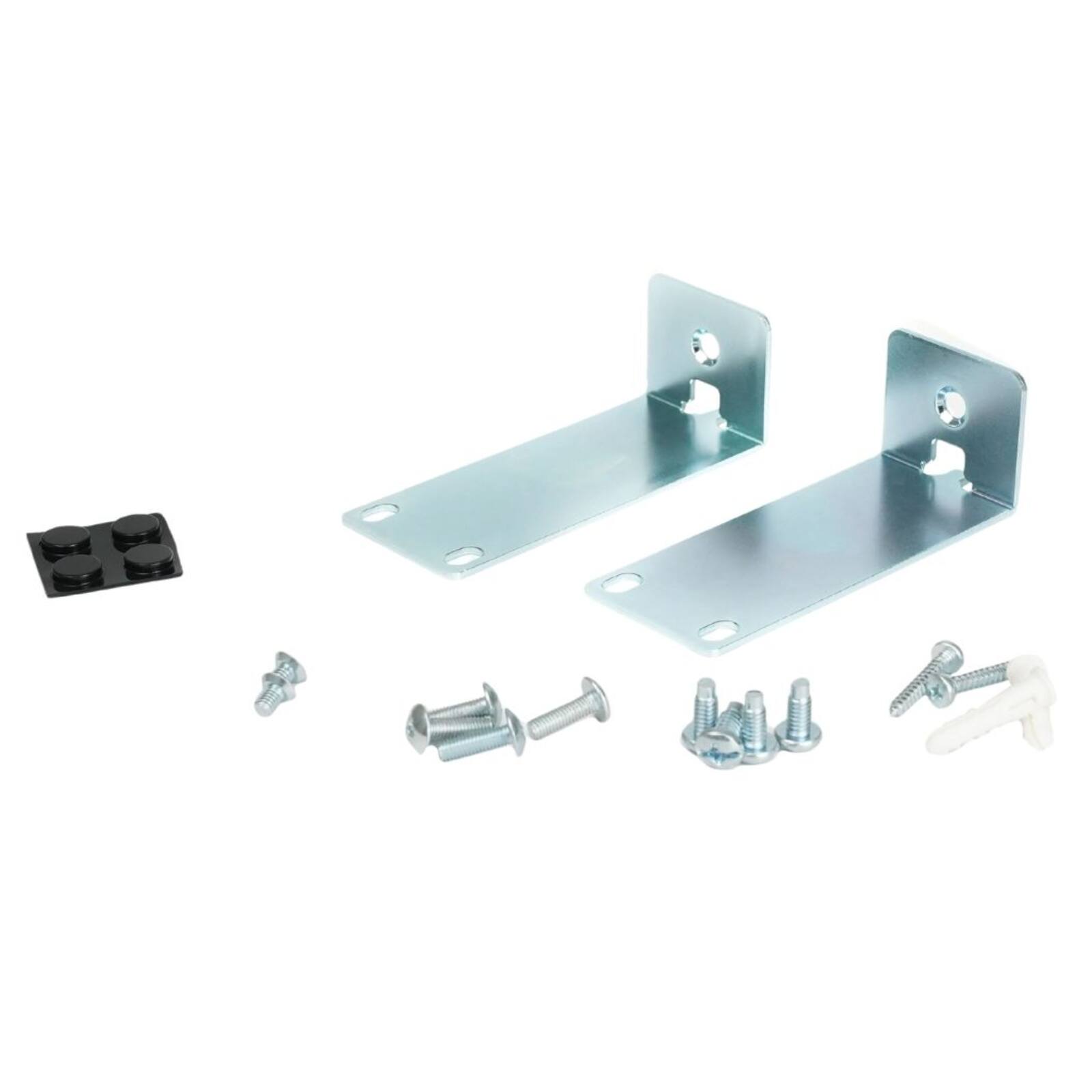

- Cisco CBS350-8P-E-2G Switch, Power Adapter, Rack-Mount Kit, Quick Start Guide
