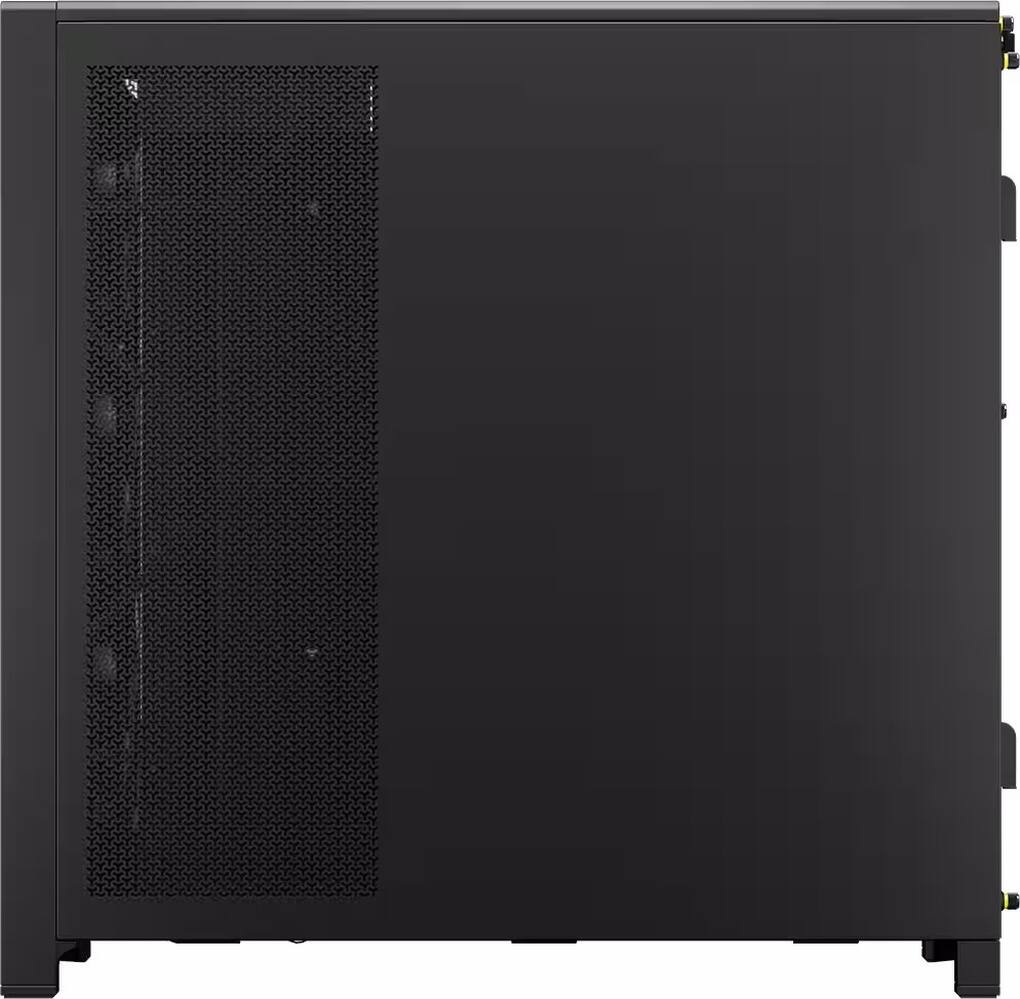

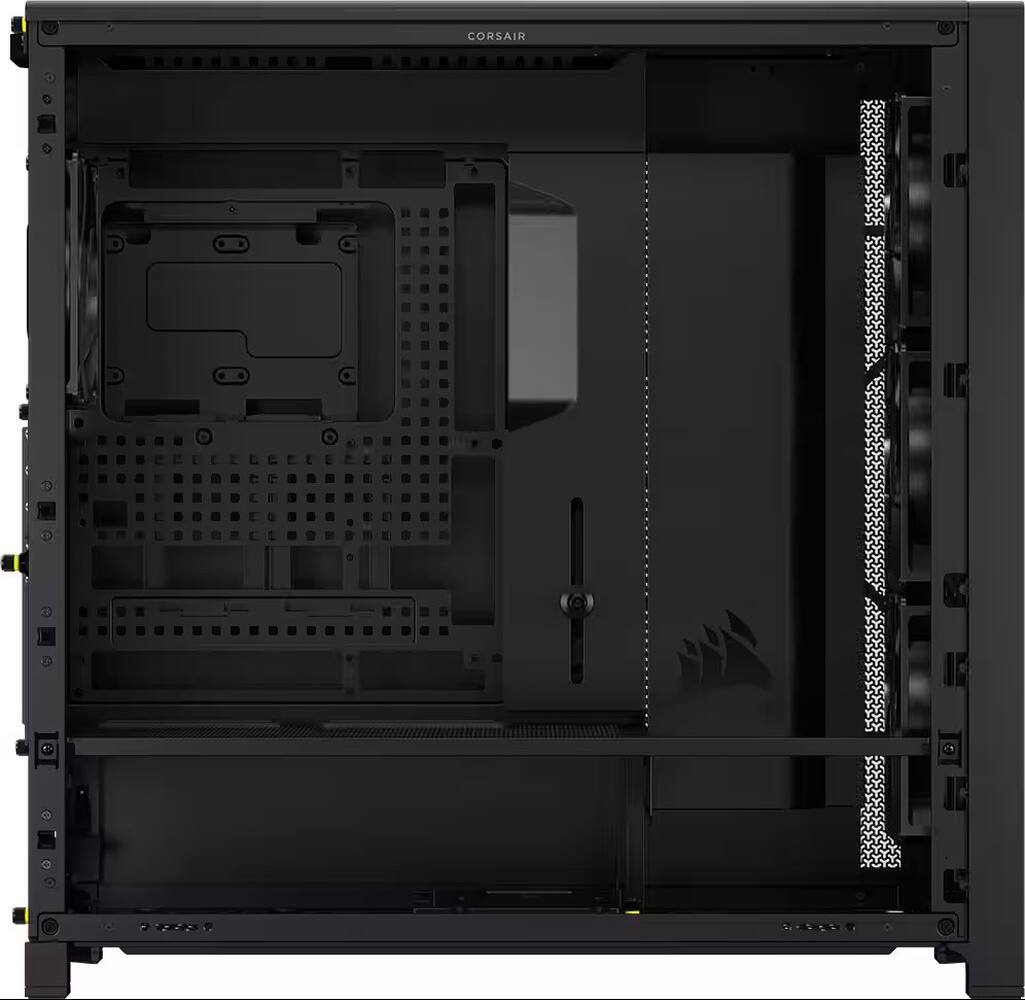

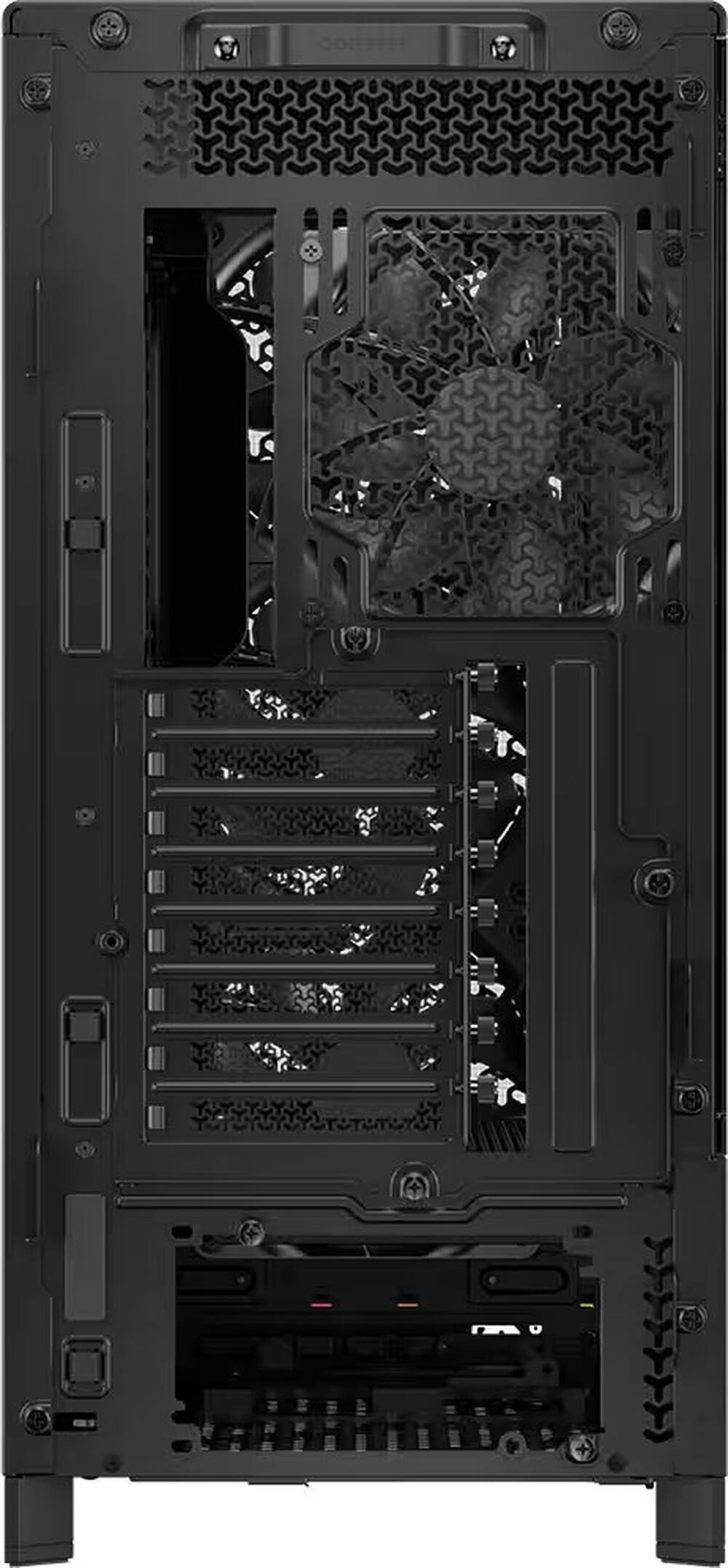

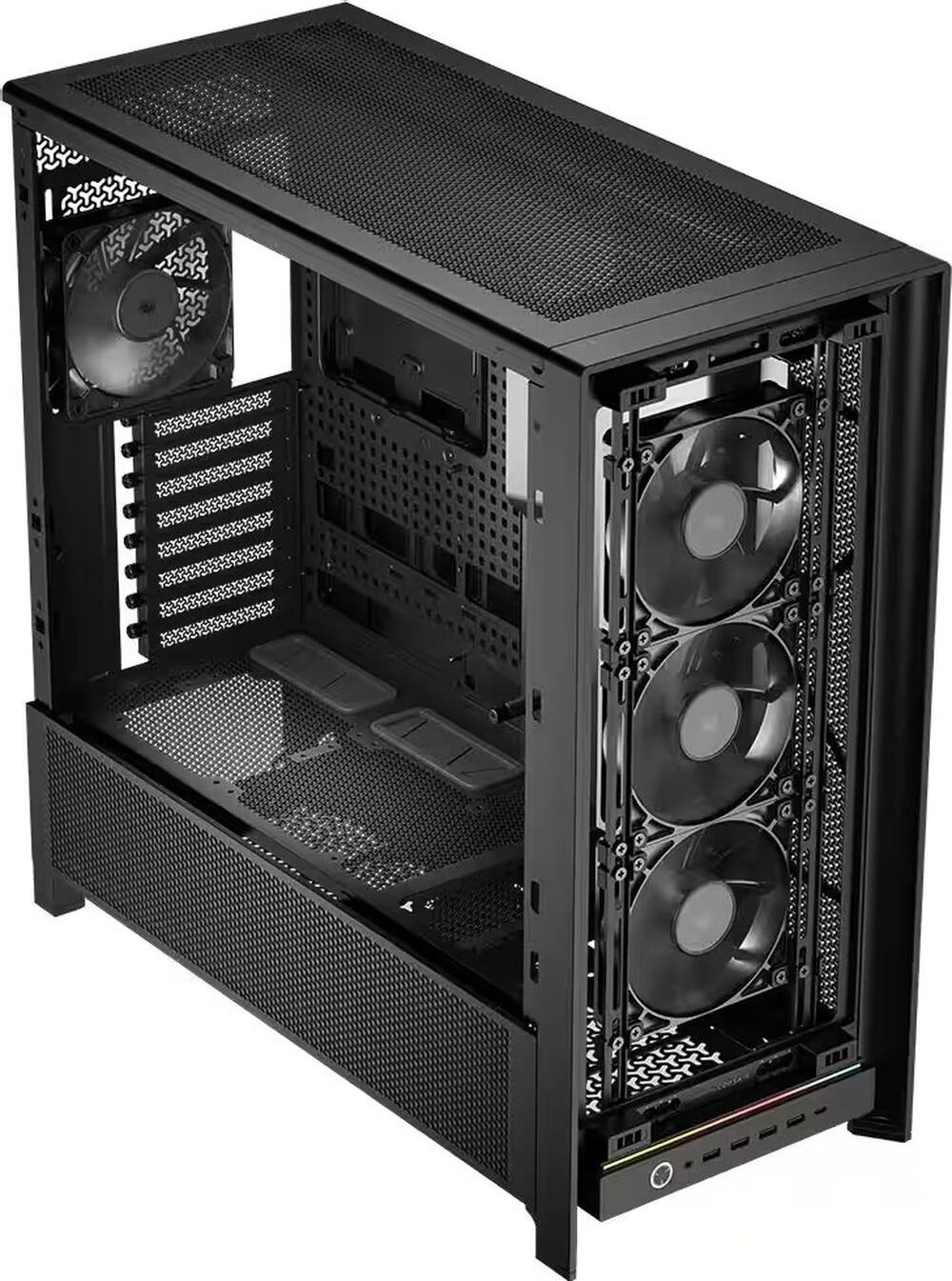

CORSAIR - 5000D RS Mid-Tower Modular PC Case - Black
Color
Black
iFixit - FixMat ESD Magnetic Project Tray - Blue$31.49$36.99
More Buying Options
Related Item
Specifications
- Motherboard Form FactorMini-ITX, microATX, ATX, EATXMaximum GPU Length450 millimetersProduct Height21.34 inchesProduct Width9.84 inchesProduct Depth21.89 inchesWindow Panel(s)Panoramic, Right side
- Key Specs
- Motherboard Form Factor: Mini-ITX, microATX, ATX, EATX (Physical size of the motherboard, which can determine how many PCIe slots are available. Smaller board means fewer slots and features.)
- Maximum GPU Length: 450 millimeters
- Product Height: 21.34 inches (The out of box height of the item. Height is measured as the vertical distance from the bottom of the item to the top as it would be primarily used or placed.)
- Product Width: 9.84 inches (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
- Product Depth: 21.89 inches (The out of box depth of the item. Depth is measured as the distance from the front of the item to the back as it would be primarily used or placed.)
- Window Panel(s): Panoramic, Right side
- Case Material: Steel, Tempered glass
- General
- Brand: CORSAIR
- Model Number: CC-9011307-WW
- Product Name: 5000D RS Mid-Tower Modular PC Case
- Color: Black
- Case Material: Steel, Tempered glass
- Compatibility
- Motherboard Form Factor: Mini-ITX, microATX, ATX, EATX (Physical size of the motherboard, which can determine how many PCIe slots are available. Smaller board means fewer slots and features.)
- Maximum Power Supply Length: 250 millimeters
- Maximum GPU Length: 450 millimeters
- Number of Expansion Slots: 8
- Ports
- USB Port Location: Front
- Number of USB Ports (Total): 5
- USB Ports: 1 x USB-C 3.2, 4 x USB-A 3.2 (The number and type of USB ports the product has.)
- Headphone Jack: true (The device features an interface that allows for the connection of headphones.)
- Microphone Input: true (The device features an input for connecting an external microphone.)
- Dimensions
- Product Height: 21.34 inches (The out of box height of the item. Height is measured as the vertical distance from the bottom of the item to the top as it would be primarily used or placed.)
- Product Width: 9.84 inches (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
- Product Depth: 21.89 inches (The out of box depth of the item. Depth is measured as the distance from the front of the item to the back as it would be primarily used or placed.)
- Product Weight: 28 ounces (The out of box weight of the item.)
- Features
- Enclosure Type: Mid tower
- Window Panel(s): Panoramic, Right side
- Customizable Case Lighting: false
- Lighting Type: None
- Cooling
- Maximum CPU Cooler Height: 175 millimeters
- Number of Fans Supported: 14
- Cooling System: Air, Liquid (A computer's CPU generates heat while operating and requires a cooling system to keep internal components functioning properly. Air cooling uses fans to draw in cool air and exhaust hot air, while liquid cooling uses coolant-filled tubes and water blocks to regulate internal temperature more efficiently.)
- Cooling Support: Top: 3x120mm, 3x140mm;Side: 3x120mm,3x140mm; Bottom: 2x120mm;Rear 1x120mm, 1x140mm; Front 3x 120mm, 3x 140mm, 2x 200mm; PSU Shroud: 2x 120mm
- Number of Fans Included: 4
- Radiator Support: Top: 420mm, 360mm, 280mm, 240mm; Side: 360mm, 280mm, 240mm; Bottom: None Rear: 120mm, 140mm; PSU Shroud: None
- Warranty
- Warranty - Parts: 2 year limited
- Warranty - Labor: None
- Other
- UPC: 840440491279
Build the high-airflow, low-temperature PC of your dreams in the CORSAIR FRAME 5000D high-airflow case, featuring the innovative FRAME Modular Case System offering unprecedented flexibility to perfectly customize your build as you want it. The InfiniRail Mounting System simplifies fan installation, while support for up to a 420mm radiator and a new 3D Y-Pattern Airflow front panel ensure cool air is directed precisely where it’s needed most. The increased width and length ensure compatibility with the most powerful graphics cards and cooling options, with support for reverse connection motherboards future-proofing your system. We provide the frame. You create the art.
- FRAME Modular Case System: The revolutionary FRAME system gives new meaning to the word customization. The revolutionary FRAME Modular Case System redefines customization. Some of the choices include upgrading the motherboard tray to billet aluminum, replacing the front I/O panel with different USB ports, and swapping out the front intake panel for a different look. This case evolves with your needs, offering a variety of options for future upgrades and aesthetic changes
- Clean Lines or Turbo Cooled: The internal side panel near the motherboard tray can be used as a cable cover for clean cable management, or you can remove it and mount fans to the side for increased cooling potential.

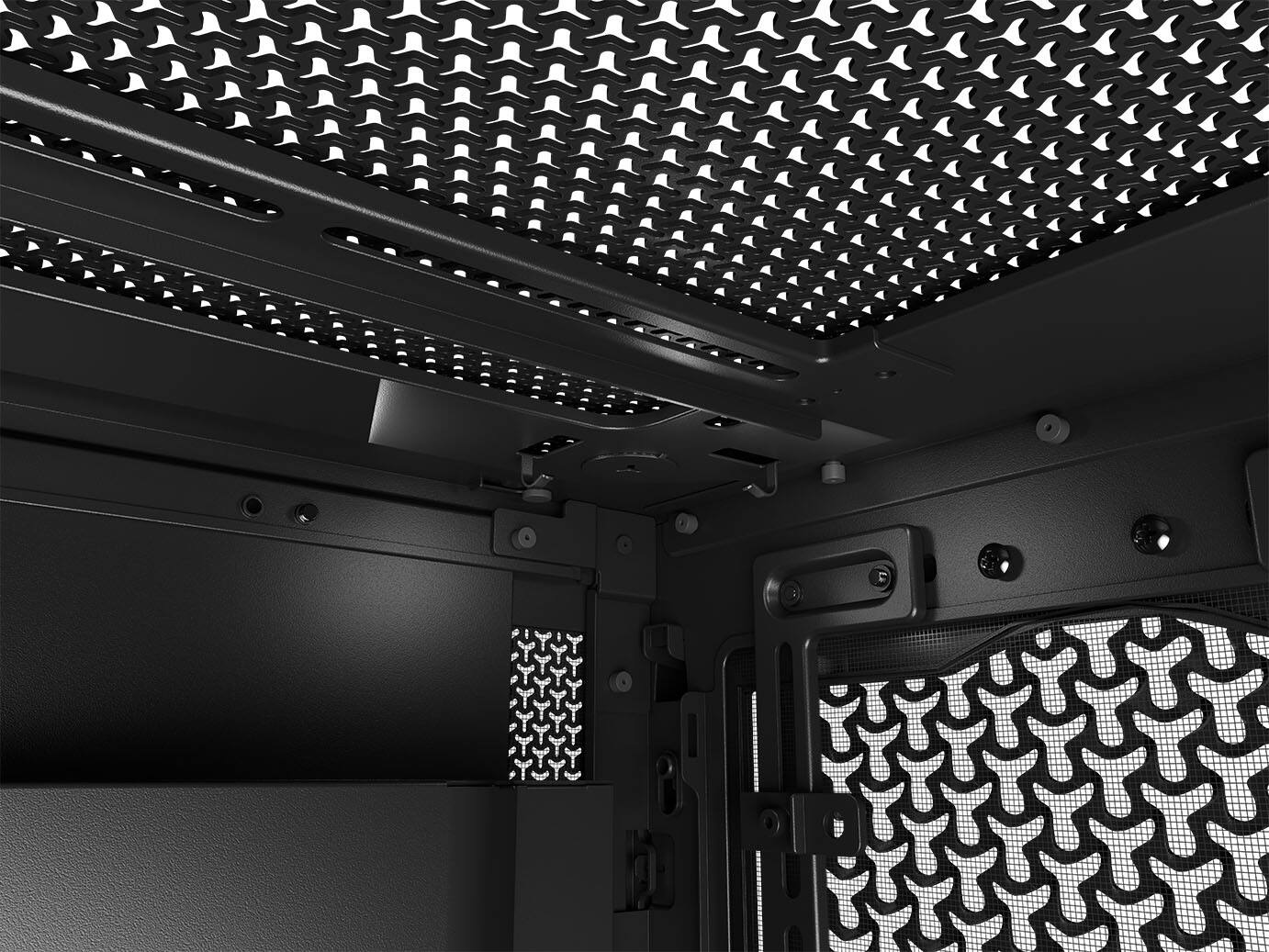

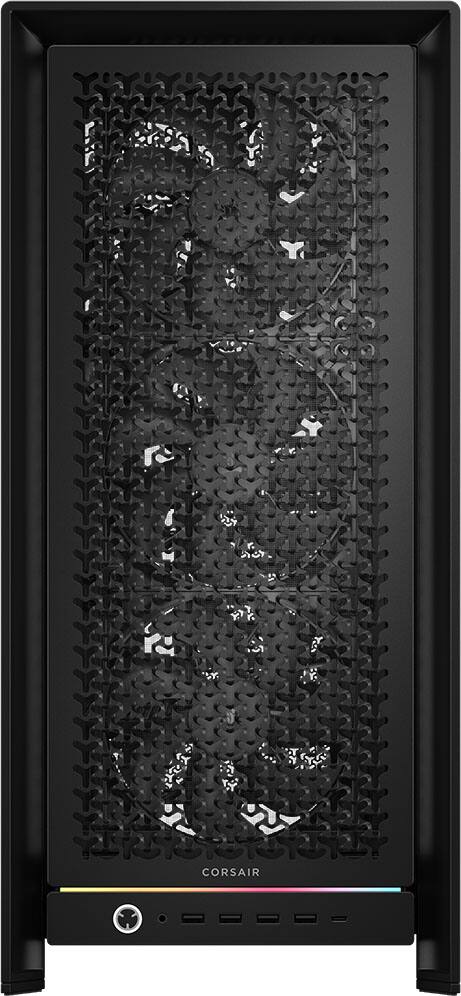

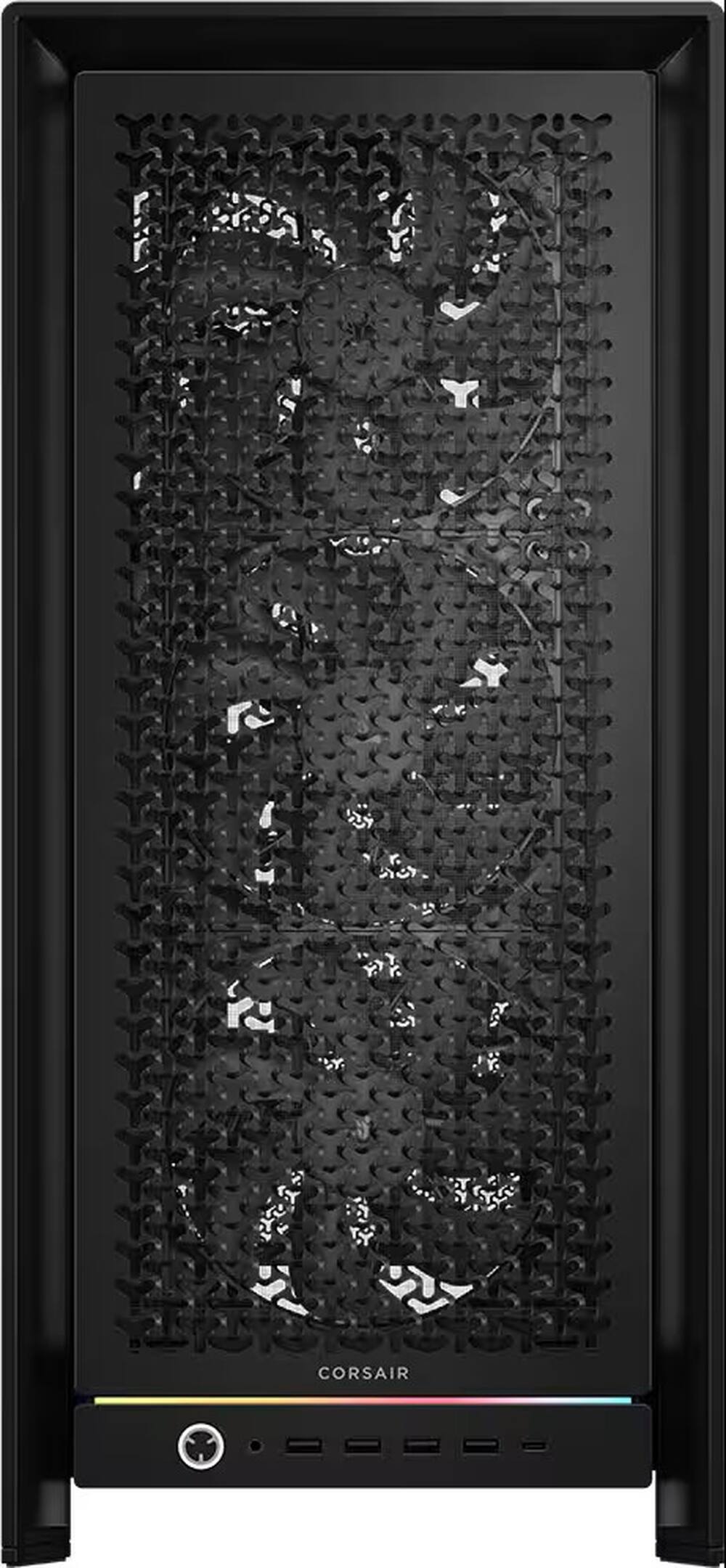

- 3D Y-Pattern Airflow Panel: Optimized for high airflow and minimal restriction, the steel front panel is perforated in three dimensions with a Y-pattern that provides a low-obstruction path for cool air.
- Top 420mm Radiator Support: Take your cooling to the next level with a top-mounted 420mm radiator and room for 360mm radiators on the front or side.

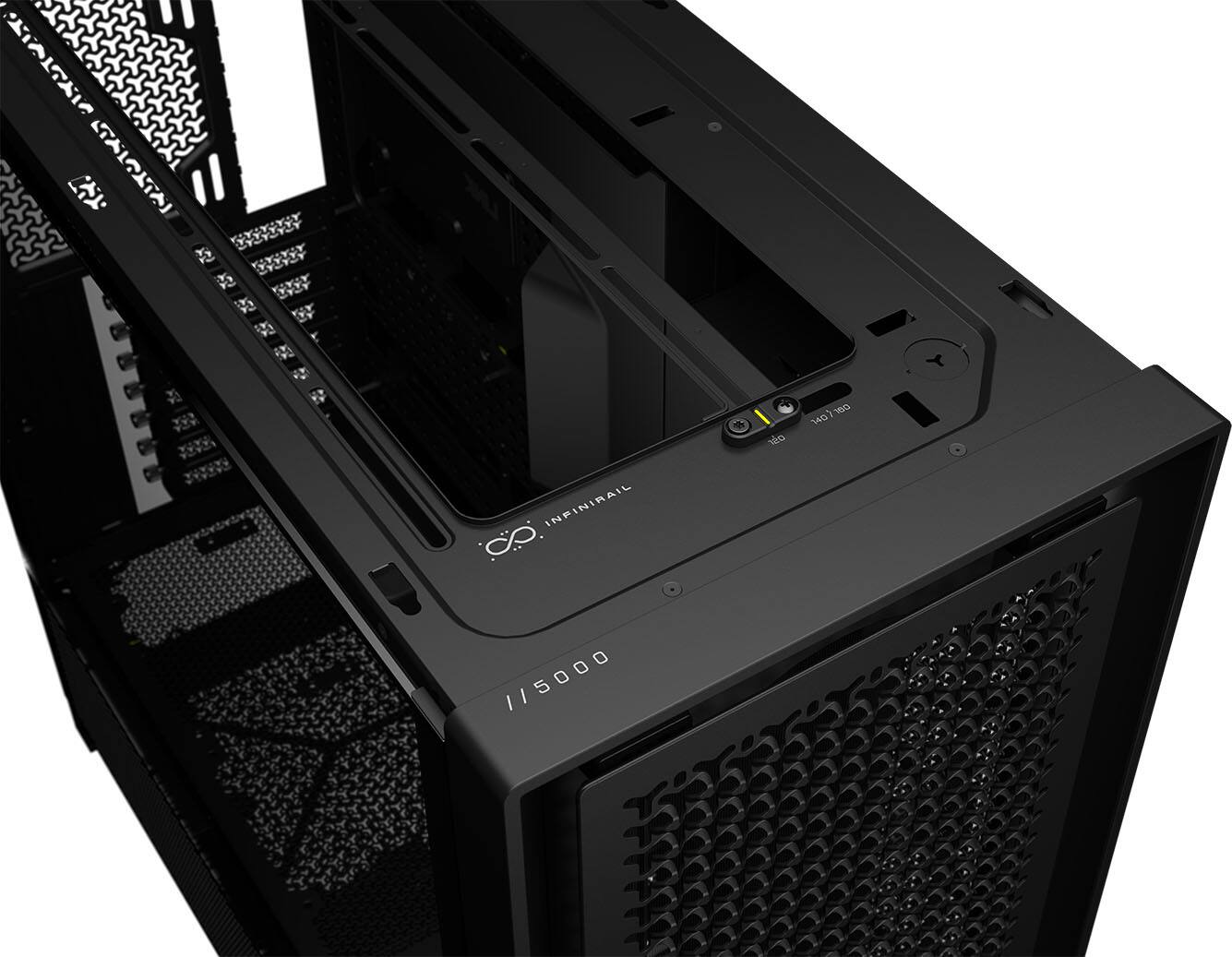

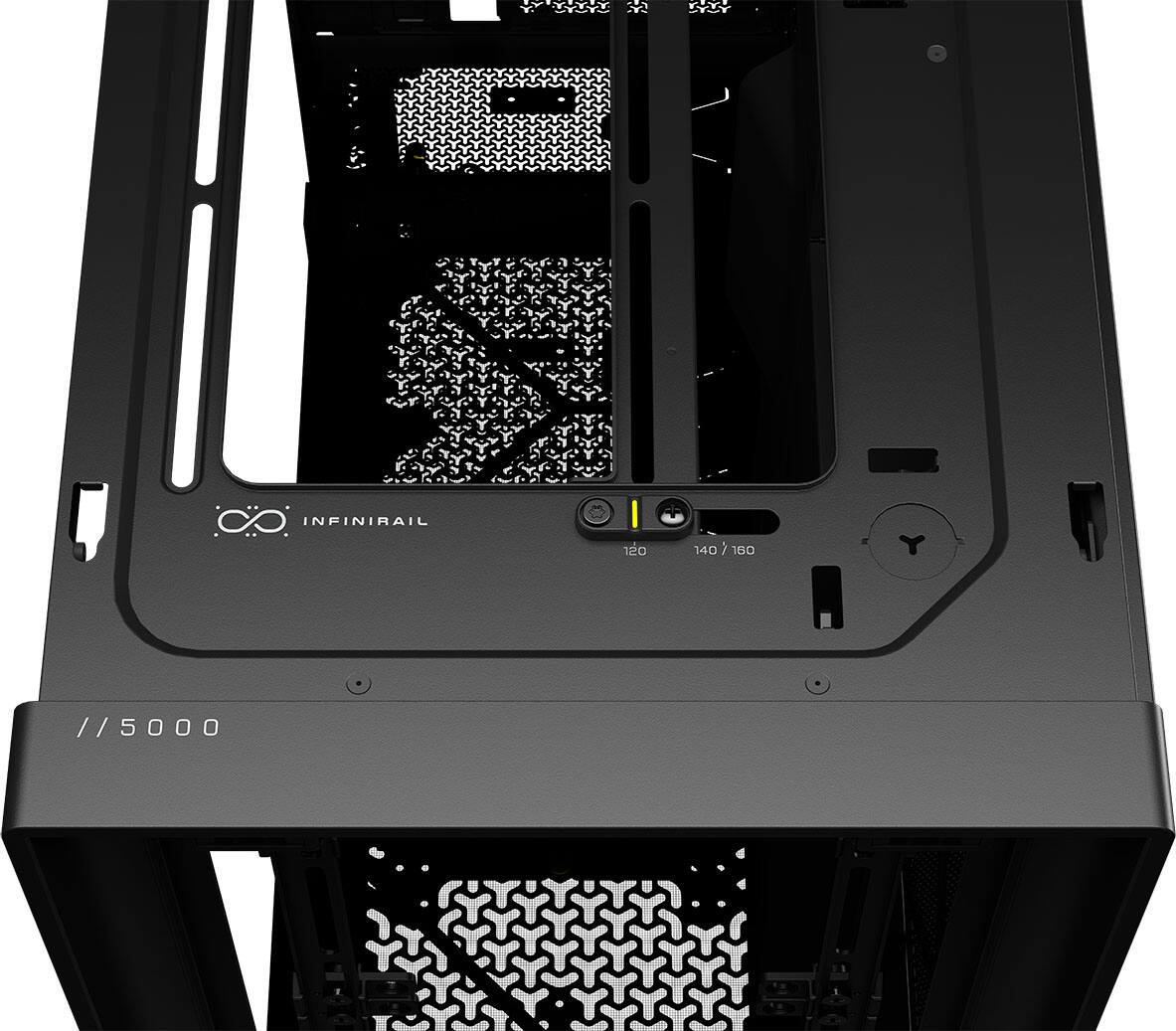

- InfiniRail Fan Mounting Options: Mount up to 14x 120mm fans simultaneously to keep cool air flowing in and hot air exhausting quickly and efficiently, or easily adjust the InfiniRail fan mounts for 140mm or 200mm fan locations. The combinations are nearly endless.

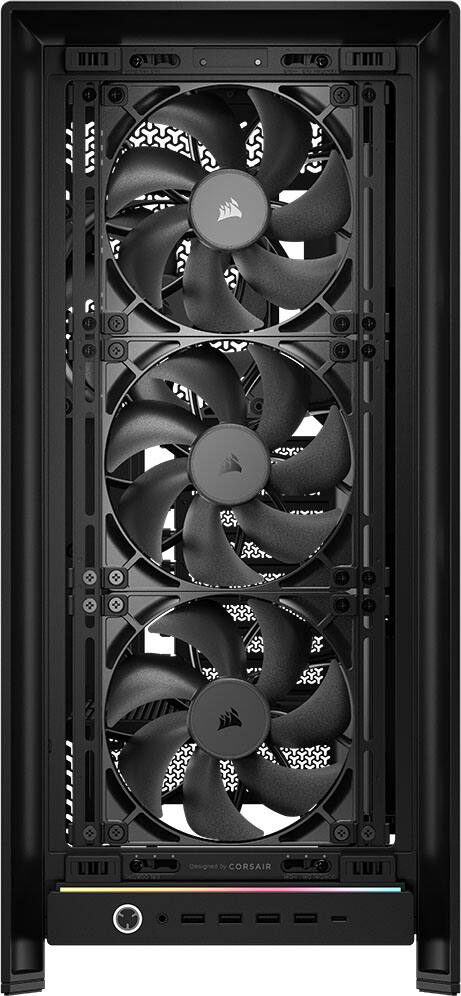

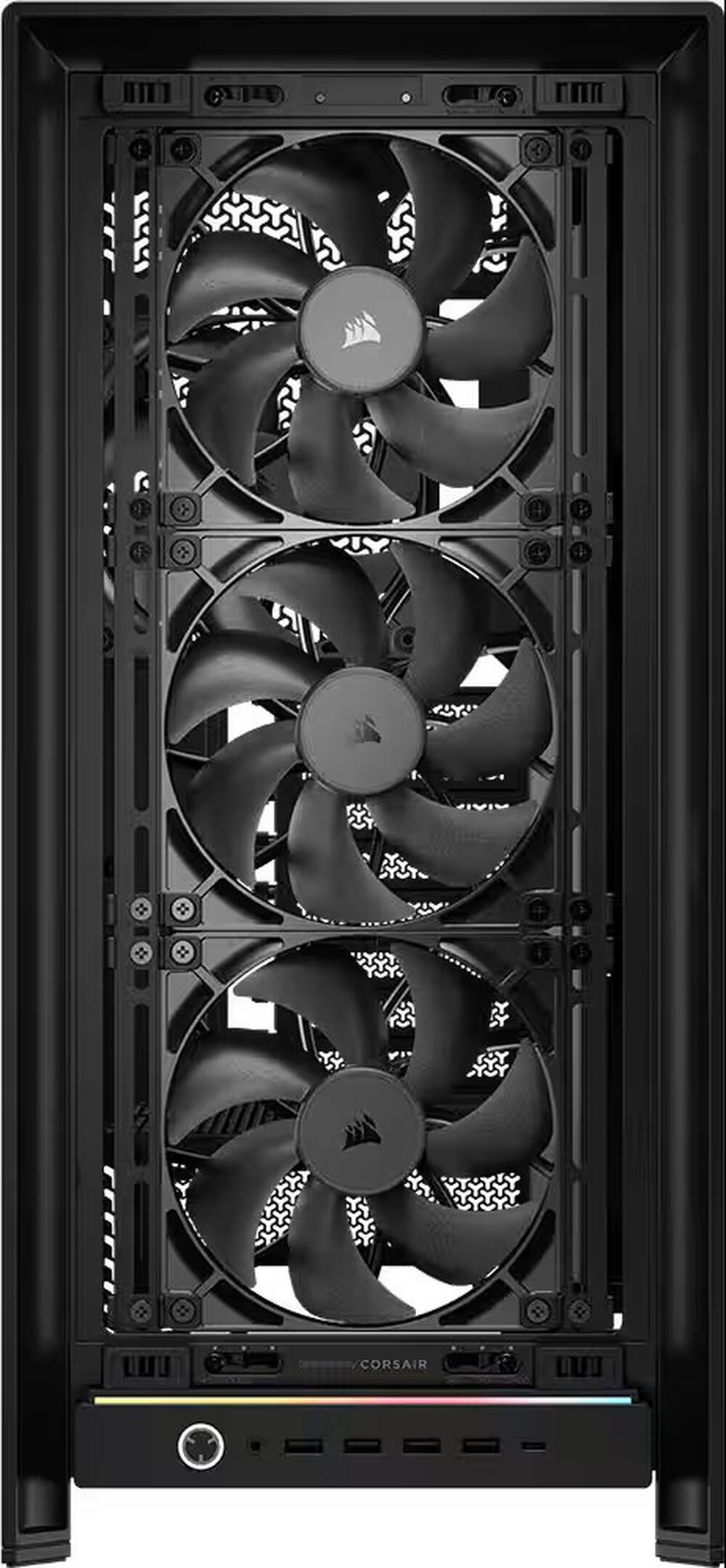

- Four RS140 Fans Included: RS140 PWM fans feature daisy-chainable connections for easy setup. Their magnetic dome bearings minimize friction, delivering a perfect combination of high airflow and quiet operation.
- Supports Reverse Connection Motherboards: ASUS BTF, MSI Project Zero, and Gigabyte Project Stealth validated with plenty of connector and cable cutouts and tie-downs to keep things tidy even where you can’t see them.

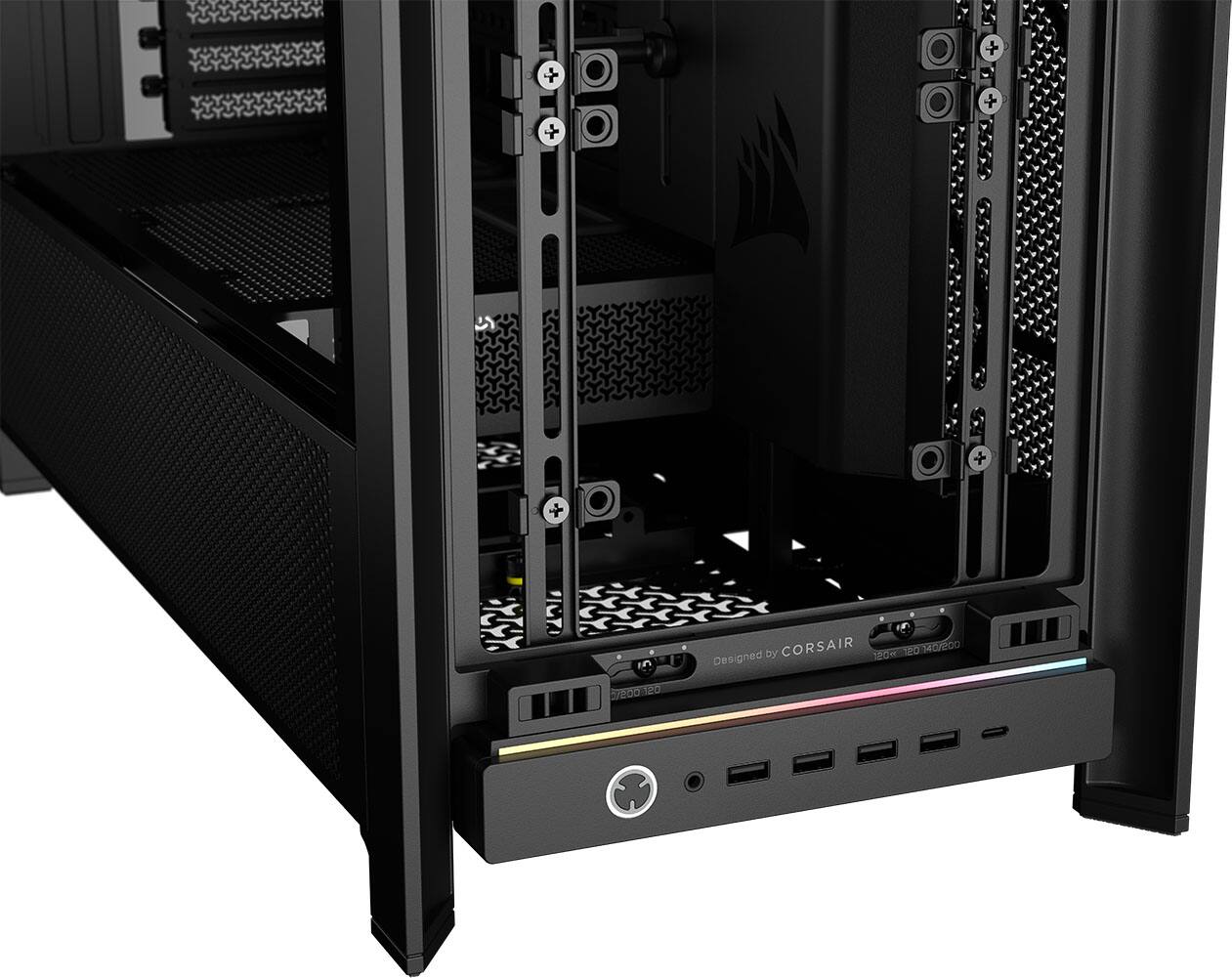

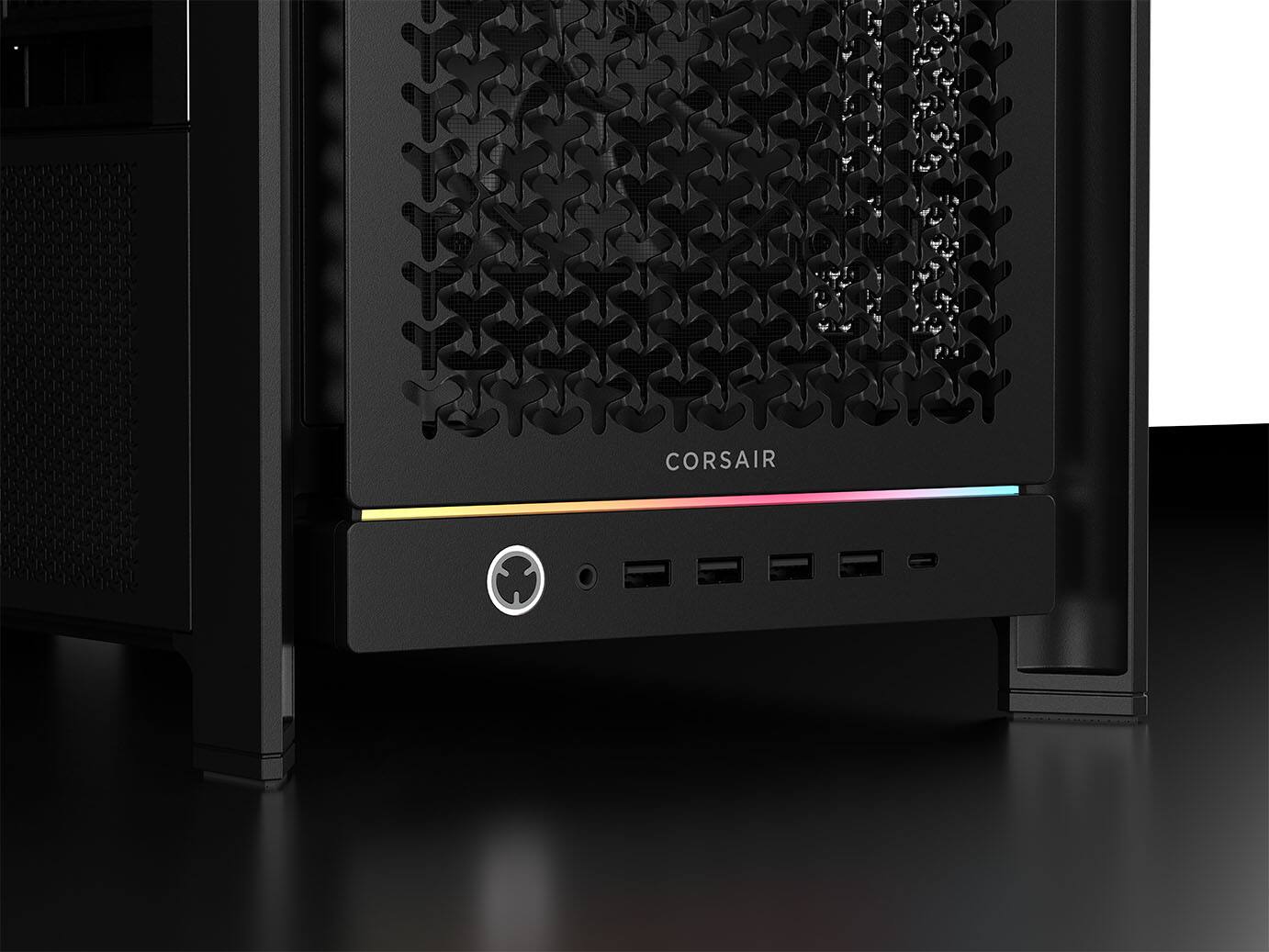

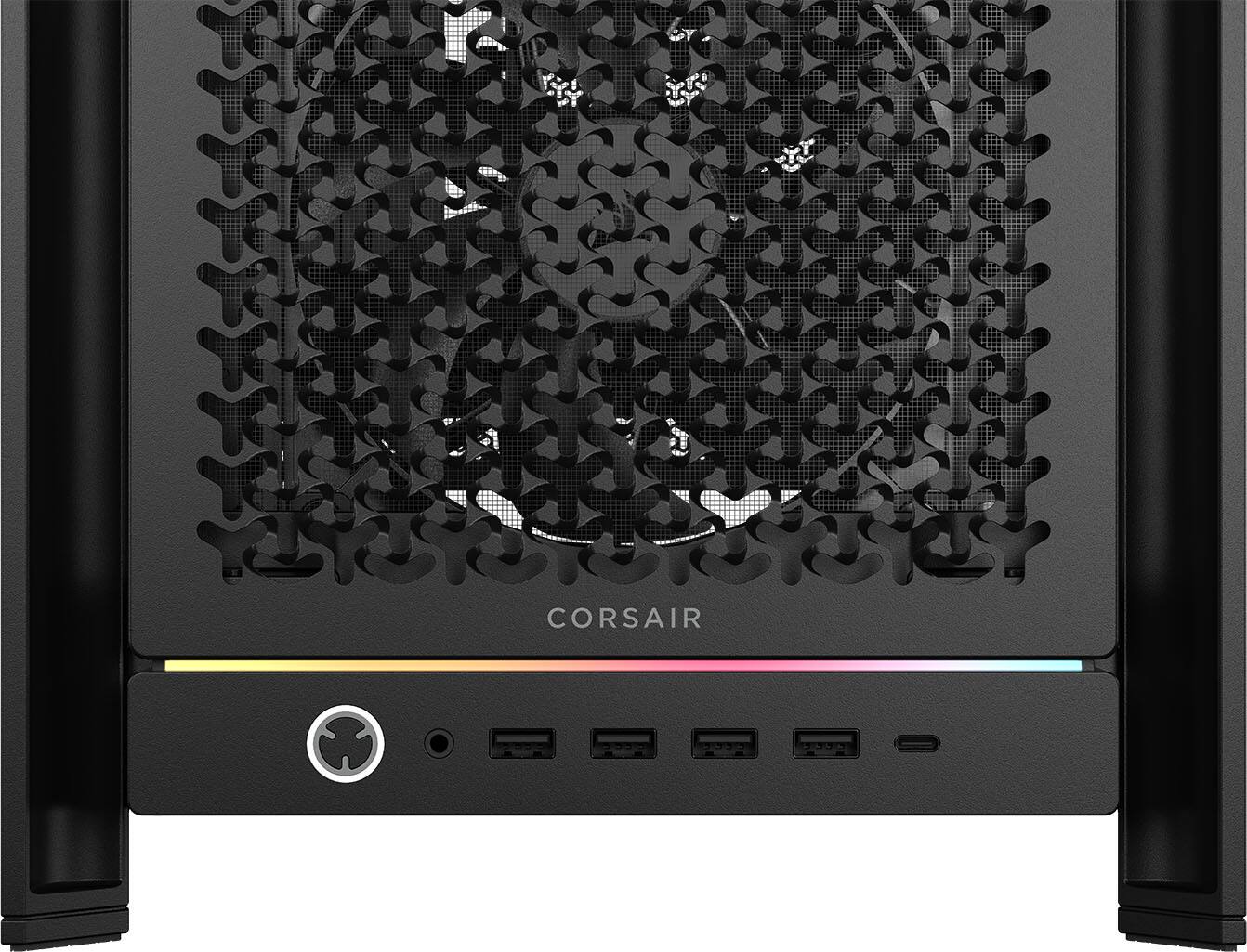

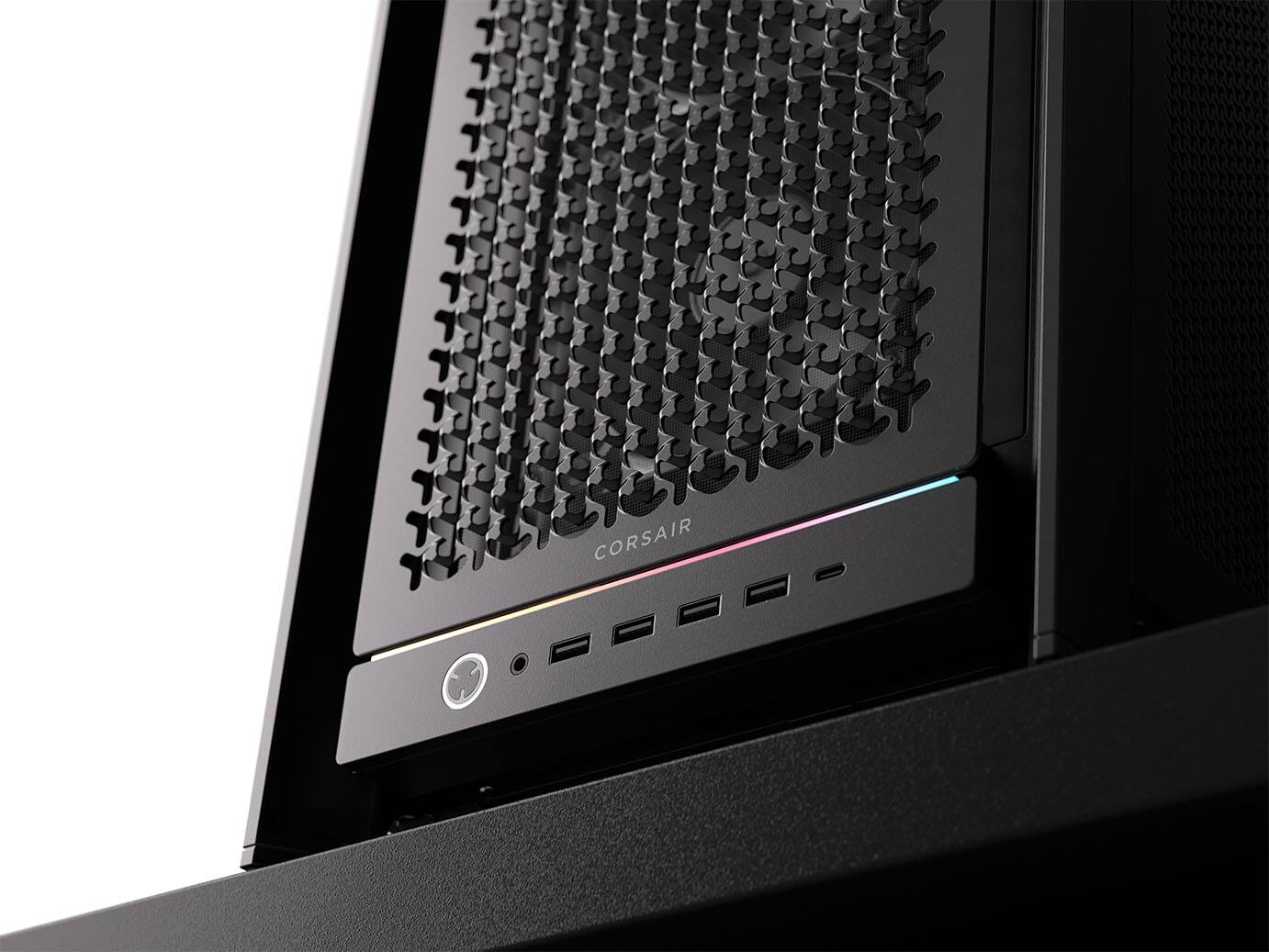

- Versatile Connectivity: The FRAME 5000D offers four USB 3.2 Gen 1 Type-A ports and a USB 3.2 Gen 2 Type-C front I/O panel. The I/O ports have also been relocated to the bottom of the case to make it easy for folks with their PC on their desk to connect devices.
- Drives, Drives, Drives: Included drive trays for dual 3.5” hard drives or four 2.5” SSDs, or they can be removed entirely to make room for custom liquid cooling components and cables.
- Solid GPU Support (Literally): Modern graphics cards are bigger and heavier than ever, which is why every 5000D comes with an included GPU Anti-sag stabilization arm.
- Just a Bit Bigger: GPUs are getting bigger and hotter, which is why the Frame 5000D was designed slightly longer and wider than most other mid-tower cases.

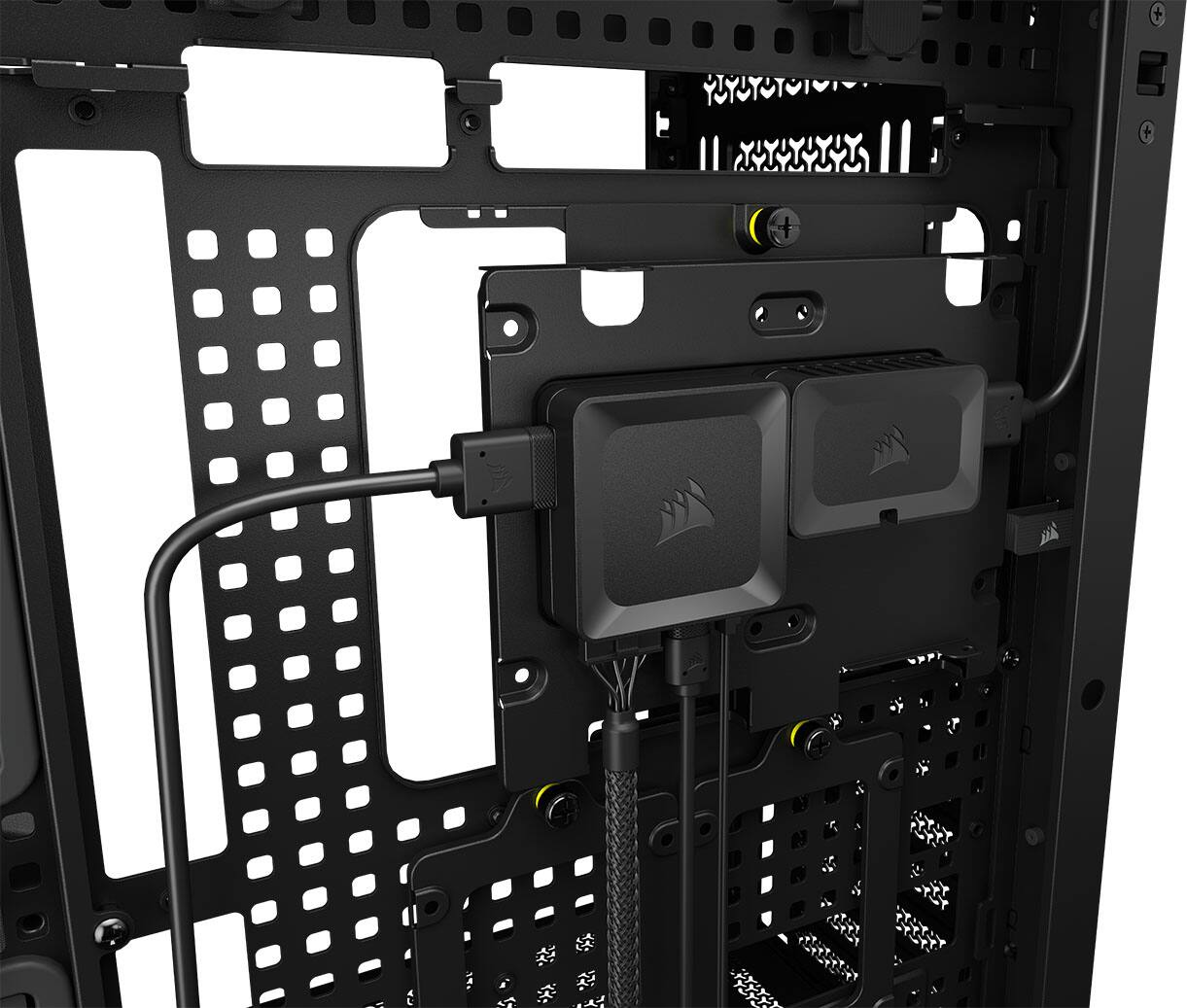

- Built for iCUE Link: Designed from the ground up for easy iCUE LINK integration, the FRAME 5000D has cable hooks, increased tie downs, and a dedicated mounting pocket for an iCUE LINK System Hub (sold separately).

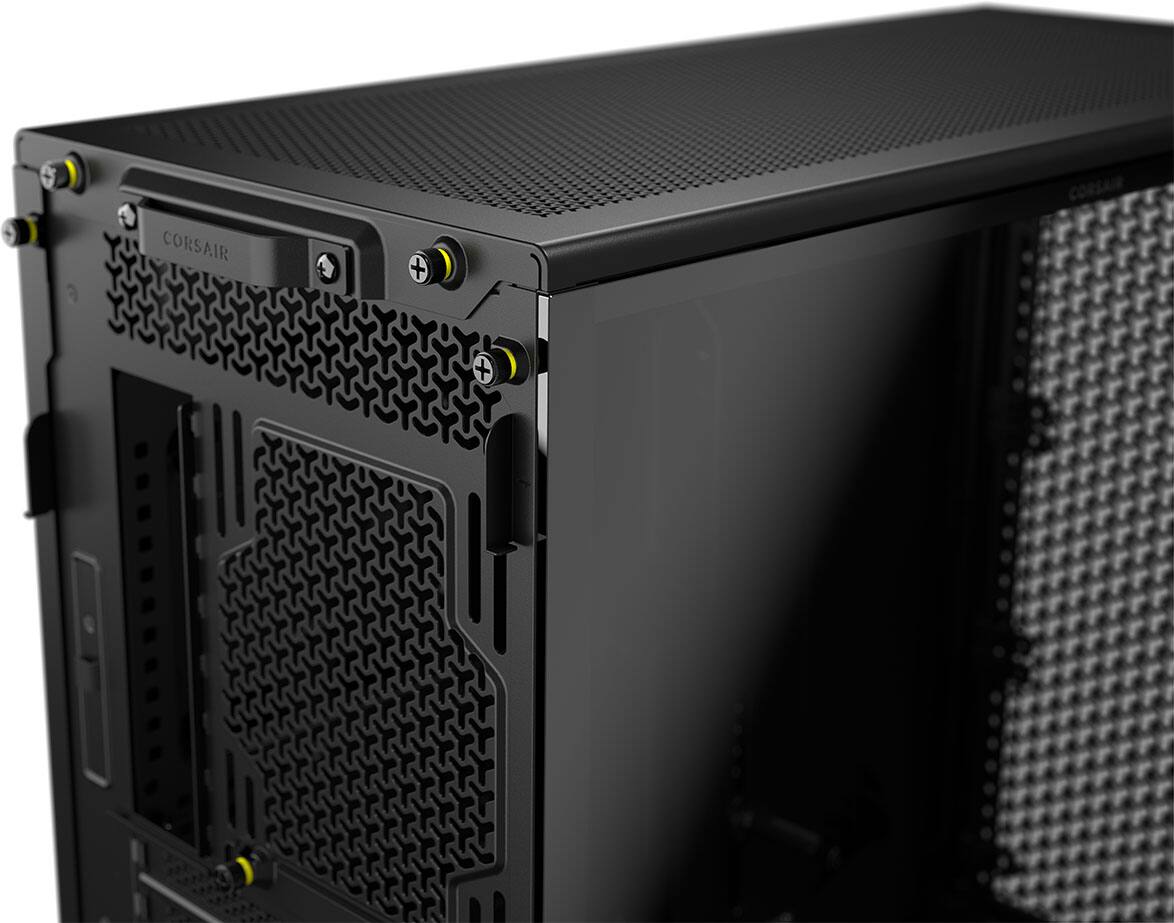

- Touches of Elegance: The Frame 5000D includes a number of features displaying CORSAIR's attention to detail. They include external cable management points, captive screws that won’t get lost, fully color-matched rivets, screws, and plastic components, an attractive Frost White option, and built-in rotatable PCI slots for vertical GPU mounting fans.

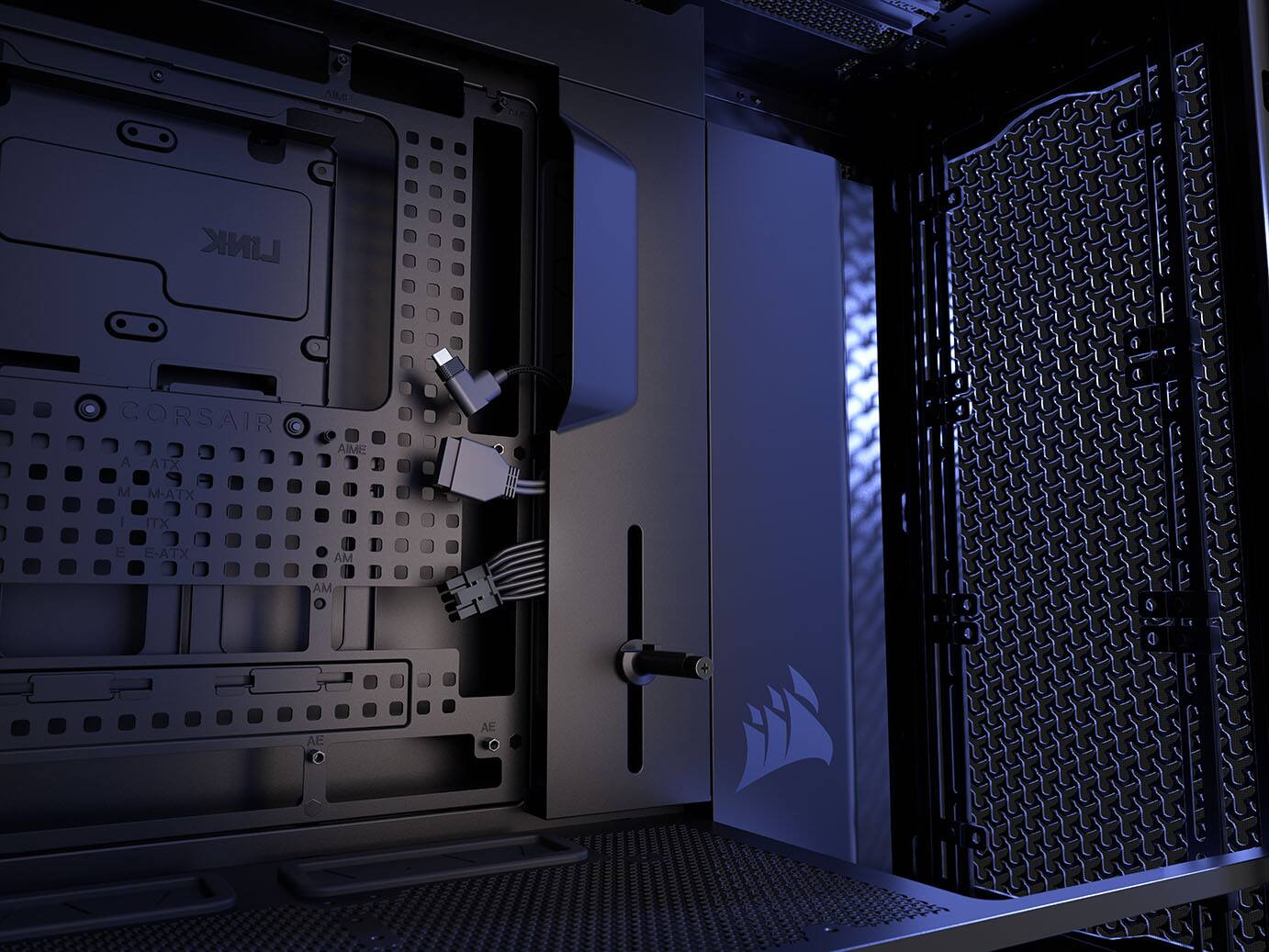

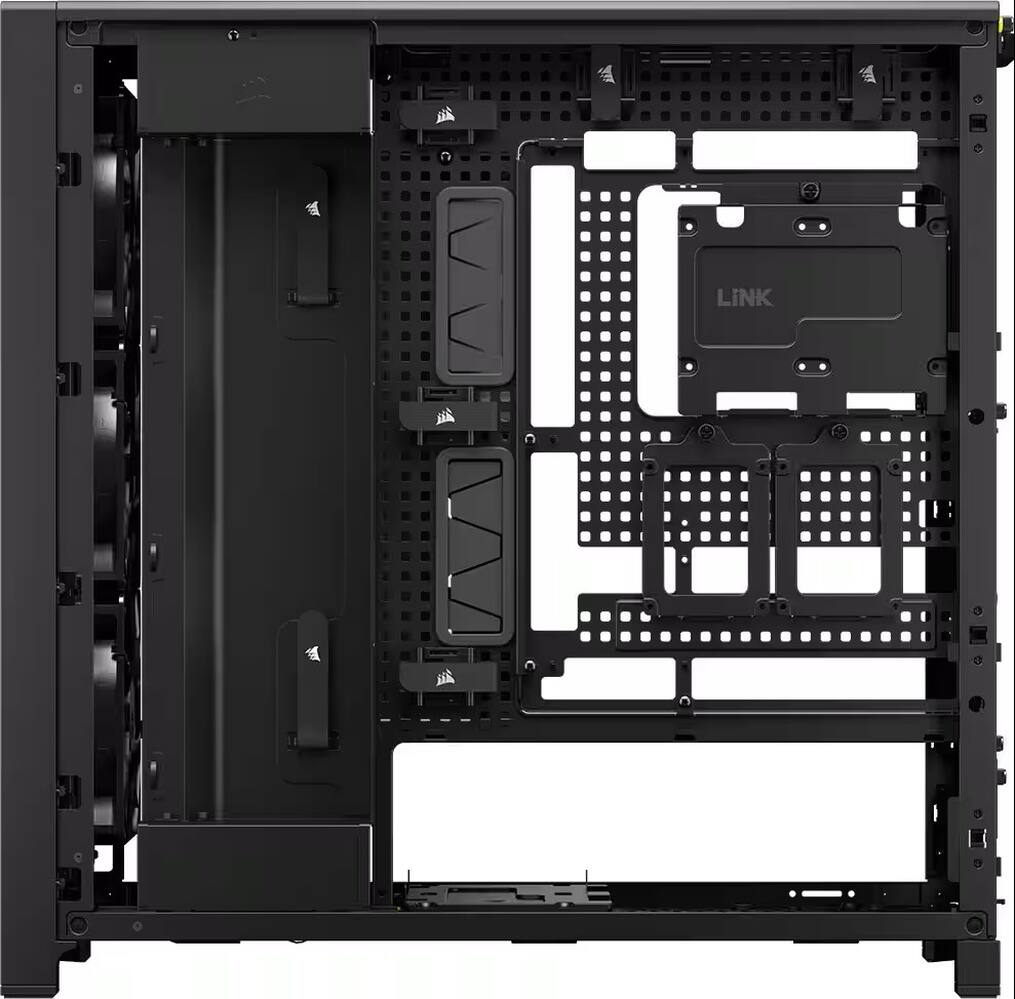

- RapidRoute 2.0: FRAME 5000D features the next generation of CORSAIR's cable-routing hardware, with a pegboard-style motherboard tray that allows for custom mounting points for tie-downs and buckles. It also comes with several types of cable clips, or you can 3D print your own. It includes six cinching straps and two wire loom pairs to secure extra cable lengths for a tidy interior.\
- FRAME Modular Case System: The revolutionary FRAME system gives new meaning to the word customization. The revolutionary FRAME Modular Case System redefines customization. Some of the choices include upgrading the motherboard tray to billet aluminum, replacing the front I/O panel with different USB ports, and swapping out the front intake panel for a different look. This case evolves with your needs, offering a variety of options for future upgrades and aesthetic changes
- Clean Lines or Turbo Cooled: The internal side panel near the motherboard tray can be used as a cable cover for clean cable management, or you can remove it and mount fans to the side for increased cooling potential.
- 3D Y-Pattern Airflow Panel: Optimized for high airflow and minimal restriction, the steel front panel is perforated in three dimensions with a Y-pattern that provides a low-obstruction path for cool air.
- Top 420mm Radiator Support: Take your cooling to the next level with a top-mounted 420mm radiator and room for 360mm radiators on the front or side.
- InfiniRail Fan Mounting Options: Mount up to 14x 120mm fans simultaneously to keep cool air flowing in and hot air exhausting quickly and efficiently, or easily adjust the InfiniRail fan mounts for 140mm or 200mm fan locations. The combinations are nearly endless.
- Four RS140 Fans Included: RS140 PWM fans feature daisy-chainable connections for easy setup. Their magnetic dome bearings minimize friction, delivering a perfect combination of high airflow and quiet operation.
- Supports Reverse Connection Motherboards: ASUS BTF, MSI Project Zero, and Gigabyte Project Stealth validated with plenty of connector and cable cutouts and tie-downs to keep things tidy even where you can’t see them.
- Versatile Connectivity: The FRAME 5000D offers four USB 3.2 Gen 1 Type-A ports and a USB 3.2 Gen 2 Type-C front I/O panel. The I/O ports have also been relocated to the bottom of the case to make it easy for folks with their PC on their desk to connect devices.
- Drives, Drives, Drives: Included drive trays for dual 3.5” hard drives or four 2.5” SSDs, or they can be removed entirely to make room for custom liquid cooling components and cables.
- Solid GPU Support (Literally): Modern graphics cards are bigger and heavier than ever, which is why every 5000D comes with an included GPU Anti-sag stabilization arm.
- Just a Bit Bigger: GPUs are getting bigger and hotter, which is why the Frame 5000D was designed slightly longer and wider than most other mid-tower cases.
- Built for iCUE Link: Designed from the ground up for easy iCUE LINK integration, the FRAME 5000D has cable hooks, increased tie downs, and a dedicated mounting pocket for an iCUE LINK System Hub (sold separately).
- Touches of Elegance: The Frame 5000D includes a number of features displaying CORSAIR's attention to detail. They include external cable management points, captive screws that won’t get lost, fully color-matched rivets, screws, and plastic components, an attractive Frost White option, and built-in rotatable PCI slots for vertical GPU mounting fans.
- RapidRoute 2.0: FRAME 5000D features the next generation of CORSAIR's cable-routing hardware, with a pegboard-style motherboard tray that allows for custom mounting points for tie-downs and buckles. It also comes with several types of cable clips, or you can 3D print your own. It includes six cinching straps and two wire loom pairs to secure extra cable lengths for a tidy interior.\
Whats Included
- 5000D RS Mid-Tower Modular Case
- Case Accessory Box
- 5000D RS Mid-Tower Modular Case
- Case Accessory Box
