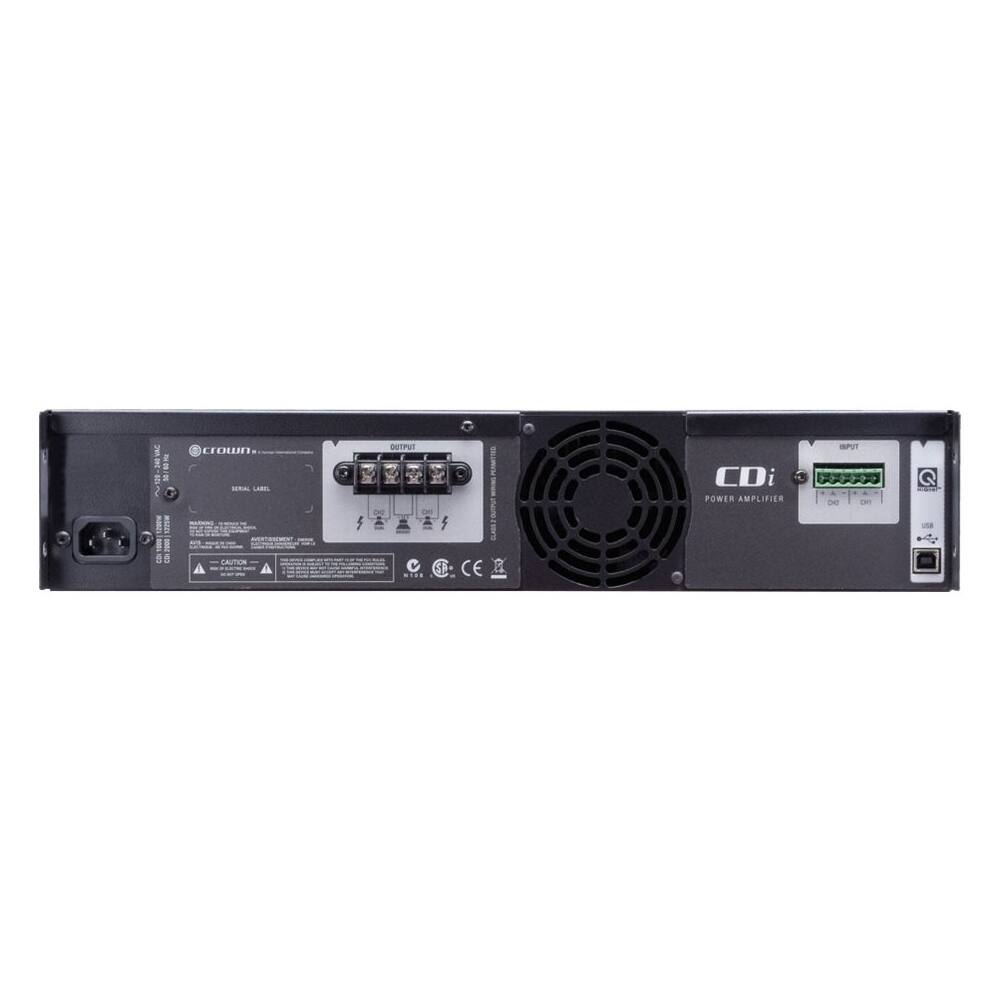

Crown - CDi 1400W 2.0-Ch. Power Amplifier - Silver/Black
Related Item
Specifications
- Number of Channels2
- Key Specs
- Number of Channels: 2 (The number of discrete channels of sound output. This can be a single number or multiple numbers separated by decimal(s). The first number is the primary, horizontally directed audio channels. The number after the first decimal, if applicable, is the number of subwoofer outputs or channels. The number after the second decimal, if applicable, is the number of height or atmospheric channels designed to immerse the listener by producing overhead sound effects.)
- General
- Brand: Crown
- Model Number: OLAMP
- Product Name: CDi 1400W 2.0-Ch. Power Amplifier
- Color: Silver/Black
- Audio
- Maximum Watts x Channel @ Ohms: 275 Watt x 2 @ 8 Ohm (This is the maximum load the speaker, subwoofer or amp can drive.)
- Total Power Handling: 1400 watts (How much amplifier (amplified) power (wattage) that can be handled before damaging the product.)
- Number of Channels: 2 (The number of discrete channels of sound output. This can be a single number or multiple numbers separated by decimal(s). The first number is the primary, horizontally directed audio channels. The number after the first decimal, if applicable, is the number of subwoofer outputs or channels. The number after the second decimal, if applicable, is the number of height or atmospheric channels designed to immerse the listener by producing overhead sound effects.)
- Minimum Frequency Response: 20 hertz (Describes the maximum range of frequencies or musical tones a product can reproduce, from very low tones to very high treble tones. The minimum frequency or musical tone the speaker can reproduce. High treble tones have higher frequencies while low tones and deep bass have lower frequencies.)
- Total Harmonic Distortion: 0.05 percent (Measurement of the harmonic sound distortion. The lower the percentage, the cleaner the sound.)
- Maximum Frequency Response: 20 kilohertz (Describes the maximum range of frequencies or musical tones a product can reproduce, from very low tones to very high treble tones. The maximum frequency or musical tone the speaker can reproduce. High treble tones have higher frequencies while low tones and deep bass have lower frequencies.)
- Signal-to-Noise Ratio (SNR): 100 decibels (The ratio of the desired signal's strength to the level of background noise. A ratio higher than 1:1, which equates to greater than 0 decibels, indicates more signal than noise.)
- Bass Boost: None (Circuitry that boosts the bass response of the amplifier, improving audio reproduction enhancing the sound of low frequencies. Fixed boost means the level of bass response is preset, whereas variable boost allows the user to make adjustments.)
- Audio
- Impedance: 2 (Describes the resistance of an electric signal throughout the system. Devices with low impedance require less power to deliver optimal signals but are more at risk for damage from overloading. Higher impedance requires more power but is more protected from overload damage.)
- Inputs
- Line-Level Inputs: true (Also referred to as low-level inputs. Enables the amplifier to receive a sound signal from another device via RCA cables.)
- Features
- Bridgeable: true (Bridging an amplifier increases the power it supplies to the speaker(s).)
- Dimensions
- Product Height: 3.5 inches (The out of box height of the item. Height is measured as the vertical distance from the bottom of the item to the top as it would be primarily used or placed.)
- Product Width: 19 inches (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
- Product Depth: 12.5 inches (The out of box depth of the item. Depth is measured as the distance from the front of the item to the back as it would be primarily used or placed.)
- Product Weight: 22 pounds (The out of box weight of the item.)
- Other
- UPC: 810123023349
Find the perfect audio boost for your built-in sound system with this two-channel Crown CDi amplifier. It’s rated for 2-ohm, 4-ohm and 8-ohm loads and 70V/140V outputs for setup versatility, and its onboard digital sound processing lets you add up to 20 user-defined DSP presets. Configure this 500W Crown CDi amplifier easily with its intuitive front-panel LCD screen.
- 1400W total power: RMS rating of 700W x 2 @ 2 ohms, 2 channels driven for robust audio.
- 8 ohms impedance: Efficiently conducts power.
- 0.05% THD (Total Harmonic Distortion): Provides clean sound.
- 100dB signal-to-noise ratio: Offers crisp audio.
- Protection circuit: Ensures safe operation.
Whats Included
- Crown CDi 1400W 2.0-Ch. Power Amplifier
Q: Can the amplifier be bridged?
A: This amplifier can be bridged.
Q: What is the signal-to-noise ratio of the amplifier?
A: The signal-to-noise ratio (SNR) of the amplifier is 100 decibels.
Q: What is the minimum frequency response of the amplifier?
A: The minimum frequency response of the amplifier is 20 hertz.
Q: How many channels does the amplifier have?
A: This amplifier has two channels.
Q: What are the dimensions of the amplifier?
A: The amplifier is 19 inches wide, 12.5 inches deep, and 3.5 inches high.
Q: What is the maximum power output of the amplifier at 8 ohms?
A: The maximum power output of the amplifier at 8 ohms is 275 watts per channel.
Compare similar products
Find the perfect audio boost for your built-in sound system with this two-channel Crown CDi amplifier. It’s rated for 2-ohm, 4-ohm and 8-ohm loads and 70V/140V outputs for setup versatility, and its onboard digital sound processing lets you add up to 20 user-defined DSP presets. Configure this 500W Crown CDi amplifier easily with its intuitive front-panel LCD screen.
The CDi Series amplifiers are professional tools designed and built for installed sound applications. The series includes four models which are identical except for output power: CDi 1000, CDi 2000, CDi 4000, and CDi 6000. All are rugged and lightweight. CDi-Series amplifiers feature an intuitive front-panel LCD screen to guide installers through their configurations. CDi amplifiers also offer onboard DSP for loudspeaker signal processing. Other features include a switch-mode universal power supply, useful function indicators, pro portional-speed fan-assisted cooling, removable Phoenix-style inputs, barrier strip outputs for low-Z or 70V/140V loads, short-circuit protection and more.
The XLS 1502 amplifier comes with a large LCD display
Enhance your home audio with this Class D Sonos amplifier. Its 125W of power per channel lets you enjoy high-resolution sound from your bookshelf speakers, TV and other passive components, and Wi-Fi connectivity supports multiroom setups and wireless streaming via AirPlay and the Sonos app.
| Pros for Crown - CDi 1400W 2.0-Ch. Power Amplifier - Silver/Black | |||
|---|---|---|---|
| There were no pros for this product— | There were no pros for this product— | There were no pros for this product— | Sound Quality, Ease of use, Power, Size, Compatibility |
| Cons for Crown - CDi 1400W 2.0-Ch. Power Amplifier - Silver/Black | |||
| There were no cons for this product— | There were no cons for this product— | There were no cons for this product— | Price, App, Heat, Bass, EQ |
Specs
Reviews
The vast majority of our reviews come from verified purchases. Reviews from customers may include My Best Buy members, employees, and Tech Insider Network members (as tagged). Select reviewers may receive discounted products, promotional considerations or entries into drawings for honest, helpful reviews.
- Rated 5 out of 5 stars
Crown Amp + ML Outdoor living for the win
When ordering the ML Outdoor Living speaker system I strongly recommend considering the Crown CDi amp. If you do order this amp from BB it will come preloaded with EQ configs specific to the ML Outdoor Living series so you can run your ML Outdoor Living Sats in either 8ohm, 70w or 100w depending on the size of your outdoor space. The first channel is dedicated to the 8ohm subwoofer which I believe you can hook up to 4 subs to this single channel (please verify in crown instructions before taking my word on this) The second channel is configurable for the satellite speakers. If you are new to this level of amplifier, do not be intimidated. a little bit of research and following the well written instructions can get you up and running without any issues. This does come with a Ysum RCA cable to combine L/R Stereo into a single output for each speaker. I did end up getting a second Ysum cable with a longer reach coming from my preamp but it is not necessary. If you have any questions about how the Amp works the ML customer service is extremely helpful so make sure to reach out if you have any concerns.
Posted by Tvguy
