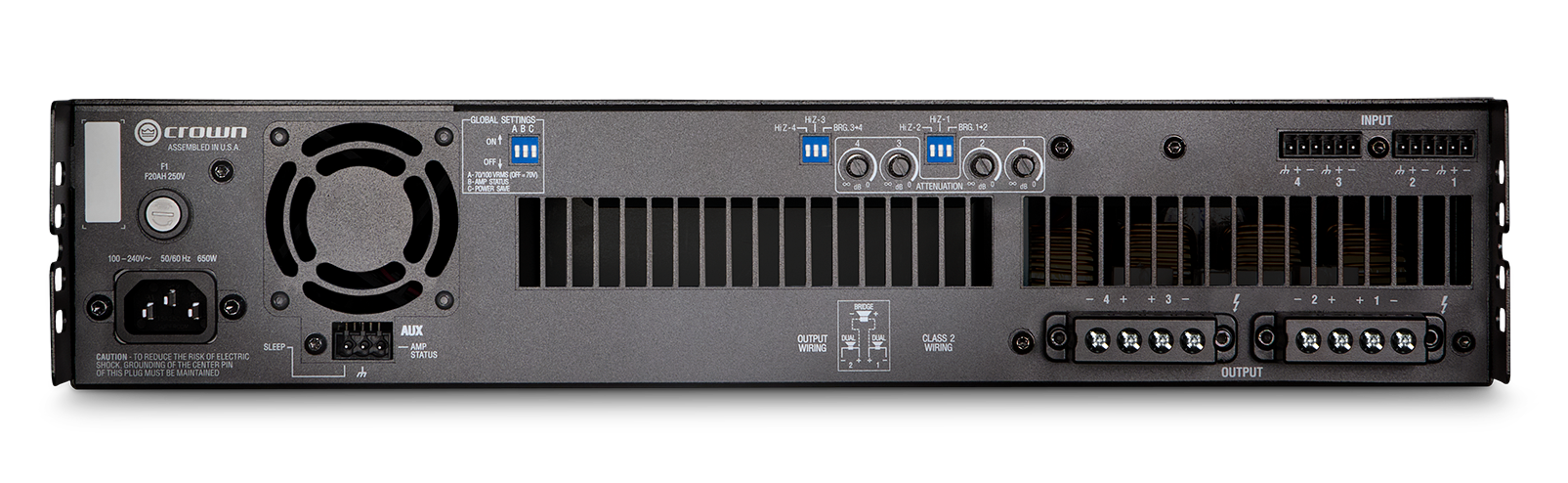

Crown - DCI4x300-U-USFX Four-channel, Analog Power Amplifier, 300W @ 4Ω, 70V/100V - Black
Crown - DCI4x300-U-USFX Four-channel, Analog Power Amplifier, 300W @ 4Ω, 70V/100V - Black
Reviews coming soon
FREE shipping to
More Buying Options
Related Item
Specifications
- Continuous Watts x Channel @ Ohms300W x 4 Channel @4 OhmsNumber of Channels4Network Connector(s)No network connectors
- Key Specs
- Continuous Watts x Channel @ Ohms: 300W x 4 Channel @4 Ohms
- Number of Channels: 4 (The number of discrete channels of sound output. This can be a single number or multiple numbers separated by decimal(s). The first number is the primary, horizontally directed audio channels. The number after the first decimal, if applicable, is the number of subwoofer outputs or channels. The number after the second decimal, if applicable, is the number of height or atmospheric channels designed to immerse the listener by producing overhead sound effects.)
- Network Connector(s): No network connectors
- General
- Brand: Crown
- Model Number: DCI4x300-U-USFX
- Product Name: DCI4x300-U-USFX Four-channel, Analog Power Amplifier, 300W @ 4Ω, 70V/100V
- Color: Black
- Audio
- Continuous Watts x Channel @ Ohms: 300W x 4 Channel @4 Ohms
- Number of Channels: 4 (The number of discrete channels of sound output. This can be a single number or multiple numbers separated by decimal(s). The first number is the primary, horizontally directed audio channels. The number after the first decimal, if applicable, is the number of subwoofer outputs or channels. The number after the second decimal, if applicable, is the number of height or atmospheric channels designed to immerse the listener by producing overhead sound effects.)
- Total Harmonic Distortion: 0.0035 percent (Measurement of the harmonic sound distortion. The lower the percentage, the cleaner the sound.)
- Amplifier Class: D (An amplifier's mode of operation, specifically the conditions in which its electrical current flows for the duration of an audio signal, determines its class. Each class has its strengths and weaknesses when it comes to power efficiency, levels of crossover distortion, and overall sound quality.)
- Amplifier Type: Power amplifiers
- Inputs
- Video Only Inputs: No video only inputs, No video only inputs, No video only inputs (The number and type of video signal only inputs the product has.)
- Network Connector(s): No network connectors
- Line-Level Inputs: false (Also referred to as low-level inputs. Enables the amplifier to receive a sound signal from another device via RCA cables.)
- Outputs
- Speaker Connection Type: Banana Jack/Screw Terminals
- Video Only Outputs: No video only outputs (The number and type of video signal only outputs the product has.)
- Features
- Fan Cooled: true
- Bridgeable: true (Bridging an amplifier increases the power it supplies to the speaker(s).)
- Dimensions
- Product Height: 3.5 inches (The out of box height of the item. Height is measured as the vertical distance from the bottom of the item to the top as it would be primarily used or placed.)
- Product Width: 19 inches (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
- Product Depth: 14.25 inches (The out of box depth of the item. Depth is measured as the distance from the front of the item to the back as it would be primarily used or placed.)
- Product Weight: 20.1 pounds (The out of box weight of the item.)
- Warranty
- Warranty - Parts: 3 years
- Warranty - Labor: 3 Year
- Other
- UPC: 691991008719
The DriveCore Install series amplifiers is a complete line of high performance installation amplifiers based on the proprietary DriveCore technology. DCi Series amplifiers are designed, engineered and manufactured to the industry’s highest quality standards, and provide system integrators with the advanced features and flexibility required for challenging 21st century installed sound applications. Versatile, compact and highly energy-efficient, DCi Series amplifiers continue the unbroken Crown tradition of leadership in professional and commercial power amplifier technology.
- Class D Amplifier: Based on crown's proprietary and patented drivecore technology, these amplifiers are the next generation of pwm technology using cutting edge class d amplifier topologies
- True Rack Density: True rack density – 4 channel by 300w. other amplifer options available with 300w or 600w in 2/4/8 channel configurations and 1250w in 2/4 channel configurations with bridgable outputs of 300- 2500w, all in a 2u form factor.
- Direct Drive Constant Voltage: Save money by using smaller gauge wiring to drive the speakers using either 70v rms or 100vrms. with no need for a step-up transformer at the output, the dci produces higher audio quality much more efficiently.
- CHANNEL INDEPENDENT HI-Z/LOW-Z SELECTION: Drive either one or two speakers in low-z mode, or literally hundreds of speakers in high-z mode (70vrms or 100vrms). this means better design flexibility since dci powers all loads on a channel-by-channel basis.
- BRIDGEABLE CHANNEL PAIRS: Dci series channels are bridgeable – even in 100vrms mode – which means even more adaptability for higher power applications such as subwoofers.
- Powersave: Powersave includes an auto-standby mode where after 30 minutes of no audio input, the amplifier powers down and consumes less than 1w; this feature can be enabled and disabled via the back panel dip switches
- Advanced PFC Universal Power Supply: Provides market-leading efficency, and is designed to deliver maximum power no matter where the amplifier is located; universal ac input accepts 100 – 240vac, 50/60hz (±10%)
- REMOTE ON/OFF INTERFACE: Aux port provides additional flexibility for amplifiers to be integrated in control systems for remote on/off and amplifier fault monitoring
- Efficien Cooling System: Highly efficient internal cooling fans provide airflow to the most heat-generating parts. incorporating the fans into the amplifier brick design maximizes cooling while minimizing wasted energy and noise.
- Analog I/O: 4x block 6-pin balanced input/4x barrier strip 4-pin output
Whats Included
- 1 Amplifier
- 1 Power Cable
Q: Does this amplifier have a powersave feature?
A: Yes, it has a powersave feature that will automatically switch to standby mode after 30 minutes of no audio input.
Q: What type of amplifier is this?
A: This is a Class D amplifier.
Q: How many channels does this amplifier have?
A: This Crown amplifier has four channels.
Q: What is the total harmonic distortion of this Crown amplifier?
A: The total harmonic distortion is 0.004 percent.
Q: How much power does this amplifier output per channel?
A: This amplifier provides 300 watts per channel at 4 ohms.
