DS18 Audio - PSW 10" Shallow-Mount Subwoofer, 500W RMS Dual 2-Ohm
Reviews coming soon
About this product
The PSW10.2D is a 10" car subwoofer from the DS18 PSW series. It handles 500 watts RMS and uses dual voice coils at 2 ohms per coil, so you can wire multiple subwoofers to the final impedance your amplifier is stable at. Peak power handling is 1000 watts. The water-resistant cone holds up to moisture and spray in open-air installs. The shallow-mount basket fits tight spaces and under-seat enclosures where a standard-depth subwoofer will not clear. Mounting requires a 9.2" cutout diameter and 3.0" of mounting depth, so confirm your enclosure before installing. Pair it with a matching monoblock amplifier and a properly tuned enclosure to get the most low-frequency output.
Woofer Size
10"Features
500W RMS / 1000W Peak Power Handling

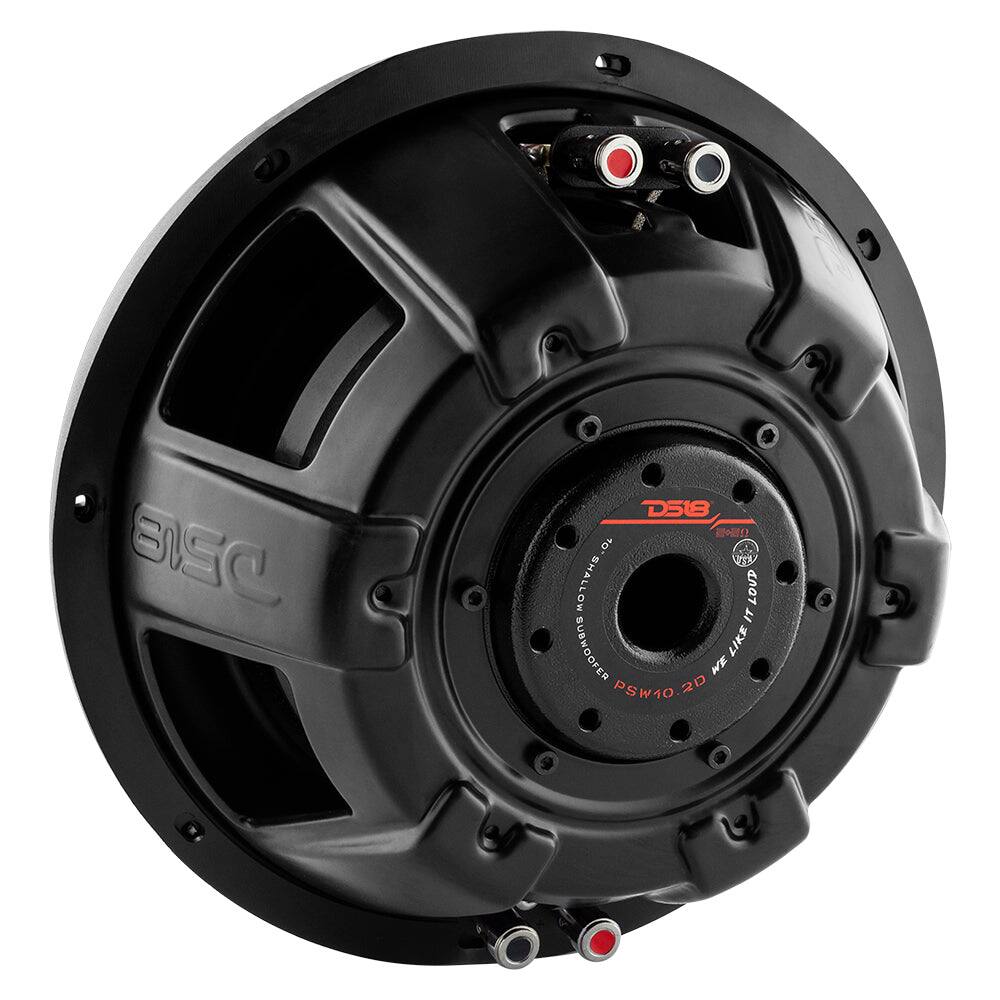

Rated at 500 watts RMS and 1000 watts peak. Behind that rating: 2.5" voice coil on an aluminum former wound with Copper wire and a 58 oz ferrite motor. That is what lets a 10" cone move this much air without losing control.
Dual 2-Ohm Voice Coil
Dual voice coils let you wire multiple subwoofers in series or parallel to reach the final impedance your amplifier is stable at, which gives you room to grow the system later.

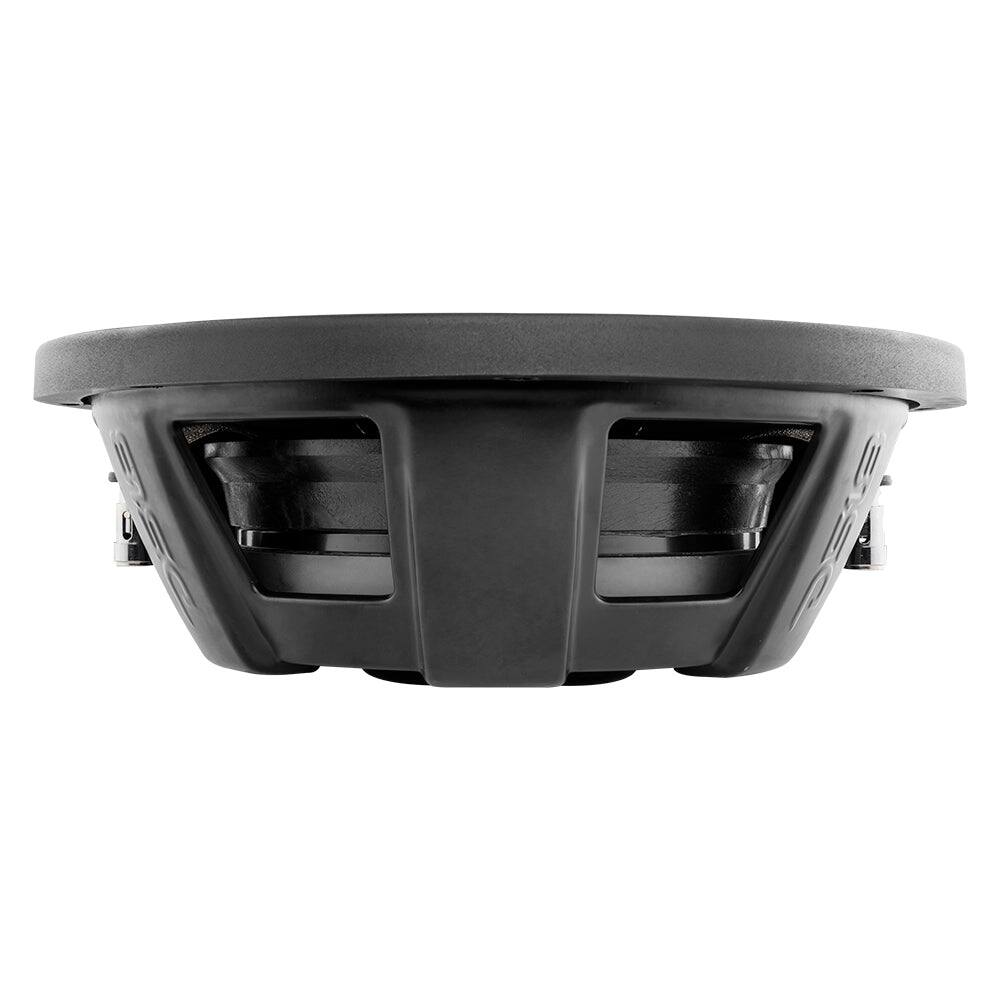

Shallow-Mount Design for Tight Spaces
The shallow mount basket fits under seats, behind seats and in tight factory locations where a standard depth 10" subwoofer will not clear. Confirm your available mounting depth before ordering.
Fitment and Recommended Enclosure
This 10" subwoofer requires a 9.2" cutout diameter and 3.0" of mounting depth. DS18 recommends a sealed enclosure of 0.5 cu ft. Check these numbers against your enclosure before ordering: enclosure volume and tuning change the low-frequency response as much as the driver does.
84dB Sensitivity
A 84dB sensitivity rating turns amplifier watts into audible output efficiently, so you get more usable bass from the power you already have.
Specifications
- RMS Power500 wattsPeak Power Handling1000 wattsImpedance2 ohmsSensitivity84 decibelsDual Voice CoilsYesWoofer Size10"
