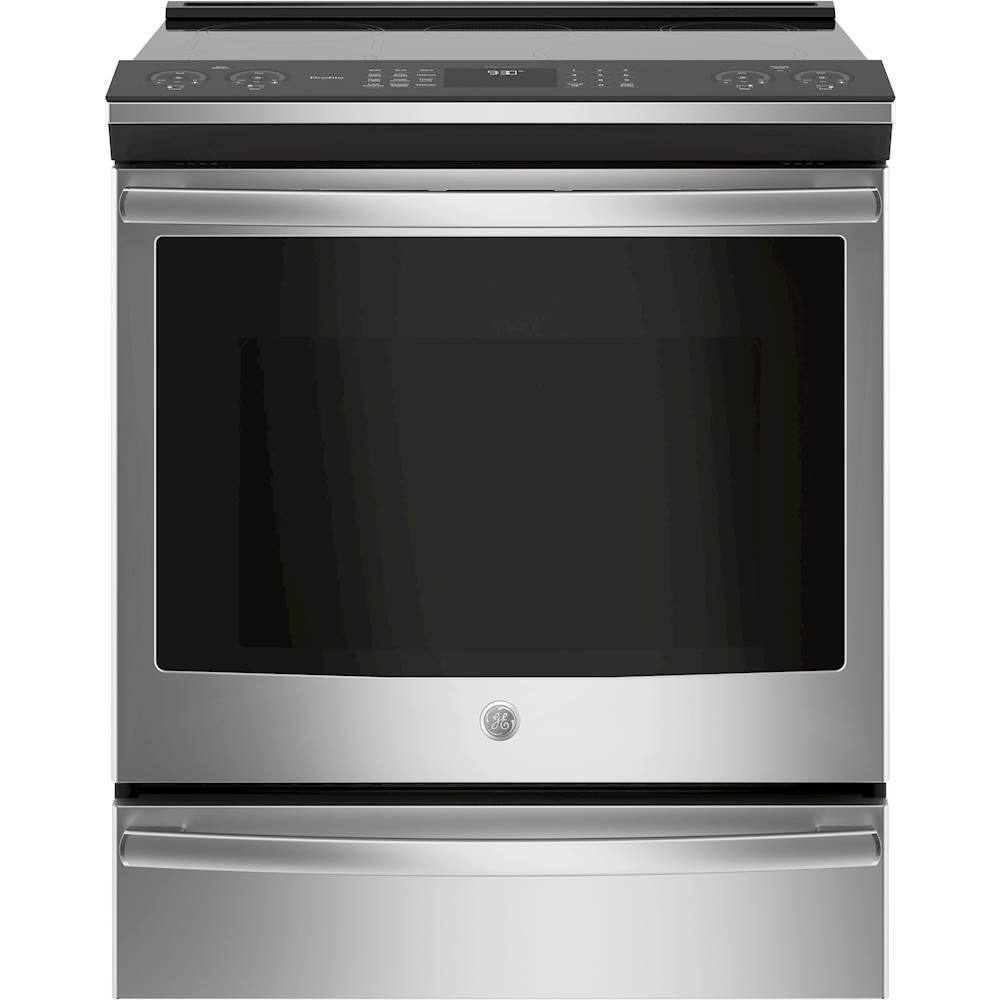

GE - 5.3 Cu. Ft. Slide-In Electric Induction Convection Range - Stainless steel
- Key Specs
- Color Finish: Stainless steel
- Product Height: 37 1/4 inches (The out of box height of the item. Height is measured as the vertical distance from the bottom of the item to the top as it would be primarily used or placed.)
- Product Width: 29 7/8 inches (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
- Product Depth: 28 1/4 inches (The out of box depth of the item. Depth is measured as the distance from the front of the item to the back as it would be primarily used or placed.)
- Depth Without Handle: 27 3/8 inches (Measurement from the back of the product to its front (with door closed), not including handle.)
- Depth With Handle: 28 1/4 inches (Measurement from the back of the product to its front (with door closed), including the handle.)
- Range Type: Slide-In (Freestanding ranges have finished sides and a backguard where the oven controls are located; this style allows for the most versatility in placement. Slide-in ranges may have unfinished sides and are wider at the top to overlap the countertop on each side, allowing for a built-in appearance. Drop-in ranges are also known for their built-in style and are designed to fit custom cabinetry or countertops.)
- Oven Cleaning Method: Self-cleaning high heat, Steam cleaning (There are several ways to clean the inside of your oven. Depending on the model, it might require manual cleaning or have a self-clean function. Self-clean functions use either high heat or steam to break down grease and food debris within the cooking cavity.)
- Single/Double Oven: Single Oven
- Cooktop Surface Type: Smoothtop (On electric cooktops, coil elements are typically more durable and tend to provide more evenly conducted heat than smoothtops. However, smoothtops may be easier to clean and have a distinctive streamlined appearance.)
- Number of Elements: 4
- Induction: true (Induction cooktops use magnetic currents to heat compatible cookware directly instead of warming the cooktop itself, which can allow for faster and more efficient cooking. There is also an added safety benefit because the surface begins to cool when cookware is removed.)
- App Compatible: true (The product can be connected to a program or software application on a mobile device, which then receives collected data from the product.)
- Works With: Amazon Alexa, Google Assistant, Nest (Compatible with or able to be connected to other smart devices or applications.)
- General
- Brand: GE
- Model Number: PHS930SLSS
- Product Name: 5.3 Cu. Ft. Slide-In Electric Induction Convection Range
- Color: Stainless steel
- Color Finish: Stainless steel
- Dimensions
- Product Height: 37 1/4 inches (The out of box height of the item. Height is measured as the vertical distance from the bottom of the item to the top as it would be primarily used or placed.)
- Product Width: 29 7/8 inches (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
- Product Depth: 28 1/4 inches (The out of box depth of the item. Depth is measured as the distance from the front of the item to the back as it would be primarily used or placed.)
- Standardized Width: 30 inches (An approximated measurement (exact width may differ slightly) determined by the manufacturer in accordance with industry standards. Standardized sizes are intended to assist consumers when purchasing appliances and planning for installation.)
- Depth Without Handle: 27 3/8 inches (Measurement from the back of the product to its front (with door closed), not including handle.)
- Depth With Handle: 28 1/4 inches (Measurement from the back of the product to its front (with door closed), including the handle.)
- Product Weight: 200 pounds (The out of box weight of the item.)
- Cut-Out Dimensions
- Cut-Out Height: 36 inches (Minimum required height of the installation location for a standard installation of the product. This measurement will help you determine if the appliance will fit into the desired space and have the clearance necessary for proper operational use. Please refer to the manufacturer’s installation documentation for detailed measurement requirements.)
- Cut-Out Width: 30 inches (Minimum required width of the installation location for a standard installation of the product. This measurement will help you determine if the appliance will fit into the desired space and have the clearance necessary for proper operational use. Please refer to the manufacturer’s installation documentation for detailed measurement requirements.)
- Cut-Out Depth: 24 inches (Minimum required depth of the installation location for a standard installation of the product. This measurement will help you determine if the appliance will fit into the desired space and have the clearance necessary for proper operational use. Please refer to the manufacturer’s installation documentation for detailed measurement requirements.)
- Capacity
- Oven Capacity: 5.3 cubic feet (Standard ovens typically have capacities of about 5 cubic feet, while wall ovens typically have about 3 cubic feet of space.)
- Features
- Range Type: Slide-In (Freestanding ranges have finished sides and a backguard where the oven controls are located; this style allows for the most versatility in placement. Slide-in ranges may have unfinished sides and are wider at the top to overlap the countertop on each side, allowing for a built-in appearance. Drop-in ranges are also known for their built-in style and are designed to fit custom cabinetry or countertops.)
- Downdraft Ventilation: false (This ventilation system, typically integrated right into the cooktop, pulls smoke and fumes downward in order to ventilate them away from the cooking area. If a range hood is not an option due to your cooktop location or you need more cabinet space above the cooking surface, downdraft ventilation will save space while ensuring smoke and odors are still being ventilated.)
- Range Power Source: Electric
- Hot Surface Indicator(s): true (Visual indicators turn on when the cooktop surface is hot and remain on until it is cooled, acting as a convenient safety reminder.)
- Control Type: Touchpad, Knob
- Oven Control Location: Front panel
- Clock Display: true
- Oven Light: true
- Power-On Indicator Light(s): true
- Wireless Connectivity: Wi-Fi (The manner in which a device sends data to another device over a short distance without the use of wires or cables.)
- Functions
- Sabbath Mode: true (This mode complies with the rules of Halakha and allows Shabbat-observant people to use the appliance on the Shabbat and other Jewish holidays.)
- Hidden Bake Element: true (This feature provides more space within the cooking cavity and allows for cleaning without navigating around an exposed heating element.)
- Oven Cooking Modes: Convection
- Oven Settings: Delay Bake Option, Delay Clean Option, Time Bake, Timer
- Oven Features
- Oven Cleaning Method: Self-cleaning high heat, Steam cleaning (There are several ways to clean the inside of your oven. Depending on the model, it might require manual cleaning or have a self-clean function. Self-clean functions use either high heat or steam to break down grease and food debris within the cooking cavity.)
- Single/Double Oven: Single Oven
- Drawer Type: Storage (Many ranges have a drawer located beneath the oven. In some models, this drawer functions as a broiler for high-heat cooking and browning. Other models have warming drawers to keep prepared foods warm until serving. If the drawer has no cooking function, it serves as convenient storage for pans and baking sheets.)
- Broiler Location: Oven

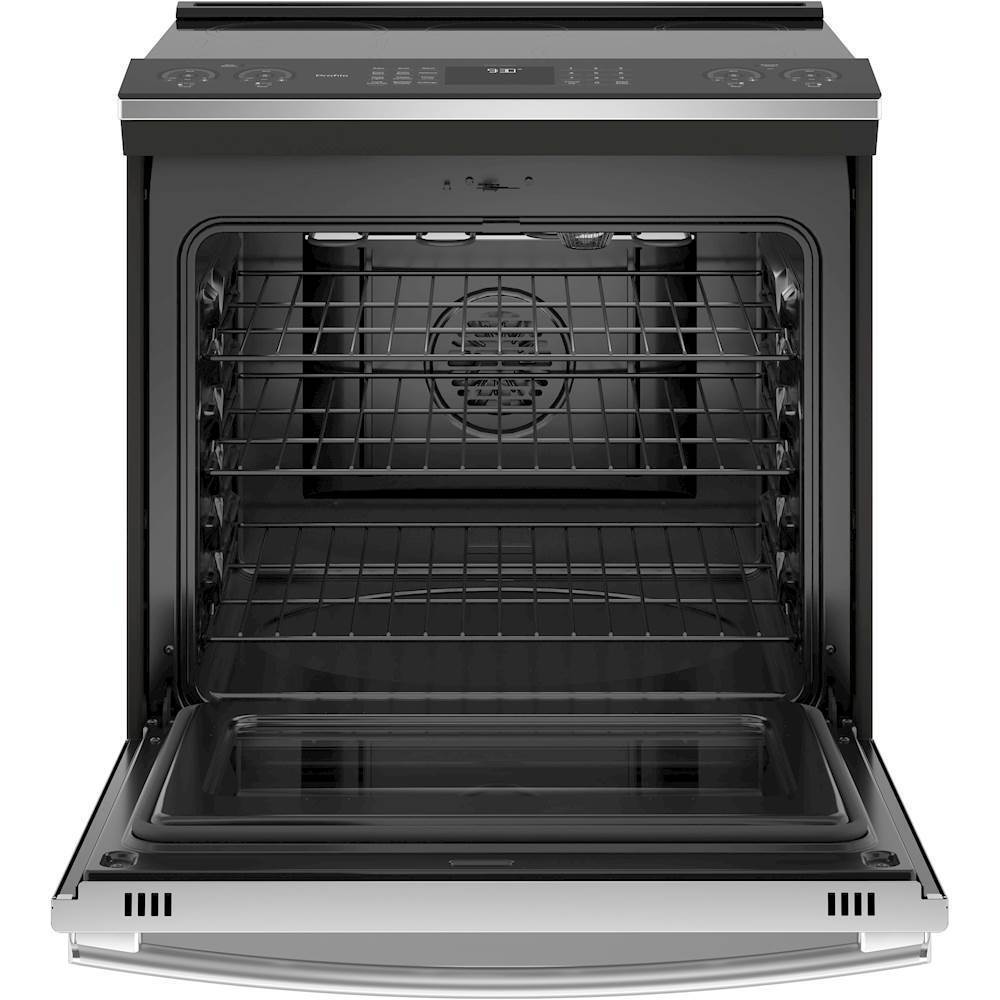

- Number of Oven Racks: 3
- Number of Oven Rack Positions: 6
- Oven Window: true
- Cooktop Features
- Cooktop Surface Type: Smoothtop (On electric cooktops, coil elements are typically more durable and tend to provide more evenly conducted heat than smoothtops. However, smoothtops may be easier to clean and have a distinctive streamlined appearance.)
- Cooktop Surface Material: Ceramic, Glass

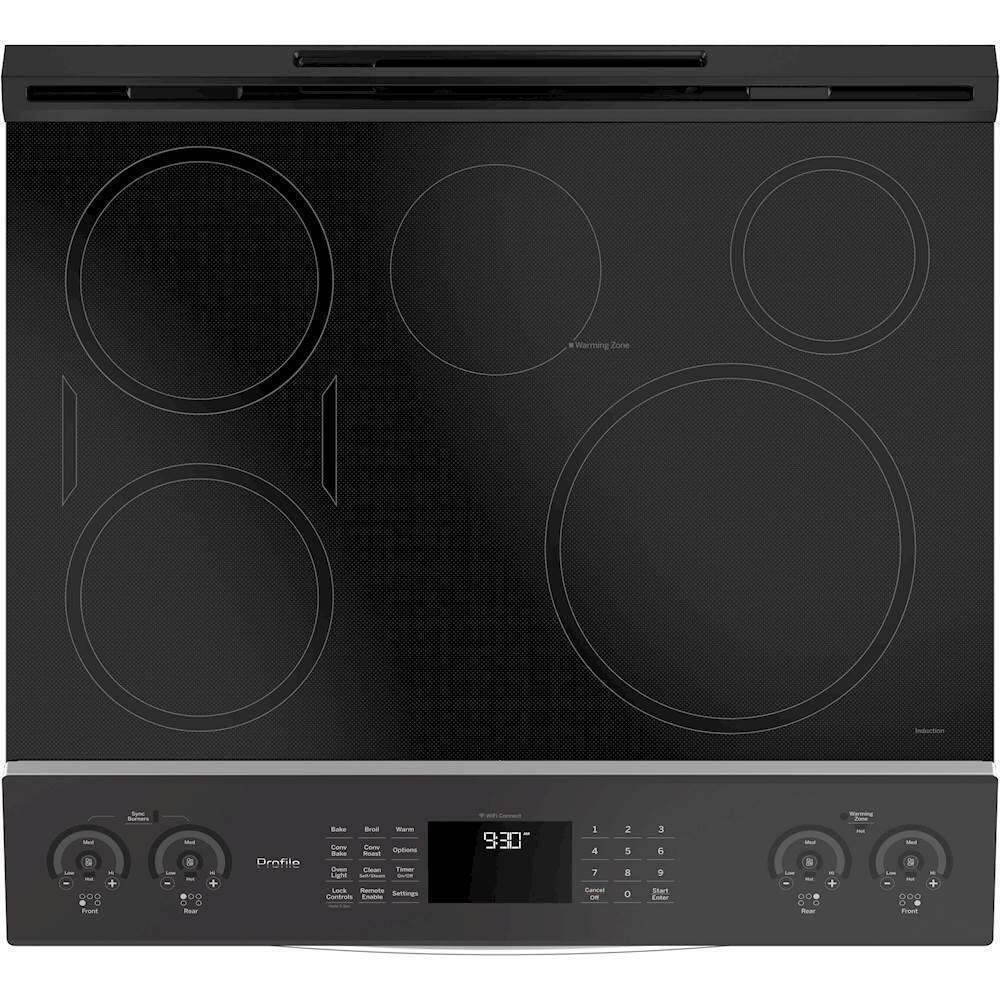

- Number of Elements: 4
- Bridge Element: true (This feature is an additional heating element located between two individual burners. When this is enabled, the individual burners and the bridge element act as one connected cooktop. This equal heat distribution on the cooktop surface helps accommodate larger cookware, such as roaster pans or griddles.)
- Specialty Element(s): Warming zone, bridge, PowerBoil
- Induction: true (Induction cooktops use magnetic currents to heat compatible cookware directly instead of warming the cooktop itself, which can allow for faster and more efficient cooking. There is also an added safety benefit because the surface begins to cool when cookware is removed.)
- Electrical Specification
- Voltage: 208 volts (Amount of power needed to support an electrical current.)
- Certifications Listings & Approvals
- ENERGY STAR Certified: false (Devices carrying the ENERGY STAR service mark, such as computer products and peripherals, kitchen appliances, and other products, generally use 20% to 30% less energy than required by federal standards.)
- ADA Compliant: true (Meets standards set by the Disabilities Act (ADA) Standards for Accessible Design)
- Chemical Disclosures: For more information about chemicals in this product, including PFAS chemicals, visit: https://www.geappliances.com/chemical-reports. Para obtener más información sobre los productos químicos de este producto, incluidos los productos químicos PFAS, visite: https://www.geappliances.com/chemical-reports.” (The disclosure of Per- and Polyfluorinated Substances (PFAS) and/or other chemicals.)
- Included
- Power Cord Included: false (Connects your product to an electrical outlet, allowing for immediate use (provided that other installation requirements are met).)
- Warranty
- Warranty - Parts: 1 year
- Warranty - Labor: 1 year
- Compatibility
- App Compatible: true (The product can be connected to a program or software application on a mobile device, which then receives collected data from the product.)
- Works With: Amazon Alexa, Google Assistant, Nest (Compatible with or able to be connected to other smart devices or applications.)
- Other
- UPC: 084691822288
Make cooking family meals easier with this versatile GE Profile range. The 3700W induction element provides fast, even heating, and glide touch controls make changing the temp as easy as swiping. This 30-inch GE Profile range is Wi-Fi compatible, so you can monitor and control cooking from your smart device.

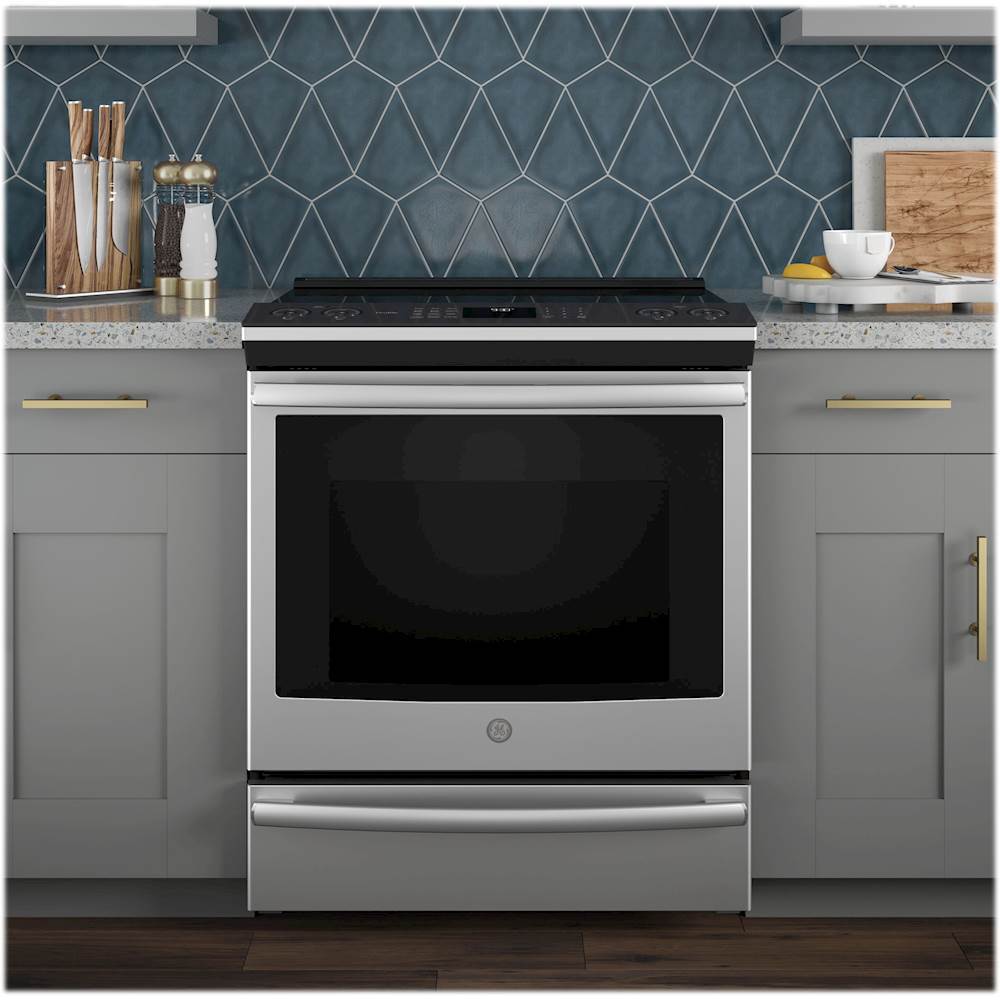

- Fit Guarantee: Replace your old 30” free-standing range with a new 30" slide-in model. GE slide-in ranges are guaranteed for an exact fit to make replacement easy. See offer criteria and details
- Induction cooktop technology: Innovative, fast, efficient cooking

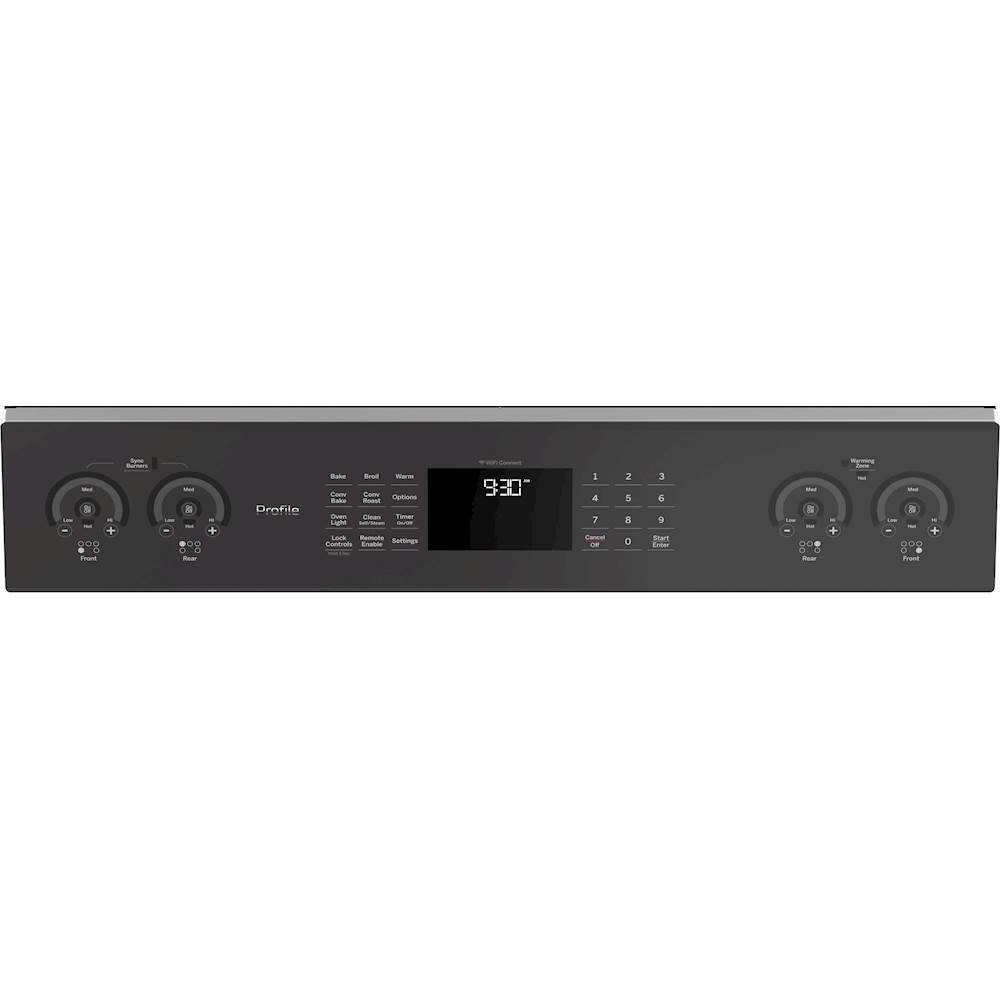

- Glide touch controls: Precisely control element temperature with just the swipe of a finger
- 11" 3700-watt induction element: Powerful enough to boil a quart of water in 101 seconds yet gentle enough for delicate sauces
- Two 8" 2500-watt synchronized elements: Control two 8" elements simultaneously to evenly heat large cookware or griddles
- WiFi Connect: Wirelessly control oven functions from your smartphone
- Chef Connect: Three options with a single touch. For instant convenience, choose when to automatically sync clocks and the range elements with the microwave's surface light and vent

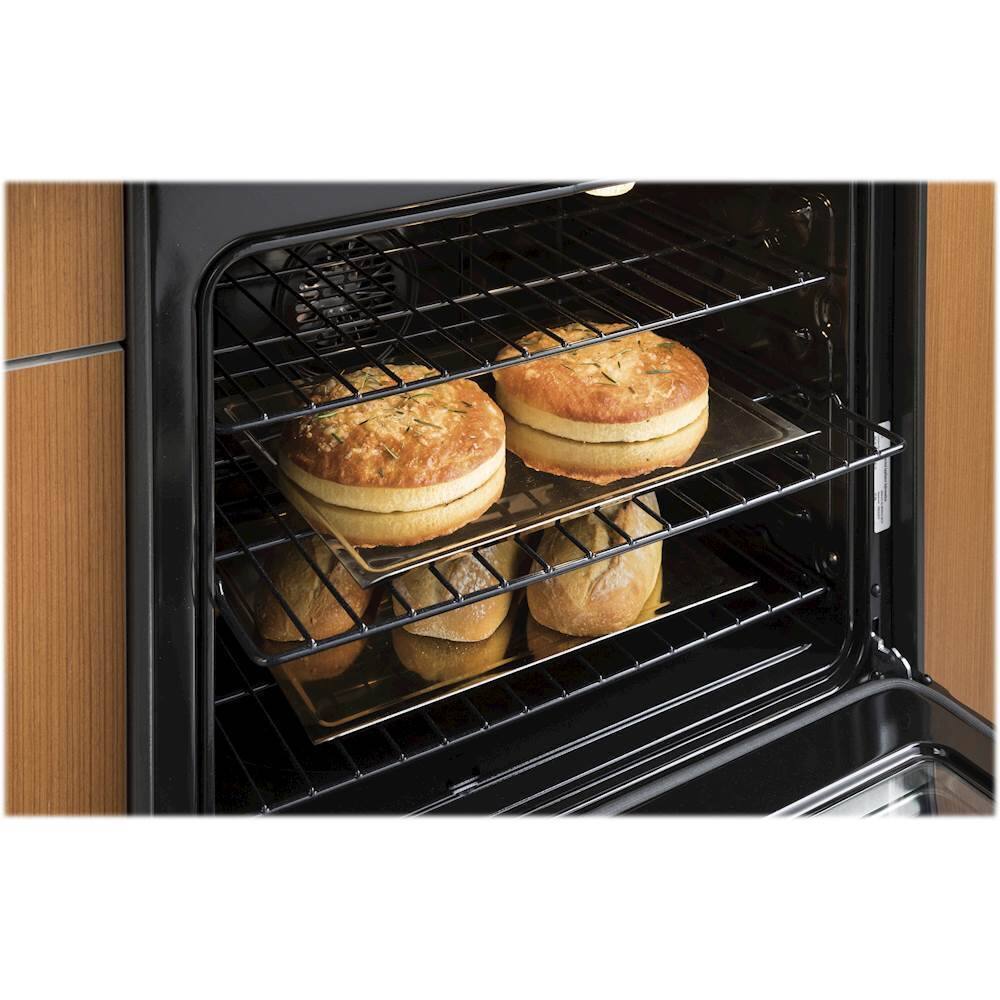

- Self-clean, heavy-duty oven racks: Long-lasting racks look great and can be cleaned at the same time as the oven

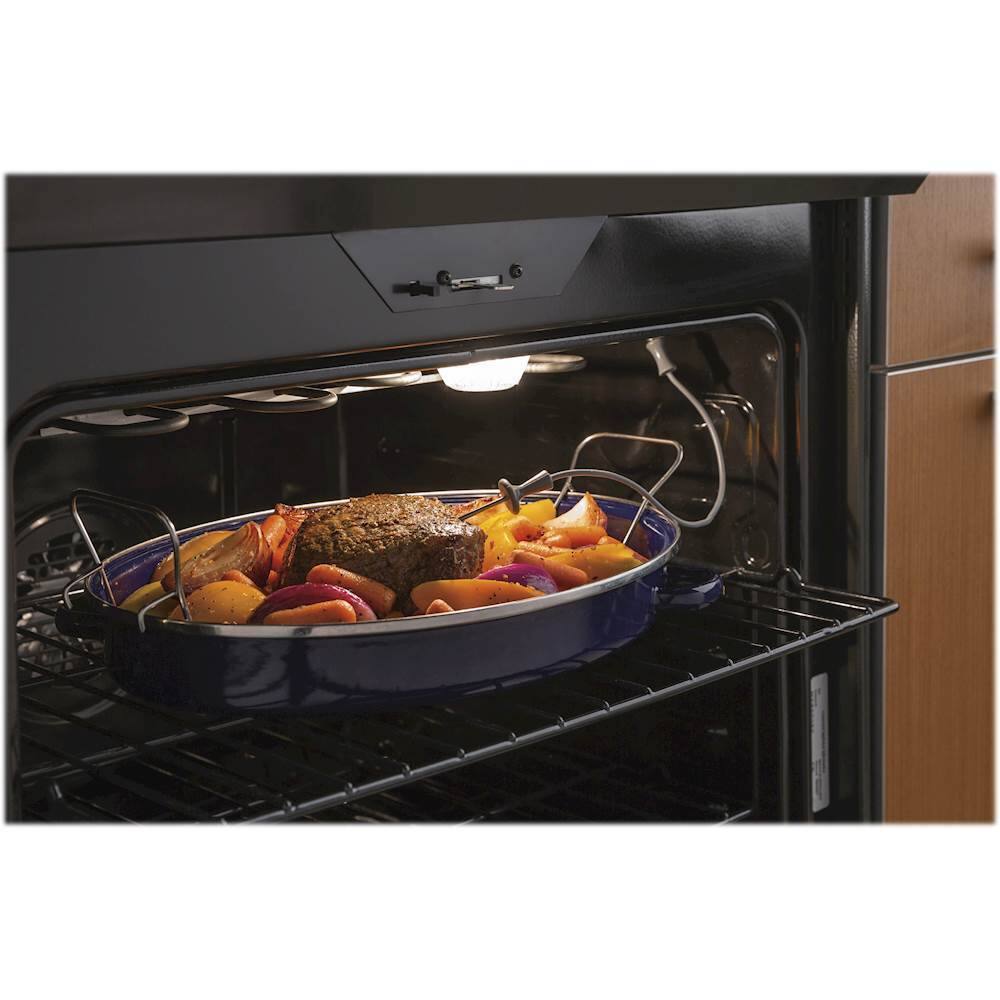

- True European Convection with Precise Air: Accurate heat circulation ensures evenly baked foods
- Soft-close storage drawer: Drawer closes silently and softly with just a touch
- Fast preheat: Make hot meals in a hurry with less time preheating
Whats Included
- GE Profile PHS930SLSS
- 3 x self-clean rack
- Cleaning sponge
- Cooktop cleaning cream
Product Manuals
A: Hi - The GE Profile™ Series Slide-In Front Control Induction and Convection Range is designed to fit nearly flush at the rear wall with standard 25" deep countertops. It will not fit properly in a space where there is counter at the back of the range. As show in the Installation Instructions, rear wall to front of door glass is approximately 25 1/2" (Depth Without Handle 27 3/8 in): http://products.geappliances.com/MarketingObjectRetrieval/Dispatcher?RequestType=PDF&Name=31-11105-1.pdf - Keep in touch! SUEatGEA
A: Hi rudog - Starting in September 2017, we are offering electric, gas, and dual fuel front control slide-in ranges with no overhang, an edge-to-edge cooking surface, and color matched finished sides. No overhang simplifies installation, especially with countertop less than or more than 36" and can be installed with counters with beveled edges. Also provides a better fit and appearance with ADA countertops (usually 34"H). Accessory trim kits are available to purchase if needed (JXFILLR1BB/JXFILLR1SS). Thanks for your interest in PHS930SLSS. Keep in touch at GEAppliances.com for all your appliance needs! Sue
A: Not sure if your interest is on the glass surface temperature (for safety) or in keeping food hot. It depends. If temperature of what you just finished cooking was high, it will take longer to cool down. If the hot pan is left on the cooktop it can take several minutes to cool. This basically depends on the characteristics of the pan. A heavy one, will take longer, but this is the same as in the case of any other range. If the hot pan is removed after completing cooking, the glass surface may need about one minute to cool. Consider that if the hot pan is removed, what remains hot is the cooktop glass, only, no other metal parts as in a regular range. In any case, an indicator will let you know that the area is hot.

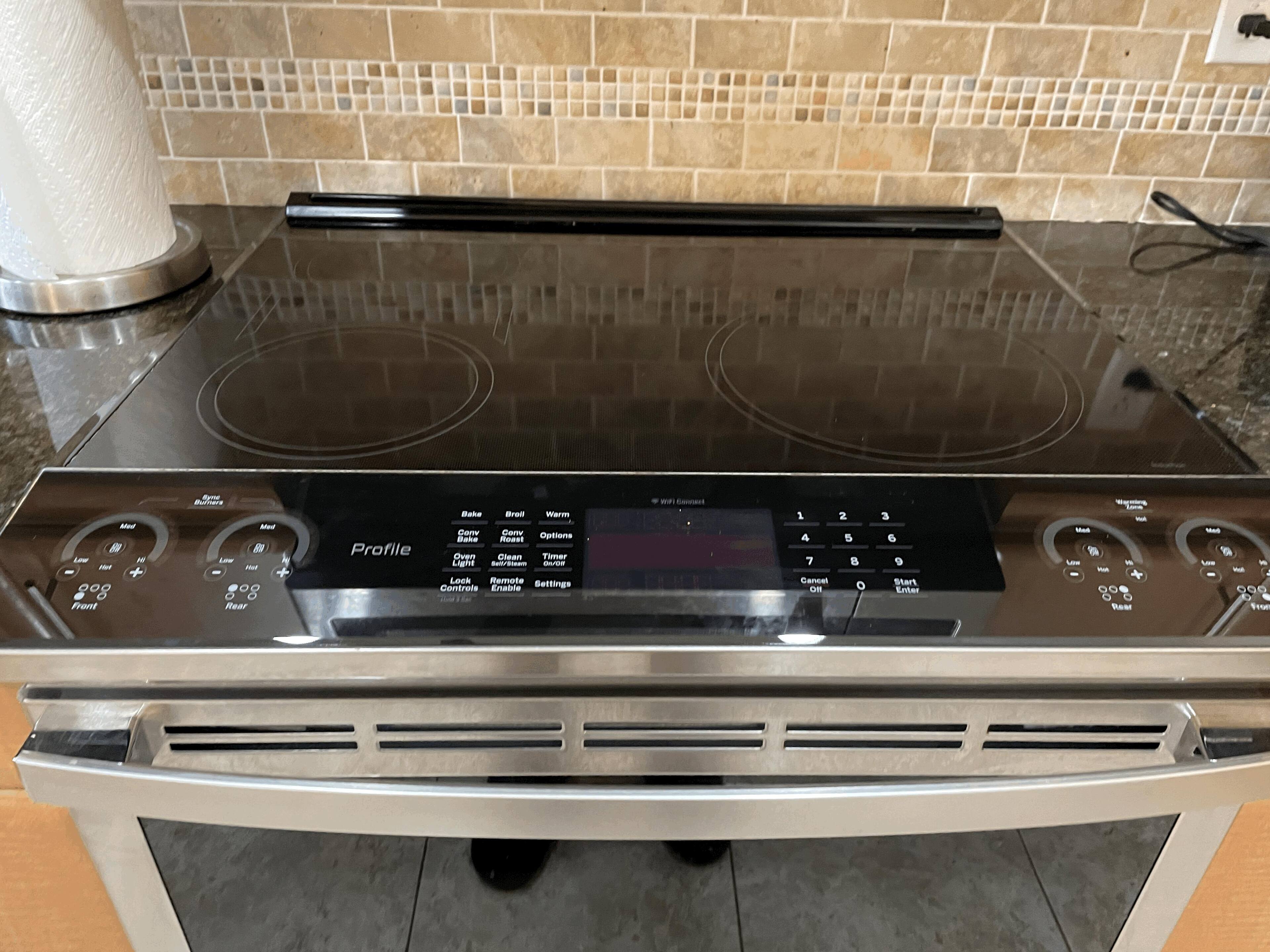

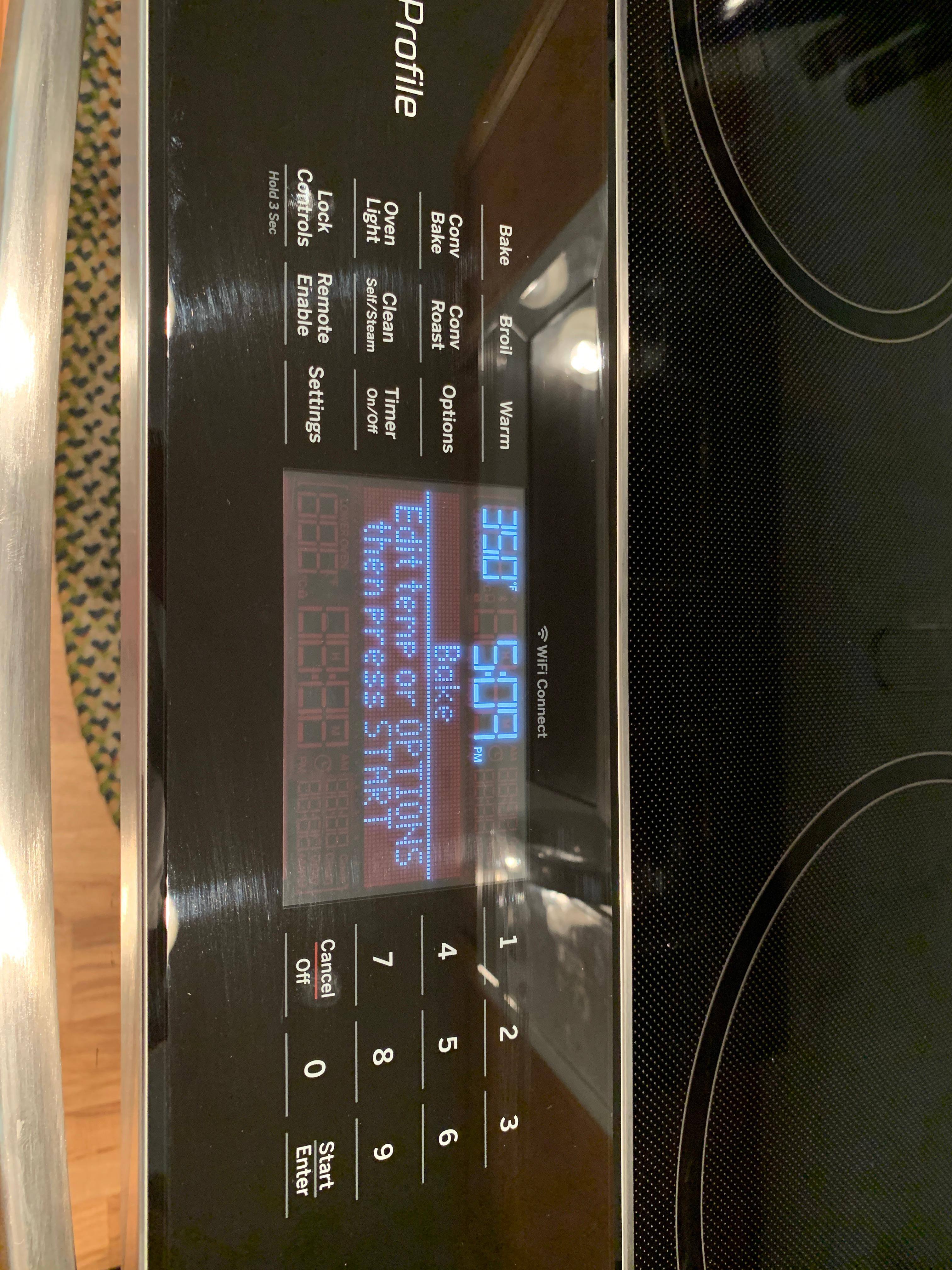

A: There's a button that says LOCK CONTROLS, press and hold that for 3 seconds and it locks the controls so you can clean, press and hold it again for 3 seconds to unlock it.
Q: How does the ventilation work on this model? Do I need any special ventilation considerations?

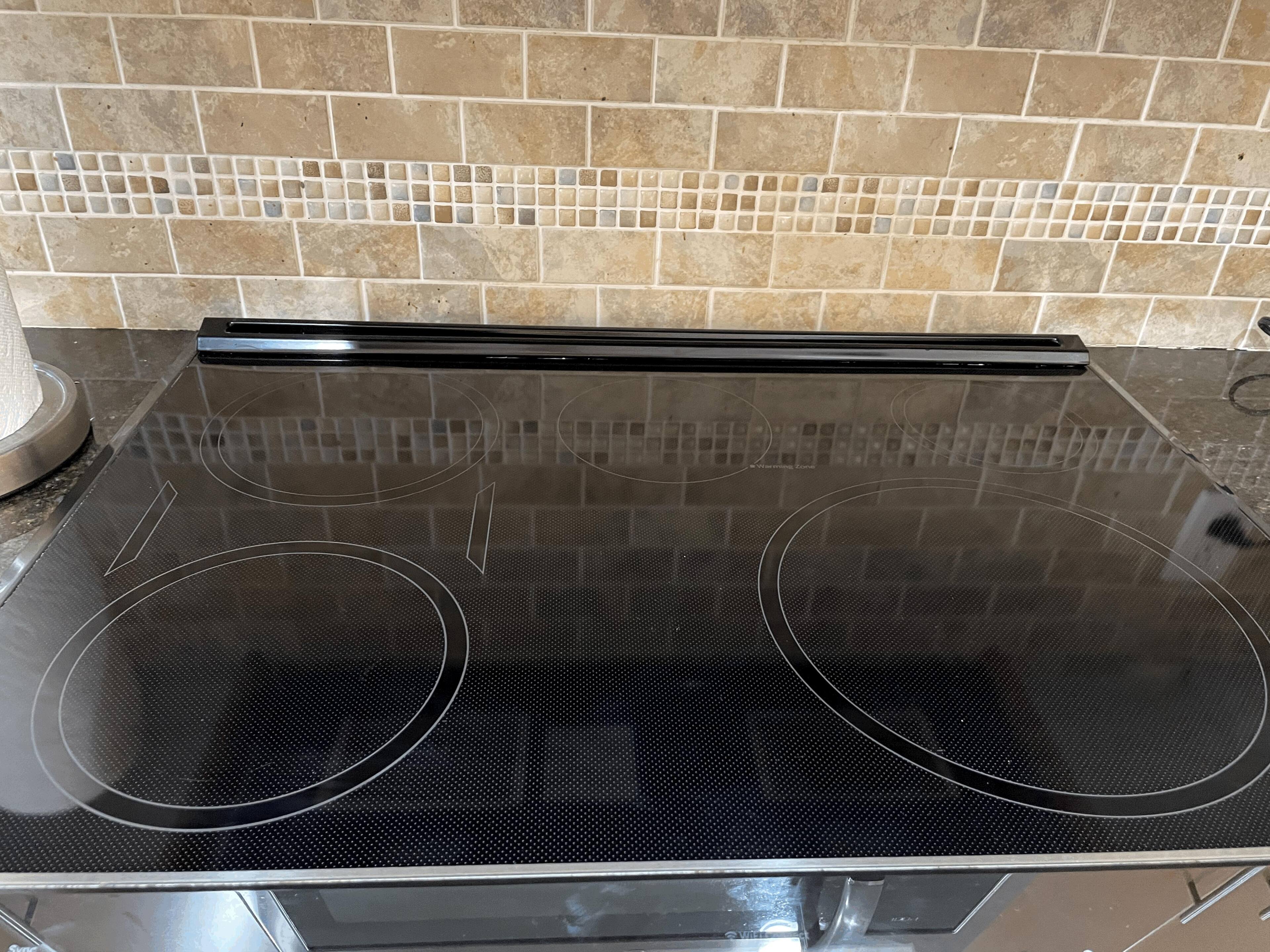

A: Ventilation for the oven is at the rear of the cook top; there are black vents placed horizontally where the glass of the cook top ends. For ventilation of the kitchen, I would only use a range hood vented to the outdoors. Microwave vents are worthless since they don't have enough pull. I had the oven cranking for Christmas (450 deg F) and the stove top didn't get hot, nor did the handles. Cooling fans for the actual burners is internal, and are very very quiet. I had the predecessor of this model, and this new incarnation is much quieter.
A: Hi Mark - Thanks for choosing GE! Amp Rating at 208V/240V= 40 (KW Rating at 208V= 10.4; KW Rating at 240V= 12.5). GE Appliances does not package the power cord with electric free-standing ranges since it is not possible to determine the type of facilities each consumer has available or what the local electrical codes require (ex. 3-wire vs 4-wire). We suggest to view the Installation Instructions at the following link: https://products.geappliances.com/MarketingObjectRetrieval/Dispatcher?RequestType=PDF&Name=31-11105-4.pdf - Also view the following link- INSTALLATION WIRE SIZE / GAUGE: https://products.geappliances.com/appliance/gea-support-search-content?contentId=22616 - We hope this is helpful. Keep in touch! Sue
Q: What is the optional trim kit for(JXFILLR1BB)?

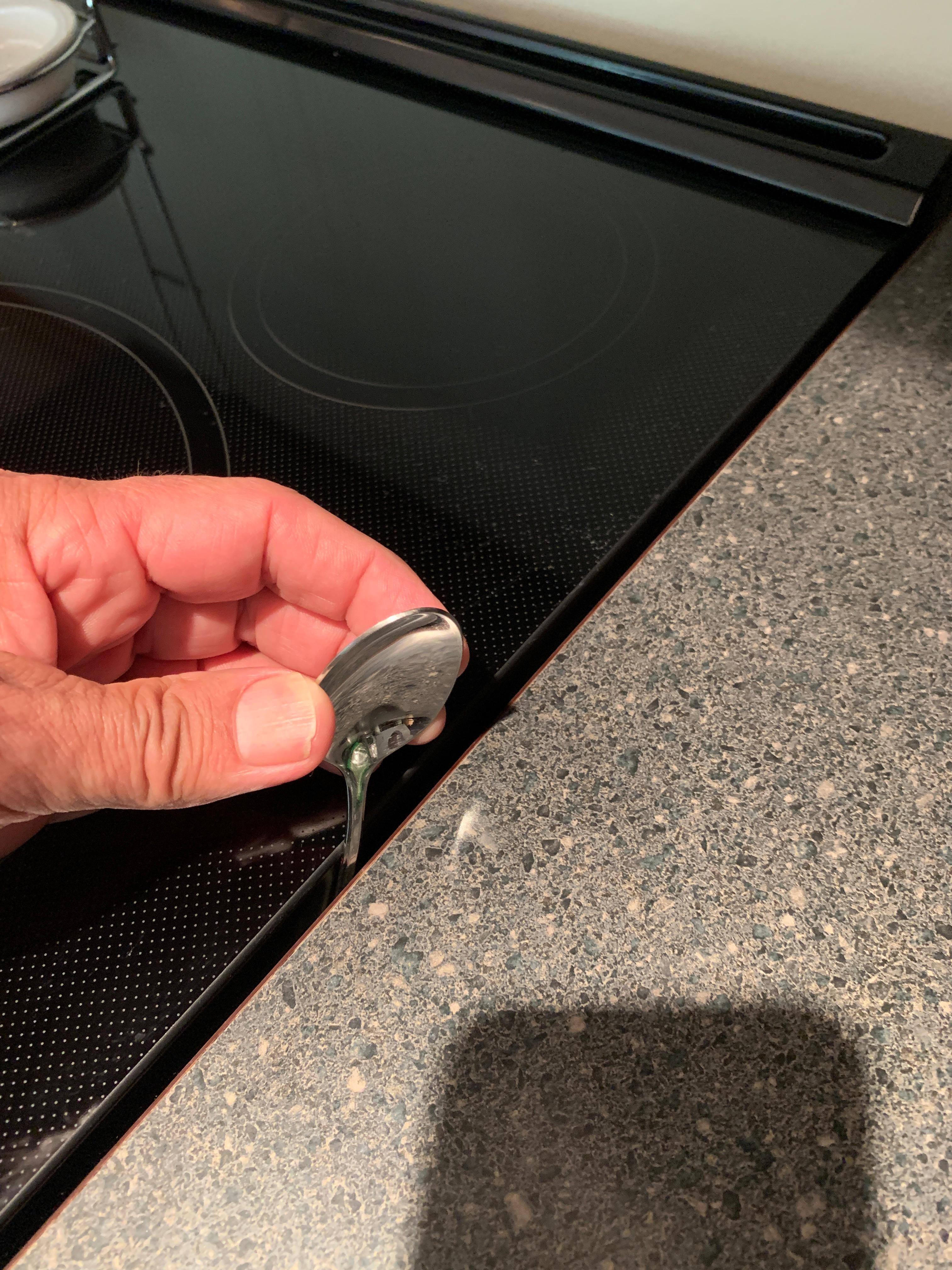

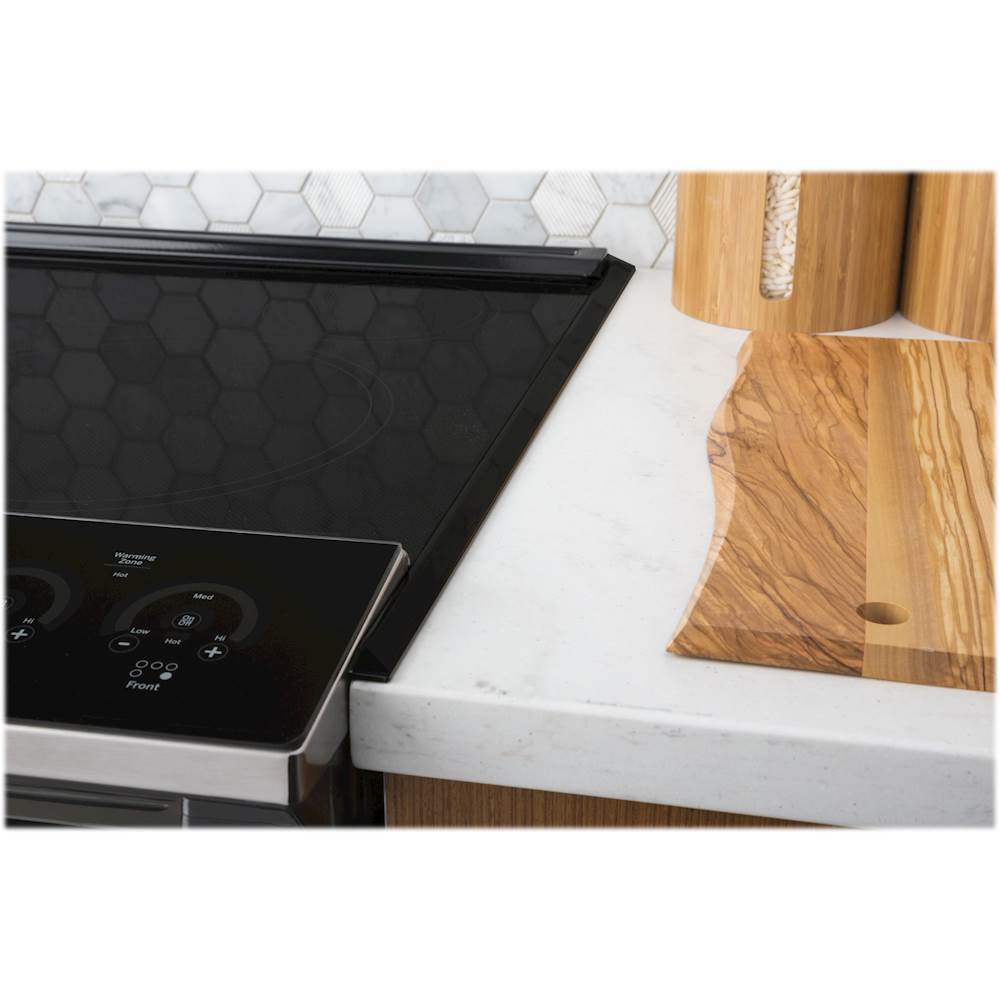

A: Hi rudog - Thanks for considering GE Profile Model # PHS930SLSS! This trim is only necessary if you want to cover the small gap on the sides or if you have a rough countertop cut you would like to cover. You can also view the Installation Guide at this link: https://products.geappliances.com/MarketingObjectRetrieval/Dispatcher?RequestType=PDF&Name=31-11118_Trim%20Kit%20Instructions.pdf - We’d love to have you in the family. Keep in touch at GEAppliances.com. Sue
A: Hi Parker - Thanks for your interest! While decibel ratings are not available, a humming sound while cooking or boiling is normal. Slight sounds, like hums or buzzes may be produced by different types of cookware. Heavier pans, such as enameled cast iron produce less noise than a lighter weight multi-ply stainless steel pan. The size of the pan and the amount of contents can also contribute to the sound level. When using adjacent elements that are set at certain power level settings, pan noise may interact and produce a low whistle or intermittent "hum". These noises can be reduced or eliminated by lowering or raising the power level settings of one or both of the elements. Pans that completely cover the element ring will produce less noise. For more information and videos about how Induction works, the type of cookware to use, and more, visit our Induction Cooking page: http://www.geappliances.com/ge/cooking/induction.htm - Keep in touch at GEAppliances.com -Sue
