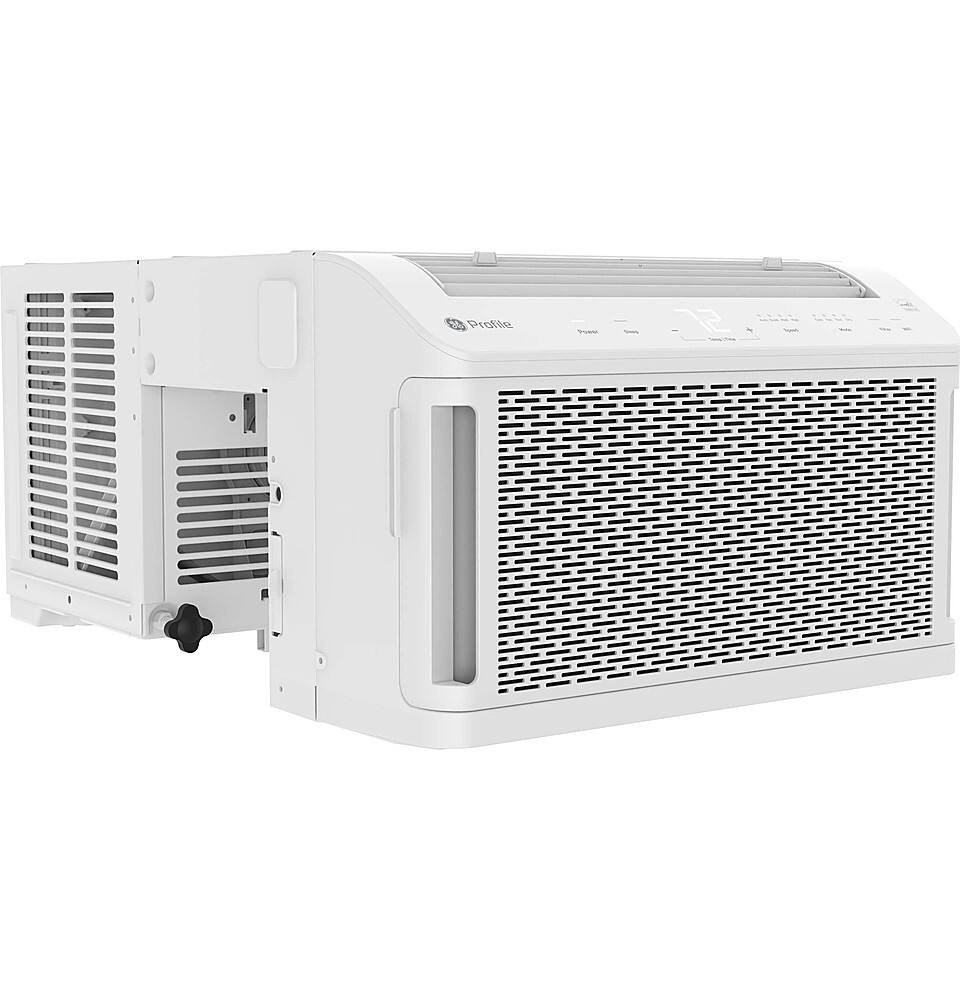

GE Profile - ClearView 550 Sq. Ft. 12,200 BTU Smart Ultra Quiet Window Air Conditioner - White
- Key Specs
- Recommended Room Size: 550 square feet (The recommended area size in which the product is designed to operate and produce optimal results, such as the desired heating or cooling. Generally, running a unit too big or too small for the space will result in ineffective operation and wasted energy.)
- BTU Cooling Rating: 12200 british thermal units (The amount of BTUs (British Thermal Units) per hour the unit uses to cool the air, also known as cooling capacity. For best results, the capacity of the unit should be based on the size of the area it is intended to cool. For example, a 5,000 BTU capacity works optimally for a 150 square foot room. In general, an oversized unit will not effectively remove humidity, and an undersized unit will not cool the space efficiently.)
- Number of Cool Settings: 4
- Number of Fan Speeds: 8
- Airflow Rate: 220 cubic feet per minute
- Remote Control: true
- Integrated Heater: false
- Sleep Mode: false (Enabling this mode sets the unit to first reach the desired temperature, then gradually increase the temperature over a period of time until it reaches a new set temperature, typically several degrees higher than the initial cool setting. This mode helps save energy while keeping the room comfortable.)
- Timer: true
- Auto Shut-Off: true (Feature automatically turns off the product.)
- Energy Efficiency Ratio: 14.7 (The ratio of output BTUs (British Thermal Units) to input electrical energy (watts) at a given operating point. Generally, the higher the number, the more efficient the unit. Though higher efficiency units are typically more expensive upfront, they may offset the price in energy costs over time.)
- Combined Energy Efficiency Ratio (CEER): 14.6 (The standard used to measure energy efficiency in window and room air conditioners by the Department of Energy (DOE) as of June of 2014. CEER measures the ratio of output BTUs (British Thermal Units) to input electrical energy (watts) in standby mode and while the unit is operating. Generally, the higher the number, the more efficient the unit. Though higher efficiency units are typically more expensive upfront, they may offset the price in energy costs over time.)
- App Compatible: true (The product can be connected to a program or software application on a mobile device, which then receives collected data from the product.)
- Works With: Google Home, Amazon Alexa (Compatible with or able to be connected to other smart devices or applications.)
- Wireless Connectivity: Wi-Fi (The manner in which a device sends data to another device over a short distance without the use of wires or cables.)
- Window Mounting Kit Included: true
- Air Conditioner Type: Window
- General
- Brand: GE Profile
- Model Number: PHNT12CC
- Product Name: ClearView 550 Sq. Ft. 12,200 BTU Smart Ultra Quiet Window Air Conditioner
- Color: White
- Air Conditioner Type: Window
- Dimensions
- Minimum Window Opening Height: 13 inches
- Minimum Window Opening Width: 20 inches
- Maximum Window Opening Height: 40 inches
- Maximum Window Opening Width: 40 inches
- Product Height: 12 3/4 inches (The out of box height of the item. Height is measured as the vertical distance from the bottom of the item to the top as it would be primarily used or placed.)
- Product Width: 19 3/5 inches (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
- Product Depth: 28 inches (The out of box depth of the item. Depth is measured as the distance from the front of the item to the back as it would be primarily used or placed.)
- Product Weight: 80 pounds (The out of box weight of the item.)
- Cord Length: 72 inches
- BTU Rating
- Recommended Room Size: 550 square feet (The recommended area size in which the product is designed to operate and produce optimal results, such as the desired heating or cooling. Generally, running a unit too big or too small for the space will result in ineffective operation and wasted energy.)
- BTU Cooling Rating: 12200 british thermal units (The amount of BTUs (British Thermal Units) per hour the unit uses to cool the air, also known as cooling capacity. For best results, the capacity of the unit should be based on the size of the area it is intended to cool. For example, a 5,000 BTU capacity works optimally for a 150 square foot room. In general, an oversized unit will not effectively remove humidity, and an undersized unit will not cool the space efficiently.)
- Features
- Number of Cool Settings: 4
- Number of Fan Speeds: 8
- Airflow Rate: 220 cubic feet per minute
- Maximum Noise Level: 56 decibels adjusted
- Minimum Noise Level: 53 decibels adjusted
- Air Discharge: Top
- Air Direction/Circulation: 2-way
- Remote Control: true
- Control Type: Touchpad, Touchpad, Touchpad
- Integrated Heater: false
- Sleep Mode: false (Enabling this mode sets the unit to first reach the desired temperature, then gradually increase the temperature over a period of time until it reaches a new set temperature, typically several degrees higher than the initial cool setting. This mode helps save energy while keeping the room comfortable.)
- Timer: true
- Auto Shut-Off: true (Feature automatically turns off the product.)
- Power
- Energy Efficiency Ratio: 14.7 (The ratio of output BTUs (British Thermal Units) to input electrical energy (watts) at a given operating point. Generally, the higher the number, the more efficient the unit. Though higher efficiency units are typically more expensive upfront, they may offset the price in energy costs over time.)
- Combined Energy Efficiency Ratio (CEER): 14.6 (The standard used to measure energy efficiency in window and room air conditioners by the Department of Energy (DOE) as of June of 2014. CEER measures the ratio of output BTUs (British Thermal Units) to input electrical energy (watts) in standby mode and while the unit is operating. Generally, the higher the number, the more efficient the unit. Though higher efficiency units are typically more expensive upfront, they may offset the price in energy costs over time.)
- Amperage: 20 amperes (Strength of electrical current.)
- Certifications Listings & Approvals
- ENERGY STAR Certified: true (Devices carrying the ENERGY STAR service mark, such as computer products and peripherals, kitchen appliances, and other products, generally use 20% to 30% less energy than required by federal standards.)
- Product Safety Certifications and Standard(s): UL Listed (Lists the applicable certifications and/or standards, as stated by the manufacturer, in which the product has met the requirements for the assurance of quality and safety.)
- Compatibility
- App Compatible: true (The product can be connected to a program or software application on a mobile device, which then receives collected data from the product.)
- Works With: Google Home, Amazon Alexa (Compatible with or able to be connected to other smart devices or applications.)
- Wireless Connectivity: Wi-Fi (The manner in which a device sends data to another device over a short distance without the use of wires or cables.)
- Included
- Window Mounting Kit Included: true
- Warranty
- Warranty - Parts: 1-Year Replacement
- Warranty - Labor: 1 year limited
- Other
- UPC: 084691917984
As the Quietest Window Air Conditioner Brand in the United States*, GE Profile is dedicated to providing the right solutions for rooms of various sizes. Our Energy Star certified window air conditioners are designed to offer exceptional comfort with minimal noise, and our latest WiFi connected technology makes these products versatile and easy to use. The ClearView inverter 12200 BTU smart window air conditioner cools large rooms up to 550 square feet and sits over the windowsill to give you a full view to the outside and allow more natural light into your room. The easy and safe installation with no mounting bracket needed* (subject to local code approval) allows you to freely open and close the window with the unit installed. The industry exclusive flex-depth expands to fit walls between 4.5" to 13.75" thick, so you can customize your ClearView fit. Energy-efficient cooling with four modes and three fan speeds provide flexible and optimal home comfort. Integration with the SmartHQ app allows you to monitor, schedule, and control your connected air conditioner from anywhere, or check your energy usage and set-up geolocation. Use the electronic controls with included remote to easily to adjust and manage your settings. This AC installs in a double hung window with included window kit. Additional features like eco mode, power interruption restart, 24-hour on/off timer, and removable filter offer ease of use and maintenance. *Based on avg sound ratings by brand of 5K-24K BTU Window AC from publicly available info, compared to 74% of the product in the US WAC category per Traqline 9/21

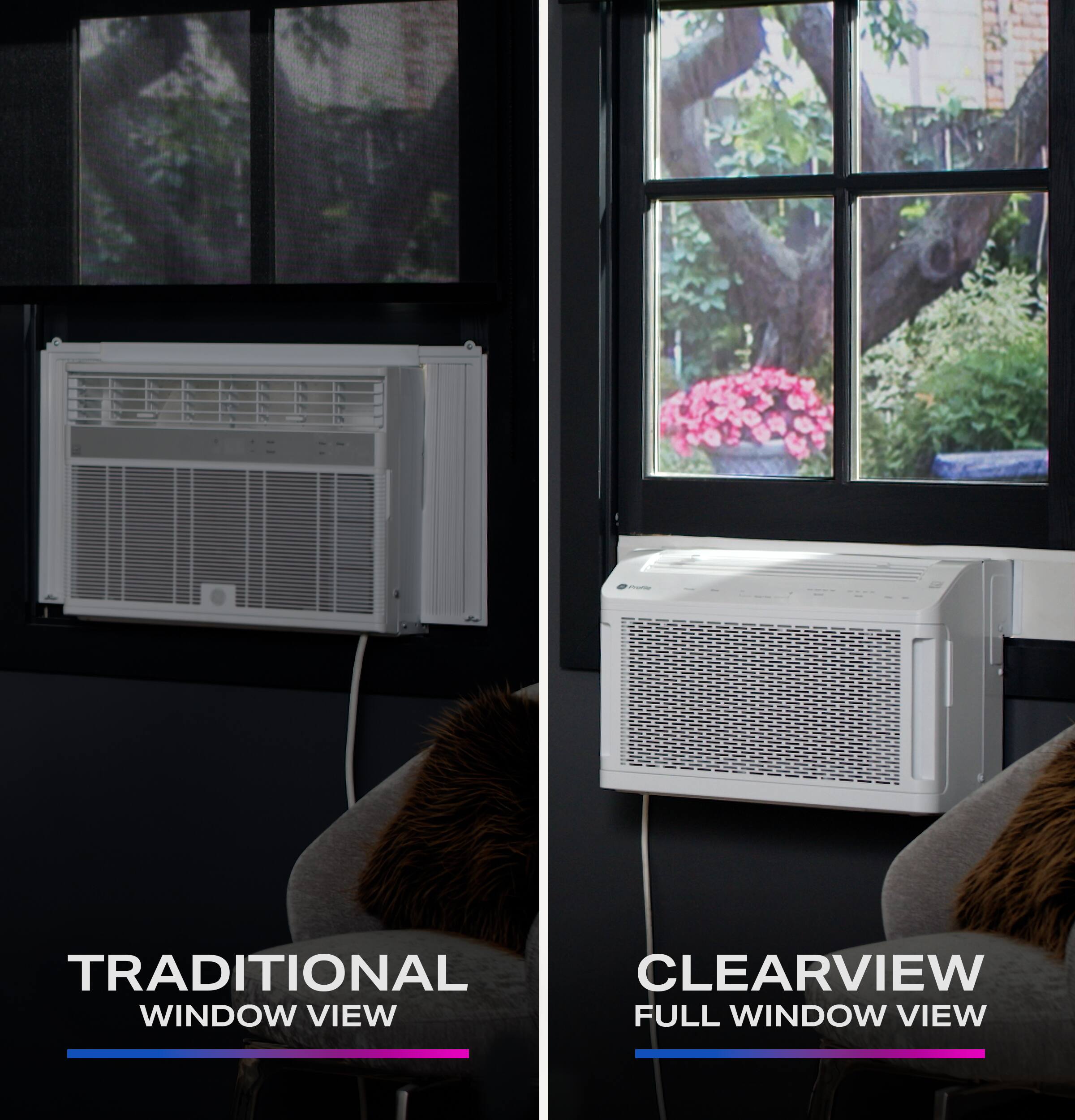

- Full window view: This GE Profile window air conditioner sits over the windowsill and is designed to maintain the full view through the window, allowing more natural light into the room.

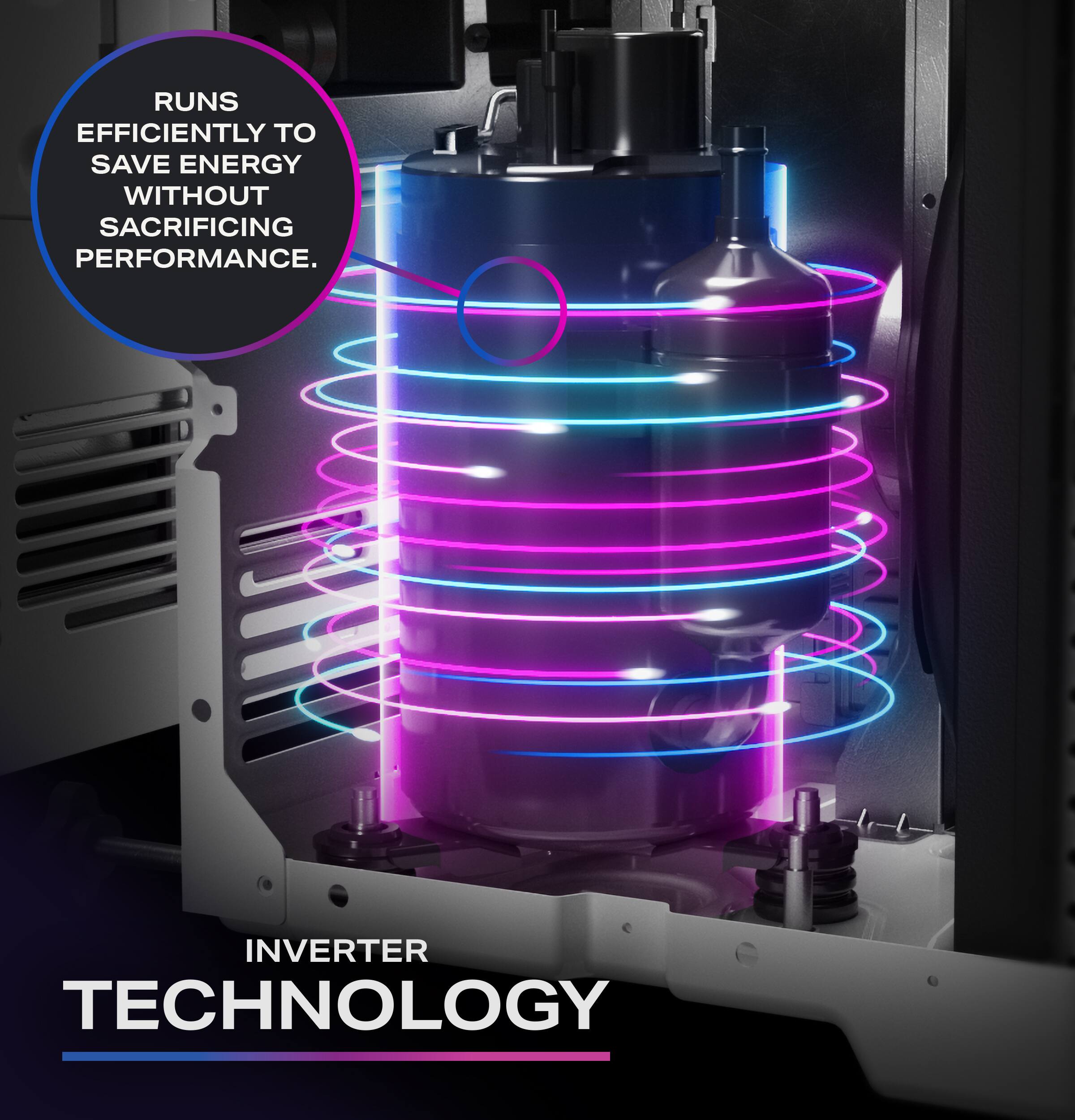

- Inverter technology: Senses the room temperature, then adapts, to run smoothly and continuously, instead of turning off and on
- Ultra quiet: This quiet air conditioner reaches sounds as low as 40 dB, underlining GE Profile's rating as the Quietest Window AC Brand. (Based on avg sound ratings by brand of 5K-24K BTU Window AC from publicly available info, compared to 74% of the product in the US WAC category per Traqline 9/21)

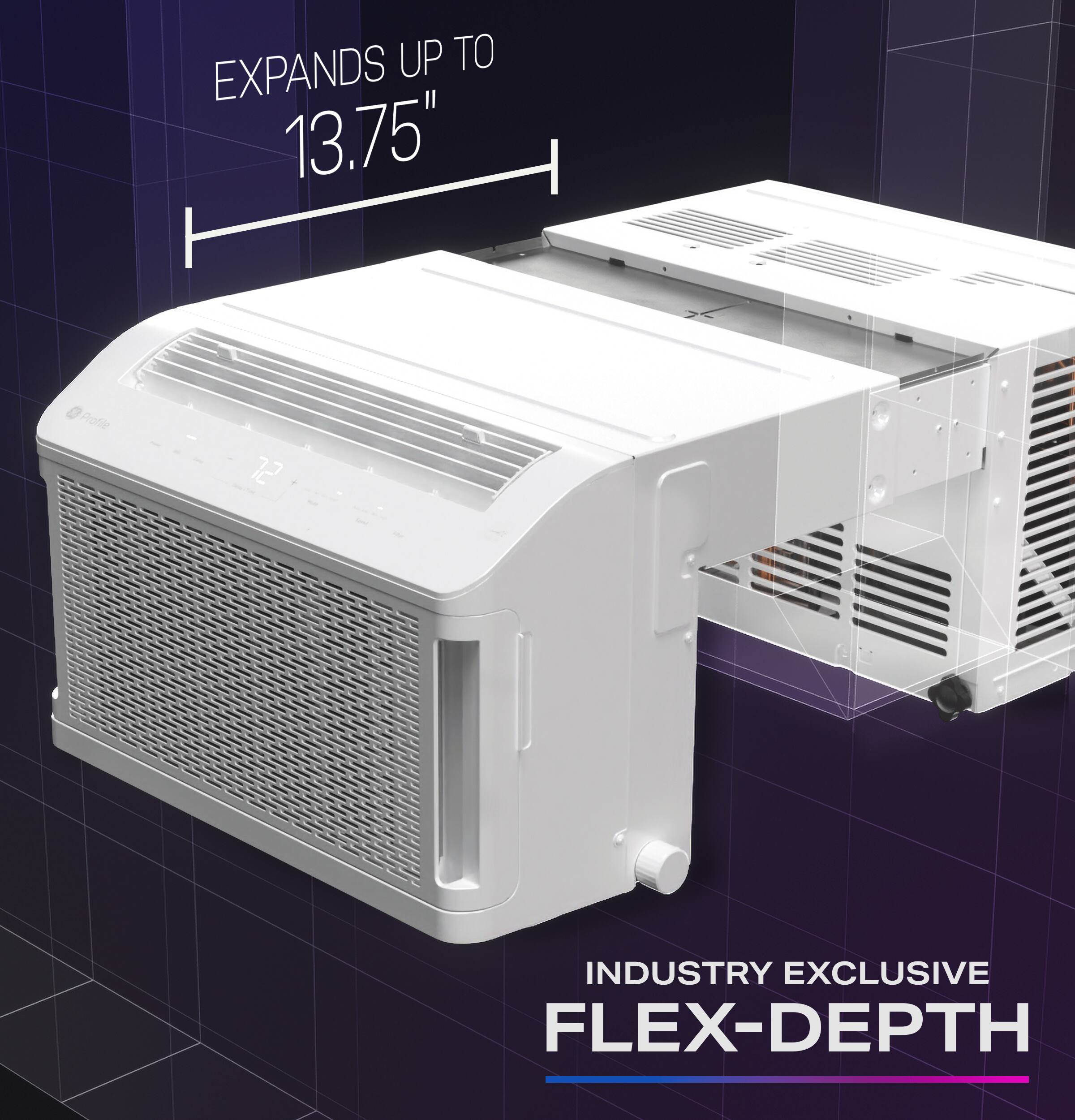

- Industry exclusive flex-depth: Engineered to expand to multiple positions, the flex-depth feature accommodates walls between 4.5" to 13.75" thick. The product comes in the closed position and can be expanded to custom fit your windowsill depth
- Operational window: The ClearView designs allows you to open and close the window freely with the unit installed, providing flexbility to let the fresh air in on a nice day
- Built-in WiFi: Use the SmartHQ app to control and monitor this WiFi enabled smart air conditioner from anywhere, giving you connected peace of mind.
- Voice control: Use voice commands to control the unit after connecting it to a smart speaker like Amazon Alexa or Google Assistant.
- Energy reporting: Monitor air conditioner energy consumption with reports that show how much you've used, so you can maximize savings and enjoy a truly connected performance.
- Geolocation: Geofence technology pinpoints your smartphone location then automatically adjusts the smart air conditioner settings for when you're home.
- Maximum comfort cool: Four cooling settings and fan speeds provide total flexibility with optimal home comfort and air conditioner efficiency.

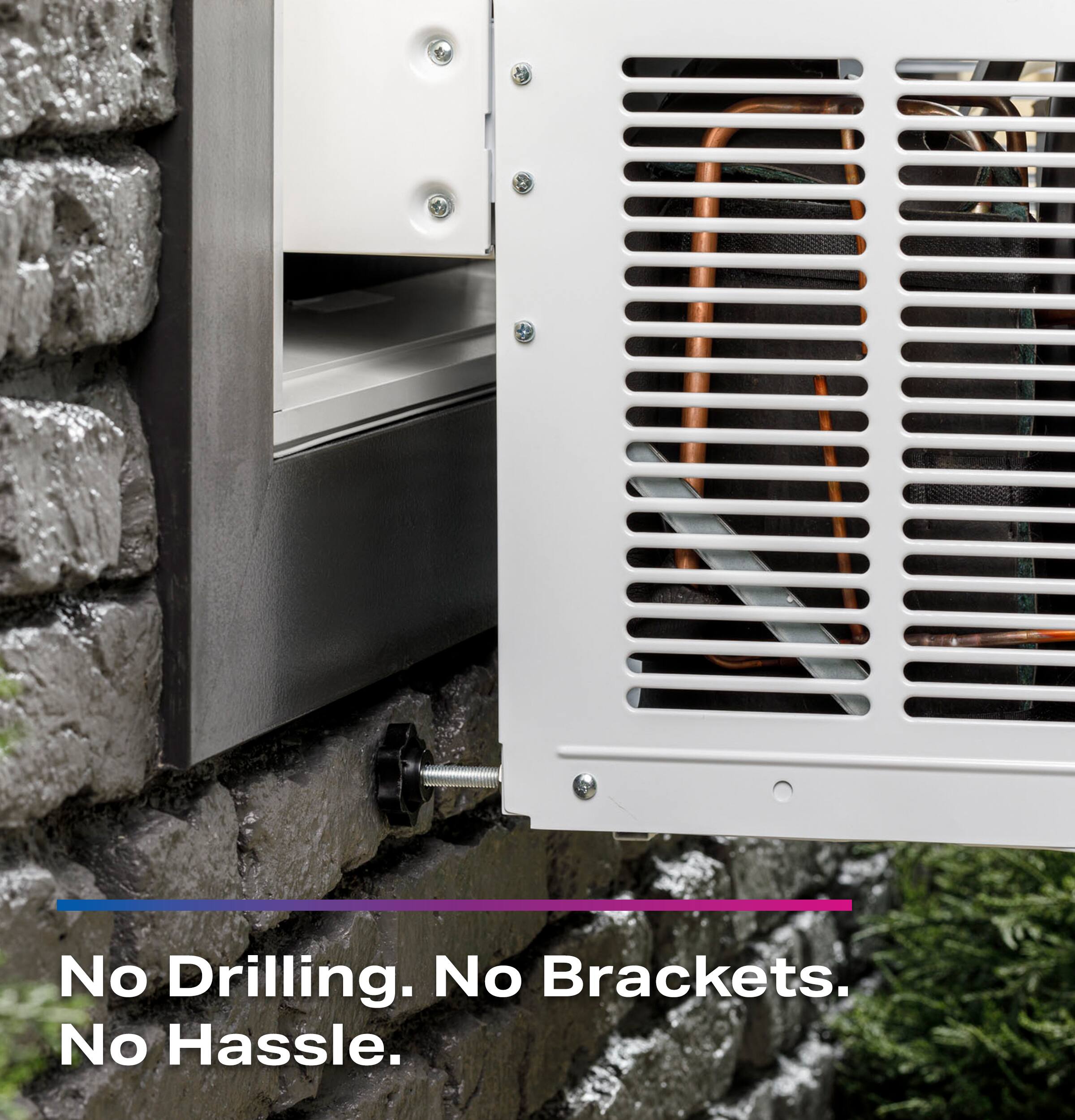

- Easy installation: This unit sits over the windowsill and is easy and safe to install in a double hung window with included installation kit.
- Filter reminder: Get a filter change reminder when the filter needs cleaning, so you can keep the unit performing at its best.
- Capacitive touch with remote: The capacitive touch screen controls are flush with the air conditioner and require less pressure to operate; or simply use the included remote for effortless control
- Cools large rooms: 12,000 BTU cooling capacity offers maximum comfort in rooms up to 550 square feet.

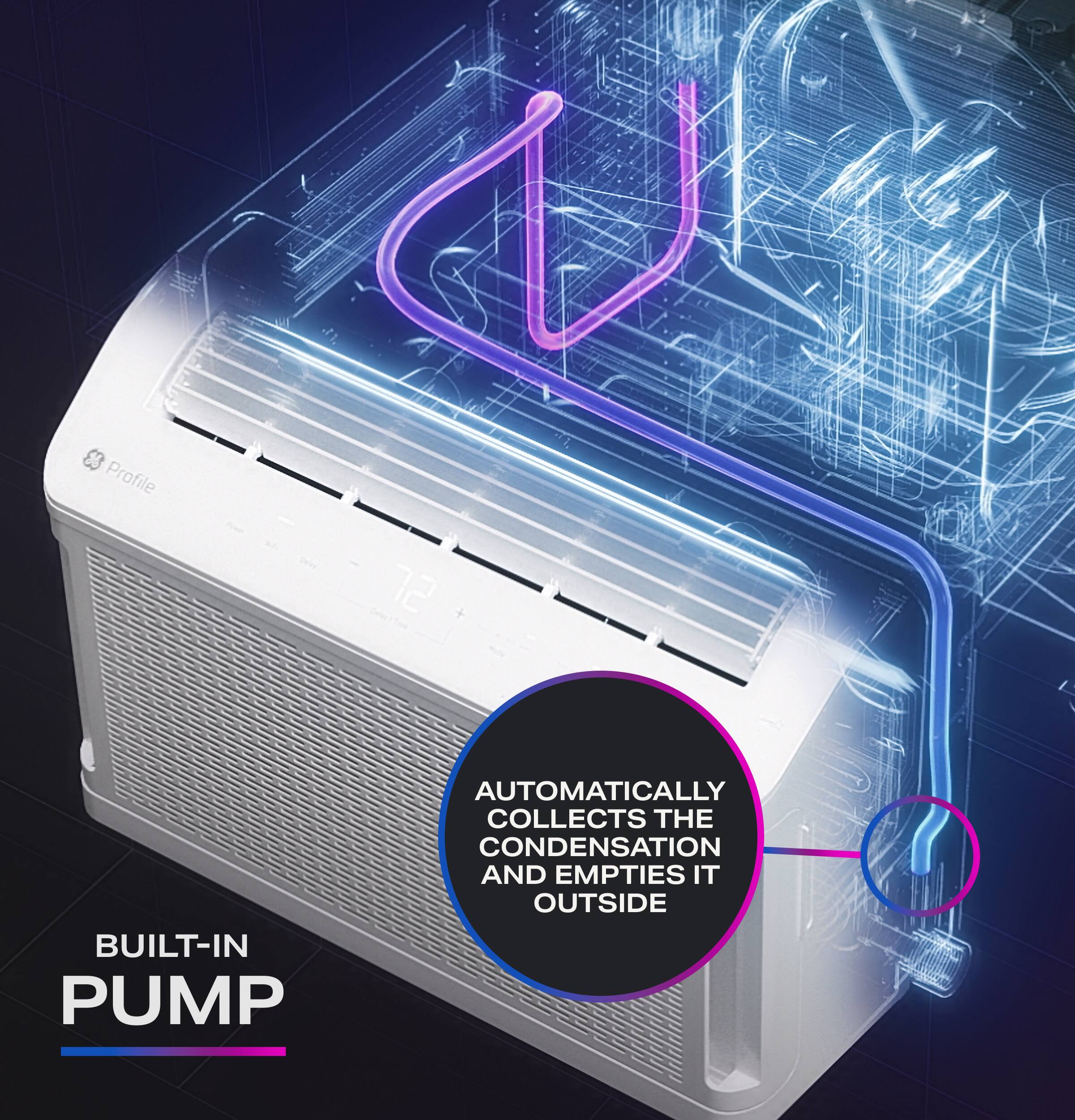

- Built-in pump: ClearView uses an advanced built-in pump system that collects the condensation from the indoor side then automatically transports the water through the unit to empty efficiently outside. Enjoy quiet, continuous cooling without the hassle of frequent draining.
- Full window view: This GE Profile window air conditioner sits over the windowsill and is designed to maintain the full view through the window, allowing more natural light into the room.
- Inverter technology: Senses the room temperature, then adapts, to run smoothly and continuously, instead of turning off and on
- Ultra quiet: This quiet air conditioner reaches sounds as low as 40 dB, underlining GE Profile's rating as the Quietest Window AC Brand. (Based on avg sound ratings by brand of 5K-24K BTU Window AC from publicly available info, compared to 74% of the product in the US WAC category per Traqline 9/21)
- Industry exclusive flex-depth: Engineered to expand to multiple positions, the flex-depth feature accommodates walls between 4.5" to 13.75" thick. The product comes in the closed position and can be expanded to custom fit your windowsill depth
- Operational window: The ClearView designs allows you to open and close the window freely with the unit installed, providing flexbility to let the fresh air in on a nice day
- Built-in WiFi: Use the SmartHQ app to control and monitor this WiFi enabled smart air conditioner from anywhere, giving you connected peace of mind.
- Voice control: Use voice commands to control the unit after connecting it to a smart speaker like Amazon Alexa or Google Assistant.
- Energy reporting: Monitor air conditioner energy consumption with reports that show how much you've used, so you can maximize savings and enjoy a truly connected performance.
- Geolocation: Geofence technology pinpoints your smartphone location then automatically adjusts the smart air conditioner settings for when you're home.
- Maximum comfort cool: Four cooling settings and fan speeds provide total flexibility with optimal home comfort and air conditioner efficiency.
- Easy installation: This unit sits over the windowsill and is easy and safe to install in a double hung window with included installation kit.
- Filter reminder: Get a filter change reminder when the filter needs cleaning, so you can keep the unit performing at its best.
- Capacitive touch with remote: The capacitive touch screen controls are flush with the air conditioner and require less pressure to operate; or simply use the included remote for effortless control
- Cools large rooms: 12,000 BTU cooling capacity offers maximum comfort in rooms up to 550 square feet.
- Built-in pump: ClearView uses an advanced built-in pump system that collects the condensation from the indoor side then automatically transports the water through the unit to empty efficiently outside. Enjoy quiet, continuous cooling without the hassle of frequent draining.
Documents
- Energy_Guide_PDF
- Energy_Guide_PDF
A: Voice control integration with smart speakers like Amazon Alexa or Google Assistant allows users to control the air conditioner hands-free using voice commands. This enhances convenience by enabling users to adjust temperature, fan speed, and other settings without needing to physically interact with the air conditioner or its remote control. Additionally, voice control integration allows users to control the air conditioner from anywhere within the range of the smart speaker, providing greater flexibility and ease of use.
A: The flex-depth feature allows the air conditioner to expand to multiple positions, accommodating walls between 4.5" to 13.75" thick. This provides a customized fit for different windowsill depths, ensuring a secure and proper installation. The easy and safe installation process, with no mounting bracket needed (subject to local code approval), offers the advantage of freely opening and closing the window even with the unit installed.
Q: What is the significance of the filter reminder, and how does it help maintain optimal performance?
A: The filter reminder in the GE Profile 550 Sq Ft 12,200 BTU Smart Ultra Quiet Air Conditioner notifies users when the air filter needs cleaning. By replacing or cleaning the filter regularly, the air conditioner can maintain optimal airflow, cooling efficiency, and overall performance, preventing potential issues and ensuring a consistent, comfortable cooling experience.
Q: What are the benefits of the easy installation process, particularly for double-hung windows?
A: The easy installation process of this air conditioner offers several benefits for double-hung windows. It sits over the windowsill, eliminating the need for a mounting bracket, subject to local code approval. This allows for easy opening and closing of the window even with the unit installed, providing flexibility and convenience. Additionally, the included installation kit simplifies the setup process, ensuring a secure and safe fit in double-hung windows.
Q: How does the flex-depth feature simplify the installation process for various windowsill depths?
A: The flex-depth feature of the GE Profile 550 Sq Ft 12,200 BTU Smart Ultra Quiet Air Conditioner simplifies the installation process by allowing the unit to expand and fit various windowsill depths ranging from 4.5 inches to 13.75 inches. This adjustability eliminates the need for additional brackets or modifications, ensuring a secure and customized fit for different windowsill thicknesses.
A: The installation process is simplified as the unit sits over the windowsill, eliminating the need for a mounting bracket (subject to local code approval). This allows for easy and safe installation in double-hung windows using the included installation kit. The benefits include the ability to freely open and close the window even with the unit installed, providing flexibility for fresh air circulation. Additionally, the full window view is maintained, allowing more natural light into the room.
A: This GE Profile air conditioner offers four cooling settings and eight fan speeds, providing a total of 32 different combinations for customized comfort. These multiple settings allow users to fine-tune the cooling and airflow to their specific preferences, ensuring optimal home comfort and energy efficiency.
Q: How does the energy reporting feature help users monitor and manage their energy consumption?
A: The energy reporting feature provides users with reports that show how much energy the air conditioner has consumed. This information helps users monitor their energy usage and make adjustments to maximize savings and enjoy efficient performance. By being aware of their energy consumption, users can make informed decisions to reduce energy waste and save on their energy bills.
