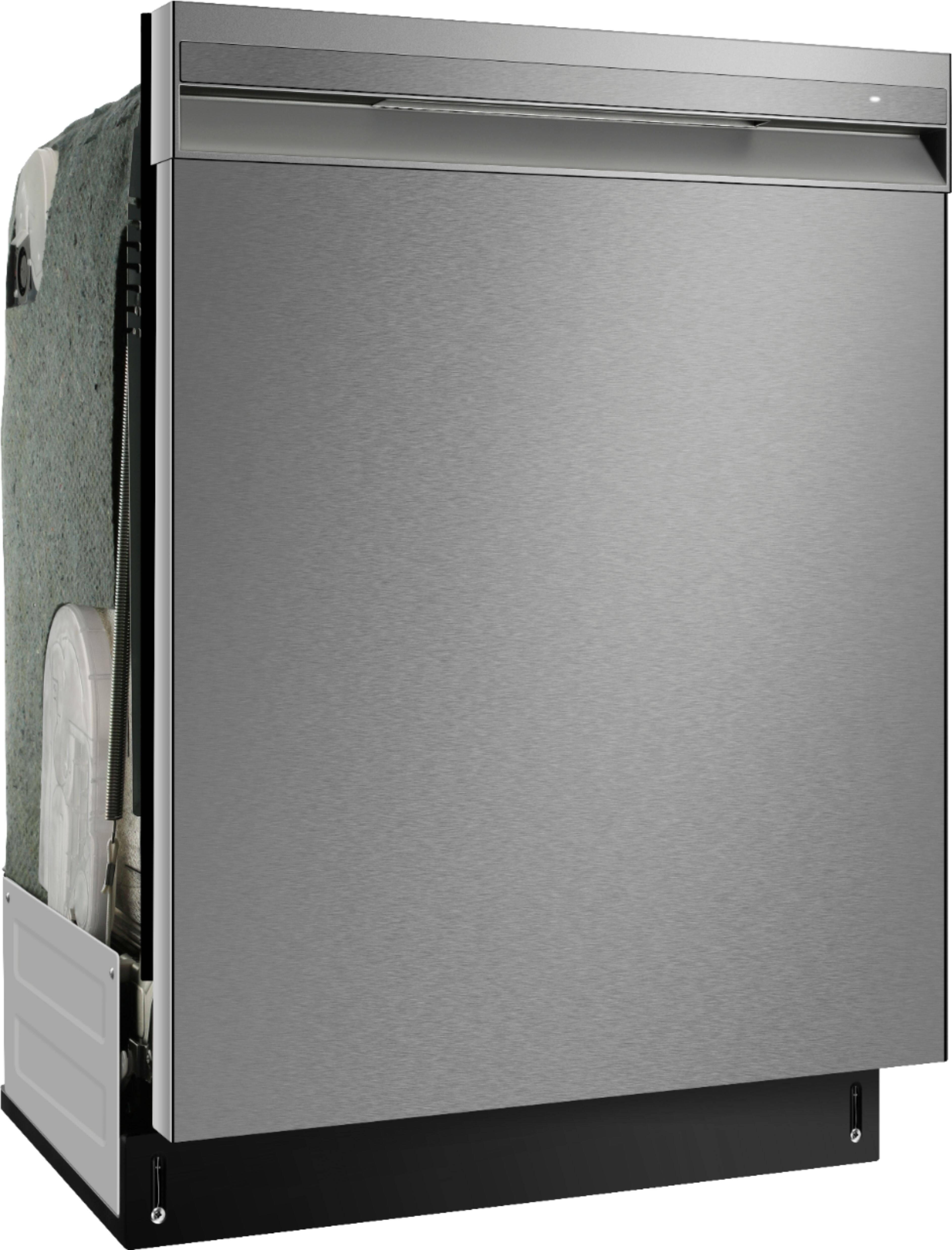

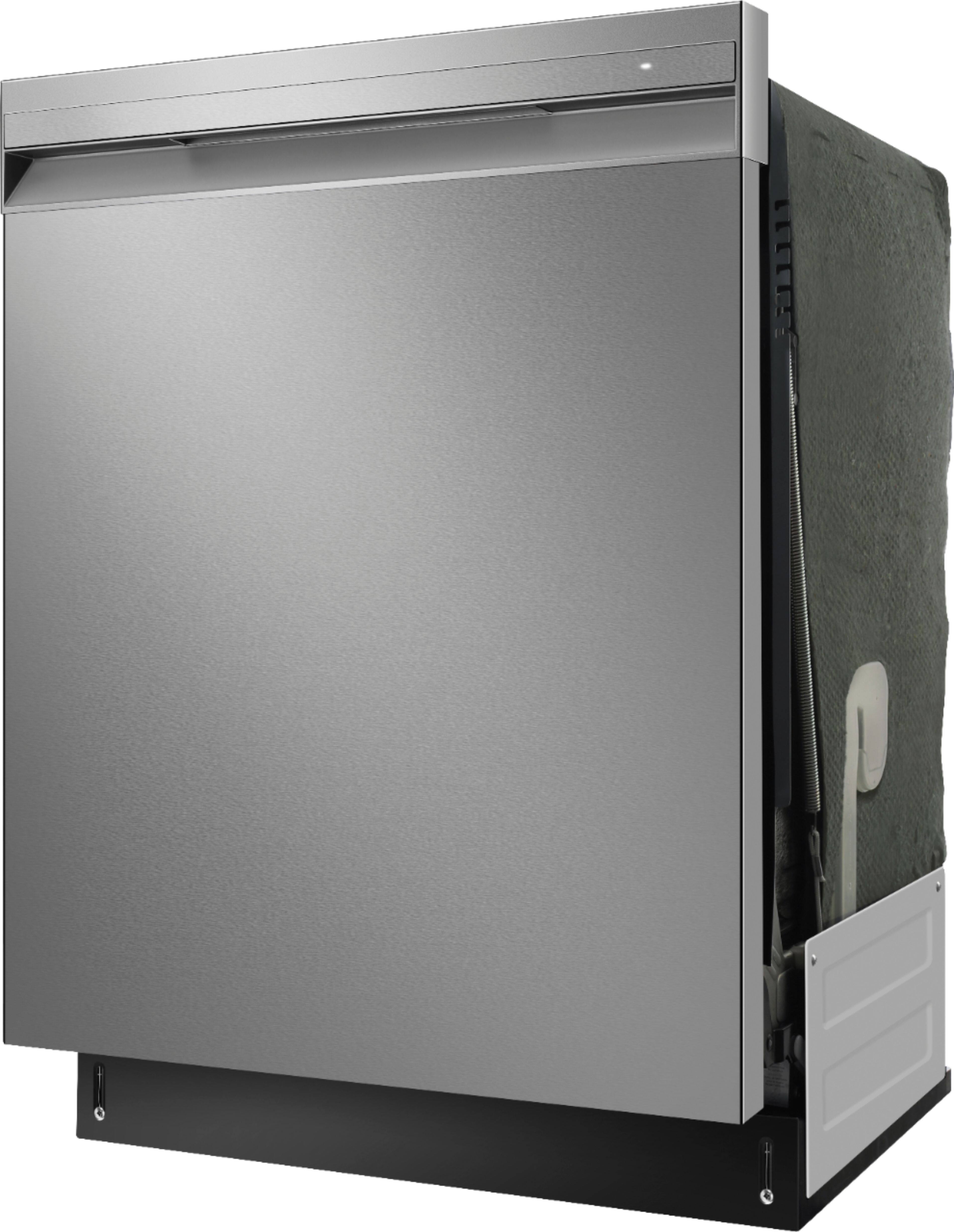

Insignia™ - 24” Top Control Built-In Dishwasher with 3rd Rack, Sensor Wash, Tub, 49 Dba, ENERGY STAR Certification - Stainless Steel
More Buying Options
Related Item
Specifications
- Color FinishStainless steelProduct Height33 13/16 inchesProduct Width23 15/16 inchesProduct Depth24 1/2 inchesOperating Sound Level49 decibels adjustedNumber Of Racks3
- Key Specs
- Color Finish: Stainless steel
- Product Height: 33 13/16 inches (The out of box height of the item. Height is measured as the vertical distance from the bottom of the item to the top as it would be primarily used or placed.)
- Product Width: 23 15/16 inches (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
- Product Depth: 24 1/2 inches (The out of box depth of the item. Depth is measured as the distance from the front of the item to the back as it would be primarily used or placed.)

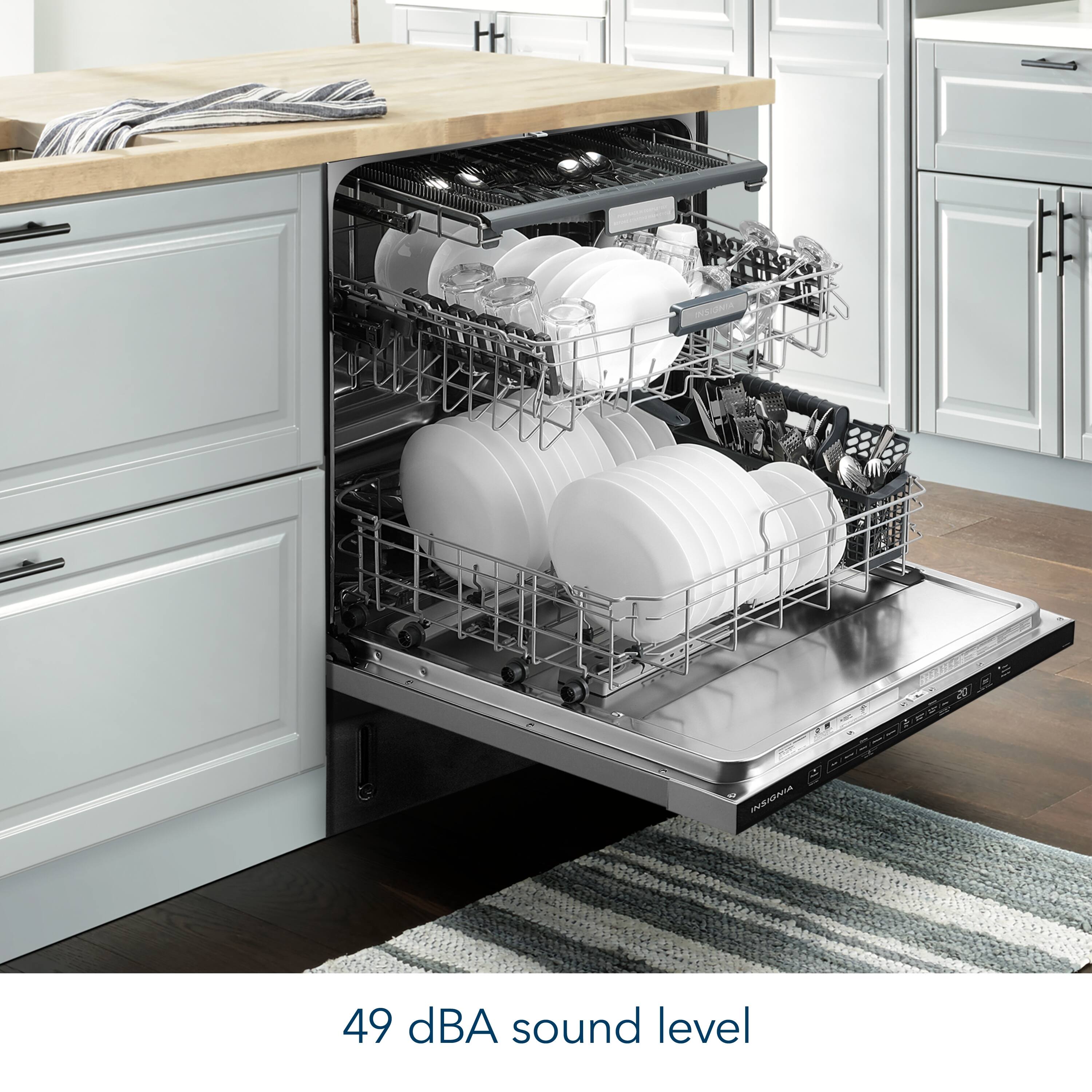

- Operating Sound Level: 49 decibels adjusted (Today's appliances are pretty quiet. To get a sense for how quiet you'll need, think about having a conversation in the same room. Choose from Not as Quiet (56 dBA or higher. You'll likely need to raise your voice); Quiet (50-55 dBA. Need to raise your voice slightly); Very Quiet (43-49 dBA. Easily have a conversation right next the appliance); and Nearly Silent (42 dBA or lower. You'll hardly know the appliance is on).)
- Number Of Racks: 3
- Tub Finish: Stainless steel (Certain coatings or materials on the inside of the dishwasher, such as stainless steel, are more durable, retain heat better, and can withstand higher temperatures than materials such as plastic. These higher quality materials may increase the appliance’s efficiency, but there may be also be extra initial cost. Some models marketed as Hybrid will use both materials in the tub, often using stainless steel on the interior door to increase durability on the part of the appliance with the most common wear and tear.)
- Place Setting Capacity: 16 (A basic place setting typically consists of a dinner plate, side plate, drinking glass, cutlery, and optional soup bowl and coffee cup. Full-size dishwashers typically hold 12-16 place settings. This does not include pots, pans, or other cookware.)
- App Compatible: false (The product can be connected to a program or software application on a mobile device, which then receives collected data from the product.)
- General
- Brand: Insignia™
- Model Number: NS-DWR3SS1
- Product Name: 24” Top Control Built-In Dishwasher with 3rd Rack, Sensor Wash, Stainless Steel Tub, 49 Dba, ENERGY STAR Certification
- Color: Stainless Steel
- Color Finish: Stainless steel

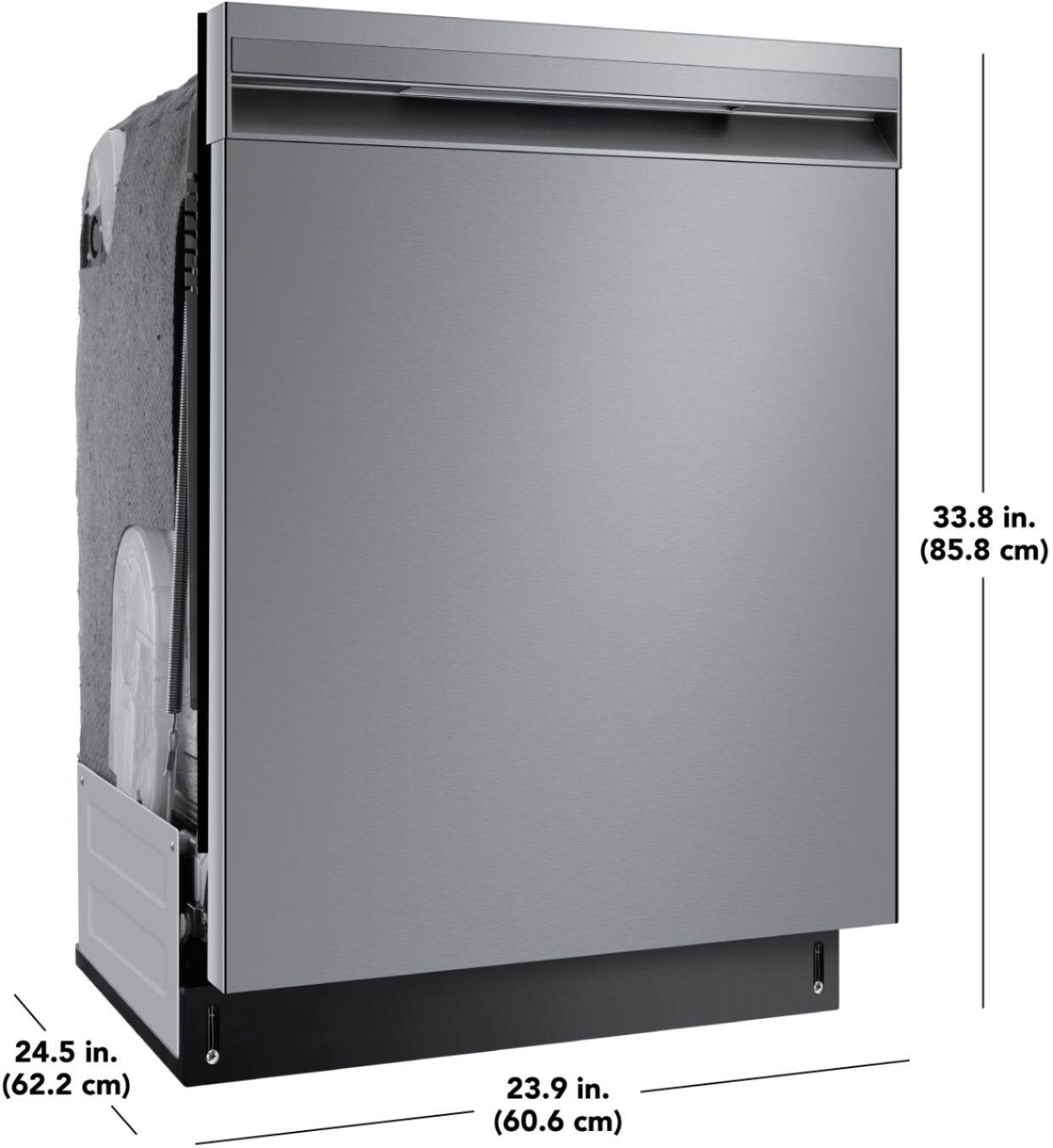

- Dimensions
- Product Height: 33 13/16 inches (The out of box height of the item. Height is measured as the vertical distance from the bottom of the item to the top as it would be primarily used or placed.)
- Product Width: 23 15/16 inches (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
- Product Depth: 24 1/2 inches (The out of box depth of the item. Depth is measured as the distance from the front of the item to the back as it would be primarily used or placed.)
- Depth With Door Open: 50 inches (Measurement from the back of the product to its front, with door fully open.)
- Product Weight: 90.38 pounds (The out of box weight of the item.)
- Cut-Out Dimensions
- Cut-Out Height: 35 inches (Minimum required height of the installation location for a standard installation of the product. This measurement will help you determine if the appliance will fit into the desired space and have the clearance necessary for proper operational use. Please refer to the manufacturer’s installation documentation for detailed measurement requirements.)
- Cut-Out Width: 24 inches (Minimum required width of the installation location for a standard installation of the product. This measurement will help you determine if the appliance will fit into the desired space and have the clearance necessary for proper operational use. Please refer to the manufacturer’s installation documentation for detailed measurement requirements.)
- Cut-Out Depth: 24 inches (Minimum required depth of the installation location for a standard installation of the product. This measurement will help you determine if the appliance will fit into the desired space and have the clearance necessary for proper operational use. Please refer to the manufacturer’s installation documentation for detailed measurement requirements.)
- Features
- Hard Food Disposer: false (This feature has blades to chop and disintegrate hard food particles, making them small enough to easily drain away. This prevents them from being recirculated back onto dishware and allows for easy maintenance.)
- Drying Method: Heated drying (Appliances that use heat to dry the dishes will include a heating element or minerals which transform moisture into heat. A fan or vent then circulates the hot dry air throughout the tub during the drying cycle. This may reduce drying time and the risk of water spots. Appliances that use minerals to produce heat are considered more energy efficient than those that include a heating element. Appliances that use condensation drying are considered more energy efficient than those that use heated drying. Instead, high temperature water is produced during the final rinse cycle which warms the interior and eventually condensates and drains out of the machine.)
- Operating Sound Level: 49 decibels adjusted (Today's appliances are pretty quiet. To get a sense for how quiet you'll need, think about having a conversation in the same room. Choose from Not as Quiet (56 dBA or higher. You'll likely need to raise your voice); Quiet (50-55 dBA. Need to raise your voice slightly); Very Quiet (43-49 dBA. Easily have a conversation right next the appliance); and Nearly Silent (42 dBA or lower. You'll hardly know the appliance is on).)
- Delay Start: true (Allows you to program the appliance to automatically run at a later time. This feature helps you coordinate with your household’s water needs, noise preferences, and more. Additionally, operating your appliance during off-peak hours may reduce energy costs.)
- End-Of-Cycle Signal: true (An audible alert and/or visual indicator that notifies you when a pre-selected cycle is complete.)
- Cycle Status Lights: true (Lights on the control panel that indicate which cycle is in use and/or its current status. Know when to unload with a simple glance.)
- Child Lock: true (Setting that allows appliance to be temporarily locked to prevent use.)
- Filtered Water: true (Internal water filter(s) remove minerals and chemicals from hard water before the wash cycle. Filtered water is less likely to leave mineral deposits or stains, meaning your dishware will look cleaner for longer.)
- Water Soil Sensor: true (Feature that measures how dirty the water is throughout the wash cycle and adjusts the energy and water usage as needed. This can increase washing efficiency and may reduce energy costs.)
- Cycle Specifications
- Number of Cycles: 5 (Standard dishwashers have at least 3 cycles, each with different water pressure, speed, and temperature settings designed for particular loads.)
- Dishwasher Cycles: 5
- Options and Programs: Programs: Auto Wash, Normal Wash, Heavy, Delicate, Express
- Sensor Wash: true (Feature that automatically senses the load's soil levels and adjusts the wash cycle as needed. This often results in reduced water usage, which in turn may reduce energy costs.)
- Steam Cleaning: false (Wash cycle that primarily uses steam to loosen food debris and clean fragile dishware without force.)
- Steam Pre-Wash: false (Loosens food debris by creating steam inside the washer before the primary wash cycle, allowing for an easier, gentler clean of dishware.)
- NSF-Certified Sanitization Cycle: true (Meets the National Sanitation Foundation (NSF) standards for performance and cleaning effectiveness. When operated on the sanitizing cycle, an NSF-Certified dishwasher reaches a final rinse temperature of 150⁰ Fahrenheit and achieves a minimum 99.999% percent reduction of bacteria.)
- Rack Features
- Number Of Racks: 3
- Third Rack Features: Removable, Adjustable height, Utensil separator (Aspects of third rack designed for better dishware organization, cleaning, and usability, such as adjustable height and tines, utensils separator, and utility basket.)
- Upper Rack Features: Adjustable height, Cup shelf, Adjustable tines (Aspects of upper rack designed for better dishware organization, cleaning, and usability, such as adjustable height and tines, cup clips, and stemware holders.)
- Lower Rack Features: Removable silverware basket (Aspects of lower rack designed for better dishware organization, cleaning, and usability, such as adjustable height and tines, utensils separator, and utility basket.)
- Rack Material: Nylon
- Design
- Panel Ready: false (Product is ready to be fit with a customized front panel that integrates with existing cabinetry and décor.)
- Dishwasher Type: Built-in dishwashers
- Tub Finish: Stainless steel (Certain coatings or materials on the inside of the dishwasher, such as stainless steel, are more durable, retain heat better, and can withstand higher temperatures than materials such as plastic. These higher quality materials may increase the appliance’s efficiency, but there may be also be extra initial cost. Some models marketed as Hybrid will use both materials in the tub, often using stainless steel on the interior door to increase durability on the part of the appliance with the most common wear and tear.)
- Control Type: Touchpad
- Control Location: Top control
- Handle Type: Recessed handle
- Fingerprint Resistant: false
- Place Setting Capacity: 16 (A basic place setting typically consists of a dinner plate, side plate, drinking glass, cutlery, and optional soup bowl and coffee cup. Full-size dishwashers typically hold 12-16 place settings. This does not include pots, pans, or other cookware.)
- Included
- Power Cord Included: false (Connects your product to an electrical outlet, allowing for immediate use (provided that other installation requirements are met).)
- Integrated Water-Softener: false (A built-in water softener that automatically filters minerals from hard water to clean your dishes, reducing clouding, streaks, hard-water stains, or mineral deposit build-up.)
- Electrical Specification
- Estimated Annual Electricity Use: 249 kilowatt hours (Predicted amount of electricity needed to operate the product under average conditions for one year.)
- Estimated Annual Operating Cost: 35 United States dollars (Predicted cost of operating the product under average conditions for one year.)
- Amperage: 8.4 amperes (Strength of electrical current.)
- Voltage: 120 volts (Amount of power needed to support an electrical current.)
- Wattage: 1008 watts (Measurement of electrical power.)
- Certifications Listings & Approvals

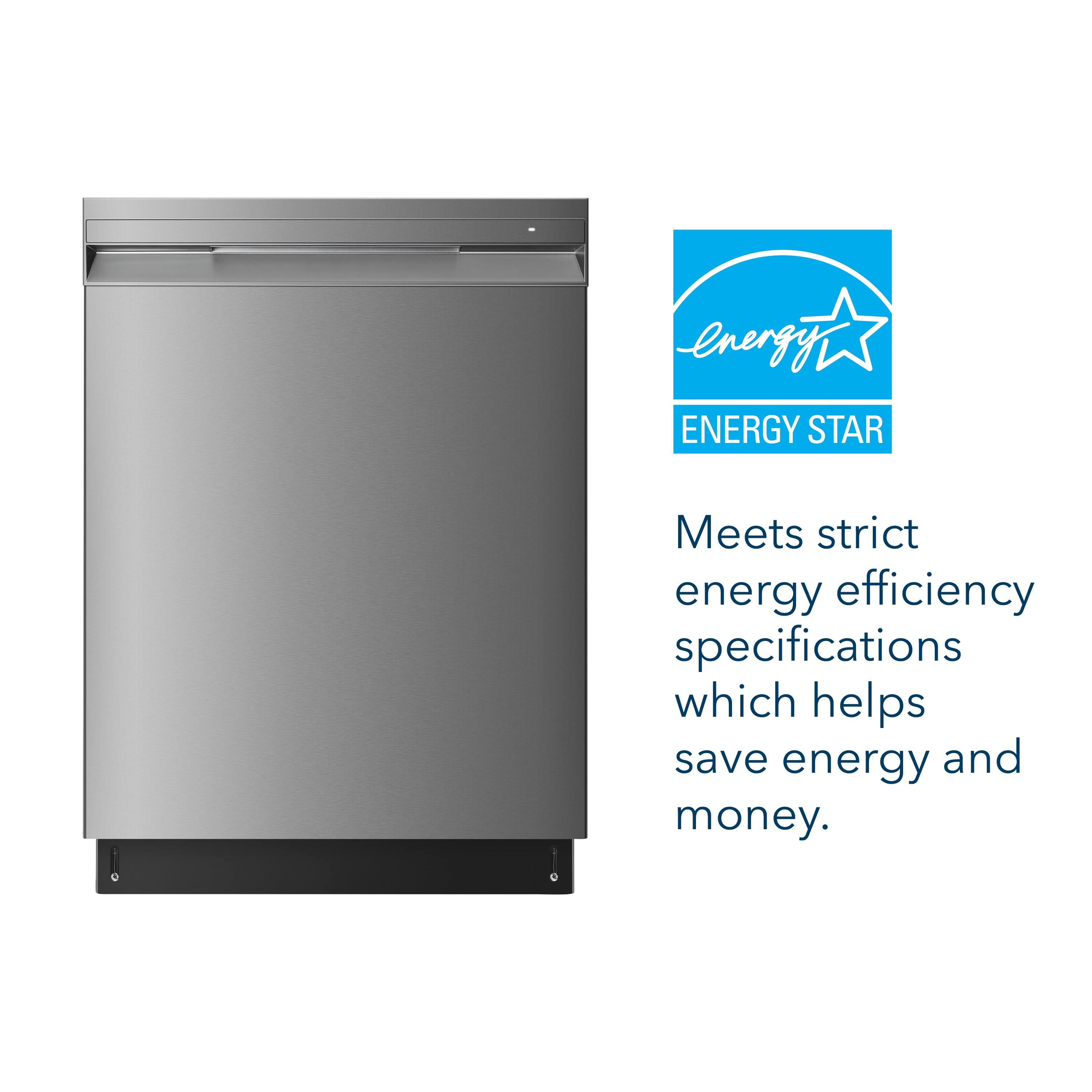

- ENERGY STAR Certified: true (Devices carrying the ENERGY STAR service mark, such as computer products and peripherals, kitchen appliances, and other products, generally use 20% to 30% less energy than required by federal standards.)
- ADA Compliant: false (Meets standards set by the Disabilities Act (ADA) Standards for Accessible Design)
- Consortium for Energy Efficiency (CEE) Rating: Not Available
- Warranty
- Warranty - Parts: 1 year limited
- Warranty - Labor: 1 year limited
- Other
- UPC: 600603257179
Make cleanup easier with the Insignia 24” Top Control Built-In Dishwasher with 3rd Rack, Sensor Wash, Stainless Steel Tub, 49 dBA. Its adjustable racks can be raised, lowered, angled, or removed entirely to fit every dish into a single load. The smart wash system automatically chooses the best cycle, based on how soiled and full your load is.

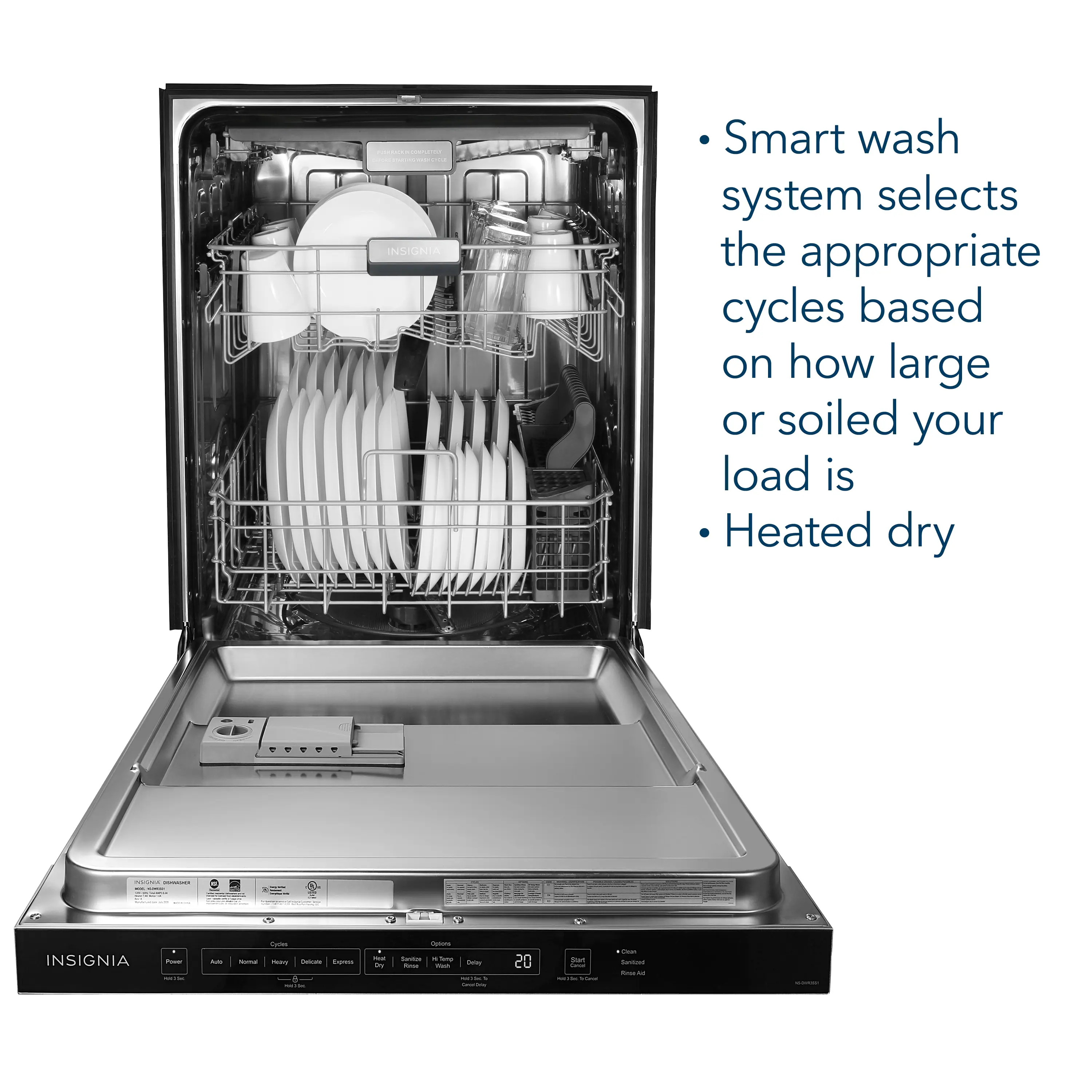

- Smart wash system: Automatically selects the appropriate cycle based on how large and soiled your load is to efficiently clean your dishes.
- Filter system: After heated water is pumped through spray arms to clean your soiled dishes, dirty water and clean water are separated into different chambers for better performance with less water and energy use.

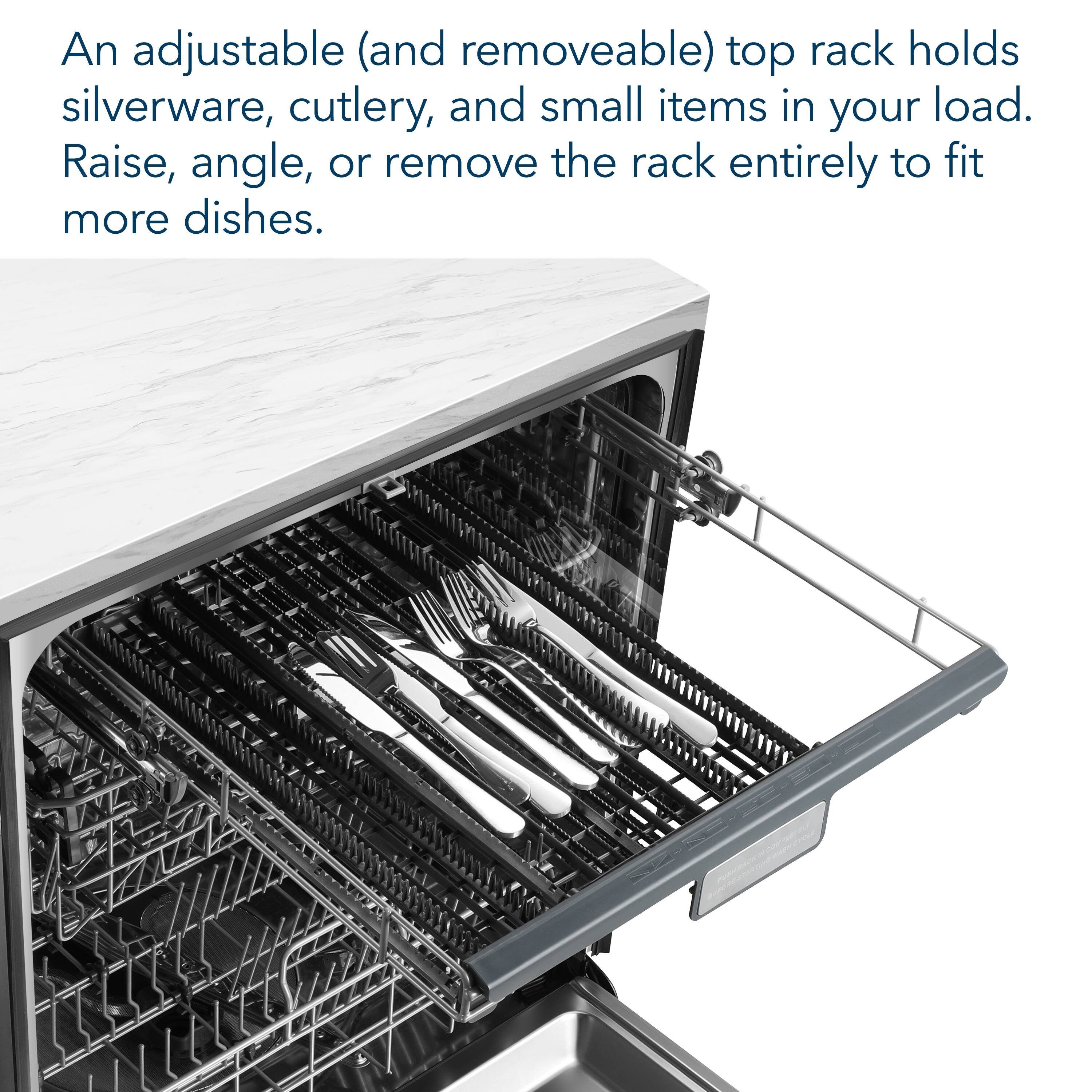

- Top cutlery rack: An adjustable (and removeable) top rack holds silverware, cutlery, and small items in your load. Raise, angle, or remove the rack entirely to fit more dishes.
- Adjustable upper rack: Raise or lower the upper rack of your dishwasher to accommodate taller dishes in either the upper or lower rack.
- Bottom dish rack: Designed to hold bowls, plates, saucers, and cookware. Folding-down tines provide extra support for larger, hard-to-fit items.

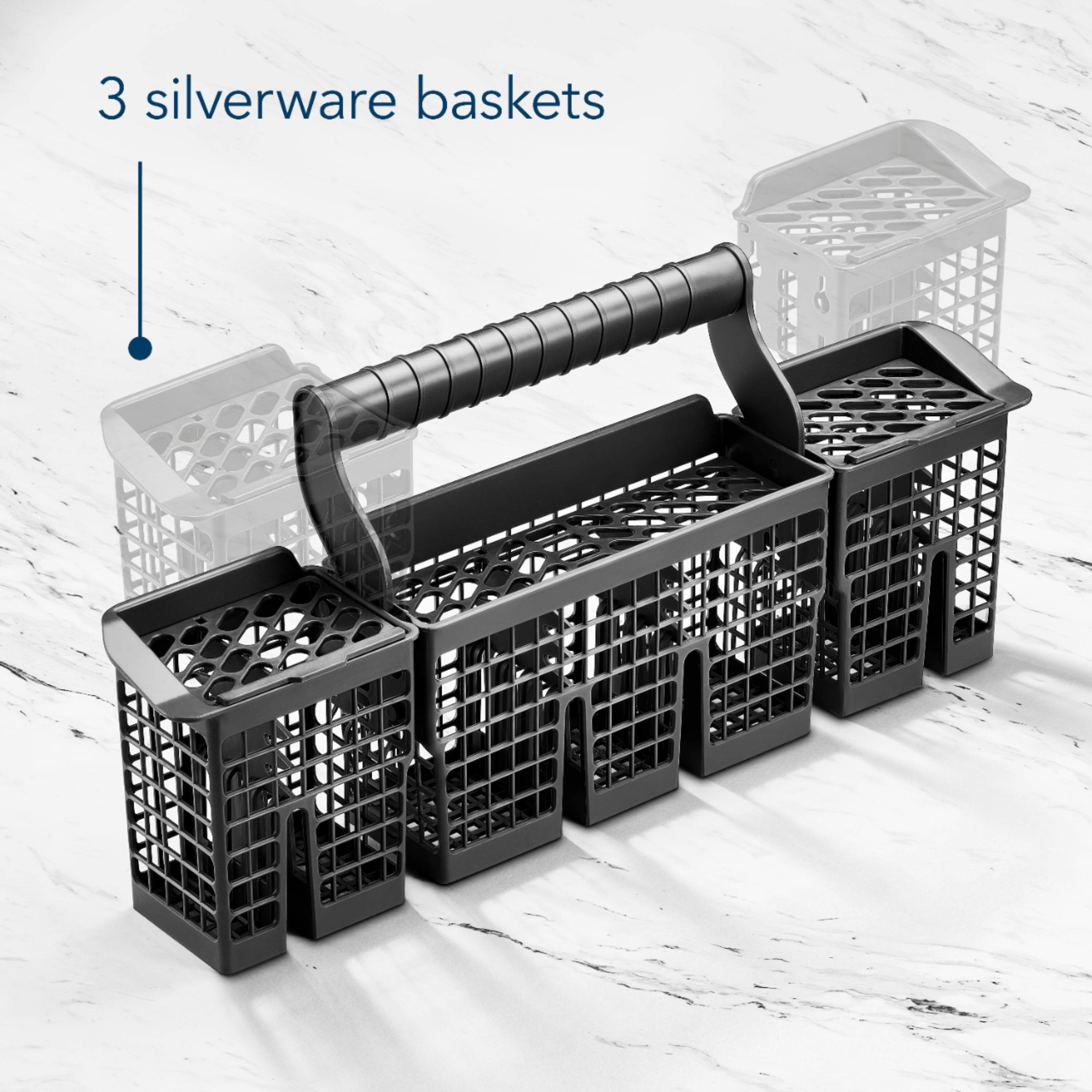

- Silverware basket: Place the silverware basket in either the upper or lower racks for more versatile loading options.

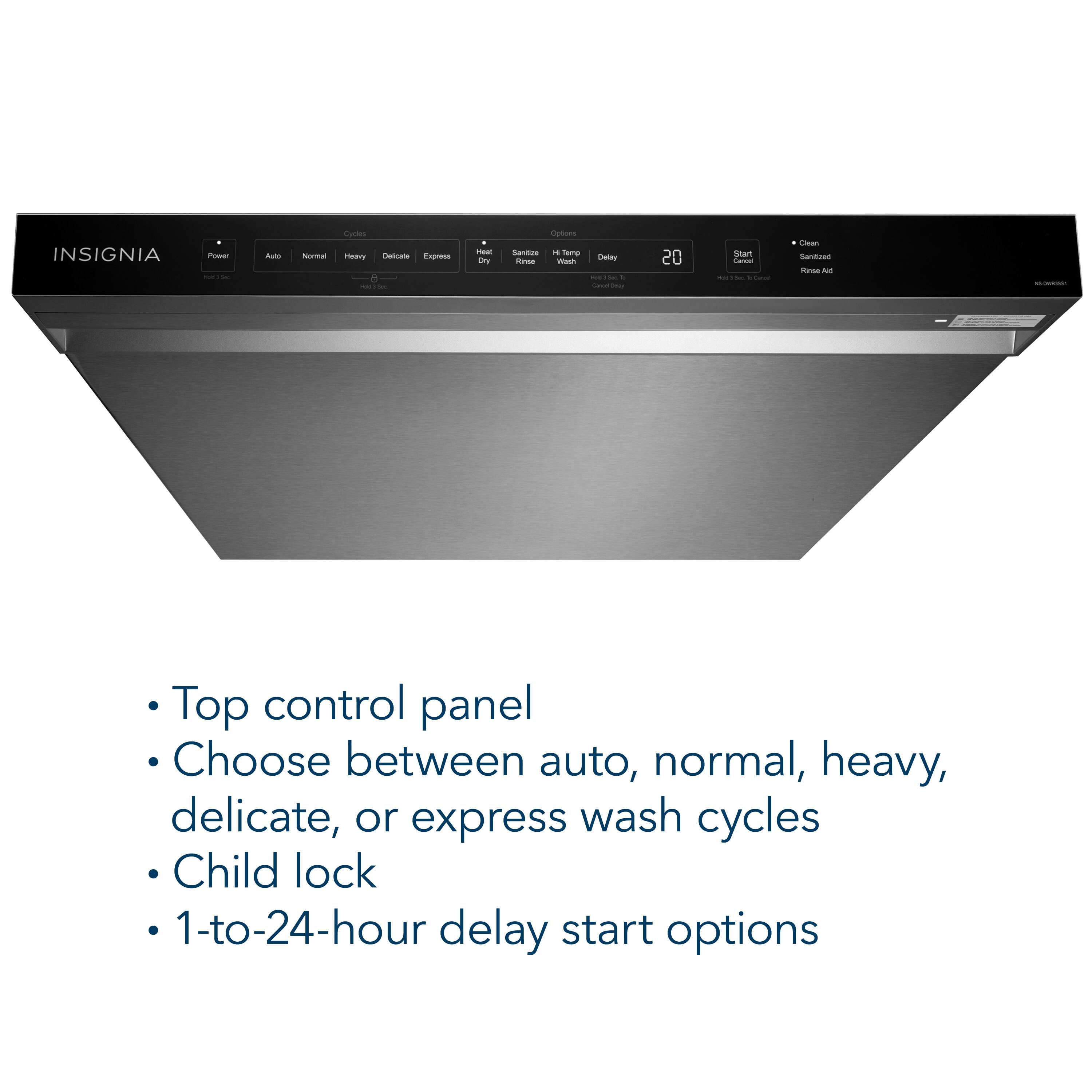

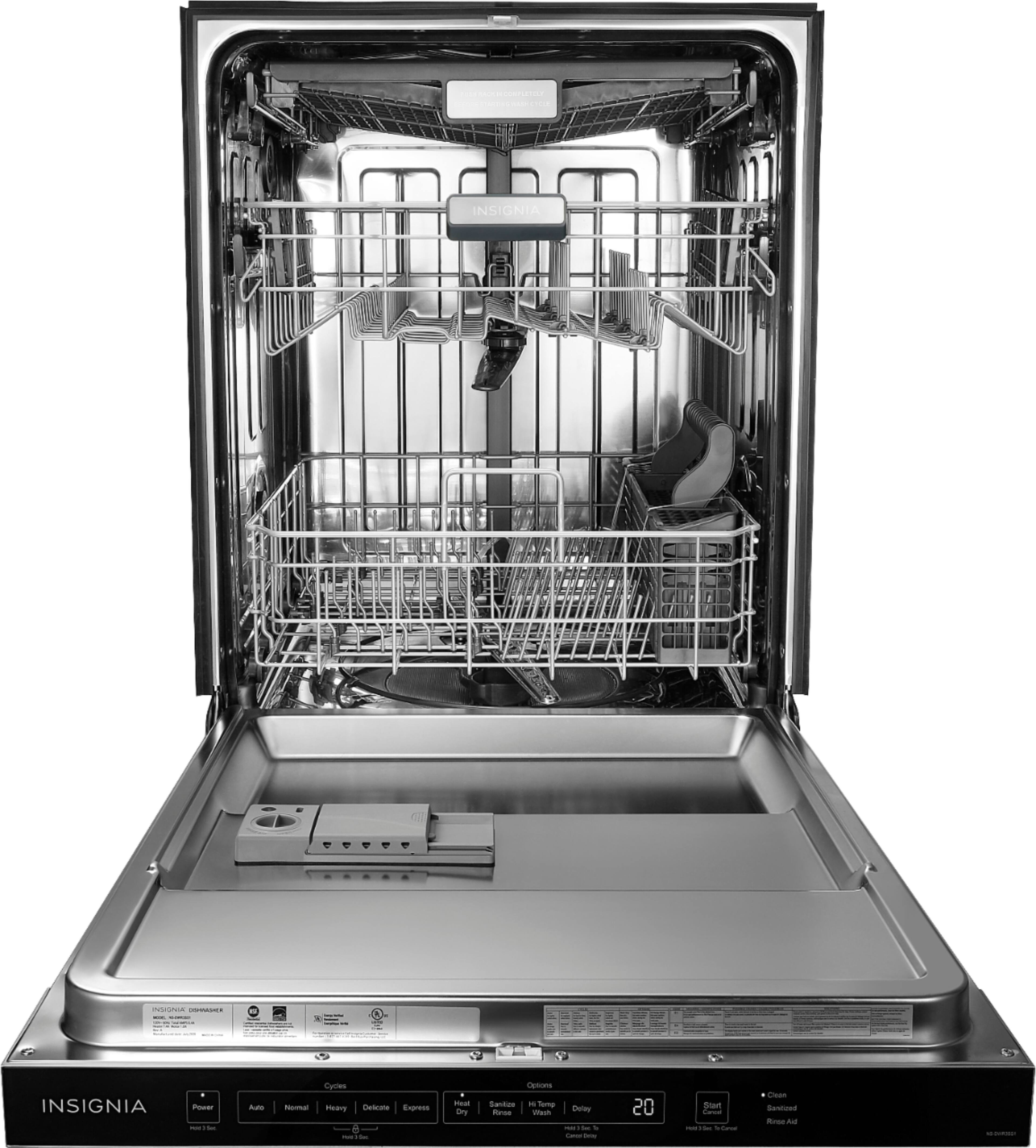

- Top control panel: Electronic control panel sits along the top edge of the door. Simply choose your settings, then close the door to start your cycle.
- Wash cycle selections: Choose between Auto, Normal, Heavy, Delicate, or Express wash cycles to get the cleanest loads
- Sanitize rinse option: Maintains a high water temperature (158° F / 70° C) to sanitize your load. NSF certification gives you peace of mind that your dishes and glassware are sterile.
- Delayed start option: Wait to wash your dishes until the perfect time. Set your dishwasher to begin after 1 to 24 hours.
- Heat dry option: Uses heat to dry dishes at the end of a cycle. For the best performance, use a rinse add with your cycle.
- Stainless steel: A classic stainless-steel front with a recessed handle is easy to clean and looks great in any kitchen.
- Child lock: Prevents young children from changing settings or starting the dishwasher.

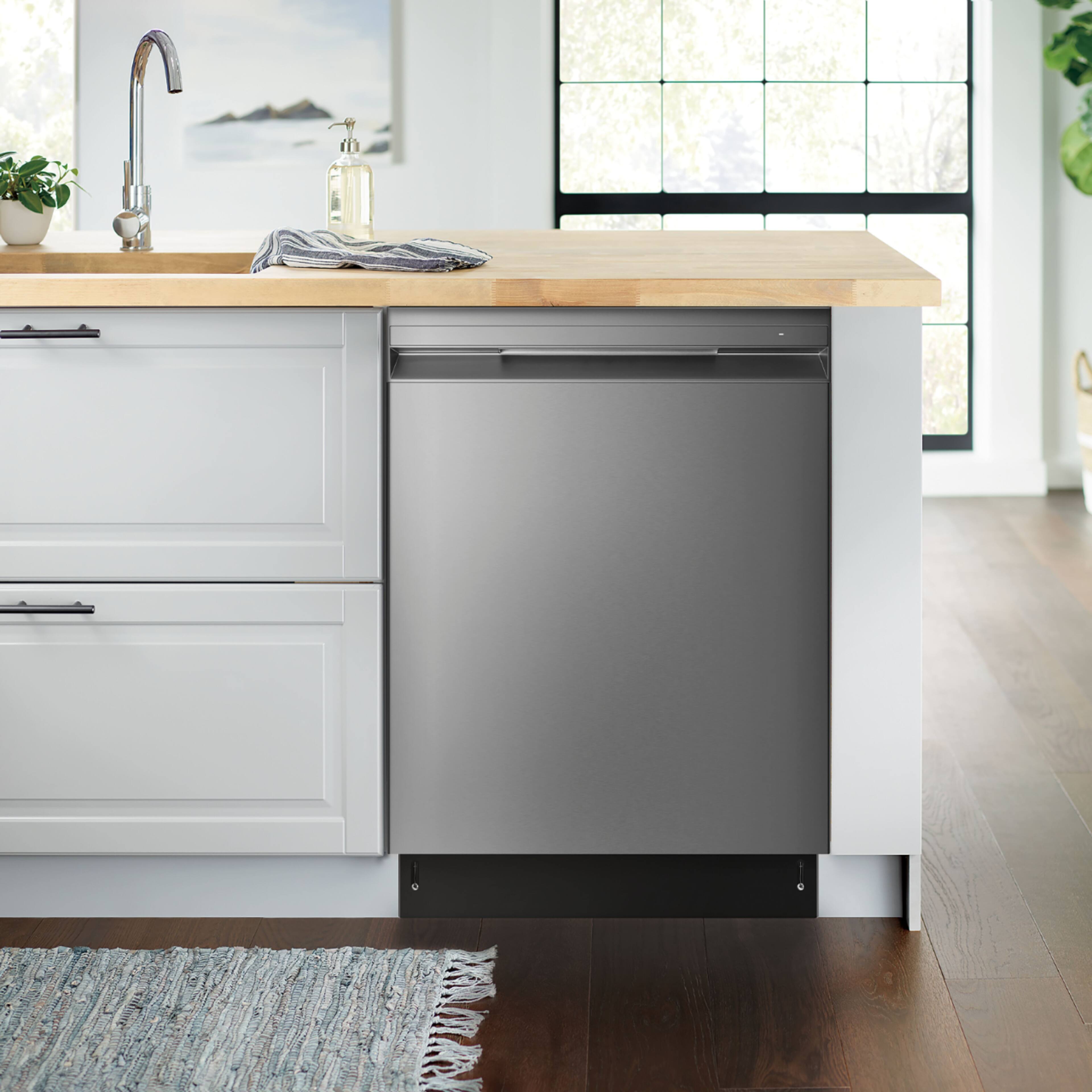

- Under-cabinet installation: Fits under your kitchen countertop for an unobtrusive addition to your kitchen.
- Brought to you by Best Buy: Insignia brings you affordable, dependable products with all the features you need.
- Smart wash system: Automatically selects the appropriate cycle based on how large and soiled your load is to efficiently clean your dishes.
- Filter system: After heated water is pumped through spray arms to clean your soiled dishes, dirty water and clean water are separated into different chambers for better performance with less water and energy use.
- Top cutlery rack: An adjustable (and removeable) top rack holds silverware, cutlery, and small items in your load. Raise, angle, or remove the rack entirely to fit more dishes.
- Adjustable upper rack: Raise or lower the upper rack of your dishwasher to accommodate taller dishes in either the upper or lower rack.
- Bottom dish rack: Designed to hold bowls, plates, saucers, and cookware. Folding-down tines provide extra support for larger, hard-to-fit items.
- Silverware basket: Place the silverware basket in either the upper or lower racks for more versatile loading options.
- Top control panel: Electronic control panel sits along the top edge of the door. Simply choose your settings, then close the door to start your cycle.
- Wash cycle selections: Choose between Auto, Normal, Heavy, Delicate, or Express wash cycles to get the cleanest loads
- Sanitize rinse option: Maintains a high water temperature (158° F / 70° C) to sanitize your load. NSF certification gives you peace of mind that your dishes and glassware are sterile.
- Delayed start option: Wait to wash your dishes until the perfect time. Set your dishwasher to begin after 1 to 24 hours.
- Heat dry option: Uses heat to dry dishes at the end of a cycle. For the best performance, use a rinse add with your cycle.
- Stainless steel: A classic stainless-steel front with a recessed handle is easy to clean and looks great in any kitchen.
- Child lock: Prevents young children from changing settings or starting the dishwasher.
- Under-cabinet installation: Fits under your kitchen countertop for an unobtrusive addition to your kitchen.
- Brought to you by Best Buy: Insignia brings you affordable, dependable products with all the features you need.
Whats Included
- Insignia 24” Top Control Built-In Dishwasher with 3rd Rack, Sensor Wash, Stainless Steel Tub, 49 dBA
- Hose
- Installation hardware
- User Guide
- Installation Guide

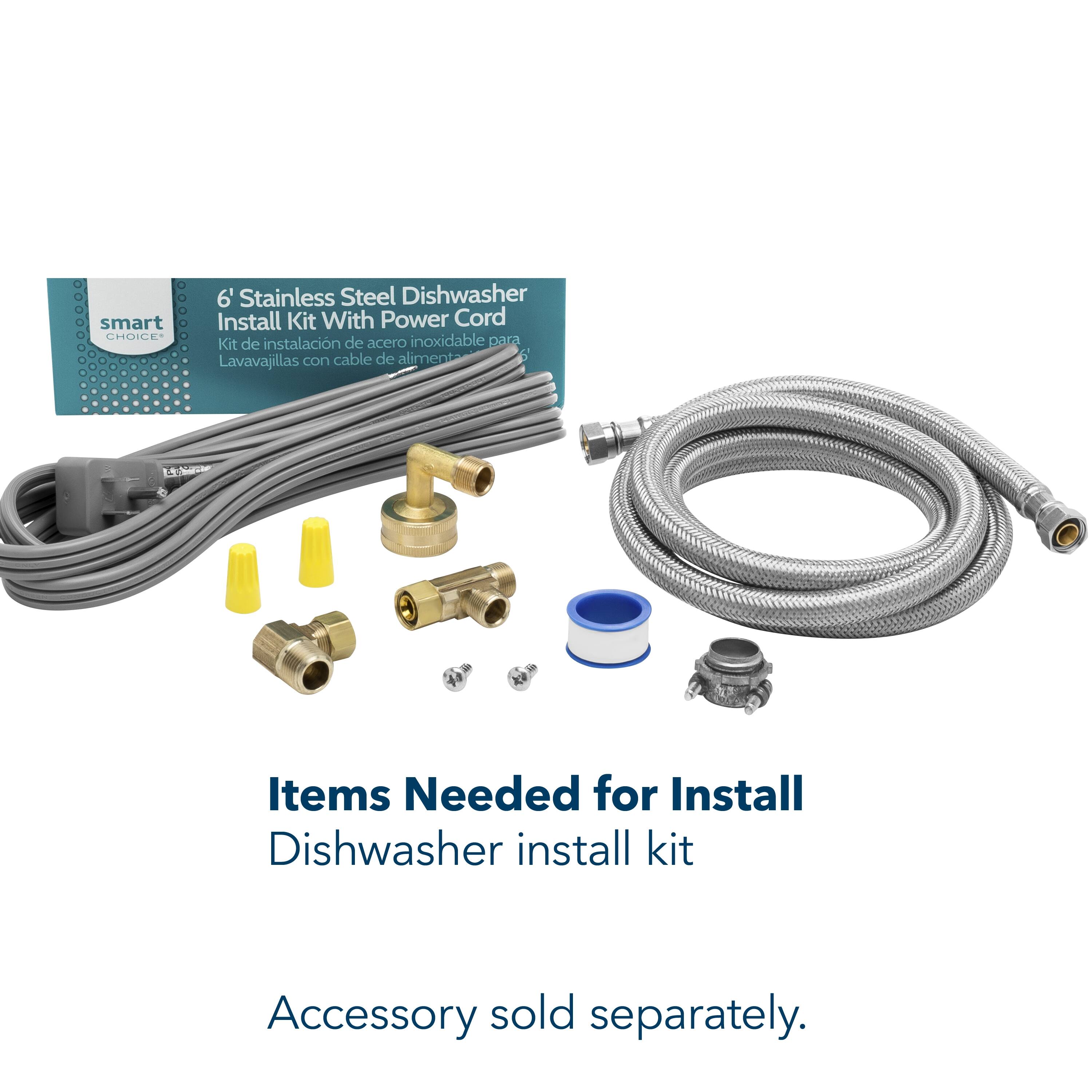

- Dishwasher hookup kit is sold separately and is not included
- Insignia 24” Top Control Built-In Dishwasher with 3rd Rack, Sensor Wash, Stainless Steel Tub, 49 dBA
- Hose
- Installation hardware
- User Guide
- Installation Guide
- Dishwasher hookup kit is sold separately and is not included
Product Manuals
- User Manual
- User Manual
- User Manual
- Installation Guide
- Installation Guide
- Installation Guide
- Warranty Manual
- Product Datasheet/Brochure
- Frequently Asked Questions (FAQs)
- User Manual
- User Manual
- User Manual
- Installation Guide
- Installation Guide
- Installation Guide
- Warranty Manual
- Product Datasheet/Brochure
- Frequently Asked Questions (FAQs)
Documents
- Energy_Guide_PDF
- Energy_Guide_PDF
Q: How does the filter system in this dishwasher work?
A: The filter system separates dirty and clean water after the heated water is pumped through spray arms to clean your dishes. This allows for better performance with less water and energy use.
Q: What wash cycles can I choose from with this dishwasher?
A: You can choose between Auto, Normal, Heavy, Delicate, or Express wash cycles.
Q: Does the Insignia dishwasher have a drying feature?
A: Yes, it has a heat dry option that uses heat to dry dishes at the end of a cycle.
Q: Does this Insignia dishwasher have a sanitize option for dishes?
A: Yes, it has a sanitize rinse option that maintains a high water temperature (158° F/70° C) to sanitize your load.
Q: Where is the silverware basket located in this dishwasher?
A: The silverware basket can be placed in either the upper or lower rack for versatile loading options.
Q: Can I delay the start of the dishwasher?
A: Yes, you can delay the start of the dishwasher for 1 to 24 hours.
Q: What is the benefit of the smart wash system?
A: The smart wash system automatically selects the appropriate cycle based on how large and soiled your load is to efficiently clean your dishes.
A: To dry dishes, the dishwasher uses a very hot final rinse and then shuts off. As the sides cool, it pulls the moisture off the dishes, to the sides of the dishwasher, and into the drain. If your dishwasher is not fully drying your dishes: • Make sure that you are using rinse aid. • Make sure that the Heat Dry option is turned on. Hi Temp Wash and Sanitize Rinse also help make dishes dryer. • Make sure that your dishes are loaded properly. Position your dishes so they do not shift or collect water during the cycle. • Make sure that your dishwasher’s water temperature reaches at least 120° F (49° C). Turn on the hot water faucet near the dishwasher, and let it run for several minutes. Hold a thermometer (a candy or meat thermometer will work) in the water stream to check the temperature. • The hardness of your water determines the amount of dishwashing detergent and rinse aid you need. The harder the water, the more detergent required. If glasses show streaks, turn up the dial on the rinse aid dispenser until the streaks disappear. • A load with a lot of plastic items in the middle rack will negatively impact drying results. If possible, alternate plastic items with non-plastic items, like glasses. It is common for plastic items to require towel drying. • If puddles are left on the tops of items, make sure that items with cupped tops have enough tilt to shed as much water as possible. • Consider flash drying as an option. During the drying cycle, open the door two to three inches for two minutes to allow the steam to exit, then restart the cycle. • If selecting Heavy Wash with Hi Temp Wash, Sanitize Rinse and Heat Dry with rinse aid does not produce satisfactory results, please call 1-877-467-4289 available from 8am to 9pm CT daily.
