Insignia™ - 550W ATX12V 2.4/EPS12V 2.92 80 Plus Bronze Power Supply - Gray
Model: NS-PCW5508
SKU: 5974702
This item is no longer available in new condition. See similar items below
- Key Specs
- Wattage: 550 watts (Measurement of electrical power.)
- Modular: Non-modular
- Energy Efficiency: 80 PLUS Bronze (Computer and server power supplies with the 80 PLUS certification are tested for operating efficiency at 10, 20, 50, and 100% of rated load. If a product tests at least 80% efficient, it qualifies for the base level 80 PLUS certification. Bronze, Silver, Gold, Platinum, and Titanium level certifications are given to products with even higher efficiency ratings.)
- ATX Connector: 1 (The configuration of the connector as it connects a computer power supply unit to an ATX motherboard.)
- PCIe Connector: 2 (The configuration of the connector as it connects a computer power supply unit to a PCIe (Peripheral Component Interconnect Express) motherboard interface.)
- Peripheral Connector: 4 (The configuration of the connector as it connects a computer power supply unit to a peripheral component such as a motherboard, video card, lighting, etc.)
- SATA Connector: 4 (The configuration of the connector as it connects a computer power supply unit to a SATA-based drive.)
- Product Length: 5 millimeters (The out of box length of the item. Length is measured as the longest dimension of the item.)
- General
- Brand: Insignia™
- Model Number: NS-PCW5508
- Product Name: 550W ATX12V 2.4/EPS12V 2.92 80 Plus Bronze Power Supply
- Color: Gray
- Power
- Wattage: 550 watts (Measurement of electrical power.)
- Modular: Non-modular
- Energy Efficiency: 80 PLUS Bronze (Computer and server power supplies with the 80 PLUS certification are tested for operating efficiency at 10, 20, 50, and 100% of rated load. If a product tests at least 80% efficient, it qualifies for the base level 80 PLUS certification. Bronze, Silver, Gold, Platinum, and Titanium level certifications are given to products with even higher efficiency ratings.)
- Specification Compliance: ATX12V 2.4/ EPS12V 2.92
- Overload Protection: false (Features intended to protect the product from damage and overheating caused by overload.)
- Power Cord Included: true (Connects your product to an electrical outlet, allowing for immediate use (provided that other installation requirements are met).)
- Cord Length: 4.9 feet
- Connectivity
- ATX Connector: 1 (The configuration of the connector as it connects a computer power supply unit to an ATX motherboard.)
- Floppy Connector: 1 (The configuration of the connector as it connects a computer power supply unit to a floppy disk drive.)
- PCIe Connector: 2 (The configuration of the connector as it connects a computer power supply unit to a PCIe (Peripheral Component Interconnect Express) motherboard interface.)
- Peripheral Connector: 4 (The configuration of the connector as it connects a computer power supply unit to a peripheral component such as a motherboard, video card, lighting, etc.)
- SATA Connector: 4 (The configuration of the connector as it connects a computer power supply unit to a SATA-based drive.)
- Dimensions
- Product Height: 5 millimeters (The out of box height of the item. Height is measured as the vertical distance from the bottom of the item to the top as it would be primarily used or placed.)
- Product Width: 5 millimeters (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
- Product Length: 5 millimeters (The out of box length of the item. Length is measured as the longest dimension of the item.)
- Product Weight: 80 ounces (The out of box weight of the item.)
- Cooling
- Cooling Fan Type: Other
- Other
- UPC: 600603219993

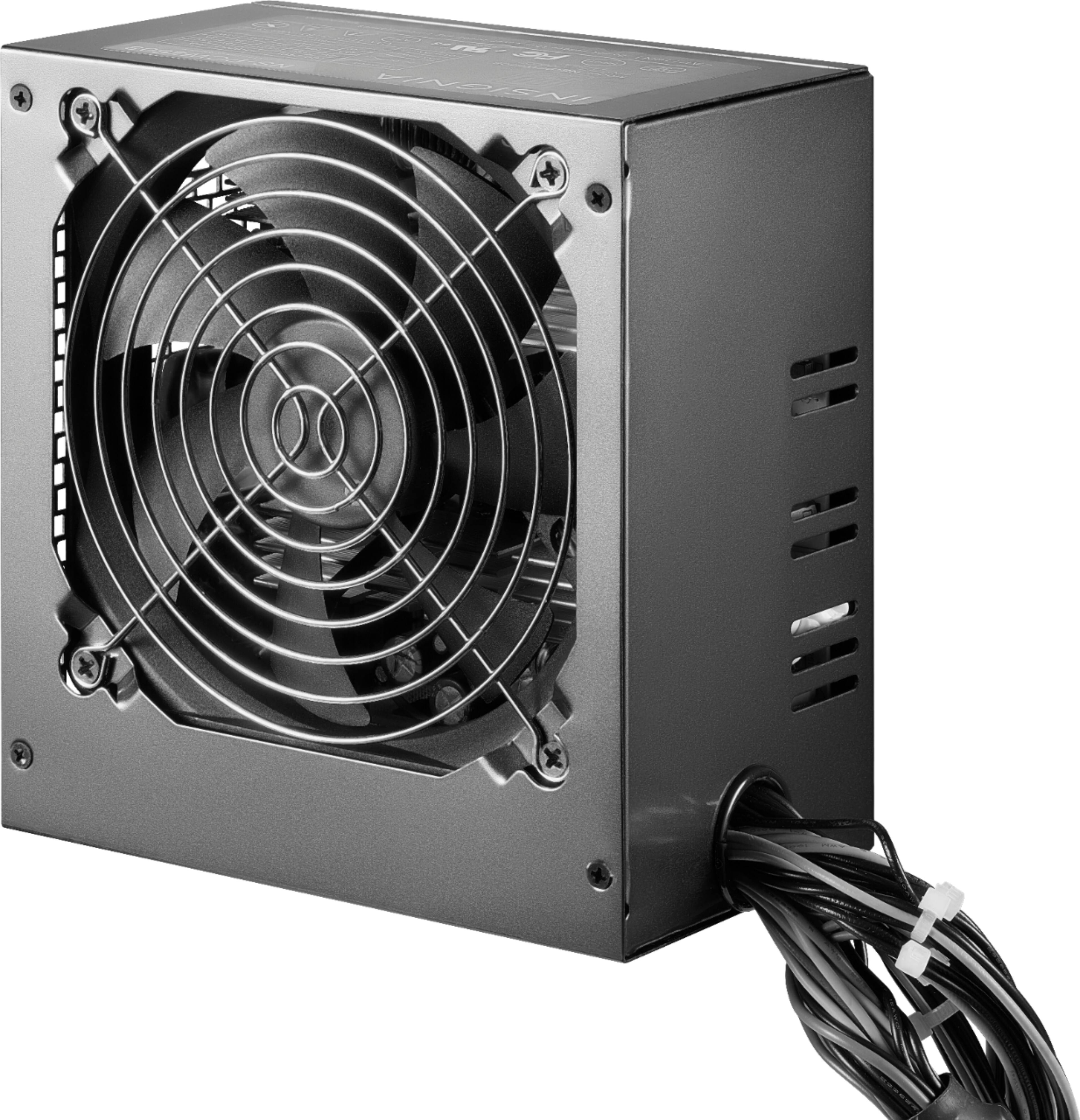

Add this Insignia power supply to your next desktop computer build. It delivers 550W RMS of stable, continuous power for your system, and its thermostat-controlled 120mm fan runs quietly, so it won't interfere with indoor activities. This Insignia power supply has short circuit defense and overvoltage protection for added safety.
- 550W power supply: Delivers the power needed to run your PC.
- AC 100/240V input: With input 47-63Hz frequency for wide-ranging use.
- ATX12V 2.4 and EPS12V 2.92 compliance: Meets industry standards.
- 120mm temperature controlled fan: Dissipates heat to help the power supply remain working at optimal temperature levels.
- Maximum safety to your critical system components: Provides overheat, overvoltage, overpower, undervoltage and short-circuit protection.
- 80 PLUS Bronze Certification: For minimal heat, noise levels and energy consumption.
- Single 12V rail: For optimal performance.
- 550W power supply: Delivers the power needed to run your PC.
- AC 100/240V input: With input 47-63Hz frequency for wide-ranging use.
- ATX12V 2.4 and EPS12V 2.92 compliance: Meets industry standards.
- 120mm temperature controlled fan: Dissipates heat to help the power supply remain working at optimal temperature levels.
- Maximum safety to your critical system components: Provides overheat, overvoltage, overpower, undervoltage and short-circuit protection.
- 80 PLUS Bronze Certification: For minimal heat, noise levels and energy consumption.
- Single 12V rail: For optimal performance.
Whats Included
- Insignia 550W ATX12V 2.4/EPS12V 2.92 80 Plus Bronze Power Supply
- Insignia 550W ATX12V 2.4/EPS12V 2.92 80 Plus Bronze Power Supply
Product Manuals
A: no this is incorrect, two 4 pins are used for the motherboard cpu power connector, NOT for graphics cards, the power supply does have two six pin connectors that have an extra 2 pins on each, meaning cards with two 8 pin connectors can be supported too; do not try to use the cpu power connectors on the gpu, they wont fit and if they do, that would be bad.
A: As long as it takes a standard case PSU it should have no issue. You may want to view the motherboard specs of that desktop to make sure that 24gb of ram is possible.
