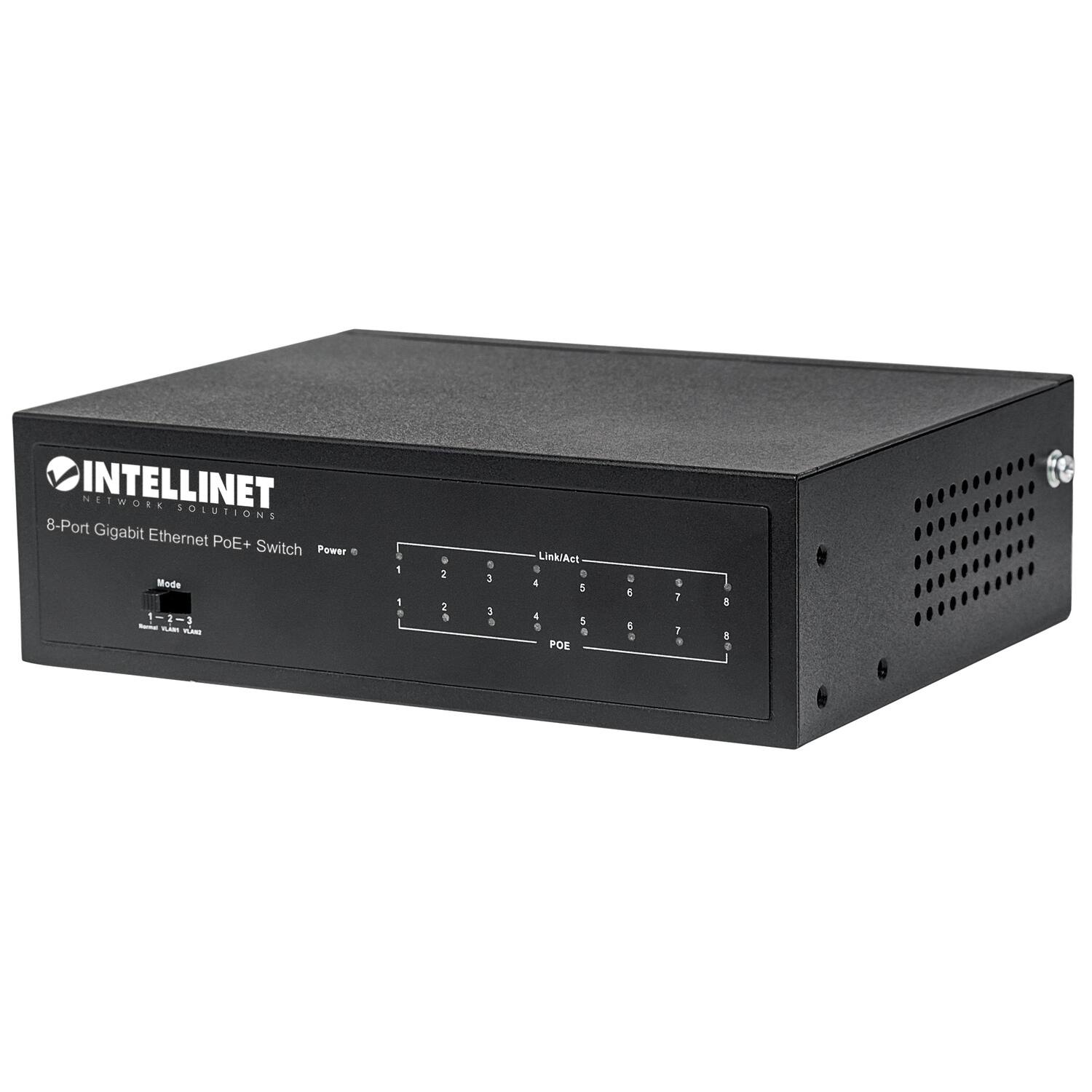

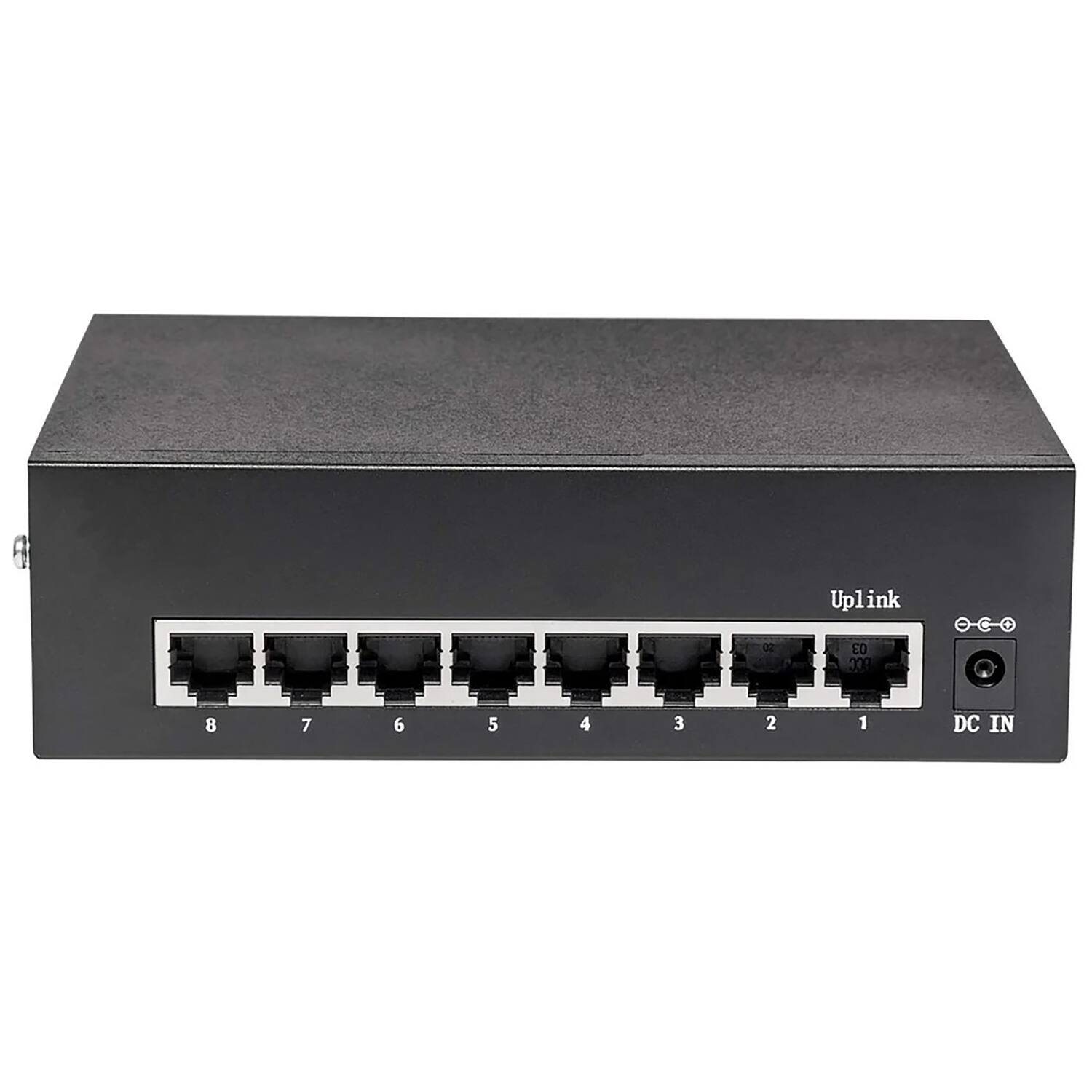

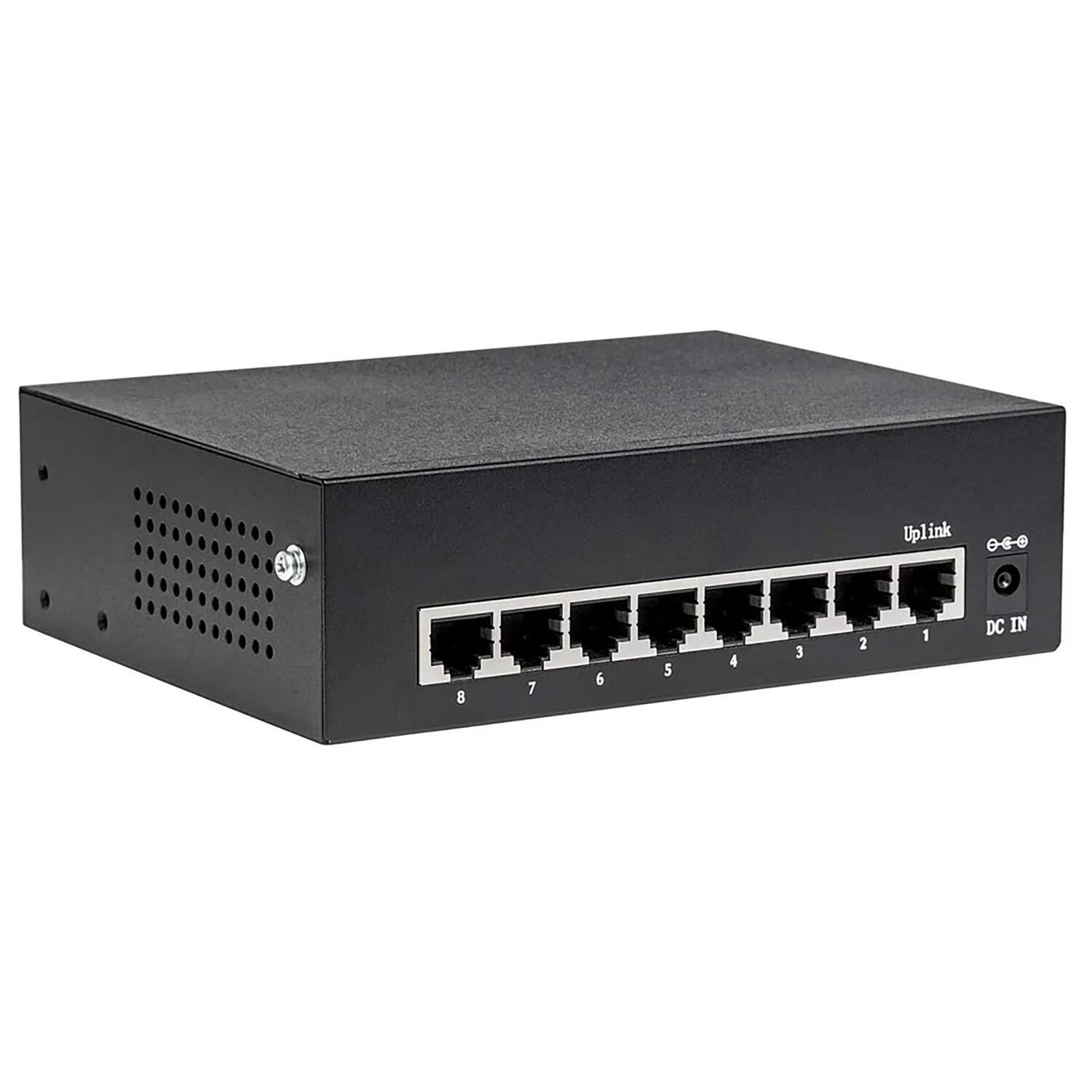

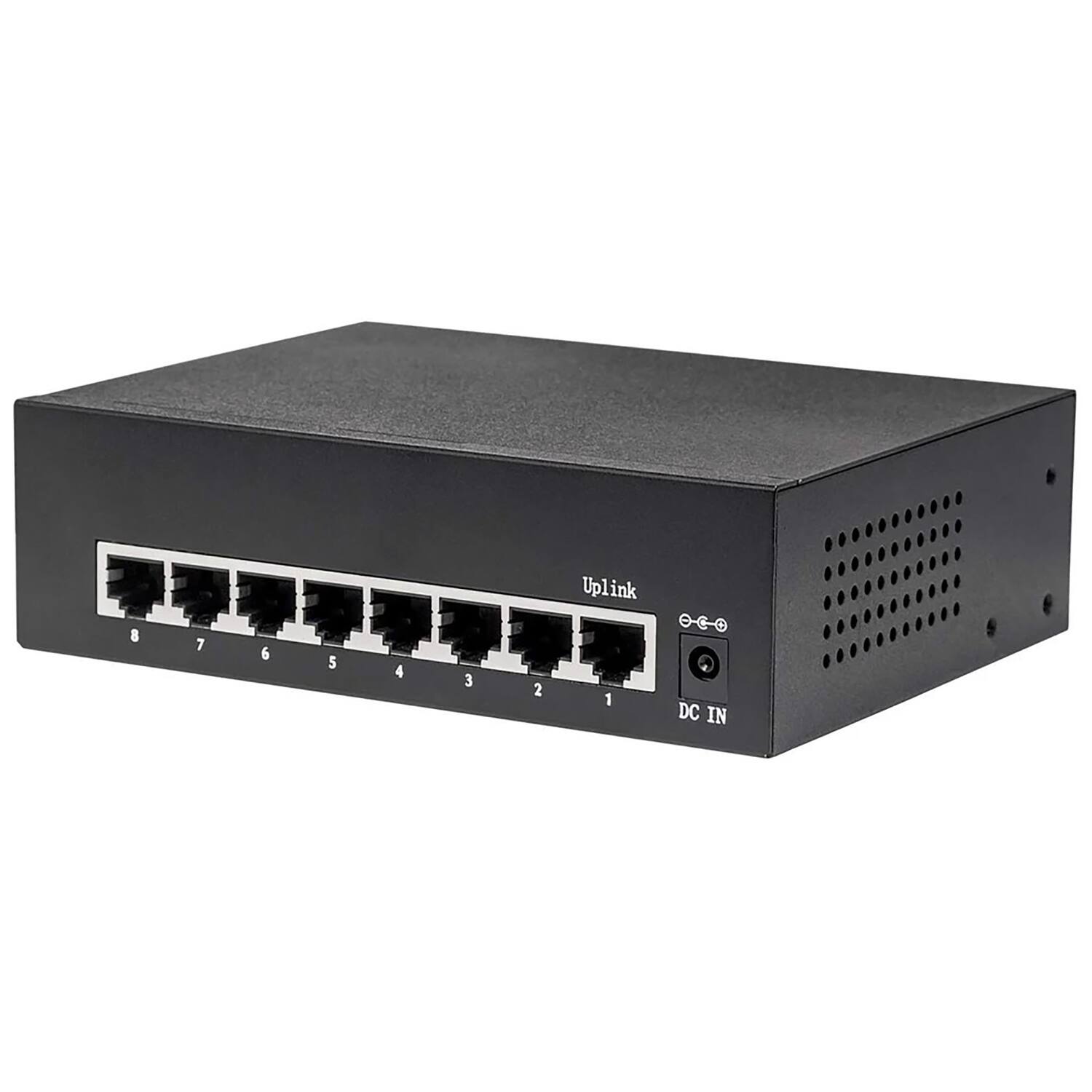

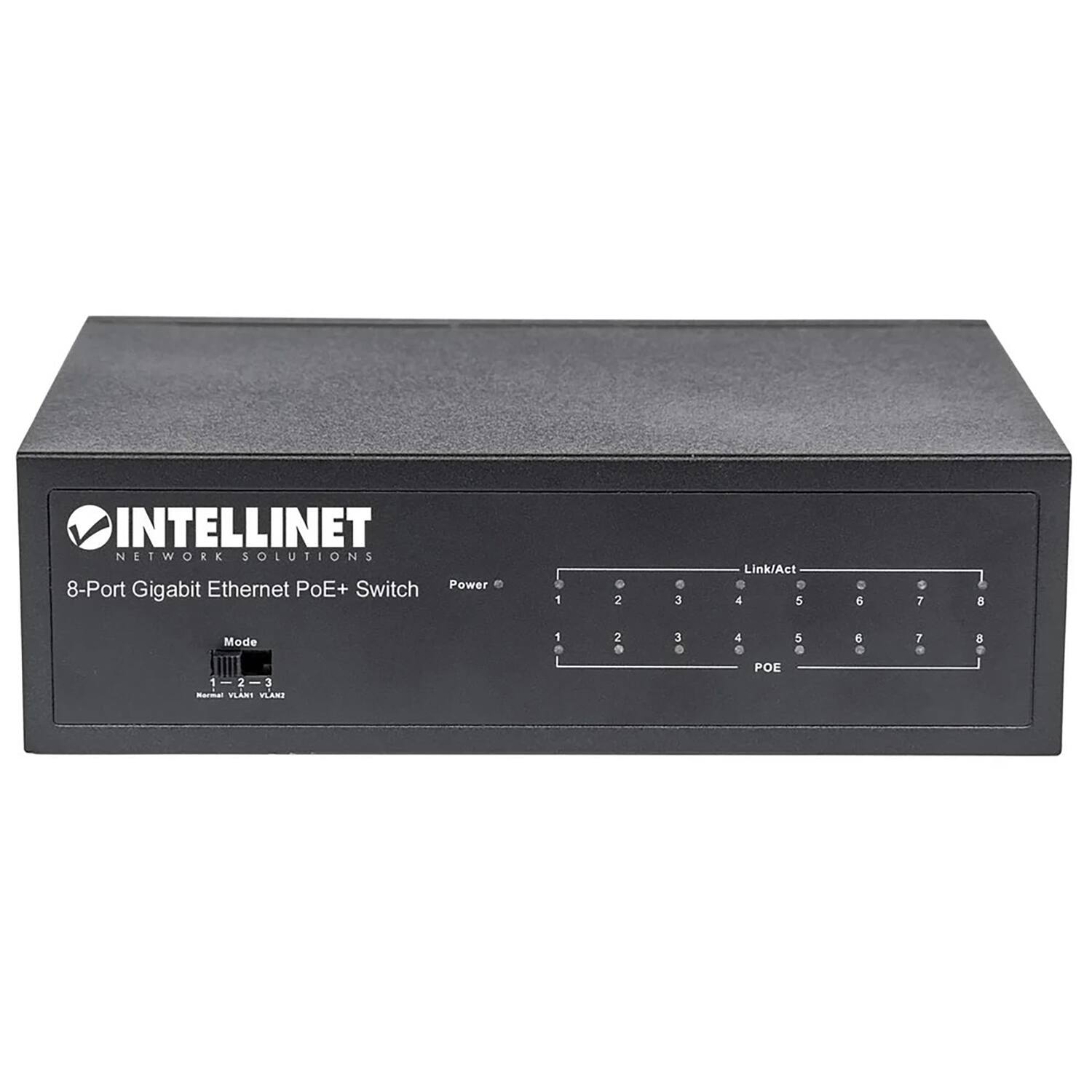

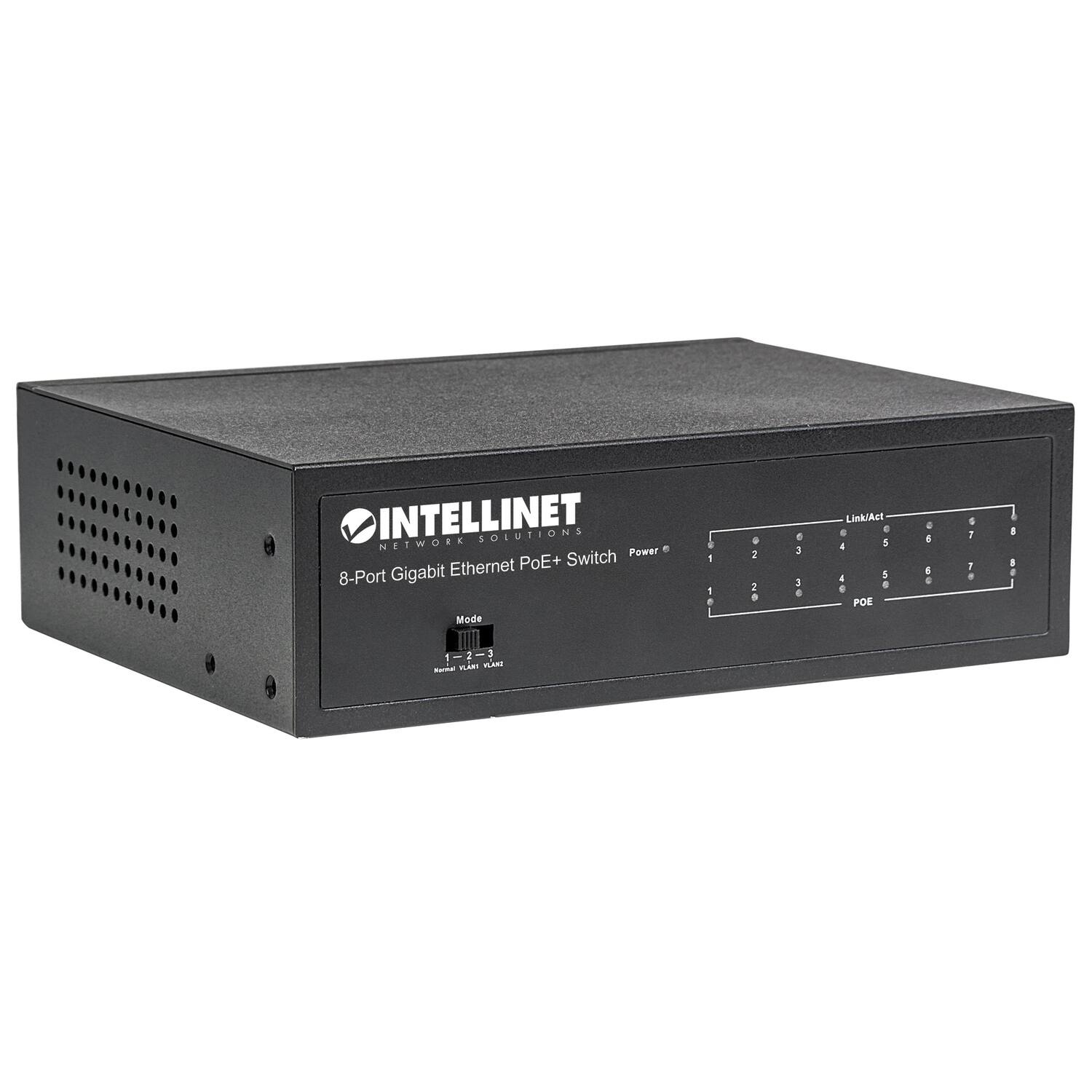

Intellinet - 60-Watt 8-Port Gigabit Ethernet PoE+ Switch
Specifications
- Maximum Data Speed1000 megabits per secondNumber of LAN Ports8
- Key Specs
- Maximum Data Speed: 1000 megabits per second
- Number of LAN Ports: 8 (Number of devices able to be connected to the Local Area Network (LAN). LAN ports allow wired connections to other networking devices (wireless access points, range extenders, etc.) in order to share the internet connection received through a WAN port.)
- General
- Brand: Intellinet
- Product Name: 60-Watt 8-Port Gigabit Ethernet PoE+ Switch
- Speed
- Gigabit Ethernet Speed: true (Supports the gigabit Ethernet networking standard, which has a data rate of at least one gigabit per second, or 1,000 Mbps.)
- Dimensions
- Product Height: 1.81 inches (The out of box height of the item. Height is measured as the vertical distance from the bottom of the item to the top as it would be primarily used or placed.)
- Product Length: 4.65 inches (The out of box length of the item. Length is measured as the longest dimension of the item.)
- Product Width: 6.1 inches (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
- Product Weight: 2.04 pounds (The out of box weight of the item.)
- Warranty
- Warranty - Parts: 3 years
- Other
- UPC: 766623561204
The Intellinet Network Solutions 8-Port Gigabit PoE+ Switch is designed to pass both data and electrical power to several PoE-compatible devices via standard CAT-5E or CAT-6 network cables. Equipped with 8 Gigabit Ethernet ports, this switch can power wireless LAN access points and bridges, VoIP phones, IP video cameras and more while delivering network speeds of up to 1000 Mbps. The Intellinet Network Solutions 8-Port Gigabit PoE+ Switch supports the IEEE 802.3at protocol and is designed to inject up to 30 watts of power per port. IEEE802.3af- or IEEE802.3at-compliant devices attached to the switch require no additional power, thus eliminating the time and expense of electrical rewiring and minimizing the unsightly clutter caused by power supplies and adapters in awkward places such as ceilings and walls. Any mix of PoE and non-PoE devices is supported, and thanks to its short-circuit, overload and high-voltage protection function, your equipment is well-protected. The Switch features port isolation, also referred to as Private VLAN. It isolates all ports from each other and only allows access to the uplink port. This is useful, for example, if a Private VLAN is a hotel where each room or apartment has a network port for Internet access. All ports can all access the Internet, but they cannot access each other. The setup is easy: Activate the VLAN switch on the front panel of the switch, and the VLAN is enabled. That is secure port isolation with the flip of a switch!
- Power and Data Delivery: Provides power and data connection for up to eight PoE network devices using existing network cables, saving time and money
- Gigabit Ethernet Ports: Features 8 auto-sensing 10/100/1000 Mbps ports that detect optimal network speeds for efficient data transfer
- PoE+ Compliance: Supports IEEE 802.3at/af-compliant PoE/PoE+ devices, delivering up to 30 watts per port with a total 60-watt power budget
- Private VLAN Functionality: Includes port isolation that prevents devices from accessing each other while allowing uplink access for secure network segmentation
- Green Ethernet Technology: Automatically deactivates unused ports and adjusts power levels based on cable length to reduce energy consumption
Whats Included

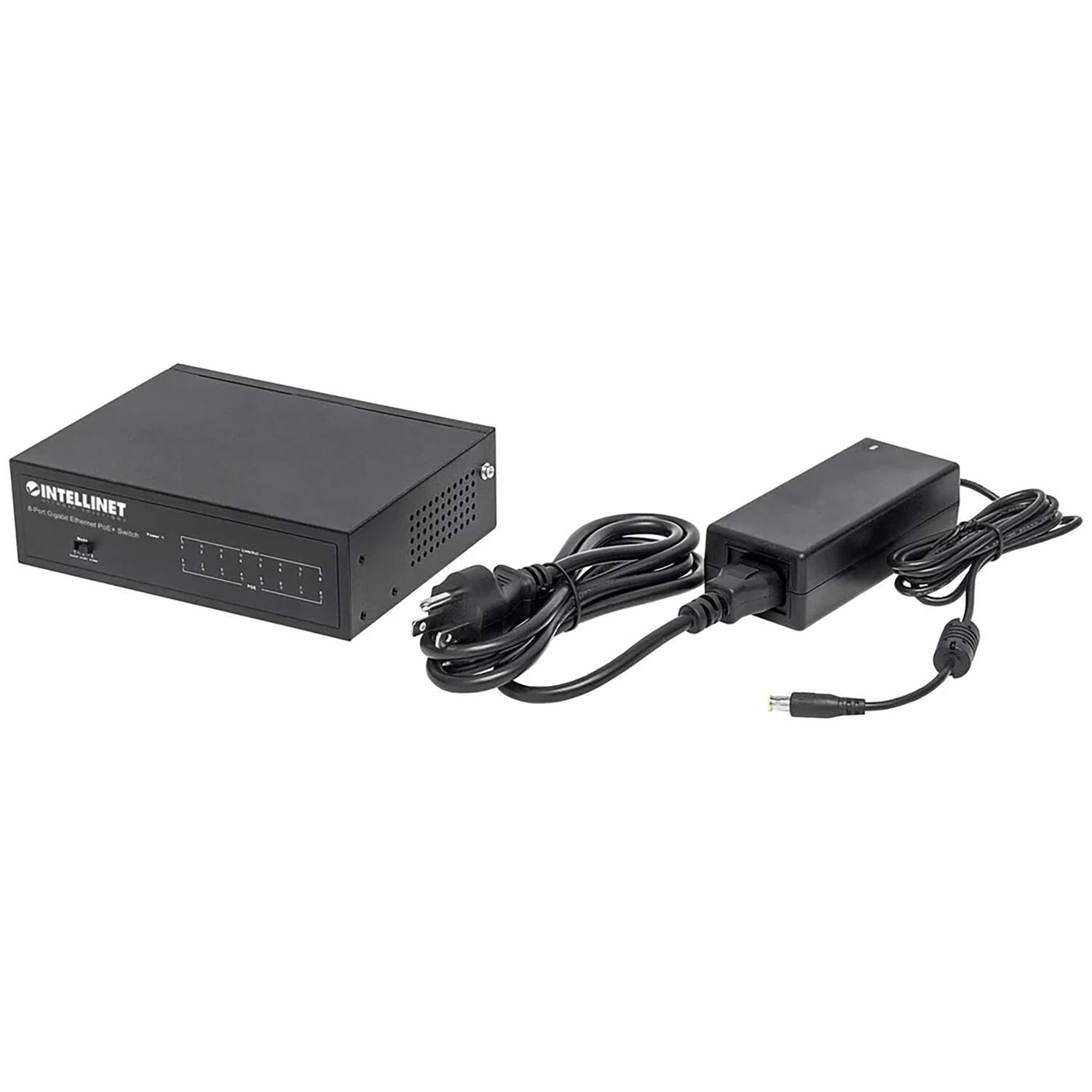

- 8-Port Gigabit PoE+ Switch, Power adapter, Power cable, User manual
