J-Tech Digital - 4K 60Hz 1x4 HDMI Splitter with Multi-Resolution Output (MRO) and EDID Copy - Black
$7.99 shipping to
Related Item
- General
- Brand: J-Tech Digital
- Model Number: JTECH-18GSP14M
- Product Name: J-Tech Digital 4K 60Hz 1x4 HDMI Splitter with Multi-Resolution Output (MRO) and EDID Copy
- Color: Black
- Distribution Amplifier Type: Component
- Features
- Built-in Scaler: true (Samples an input signal and scales it up or down to an appropriate resolution and timing suitable for the output device. It may also convert an input signal to a different format compatible for the output.)
- Indicator Lights: true
- Number Of Inputs: 1
- Number of Outputs: 4
- Connectivity
- Input(s): HDMI
- Output(s): HDMI
- Compatibility
- Maximum Supported Resolution: 3840 x 2160 (4K)
- Surround Sound Supported: Dolby Digital, Dolby Audio, Dolby Digital Plus (Surround sound systems use multiple audio channels and speakers to create an immersive sound experience for the listener. There are also various proprietary technologies that imitate this kind of sound via a device's built-in speakers or soundbar.)
- Dimensions
- Product Height: 2 inches (The out of box height of the item. Height is measured as the vertical distance from the bottom of the item to the top as it would be primarily used or placed.)
- Product Width: 8 inches (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
- Product Depth: 7 inches (The out of box depth of the item. Depth is measured as the distance from the front of the item to the back as it would be primarily used or placed.)
- Warranty
- Warranty - Parts: 1 year
- Warranty - Labor: 1 year
- Other
- UPC: 766150280739

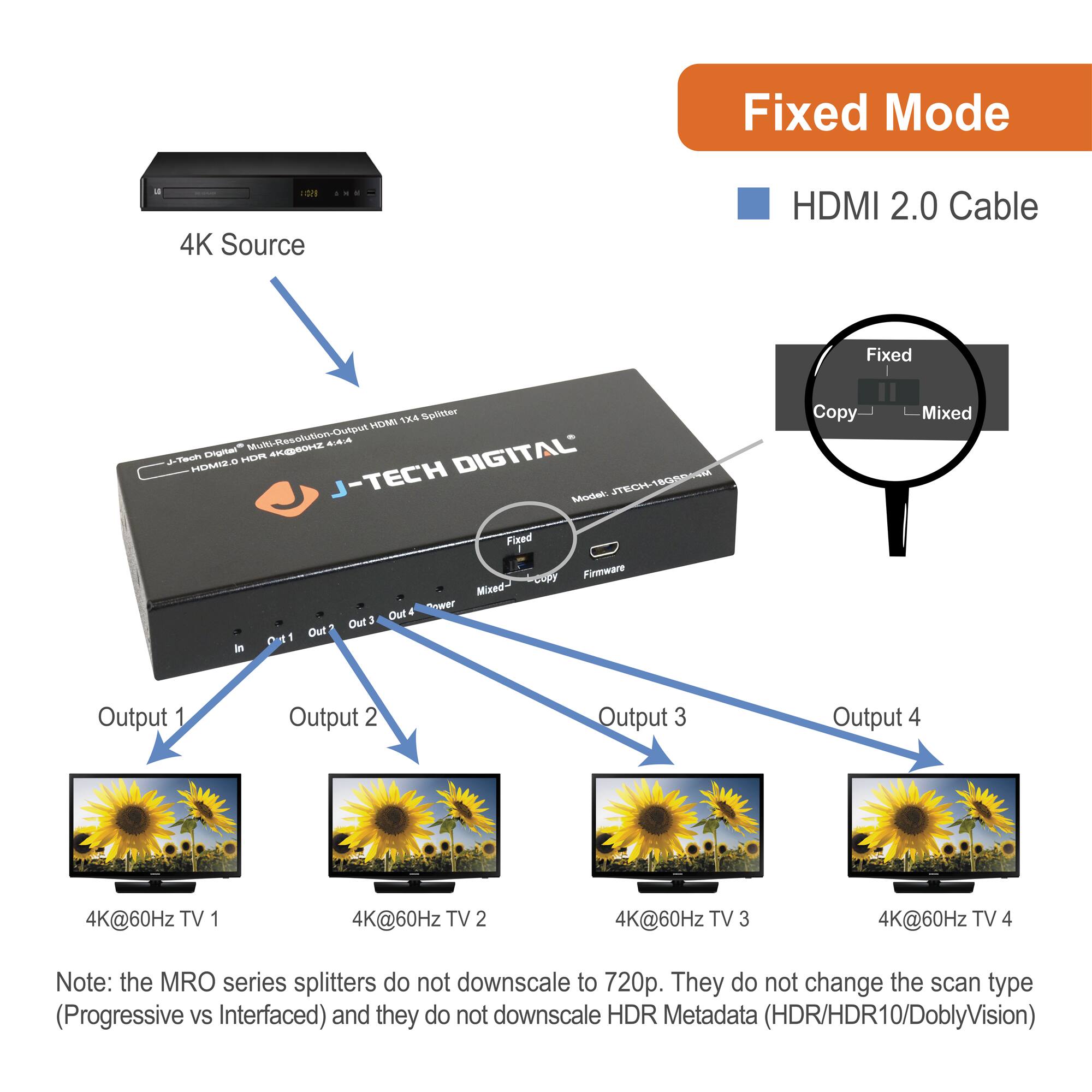

The JTECH-18GSP14M Splitter is an MRO (Multi-Resolution Output) splitter and can support various resolutions to the outputs. With 3 different EDID settings, you have the option of copying the EDID settings from your display for compatibility, mixing the output resolutions allowing for the combination of 4K and standard definition displays, and a fixed setting to distribute a 4K video signal to 4 displays. This MRO splitter is perfect for users that are gradually upgrading their entertainment centers and need a device that supports 4K and 1080p allowing for the integration of brand new displays while still making use of older and outdated ones.

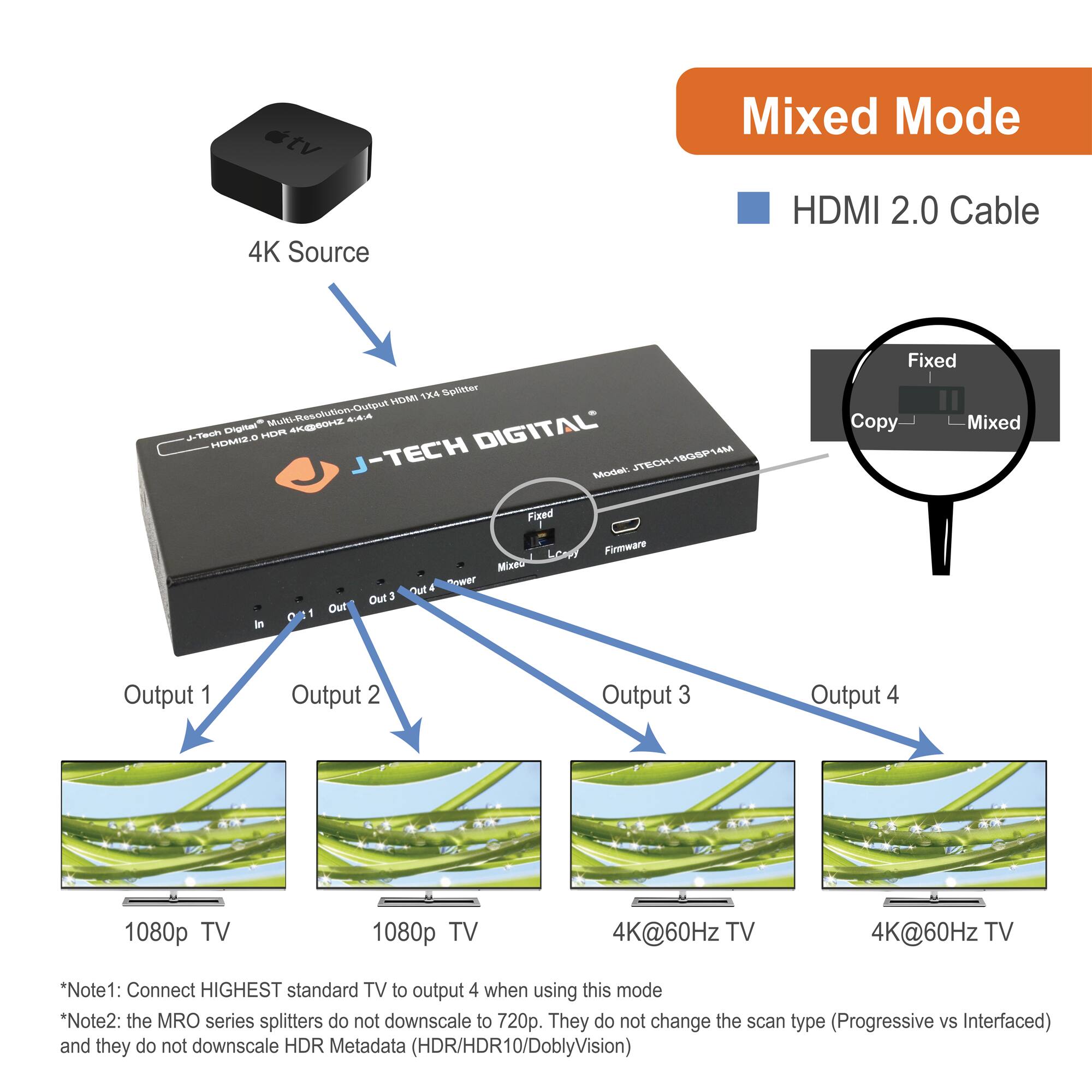

- Mix Different Display Standards: This device is an MRO (Multi-Resolution Output) Splitter, and works as a scaler, supporting multiple or mixed resolutions, allowing for the combination of 1080P TVs with 4K@60Hz TVs. *Note: Connect HIGHEST Standard TV to Output 4 and set EDID to “Mixed” mode to use the MRO/Scaler function

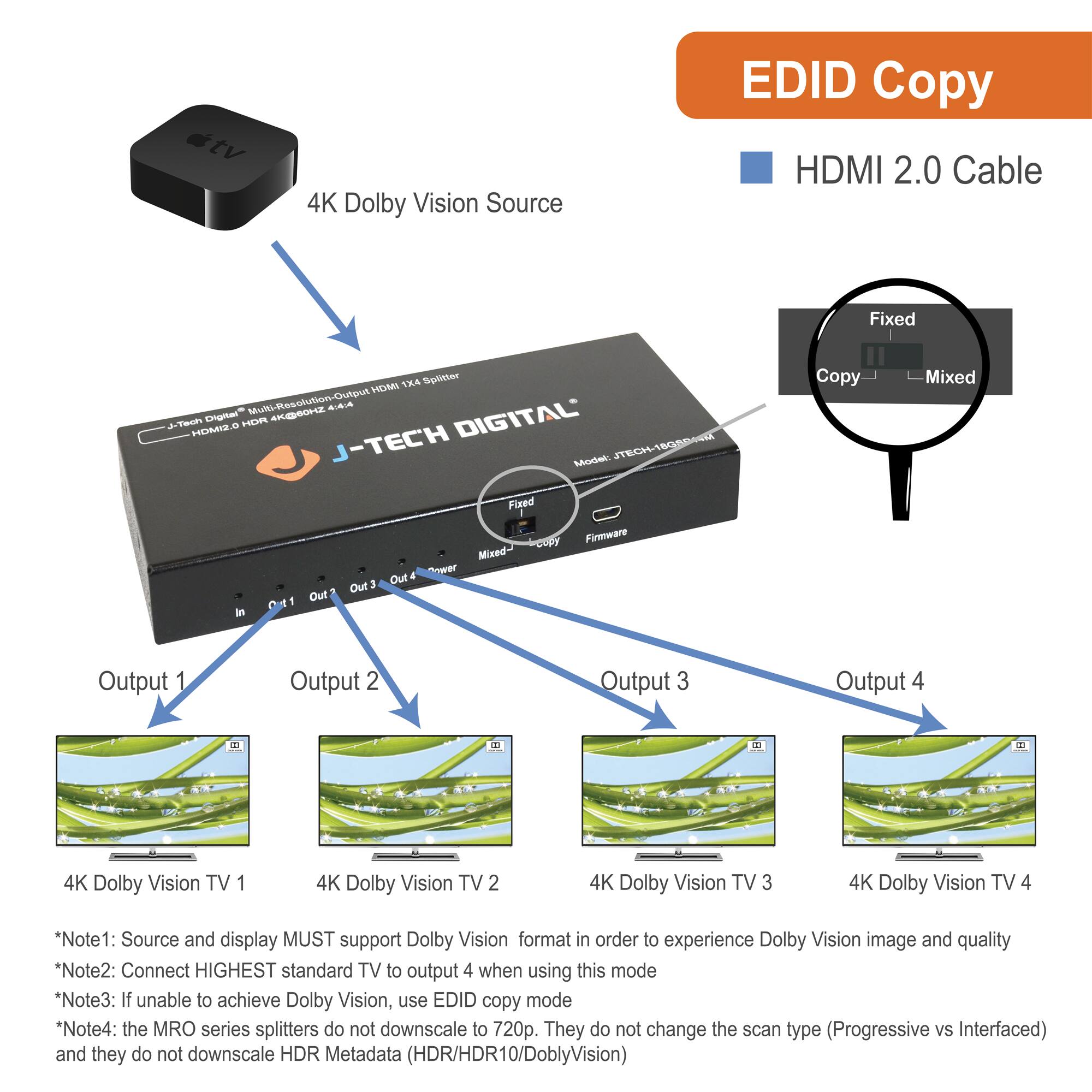

- HDMI 2.0 & EDID Copy Abilities: This MRO splitter supports 18Gbps bandwidth, HDR10 and Dolby Vision. It is compatible with 4K@60Hz 4:4:4 as well as 1080p. NOTE: Source Devices and all connected TVs MUST support Dolby Vision/HDR10 in order to experience the quality and image that Dolby Vision/HDR10 offer
- 1 Input to 4 Displays: This device distributes 1 HDMI signal to 2 HD displays simultaneously and is compatible with devices such as a PS4 Pro, Xbox One S, Roku 4, 4K Apple TV, Set-Top-Box, Blu-ray player and more
- High Definition Audio Support: This splitter will pass HD audio formats from your source, such as: PCM, LPCM 7.1, Dolby TrueHD, Dolby Digital Plus, and DTS-HD Master Audio
- Mix Different Display Standards: This device is an MRO (Multi-Resolution Output) Splitter, and works as a scaler, supporting multiple or mixed resolutions, allowing for the combination of 1080P TVs with 4K@60Hz TVs. *Note: Connect HIGHEST Standard TV to Output 4 and set EDID to “Mixed” mode to use the MRO/Scaler function
- HDMI 2.0 & EDID Copy Abilities: This MRO splitter supports 18Gbps bandwidth, HDR10 and Dolby Vision. It is compatible with 4K@60Hz 4:4:4 as well as 1080p. NOTE: Source Devices and all connected TVs MUST support Dolby Vision/HDR10 in order to experience the quality and image that Dolby Vision/HDR10 offer
- 1 Input to 4 Displays: This device distributes 1 HDMI signal to 2 HD displays simultaneously and is compatible with devices such as a PS4 Pro, Xbox One S, Roku 4, 4K Apple TV, Set-Top-Box, Blu-ray player and more
- High Definition Audio Support: This splitter will pass HD audio formats from your source, such as: PCM, LPCM 7.1, Dolby TrueHD, Dolby Digital Plus, and DTS-HD Master Audio

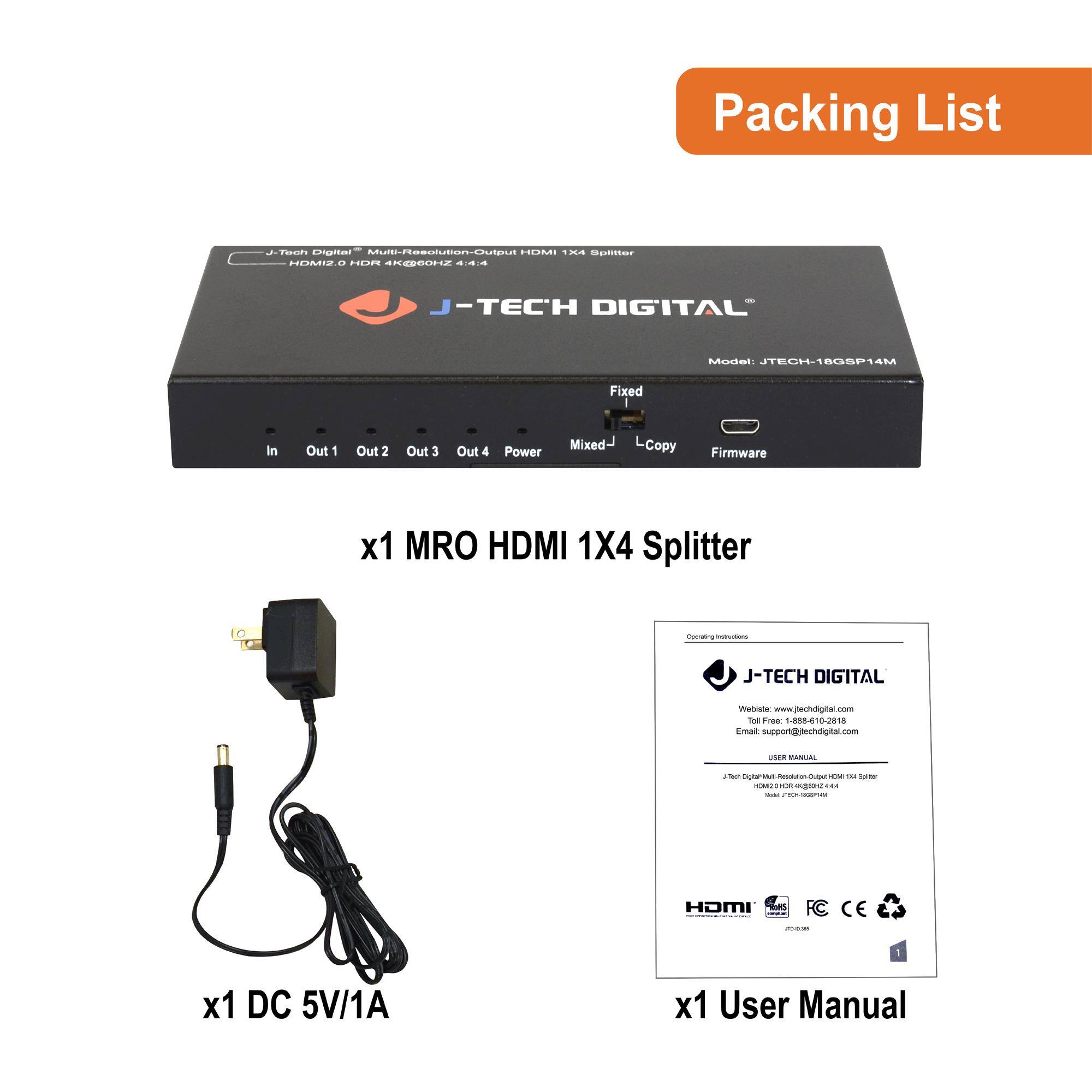

Whats Included
- HDMI Splitter, Power Adapter, User Manual
- HDMI Splitter, Power Adapter, User Manual
