JBL - CLUBA5055 5-Channel, 50w X 4, 500w X 1 amplifier w/ RLC JBLAMPCBA5055AM - Black
JBL - CLUBA5055 5-Channel, 50w X 4, 500w X 1 amplifier w/ RLC JBLAMPCBA5055AM - Black
FREE shipping to
More Buying Options
Specifications
- Continuous Watts x Channel @ Ohms50 watts RMS x 4 + 320 watts RMS x 1 at 4 ohmsMaximum Watts x Channel @ Ohms150 watts RMS x 2 bridged at 4 ohms + 500 watts RMS x 1 at 2 ohmsAmplifier ClassABNumber Of Channels5Bass BoostVariableBridgeableYes
- Key Specs
- Continuous Watts x Channel @ Ohms: 50 watts RMS x 4 + 320 watts RMS x 1 at 4 ohms
- Maximum Watts x Channel @ Ohms: 150 watts RMS x 2 bridged at 4 ohms + 500 watts RMS x 1 at 2 ohms (This is the maximum load the speaker, subwoofer or amp can drive.)
- Amplifier Class: AB (An amplifier's mode of operation, specifically the conditions in which its electrical current flows for the duration of an audio signal, determines its class. Each class has its strengths and weaknesses when it comes to power efficiency, levels of crossover distortion, and overall sound quality.)
- Number Of Channels: 5
- Bass Boost: Variable (Circuitry that boosts the bass response of the amplifier, improving audio reproduction enhancing the sound of low frequencies. Fixed boost means the level of bass response is preset, whereas variable boost allows the user to make adjustments.)
- Bridgeable: true (Bridging an amplifier increases the power it supplies to the speaker(s).)
- General
- Brand: JBL
- Model Number: JBLAMPCBA5055AM
- Product Name: JBL CLUBA5055 5-Channel, 50w X 4, 500w X 1 amplifier w/ RLC JBLAMPCBA5055AM
- Color: Black
- Audio Power
- Continuous Watts x Channel @ Ohms: 50 watts RMS x 4 + 320 watts RMS x 1 at 4 ohms
- Total Power Handling RMS: 700 watts
- Watts Per Channel RMS: 50 watts
- Maximum Watts x Channel @ Ohms: 150 watts RMS x 2 bridged at 4 ohms + 500 watts RMS x 1 at 2 ohms (This is the maximum load the speaker, subwoofer or amp can drive.)
- Total Power Handling Maximum: 500 watts
- Amplifier Class: AB (An amplifier's mode of operation, specifically the conditions in which its electrical current flows for the duration of an audio signal, determines its class. Each class has its strengths and weaknesses when it comes to power efficiency, levels of crossover distortion, and overall sound quality.)
- Audio
- Number Of Channels: 5
- Bass Boost: Variable (Circuitry that boosts the bass response of the amplifier, improving audio reproduction enhancing the sound of low frequencies. Fixed boost means the level of bass response is preset, whereas variable boost allows the user to make adjustments.)
- Features
- Bridgeable: true (Bridging an amplifier increases the power it supplies to the speaker(s).)
- Bluetooth Enabled: false (The device is capable of communicating with another device via Bluetooth, provided they are within the required range of each other. A Bluetooth-enabled device must also be the same Bluetooth version or higher than the accessory it is intended to pair with.)
- Remote Control Included: Bass
- Marine: false
- Input
- Line-Level Inputs: true (Also referred to as low-level inputs. Enables the amplifier to receive a sound signal from another device via RCA cables.)
- Dimensions
- Product Height: 4.34 inches (The out of box height of the item. Height is measured as the vertical distance from the bottom of the item to the top as it would be primarily used or placed.)
- Product Width: 17.91 inches (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
- Product Depth: 9.21 inches (The out of box depth of the item. Depth is measured as the distance from the front of the item to the back as it would be primarily used or placed.)
- Product Weight: 10.36 pounds (The out of box weight of the item.)
- Warranty
- Warranty - Parts: 1 year
- Warranty - Labor: 1 year
- Other
- UPC: 050036369206
JBL CLUBA5055 5-Channel, 50w X 4, 500w X 1 amplifier w/ RLC

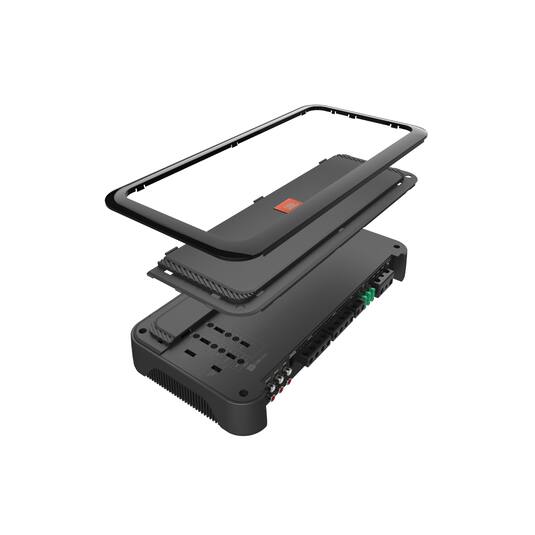

- Compact size: Low profile chassis and a small overall footprint to fit in limited space.

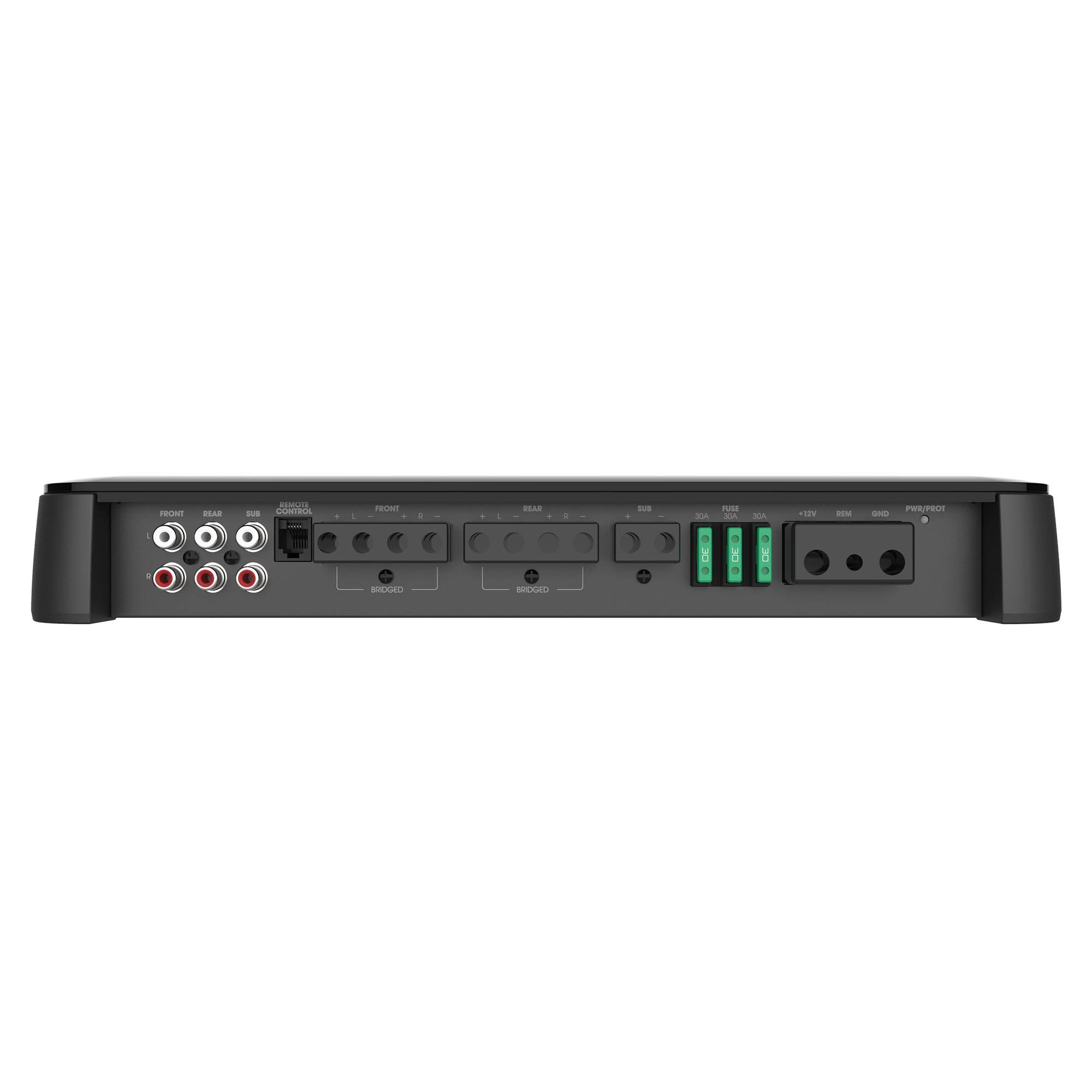

- High and low level input: Speaker level and low level inputs allow integration with both aftermarket and factory marine stereo systems.
- Variable crossover: This model features variable cross over for precise system tuning and performance.
- Key Feature: The Club A5055 has been engineered using Balanced Differential Inputs to ensure low noise and distortion even at high output levels. This also makes it far less susceptible to line induced radiated engine noise.
- Key Feature: On-board circuitry protects the Club A5055 from shorts, high-temperature, overvoltage and undervoltage. An LED indicator is provided to let you know when one of these conditions exists
Whats Included
- 1 x Club A5055 five channel amplifier 4 x Bare wire-to-RCA adapters 6 x 30A ATO fuses (3 installed, 3 spare) 1 x Remote bass control module 1 x 16.5'
