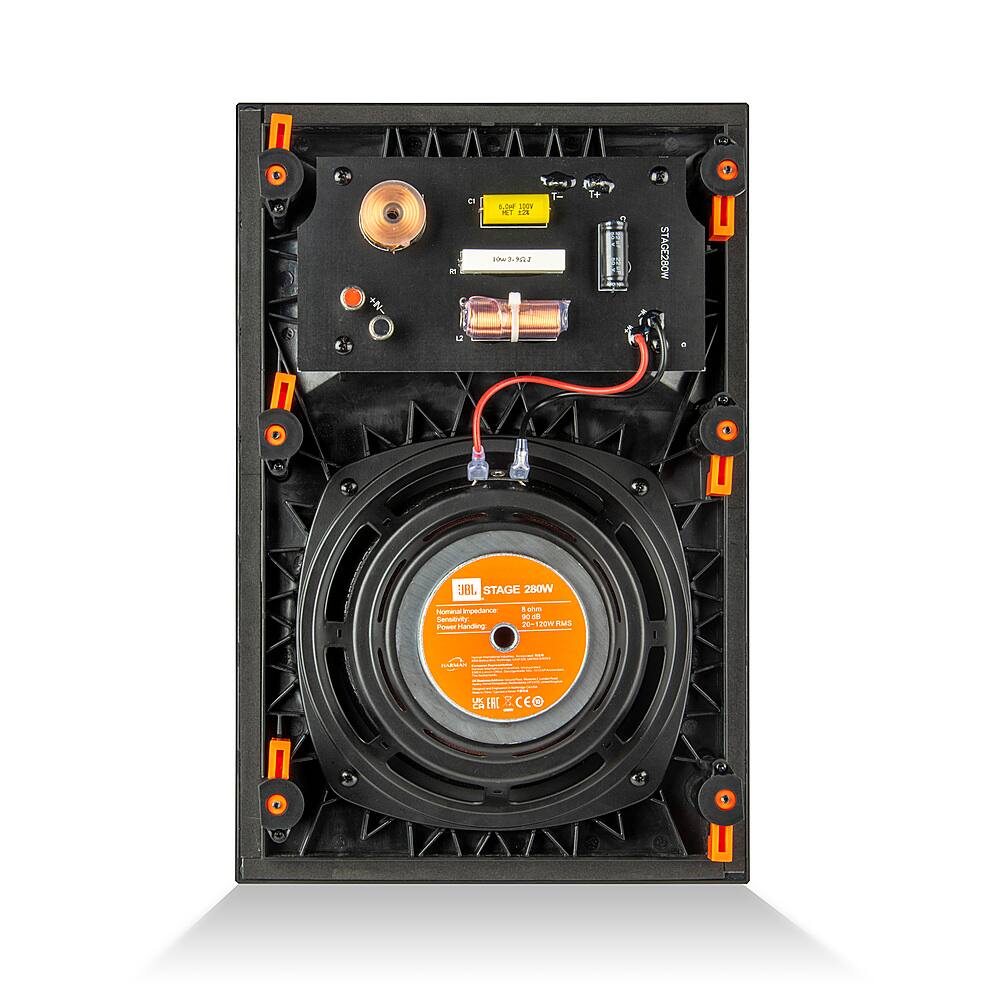

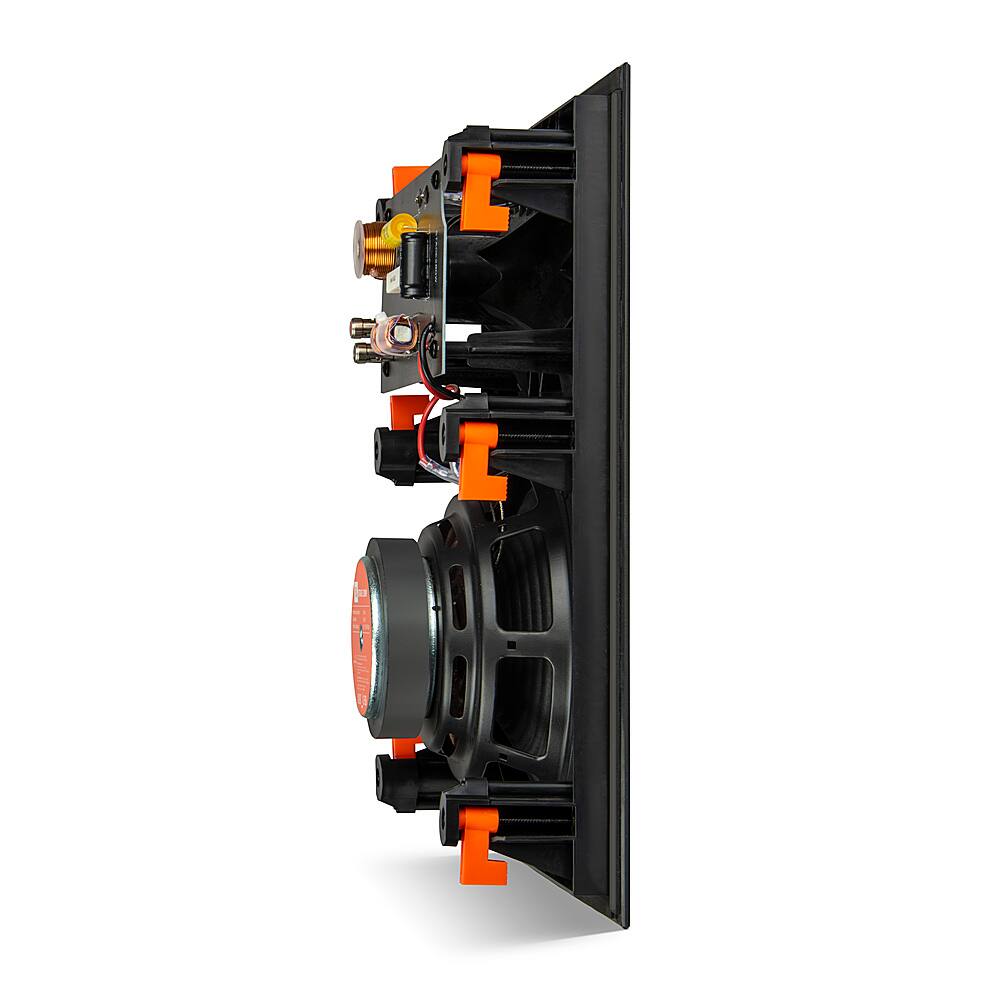

JBL - Stage In-Wall Loudspeaker with 1" Aluminum Dome Tweeter and 8" Polycellulose Cone Woofer - Black
Reviews coming soon
Related Item
Specifications
- Speaker TypeIn-Wall
- Key Specs
- Speaker Type: In-Wall
- General
- Brand: JBL
- Model Number: JBL280W
- Product Name: Stage In-Wall Loudspeaker with 1" Aluminum Dome Tweeter and 8" Polycellulose Cone Woofer
- Color: Black
- Audio
- Speaker Type: In-Wall
- Peak Power Handling: 120 watts (The maximum amount of power an electronic device, like a speaker, can handle without damage. This refers to short bursts of power, while root mean square (RMS) power handling indicates the amount of continuous power a device can sustain. Higher levels of distortion can also occur at peak power levels when the device is powered beyond its recommended usage.)
- Impedance: 8 ohms (Describes the resistance of an electric signal throughout the system. Devices with low impedance require less power to deliver optimal signals but are more at risk for damage from overloading. Higher impedance requires more power but is more protected from overload damage.)
- Minimum Frequency Response: 42 hertz (Describes the maximum range of frequencies or musical tones a product can reproduce, from very low tones to very high treble tones. The minimum frequency or musical tone the speaker can reproduce. High treble tones have higher frequencies while low tones and deep bass have lower frequencies.)
- Maximum Frequency Response: 25 kilohertz (Describes the maximum range of frequencies or musical tones a product can reproduce, from very low tones to very high treble tones. The maximum frequency or musical tone the speaker can reproduce. High treble tones have higher frequencies while low tones and deep bass have lower frequencies.)
- Sensitivity: 90 decibels
- Number of Speakers: 1
- Number of Tweeters: 1
- Tweeter Size: 1 inches
- Number of Woofers: 1
- Woofer Size: 8 inches
- Connectivity
- Speaker Connectivity: Wired
- Wireless Multi-Room Audio: false (Technology that allows multiple speakers and/or soundbars to be connected wirelessly and play audio in separate rooms.)
- Audio Only Inputs: 1 x Analog audio
- Network Connector(s): No network connectors
- Speaker Wire Connection Type: Binding posts
- Features
- Indoor Or Outdoor Use: Indoor (Indicates the appropriate environment product was designed to be used in.)
- Dimensions
- Product Height: 15.7 inches (The out of box height of the item. Height is measured as the vertical distance from the bottom of the item to the top as it would be primarily used or placed.)
- Product Width: 10.5 inches (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
- Product Depth: 3.9 inches (The out of box depth of the item. Depth is measured as the distance from the front of the item to the back as it would be primarily used or placed.)
- Product Weight: 6.17 pounds (The out of box weight of the item.)
- Certifications Listings & Approvals
- ENERGY STAR Certified: false (Devices carrying the ENERGY STAR service mark, such as computer products and peripherals, kitchen appliances, and other products, generally use 20% to 30% less energy than required by federal standards.)
- Warranty
- Warranty - Parts: 5 years
- Warranty - Labor: 5 years
- Other
- UPC: 050036389518
The Stage Architectural Series was designed to deliver iconic JBL sound that blends into the environment so that the music stands out. All models are crafted to be visually discrete with zero bezel grilles and easy installation allowing these speakers to be heard and not seen. Elements including baffles with acoustic smoothing, acoustic lens tweeters, and patented High-Definition Imaging (HDI) horns have been incorporated into the design to ensure that the sound is clear and accurate. A range of eight models are available in various configurations for In-Wall and In-Ceiling installation.

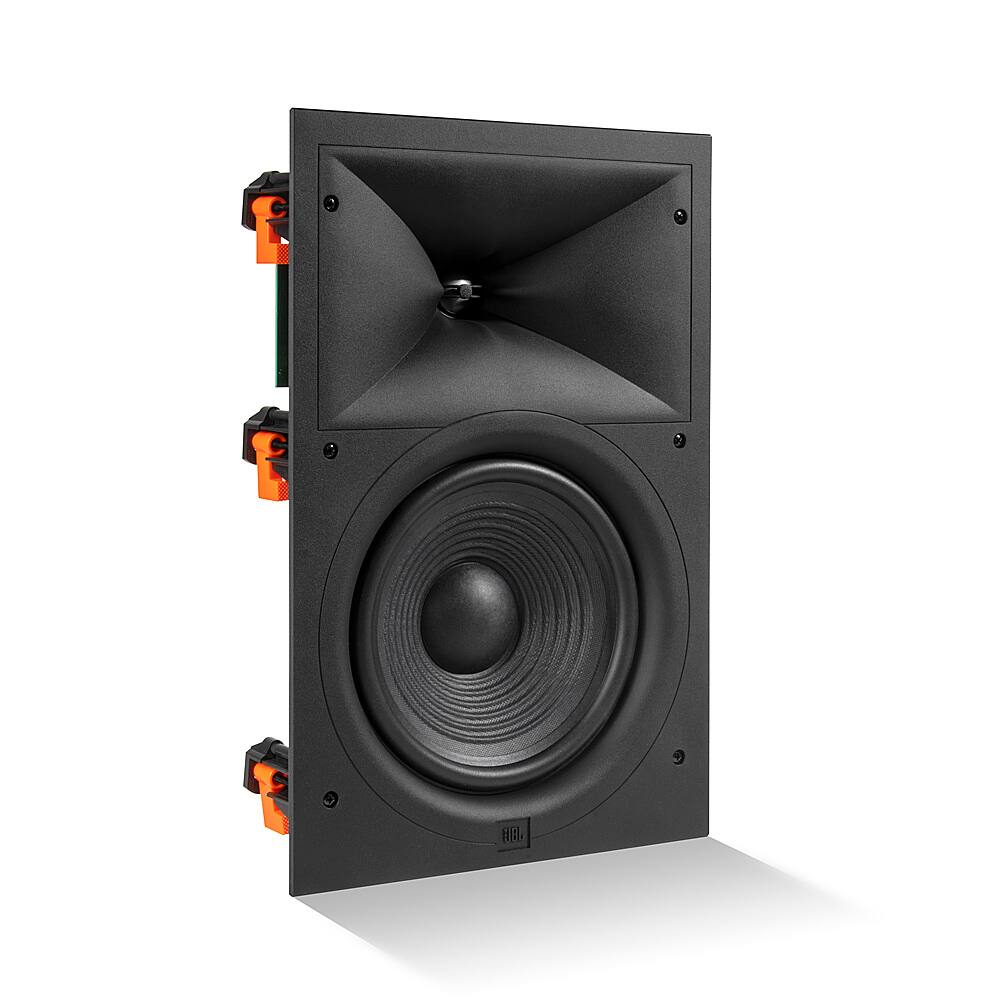

- HDI Waveguide Horn: High-Definition Imaging (HDI) horns with optimized geometry for smooth dispersion and low distortion
- Tweeter with Acoustic Lens: Aluminum Dome Tweeters with Acoustic Lens for smooth on and off axis frequency response
- Rigid Baffle: Rigid Baffle design with acoustic smoothing for improved transducer integration

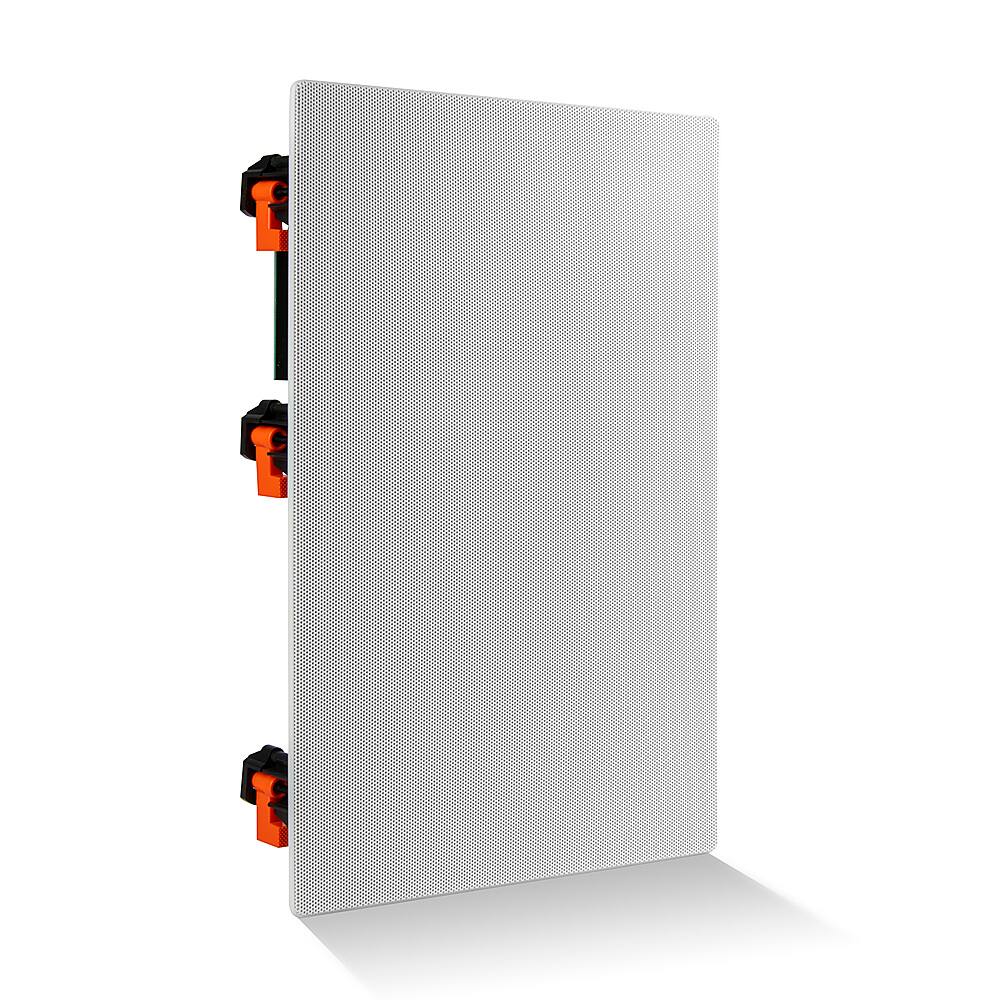

- Zero bezel metal grille: Zero bezel metal grille installs flush to wall or ceiling for clean inconspicuous appearance
- XL-2 Mounting System: Compatible with up to 2” (50mm) thick wall/ceiling material
Whats Included
- loudspeaker
- grille
Product Manuals
Q: Does the speaker have wireless multi-room audio capabilities?
A: This speaker does not have wireless multi-room audio capabilities.
Q: What is the warranty period for the speaker's parts?
A: The speaker's parts have a five-year warranty.
Q: What is the size of the woofer in the speaker?
A: The woofer size of the speaker is 8 inches.
Q: How many tweeters are included in the speaker?
A: This speaker includes one tweeter.
Q: What is the minimum frequency response of the speaker?
A: The minimum frequency response of the speaker is 42 hertz.
Q: What is the maximum power handling of the speaker?
A: The peak power handling of this speaker is 120 watts.
Q: What are the dimensions of the hole I must cut in the wall to fit the 8” speakers?
A: Thank you for your inquiry. To install our JBL Stage In-Wall Loudspeaker, you'd need a cutout width of 9.375 inches and cutout height of 14.6875 inches. It also has a mounting depth of 3.875.
