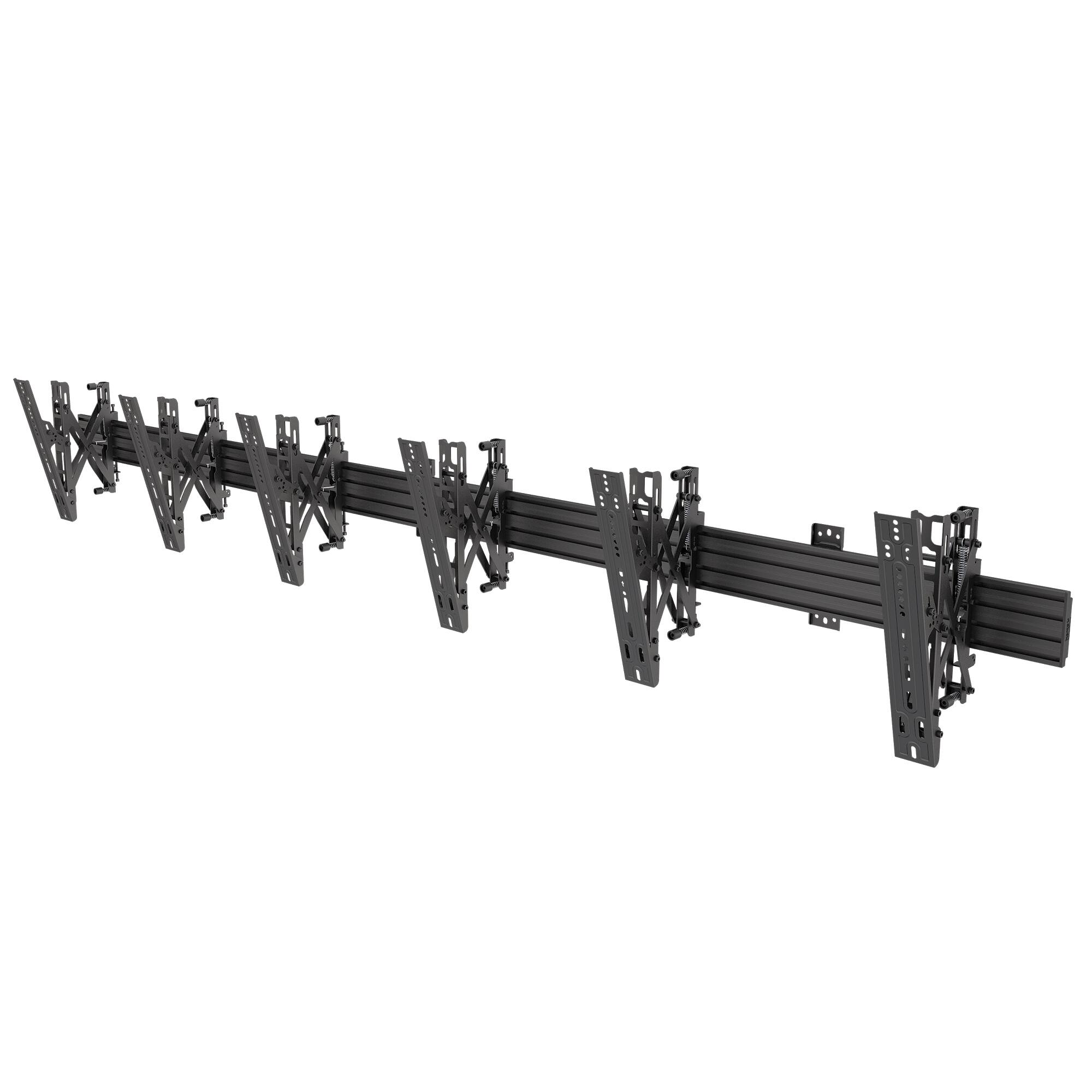

Kanto - Menu Board Wall Mount System with Tilting Arms for 40" - 60" TVs, 3 Screens - Black
FREE shipping to
About This Item
- General
- Brand: Kanto
- Model Number: MBW31PT
- Product Name: Menu Board Wall Mount System with Tilting Arms for 40" - 60" TVs, 3 Screens
- Color: Black
- Assembly Required: Yes
- Features
- Mount Profile: Flush (The view of the product when seen attached to a wall or surface.)
- Mount Style: Tilting
- Indoor or Outdoor Use: Indoor
- Mounts to: Wood (The material or substance the device can attach to.)
- Motorized: false
- Adjustable Height: false
- Cord Storage: false
- Number of Monitors Supported: 3
- Compatibility
- Maximum Weight Capacity: 198 pounds (The maximum load that can be supported by the product.)
- Compatibility: Supports TVs up to 198 lb
- Mount Location: Wall
- Maximum Television Size: 60 inches
- Minimum Television Size: 40 inches
- VESA Wall Mount Standard: 600mm x 400mm (VESA wall mount standards refer to the spacing of screw holes built into a TV in order to fit with standard TV wall mounts. These standards are implemented into most TVs and monitors.)
- Dimensions
- Product Height: 16.6 inches (The out of box height of the item. Height is measured as the vertical distance from the bottom of the item to the top as it would be primarily used or placed.)
- Product Width: 128 inches (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
- Product Depth: 9.1 inches (The out of box depth of the item. Depth is measured as the distance from the front of the item to the back as it would be primarily used or placed.)
- Maximum Extension: 9 inches
- Product Weight: 54.7 pounds (The out of box weight of the item.)
- Minimum Mounted Distance from Wall to Television/Monitor: 3.8 inches (The minimum distance from the product to the wall as the product is mounted.)
- Included
- Hardware Included: true
- Material
- Mount Material: Aluminum
- Warranty
- Warranty - Parts: 5 Year Manufacturer's Warranty
- Warranty - Labor: 5 Year Manufacturer's Warranty
- Other
- UPC: 800152719177

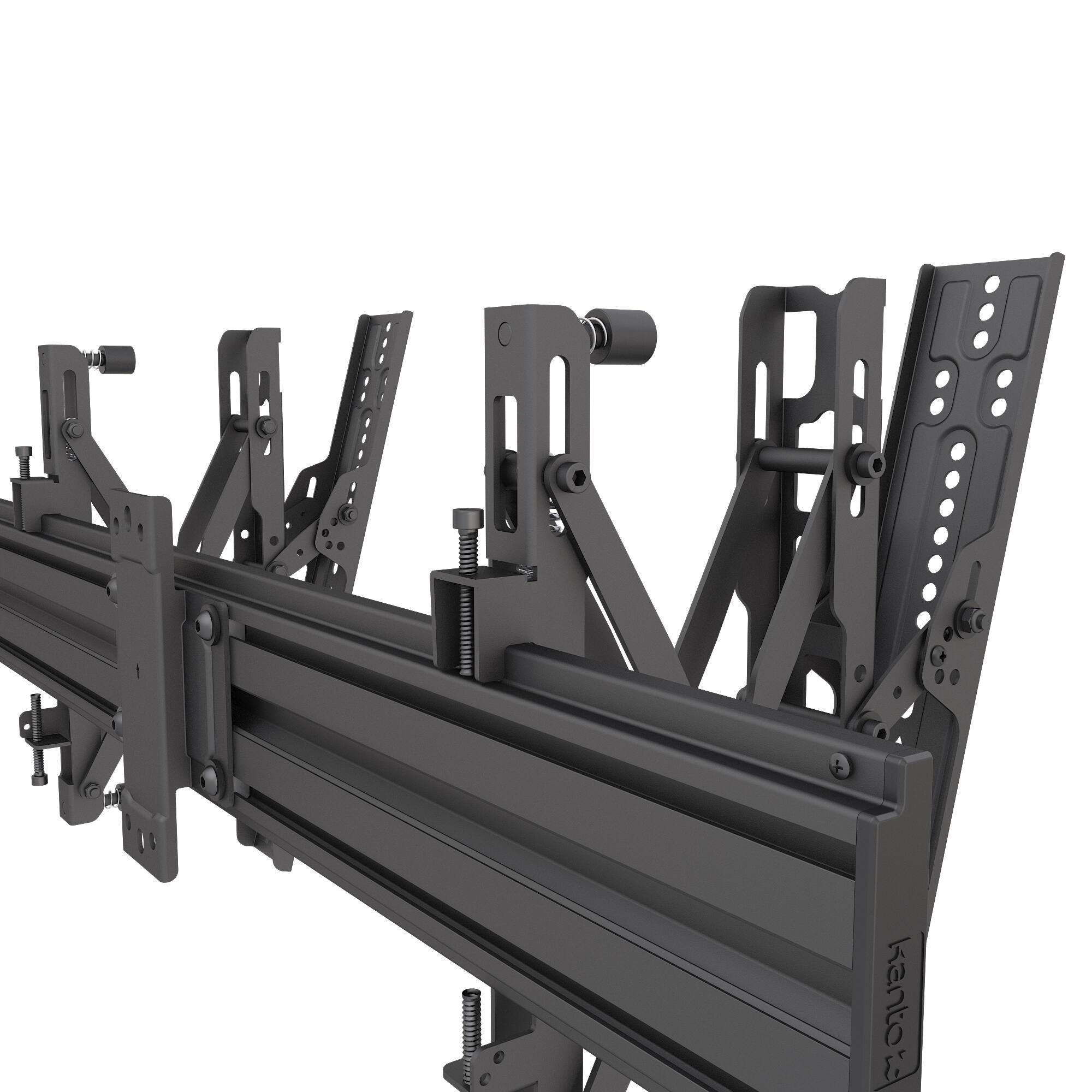

The MB Series wall mount system offers retailers a flexible, all-in-one solution for displaying menu boards and other digital signage. Its modular rails allow two to four screens to be placed adjacent to one another in portrait or landscape orientation, while precision leveling screws ensure perfect alignment. Combining discrete tilt settings with push-in pop-out arms for easy cable access, this versatile system is ideal for mounting at any height. Includes all the hardware necessary for wood stud, brick and concrete installations. Product width = 137"
- Modular Design: Available in three models, MB Series wall mounts support two to four screens weighing up to 66 pounds each. Their modular design allows for additional extrusions to be added to accommodate TVs with wider VESA patterns, or to connect multiple units together.

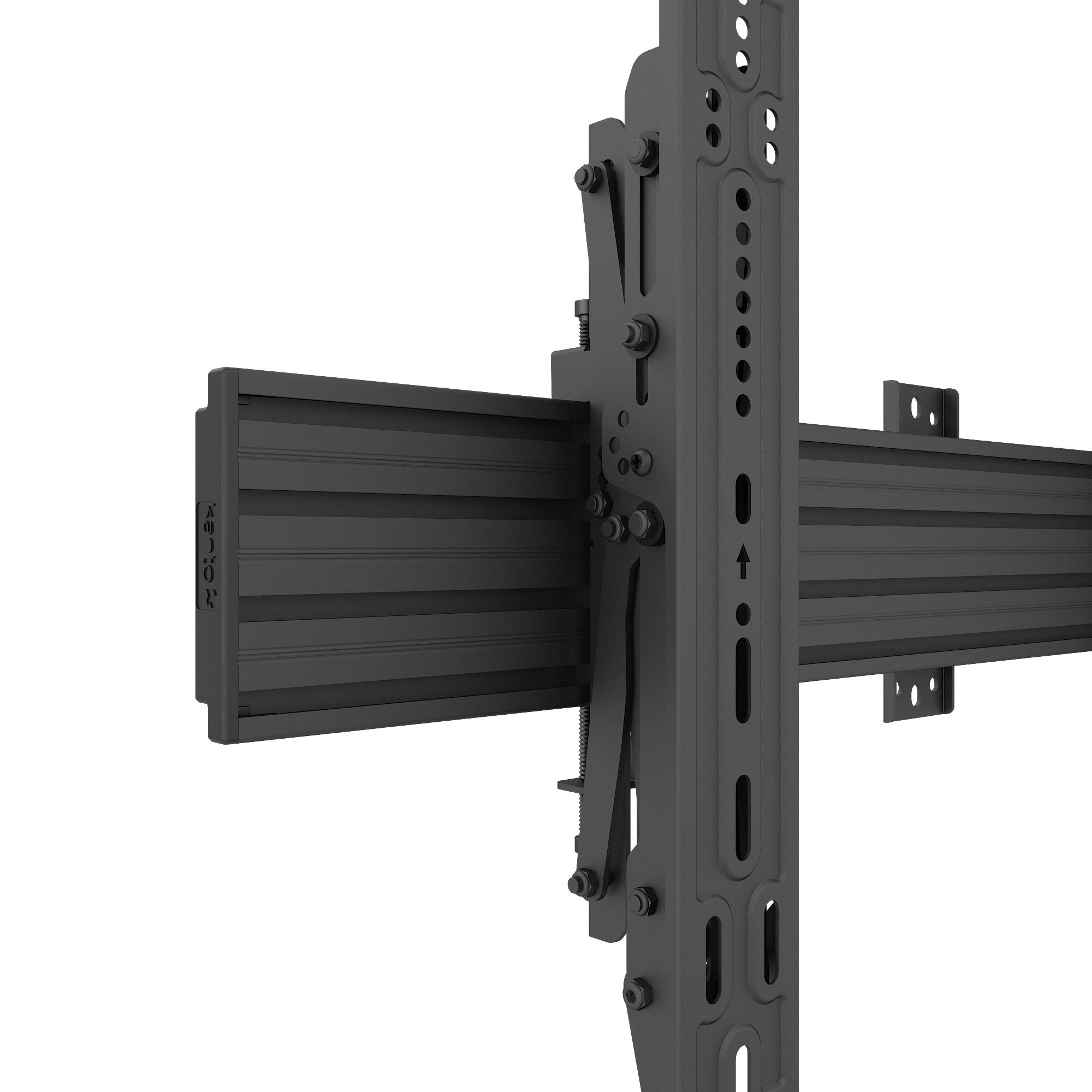

- Precision Leveling: Individual leveling screws are provided to ensure your screens are perfectly aligned, even after installation.

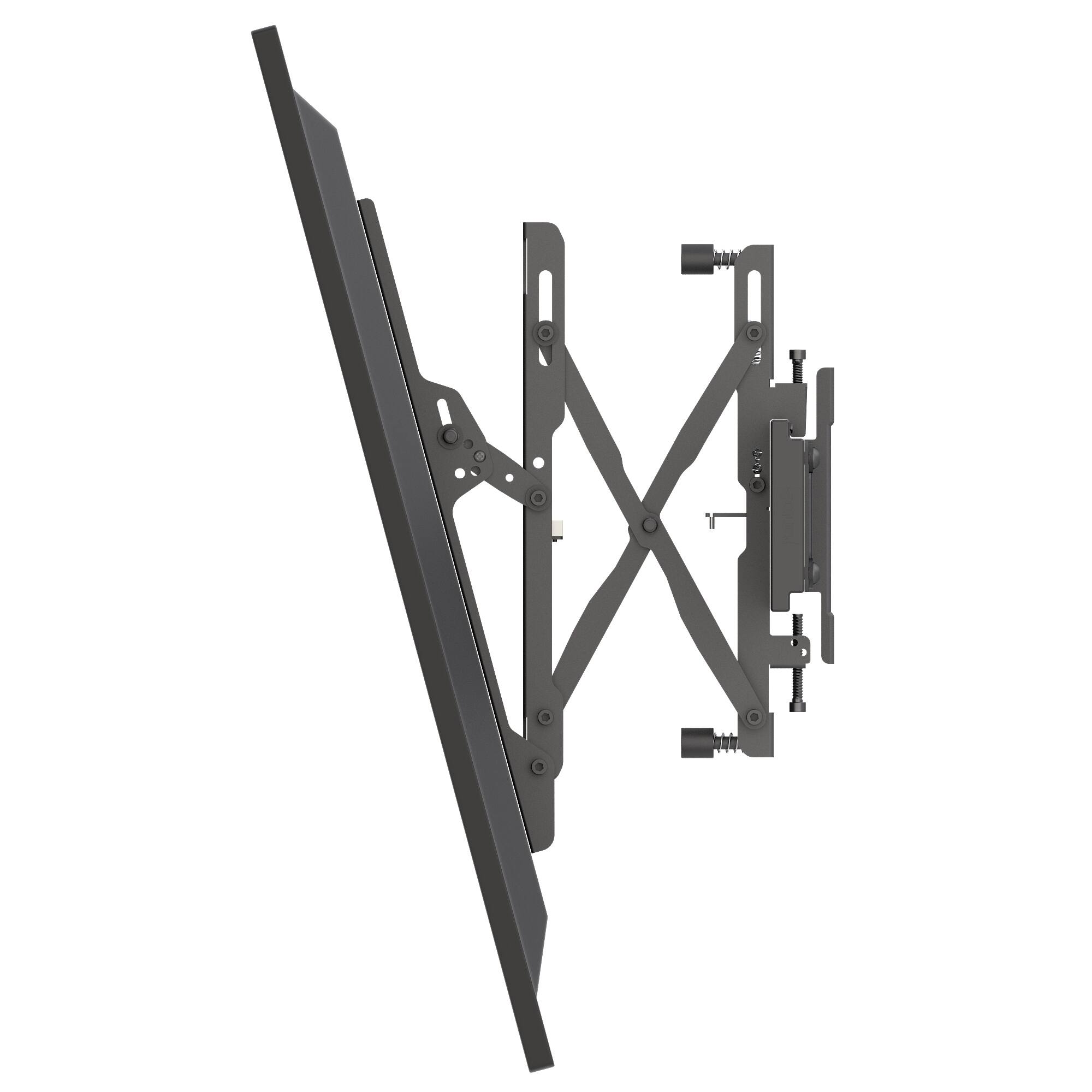

- Easy Input Access: Each mounting bracket features a unique spring mechanism to allow for easy access to your TV's inputs. Simply push in to disengage the mechanism, and release to extend your TV away from the wall.
- Improved Line-of-sight: Tilt the mounting brackets 5°, 10° or 15° forward to improve line-of-sight while maintaining alignment between your screens.
- Hassle-free Installation: Shipped with all the necessary hardware for wood stud, brick and concrete installations, MB Series wall mounts help you get your retail space up and running without delay.
Whats Included

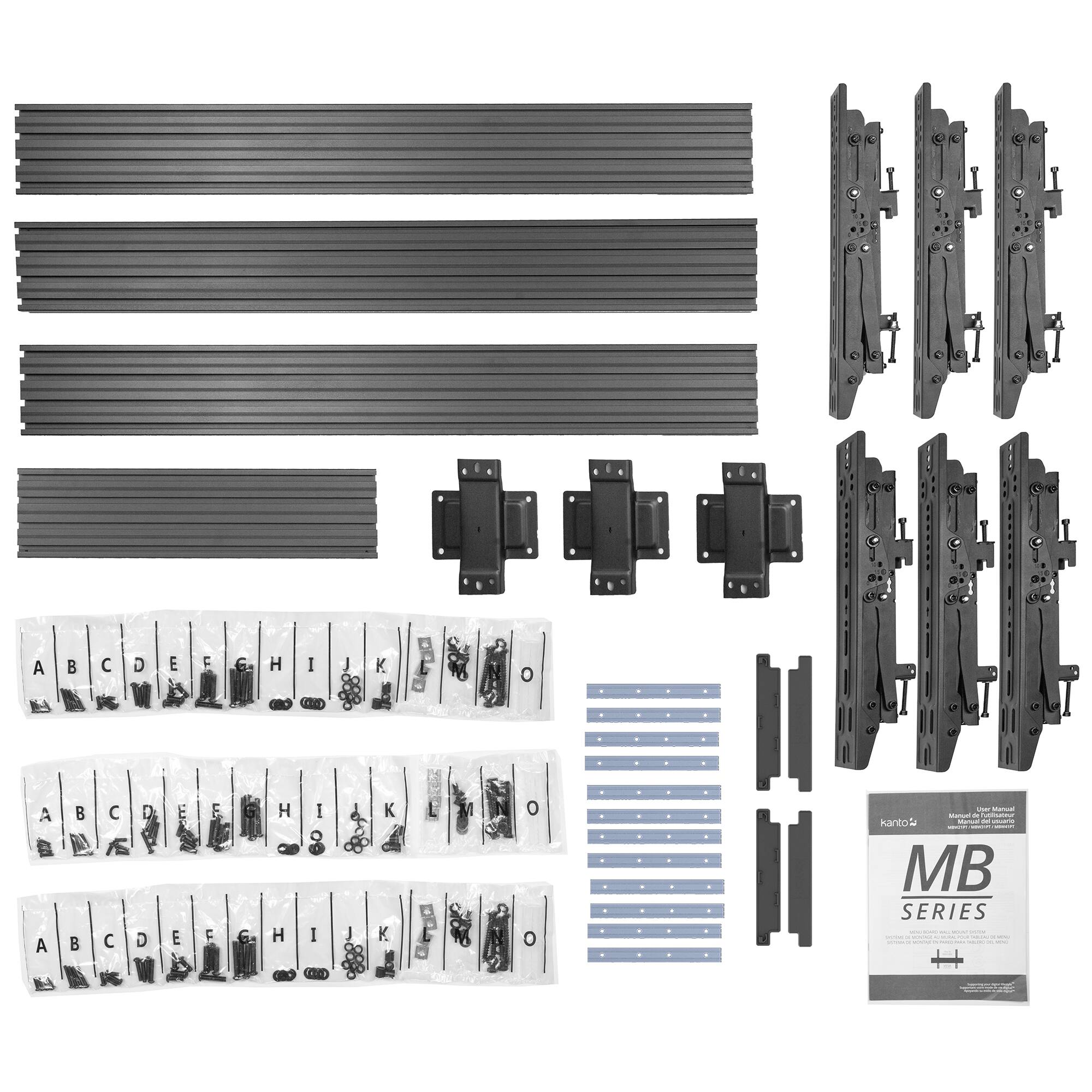

- 1x 480 mm TV Plate, 3x 1000 mm TV Plate, TV Plate Endcaps, 3x Extension Bars (set of 4), 3x Ceiling Plate
