Klipsch - DS-180CDT 8" In-Ceiling Speaker - Black
Model: 1068516
SKU: 6617454
This item is no longer available in new condition. See similar items below
- Key Specs
- Speaker Type: In-Ceiling
- RMS Power: 50 watts (The maximum amount of continuous power the device is able to handle.)
- General
- Product Name: Klipsch DS-180CDT 8" In-Ceiling Speaker
- Brand: Klipsch
- Model Number: 1068516
- Color: Black
- Audio
- Speaker Type: In-Ceiling
- RMS Power: 50 watts (The maximum amount of continuous power the device is able to handle.)
- Peak Power Handling: 200 watts (The maximum amount of power an electronic device, like a speaker, can handle without damage. This refers to short bursts of power, while root mean square (RMS) power handling indicates the amount of continuous power a device can sustain. Higher levels of distortion can also occur at peak power levels when the device is powered beyond its recommended usage.)
- Impedance: 8 ohms (Describes the resistance of an electric signal throughout the system. Devices with low impedance require less power to deliver optimal signals but are more at risk for damage from overloading. Higher impedance requires more power but is more protected from overload damage.)
- Minimum Frequency Response: 55 hertz (Describes the maximum range of frequencies or musical tones a product can reproduce, from very low tones to very high treble tones. The minimum frequency or musical tone the speaker can reproduce. High treble tones have higher frequencies while low tones and deep bass have lower frequencies.)
- Maximum Frequency Response: 20 kilohertz (Describes the maximum range of frequencies or musical tones a product can reproduce, from very low tones to very high treble tones. The maximum frequency or musical tone the speaker can reproduce. High treble tones have higher frequencies while low tones and deep bass have lower frequencies.)
- Sensitivity: 94 decibels
- Tweeter Type: Dome
- Number of Speakers: 1
- Number of Tweeters: 1
- Tweeter Size: 1 inches
- Number of Drivers: 2
- Number of Woofers: 1
- Woofer Size: 8 inches
- Connectivity
- Speaker Connectivity: Wireless
- Wireless Multi-Room Audio: false (Technology that allows multiple speakers and/or soundbars to be connected wirelessly and play audio in separate rooms.)
- Audio Only Inputs: No audio only inputs
- Network Connector(s): No network connectors
- Speaker Wire Connection Type: Binding posts
- Dimensions
- Product Height: 10.75 inches (The out of box height of the item. Height is measured as the vertical distance from the bottom of the item to the top as it would be primarily used or placed.)
- Product Width: 10.75 inches (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
- Product Depth: 4.76 inches (The out of box depth of the item. Depth is measured as the distance from the front of the item to the back as it would be primarily used or placed.)
- Product Weight: 7.4 pounds (The out of box weight of the item.)
- Warranty
- Manufacturer's Warranty - Parts: 5 Years
- Manufacturer's Warranty - Labor: 5 Years
- Other
- UPC: 743878042344
Get the Klipsch Signature Horn-Loaded performance at an incredible value, the DS-180CDT features an 8” Polypropylene woofer and a 1” Pivot Silk Dome tweeter mated to a round Tractrix® horn for dynamic acoustic performance. Utilizing the Sky Hook® patented Cinch by Swarm Installation System, your install time is reduced by 75%.
- HORN-LOADED PERFORMANCE: Using the same Tractrix® horn technology and design principles of our premium architectural and box speaker lines, the all new Klipsch Designer series provides true Klipsch power and performance. With an 8” Polypropylene woofer and a 1” Silk Dome tweeter mated to a round Tractrix® horn, the DS-180CDT brings dynamic, powerful, detailed Klipsch sound to your distributed audio, home theater, or 2-channel system.

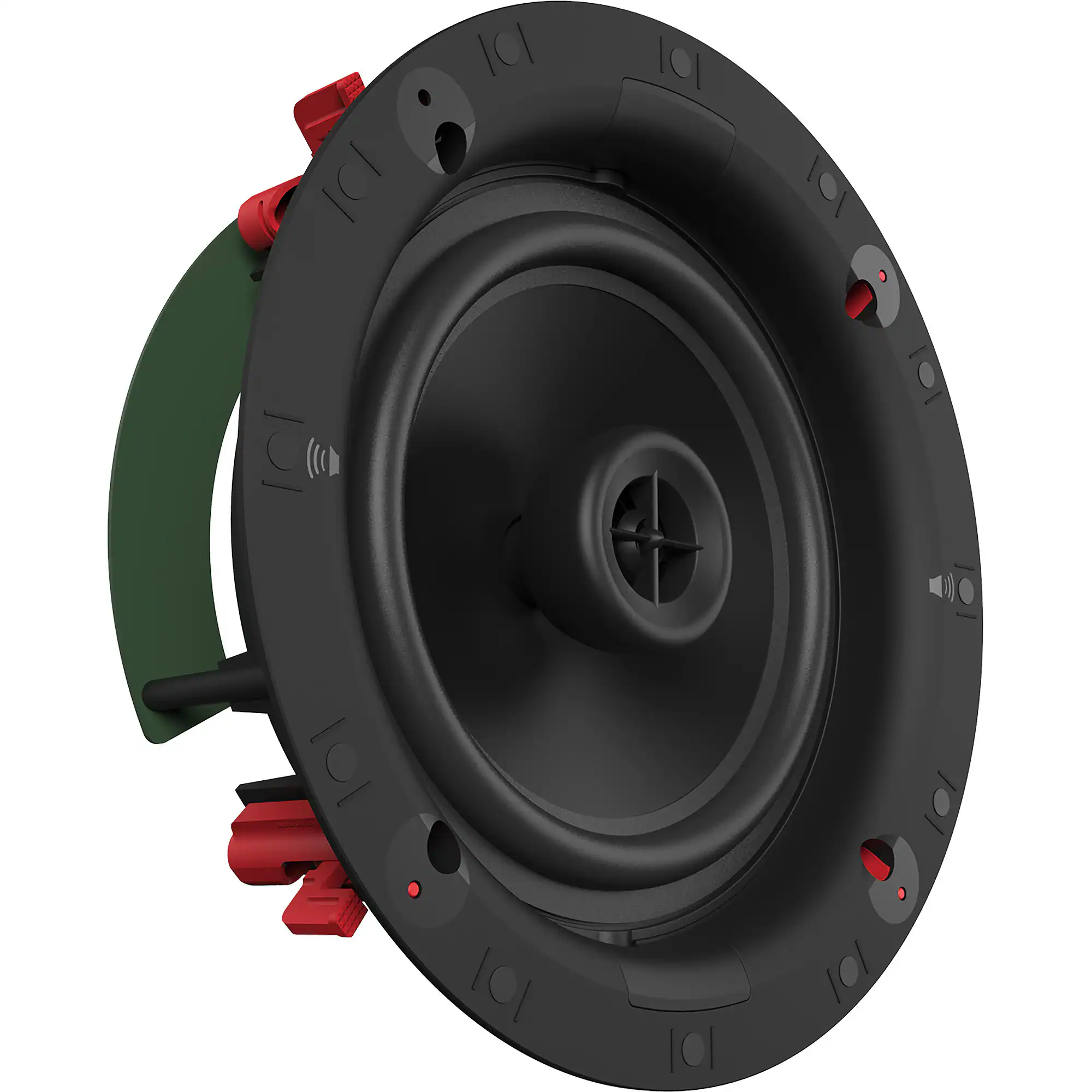

- EXCLUSIVE PATENTED SKY HOOK® CINCH INSTALLATION SYSTEM: This exclusive installation system engages the dog legs automatically when the speaker is inserted into the cutout hole with a preset clamping force, eliminating the possibility of overtorquing. If dealing with an uneven space, a 1/4 turn of each dog leg screw achieves an even more flush finish. This fast, easy installation system reduces install time by up to 75%.
- CONTROLLED DISPERSION TECHNOLOGY™: CDT technology allows for the tweeter and the woofer to be aimed up to 15°, helping to ensure on-axis frequency response at almost any listening position.

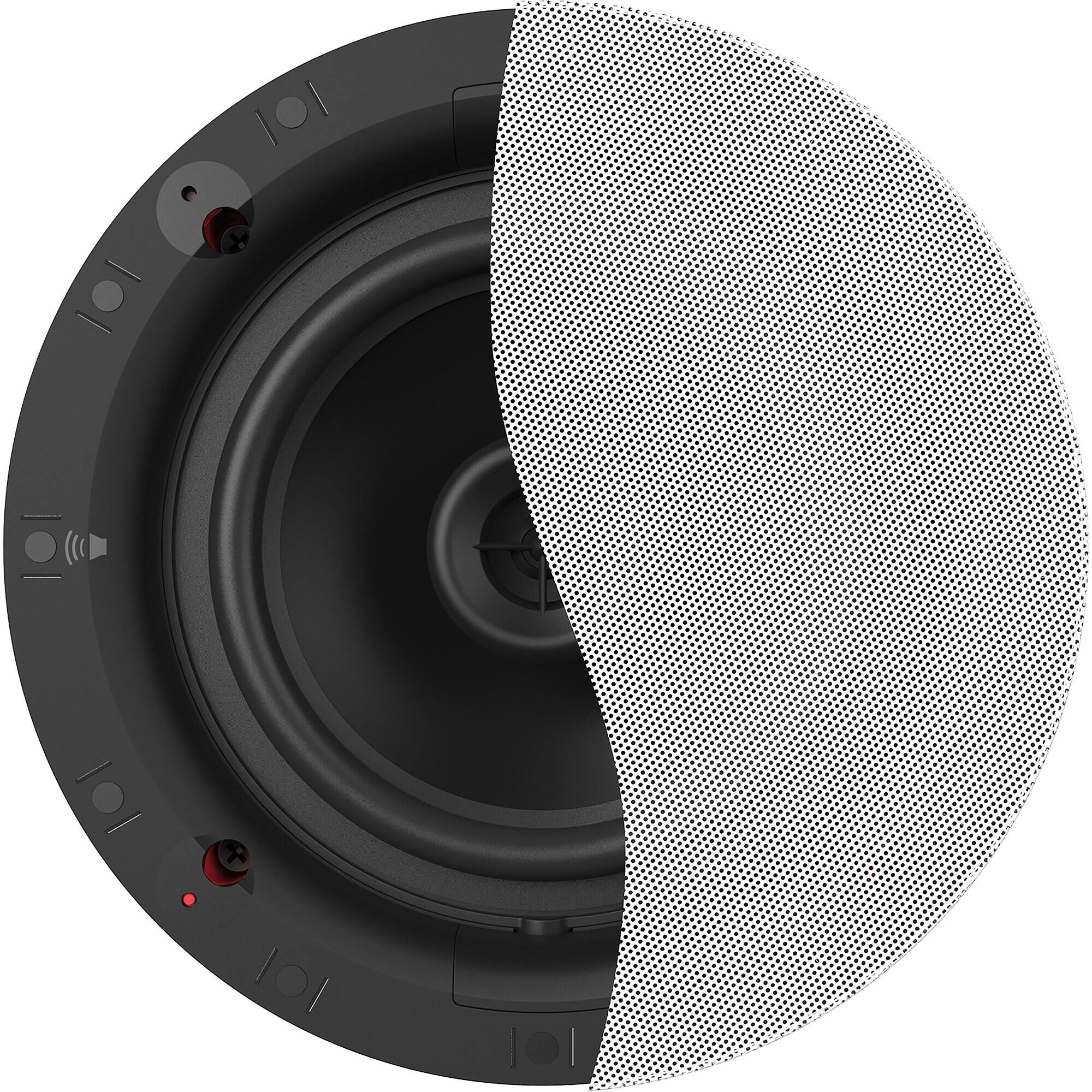

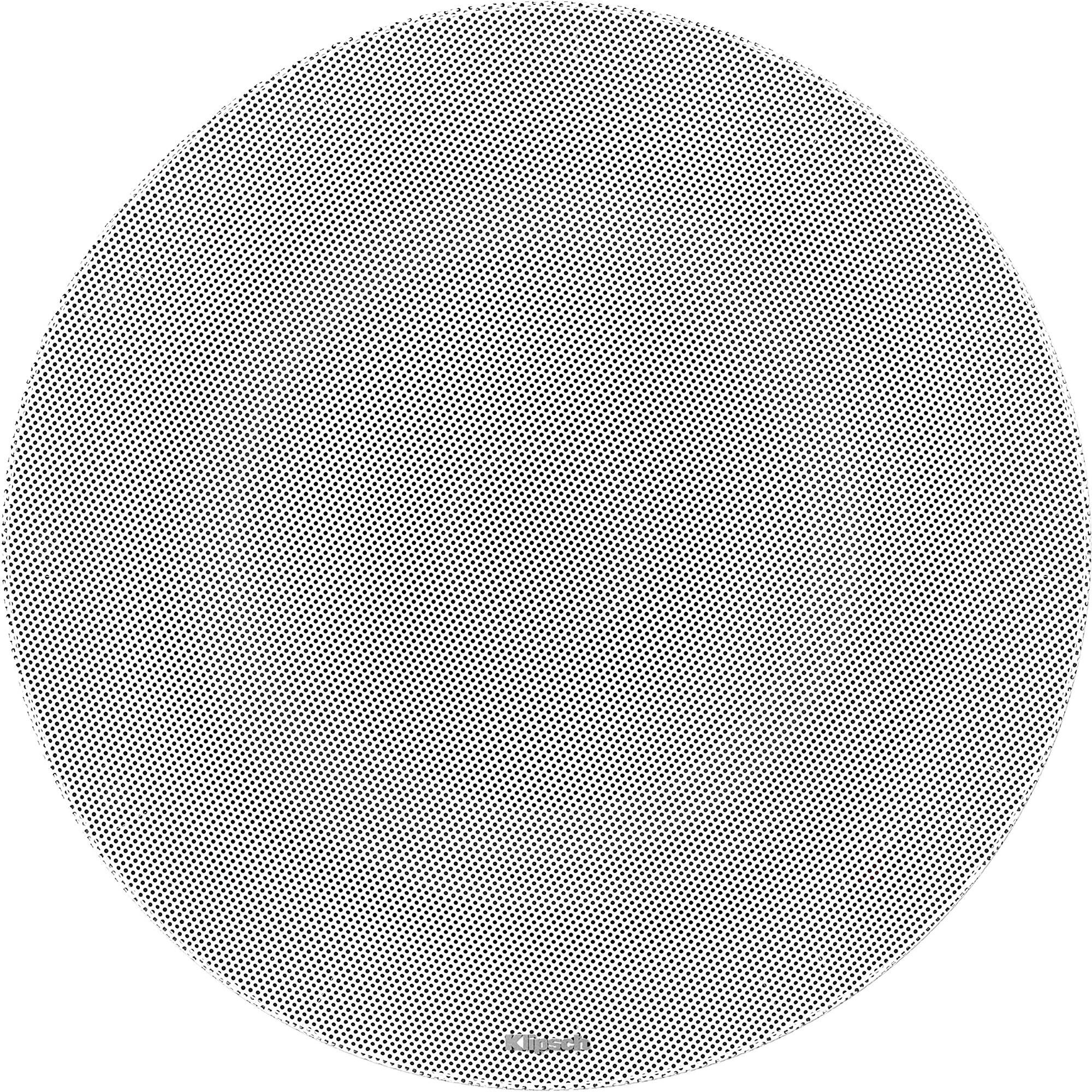

- ALL NEW, BEZEL-FREE MAGNETIC GRILLE: A completely redesigned powder coated magnetic steel grille eliminates the bezel for seamless, pristine integration into the living space.
- HORN-LOADED PERFORMANCE: Using the same Tractrix® horn technology and design principles of our premium architectural and box speaker lines, the all new Klipsch Designer series provides true Klipsch power and performance. With an 8” Polypropylene woofer and a 1” Silk Dome tweeter mated to a round Tractrix® horn, the DS-180CDT brings dynamic, powerful, detailed Klipsch sound to your distributed audio, home theater, or 2-channel system.
- EXCLUSIVE PATENTED SKY HOOK® CINCH INSTALLATION SYSTEM: This exclusive installation system engages the dog legs automatically when the speaker is inserted into the cutout hole with a preset clamping force, eliminating the possibility of overtorquing. If dealing with an uneven space, a 1/4 turn of each dog leg screw achieves an even more flush finish. This fast, easy installation system reduces install time by up to 75%.
- CONTROLLED DISPERSION TECHNOLOGY™: CDT technology allows for the tweeter and the woofer to be aimed up to 15°, helping to ensure on-axis frequency response at almost any listening position.
- ALL NEW, BEZEL-FREE MAGNETIC GRILLE: A completely redesigned powder coated magnetic steel grille eliminates the bezel for seamless, pristine integration into the living space.
Whats Included
- Cables
- Cables
Product Manuals
Q: What is the minimum frequency response of this Klipsch speaker?
A: The minimum frequency response of this Klipsch speaker is 55 hertz.
Q: How many speakers are included with this Klipsch product?
A: The Klipsch DS-180CDT includes one speaker.
Q: Does this Klipsch speaker have a horn?
A: Yes, the DS-180CDT uses Klipsch's Tractrix horn technology.
Q: How does the Controlled Dispersion Technology work on these Klipsch speakers?
A: The CDT technology allows you to aim the tweeter and woofer up to 15 degrees to help ensure on-axis frequency response at almost any listening position.
Q: What size is the woofer in this Klipsch speaker?
A: The Klipsch DS-180CDT speaker has an 8-inch woofer.
Q: What is the peak power handling of this Klipsch speaker?
A: This Klipsch speaker has a peak power handling of 200 watts.
Q: What is the tweeter type of this Klipsch speaker?
A: This Klipsch speaker has a dome tweeter.
