Lectron - J1772 Level 2 NEMA 14-50/Hardwired Electric Vehicle (EV) Charging Station- up to 48A (240V)-16' - White
- General
- Brand: Lectron
- Model Number: EV-Charger48A-J1772-Pro
- Product Name: J1772 Level 2 NEMA 14-50/Hardwired Electric Vehicle (EV) Charging Station- up to 48A (240V)-16'
- Color: White
- Power
- Electric Vehicle Charging Level: Level 2 (Level 1 chargers connect to a standard 120V outlet but may take nearly a day to charge a vehicle. Level 2 chargers connect to a dedicated 240V outlet and charge most vehicles within a few hours. Level 3 chargers require a specialized charger and are typically found in public, fast charging stations. Charging requirements vary by vehicle.)
- Input Wiring Type: NEMA 14-50
- Charging Cable Length: 16 feet
- Surge Protection: 100
- Connectivity
- Connector Type(s): SAE J1722 (Type 1) (Type of interface connection found on the device.)
- Features
- Overload Protection: true (Features intended to protect the product from damage and overheating caused by overload.)
- Number of Vehicles Charged Simultaneously: 1
- Certifications Listings & Approvals
- ENERGY STAR Certified: true (Devices carrying the ENERGY STAR service mark, such as computer products and peripherals, kitchen appliances, and other products, generally use 20% to 30% less energy than required by federal standards.)
- Dimensions
- Product Height: 10.43 inches (The out of box height of the item. Height is measured as the vertical distance from the bottom of the item to the top as it would be primarily used or placed.)
- Product Width: 13.77 inches (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
- Product Depth: 17.7 inches (The out of box depth of the item. Depth is measured as the distance from the front of the item to the back as it would be primarily used or placed.)
- Product Weight: 22.71 pounds (The out of box weight of the item.)
- Warranty
- Warranty - Parts: 1 year
- Warranty - Labor: 1 year
- Other
- UPC: 4895230321942

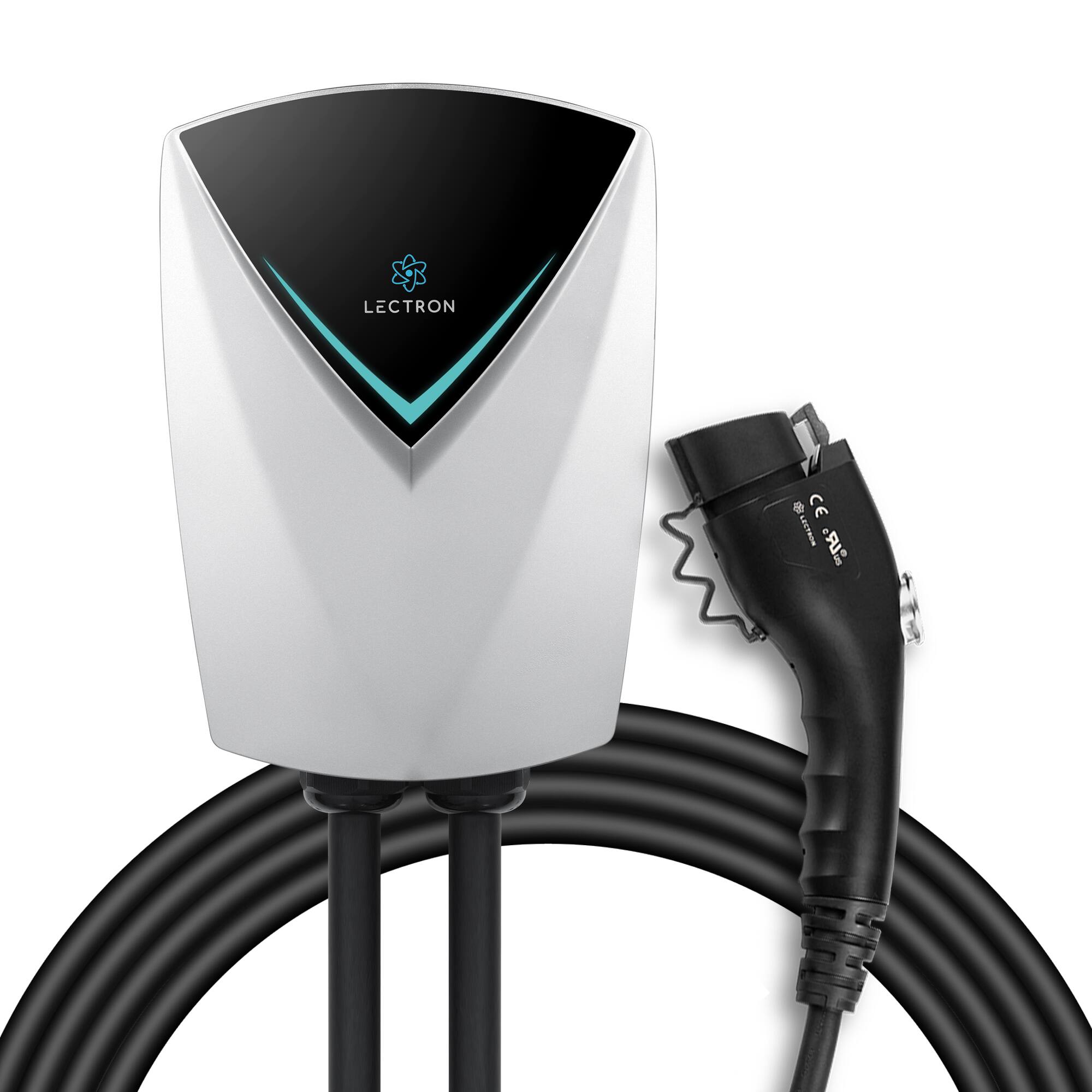

Introducing the Lectron J1772 V-BOX Pro, a powerful EV charger (Level 2) designed to elevate your home charging experience. With a maximum output of 48 amps, this EV charger for home (Level 2) delivers lightning-fast charging speeds, ensuring that your electric vehicle is ready to hit the road in no time.
Q: Does the Lectron EV charger have overload protection?
A: Yes, the Lectron EV charger does have overload protection.
Q: What is the input wiring type for this EV charger?
A: The input wiring type for this EV charger is NEMA 14-50.
Q: How long is the charging cable that comes with the Lectron EV charger?
A: The charging cable that comes with the Lectron EV charger is 16 feet long.
Q: What type of connector does this EV charger use?
A: This EV charger uses the SAE J1772 (Type 1) connector.
Q: What is the maximum amperage output of this EV charger?
A: The Lectron J1772 V-BOX Pro has a maximum output of 48 amps.
Q: Is this EV charger compatible with all J1772 electric vehicles?
A: Yes, the Lectron V-BOX Pro is compatible with all J1772 EVs.
Q: Does the charger come with GFCI protection internally?
A: undefined
Q: Does this charger have a 24 amp setting. It lists 16 amp 32 amp 40 and 48
A: The Lectron J1772 Level 2 NEMA 14-50/Hardwired Electric Vehicle Charging Station does not appear to have a 24-amp setting based on its specifications. It typically offers selectable current options of 16A, 32A, 40A, and 48A. If you are looking for a 24-amp charging setting, this model would not provide that specific option.
