Magewell - USB Capture HDMI Plus Dongle (32040) - Black
FREE shipping to
More Buying Options
About This Item
- General
- Brand: Magewell
- Model Number: 32040
- Product Name: Magewell USB Capture HDMI Plus Dongle (32040)
- Color: Black
- Connectivity
- Input(s): HDMI
- Output(s): USB 3.0
- Warranty
- Warranty - Parts: 3 years
- Warranty - Labor: 3 Year
- Other
- UPC: 8143950200860
The Magewell USB Capture HDMI Plus is a compact single-channel HDMI video/audio capture device with a built-in scaler. It allows you to capture from devices such as game consoles in up to DCI 4K resolution, and it automatically upscales/downscales the signal to 2K for recording or streaming. It also offers a loop-through HDMI port for local monitoring.
- High-Fidelity Capture & Scaling: Supports HDMI input up to 4096×2160 30fps (4:4:4/4:2:2) or 60fps (4:2:0); captures video up to 1080p at 60fps or 720p up to 120fps with on-board scaling (down/up) for flexible streaming/recording.

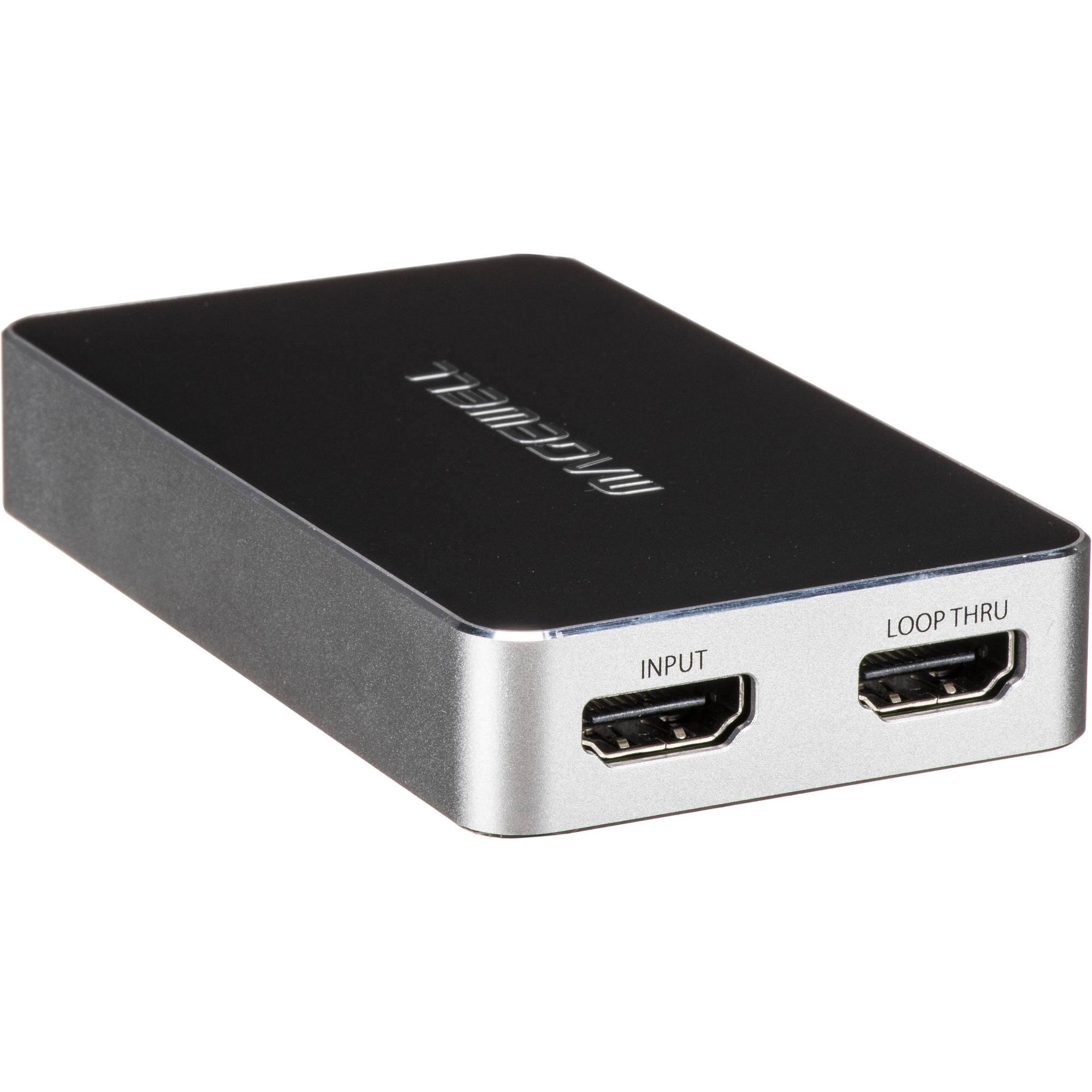

- HDMI Loop-Through Output: Pass through video to a monitor/projector while capturing, enabling zero-delay preview of your content.

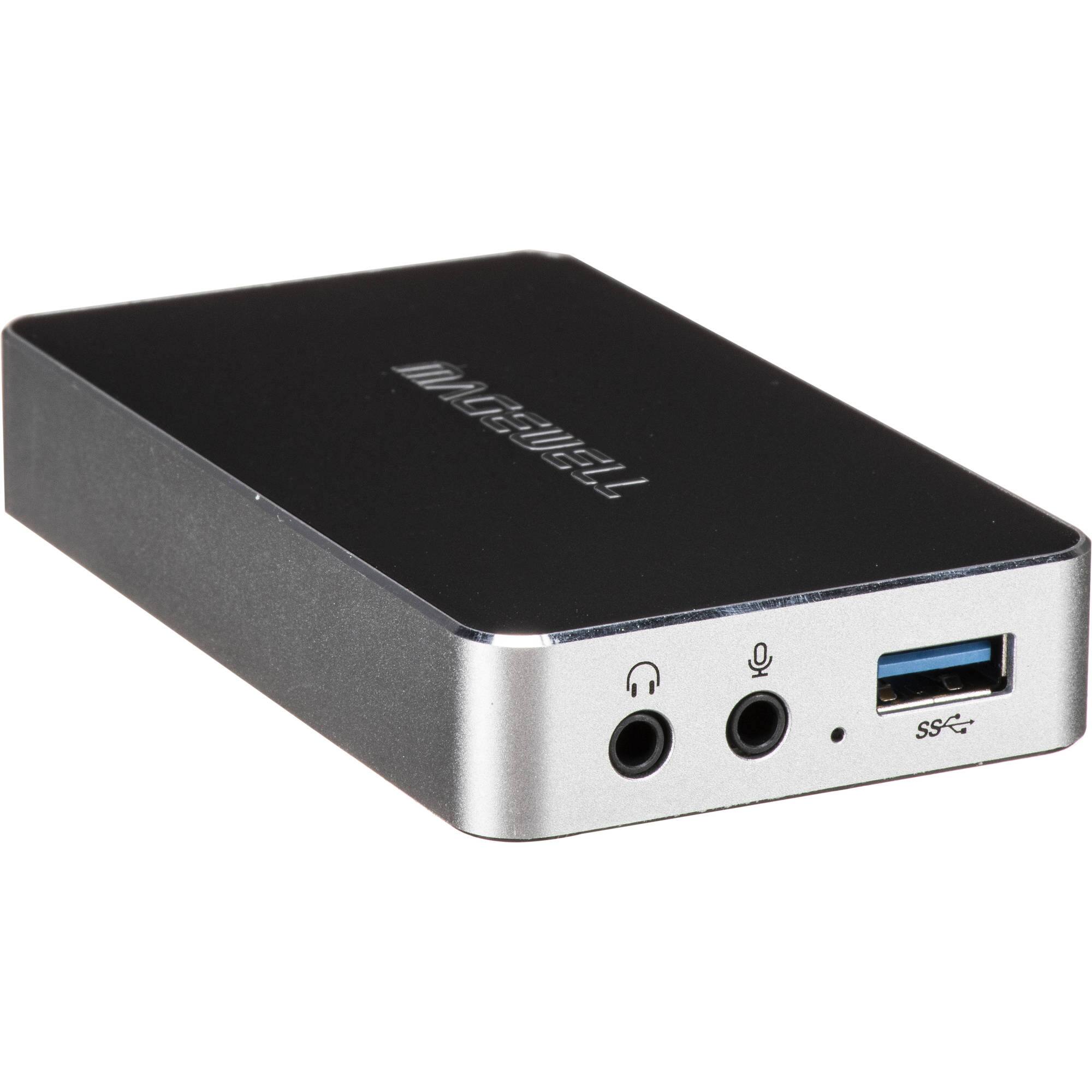

- Flexible Audio Input/Output: Capture embedded HDMI audio or feed in external mic/line signals (3.5 mm). Monitor audio via headphone output in real time.
- USB 3.1 Gen 1 Plug-and-Play: No drivers needed; works out-of-the-box on Windows, macOS, Linux, Chrome OS. USB-powered — no external power adapter.
- Embedded Video Processing: FPGA-based processing handles de-interlacing, cropping, scaling, aspect conversion, color format conversion — offloading CPU usage
