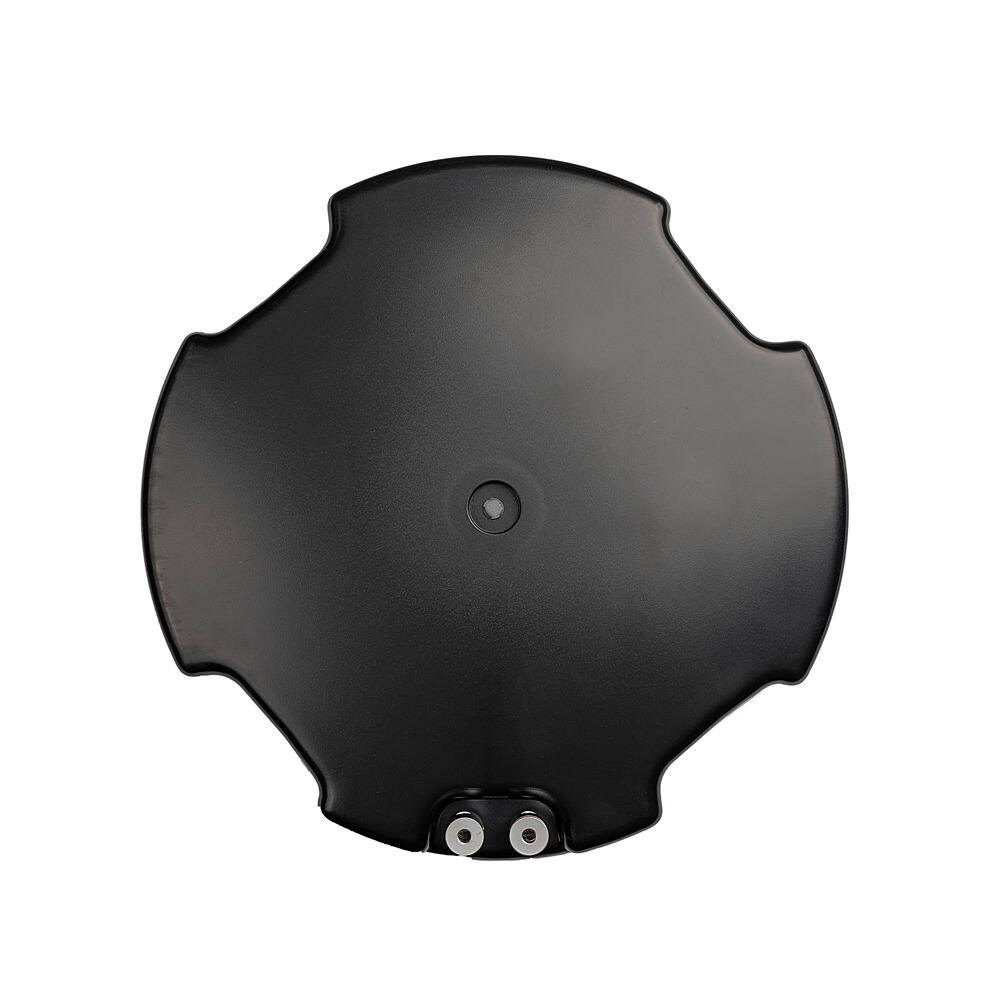

MartinLogan - Motion XT Series CI, Retro-Fit Backbox Enclosure for MC8 and XTC8 - Black/Silver
Specifications
- Speaker TypeIn-Ceiling
- Key Specs
- Speaker Type: In-Ceiling
- General
- Brand: MartinLogan
- Model Number: C8BXR
- Product Name: Motion XT Series CI, Retro-Fit Backbox Enclosure for MC8 and XTC8
- Color: Black/Silver
- Audio
- Speaker Type: In-Ceiling
- Connectivity
- Wireless Multi-Room Audio: false (Technology that allows multiple speakers and/or soundbars to be connected wirelessly and play audio in separate rooms.)
- Audio Only Inputs: No audio only inputs
- Network Connector(s): No network connectors
- Features
- Indoor Or Outdoor Use: Indoor (Indicates the appropriate environment product was designed to be used in.)
- Dimensions
- Product Height: 9.25 inches (The out of box height of the item. Height is measured as the vertical distance from the bottom of the item to the top as it would be primarily used or placed.)
- Product Width: 9.25 inches (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
- Product Depth: 5.78 inches (The out of box depth of the item. Depth is measured as the distance from the front of the item to the back as it would be primarily used or placed.)
- Product Weight: 1.35 pounds (The out of box weight of the item.)
- Mounting Dimensions: 9.25 Cut out diameter
- Other
- UPC: 810123025718
One of the benefits of in-ceiling speakers is how easily they disappear into a room. Unfortunately, the sound coming from the back of the speaker doesn’t disappear and can distract those in the rooms above the speakers. MartinLogan offers back boxes, or enclosures, for Motion CI and Motion XT CI In-ceiling speakers. For these situations where sound control is desired, these retrofittable back boxes are the perfect solution. They offer 20dB of noise reduction into adjacent areas and offer the perfect solution to achieve consistent performance where ceiling cavity sizes may vary throughout an installation. Please note that the volume of air in the retrofit enclosure is smaller than that of your ceiling, and bass extension will be reduced. If sound control is not necessary for your unique installation, we recommend not using the back box so the speaker can take advantage of the larger airspace in your ceiling cavity.
- Model Compatibility: The C8BXR is compatible with the following MartinLogan speaker models: MC8 and XTC8
- Model Compatibility: The C8BXR is compatible with the following MartinLogan speaker models: MC8 and XTC8
Whats Included
- Instruction Sheet
- Screws
- Instruction Sheet
- Screws
Q: Which MartinLogan speaker models are compatible with the C8BXR back box?
A: The C8BXR back box is compatible with the MartinLogan MC8 and XTC8 speaker models.
Q: What is the diameter of the cutout required for installing the C8BXR back box?
A: The C8BXR back box requires a cutout diameter of 9.25 inches for installation.
Q: What is the purpose of the MartinLogan back boxes?
A: MartinLogan back boxes, or enclosures, reduce the sound that travels from the back of in-ceiling speakers to adjacent rooms.
Q: Are there any drawbacks to using the back boxes with my speakers?
A: Yes, using the back box will reduce bass extension because the volume of air in the enclosure is smaller than that of your ceiling.
Q: How much noise reduction do the back boxes provide?
A: These back boxes offer 20dB of noise reduction into adjacent areas.
Q: Does MartinLogan recommend always using the back box?
A: If sound control is not an issue, MartinLogan recommends not using the back box so the speaker can utilize the larger airspace in your ceiling cavity.
Q: Do these fit the IC8 series?
A: Unfortunately, they do not, they only fit the MC8 and XTC8 speaker.
Q: Are these to cap your subwoofer speakers?
A: Hello. These backboxes are designed to work with our in-wall MC8 and XTC8 speakers. The speakers have an exposed back, so adding the backbox can help redistribute the sound waves to listeners below and help remove sound that can transfer to the floor above.
