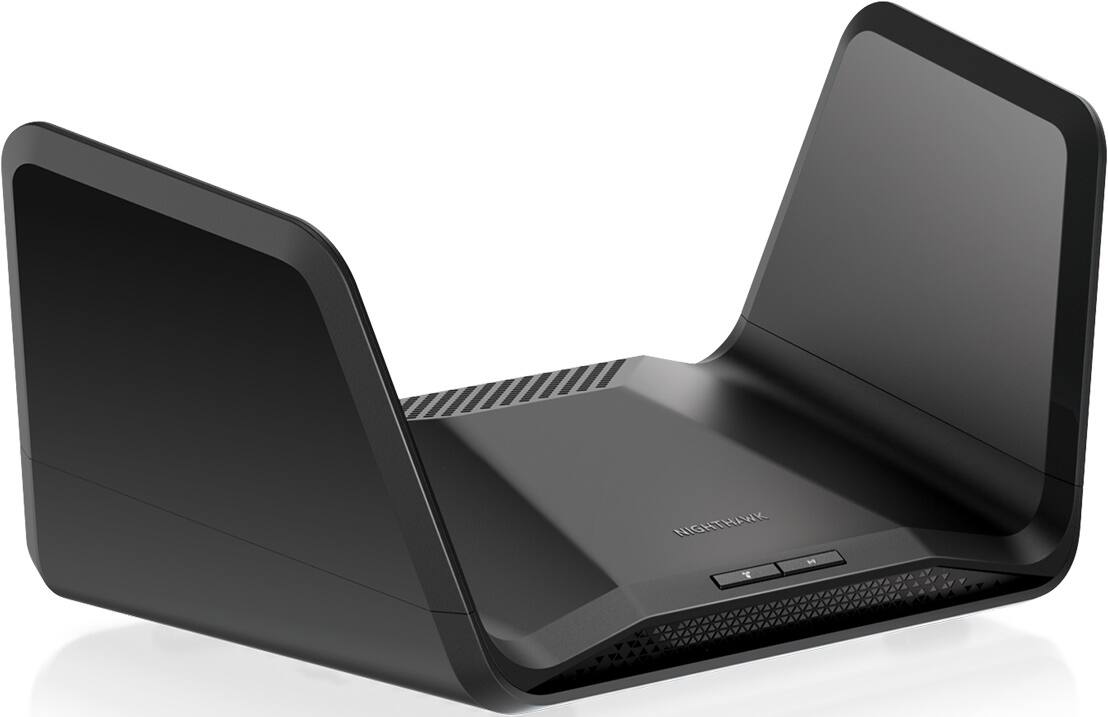

NETGEAR - Nighthawk AXE7800 Tri-Band Wi-Fi Router - Black
Model: RAXE300-100NAS
SKU: 6507582
This item is no longer available in new condition. See similar items below
- Key Specs
- Wi-Fi Range: 2500 square feet (The device will provide a Wi-Fi connection to this approximate area.)
- Number Of LAN Ports: 6 (Number of devices able to be connected to the Local Area Network (LAN). LAN ports allow wired connections to other networking devices (wireless access points, range extenders, etc.) in order to share the internet connection received through a WAN port.)
- Wi-Fi Speed: 7.8 gigabits per second (The maximum rate at which data is transferred between a network device and wireless router.)
- Works With: Amazon Alexa, Google Home (Compatible with or able to be connected to other smart devices or applications.)
- General
- Brand: NETGEAR
- Model Number: RAXE300-100NAS
- Product Name: Nighthawk AXE7800 Tri-Band Wi-Fi Router
- Color: Black
- Security
- Data Encryption: true
- Encryption Type: WPA-PSK, WPA2-PSK, WPA3 (The security protocols or certification programs that protect the Wi-Fi network.)
- Firewall Type: SPI (The method the firewall uses to filter and process data to increase network security, primarily by blocking malicious traffic requests while allowing legitimate traffic through.)
- Security Features: NETGEAR Armor, NETGEAR Smart Parental Controls, Guest network access, WPA3 and VPN support
- Parental Controls: true (Allows user to block unwanted content, signals, channels, networks, etc. from being received or accessed.)
- Network
- Quality Of Service (QoS) Traffic Prioritization: true (Allows a user to manage a device's network performance by configuring the types of traffic that receive top priority for transmission. High priority functions and applications receive maximum network performance, while low priority traffic receives minimum performance.)
- Band Technology: Tri (Refers to the number of frequency bands used to wirelessly transmit an internet signal. For example, dual-band devices may use one 2.4 and one 5 GHz band, while tri-band devices may use one 2.4 and two 5 GHz bands. Multiple bands also provide more flexibility for designating connected devices to specific band use.)
- Ethernet Standard: 10/100/1000/2500 (Each standard is a variation of the IEEE 802.3 set of computer networking technologies known as Ethernet. New versions evolved to include higher bandwidth, different physical media, and other new and improved features. Standards are often denoted by speeds (in Megabits per second). For example, a 10/100/1000 Ethernet port transmits at 10 Mbps, 100 Mbps, and 1000 Mbps (1 Gbps).)
- Number Of Connected Devices: 40

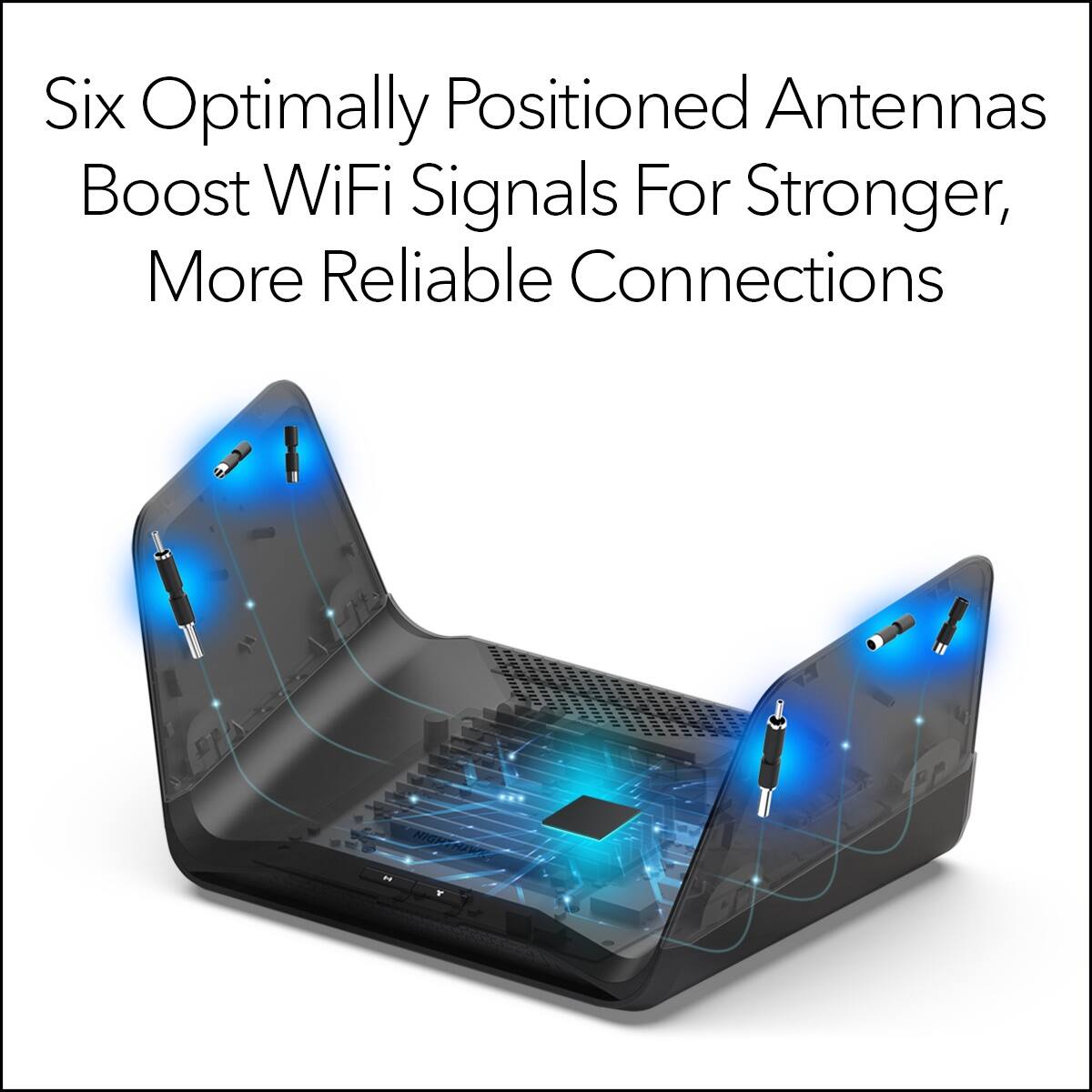

- Number of Antennas: 6
- Frequency Band: 2.4 GHz, 5.0 GHz, 6.0 GHz (Bands may be grouped into categories such as low- and high-band VHF (Very High Frequency), low- and high-band UHF (Ultra High Frequency), or certain frequency channels (measured in MHz or GHz). Generally, higher frequencies transmit information faster but have shorter range than lower frequencies.)
- Wireless Networking Standard: Wi-Fi 6E (The wireless networking standard used by the device. Each iteration of the standard developed by the Wi-Fi Alliance corresponds to an existing IEEE 802.11 protocol; for example, standard 802.11ac (or AC) is termed Wi-Fi 5. Refers specifically to the standard the device is designed to use, but ultimately determines product interoperability and backward compatibility including previous versions.)
- Wireless Standard: AC, AX, N (The wireless networking protocol used by the device. Each iteration of the protocol is based on the 802.11 standard developed by the Institute of Electrical and Electronics Engineers (IEEE) Standards Association. Denoted by letters following 802.11 (802.11a, 802.11ac, etc.), each version, published in alphabetical order, encompasses all previous versions.)
- Wi-Fi Range: 2500 square feet (The device will provide a Wi-Fi connection to this approximate area.)
- Input/Output Technology: MU-MIMO (Multi-user Multiple-Input Multiple Output) (Generally, multiple-input multiple-output communication technologies allow for more signals to be transmitted at a single time, which can improve the device's overall performance.)
- Number of 2.4Ghz Streams: 2 (A router's streams are like lanes on a highway. The more streams a router has, the less traffic congestion. Because the 2.4 GHz band is used to transmit wireless signals to a wide variety of devices, there is often high amounts of traffic on that stream. But with multiple streams, each can be designated to a specific device for optimal performance. For example, if one 2.4 GHz stream is assigned to one device, such as a desktop computer, it leaves the remaining streams open for guest users, devices that use more data, or devices with specific band compatibility.)
- Number of 5.0Ghz Streams: 4 (A router's streams are like lanes on a highway. The more streams a router has, the less traffic congestion. The 5.0 GHz band provides high speed, short-range data transmission and typically has less traffic than the 2.4 GHz band. With multiple streams, each can be designated to a specific device for optimal performance. For example, if one 5.0 GHz stream is assigned to one device, such as a streaming media player, it leaves the remaining streams open for guest users, devices that need less data, or devices with specific band compatibility.)
- Number of 6.0Ghz Streams: 2
- Ethernet Switch: true (Connects multiple devices to expand the Local Area Network (LAN).)
- Certifications Listings & Approvals
- ENERGY STAR Certified: false (Devices carrying the ENERGY STAR service mark, such as computer products and peripherals, kitchen appliances, and other products, generally use 20% to 30% less energy than required by federal standards.)
- Features
- App Compatible: true (The product can be connected to a program or software application on a mobile device, which then receives collected data from the product.)
- App Name: Nighthawk App
- Integrated Modem: false
- Wireless: true
- Ports
- Port Type(s): RJ-45, USB (USB 2.0 connects external drives, gaming controllers, smartphones, MP3 players and other accessories.USB 3.0 transfers data faster than USB 2.0, but only when used with USB 3.0 devices.USB Type-C provides fast speeds and versatile power, featuring connectors with identical ends that plug in upside down or right side up. Adapters allow for video as well as backward compatibility.Thunderbolt provides ultra-high bandwidth for fast data transfer between devices featuring a Thunderbolt or MiniDisplayPort connection.HDMI allows you to connect a projector or display HD media on your HDTV or monitor.Media card slots allow you to transfer photos from your digital camera or camcorder.)
- Number Of LAN Ports: 6 (Number of devices able to be connected to the Local Area Network (LAN). LAN ports allow wired connections to other networking devices (wireless access points, range extenders, etc.) in order to share the internet connection received through a WAN port.)
- Speed
- Wired Speed: 1000.0 megabits per second (The maximum rate at which data is transferred between a network device and router using an Ethernet cable.)
- Wi-Fi Speed: 7.8 gigabits per second (The maximum rate at which data is transferred between a network device and wireless router.)
- Gigabit Ethernet Speed: true (Supports the gigabit Ethernet networking standard, which has a data rate of at least one gigabit per second, or 1,000 Mbps.)
- Compatibility
- Works With: Amazon Alexa, Google Home (Compatible with or able to be connected to other smart devices or applications.)

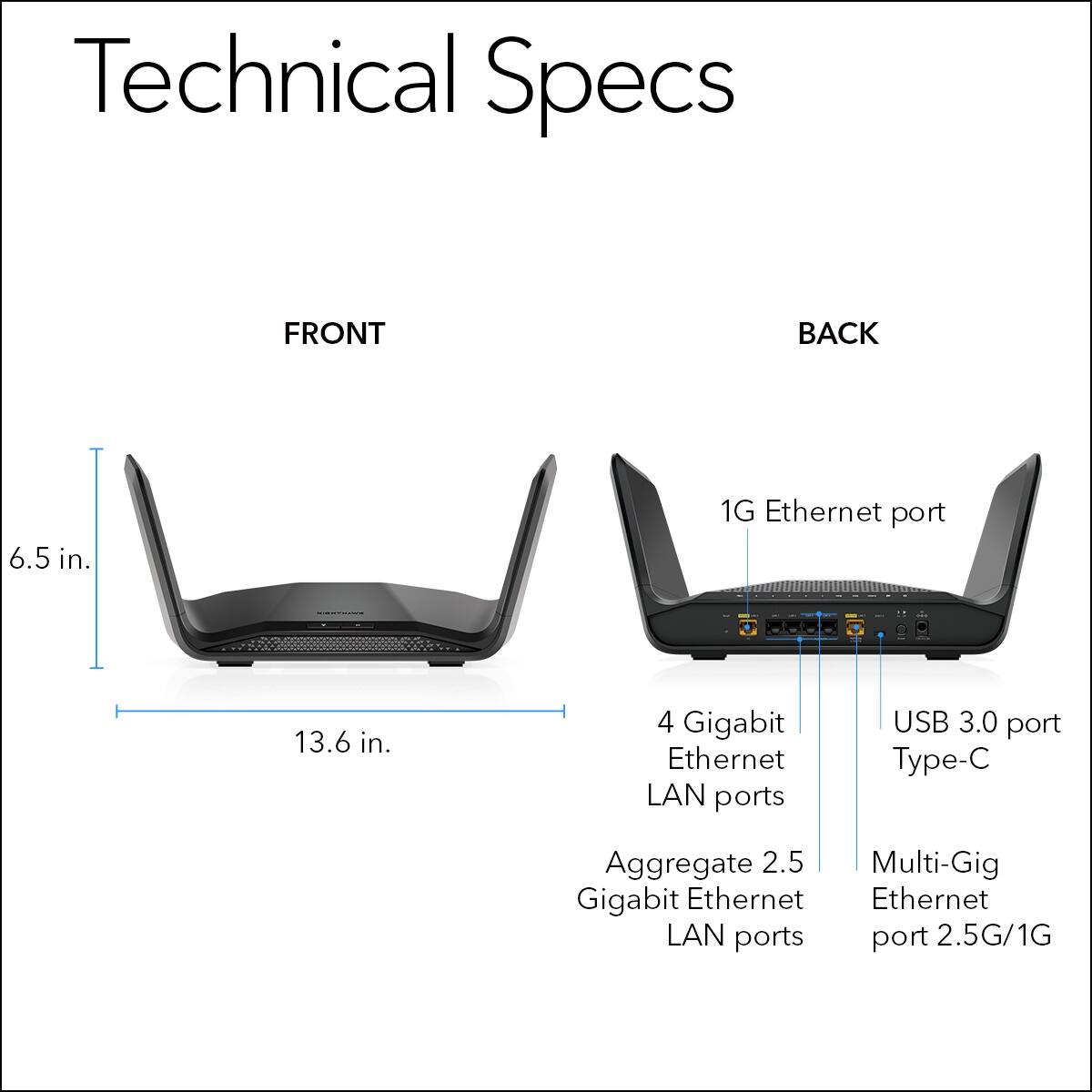

- Dimensions
- Product Height: 6.47 inches (The out of box height of the item. Height is measured as the vertical distance from the bottom of the item to the top as it would be primarily used or placed.)
- Product Length: 8.16 inches (The out of box length of the item. Length is measured as the longest dimension of the item.)
- Product Width: 13.6 inches (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
- Product Weight: 2.23 pounds (The out of box weight of the item.)
- Warranty
- Warranty - Parts: 1 year
- Warranty - Labor: 90 Days
- Other
- UPC: 606449156263
Build a better home network with this NETGEAR Nighthawk tri-band Wi-Fi 6E router. The five Ethernet ports provide Gigabit-speed wired connections, and the powerful antennae support up to eight Wi-Fi streams at once. This NETGEAR Nighthawk tri-band Wi-Fi 6E router has a 6GHz band that delivers wireless speeds of up to 7.8 Gbps. Includes a 1-year NETGEAR Armor all-in-one internet security subscription.
- Wi-Fi 6E technology: Adds a 6GHz band for today's new Wi-Fi 6E devices. Enjoy 4K/8K video streaming, AR/VR gaming and HD videoconferencing.
- 1.7GHz quad-core processor: Powerful 1.7GHz quad-core processor gives you exceptional 7.8Gbps Wi-Fi speed, 6.5x faster than Wi-Fi 5. Backward compatible for all Wi-Fi devices on 2.4GHz and 5GHz bands.
- Powerful security: NETGEAR devices come with security measures built in as well as enhanced safety features and updates designed to help protect you and your family.
- AX7800 Tri-band Wi-Fi router: Coverage up to 2,500 sq. ft. and up to 40 devices.
- One 2.5 Gigabit and Four Gigabit Ethernet ports: 4 x 1G and 1 x 2.5G Ethernet LAN ports for computers, game consoles, streaming players and other wired devices.
- USB 3.0 port: Share a storage drive with any connected device and create a personal cloud store to access from anywhere using the 1 x 3.0 USB port.
- Essential all-in-one internet security: NETGEAR Armor provides a powerful suite of tools to help keep you safe online, including enhanced protection against hackers, malware and identity theft, at home or on the go. Includes 30-day trial.
- NETGEAR Nighthawk app: Sets up easily with the Nighthawk App; easily manage Wi-Fi settings, test internet speed, and monitor data usage.
- Latest security standard: Supports WPA3 with the latest, quality Wi-Fi security protocol.
Whats Included
- NETGEAR Nighthawk AXE7800 Tri-Band Wi-Fi Router
- Ethernet cable
- Power adapter
- Owner's manual
Q: Whats better this or the Nighthawk mesh system.
A: This… 1000% this.. had the mesh and it was horrible. Dropped signals, resetting daily.. it was beyond aggravating. This router covers our 2600 square foot house perfectly.
Q: Is this product compatible with Verizon fios
A: It’s compatible with any ISP. I currently run it on Centurylink fiber and it works great. Review incoming.
Q: It’s compatible with XFINITY / COMCAST
A: Yes - I would suggest you put your XFinity modem into bridge mode.
A: Yes it will switch to 2.4g to run all smart bulbs. And at full strength.
Q: Can you add an Orbi satellite to this router?
A: You can add any other device. But, if you want everything on the same network IP segment, the Orbi should be in AP mode. If not, the Orbi will be another router behind the this router. That can mean more NAT issues, and no being to reach everything from any device. I run a ASUS mesh system in AP mode behind this router for extending range. The router treats anything connected to them as just another device connect directly to it.
A: If you're using the port marked "Internet", it's limited to 1gig. The router supports WAN aggregation, but I'm assuming you have one link from your ISP. If that's the case, try configuring the 2.5Gig port as your WAN interface. Second, all of the LAN connections are going to be 1Gig as well. This router does support LAN link aggregation if you use the two aggregate link ports, which would allow you to have 1Gig + 1Gig = 2Gig to the device. Some computers, especially gaming computers, have two LAN connections for this reason. So, run your internet into the 2.5Gig port, and run two cables to your computer using the aggregate ports to get 1gig+1gig. At least that's how I understand it.
Q: Does it support a land line
A: Yes
