Night Owl - 8-Channel, 4-Camera Indoor/Outdoor Wired 1080p 1TB DVR Surveillance System - Black/White
- Key Specs
- Camera Resolution: 1920 x 1080 (Refers to the number of pixels, both horizontally and vertically, used to capture video/images. The higher the resolution the finer the detail that can be seen.)
- Field Of View: 100 degrees (The area of a target, measured as an angle from the location of viewing, that can be observed.)
- Night Vision: true
- Number Of Cameras Included: 4
- Number Of Channels: 8
- Recording Resolution: 1920 x 1080 (Refers to the number of pixels, both horizontally and vertically, used to capture video. The higher the resolution the finer the video detail that can be seen.)
- Indoor Or Outdoor Use: Indoor, Outdoor (Indicates the appropriate environment product was designed to be used in.)
- Minimum Operating Temperature: -13 degrees fahrenheit (The lowest recommended ambient (surrounding) temperature in which the product can ideally operate stated by the manufacturer. Generally long-term exposure of the product to temperatures less than the minimum can result in ineffective operation.)
- Maximum Operating Temperature: 122 degrees fahrenheit (The highest recommended ambient (surrounding) temperature in which the product can ideally operate stated by the manufacturer. Generally long-term exposure of the product to temperatures more than the maximum can result in ineffective operation.)
- General
- Brand: Night Owl
- Model Number: AHD10-841
- Product Name: 8-Channel, 4-Camera Indoor/Outdoor Wired 1080p 1TB DVR Surveillance System
- Color: Black/White
- Camera
- Camera Resolution: 1920 x 1080 (Refers to the number of pixels, both horizontally and vertically, used to capture video/images. The higher the resolution the finer the detail that can be seen.)
- Field Of View: 100 degrees (The area of a target, measured as an angle from the location of viewing, that can be observed.)
- Night Vision: true
- Night Vision Distance: 100 feet
- Number Of Cameras Included: 4
- Frame Rate: 30 frames per second (The frequency at which consecutive images can be captured. The higher the frame rate, the more detail that can be captured.)
- Number of IR LEDs: 30 (Quantity of infrared (IR) LED lights for emitting IR light and allowing the camera to detect objects in low light.)
- Camera Infrared Distance: 100 feet (The distance over which the camera's infrared, or night vision, capabilities can detect objects.)
- Image Sensor Type: CMOS (CCD and CMOS are the two main technologies used in image sensors. CCD, the older of the two types, turns analog light signals into digital pixels. This conversion happens without distortion, resulting in high-quality images. Newer CMOS sensors use transistors at each pixel to move electrical charges. CMOS sensors are typically less expensive, but also require more light to create distortion-free images.)
- Camera Mount Type: Other
- Compatibility
- Camera Compatibility: Not Available
- Operating System Compatibility: Android, Apple iOS, Mac, Windows
- Connectivity
- Camera Connectivity: Wired (Security system cameras can be set up in several ways. Wired cameras require cables for power and footage transmission, while wire-free cameras don't need cables for either. Wireless cameras still require cables for receiving power but are able to transmit footage via a wireless network.)
- Recording & Playback
- Number Of Channels: 8
- Video Compression Type: H.264
- Recording Resolution: 1920 x 1080 (Refers to the number of pixels, both horizontally and vertically, used to capture video. The higher the resolution the finer the video detail that can be seen.)
- Storage
- DVR Storage Capacity: 1000 gigabytes
- Internal Storage Capacity Upgradeable Upto: 6000 gigabytes
- Performance
- Indoor Or Outdoor Use: Indoor, Outdoor (Indicates the appropriate environment product was designed to be used in.)
- Minimum Operating Temperature: -13 degrees fahrenheit (The lowest recommended ambient (surrounding) temperature in which the product can ideally operate stated by the manufacturer. Generally long-term exposure of the product to temperatures less than the minimum can result in ineffective operation.)
- Maximum Operating Temperature: 122 degrees fahrenheit (The highest recommended ambient (surrounding) temperature in which the product can ideally operate stated by the manufacturer. Generally long-term exposure of the product to temperatures more than the maximum can result in ineffective operation.)
- Features
- Mobile Notifications: true
- Auto-On Detection: Motion
- Dimensions
- Camera Height: 2.4 inches
- Camera Width: 2.4 inches
- Camera Depth: 6.9 inches
- DVR Height: 2.3 inches
- DVR Width: 9.3 inches
- DVR Depth: 13.8 inches
- Sensor
- Sensors: Motion sensor (Detects stimuli such as heat, light, sound, motion, or pressure and responds accordingly by operating a control or initiating a function of the device.)
- Output
- DVR Output(s): HDMI, VGA, RCA audio, USB 2.0
- Included
- Camera(s) Included: true
- DVR Included: true
- Remote Control Included: true
- Cable(s) Included: true
- Other
- UPC: 810830024769

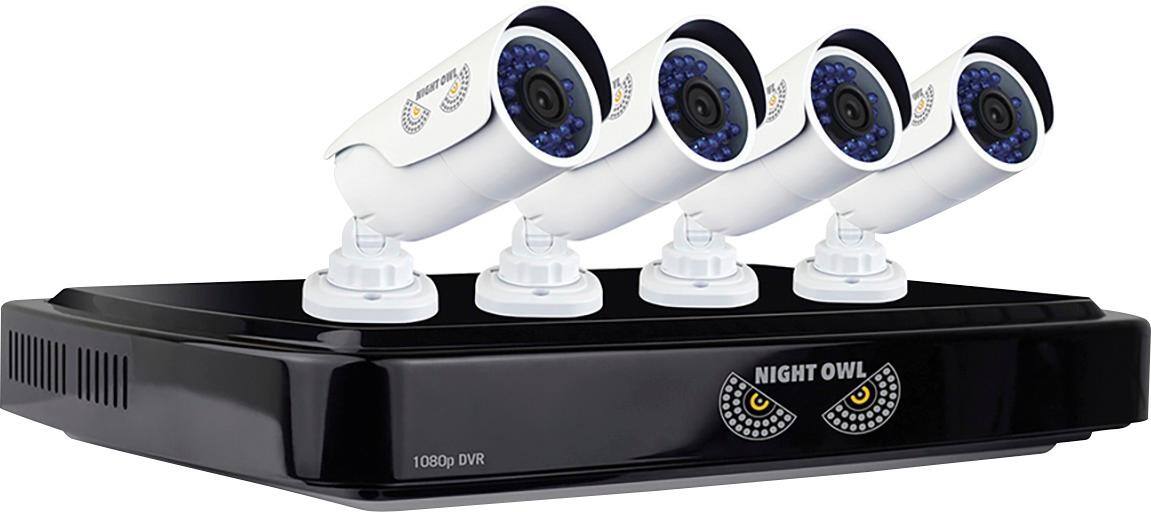

Spot unusual activity in your home or business with this eight-channel Night Owl video security system. It comes with four 1080p cameras with motion-activated recording and 100-foot night vision to provide clear footage in Full HD. This Night Owl video security system has 1TB of hard drive storage and is expandable up to 4TB.
- Motion-activated design: Automatically records once motion is detected.
- Monitor your property with 4 cameras: Also includes DVR, remote control, mouse, power splitter and 3 security stickers.
- Set and forget with hard drive storage: Record continuously from 8 channels with a 1TB hard drive.
- High-resolution technology captures superior footage: Cameras use advanced image sensors to record larger, clearer full-screen video. They produce an image that is 1920 horizontal and 1080 vertical pixels in size.
- Infrared night vision lets you see in the dark: Keep an eye on things up to 100' away when there's little to no light.
- Viewing angle up to 100°: Expertly captures a wide angle of your property for exceptional security at all times.
- HDMI and VGA outputs: Connect to a wide range of compatible displays for versatile viewing, including your HDTV, LCD or plasma TV. USB connectivity makes it easy to transfer stored footage.
Whats Included
- Night Owl 8-Channel, 4-Camera Indoor/Outdoor Wired 1080p 1TB DVR Surveillance System
Product Manuals
Q: what is the difference between a 4-channel system and a 8 Channel system
A: The number of cameras that can be connected. Channels=cameras.
Q: it says black/white is the mean no color or is that just colors of dvr an cameras
A: Good Afternoon. The cameras with this system are White and the DVR is Black. Furthermore, during the day the cameras display in full color mode. At night, they switch to black and white mode for Night Vision. Thanks for choosing Night Owl!
Q: Does this have the option to download an app to be able to view your footage from it?
A: Yes, this system is compatible with our Free Night Owl HD App. It can be downloaded and easily configured for remote viewing. You will be able to receive motion notifications, view recordings and save recordings and images directly to your smart device. Thanks for choosing Night Owl!
Q: Do I need to hook up Ethernet cable to the DRV view camera on my mobile phone or can I use WiFi?
A: You need to connect via Ethernet cable to the main DVR This is what I use.
A: Hi Prof. With the DVR connected to a TV or monitor via HDMI, you will be able to live view all of your cameras 24/7. Additionally, you have live view options via our FREE CMS on a PC or Mac and via our FREE App on a smart device. By default, the system is set to motion record. If you would like to switch this to 24/7 record, you can do that. However, it will quickly fill up your HDD and recordings will likely only be stored for a few days before they are overwritten to make way for new recordings. Thank you for choosing Night Owl!
Q: Does this setup have the push notifications for your phone when motion is detected?
A: Yes and it will drive you insane going off every second.
Q: Do I need internet to record on the DVR, and can a connect a tablet to view recorded images
A: The Night Owl 4-Camera Indoor/Outdoor Wired Surveillance System does not require Internet or wifi access to record to the DVR.
Q: How long are the cables that are included with this system?
A: Mine came with four 60' cables.
