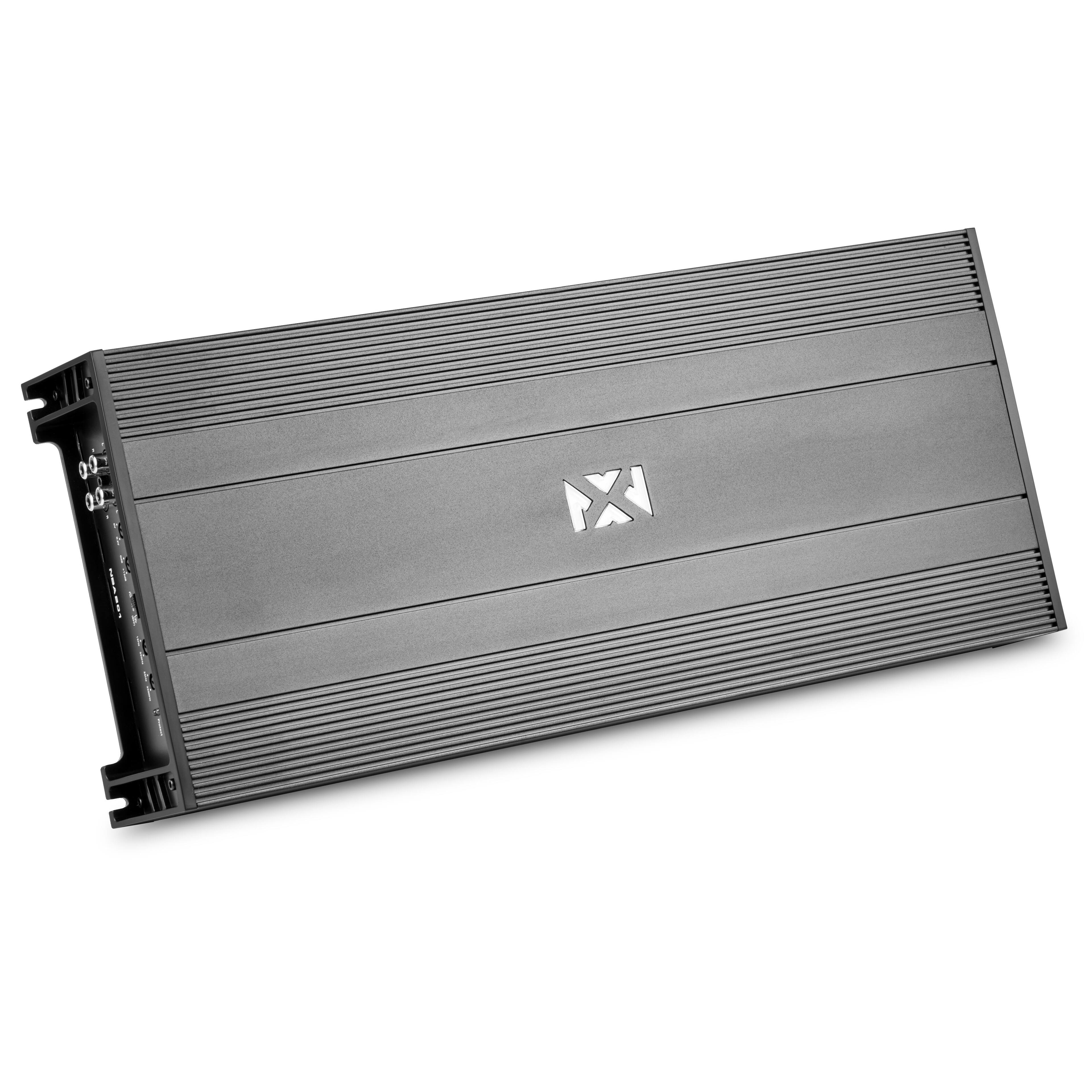

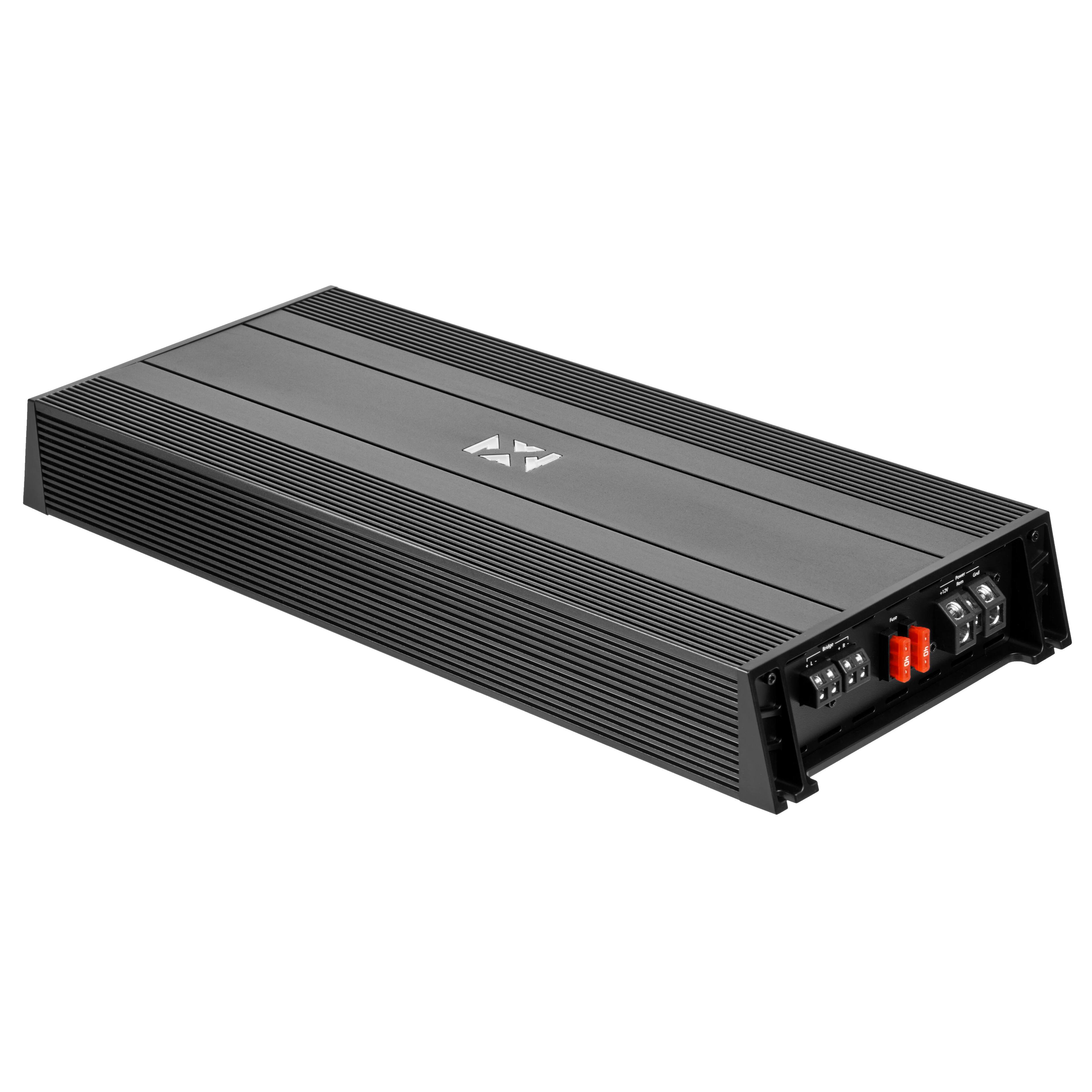

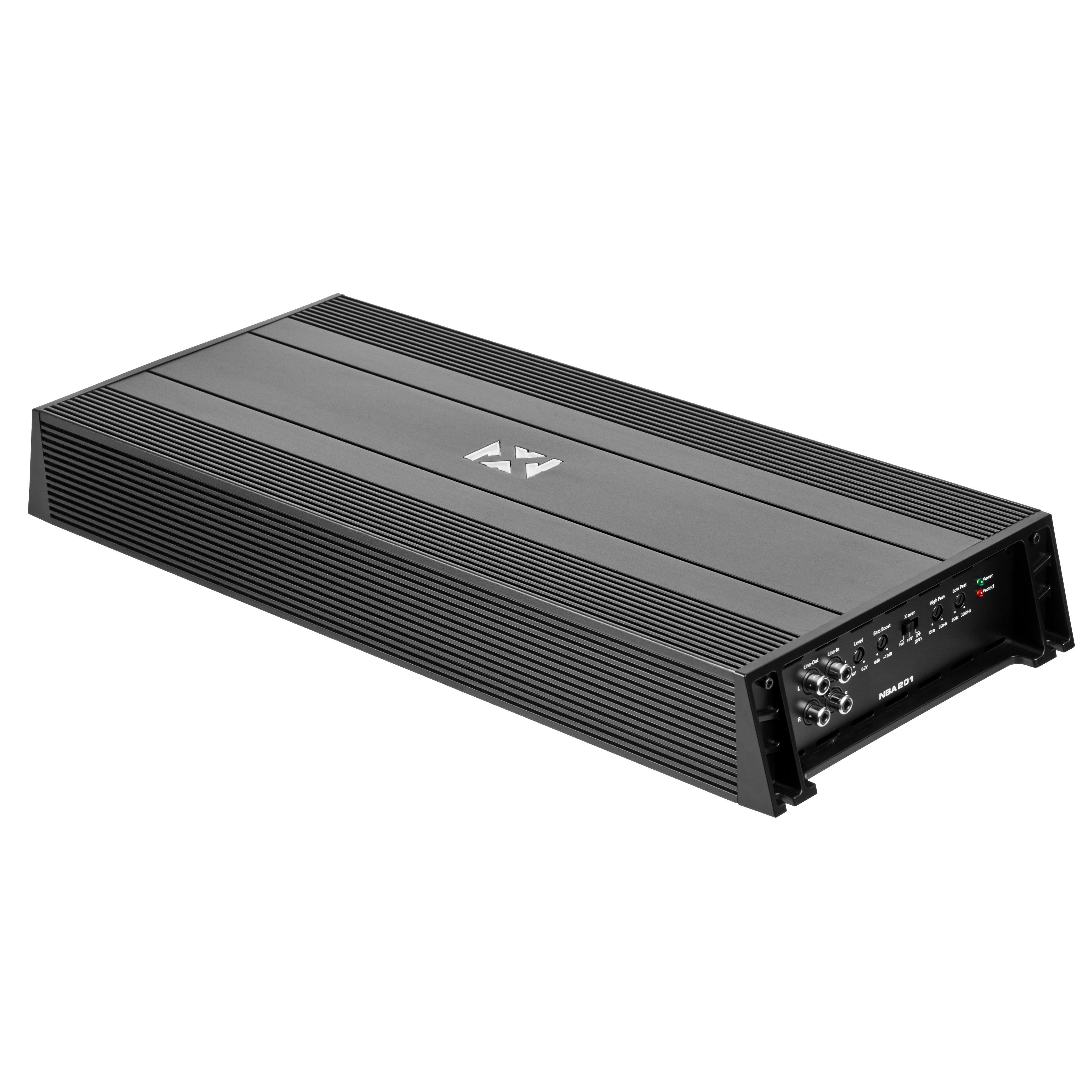

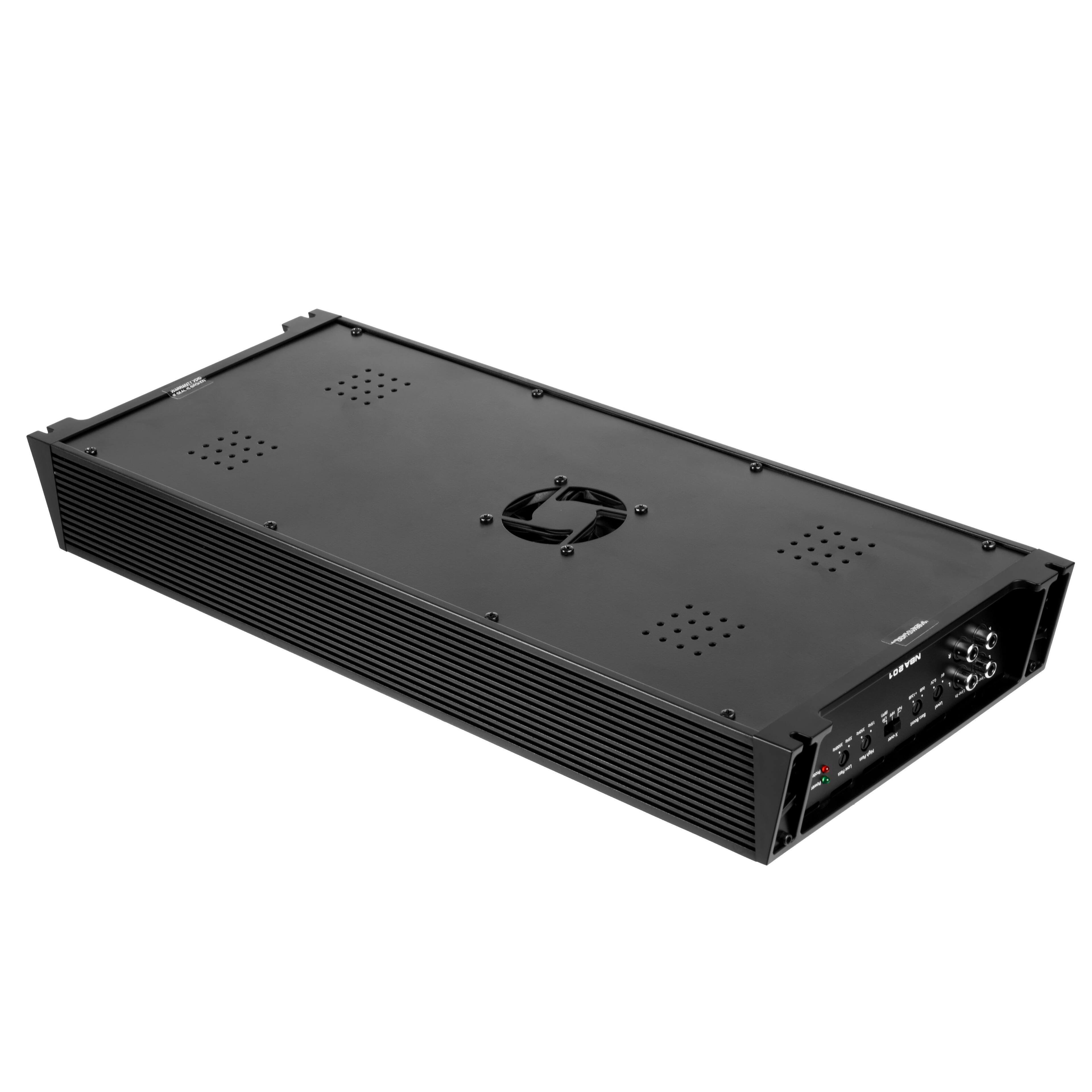

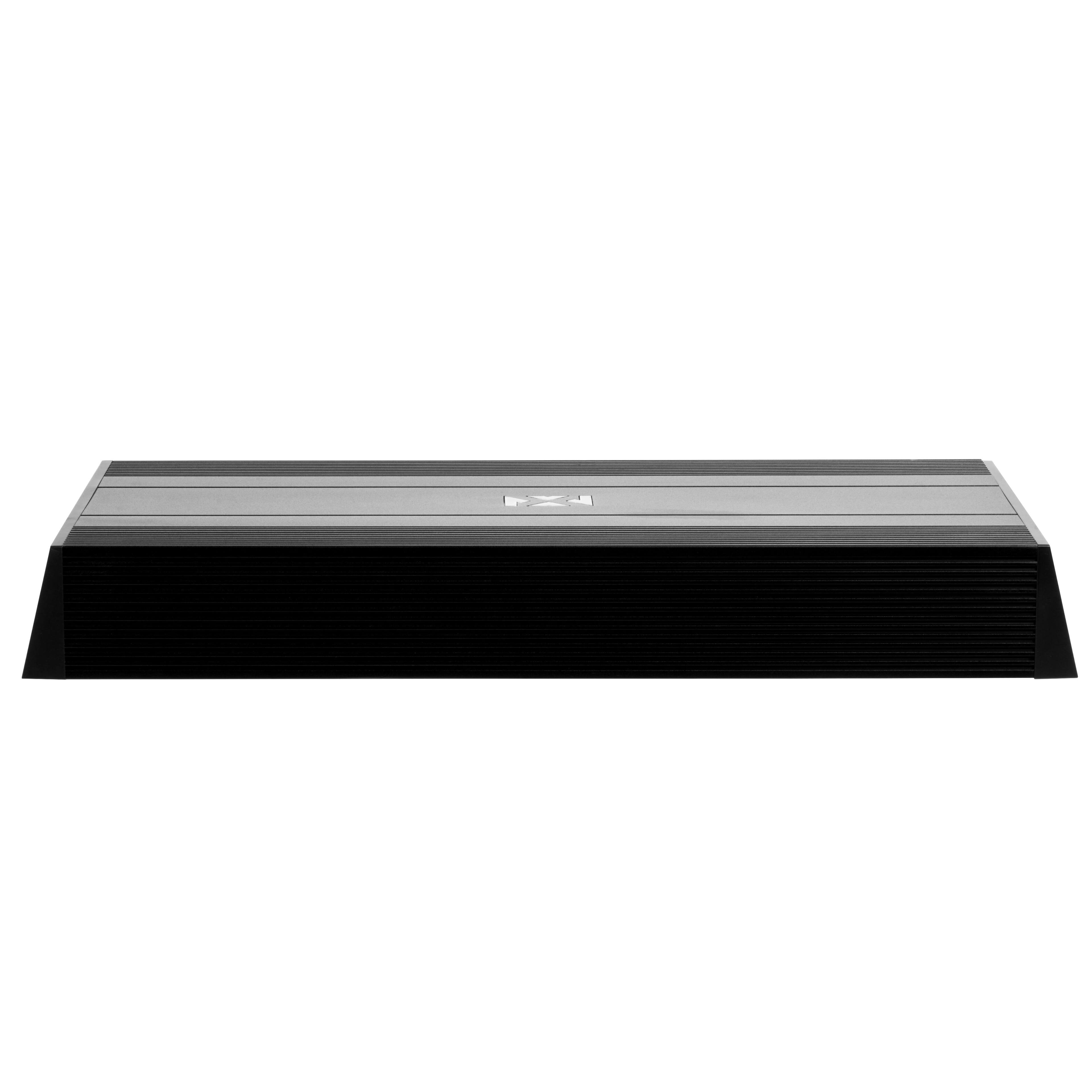

NVX - NBA201 700 Watt RMS 2-Channel N-Series Class A/B Car Audio Amplifier (CEA-2006 Compliant)

Model: nba201
SKU: 12333658

Not yet reviewed

$99.99
or
Availability
FREE shipping to
Sold & shipped by
NVX® Direct
Specifications
  • Amplifier Class
    AB
    Number Of Channels
    2
    Bass Boost
    Variable
  • Key Specs
    • Amplifier Class: AB (An amplifier's mode of operation, specifically the conditions in which its electrical current flows for the duration of an audio signal, determines its class. Each class has its strengths and weaknesses when it comes to power efficiency, levels of crossover distortion, and overall sound quality.)
    • Number Of Channels: 2
    • Bass Boost: Variable (Circuitry that boosts the bass response of the amplifier, improving audio reproduction enhancing the sound of low frequencies. Fixed boost means the level of bass response is preset, whereas variable boost allows the user to make adjustments.)
  • General
    • Brand: NVX
    • Model Number: nba201
    • Product Name: NBA201 700 Watt RMS 2-Channel N-Series Class A/B Car Audio Amplifier (CEA-2006 Compliant)
  • Audio Power
    • Total Power Handling RMS: 700 watts
    • Amplifier Class: AB (An amplifier's mode of operation, specifically the conditions in which its electrical current flows for the duration of an audio signal, determines its class. Each class has its strengths and weaknesses when it comes to power efficiency, levels of crossover distortion, and overall sound quality.)
  • Audio
    • Number Of Channels: 2
    • Total Harmonic Distortion: 0.5 percent (Measurement of the harmonic sound distortion. The lower the percentage, the cleaner the sound.)
    • Signal-to-Noise Ratio (SNR): 90 decibels (The ratio of the desired signal's strength to the level of background noise. A ratio higher than 1:1, which equates to greater than 0 decibels, indicates more signal than noise.)
    • Bass Boost: Variable (Circuitry that boosts the bass response of the amplifier, improving audio reproduction enhancing the sound of low frequencies. Fixed boost means the level of bass response is preset, whereas variable boost allows the user to make adjustments.)
  • Features
    • MOSFET Power Supply: true (A specific type of power supply with the advantages of high switching speed and efficiency at low voltages.)
    • Marine: false
  • Dimensions
    • Product Height: 2.4 inches (The out of box height of the item. Height is measured as the vertical distance from the bottom of the item to the top as it would be primarily used or placed.)
    • Product Width: 18.9 inches (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
    • Product Depth: 7.8 inches (The out of box depth of the item. Depth is measured as the distance from the front of the item to the back as it would be primarily used or placed.)
    • Product Weight: 10 pounds (The out of box weight of the item.)
  • Warranty
    • Warranty - Parts: 1-year Manufacturer's Warranty
    • Warranty - Labor: 1-year Manufacturer's Warranty
  • Other
    • UPC: 810021843124

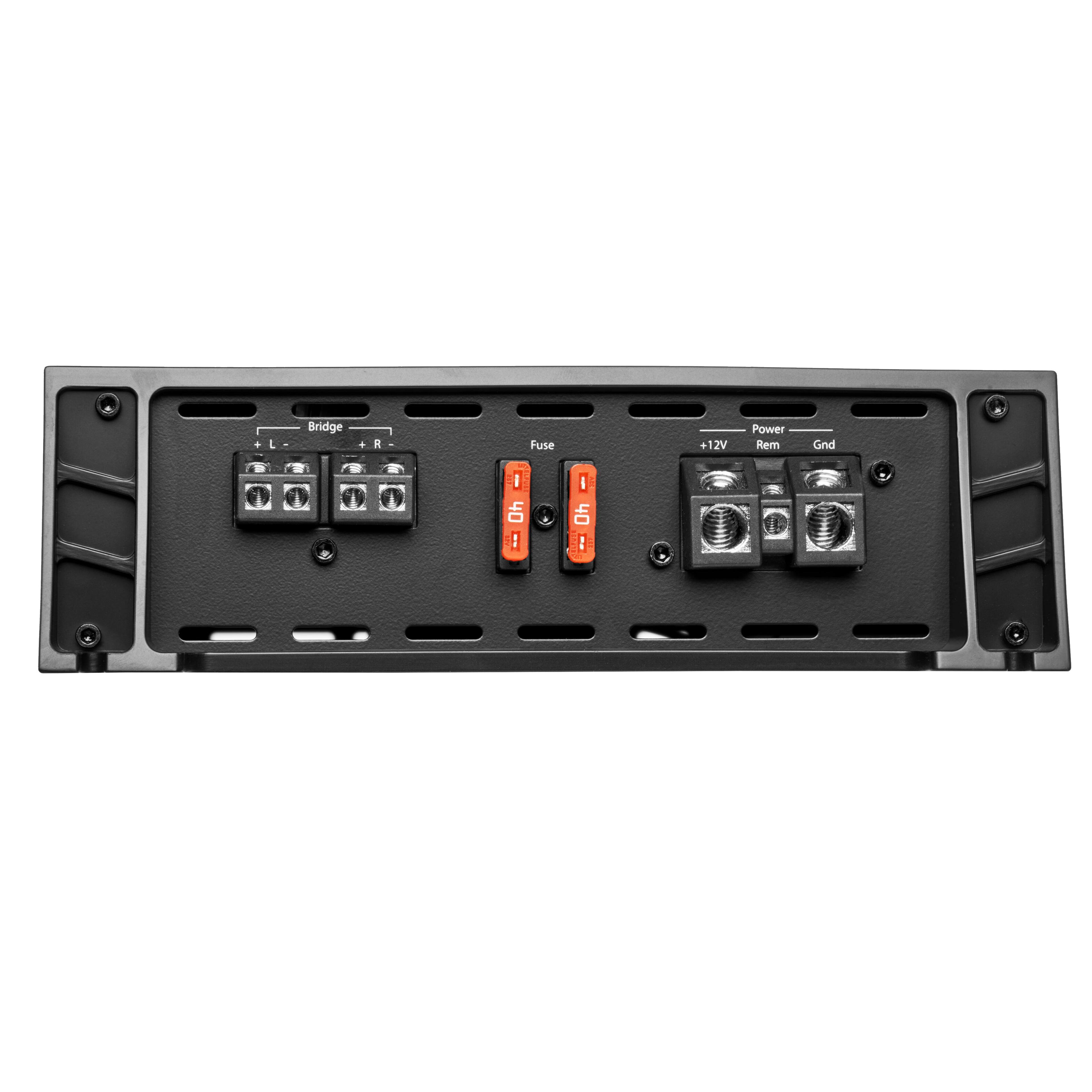

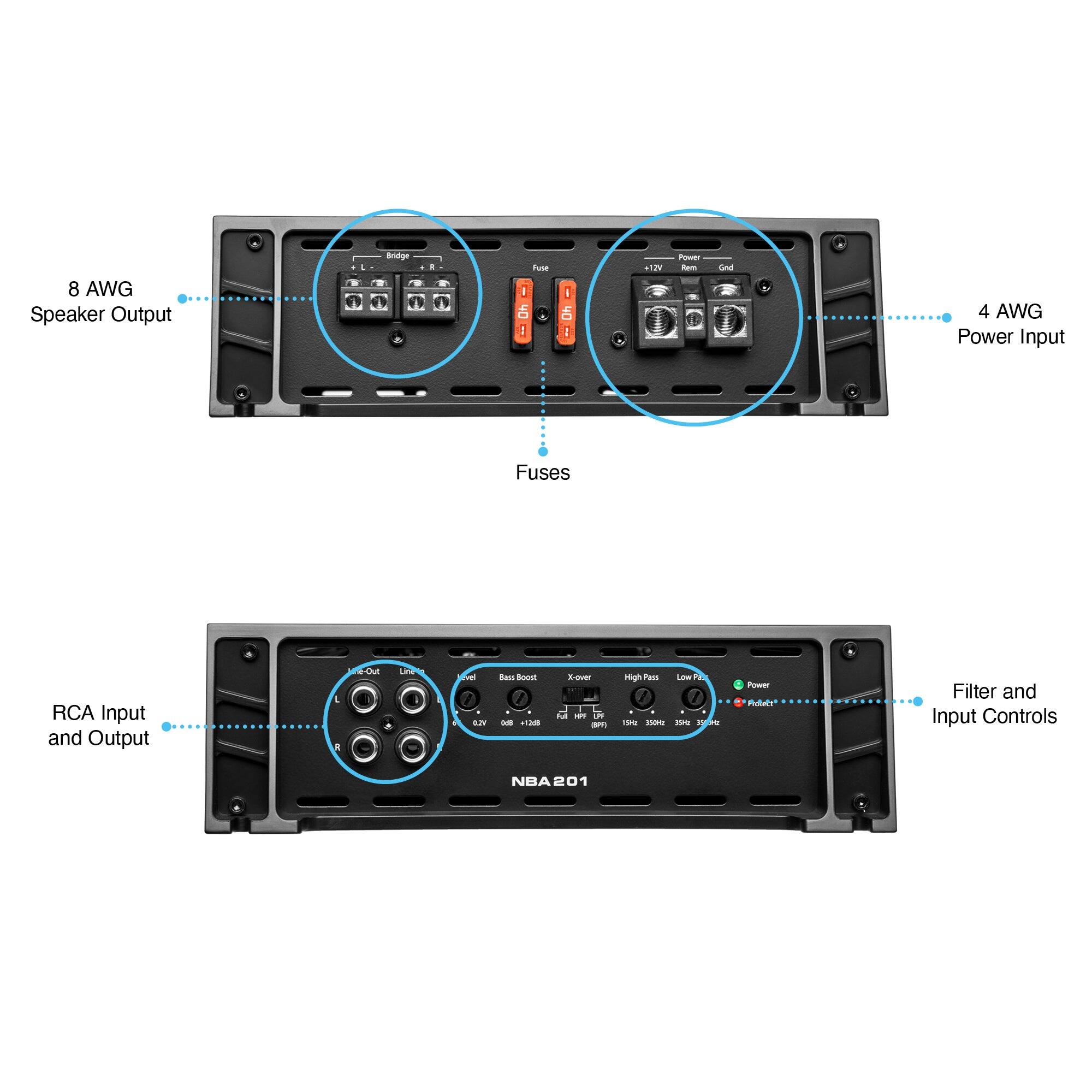

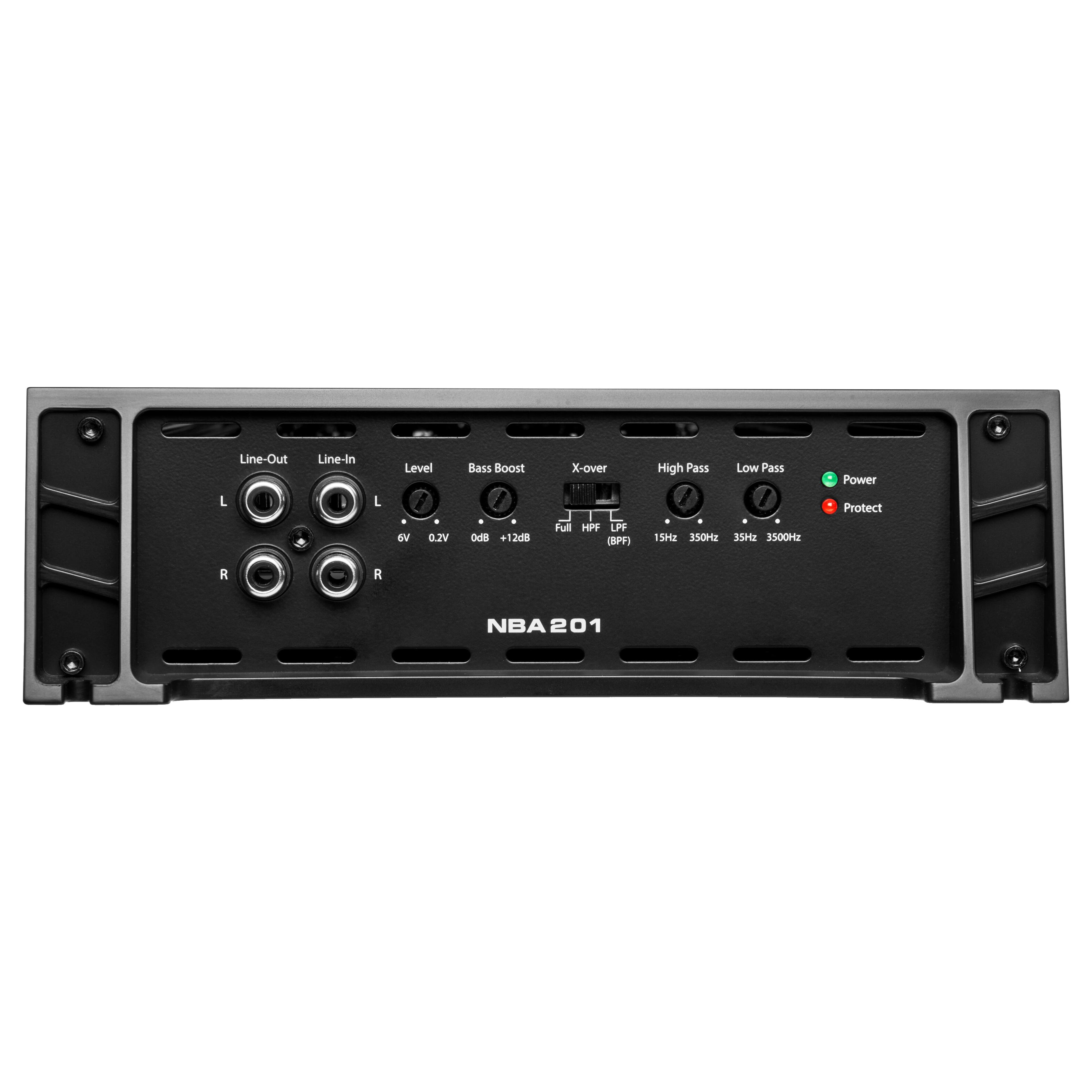

NVX N-Series NBA201. Class A/B 2 ohm Stable 2-Channel Amplifier. RMS Power Rating: . 4 ohm: 200 watts x 2 channel. 2 ohm: 350 watts x 2 channel. Bridged, 4 ohm: 700 watts x 1 channel. Total power output: 700 watts. CEA-2006 Compliant Amplifier. Pulse Width Modulated MOSFET power supply. 3-way protection circuitry (thermal, overload, and speaker short protection). Input sensitivity: . Low level: 0. 2V-6V. Frequency Response: 10 - 50 kHz. Total Harmonic Distortion (THD): 0. 5%. Signal to Noise Ratio: 90 dB. Variable high-pass filter: 15 - 350 Hz, 24 dB/octave. Variable low-pass filter: 35 - 3500 Hz, 24 dB/octave. Subsonic filter: , 24 dB/octave. Variable Bass Boost: 0 - 12 dB bass boost at 50 Hz. Fuse Rating: 40A x 2. 4 AWG gauge power and ground wiring is recommended for installation. Contact us for information regarding a discount on select amplifier kits from our website when purchased together with this amplifier. Click Here for our contact information. Dimensions: 18. 9" W x 7. 8" L x 2. 4" H. Authorized Internet Dealer. 1-year Manufacturer's Warranty.

  • RMS Power Rating:: Class A/B 2 ohms Stable 2-Channel Amplifier. 4 ohms: 200 watts x 2 channel | 2 ohms: 350 watts x 2 channel | Bridged, 4 ohms: 700 watts x 1 channel
