NVX - NSW124v3 1000W Peak (500W RMS) N-Series v3 12in Dual 4-Ohm Car Subwoofer
NVX - NSW124v3 1000W Peak (500W RMS) N-Series v3 12in Dual 4-Ohm Car Subwoofer
Woofer Size
12"Specifications
- RMS Power500 wattsPeak Power Handling1000 wattsImpedance4 ohmsWoofer Size12"
- Key Specs
- RMS Power: 500 watts (The maximum amount of continuous power the device is able to handle.)
- Peak Power Handling: 1000 watts (The maximum amount of power an electronic device, like a speaker, can handle without damage. This refers to short bursts of power, while root mean square (RMS) power handling indicates the amount of continuous power a device can sustain. Higher levels of distortion can also occur at peak power levels when the device is powered beyond its recommended usage.)
- Impedance: 4 ohms (Describes the resistance of an electric signal throughout the system. Devices with low impedance require less power to deliver optimal signals but are more at risk for damage from overloading. Higher impedance requires more power but is more protected from overload damage.)
- Woofer Size: 12"
- General
- Brand: NVX
- Model Number: nsw124v3
- Product Name: NSW124v3 1000W Peak (500W RMS) N-Series v3 12in Dual 4-Ohm Car Subwoofer
- Number of Subwoofers Included: 1
- Audio Power
- RMS Power: 500 watts (The maximum amount of continuous power the device is able to handle.)
- Peak Power Handling: 1000 watts (The maximum amount of power an electronic device, like a speaker, can handle without damage. This refers to short bursts of power, while root mean square (RMS) power handling indicates the amount of continuous power a device can sustain. Higher levels of distortion can also occur at peak power levels when the device is powered beyond its recommended usage.)
- Audio
- Impedance: 4 ohms (Describes the resistance of an electric signal throughout the system. Devices with low impedance require less power to deliver optimal signals but are more at risk for damage from overloading. Higher impedance requires more power but is more protected from overload damage.)
- Features
- Marine: false
- Dimensions
- Woofer Size: 12"
- Product Height: 8.35 inches (The out of box height of the item. Height is measured as the vertical distance from the bottom of the item to the top as it would be primarily used or placed.)
- Product Width: 13.58 inches (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
- Product Depth: 13.58 inches (The out of box depth of the item. Depth is measured as the distance from the front of the item to the back as it would be primarily used or placed.)
- Product Weight: 15.1 pounds (The out of box weight of the item.)
- Warranty
- Warranty - Parts: 1-year Manufacturer's Warranty
- Warranty - Labor: 1-year Manufacturer's Warranty
- Other
- UPC: 818060010590

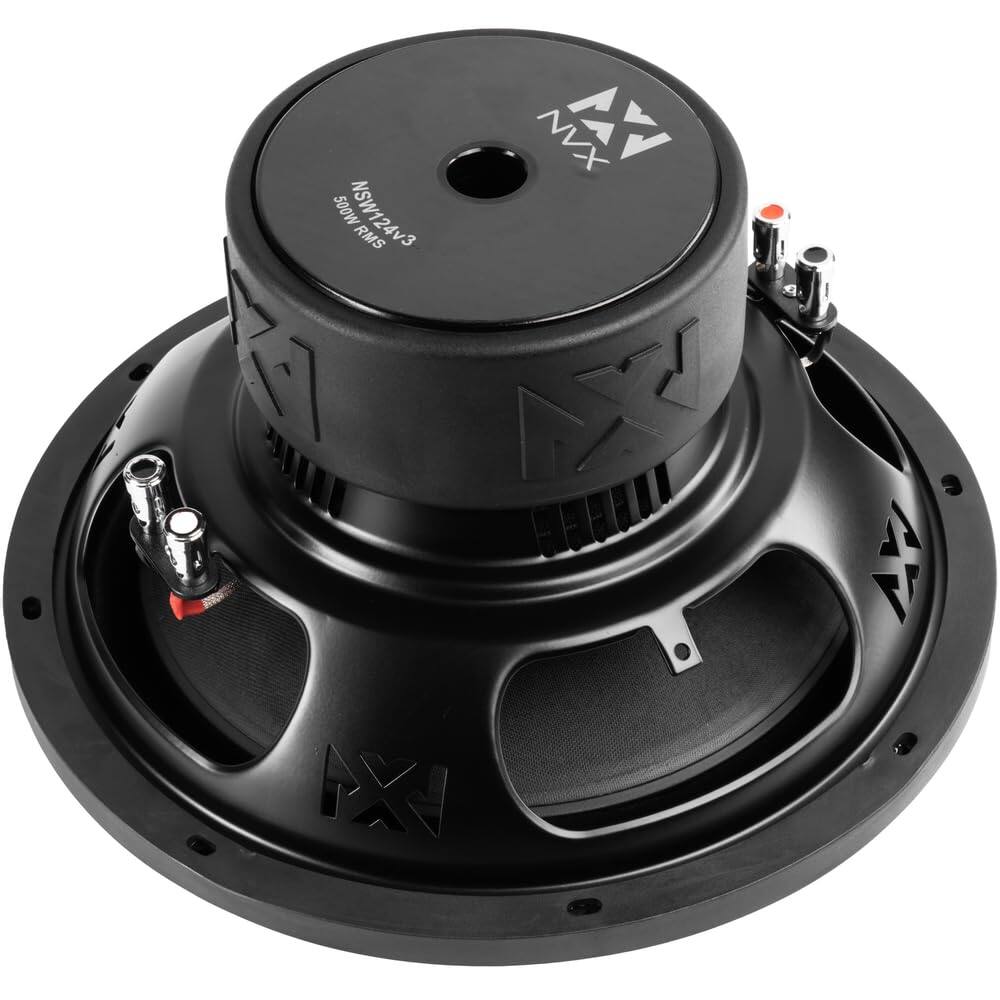

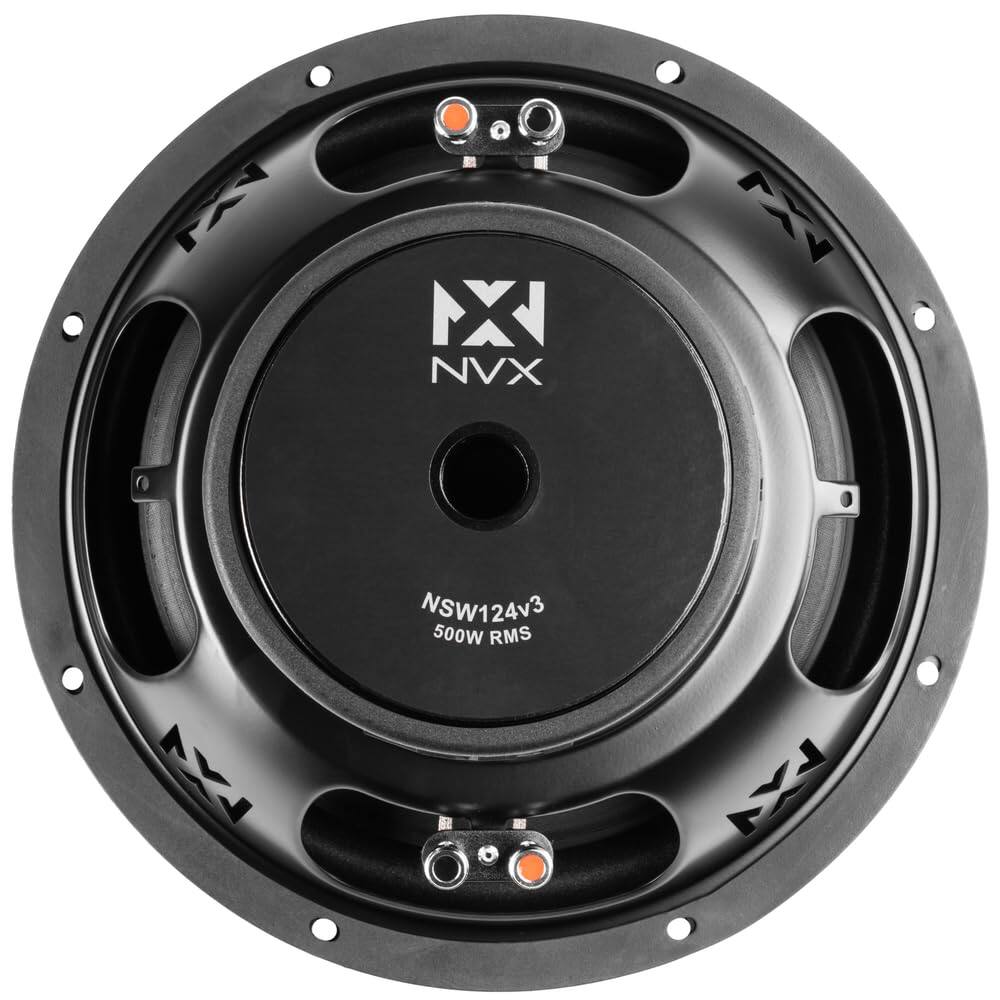

Product Details: 12" Dual 4 ohm N-Series Subwoofer. Power Handling: . Peak: 1000 watts. RMS: 500 watts. 12. 5 mm Xmax. Enhanced Pressed Paper Cone. High-Roll Foam Surround. Stamped Steel Vented Basket with NVX Punched Logo. 2. 0" High Temperature Copper Voice coil with Aluminum Former. Progressive Roll Single-layer Spider with Integrated Tinsel Leads. Optimized High-Velocity Pole Vent. 112 oz. Double Stacked Ferrite Magnet with Protective Rubber boot. Frequency Response: 20 - 200 Hz. Resonance Frequency (Fs): 36. 92 Hz. Sensitivity: 87 dB. Recommended sealed box volume: 1. 25 cubic feet. Recommended ported box volume: 2. 0 cubic feet. Top-mount depth: 6. 0". Cutout diameter: 10. 86". CTA-2031 Compliant. Authorized Internet Dealer. 1-year Manufacturer's Warranty. Priced Individually. NVX NSW124V3
- Powerful Bass Performance: Delivers an impressive 1000W peak power and 500W RMS, ensuring deep, impactful bass for your car audio system.
- Durable Build for Longevity: Features a robust 12" enhanced pressed paper cone with a high-roll foam surround, providing excellent durability and distortion-free sound.
- Precision and Control: Equipped with a 2.0" high-temperature copper voice coil and a progressive roll single-layer spider for superior sound accuracy and control.
- Optimized Ventilation for Enhanced Cooling: The subwoofer includes an optimized high-velocity pole vent, preventing overheating and maintaining peak performance even at high volumes.
- Superior Magnet Structure: Powered by a 112 oz. double-stacked ferrite magnet with a protective rubber boot for stable, high-performance bass in a variety of enclosures.
- Powerful Bass Performance: Delivers an impressive 1000W peak power and 500W RMS, ensuring deep, impactful bass for your car audio system.
- Durable Build for Longevity: Features a robust 12" enhanced pressed paper cone with a high-roll foam surround, providing excellent durability and distortion-free sound.
- Precision and Control: Equipped with a 2.0" high-temperature copper voice coil and a progressive roll single-layer spider for superior sound accuracy and control.
- Optimized Ventilation for Enhanced Cooling: The subwoofer includes an optimized high-velocity pole vent, preventing overheating and maintaining peak performance even at high volumes.
- Superior Magnet Structure: Powered by a 112 oz. double-stacked ferrite magnet with a protective rubber boot for stable, high-performance bass in a variety of enclosures.
Whats Included
- 1
- 1
Compare similar products
Product Details: 12" Dual 4 ohm N-Series Subwoofer. Power Handling: . Peak: 1000 watts. RMS: 500 watts. 12. 5 mm Xmax. Enhanced Pressed Paper Cone. High-Roll Foam Surround. Stamped Steel Vented Basket with NVX Punched Logo. 2. 0" High Temperature Copper Voice coil with Aluminum Former. Progressive Roll Single-layer Spider with Integrated Tinsel Leads. Optimized High-Velocity Pole Vent. 112 oz. Double Stacked Ferrite Magnet with Protective Rubber boot. Frequency Response: 20 - 200 Hz. Resonance Frequency (Fs): 36. 92 Hz. Sensitivity: 87 dB. Recommended sealed box volume: 1. 25 cubic feet. Recommended ported box volume: 2. 0 cubic feet. Top-mount depth: 6. 0". Cutout diameter: 10. 86". CTA-2031 Compliant. Authorized Internet Dealer. 1-year Manufacturer's Warranty. Priced Individually. NVX NSW124V3
