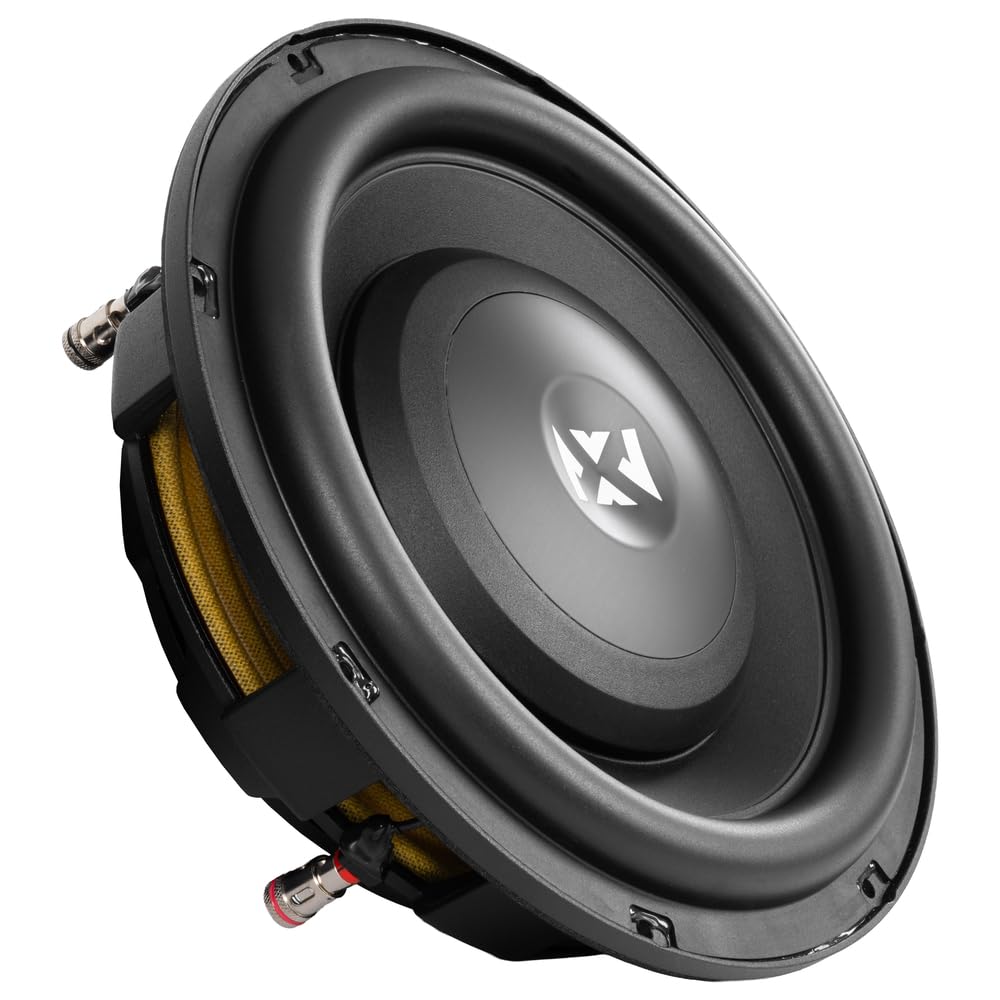

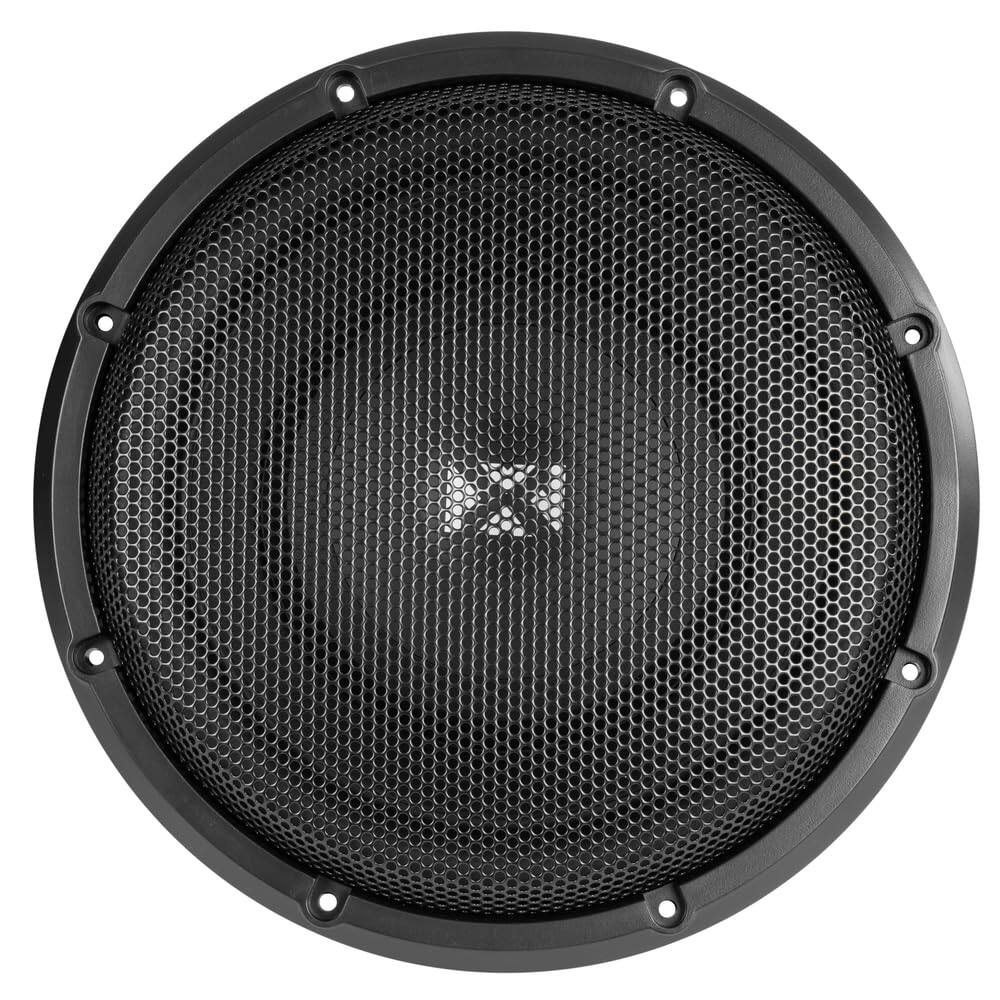

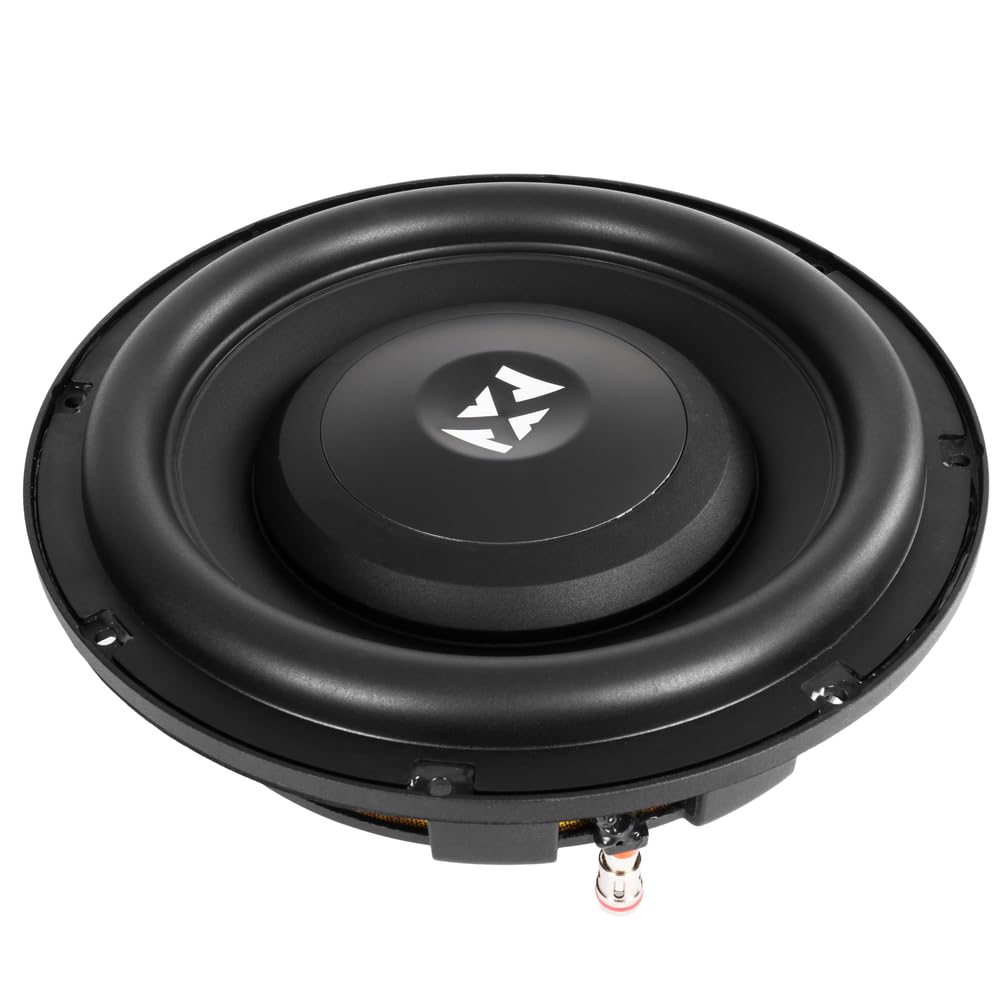

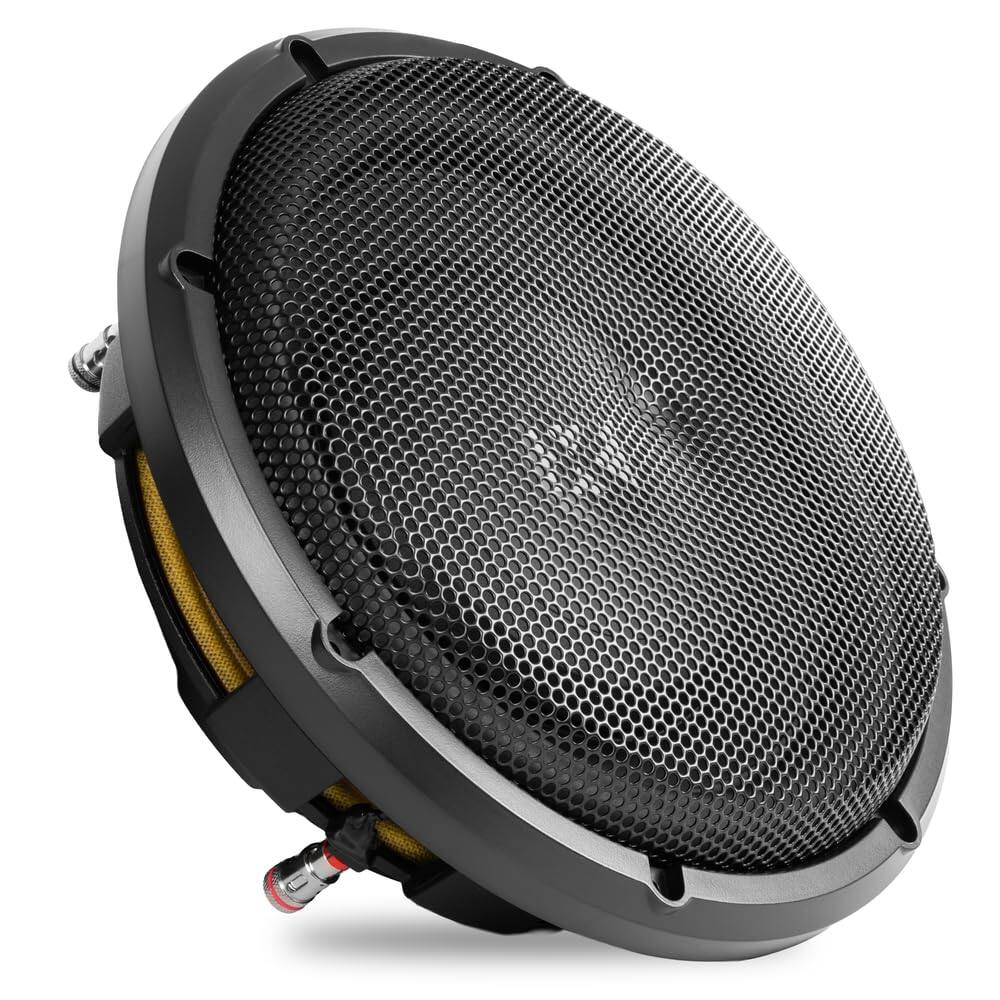

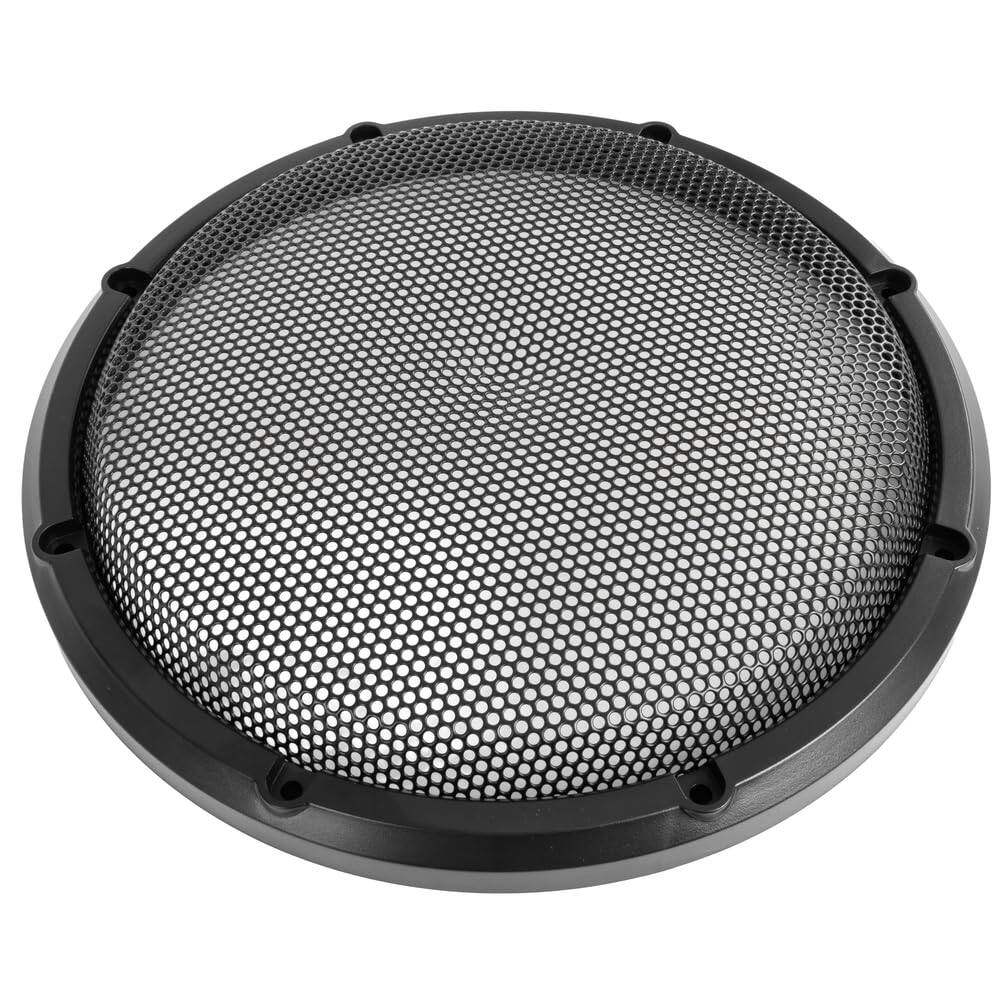

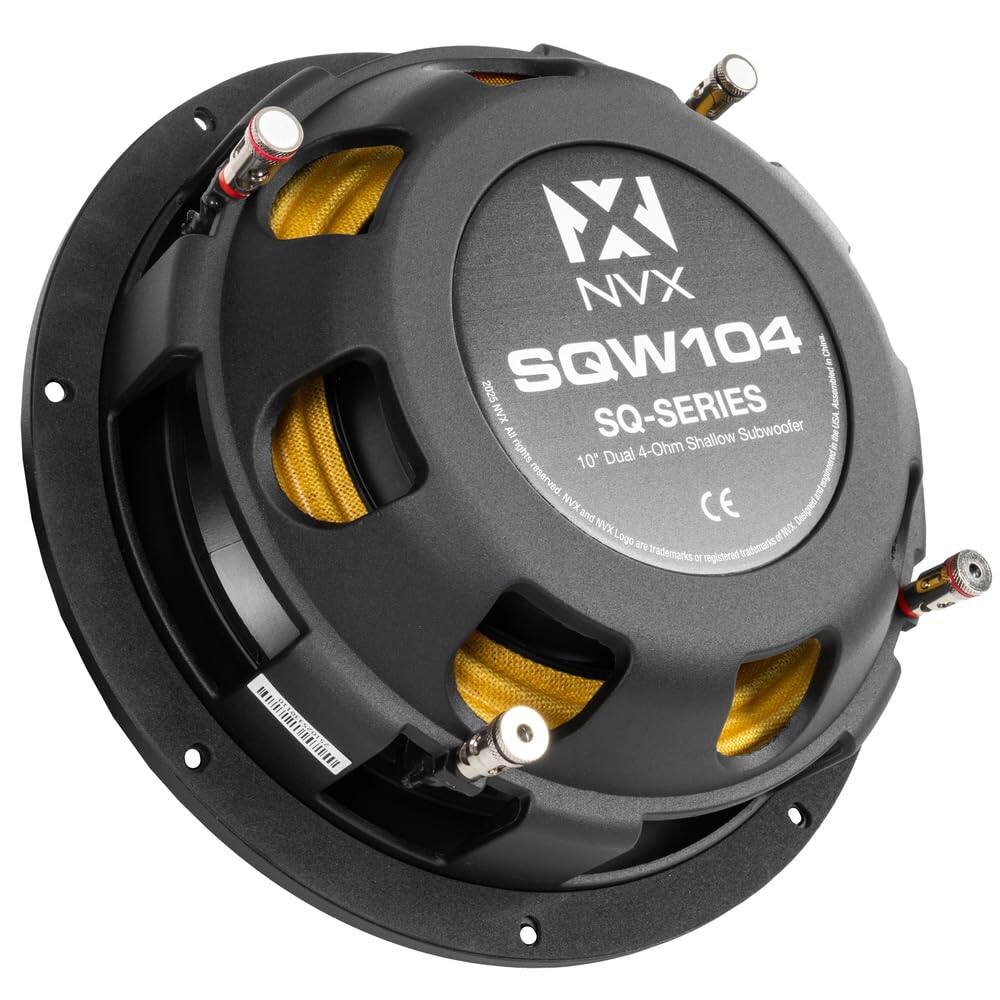

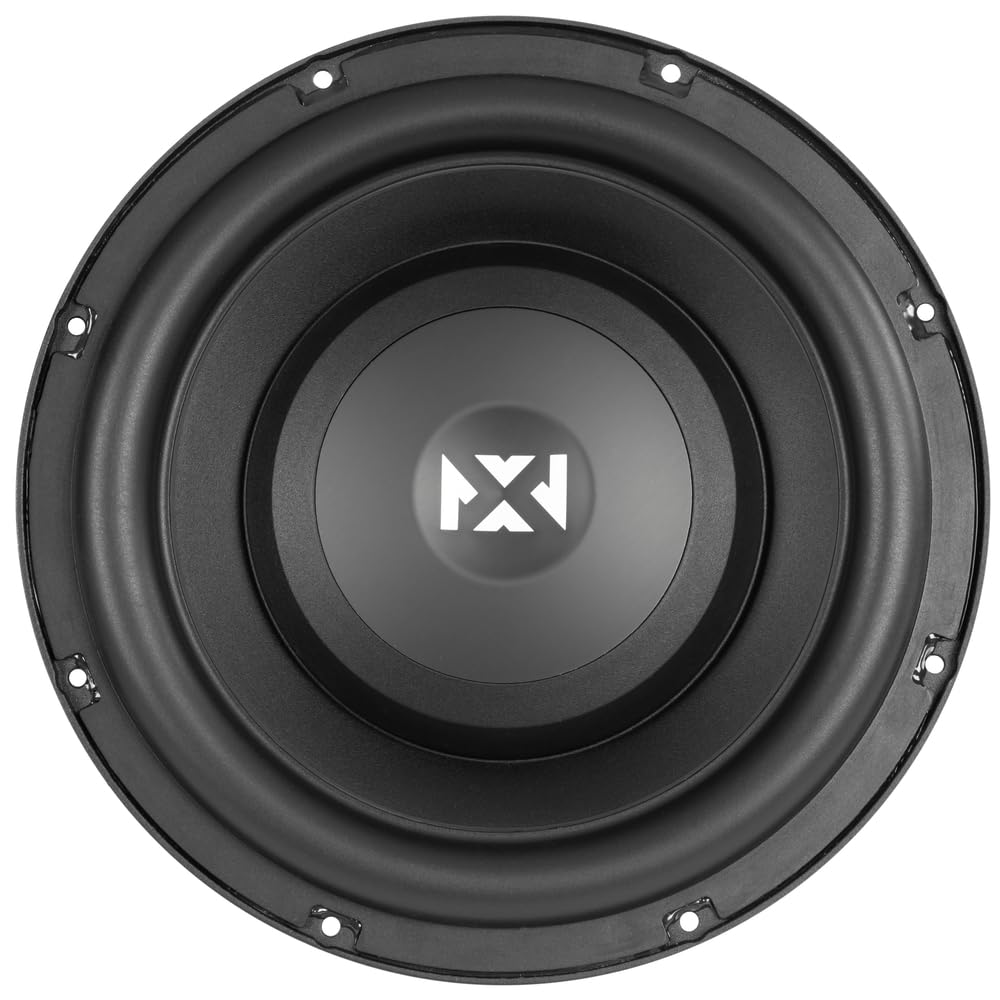

NVX - SQW104 1200W Peak (600W RMS) SQ-Series Shallow-Mount 10" Dual 4-Ohm Subwoofer
Woofer Size
10"Related Item
Specifications
- RMS Power600 wattsPeak Power Handling1200 wattsImpedance4 ohmsWoofer Size10"
- Key Specs
- RMS Power: 600 watts (The maximum amount of continuous power the device is able to handle.)
- Peak Power Handling: 1200 watts (The maximum amount of power an electronic device, like a speaker, can handle without damage. This refers to short bursts of power, while root mean square (RMS) power handling indicates the amount of continuous power a device can sustain. Higher levels of distortion can also occur at peak power levels when the device is powered beyond its recommended usage.)
- Impedance: 4 ohms (Describes the resistance of an electric signal throughout the system. Devices with low impedance require less power to deliver optimal signals but are more at risk for damage from overloading. Higher impedance requires more power but is more protected from overload damage.)
- Woofer Size: 10"
- General
- Brand: NVX
- Model Number: sqw104
- Product Name: SQW104 1200W Peak (600W RMS) SQ-Series Shallow-Mount 10" Dual 4-Ohm Subwoofer
- Number of Subwoofers Included: 1
- Audio Power
- RMS Power: 600 watts (The maximum amount of continuous power the device is able to handle.)
- Peak Power Handling: 1200 watts (The maximum amount of power an electronic device, like a speaker, can handle without damage. This refers to short bursts of power, while root mean square (RMS) power handling indicates the amount of continuous power a device can sustain. Higher levels of distortion can also occur at peak power levels when the device is powered beyond its recommended usage.)
- Audio
- Impedance: 4 ohms (Describes the resistance of an electric signal throughout the system. Devices with low impedance require less power to deliver optimal signals but are more at risk for damage from overloading. Higher impedance requires more power but is more protected from overload damage.)
- Features
- Marine: false
- Dimensions
- Woofer Size: 10"
- Product Height: 5.91 inches (The out of box height of the item. Height is measured as the vertical distance from the bottom of the item to the top as it would be primarily used or placed.)
- Product Width: 12.6 inches (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
- Product Depth: 12.6 inches (The out of box depth of the item. Depth is measured as the distance from the front of the item to the back as it would be primarily used or placed.)
- Product Weight: 13.96 pounds (The out of box weight of the item.)
- Warranty
- Warranty - Parts: 1-year Manufacturer's Warranty
- Warranty - Labor: 1-year Manufacturer's Warranty
- Other
- UPC: 810021847122
Product Details: 10" Dual 4 ohm SQ Series Subwoofer. Power Handling: . Peak: 1200 watts. RMS: 600 watts. Polypropylene Cone. Rubber Surround. Custom Tooled Die-Cast Aluminum Basket. 1. 5" High Temperature Copper Voice coil. 16 mm Xmax. 74 oz. Single Stacked Ferrite magnet motor structure. Frequency Response: 25 - 500 Hz. Resonance Frequency (Fs): 33 Hz. Sensitivity: 83 dB. Recommended sealed box volume: . 50 cubic feet. Recommended ported box volume: . 60 cubic feet. Top-mount depth: 3. 23". Cutout diameter: 9. 29". CTA-2031 Compliant. Authorized Internet Dealer. Includes protective subwoofer grille. 1-year Manufacturer's Warranty. Priced Individually.
- 10" SQ-Series Shallow-Mount Subwoofer: Designed to deliver accurate, controlled bass in vehicles with limited mounting depth
- Dual 4-Ohm Voice Coils: Provides wiring flexibility for optimized amplifier matching and system configurations
- High-Power Handling Performance: Rated at 1200W peak and 600W RMS with a 1.5" high-temperature copper voice coil
- Rigid and Durable Construction: Polypropylene cone, rubber surround, and custom die-cast aluminum basket ensure long-term reliability
- Compact Installation Friendly: Shallow 3.23" mounting depth, 16 mm Xmax, CTA-2031 compliant, and optimized for sealed or ported enclosures
Whats Included
- 1
