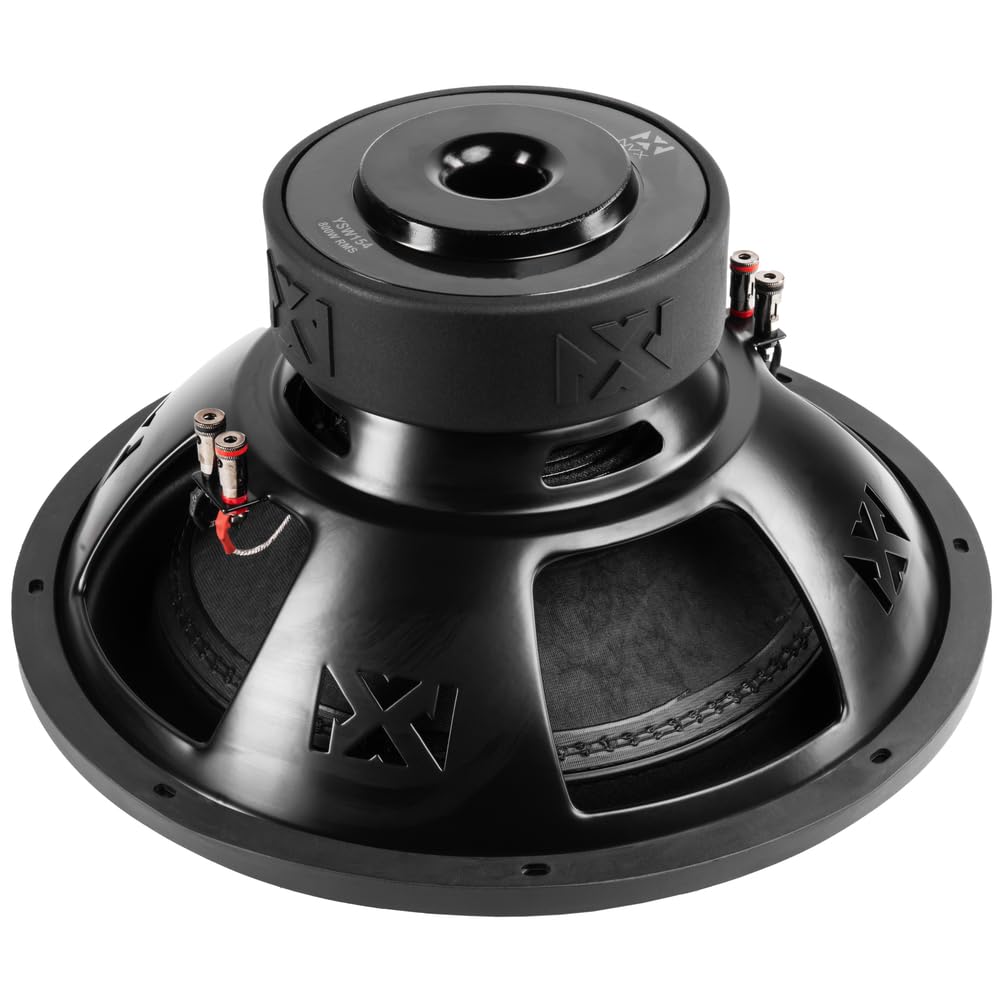

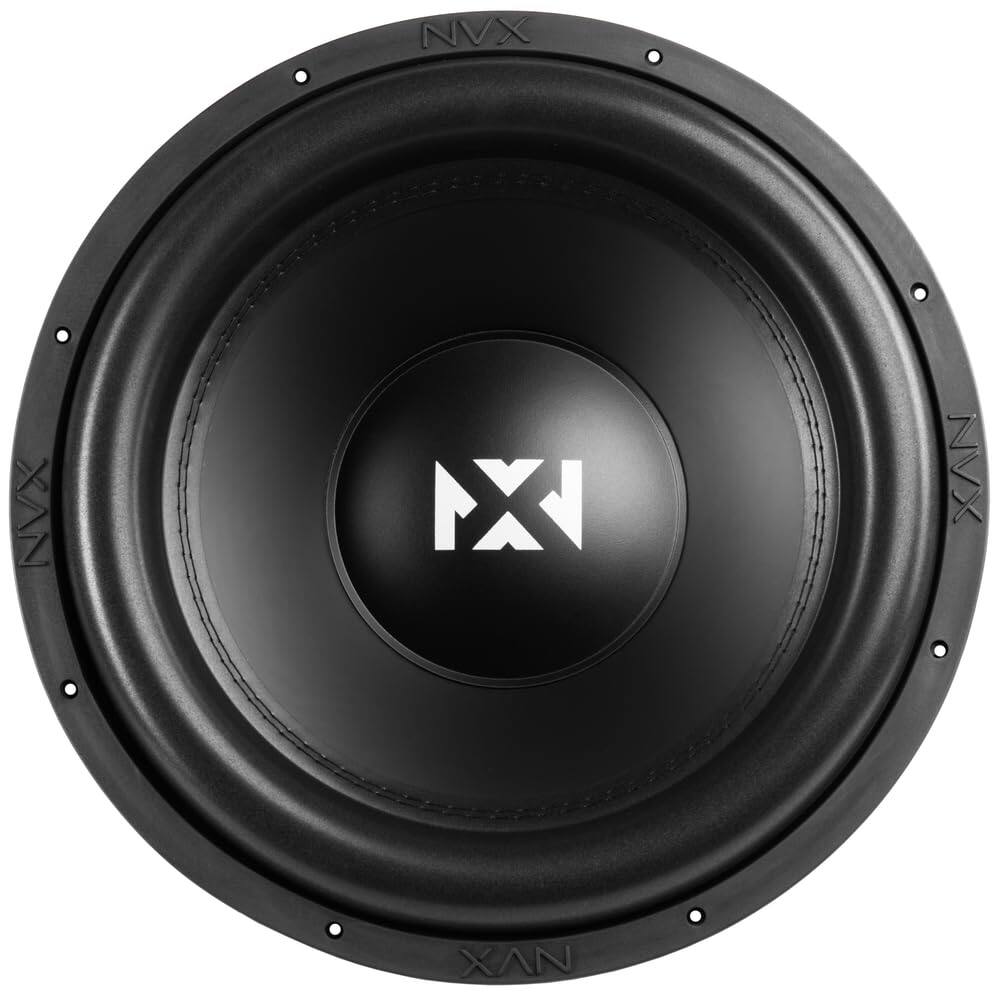

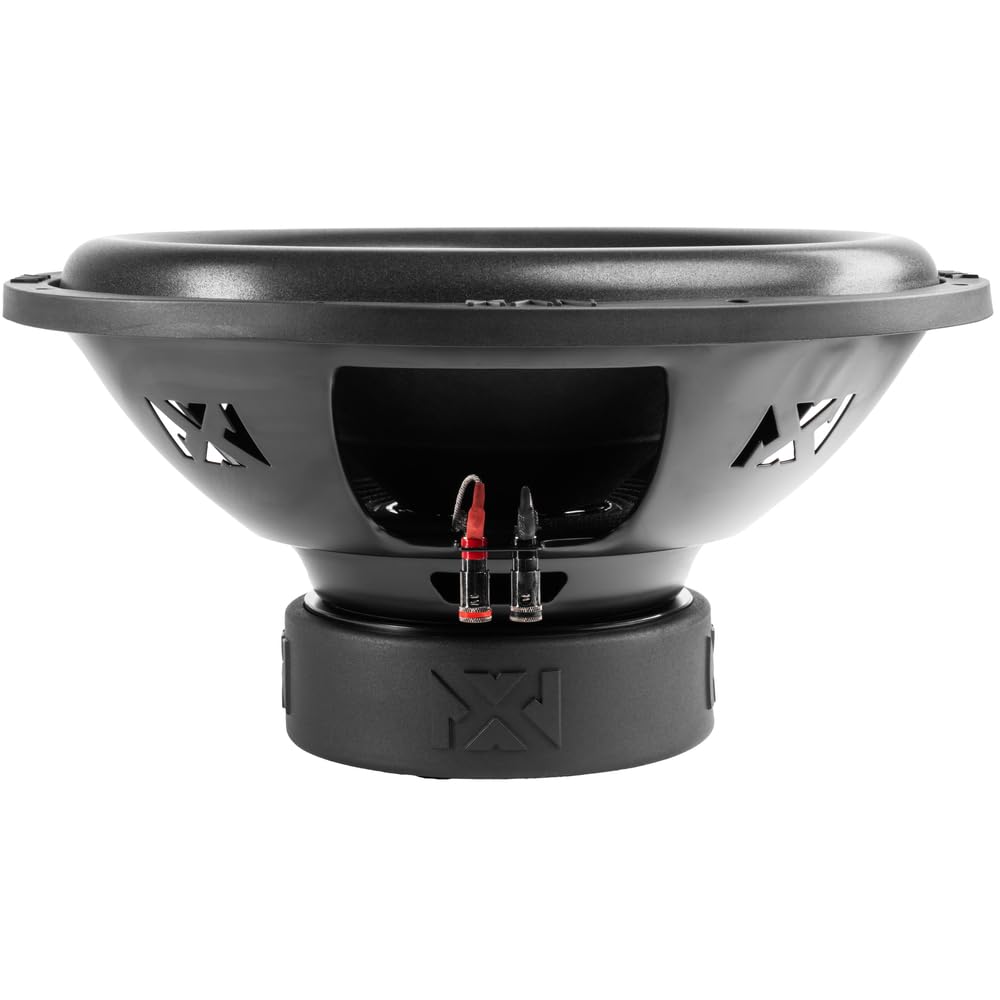

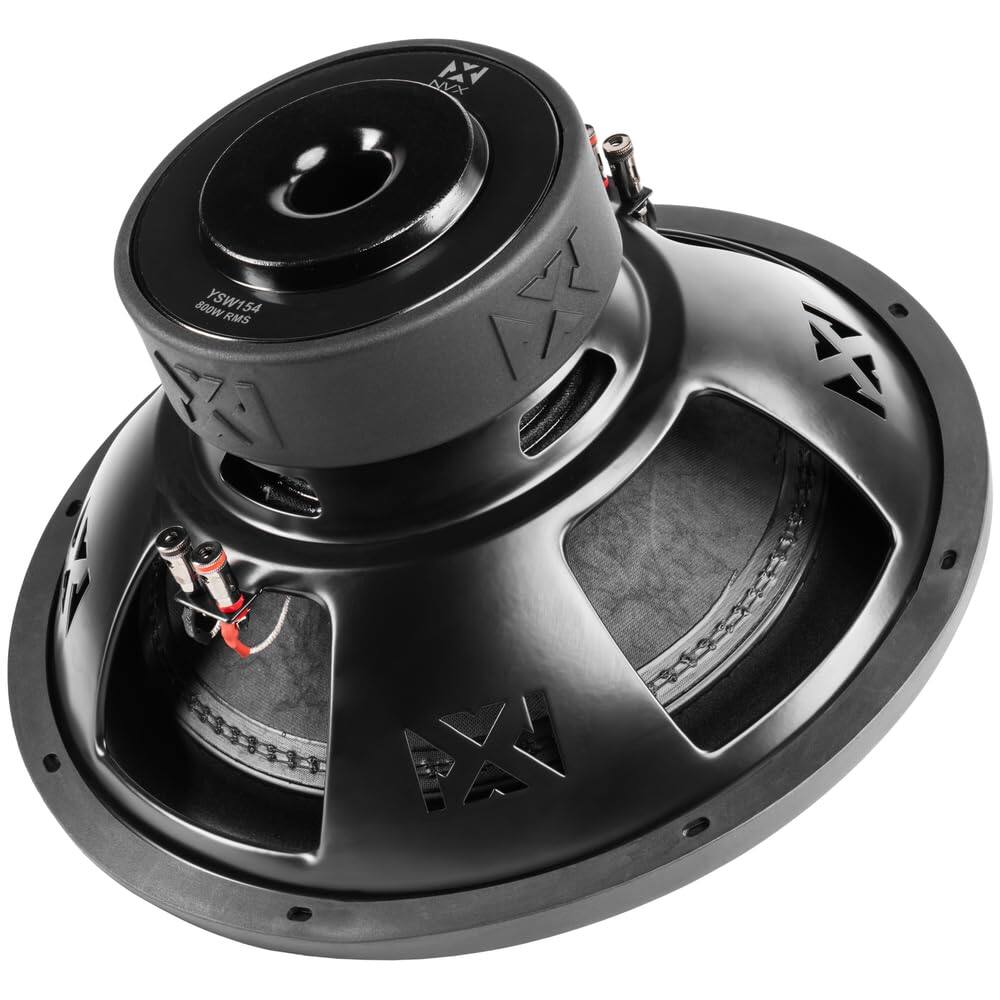

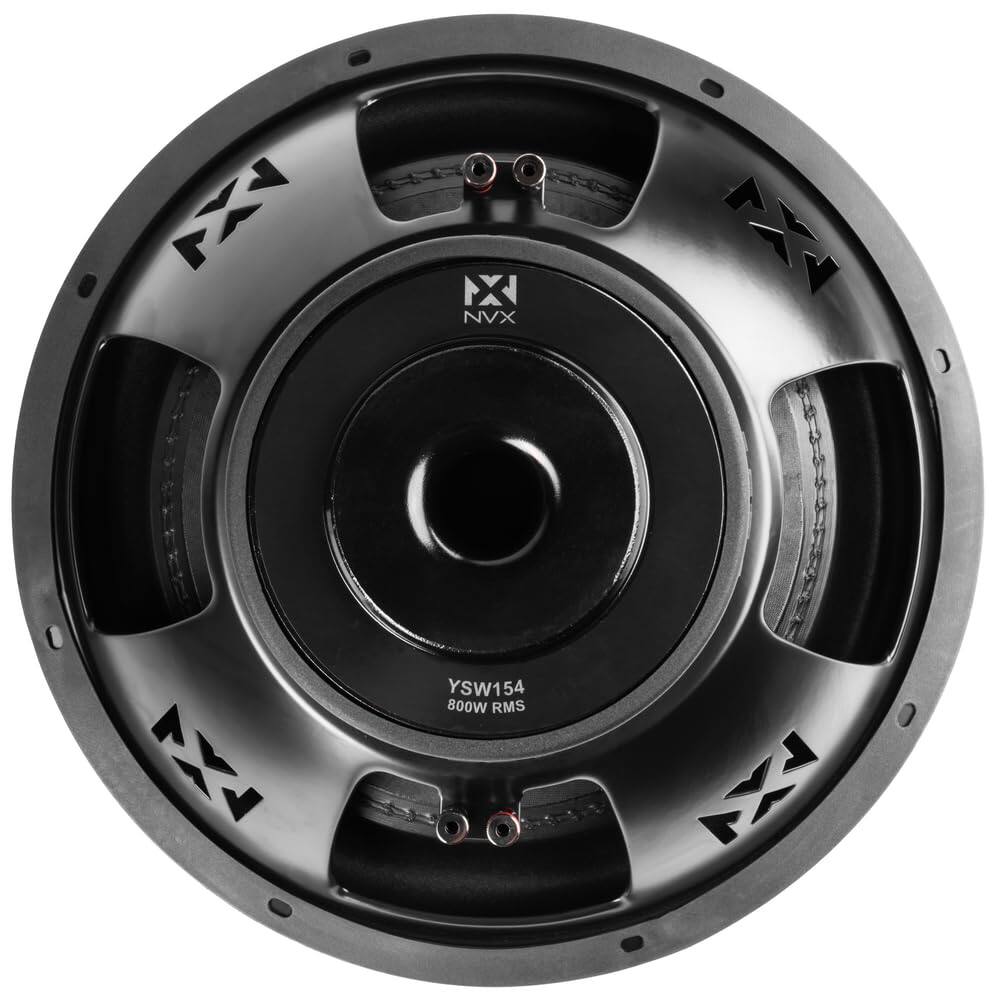

NVX - YSW154 1600W Peak (800W RMS) Y-Series 15in Dual 4-Ohm Car Subwoofer
NVX - YSW154 1600W Peak (800W RMS) Y-Series 15in Dual 4-Ohm Car Subwoofer
Woofer Size
15"Specifications
- RMS Power800 wattsPeak Power Handling1600 wattsImpedance4 ohmsWoofer Size15"
- Key Specs
- RMS Power: 800 watts (The maximum amount of continuous power the device is able to handle.)
- Peak Power Handling: 1600 watts (The maximum amount of power an electronic device, like a speaker, can handle without damage. This refers to short bursts of power, while root mean square (RMS) power handling indicates the amount of continuous power a device can sustain. Higher levels of distortion can also occur at peak power levels when the device is powered beyond its recommended usage.)
- Impedance: 4 ohms (Describes the resistance of an electric signal throughout the system. Devices with low impedance require less power to deliver optimal signals but are more at risk for damage from overloading. Higher impedance requires more power but is more protected from overload damage.)
- Woofer Size: 15"
- General
- Brand: NVX
- Model Number: ysw154
- Product Name: YSW154 1600W Peak (800W RMS) Y-Series 15in Dual 4-Ohm Car Subwoofer
- Number of Subwoofers Included: 1
- Audio Power
- RMS Power: 800 watts (The maximum amount of continuous power the device is able to handle.)
- Peak Power Handling: 1600 watts (The maximum amount of power an electronic device, like a speaker, can handle without damage. This refers to short bursts of power, while root mean square (RMS) power handling indicates the amount of continuous power a device can sustain. Higher levels of distortion can also occur at peak power levels when the device is powered beyond its recommended usage.)
- Audio
- Impedance: 4 ohms (Describes the resistance of an electric signal throughout the system. Devices with low impedance require less power to deliver optimal signals but are more at risk for damage from overloading. Higher impedance requires more power but is more protected from overload damage.)
- Features
- Marine: false
- Dimensions
- Woofer Size: 15"
- Product Height: 12 inches (The out of box height of the item. Height is measured as the vertical distance from the bottom of the item to the top as it would be primarily used or placed.)
- Product Width: 16.57 inches (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
- Product Depth: 16.69 inches (The out of box depth of the item. Depth is measured as the distance from the front of the item to the back as it would be primarily used or placed.)
- Product Weight: 20.94 pounds (The out of box weight of the item.)
- Warranty
- Warranty - Parts: 1-year Manufacturer's Warranty
- Warranty - Labor: 1-year Manufacturer's Warranty
- Other
- UPC: 810021845487
Product Details: 15" Dual 4 ohm Y-Series Subwoofer. Power Handling: . Peak: 1600 watts. RMS: 800 watts. 15 mm Xmax. Enhanced Pressed Paper Cone. Custom High-Roll Foam Surround with Black Nylon Stitching. Stamped Steel Vented Basket with NVX Punched Logo. 3. 0" High Temperature Copper Voice coil with Aluminum Former. Progressive Roll Dual-layer Spider with Integrated Tinsel Leads. Optimized High-Velocity Pole Vent. 116 oz. Double Stacked Ferrite Magnet with Protective Rubber boot. Frequency Response: 20 - 200 Hz. Resonance Frequency (Fs): 27.7 Hz. Sensitivity: 85 dB. Recommended sealed box volume: 2. 0 cubic feet. Recommended ported box volume: 3. 5 cubic feet. Top-mount depth: 7. 47". Cutout diameter: 13. 97". CTA-2031 Compliant. Authorized Internet Dealer. 1-year Manufacturer's Warranty. Priced Individually. NVX YSW154
- Exceptional Power Handling: Delivers up to 1600 watts peak and 800 watts RMS, providing deep, thunderous bass that enhances your car audio experience.
- Premium Build Materials: Features an enhanced pressed paper cone and custom high-roll foam surround with black nylon stitching for precise, distortion-free sound.
- Heavy-Duty Design: Built with a 3.0" high-temperature aluminum voice coil and a stamped steel vented basket with the NVX punched logo for superior heat dissipation and durability.
- Maximum Efficiency: Includes a 116 oz. double-stacked ferrite magnet, protective rubber boot, and optimized high-velocity pole vent to ensure effective cooling and extended performance.
- Versatile Dual 4-Ohm Impedance: Offers flexible wiring configurations with a wide frequency response of 20 - 200 Hz and a sensitivity of 85 dB for powerful, clear bass.
- Exceptional Power Handling: Delivers up to 1600 watts peak and 800 watts RMS, providing deep, thunderous bass that enhances your car audio experience.
- Premium Build Materials: Features an enhanced pressed paper cone and custom high-roll foam surround with black nylon stitching for precise, distortion-free sound.
- Heavy-Duty Design: Built with a 3.0" high-temperature aluminum voice coil and a stamped steel vented basket with the NVX punched logo for superior heat dissipation and durability.
- Maximum Efficiency: Includes a 116 oz. double-stacked ferrite magnet, protective rubber boot, and optimized high-velocity pole vent to ensure effective cooling and extended performance.
- Versatile Dual 4-Ohm Impedance: Offers flexible wiring configurations with a wide frequency response of 20 - 200 Hz and a sensitivity of 85 dB for powerful, clear bass.
Whats Included
- 1
- 1
Compare similar products
Product Details: 15" Dual 4 ohm Y-Series Subwoofer. Power Handling: . Peak: 1600 watts. RMS: 800 watts. 15 mm Xmax. Enhanced Pressed Paper Cone. Custom High-Roll Foam Surround with Black Nylon Stitching. Stamped Steel Vented Basket with NVX Punched Logo. 3. 0" High Temperature Copper Voice coil with Aluminum Former. Progressive Roll Dual-layer Spider with Integrated Tinsel Leads. Optimized High-Velocity Pole Vent. 116 oz. Double Stacked Ferrite Magnet with Protective Rubber boot. Frequency Response: 20 - 200 Hz. Resonance Frequency (Fs): 27.7 Hz. Sensitivity: 85 dB. Recommended sealed box volume: 2. 0 cubic feet. Recommended ported box volume: 3. 5 cubic feet. Top-mount depth: 7. 47". Cutout diameter: 13. 97". CTA-2031 Compliant. Authorized Internet Dealer. 1-year Manufacturer's Warranty. Priced Individually. NVX YSW154
This is a complete package! Package includes, MTX loaded car subwoofer system with Mono amplifier and complete amplifier installation kit! If you're looking to beat out your friends, then the MTX 12 inch subwoofer kit is for you. This MTX Terminator series subwoofer system includes 2 subs, sub enclosure and a car amp. With 1200 max power, it gives off super deep bass sounds, while keeping maximum sound quality. You'll just need to connect everything with the amp kit to add some serious bass to your ride.Subwoofer: Polypropylene ConeAmplifier: Low Pass CrossoverDimensions: 12 1/4"L x 7 1/8"W x 2 1/4"HMake your music rock harder with the help of an amplifier with enough power to take your car audio to the next level. This Planet Audio mono amp can handle 1500 watts of max power, and 563 or 1125 watts of RMS power. It features a continuously variable low pass crossover, low level inputs and outputs, power and protection LEDs, heavy duty set screw style terminals, and chrome plated connections. It has it all.Install your amp with ease with the competition quality Soundstorm AKS8 Complete 8 Gauge Amplifier Installation Kit
Enhance your car's audio system with this 12-inch Kenwood subwoofer. It produces booming bass at a maximum level of 1000W, and its frequency response range of 36-300Hz lets you hear pulsating low notes. This single voice coil Kenwood subwoofer has ready-push terminals, so you can quickly set up your wiring configuration. Geek Squad Installation Recommended Visit your local Best Buy store for more information.
Taking a cue from the popular MOJO Pro speaker line, the MOJO Pro subwoofers are high output, no-nonsense SPL machines developed to fit in more traditional enclosures allowing MOJO bass to be brought to even more applications. MOJO Pro 8″ 4Ω DVC subwoofers are built to handle 750w RMS power and will produce thunderous bass that will please anyone who loves it loud. FEATURES Specifically designed for high SPL performance DVVC Direct Vent Voice Coil Cooling 2.5” Voice Coil Cross drilled front plate venting Aluminum shorting ring for reduced inductance Double stitched foam surround Rigid paper cone Progressive spider Diecast basket Single Sided compression terminals SPECIFICATIONS MJP844: Dual Voice Coil 4Ω SIZE (IN): 8 RMS/PEAK POWER: 750/1500 SENSITIVITY(Db): 82.3 MAGNET SIZE (Oz): 105 MOUNTING DEPTH: 5.6 CUT OUT DIAMETER: 7.3 VOICE COIL: 2.5
| Pros for NVX - YSW154 1600W Peak (800W RMS) Y-Series 15in Dual 4-Ohm Car Subwoofer | |||
|---|---|---|---|
| There were no pros for this product— | Sound Quality | Sound Quality, Price, Bass, Power Handling, Durability | There were no pros for this product— |
| Cons for NVX - YSW154 1600W Peak (800W RMS) Y-Series 15in Dual 4-Ohm Car Subwoofer | |||
| There were no cons for this product— | There were no cons for this product— | Voice Coil | There were no cons for this product— |
Specs
Reviews
This product doesn't have any reviews yet.
