Renogy - 200 Watt 12 Volt Monocrystalline Solar Kit w/ 2 Pcs 100W Solar Panel and 30A PWM Charge Controller - Black
Renogy - 200 Watt 12 Volt Monocrystalline Solar Kit w/ 2 Pcs 100W Solar Panel and 30A PWM Charge Controller - Black
Related Item
- General
- Brand: Renogy
- Model Number: RV200D-ADV30-G3-US
- Product Name: 200 Watt 12 Volt Monocrystalline Solar Kit w/ 2 Pcs 100W Solar Panel and 30A PWM Charge Controller
- Color: Black
- Power
- Power Supply Output: 1 x MC4 (The connector type(s) used by the device to send electrical power to another device.)
- Maximum Power Delivery: 200 watts
- Current at Maximum Power (Imp): 200 amperes
- Short Circuit Current (Isc): 5.21 amperes
- Voltage at Open Circuit (VOC): 24.3 volts
- Solar Cell Efficiency: 22 percent
- Solar Cell Type: Monocrystalline (Polycrystalline cells are generally less expensive, but less efficient, while Monocrystalline cells are more expensive, but more efficient.)
- Storage Battery Included: false
- Features
- Number of Units Per Package: 2
- Product Use: Universal
- Mount Type: Roof, Stand, Vehicle
- Solar Panel Design: Rigid
- Inverter Included: false
- Charge Controller Included: true
- Dimensions
- Product Height: 4.33 inches (The out of box height of the item. Height is measured as the vertical distance from the bottom of the item to the top as it would be primarily used or placed.)
- Product Width: 22.83 inches (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
- Product Length: 43.5 inches (The out of box length of the item. Length is measured as the longest dimension of the item.)
- Product Weight: 39.68 pounds (The out of box weight of the item.)
- Warranty
- Warranty - Parts: 5-year warranty on panels, 1-year warranty on accessories and controllers, 3- year warranty on cables
- Warranty - Labor: 5-year warranty on panels, 1-year warranty on accessories and controllers, 3- year warranty on cables
- Other
- UPC: 816360020820

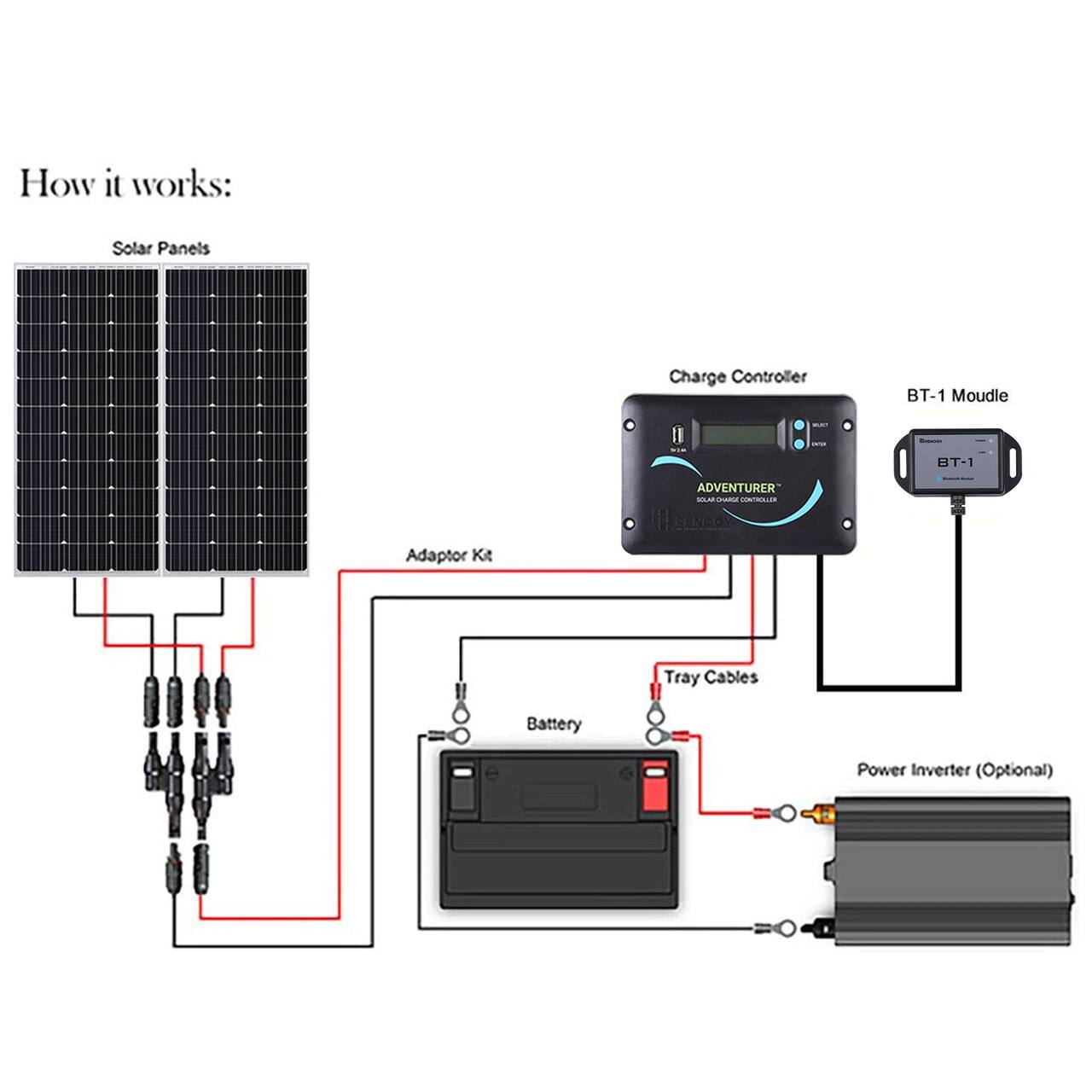

RV Solar Kits are carefully arranged to meet your RV needs. This kit includes two 100W Solar Panels, an Adventurer 30A PWM Charge Controller, a 30FT 10AWG Male and Female Connectors Adapter Kit, a 16FT 10AWG Tray Cable, and one Cable Entry Housing. The choice between one set of Z Brackets or one set of Corner Brackets are also given.
- Wide Application: 800Wh daily output depends on the 4 hours sunlight availability. This panel is suited for applications that require a smaller footprint, making it a favorite for those with RVs, campers, caravan, boat, Green house and more.
- Excellent Performance: 22% High solar cell efficiency. Corrosion-resistant aluminum frame for outdoor use, allowing the panels to last for decades as well as withstand high winds (2400Pa) and snow loads (5400Pa)
- Multiple Protection: The Adventurer-Li is a 30A PWM solar power charge controller that is designed for aesthetically clean flush mounting on RV or camper walls. It can prevent the battery from over charge, over voltage, discharge and short circuit, reversed polarity protection.
- Easy Installation: Pre-drilled holes and Plug&Play cables on the back allow for fast mounting, and it supports lithium batteries, lead-acid batteries, gel batteries. 3 pairs of Y branch connectors are newly added to meet your parallel requirements.
- Wide Application: 800Wh daily output depends on the 4 hours sunlight availability. This panel is suited for applications that require a smaller footprint, making it a favorite for those with RVs, campers, caravan, boat, Green house and more.
- Excellent Performance: 22% High solar cell efficiency. Corrosion-resistant aluminum frame for outdoor use, allowing the panels to last for decades as well as withstand high winds (2400Pa) and snow loads (5400Pa)
- Multiple Protection: The Adventurer-Li is a 30A PWM solar power charge controller that is designed for aesthetically clean flush mounting on RV or camper walls. It can prevent the battery from over charge, over voltage, discharge and short circuit, reversed polarity protection.
- Easy Installation: Pre-drilled holes and Plug&Play cables on the back allow for fast mounting, and it supports lithium batteries, lead-acid batteries, gel batteries. 3 pairs of Y branch connectors are newly added to meet your parallel requirements.

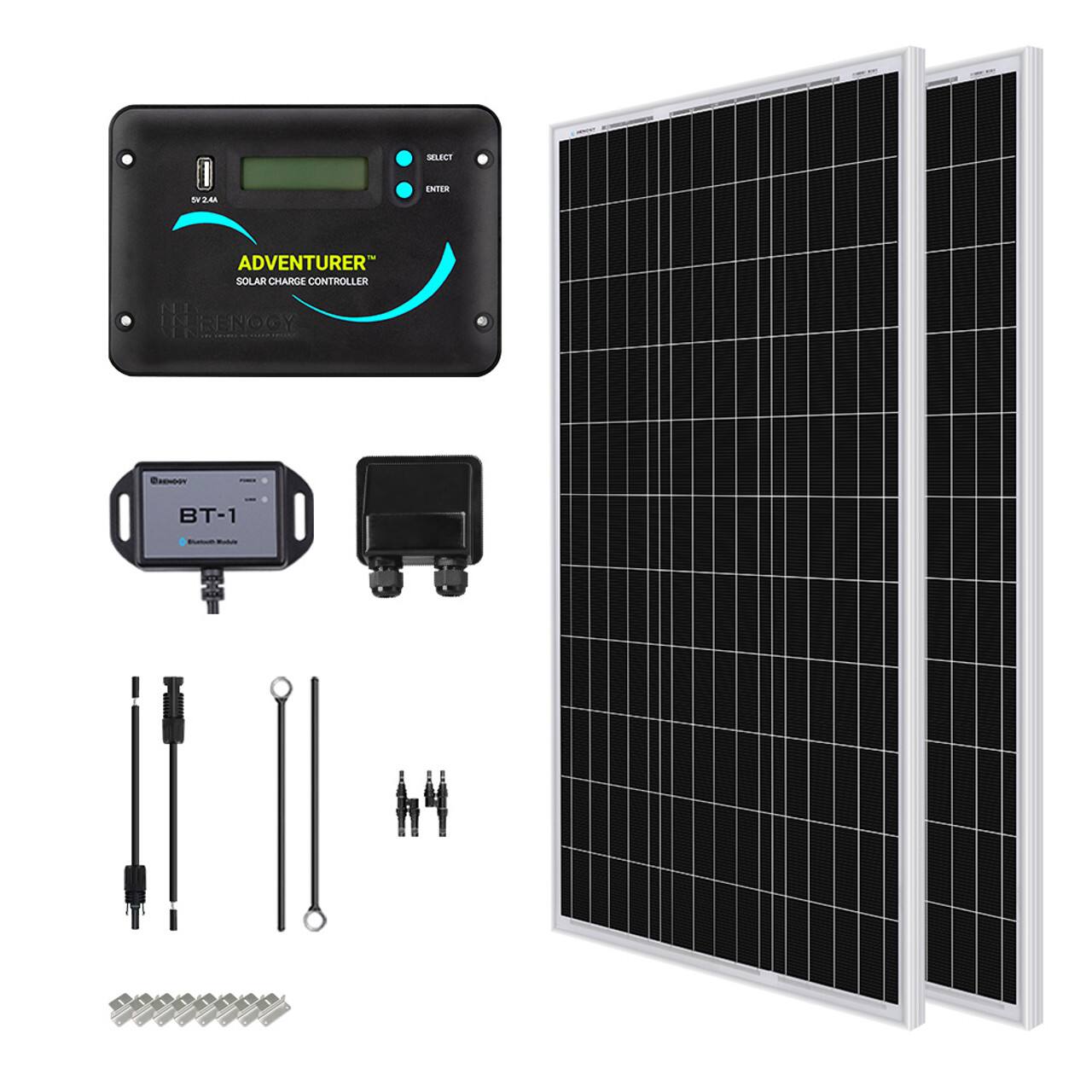

Whats Included
- 2 100W Mono Solar Panel

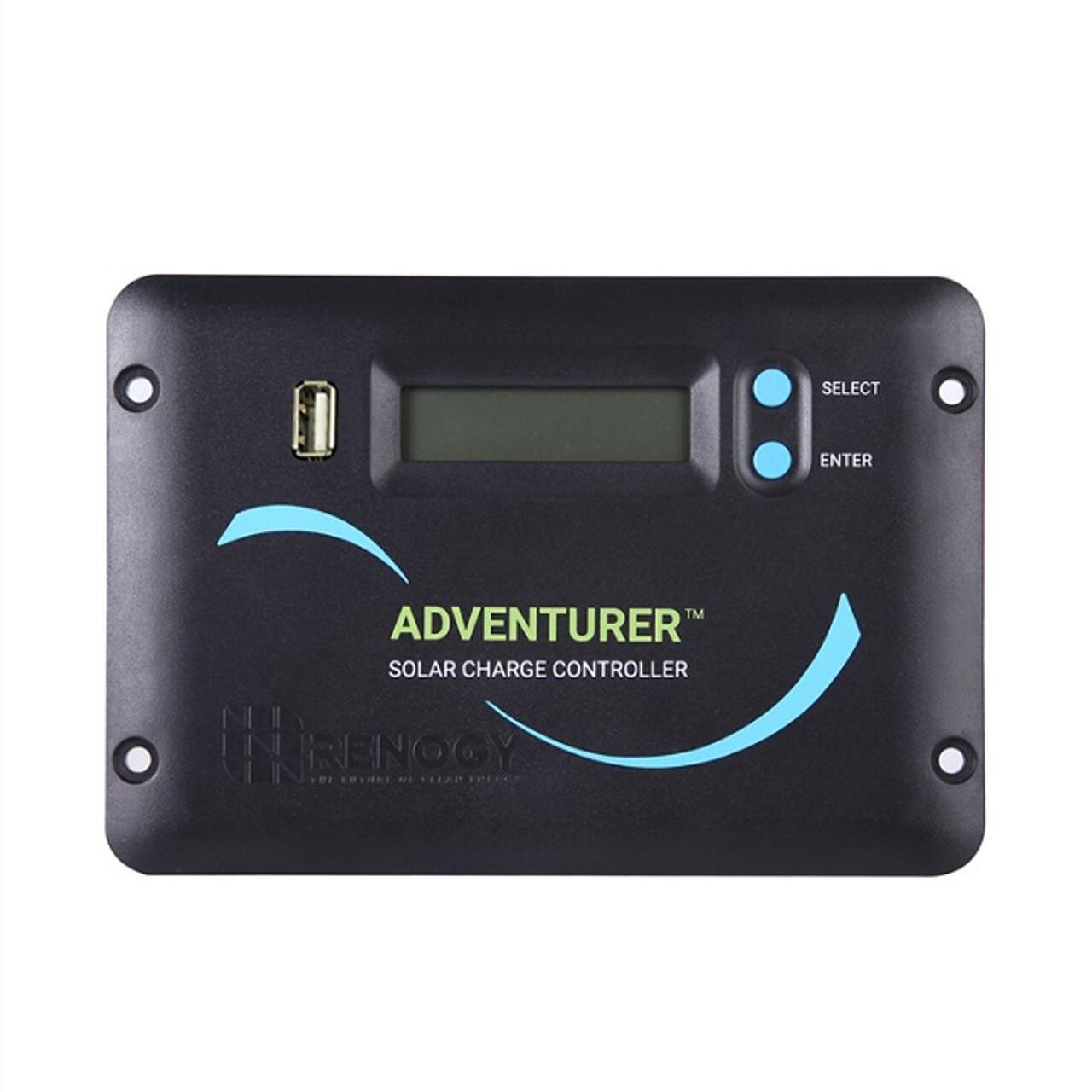

- 1 Renogy Adventurer-30A PWM Charge Controller
- 1 1 Pair Renogy Solar Y Branch Connectors
- 1 Renogy 30ft 10AWG Solar Adaptor Kit (A pair)
- 1 Cable Entry Housing
- 1 Renogy 16ft 10AWG Tray Cables ( A Pair )

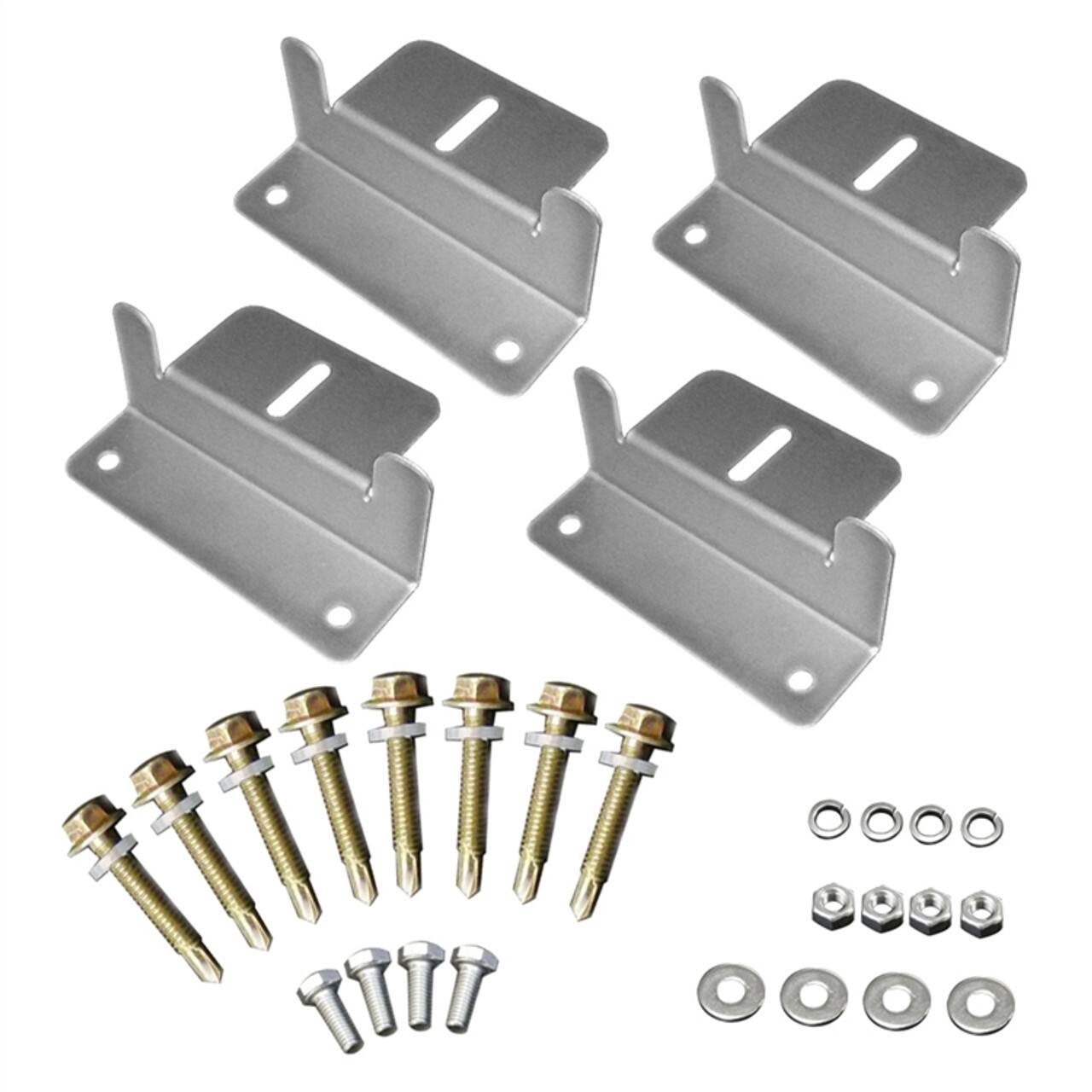

- 2 Mounting Z Brackets
- 1 Renogy BT-1 Bluetooth Module
- 2 100W Mono Solar Panel
- 1 Renogy Adventurer-30A PWM Charge Controller
- 1 1 Pair Renogy Solar Y Branch Connectors
- 1 Renogy 30ft 10AWG Solar Adaptor Kit (A pair)
- 1 Cable Entry Housing
- 1 Renogy 16ft 10AWG Tray Cables ( A Pair )
- 2 Mounting Z Brackets
- 1 Renogy BT-1 Bluetooth Module
Product Manuals
Q: Does the kit include a storage battery?
A: This solar kit does not include a storage battery.
Q: How many solar panels are included in the kit?
A: This kit includes two 100W solar panels.
Q: What is the maximum power output of the solar kit?
A: The maximum power delivery of this solar kit is 200 watts.
Q: What is the warranty on the solar panels?
A: The panels have a 5-year warranty.
Q: What type of charge controller is included?
A: This solar kit includes an Adventurer 30A PWM Charge Controller.
Q: Can more 100W panels be added later?
A: Hi MrBicycles. Thank you for your inquiry! Yes, you can add more 100W solar panels to your Renogy 200 Watt 12 Volt Monocrystalline Solar Kit, which includes two 100W panels and a 30A PWM charge controller. Please note that this controller supports a maximum of 400W on a 12V system, so you can only add up to two additional 100W panels without exceeding its limit. We hope this information helps!
Q: Does double panel connector come with kit
A: Hello Wonderer, Thank you for reaching out, and we apologize for any confusion caused. Please note that the double-panel (branch) connector is not included in the kit by default. If you plan to connect multiple solar suitcases or panels in parallel, you will need to purchase the appropriate Solar Branch Connector (MMF + FFM pair) separately from Renogy. Thank you for your understanding, and please let us know if you need assistance selecting the correct connector. Weljade Renogy Support
Q: will this power a tv and refrigerator? and will it hook up to a camper?
A: Hi Phyllie, A single 200-watt solar panel is generally not enough to reliably power both a refrigerator and a television. While the panel can generate power, its output is limited and inconsistent; it produces no power at night and significantly less on cloudy days. Refrigerators, in particular, require a substantial amount of energy, drawing a large surge of power when the compressor starts up. To power these appliances consistently, you need a complete solar system that includes a battery to store energy for nighttime use, an inverter to convert the power into the AC electricity your appliances use, and a charge controller to manage the system safely. If you would like help calculating the right system size for your camper, please give us a call at (1) 909-287-7111. We're open Monday through Friday from 6 am to 5 pm PST.
Compare similar products
RV Solar Kits are carefully arranged to meet your RV needs. This kit includes two 100W Solar Panels, an Adventurer 30A PWM Charge Controller, a 30FT 10AWG Male and Female Connectors Adapter Kit, a 16FT 10AWG Tray Cable, and one Cable Entry Housing. The choice between one set of Z Brackets or one set of Corner Brackets are also given.
The 200W Solar Starter Kit is easy for you to install, and it is the most economical choice for solar beginners. This Solar Kit includes all of the equipment necessary for building a new system, making it an ideal choice for both off-grid and mobile solar power applications.This Starter Kit will produce an average of 1000Wh of electricity per day (Based on 5 hours of direct sunlight conditions) With the Wanderer Li 30A PWM Charge Controller, the kit can can be expanded up to 400W.
The Solar Premium Kit offers outstanding safety with a variety of certified accessories, guaranteeing an efficient solar system featuring globally renowned solar panels and a fully certified MPPT Charge Controller.
This ShadowFlux Anti-Shading N-Type 200-Watt 12-Volt Solar Panel is an excellent choice for various power scenarios. Perfect for off-grid setups, RVs, marine use, and outdoor energy supply. It combines advanced anti-shading tech with a compact design, making it a reliable option for diverse environments.
