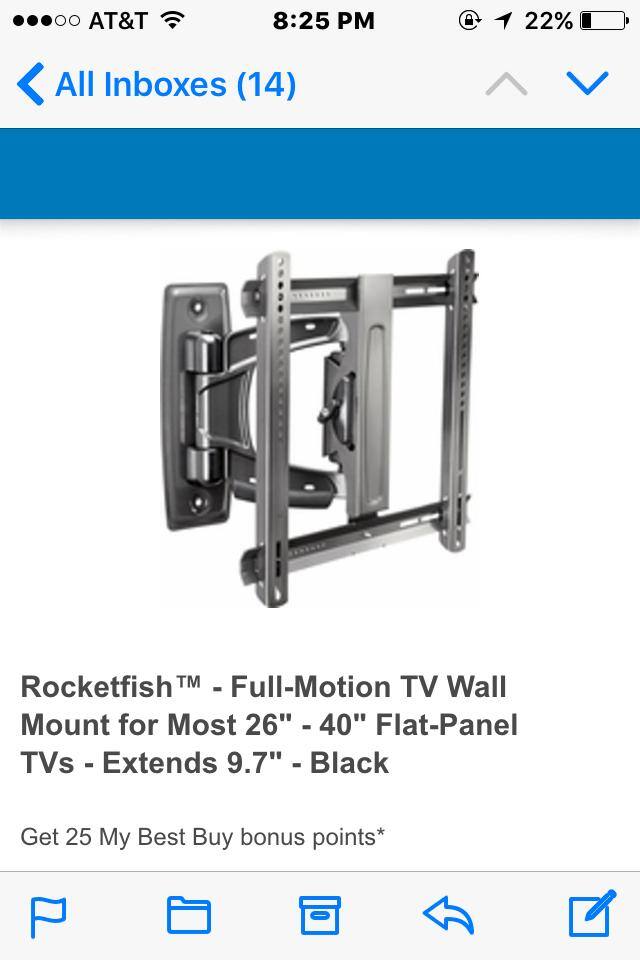

Rocketfish™ - Full-Motion TV Wall Mount for Most 26" - 40" Flat-Panel TVs - Extends 9.7" - Black
- General
- Product Name: Full-Motion TV Wall Mount for Most 26" - 40" Flat-Panel TVs - Extends 9.7"
- Brand: Rocketfish™
- Assembly Required: Yes
- Model Number: RF-TVMFM02
- Features
- Mount Profile: Low Profile (The view of the product when seen attached to a wall or surface.)
- Mount Style: Tilting, Swiveling, Full Motion
- Compatibility
- Maximum Weight Capacity: 60 pounds (The maximum load that can be supported by the product.)
- Compatibility: 26" - 40" flat-panel TV
- Mount Location: Wall
- Maximum Television Size: 40 inches
- Minimum Television Size: 26 inches
- Dimensions
- Maximum Extension: 9.7 inches
- Included
- Hardware Included: false
- Material
- Mount Material: Metal
- Warranty
- Manufacturer's Warranty - Parts: 5 years
- Manufacturer's Warranty - Labor: 5 years
- Other
- UPC: 600603132209
This full-motion TV wall mount features a fingertip tilt that makes changing the viewing angle of your 26" - 40" flat-panel TV easy.
- Compatible with most 26" - 40" flat-panel TVs: Up to 60 lbs. for sturdy support.
- Fingertip tilting: Provides smooth viewing angle adjustments.
- Full-motion mount: Allows TV to tilt, swivel and extend off the wall.
- Powdercoat finish: Provides durability.
- Supports a variety of VESA patterns: Including 100 x 100, 200 x 100, 200 x 200, 300 x 200, 300 x 300 and 400 x 300.
Q: Samsung 40" UN40KU6300FXZA screw size?
A: I’m having the same issue and I figured out that the M8 is too fat for my 40” but it is also not a Samsung. Not sure if that matters or not. I had a M6 and that fit. I just need to find the correct length to use.
Q: How do you remove mount from TV for repair of TV?

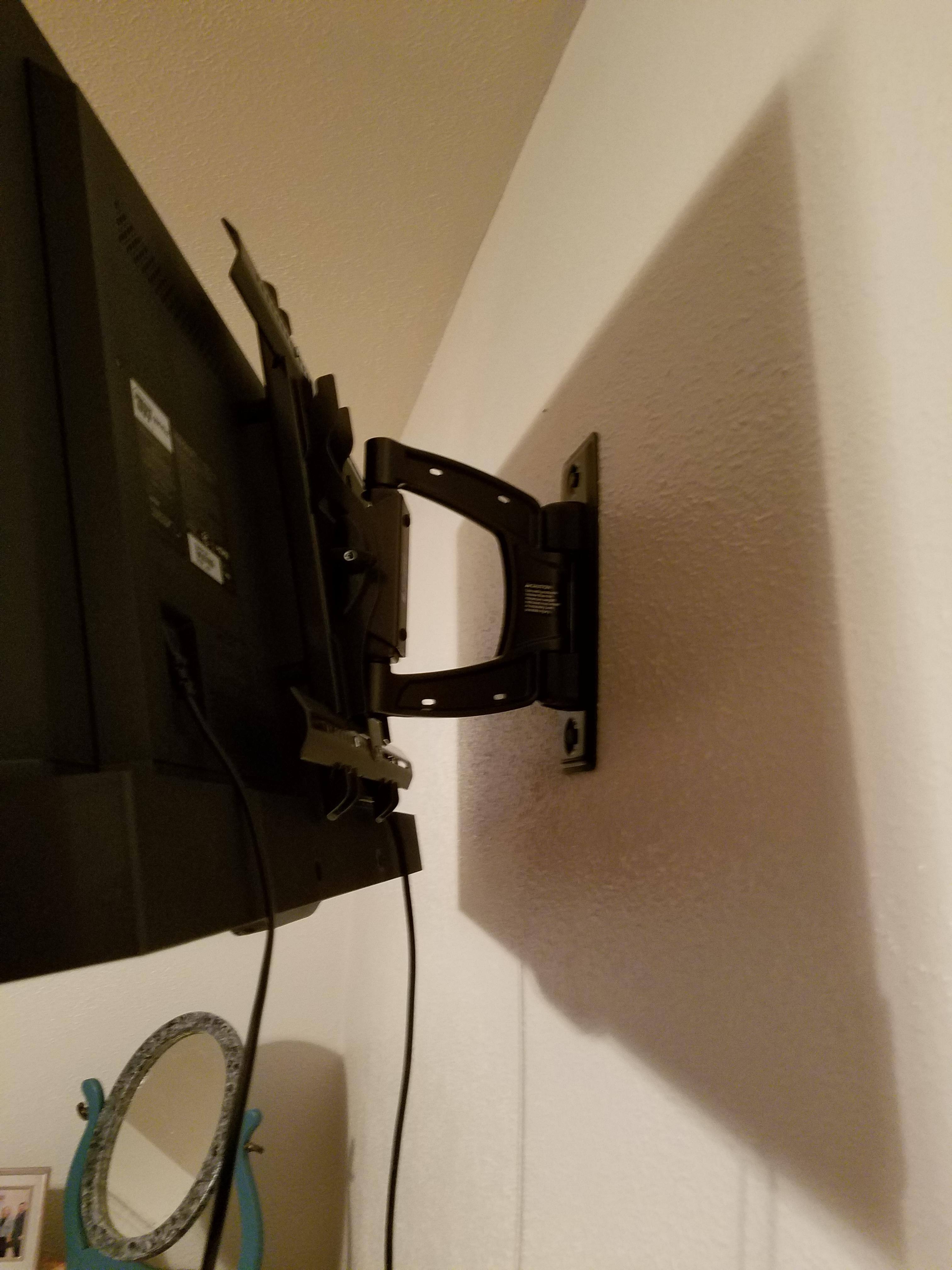

A: Disconnect the cables. There is a single screw that attaches the swing arm to the bottom bracket attached to your TV. Remove that screw and the TV should swing out from the bottom easily. Lit the TV up off the swing arm and you are there. At this point you can remove the 4 screws that hold the top and bottom horizontal pieces of the bracket that you can remove to easily access the 4 screws which hold the vertical bracket bars to your TV. Once these are off you can take your TV in for repair.
Q: How can I get a replacement backing plate?
A: Customer needs to contact our support line (1-800-620-2790) for assistance with ordering this part

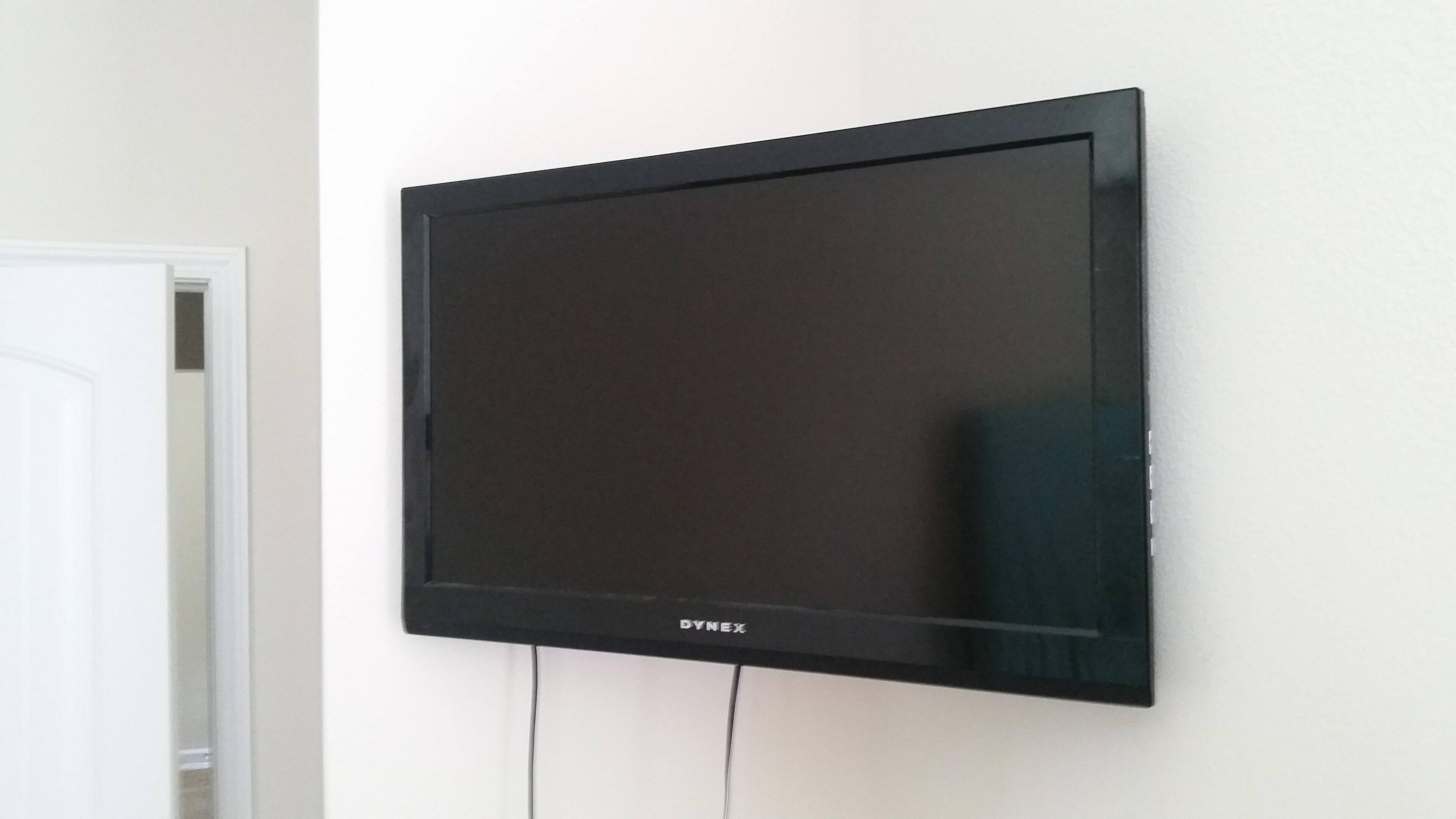

Q: Would this mount work for a Dynex 40" LCD?

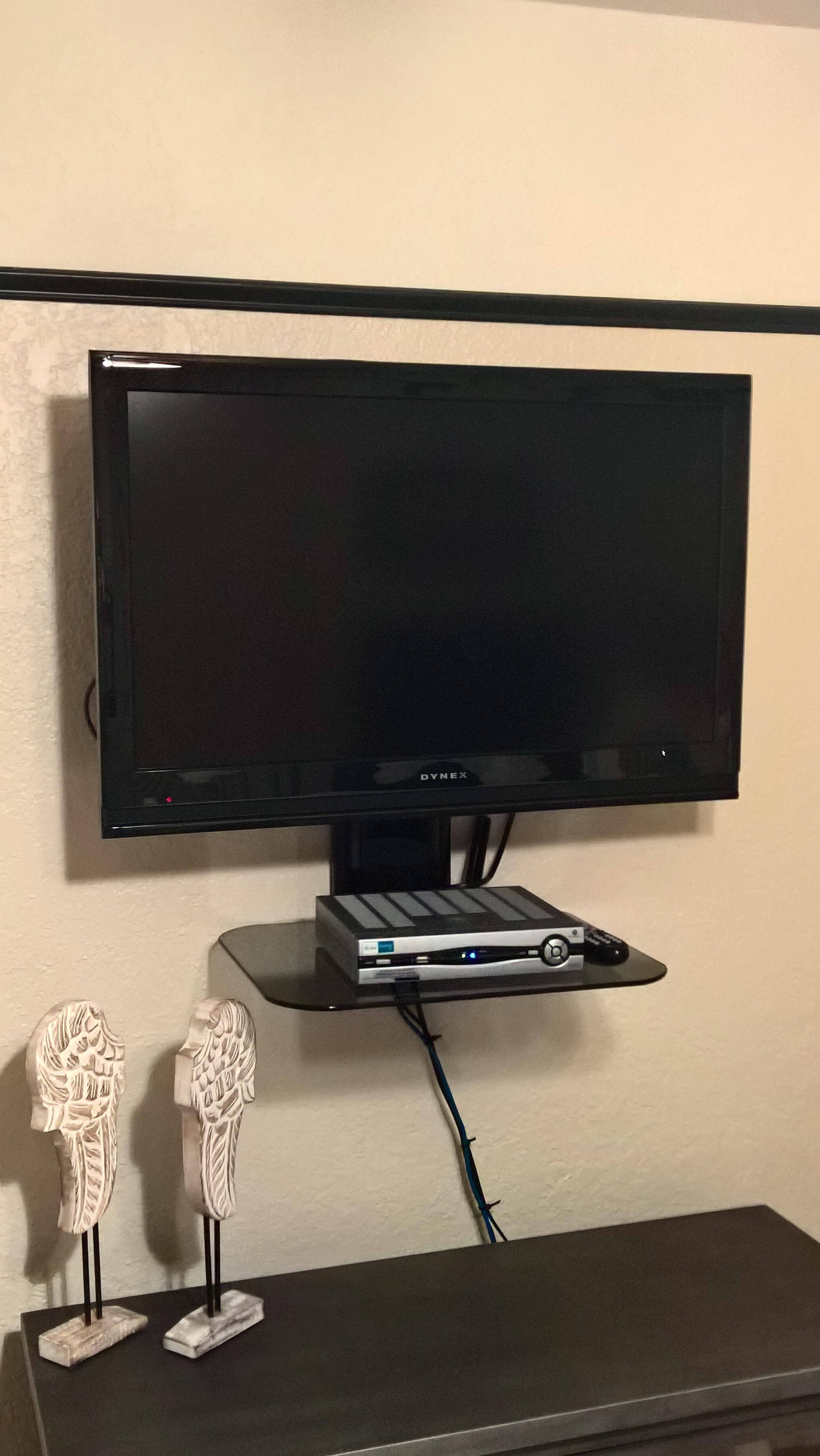

A: Yeah, the holes line up fine with the 40' Dynex I put mine up yesterday.
Q: Will this TV Mount work for a 32" Insignia NS-32LB451A11?
A: Yes it will work on a 32 inch insignia tv. We used it on our 32 inch insignia.
A: This fit my LG 55" 4K UHD flat screen
A: This is not designed to be used in landscape mode. You would have to remove it from the wall each time you wanted to switch orientation. The RF-TVMP20 or RF-TVMP40 provide the easy rotation that you're looking for.
