Rotel - RA-1572MKII 120W 2-Ch Integrated Stereo Amplifier - Silver
Color
SilverMore Buying Options
Specifications
- Continuous Watts x Channel @ Ohms120 Watts x 2 @ 8 OhmsNumber of Channels2Number of Audio Zones1Audio Only Inputs1 x Phono, 2 x Optical digital audio, 2 x Coaxial digital audio, Unbalanced RCA, Balanced XLRNetwork Connector(s)1 x LAN, 1 x RS-232Preamp OutputsYes
- Key Specs
- Continuous Watts x Channel @ Ohms: 120 Watts x 2 @ 8 Ohms
- Number of Channels: 2 (The number of discrete channels of sound output. This can be a single number or multiple numbers separated by decimal(s). The first number is the primary, horizontally directed audio channels. The number after the first decimal, if applicable, is the number of subwoofer outputs or channels. The number after the second decimal, if applicable, is the number of height or atmospheric channels designed to immerse the listener by producing overhead sound effects.)
- Number of Audio Zones: 1 (Audio zones, typically designated by rooms in a home, are areas in which all speakers are dependent on the same sound source. Whether a zone encompasses one or multiple rooms, the receiver or preamp/processor is used to control all aspects of its audio and is able to select which zones receive sound.)

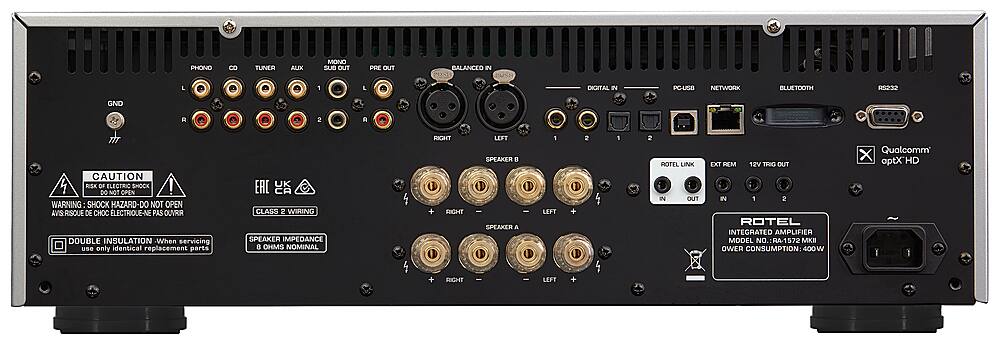

- Audio Only Inputs: 1 x Phono, 2 x Optical digital audio, 2 x Coaxial digital audio, Unbalanced RCA, Balanced XLR
- Network Connector(s): 1 x LAN, 1 x RS-232
- Preamp Outputs: true
- General
- Brand: Rotel
- Model Number: RA1572MKIISIL
- Product Name: RA-1572MKII 120W 2-Ch Integrated Stereo Amplifier
- Color: Silver
- Audio
- Continuous Watts x Channel @ Ohms: 120 Watts x 2 @ 8 Ohms
- Maximum Watts x Channel @ Ohms: 200 Watts x 2 @ 4 Ohms (This is the maximum load the speaker, subwoofer or amp can drive.)
- Total Power Handling: 400 watts (How much amplifier (amplified) power (wattage) that can be handled before damaging the product.)
- Number of Channels: 2 (The number of discrete channels of sound output. This can be a single number or multiple numbers separated by decimal(s). The first number is the primary, horizontally directed audio channels. The number after the first decimal, if applicable, is the number of subwoofer outputs or channels. The number after the second decimal, if applicable, is the number of height or atmospheric channels designed to immerse the listener by producing overhead sound effects.)
- Number of Audio Zones: 1 (Audio zones, typically designated by rooms in a home, are areas in which all speakers are dependent on the same sound source. Whether a zone encompasses one or multiple rooms, the receiver or preamp/processor is used to control all aspects of its audio and is able to select which zones receive sound.)
- Minimum Frequency Response: 10 hertz (Describes the maximum range of frequencies or musical tones a product can reproduce, from very low tones to very high treble tones. The minimum frequency or musical tone the speaker can reproduce. High treble tones have higher frequencies while low tones and deep bass have lower frequencies.)
- Total Harmonic Distortion: 0.018 percent (Measurement of the harmonic sound distortion. The lower the percentage, the cleaner the sound.)
- Maximum Frequency Response: 100 kilohertz (Describes the maximum range of frequencies or musical tones a product can reproduce, from very low tones to very high treble tones. The maximum frequency or musical tone the speaker can reproduce. High treble tones have higher frequencies while low tones and deep bass have lower frequencies.)
- Amplifier Class: AB (An amplifier's mode of operation, specifically the conditions in which its electrical current flows for the duration of an audio signal, determines its class. Each class has its strengths and weaknesses when it comes to power efficiency, levels of crossover distortion, and overall sound quality.)
- Amplifier Type: Integrated amplifiers
- Signal-to-Noise Ratio (SNR): 100 decibels (The ratio of the desired signal's strength to the level of background noise. A ratio higher than 1:1, which equates to greater than 0 decibels, indicates more signal than noise.)
- Bass Boost: Variable (Circuitry that boosts the bass response of the amplifier, improving audio reproduction enhancing the sound of low frequencies. Fixed boost means the level of bass response is preset, whereas variable boost allows the user to make adjustments.)
- Audio
- Impedance: 8 (Describes the resistance of an electric signal throughout the system. Devices with low impedance require less power to deliver optimal signals but are more at risk for damage from overloading. Higher impedance requires more power but is more protected from overload damage.)
- Inputs
- Audio Only Inputs: 1 x Phono, 2 x Optical digital audio, 2 x Coaxial digital audio, Unbalanced RCA, Balanced XLR
- Video Only Inputs: No video only inputs (The number and type of video signal only inputs the product has.)
- Network Connector(s): 1 x LAN, 1 x RS-232
- Speaker-Level Inputs: false (Also referred to as high-level inputs. Enables the amplifier to receive a sound signal from another device that does not have RCA, or low-level, inputs.)
- Line-Level Inputs: true (Also referred to as low-level inputs. Enables the amplifier to receive a sound signal from another device via RCA cables.)
- Outputs
- Preamp Outputs: true
- Speaker Connection Type: RCA, XLR
- Video Only Outputs: No video only outputs (The number and type of video signal only outputs the product has.)
- Features
- App Compatible: false (The product can be connected to a program or software application on a mobile device, which then receives collected data from the product.)
- Fan Cooled: false
- Connectivity
- Wireless Multi-Room Audio: false (Technology that allows multiple speakers and/or soundbars to be connected wirelessly and play audio in separate rooms.)
- Dimensions
- Product Height: 6 inches (The out of box height of the item. Height is measured as the vertical distance from the bottom of the item to the top as it would be primarily used or placed.)
- Product Width: 17 inches (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
- Product Depth: 15 inches (The out of box depth of the item. Depth is measured as the distance from the front of the item to the back as it would be primarily used or placed.)
- Product Weight: 30 pounds (The out of box weight of the item.)
- Warranty
- Warranty - Parts: 5 years
- Warranty - Labor: 5 Years
- Other
- UPC: 672563767111
Experience the RA-1572MKII Integrated Amplifier, where your music comes alive with unmatched fidelity. It delivers 120 Watts of Class AB output, unleashing deep, controlled bass energy. With an audiophile-grade DAC, analog, digital, aptX HD, AAC Bluetooth, PC-USB supporting MQA, and Moving Magnet Phono stage, it guarantees exceptional detail and creates an immersive soundstage. Get ready to rediscover your music like never before.
- Class AB Amplification: Feel the immense power of 120 watts in action and immerse yourself in stunning audio.
- Digital to Analog Conversion: Experience unmatched audio clarity with the Texas Instruments premium 32-bit/384kHz Digital to Analog Converter found in the RA-1572MKII Integrated Amplifier
- Robust Power Amplification: The shape of the oversized in-house manufactured toroidal transformer reduces stray radiation to adjacent sensitive circuits and provides high current to a bank of 4 slit-foil storage capacitors providing robust power to an array of output transistors for deep, controlled bass energy.
- Digital Audio Excellence: Explore exceptional streaming digital audio with the RA-1572MKII, thanks to its support for MQA and MQA Studio, aptX HD, AAC Bluetooth wireless connection, and Roon Tested certification – transforming every note into a masterpiece.
Whats Included
- Rotel RA-1572MKII Amplifier
- Power Cord
- Manual
- Remote
Q: What is the weight of the amplifier?
A: The product weight is 26.66 pounds.
Q: Does the amplifier have speaker-level inputs?
A: This amplifier does not have speaker-level inputs.
Q: Does the amplifier have a built-in DAC?
A: The RA-1572MKII Integrated Amplifier has an audiophile-grade DAC.
Q: What type of Bluetooth connectivity does the amplifier support?
A: The amplifier supports aptX and AAC Bluetooth connectivity.
Q: What is the amplifier's power output?
A: The amplifier delivers 120 Watts of Class AB output.
Q: What is the maximum frequency response of the amplifier?
A: The maximum frequency response of the amplifier is 100 kilohertz.
