Samsung - 36 inches - Externally Vented & Recirculating - Wall Range Hood - Black Stainless Steel
- Key Specs
- Color Finish: Black stainless steel
- Product Height: 28 3/8 inches (The out of box height of the item. Height is measured as the vertical distance from the bottom of the item to the top as it would be primarily used or placed.)
- Product Width: 36 inches (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
- Product Depth: 19 11/16 inches (The out of box depth of the item. Depth is measured as the distance from the front of the item to the back as it would be primarily used or placed.)
- Exhaust Vent Location: Top
- Vent Type: Ducted, Ductless
- Vent Style: External, Recirculating (External vents pull air from the room and move it directly outside through a dedicated duct system. Recirculating vents pull the air through a filter so that it can be cleaned before being recycled back into the room. Convertible vents can be reconfigured from external ventilation to recirculating via installation of certain parts.)
- General
- Brand: Samsung
- Model Number: NK36R5000WG
- Product Name: 36" Convertible Range Hood
- Color: Black Stainless Steel
- Color Finish: Black stainless steel
- Dimensions
- Product Height: 28 3/8 inches (The out of box height of the item. Height is measured as the vertical distance from the bottom of the item to the top as it would be primarily used or placed.)
- Minimum Installation Height Above Cooktop: 27 inches
- Product Width: 36 inches (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
- Product Depth: 19 11/16 inches (The out of box depth of the item. Depth is measured as the distance from the front of the item to the back as it would be primarily used or placed.)
- Standardized Width: 36 inches (An approximated measurement (exact width may differ slightly) determined by the manufacturer in accordance with industry standards. Standardized sizes are intended to assist consumers when purchasing appliances and planning for installation.)
- Product Weight: 27.3 pounds (The out of box weight of the item.)
- Duct Shape: Rectangular
- Features
- Exhaust Vent Location: Top
- Vent Type: Ducted, Ductless
- Vent Style: External, Recirculating (External vents pull air from the room and move it directly outside through a dedicated duct system. Recirculating vents pull the air through a filter so that it can be cleaned before being recycled back into the room. Convertible vents can be reconfigured from external ventilation to recirculating via installation of certain parts.)
- Range Hood Type: Wall
- Number of Fan Speeds: 3

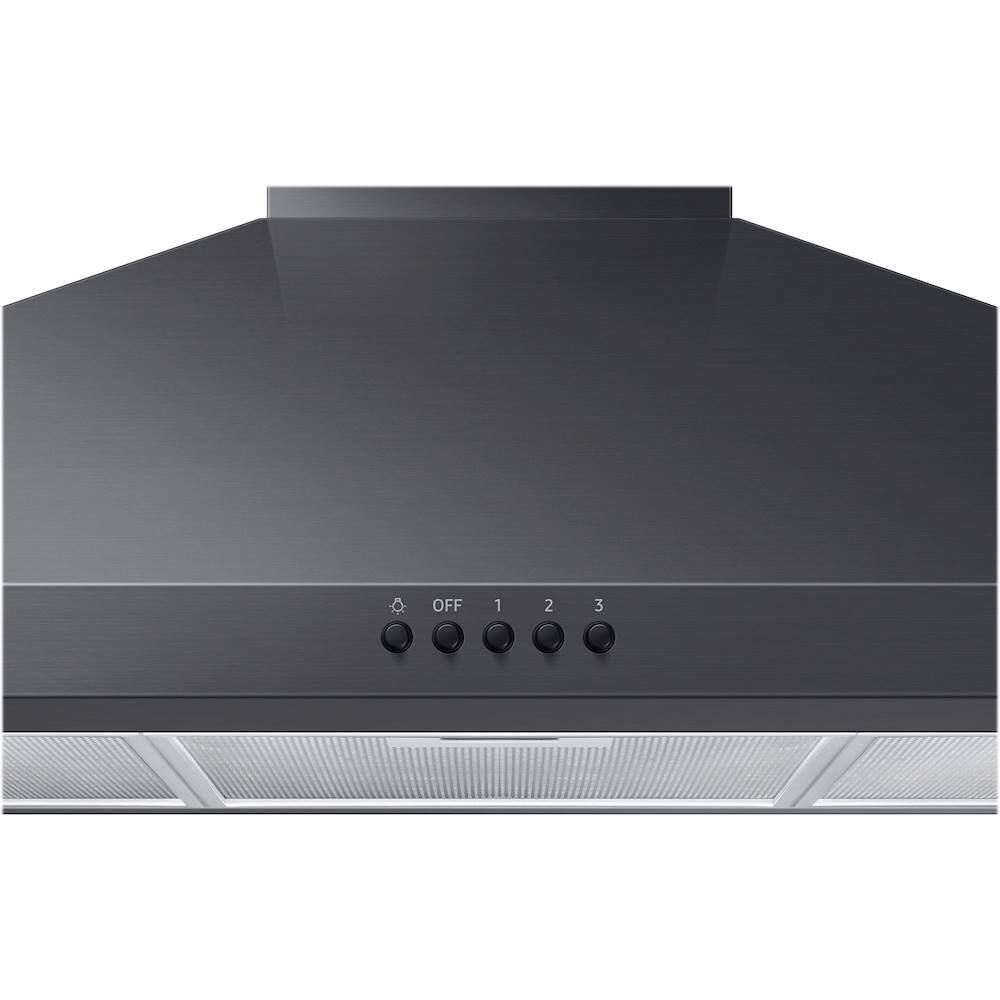

- Control Type: Button

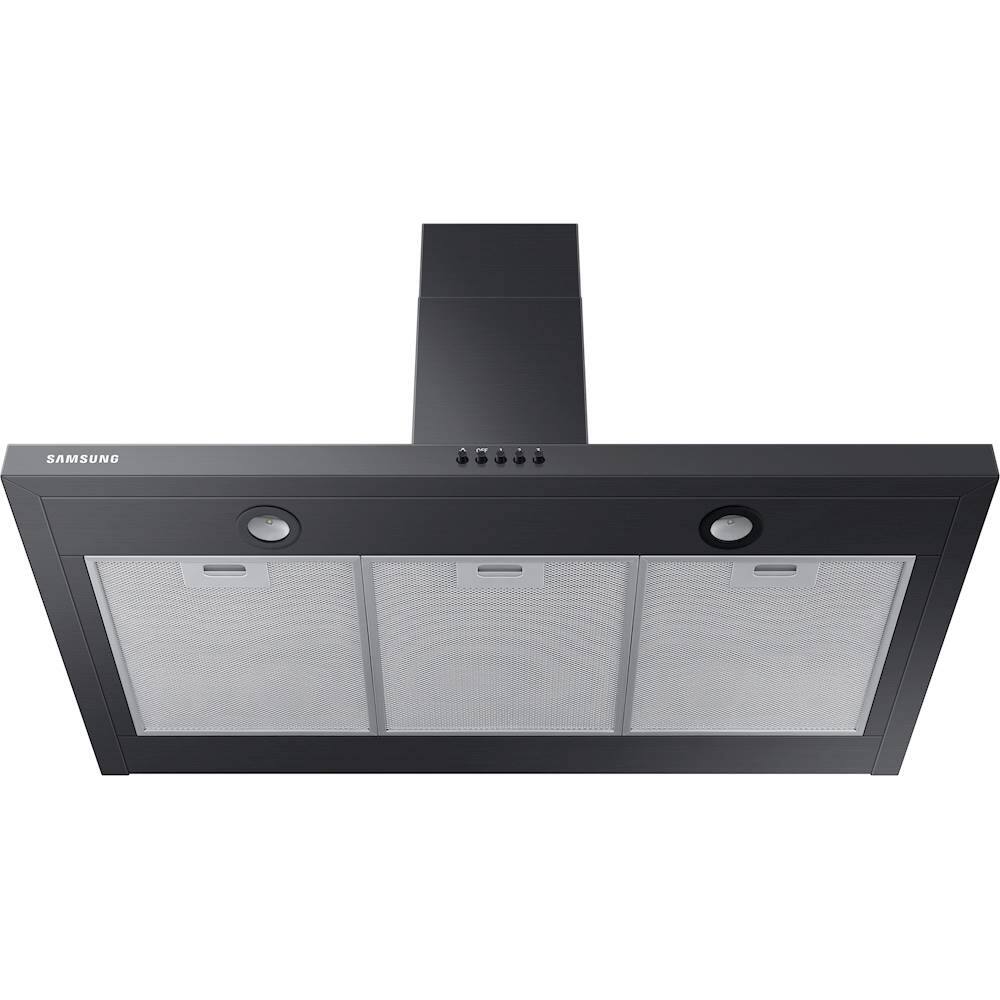

- Integrated Light(s): true
- Number of Lights: 2

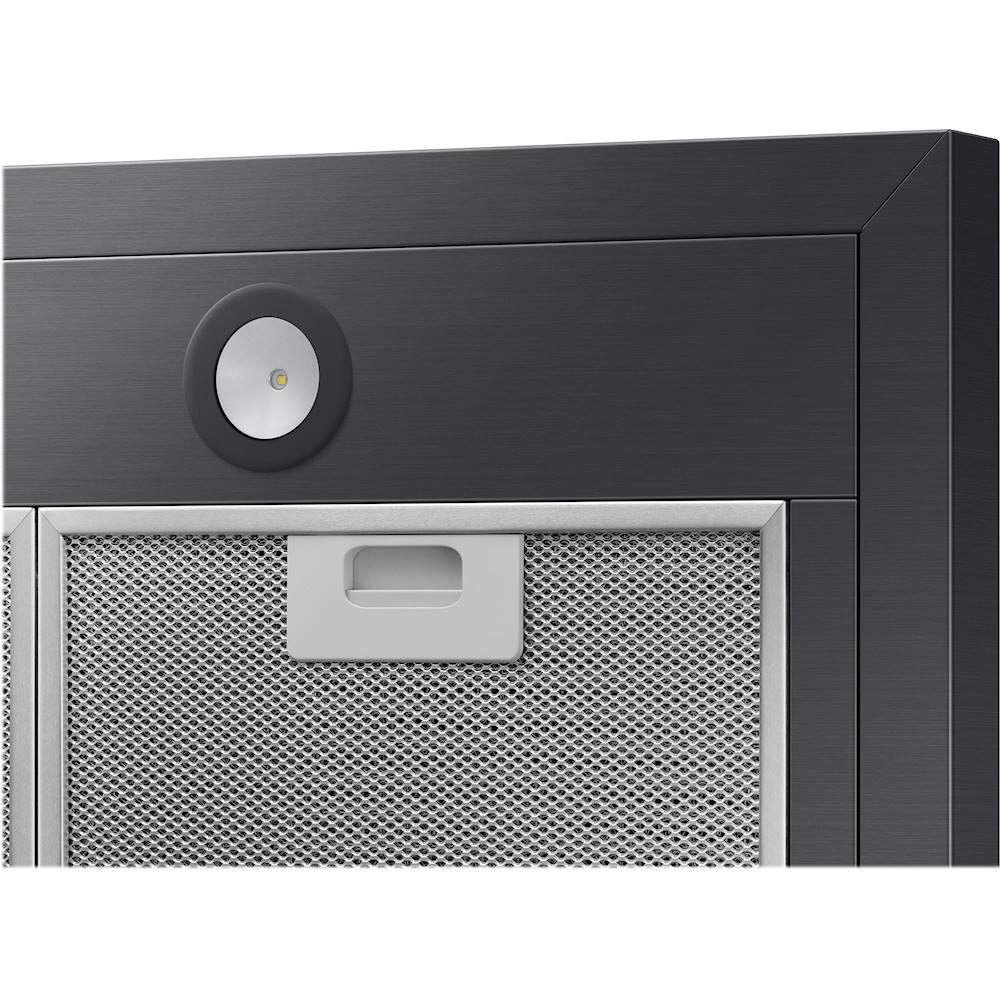

- Bulb Type Required: LED
- Bulb(s) Included: true
- Performance
- Maximum Air Flow Capacity: 390 cubic feet per minute (Maximum amount of air that the appliance can ventilate at its highest setting.)
- Filter Info
- Filter Material: Aluminum
- Dishwasher-Safe Filter: true

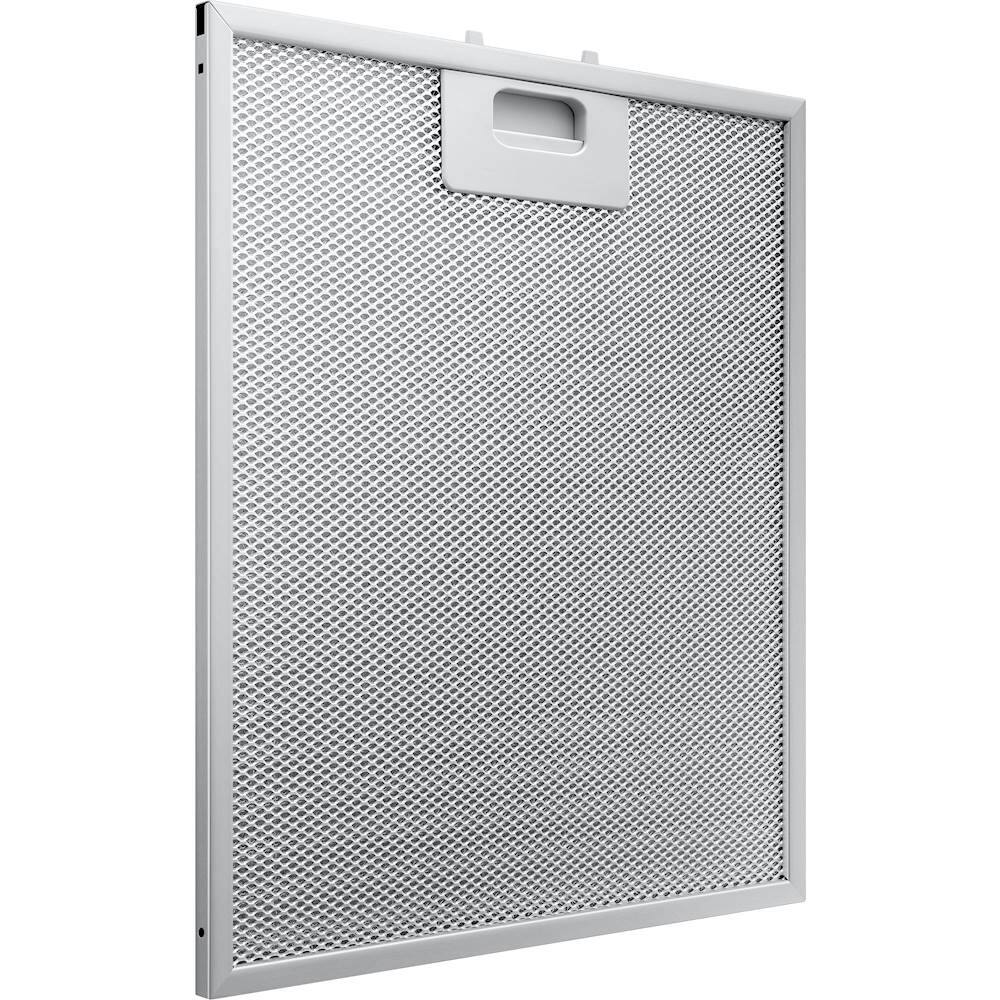

- Removable Grease Filter: true
- Electrical Specification
- Amperage: 15 amperes (Strength of electrical current.)
- Voltage: 120 volts (Amount of power needed to support an electrical current.)
- Warranty
- Warranty - Parts: 1 year
- Warranty - Labor: 1 year
- Other
- UPC: 887276302034
The Samsung range hood keeps the kitchen air fresh. The powerful ventilation circulates air to remove odors quickly while LED lights illuminate the cooktop, providing brightness and energy efficiency.
- Powerful 390 cfm ventilation: Circulates air to remove odors quickly.
- LED lights: Illuminate the cooktop and are bright and energy efficient.
- Ventilation: The vent can handle any cooking style with 3 ventilating speeds.
- ADA compliant: The hood was designed for accessibility.

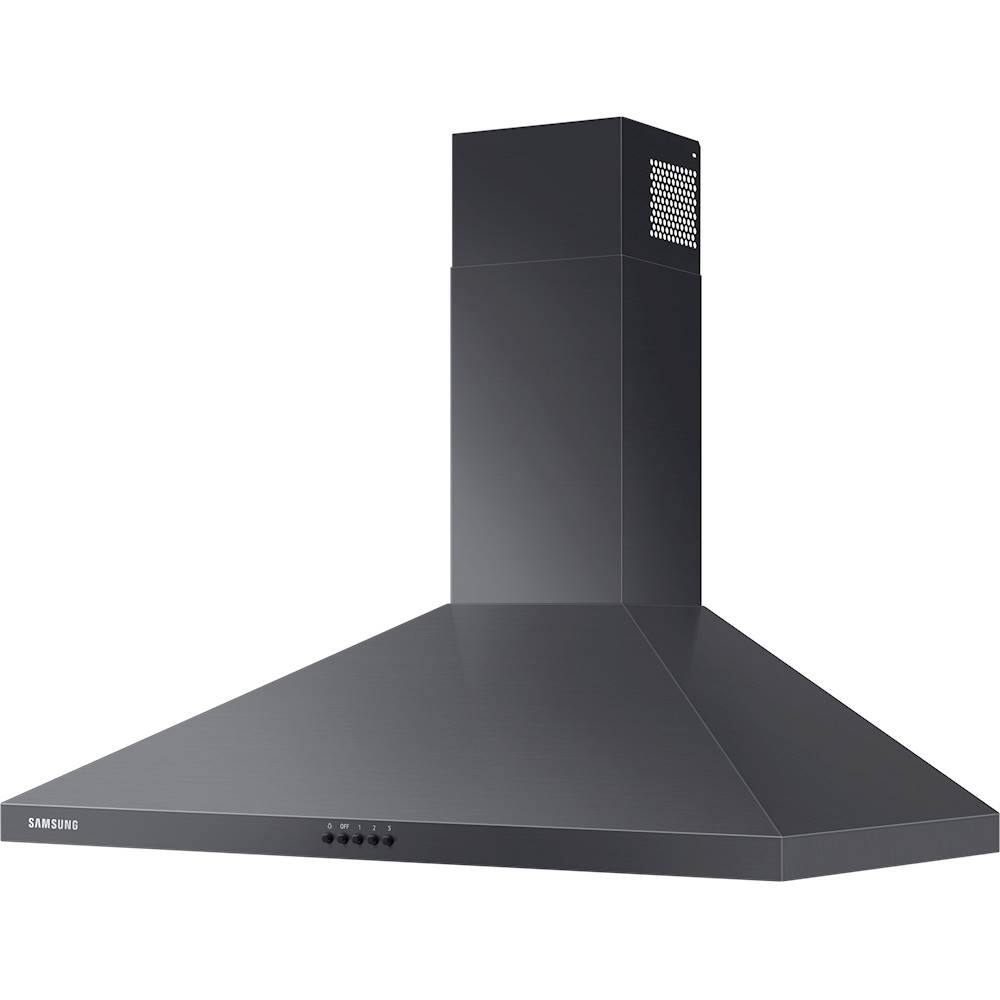

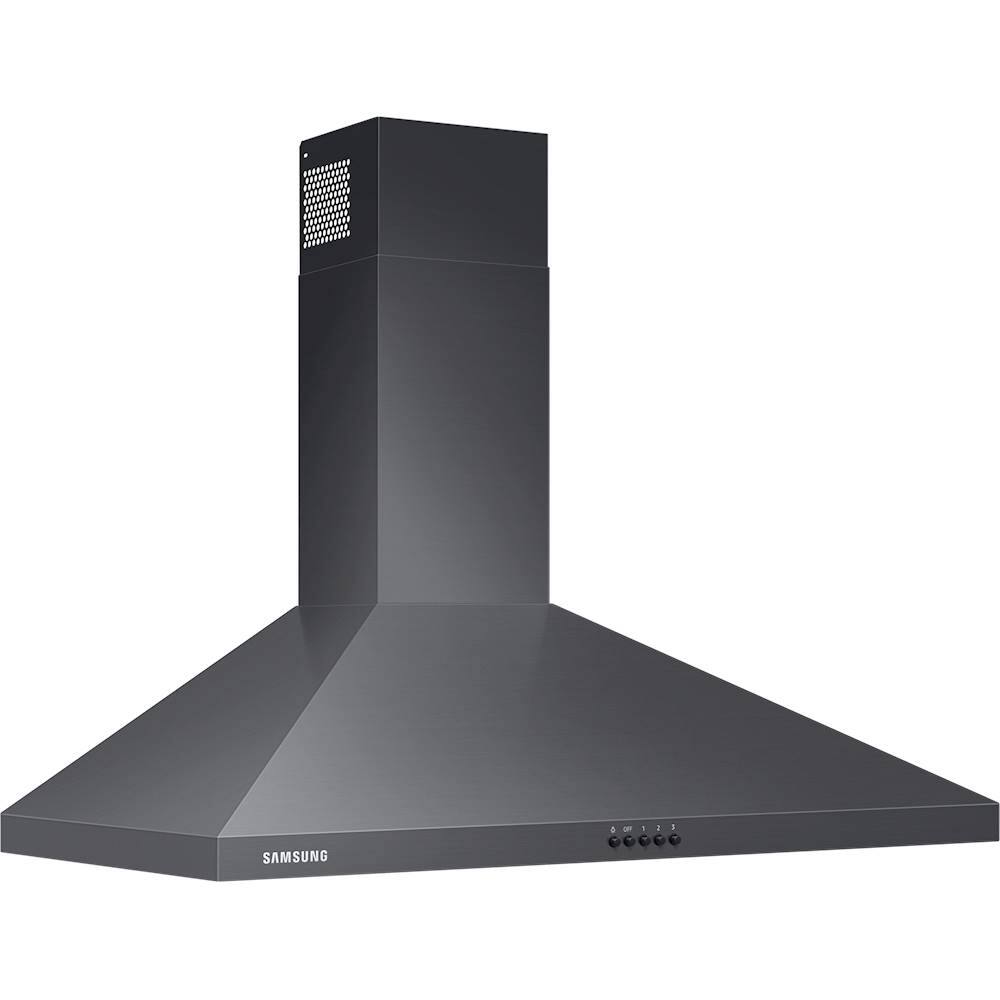

- Chimney-style design: Wall-mounted chimney-style design.
- Fingerprint-resistant finish: A special finish to reduce smudges and minimize cleaning.
- Powerful 390 cfm ventilation: Circulates air to remove odors quickly.
- LED lights: Illuminate the cooktop and are bright and energy efficient.
- Ventilation: The vent can handle any cooking style with 3 ventilating speeds.
- ADA compliant: The hood was designed for accessibility.
- Chimney-style design: Wall-mounted chimney-style design.
- Fingerprint-resistant finish: A special finish to reduce smudges and minimize cleaning.
Whats Included
- Samsung 36" Convertible Range Hood
- Light bulbs
- Mounting hardware
- Owner's manual
- Samsung 36" Convertible Range Hood
- Light bulbs
- Mounting hardware
- Owner's manual
Q: I have a 12' ceiling. Are extension kits available and what do they cost?
A: Samsung Chimney Hood Extension Kit for 12 Ft. Ceilings Model: NK-AE705PWS be prepared to pay nearly the same price as you paid for the entire unit to begin with- very overpriced item, but if you need it you need it
A: Hi PetePete, Thank you for reaching out and we hope you are in good health. We appreciate your interest in Samsung home appliances, specifically with Samsung - 36" Convertible Range Hood - Black stainless steel. Yes, this range hood can be installed with a vent through the wall or a ductless version. To do so, you need to purchase the recirculating kit (NK-AF020FNB/AA) to install the range hood to vent through the wall. I have shared the installation and user guide link below. Please access the link and turn to pages 4 - 5. https://downloadcenter.samsung.com/content/UM/201906/20190626102548332/NK30R5000WS_AA_EN-FR-ES.pdf Please feel free to communicate with us through the channels below if you have additional questions. 1. Facebook Messenger: http://m.me/samsungsupport 2. Twitter: https://twitter.com/messages/compose?recipient_id=18768513 3. Samsung Community: https://us.community.samsung.com/t5/Samsung-Community/ct-p/us Your reference number: 1144403748 Leo
A: Hi cookingwithgas, Thank you for reaching out, and we hope you are in good health. We appreciate your interest in Samsung home appliances, specifically with Samsung - 36" Convertible Range Hood - Black stainless steel. Yes, you may install this in a cabinet; however, a qualified technician must verify that the fittings are suitable for your cabinets, walls, and ceiling. I have shared the user manual link below. Please access the link and turn to page 4 for the installation requirements. https://downloadcenter.samsung.com/content/UM/201906/20190626102548332/NK30R5000WS_AA_EN-FR-ES.pdf Please feel free to communicate with us through the channels below if you have additional questions. 1. Facebook Messenger: http://m.me/samsungsupport 2. Twitter: https://twitter.com/messages/compose?recipient_id=18768513 3. Samsung Community: https://us.community.samsung.com/t5/Samsung-Community/ct-p/us Your reference number: 1144697792 Leo
Q: What is a convertible range hood and how does it differ from regular ones?
A: Hi there, I can help with that. This Samsung Hood can either recirculate the air inside or exhaust the air outside. Thank you for choosing Samsung. ^Brad
Q: Good morning is this convertible range hood ductless
A: Good day. Yes, this range hood can also be installed ductless. For the ductless version of this hood, please refer to page 4 of the installation manual: https://downloadcenter.samsung.com/content/UM/201906/20190626102548332/NK30R5000WS_AA_EN-FR-ES.pdf Have a wonderful day! —Vannesa
Q: Does this hood needs to be vented outside? Need a hood that will be recirculating.
A: Greetings! We appreciate your question about this Samsung range hood model and whether it can be configured to recirculate. This hood can be configured to recirculate. You will need to purchase separately the recirculating kit with model number NK-AF020FNB/AA. Leo
Q: What is the sones at the highest setting?
A: Hi, Great question. In the highest setting, it will be 70 dBA (7.0 sones). Have a great day. ^Charles
