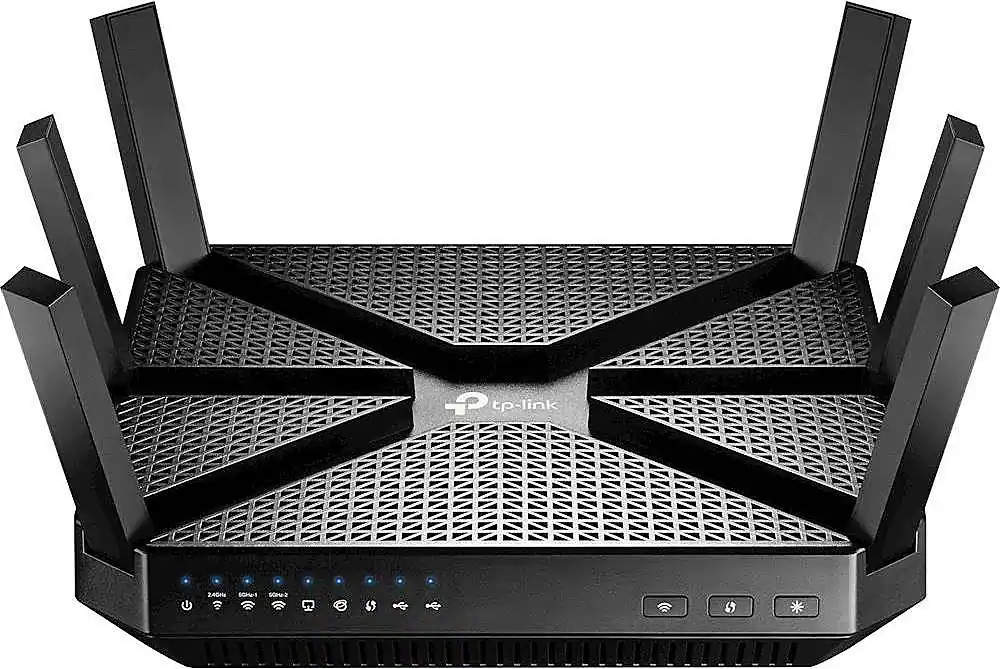

TP-Link - Archer AC4000 Tri-Band Wi-Fi 5 Router - Black
- Key Specs
- Number Of LAN Ports: 4 (Number of devices able to be connected to the Local Area Network (LAN). LAN ports allow wired connections to other networking devices (wireless access points, range extenders, etc.) in order to share the internet connection received through a WAN port.)
- Wi-Fi Speed: 4 gigabits per second (The maximum rate at which data is transferred between a network device and wireless router.)
- General
- Brand: TP-Link
- Model Number: ARCHER C4000
- Product Name: Archer AC4000 Tri-Band Wi-Fi 5 Router
- Color: Black
- Security
- Data Encryption: true
- Encryption Type: WPA, WPA2, WPA-PSK, WPA2-PSK (The security protocols or certification programs that protect the Wi-Fi network.)
- Firewall Type: None (The method the firewall uses to filter and process data to increase network security, primarily by blocking malicious traffic requests while allowing legitimate traffic through.)
- Parental Controls: true (Allows user to block unwanted content, signals, channels, networks, etc. from being received or accessed.)
- Network
- Band Technology: Tri (Refers to the number of frequency bands used to wirelessly transmit an internet signal. For example, dual-band devices may use one 2.4 and one 5 GHz band, while tri-band devices may use one 2.4 and two 5 GHz bands. Multiple bands also provide more flexibility for designating connected devices to specific band use.)
- Ethernet Standard: 10/100/1000 (Each standard is a variation of the IEEE 802.3 set of computer networking technologies known as Ethernet. New versions evolved to include higher bandwidth, different physical media, and other new and improved features. Standards are often denoted by speeds (in Megabits per second). For example, a 10/100/1000 Ethernet port transmits at 10 Mbps, 100 Mbps, and 1000 Mbps (1 Gbps).)
- Number of Antennas: 6
- Frequency Band: 2.4 GHz, 5.0 GHz (Bands may be grouped into categories such as low- and high-band VHF (Very High Frequency), low- and high-band UHF (Ultra High Frequency), or certain frequency channels (measured in MHz or GHz). Generally, higher frequencies transmit information faster but have shorter range than lower frequencies.)
- Wireless Networking Standard: Wi-Fi 5 (The wireless networking standard used by the device. Each iteration of the standard developed by the Wi-Fi Alliance corresponds to an existing IEEE 802.11 protocol; for example, standard 802.11ac (or AC) is termed Wi-Fi 5. Refers specifically to the standard the device is designed to use, but ultimately determines product interoperability and backward compatibility including previous versions.)
- Wireless Standard: AC, N (The wireless networking protocol used by the device. Each iteration of the protocol is based on the 802.11 standard developed by the Institute of Electrical and Electronics Engineers (IEEE) Standards Association. Denoted by letters following 802.11 (802.11a, 802.11ac, etc.), each version, published in alphabetical order, encompasses all previous versions.)
- Number of 2.4Ghz Streams: 1 (A router's streams are like lanes on a highway. The more streams a router has, the less traffic congestion. Because the 2.4 GHz band is used to transmit wireless signals to a wide variety of devices, there is often high amounts of traffic on that stream. But with multiple streams, each can be designated to a specific device for optimal performance. For example, if one 2.4 GHz stream is assigned to one device, such as a desktop computer, it leaves the remaining streams open for guest users, devices that use more data, or devices with specific band compatibility.)
- Number of 5.0Ghz Streams: 2 (A router's streams are like lanes on a highway. The more streams a router has, the less traffic congestion. The 5.0 GHz band provides high speed, short-range data transmission and typically has less traffic than the 2.4 GHz band. With multiple streams, each can be designated to a specific device for optimal performance. For example, if one 5.0 GHz stream is assigned to one device, such as a streaming media player, it leaves the remaining streams open for guest users, devices that need less data, or devices with specific band compatibility.)
- Ethernet Switch: true (Connects multiple devices to expand the Local Area Network (LAN).)
- Transport Protocol: PPTP, L2TP, PPPoE, DHCP, DDNS (The protocol used for connection-oriented transmissions, flow control, etc. within the transport layer of the network.)
- Certifications Listings & Approvals
- ENERGY STAR Certified: false (Devices carrying the ENERGY STAR service mark, such as computer products and peripherals, kitchen appliances, and other products, generally use 20% to 30% less energy than required by federal standards.)
- Features
- Beamforming: true (A signal processing technique that enables a router to focus a Wi-Fi signal in a specific direction. The router determines where a connected device in the network is located and projects a stronger signal in that specific direction. This can result in faster and higher quality data transfer as well as reduced signal interference.)
- Integrated Modem: false
- Wireless: true
- Ports
- Number Of WAN Ports: 1 (Number of devices able to be connected to the Wide Area Network (WAN). This type of port may simply be labeled "Internet," and it allows the device to share its internet connection with all devices connected to it via LAN ports.)
- Port Type(s): RJ-45, USB (USB 2.0 connects external drives, gaming controllers, smartphones, MP3 players and other accessories.USB 3.0 transfers data faster than USB 2.0, but only when used with USB 3.0 devices.USB Type-C provides fast speeds and versatile power, featuring connectors with identical ends that plug in upside down or right side up. Adapters allow for video as well as backward compatibility.Thunderbolt provides ultra-high bandwidth for fast data transfer between devices featuring a Thunderbolt or MiniDisplayPort connection.HDMI allows you to connect a projector or display HD media on your HDTV or monitor.Media card slots allow you to transfer photos from your digital camera or camcorder.)
- Number Of LAN Ports: 4 (Number of devices able to be connected to the Local Area Network (LAN). LAN ports allow wired connections to other networking devices (wireless access points, range extenders, etc.) in order to share the internet connection received through a WAN port.)
- Speed
- Wired Speed: 1000 megabits per second (The maximum rate at which data is transferred between a network device and router using an Ethernet cable.)
- Wi-Fi Speed: 4 gigabits per second (The maximum rate at which data is transferred between a network device and wireless router.)
- Gigabit Ethernet Speed: true (Supports the gigabit Ethernet networking standard, which has a data rate of at least one gigabit per second, or 1,000 Mbps.)
- Dimensions
- Product Height: 1.5 inches (The out of box height of the item. Height is measured as the vertical distance from the bottom of the item to the top as it would be primarily used or placed.)
- Product Length: 7.9 inches (The out of box length of the item. Length is measured as the longest dimension of the item.)
- Product Width: 7.9 inches (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
- Other
- UPC: 845973081423
Improve your home network with this TP-Link Archer C4000 tri-band Wi-Fi router. The two 5GHz bands provide faster data rates with speeds of up to 1625 Mbps, and a 1.8GHz processor maximizes performance and minimizes lag. This TP-Link Archer C4000 tri-band Wi-Fi router uses RangeBoost and beamforming technologies to extend Wi-Fi coverage and improve reliability.
- Wireless-AC technology: Promotes rapid performance and optimal coverage.
- Up to 4000 Mbps data transfer speed: For fast, efficient operation.
- 2.4 GHz (1 band) / 5 GHz (2 bands) wireless frequency: For fast data transfer speeds.
- 6 high-performance antennas for thorough coverage: Large, overlapping Wi-Fi patterns remove dead spots and widen the router's range.
- MU-MIMO technology: MU-MIMO gives every compatible device its own dedicated full-speed Wi-Fi connection, so that multiple devices can connect at the same time without slowing down the network.
- 1 USB 2.0 and 1 USB 3.0 ports: Allow you to connect a printer and enjoy 3G and 4G file sharing.
- Parental control: Lets you automatically block specific content on connected devices.
- Print and file servers: Along with a guest network to suit a variety of uses.
- Complies with a variety of standards: Including FCC and RoHS.
- Gigabit Ethernet connectivity: Offers a high-speed wired network connection.
- Auto detecting and auto sensing: To simplify device connectivity.
- Encryption: Includes 128-bit WEP, 64-bit WEP, WPA, WPA2, WPA-PSK and WPA2-PSK to keep your network secure.
- Plug-and-play operation: Makes setup simple.
- Wireless-AC technology: Promotes rapid performance and optimal coverage.
- Up to 4000 Mbps data transfer speed: For fast, efficient operation.
- 2.4 GHz (1 band) / 5 GHz (2 bands) wireless frequency: For fast data transfer speeds.
- 6 high-performance antennas for thorough coverage: Large, overlapping Wi-Fi patterns remove dead spots and widen the router's range.
- MU-MIMO technology: MU-MIMO gives every compatible device its own dedicated full-speed Wi-Fi connection, so that multiple devices can connect at the same time without slowing down the network.
- 1 USB 2.0 and 1 USB 3.0 ports: Allow you to connect a printer and enjoy 3G and 4G file sharing.
- Parental control: Lets you automatically block specific content on connected devices.
- Print and file servers: Along with a guest network to suit a variety of uses.
- Complies with a variety of standards: Including FCC and RoHS.
- Gigabit Ethernet connectivity: Offers a high-speed wired network connection.
- Auto detecting and auto sensing: To simplify device connectivity.
- Encryption: Includes 128-bit WEP, 64-bit WEP, WPA, WPA2, WPA-PSK and WPA2-PSK to keep your network secure.
- Plug-and-play operation: Makes setup simple.
Whats Included
- Network cable
- TP-Link Archer AC4000 Tri-Band Wi-Fi 5 Router
- Network cable
- TP-Link Archer AC4000 Tri-Band Wi-Fi 5 Router
Q: I have a very old house of about 2000 square feet. Will this router cover my home?
A: Any router could have issues with lathe and plaster walls, this router can do the square footage, but you’ll just have to try it. The thicker the lathe and plaster, the more difficult and location will also play a role.
Q: Will this router cover my 3500 square foot house?
A: To ensure the best possible WiF isignal, it is important to make sure placement is as optimal as possible. Reducing obstructions and placing the router in a central location will help ensure your signal reaches the areas you need. In some cases, if relocating is not possible, or if your environment/home requires it, using a mesh WiFi solution such as our Deco Mesh series may be a suitable solution. Regards, TP-Link Support
A: Yes, our AC4000 WiFi router can be used with any Internet service by connecting to the modem via Ethernet. Your ping will vary depending on numerous factors including, but not limited to: which medium you are connecting to the router with (i.e. Ethernet or WiFi), your Internet provider's speed and latency, and if connecting via WiFi, which band, how far from the router you are, and the WiFi capabilities of your gaming device. Regards, TP-Link Support
A: Yes, this router is equipped with tri-band technology and is capable of handling your devices. Please ensure to optimally distribute your 20 devices across the three bands to ensure they receive ideal bandwidth. Regards, TP-Link Support
Q: Does this come with a preset password? I don’t have a computer to set it up with, only iPads.
A: I set the router up using the TP-Link Tether app on my smartphone. The app detects the router, then asks you what you want the SSID and password to be for each of the 3 wireless networks. I had it setup in less than a minute.
Q: What extender works well with this
A: If you intend to use a WiFi extender with the router, we would recommend using a high speed WiFi extender, such as our RE650.
Q: How many ethernet connections are there on the back?
A: It has 4 Ethernet connection ports.
A: The router is equipped with an industry standard SPI Firewall. Regards, TP-Link Support
