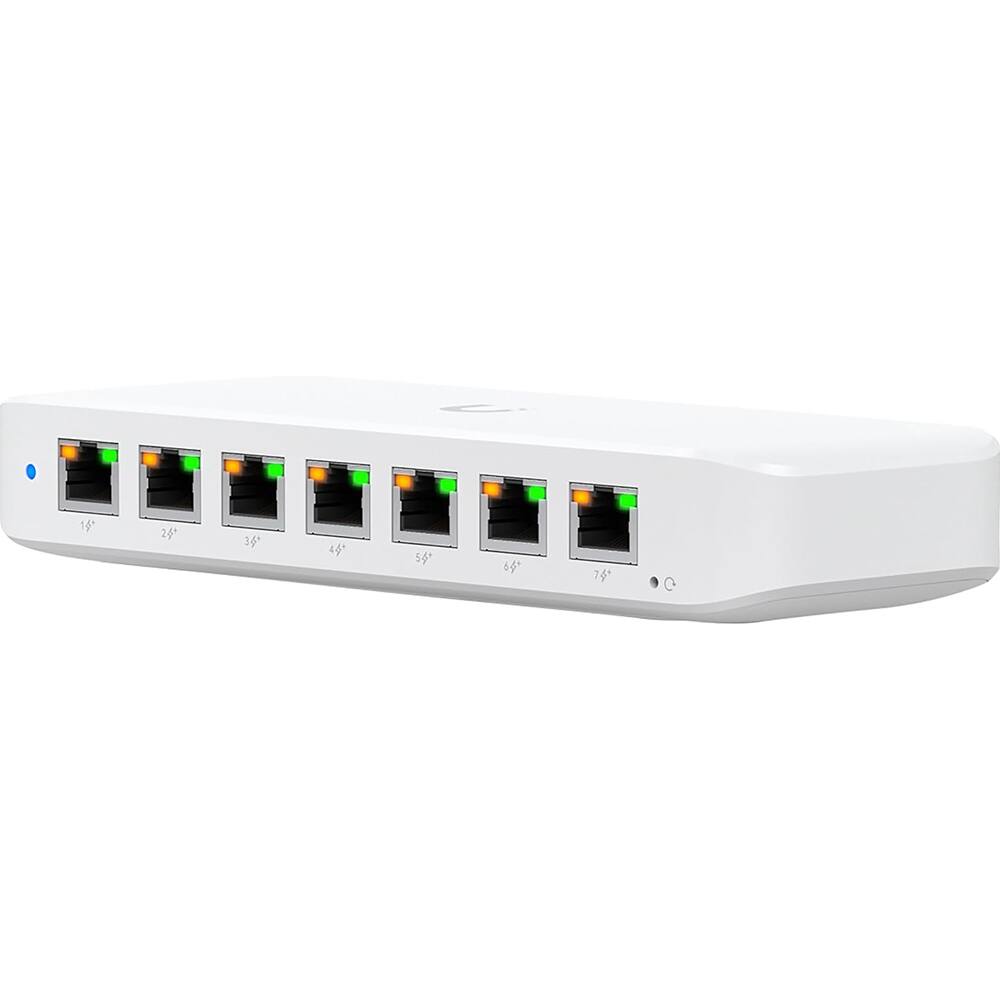

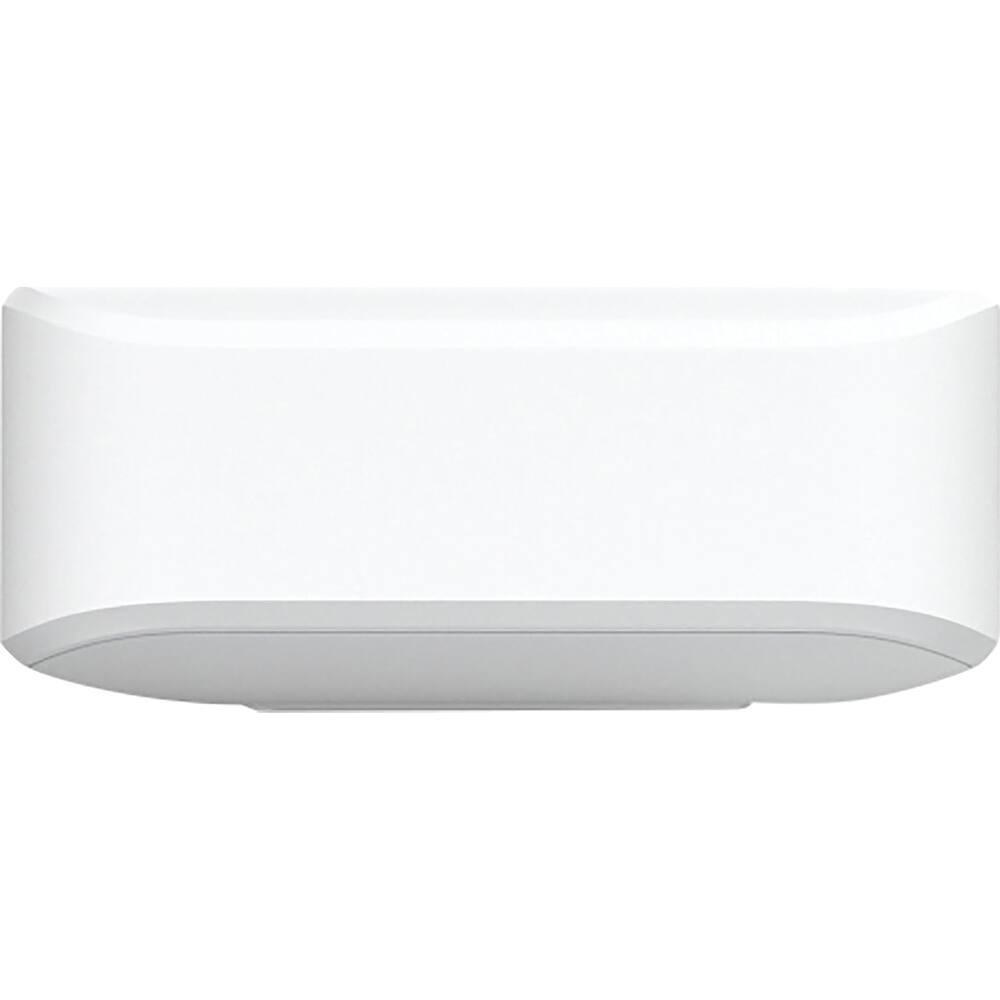

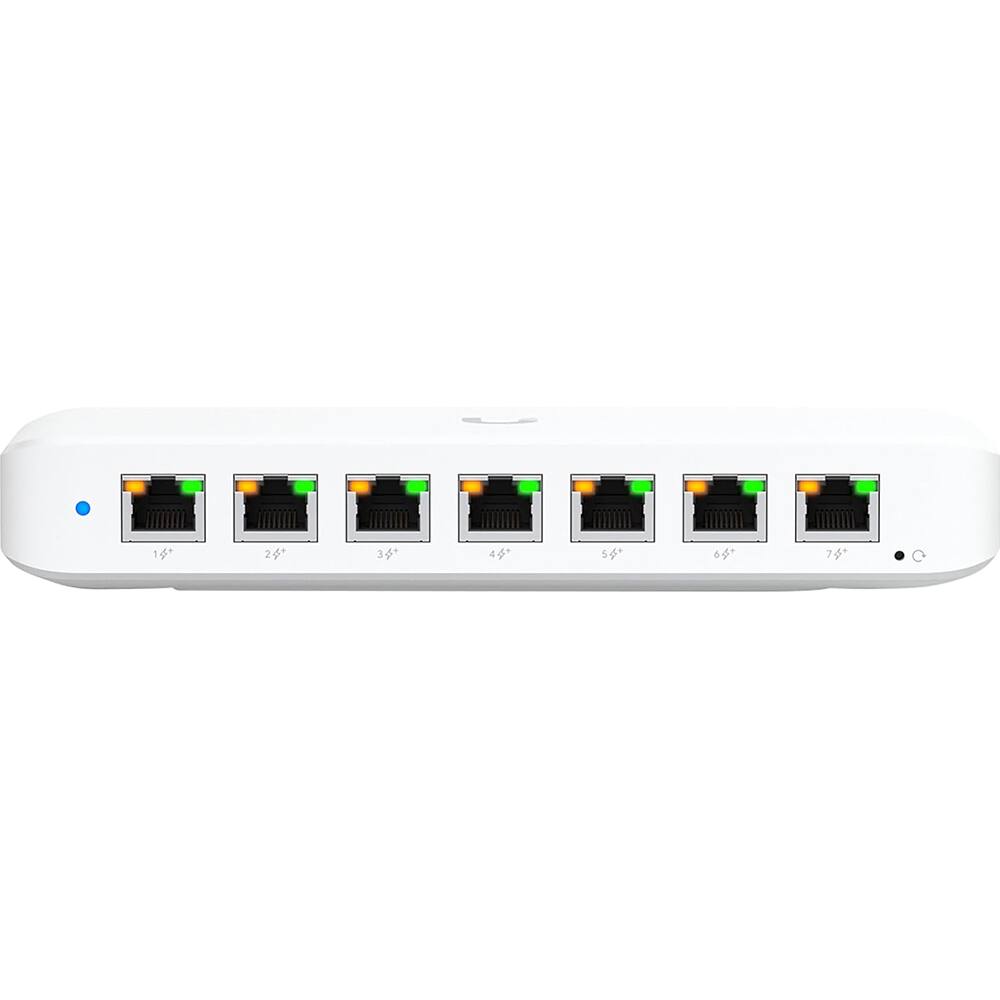

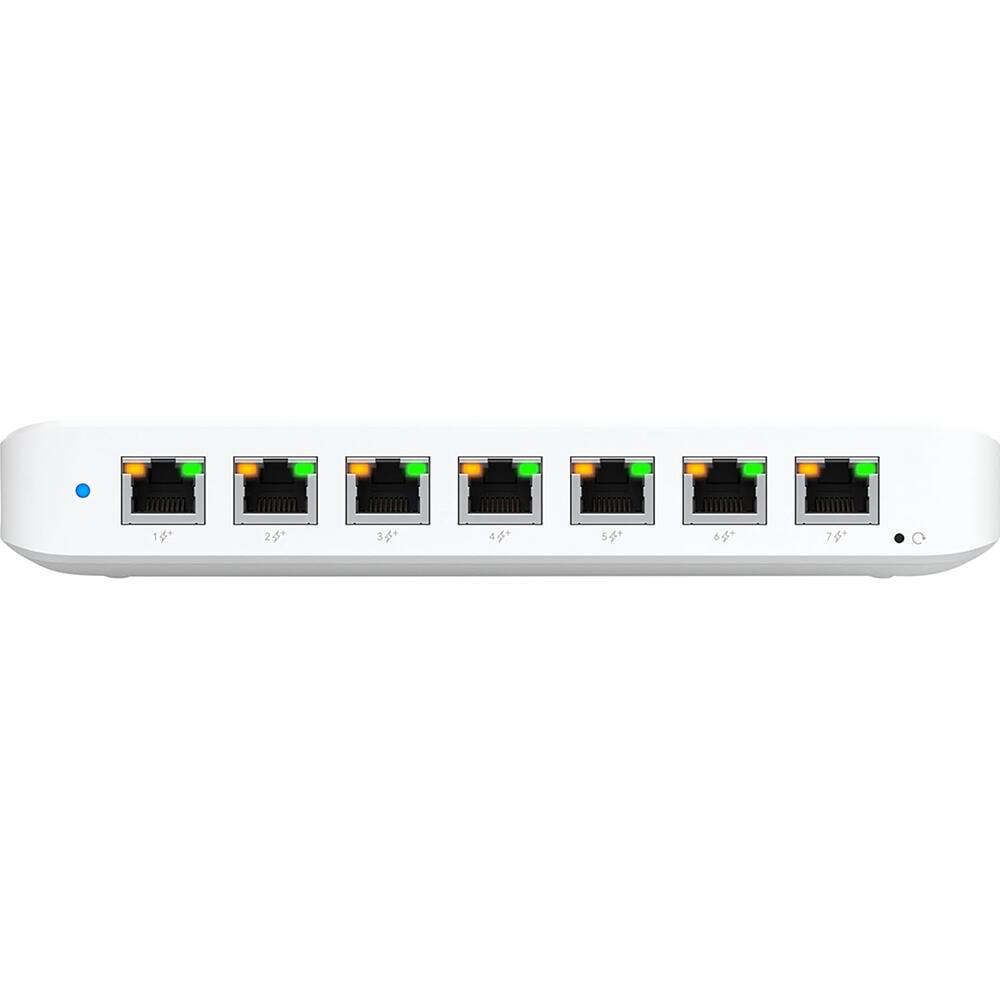

Ubiquiti - Ultra 8-Port Gigabit PoE+ Compliant Managed Network Switch USW-ULTRA - White
Reviews coming soon
More Buying Options from Marketplace sellers
Specifications
- Number of LAN Ports8
- Key Specs
- Number of LAN Ports: 8 (Number of devices able to be connected to the Local Area Network (LAN). LAN ports allow wired connections to other networking devices (wireless access points, range extenders, etc.) in order to share the internet connection received through a WAN port.)
- General
- Brand: Ubiquiti
- Product Name: Ultra 8-Port Gigabit PoE+ Compliant Managed Network Switch USW-ULTRA
- Color: White
- Dimensions
- Product Height: 1.3 inches (The out of box height of the item. Height is measured as the vertical distance from the bottom of the item to the top as it would be primarily used or placed.)
- Product Length: 8 inches (The out of box length of the item. Length is measured as the longest dimension of the item.)
- Product Width: 3 inches (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
- Product Weight: 0.71 pounds (The out of box weight of the item.)
- Warranty
- Warranty - Parts: Full Manufacturers Warranty
- Warranty - Labor: Full Manufacturers Warranty
- Other
- UPC: 810084693698

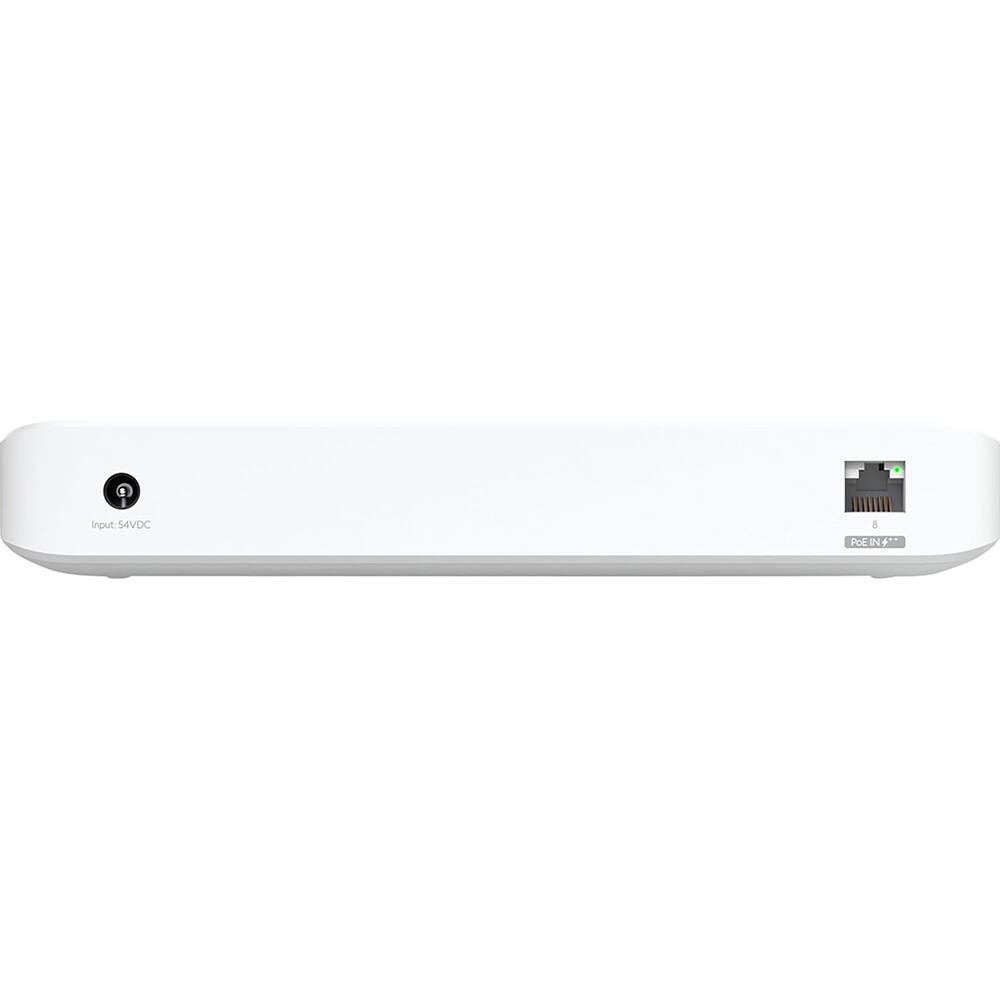

Designed for high versatility, the compact Ubiquiti Switch Ultra discreetly mounts onto a desktop or wall to operate powered devices such as IP cameras, VoIP phones, and access points. Seven of its Gigabit Ethernet ports support up to 30W PoE+ output with a total budget that is determined by the power input. For instance, connecting the PoE++ input to a compatible source provides up to 42W while using a separately purchased 210W AC adapter increases the budget to 202W. With a 16 Gb/s (8 Gb/s non-blocking) switching capacity, this Layer 2 switch provides smooth and reliable data transfers. Its fanless design allows it to operate silently in the background of your office. PoE Budget Configurations. PoE++ input: 42W. PoE+ input: 16W. 60W PoE adapter input: 42W. 60W AC adapter input: 52W. 210W AC adapter input: 202W. Note: 202W budget is available with up to 113°F operating temperature. Budget reduces to 161W or 121W at 140°F. Layer 2 Features. Port isolation. Storm control. Port mirroring. Multicast / broadcast rate limiting. Flow control. Jumbo frames. Egress rate limit.
- Versatile Mounting Options: Compact design allows for flexible installation in various network environments.
Whats Included
- Ubiquiti Inc UniFi Ultra
Q: Does it come with a AC wall adapter?
A: undefined
Compare similar products
Designed for high versatility, the compact Ubiquiti Switch Ultra discreetly mounts onto a desktop or wall to operate powered devices such as IP cameras, VoIP phones, and access points. Seven of its Gigabit Ethernet ports support up to 30W PoE+ output with a total budget that is determined by the power input. For instance, connecting the PoE++ input to a compatible source provides up to 42W while using a separately purchased 210W AC adapter increases the budget to 202W. With a 16 Gb/s (8 Gb/s non-blocking) switching capacity, this Layer 2 switch provides smooth and reliable data transfers. Its fanless design allows it to operate silently in the background of your office. PoE Budget Configurations. PoE++ input: 42W. PoE+ input: 16W. 60W PoE adapter input: 42W. 60W AC adapter input: 52W. 210W AC adapter input: 202W. Note: 202W budget is available with up to 113°F operating temperature. Budget reduces to 161W or 121W at 140°F. Layer 2 Features. Port isolation. Storm control. Port mirroring. Multicast / broadcast rate limiting. Flow control. Jumbo frames. Egress rate limit.
TThe USW-16-POE is a configurable Gigabit Layer 2 switch with sixteen Gigabit Ethernet ports including eight auto-sensing 802.3at PoE+ ports, and two SFP ports. It provides Gigabit PoE links to your RJ45 Ethernet devices and Gigabit fiber uplink options to your enterprise network. The USW-16-POE features a 1.3" touch LCM to provide status information. With a depth of 7.9", the compact fanless design can be easily installed in a SOHO rack cabinet.
Flexible, 8port 2.5 GbE PoE++ switch with a 10 GbE RJ45/SFP+ combination uplink port that can be powered with PoE+++ or an AC power adapter.8 2.5 GbE PoE++ output ports1 10 GbE PoE+++ input port for power / SFP+ port combo 57W PoE availability with PoE+++ input 37W PoE availability with PoE++ input 12W PoE availability with PoE+ input196W PoE availability with optional AC power adapterAC power adapter sold separately.

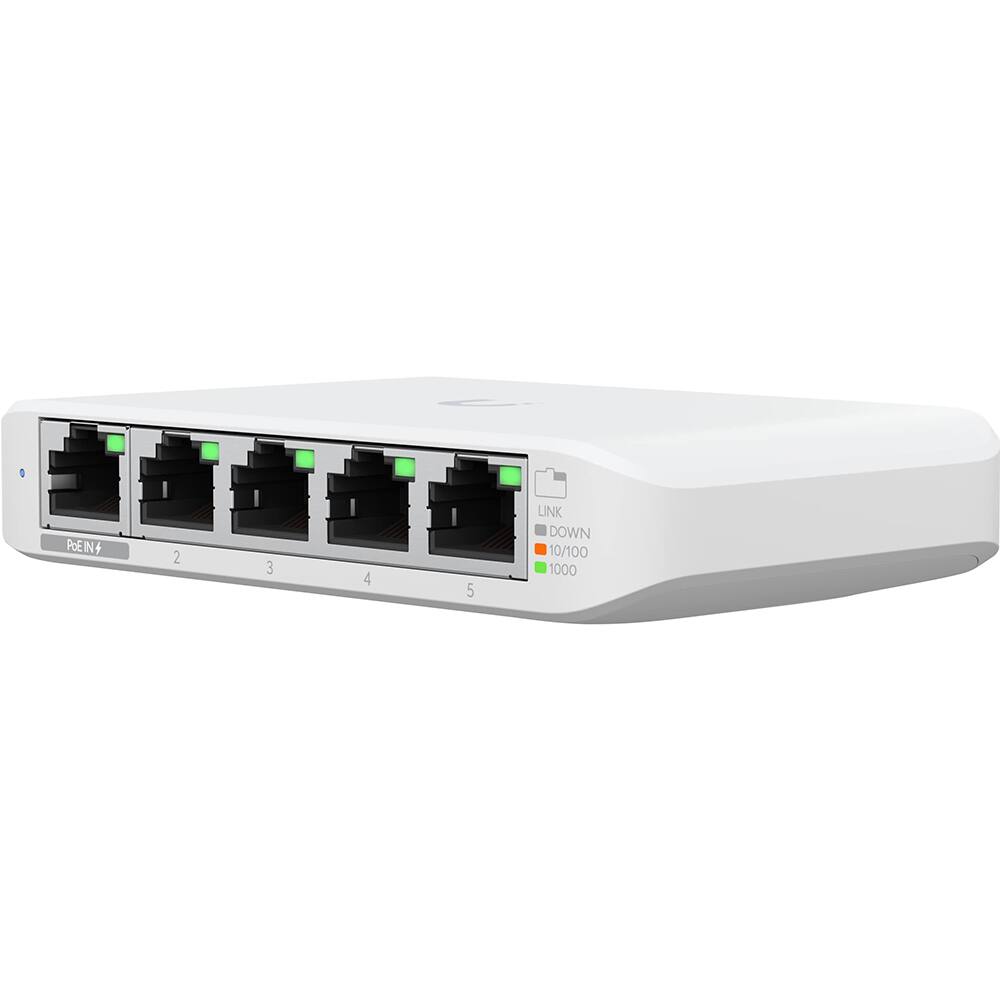

The USW-Flex-Mini is a Compact 5-Port Gigabit Switch. Build and expand your network with the UniFi Switch, part of the Ubiquiti Networks UniFi Enterprise System. The UniFi Switch, model USW-Flex-Mini, is a smart managed Gigabit switch. It offers 5 RJ45 Ethernet ports, providing 1 Gigabit links to your devices. Power up the USW-Flex-Mini with the included USB Type-C power adapter or with 802.3af PoE Ethernet in port 1.
