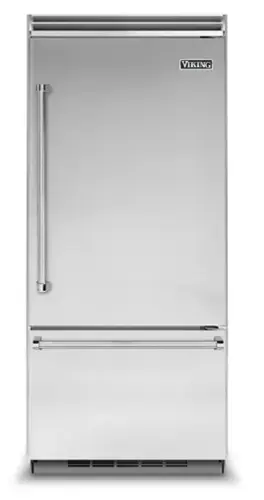

Viking - 5 Series Quiet Cool 20.4 Cu. Ft. Bottom-Freezer Built-In Refrigerator - Stainless Steel
Delivery to
Related Item
Specifications
- Color FinishStainless steelProduct Height82 7/8 inchesProduct Width36 inchesHeight To Top Of Door Hinge82 3/4 inchesDepth Without Handle24 inchesDepth With Handle26 1/2 inches
- Key Specs
- Color Finish: Stainless steel
- Product Height: 82 7/8 inches (The out of box height of the item. Height is measured as the vertical distance from the bottom of the item to the top as it would be primarily used or placed.)
- Product Width: 36 inches (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
- Height To Top Of Door Hinge: 82 3/4 inches (Height from bottom of refrigerator to top of the door, including the top hinge.)
- Depth Without Handle: 24 inches (Measurement from the back of the product to its front (with door closed), not including handle.)
- Depth With Handle: 26 1/2 inches (Measurement from the back of the product to its front (with door closed), including the handle.)
- Total Capacity: 20.4 cubic feet
- Refrigerator Style: Bottom Freezer
- Lighting Type: LED
- Ice Maker: Yes
- App Compatible: false (The product can be connected to a program or software application on a mobile device, which then receives collected data from the product.)
- General
- Brand: Viking
- Model Number: VCBB5364RSS
- Product Name: 5 Series Quiet Cool 20.4 Cu. Ft. Bottom-Freezer Built-In Refrigerator
- Color: Stainless Steel
- Color Finish: Stainless steel
- Vendor Collection: Viking 5 Series (Part of a line of different product types, like kitchen appliances.)
- Side Panel Color: Light Silver
- Dimensions
- Product Height: 82 7/8 inches (The out of box height of the item. Height is measured as the vertical distance from the bottom of the item to the top as it would be primarily used or placed.)
- Product Width: 36 inches (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
- Product Depth: 24 inches (The out of box depth of the item. Depth is measured as the distance from the front of the item to the back as it would be primarily used or placed.)
- Height To Top Of Door Hinge: 82 3/4 inches (Height from bottom of refrigerator to top of the door, including the top hinge.)
- Standardized Width: 36 inches (An approximated measurement (exact width may differ slightly) determined by the manufacturer in accordance with industry standards. Standardized sizes are intended to assist consumers when purchasing appliances and planning for installation.)
- Counter Depth: true (The product case installs flush with the depth of standard kitchen counters to provide a built-in appearance.)
- Depth Without Handle: 24 inches (Measurement from the back of the product to its front (with door closed), not including handle.)
- Depth With Handle: 26 1/2 inches (Measurement from the back of the product to its front (with door closed), including the handle.)
- Depth Without Door: 20 3/4 inches (Measurement from the back of the product to its front, not including the door.)
- Product Weight: 500 pounds (The out of box weight of the item.)
- Cut-Out Dimensions
- Cut-Out Height: 82 7/8 inches (Minimum required height of the installation location for a standard installation of the product. This measurement will help you determine if the appliance will fit into the desired space and have the clearance necessary for proper operational use. Please refer to the manufacturer’s installation documentation for detailed measurement requirements.)
- Cut-Out Width: 35 5/8 inches (Minimum required width of the installation location for a standard installation of the product. This measurement will help you determine if the appliance will fit into the desired space and have the clearance necessary for proper operational use. Please refer to the manufacturer’s installation documentation for detailed measurement requirements.)
- Cut-Out Depth: 24 inches (Minimum required depth of the installation location for a standard installation of the product. This measurement will help you determine if the appliance will fit into the desired space and have the clearance necessary for proper operational use. Please refer to the manufacturer’s installation documentation for detailed measurement requirements.)
- Capacity
- Total Capacity: 20.4 cubic feet
- Refrigerator Capacity: 15.3 cubic feet (Total amount of space within the refrigerator compartment. Usable space may be reduced by shelves, cabinets, or other storage features.)
- Freezer Capacity: 5.1 cubic feet (Total amount of space within the freezer compartment. Usable space may be reduced by shelves, cabinets, or other storage features.)
- Performance
- Minimum Operating Temperature: 55 degrees fahrenheit (The lowest recommended ambient (surrounding) temperature in which the product can ideally operate stated by the manufacturer. Generally long-term exposure of the product to temperatures less than the minimum can result in ineffective operation.)
- Maximum Operating Temperature: 110 degrees fahrenheit (The highest recommended ambient (surrounding) temperature in which the product can ideally operate stated by the manufacturer. Generally long-term exposure of the product to temperatures more than the maximum can result in ineffective operation.)
- Features
- Configuration: Built-in (The size, arrangement, and physical configuration of the product.)
- Panel Ready: true (Product is ready to be fit with a customized front panel that integrates with existing cabinetry and décor.)
- Refrigerator Style: Bottom Freezer
- Panel(s) Included: false
- Defrost Type: Manual (Ice build-up can reduce the appliance’s cooling capacity, making it work harder and consume more energy. Defrosting is necessary to maintain its efficiency and each type has its own advantages depending on user needs and preferences. Manual defrost appliances require unplugging to melt ice naturally, but offer more space, lower energy consumption, and lower cost without the internal heating element. Frost-free appliances regulate temperature to prevent ice build-up automatically. Automatic defrost systems use a timer to circulate heat and prevent ice accumulation, while adaptive defrost systems use sensors to determine the optimal times for heat circulation.)
- Reversible Door Hinge: false
- Hinge Setting: Fixed right
- Lighting Type: LED
- Ice & Water
- Ice Maker: Yes
- Ice Maker Location(s): Freezer
- Ice and Water Dispenser: None
- Storage
- Number of External Doors/Drawers: 2
- Number of Refrigerator Shelves: 3
- Refrigerator Shelf Style: Adjustable, Removable, Spill proof
- Dairy Center: true (Designated storage with closure for dairy items such as butter, yogurt, and cream cheese, helps keep these items accessible and may reduce the risk of cross-contamination.)
- Gallon Door Storage: true (Designated storage space for gallon-sized containers, such as milk, juice, and water.)
- Humidity-Controlled Crisper: true
- Deli Meat Drawer: true (Designated storage for deli and other meats helps keep these items accessible and may reduce the risk of cross-contamination.)
- Refrigerator Shelf Material: Spill-proof glass,Tempered Glass
- Freezer Info
- Freezer Compartment: true
- Freezer Location: Bottom
- Filter Info
- Water Filtration: false
- Electrical Specification
- Amperage: 15 amperes (Strength of electrical current.)
- Voltage: 115 volts (Amount of power needed to support an electrical current.)
- Estimated Annual Electricity Use: 649 kilowatt hours (Predicted amount of electricity needed to operate the product under average conditions for one year.)
- Estimated Annual Operating Cost: 91 United States dollars (Predicted cost of operating the product under average conditions for one year.)
- Certifications Listings & Approvals
- ENERGY STAR Certified: true (Devices carrying the ENERGY STAR service mark, such as computer products and peripherals, kitchen appliances, and other products, generally use 20% to 30% less energy than required by federal standards.)
- Consortium for Energy Efficiency (CEE) Rating: Not Available
- Warranty
- Warranty - Parts: 2 years
- Warranty - Labor: 2 years
- Compatibility
- App Compatible: false (The product can be connected to a program or software application on a mobile device, which then receives collected data from the product.)
- Other
- UPC: 800284051374
Keep fruit and vegetables fresh in this Viking bottom-freezer refrigerator. The Plasmacluster air purifier uses ion technology to eliminate airborne bacteria, mold and odors. The LED lights increase visibility, while electronic controls keep temperatures steady. Store heavy items confidently with four aluminum door-bins and durable tempered-glass shelves in this Viking bottom-freezer refrigerator.
- Electronic controls: Maintain even temperatures within one degree Fahrenheit to keep food fresher longer.
- Specialized Refrigeration Storage: Two adjustable Humidiity drawers and two deli drawers all with soft-close slides
- LED interior lighting: All items are in clear view with bright energy efficient LED lighting from top and sidewalls
- Specialized Freezer Storage: Full-extension main freezer compartment pulls out like a drawer for easy access to bulky frozen foods.
- Filter-Free Freshness: Exclusive Plasmacluster Ion Air Purifier uses advanced technology to eliminate airborne bacteria, mold and odors to enhance food preservation.
- Electronic controls: Maintain even temperatures within one degree Fahrenheit to keep food fresher longer.
- Specialized Refrigeration Storage: Two adjustable Humidiity drawers and two deli drawers all with soft-close slides
- LED interior lighting: All items are in clear view with bright energy efficient LED lighting from top and sidewalls
- Specialized Freezer Storage: Full-extension main freezer compartment pulls out like a drawer for easy access to bulky frozen foods.
- Filter-Free Freshness: Exclusive Plasmacluster Ion Air Purifier uses advanced technology to eliminate airborne bacteria, mold and odors to enhance food preservation.
Whats Included
- 36"W 5 SERIES BOTTOM-MOUNT REFRIGERATOR
- 36"W 5 SERIES BOTTOM-MOUNT REFRIGERATOR
Product Manuals
Documents
- Energy_Guide_PDF
- Energy_Guide_PDF
Q: Does this refrigerator come with an ice maker?
A: Yes, this refrigerator comes with a built-in ice maker.
Q: Does this refrigerator have an ice maker?
A: Yes, this refrigerator comes with an ice maker.
Q: How does this refrigerator keep food fresh?
A: This refrigerator uses Plasmacluster Ion Air Purifier technology to eliminate bacteria, mold, and odors, enhancing food preservation.
Q: Does this refrigerator require a water filter?
A: No, this refrigerator does not require a water filter.
Q: Are the shelves in this refrigerator adjustable?
A: Yes, this refrigerator has adjustable shelves.
Q: Does this refrigerator have an ice maker?
A: Yes, this refrigerator comes with a built-in ice maker.
Q: What type of lighting does this refrigerator use?
A: This refrigerator uses bright, energy-efficient LED lighting.
Q: How does this refrigerator help keep food fresh?
A: This refrigerator uses Plasmacluster Ion Air Purifier technology to eliminate airborne bacteria, mold, and odors, which helps enhance food preservation.
