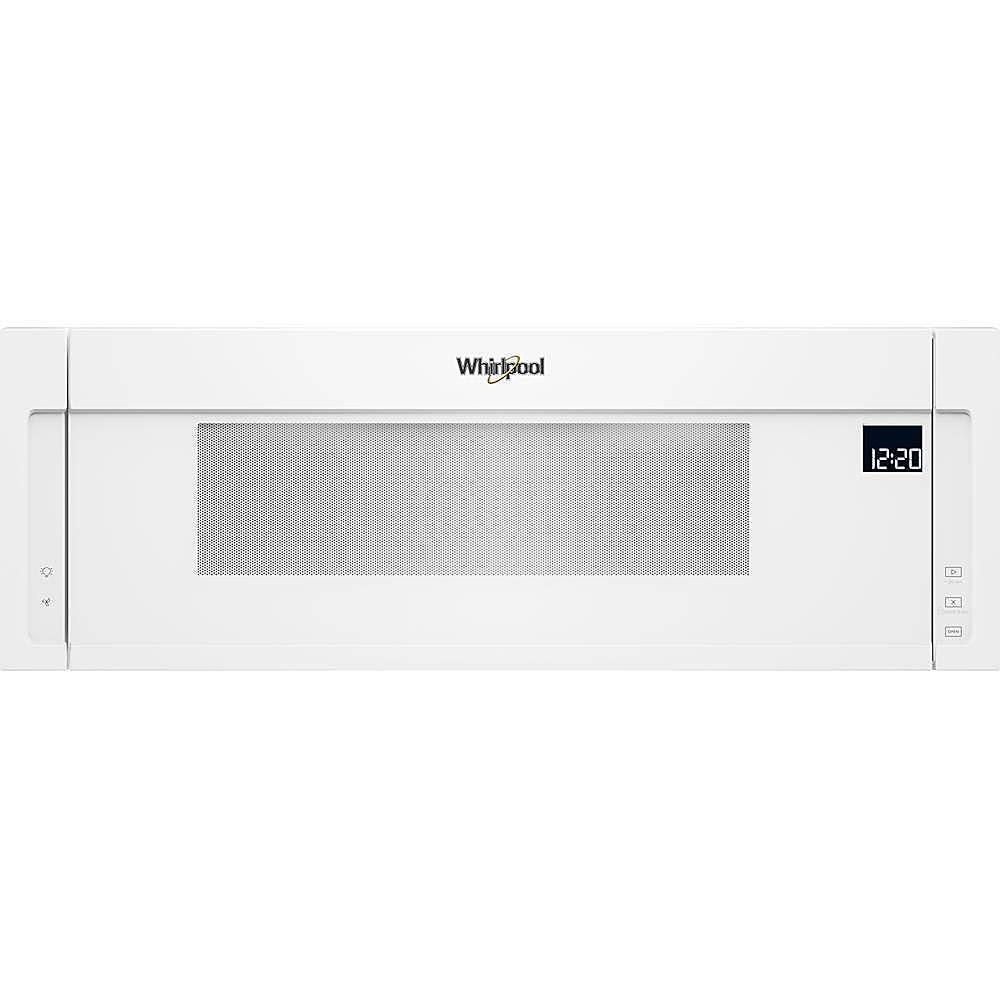

Whirlpool - 1.1 Cu. Ft. Low Profile Over-the-Range Microwave Hood Combination - White
- Key Specs
- Color Finish: White
- Product Height: 10 5/16 inches (The out of box height of the item. Height is measured as the vertical distance from the bottom of the item to the top as it would be primarily used or placed.)
- Product Width: 29 7/8 inches (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
- Product Depth: 18 inches (The out of box depth of the item. Depth is measured as the distance from the front of the item to the back as it would be primarily used or placed.)
- App Compatible: false (The product can be connected to a program or software application on a mobile device, which then receives collected data from the product.)
- Microwave Type: Over-the-range (Each microwave style has its own benefits. Built-in, over-the-range, and drawer style microwaves help save counter space. Over-the-range microwaves also provide necessary ventilation in place of a range hood. Countertop microwaves allow versatility in placement and do not require professional installation.)
- Turntable Diameter: 12 inches
- Control Type: Touchscreen
- Sensor Cook: true (This feature uses sensors to detect steam and moisture levels emitted from cooking food to adjust cook time and power level accordingly.)
- Wattage: 1000 watts (Measurement of electrical power.)
- General
- Brand: Whirlpool
- Model Number: WML75011HW
- Product Name: 1.1 Cu. Ft. Low Profile Over-the-Range Microwave Hood Combination
- Color: White
- Color Finish: White
- Dimensions
- Product Height: 10 5/16 inches (The out of box height of the item. Height is measured as the vertical distance from the bottom of the item to the top as it would be primarily used or placed.)
- Product Width: 29 7/8 inches (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
- Product Depth: 18 inches (The out of box depth of the item. Depth is measured as the distance from the front of the item to the back as it would be primarily used or placed.)
- Product Weight: 57.2 pounds (The out of box weight of the item.)
- Interior Microwave Cavity Dimensions: 15 x 7 x 19 (The measurement of the internal cavity of the microwave from top to bottom, side to side, and front to back, listed as height by width by depth.)
- Cut-Out Dimensions
- Cut-Out Width: 30 inches (Minimum required width of the installation location for a standard installation of the product. This measurement will help you determine if the appliance will fit into the desired space and have the clearance necessary for proper operational use. Please refer to the manufacturer’s installation documentation for detailed measurement requirements.)
- Capacity
- Capacity: 1.1 cubic feet
- Microwave Size: Mid-size
- Connectivity
- App Compatible: false (The product can be connected to a program or software application on a mobile device, which then receives collected data from the product.)
- Wireless Connectivity: None (The manner in which a device sends data to another device over a short distance without the use of wires or cables.)
- Features
- Microwave Type: Over-the-range (Each microwave style has its own benefits. Built-in, over-the-range, and drawer style microwaves help save counter space. Over-the-range microwaves also provide necessary ventilation in place of a range hood. Countertop microwaves allow versatility in placement and do not require professional installation.)
- Fingerprint Resistant: true
- Timer: true
- Child Lock: true (Setting that allows appliance to be temporarily locked to prevent use.)
- Turntable: true (Rotating plate within the microwave cooking cavity that helps foods cook more evenly.)
- Removable Turntable: true
- Turntable Diameter: 12 inches
- Interior Light(s): true
- Cooktop Lighting: true (A light that illuminates the cooktop below.)
- Nightlight: true
- Controls
- Control Type: Touchscreen
- Sensor Cook: true (This feature uses sensors to detect steam and moisture levels emitted from cooking food to adjust cook time and power level accordingly.)
- Display Type: LED
- Number of Preset Programs: 13
- Number of Fan Speeds: 4
- Number of Power Levels: 10
- Turntable On/Off Option: true
- Functions
- Oven Cooking Modes: Defrost
- Oven Preset Settings: Popcorn
- Filter Info
- Filter Type: Charcoal
- Removable Filter: true
- Ventilation
- Vent Style: Convertible (External vents pull air from the room and move it directly outside through a dedicated duct system. Recirculating vents pull the air through a filter so that it can be cleaned before being recycled back into the room. Convertible vents can be reconfigured from external ventilation to recirculating via installation of certain parts.)
- Exhaust Vent Location: Rear
- Maximum Air Flow Capacity: 400 cubic feet per minute (Maximum amount of air that the appliance can ventilate at its highest setting.)
- Electrical Specification
- Amperage: 15 amperes (Strength of electrical current.)
- Voltage: 120 volts (Amount of power needed to support an electrical current.)
- Wattage: 1000 watts (Measurement of electrical power.)
- Certifications Listings & Approvals
- ADA Compliant: false (Meets standards set by the Disabilities Act (ADA) Standards for Accessible Design)
- CEE Qualified: false (Rated by the Consortium for Energy Efficiency.)
- Product Safety Certifications and Standard(s): ETL Listed, UL Listed (Lists the applicable certifications and/or standards, as stated by the manufacturer, in which the product has met the requirements for the assurance of quality and safety.)
- Chemical Disclosures: This product may contain one or more regulated perfluoroalkyl and polyfluoroalkyl substances or PFAS. Mandatory reporting is not required until January 1, 2025. Whirlpool Corporation is in the process of gathering more information on PFAS use across our supplier base, and will update this disclosure as we learn more. For more information about chemicals in this product, visit www.whirlpool.com/regulatory.html. [Este producto puede contener una o más sustancias perfluoroalquilo y polifluoroalquilo reguladas o PFAS. No se requieren informes obligatorios hasta el 1 de enero de 2025. Whirlpool Corporation está en el proceso de recopilar más información sobre el uso de PFAS en nuestra base de proveedores y actualizará esta divulgación a medida que sepamos más. Para obtener más información sobre los químicos en este producto, visite www.whirlpool.com/regulatory.html.] (The disclosure of Per- and Polyfluorinated Substances (PFAS) and/or other chemicals.)
- Warranty
- Warranty - Parts: 1 year limited
- Warranty - Labor: 1 year limited
- Other
- UPC: 883049468938
Take control in the kitchen with this 1.1 cu. ft. Whirlpool over-the-range microwave hood. Its sensor cooking feature lets you achieve precise results for various food items, and its low-profile design provides smooth under-cabinet integration. The four-speed venting system of this 30-inch Whirlpool over-the-range microwave hood maintains a pleasant cooking atmosphere.
- Low Profile Design: Maximize space by moving your microwave off the countertop with a low profile design that fits in the same space as your undercabinet hood. (Based on 24" minimum install for undercabinet hoods and Low Profile Microwave Hood.)
- Purposeful Capacity: Fit tall glasses, wide plates and big bowls in this low profile microwave that still has enough room for all the essentials with 1.1 cu. ft. of purposeful capacity.
- 3-Speed, 400 CFM Motor Class High Performance Venting: Keep your kitchen smelling like home with 3-Speed, 400 CFM Motor Class High Performance Venting that helps quickly remove smoke, odor and moisture. (Performance varies based on installation. Resources available at aham.org.)
- 1,000-Watt Cooking Power: Get quick and even cooking with 1,000 watts of cooking power.
- CleanRelease Non-Stick Interior: Help prevent spills from sticking with the CleanRelease Non-Stick Interior, which lets you easily clean up with the simple wipe of a damp cloth.
- Sensor Cooking: Take out the guesswork with sensors that track the cooking progress of your food and automatically adjust cook times.
- Tap-To-Open Door: Keep things clean and dinner moving with a door that can open with the simple tap of a wrist or elbow, so you can access the microwave without putting dishes down.
- Concealed Touch Controls: Controls stay out of the way and easy to clean with a smooth touch panel that's hidden behind the microwave door for a modern look.
- 90º Hinge Door: Install your microwave hood next to a wall if necessary with a 90º hinge door.
- LED Cooktop Lighting: Keep an eye on what's cooking below the microwave or keep a nightlight on in the kitchen.
- Steam Cooking: Clear up cooktop space by steaming foods like rice, vegetables and fish right in the microwave. Steam accessory available separately.
- Popcorn Preset: Automatically get the settings you need to cook popcorn right.
- Turntable On/Off Option: Choose whether the turntable rotates or not to accommodate a wide range of dish sizes.
- Dishwasher-Safe Turntable Plate: Clean up spills on the turntable by simply putting it in the dishwasher.
- Microwave Presets: Get just the right amount of heat and time, whether you're cooking or defrosting, with specific preset options.
- Add 30 Seconds Option: Quickly set the microwave timer to 30 seconds or add it to already in-progress cooking time with the touch of a button.
- 10 Power Levels: Help prevent undercooking and overcooking with 10 power levels to match your dish.
- Finished Sides: There's nothing to hide with sides that are finished to match the rest of the microwave.
- Easy Install: Easily make a change and replace your current vent hood or microwave hood using a wall plate that helps you install right out of the box.
Whats Included
- Whirlpool 1.1 Cu. Ft. Low Profile Over-the-Range Microwave Hood Combination
Product Manuals
A: I just spoke to a tech about the strong air blowing out the front left vent above the door. He said the fan has to be reversed to vent into the ceiling vent. It comes from the factory with recirculation back into the kitchen. They are coming next week. I will update.
A: Spaceman, WML75011HZ has CleanRelease® Non-Stick Interior, Fingerprint Resistant, LED Cooktop Lighting, Sensor Cooking, Steam Cooking which WML55011HS does not.
Q: Where is the start button?????
A: It’s the little arrow on the front. You set the time inside and close door and hit the arrow. If you don’t set a time inside , the arrow will just do 30 seconds as a default time
A: Jill, The unit does stick out further than my cabinets as well. Initially I thought it looked a bit odd until everything else was in place. Now, all I get are rave reviews of its appearance in my small compact kitchen. Instead of being an eyesore or looking like the odd man out as far as built-ins and countertop pieces go, it distinguishes itself with a sleek profile a beautiful display and soft lighting. The automatic door open feature with one simple touch, is wonderful. You will not regret this purchase, it’s just different than what we are accustomed to.
Q: Does this microwave only vent to the outside or can it recirculate back into the kitchen?
A: Yes, just installed mine a couple of weeks ago, and it vents to the kitchen. Don't let all the instructions on how to vent to the outside throw you off.
Q: What are the inside dimensions for cooking ??????
A: Hello Mike! The interior dimensions are: Interior Depth 15", Interior Height 7", Interior Width 19". Thank you for your inquiry on our Whirlpool appliances.
A: Hello NANCY, the WML75011HZ is a higher end model, it features a Scrolling Electronic Display Sensor Cooking capability, CleanRelease® Non-Stick Interior, Steam Cooking, Fingerprint Resistant Stainless Steel, LED Cooktop lighting vs Halogen on the 550 model. These features are in addition to the greater choice in Fan Speed. The other features are the same for the two units like finished sides and 1000 Watt cooking power. Hope this helps!
A: Upper vent is roof rent. Make sure the microwave flap/damper opens up when fan is running. And, if you have a vent system that goes outside, either up or up and then sideways, that the microwave discharges into the base of the vent. I had to move mine about two invhes toward the front of my cabinet.
