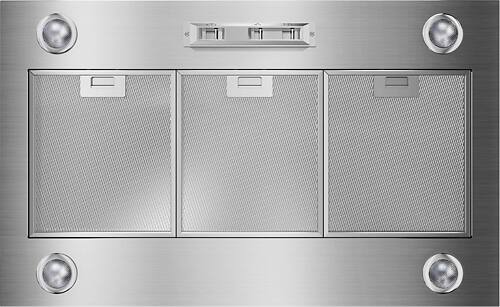

Whirlpool - 36 inches - Externally Vented - Under cabinet Range Hood - Stainless Steel
Model: UXL6036YSS
SKU: 2926207
This item is no longer available in new condition. See similar items below
- Key Specs
- Color Finish: Stainless steel
- Product Height: 11 1/2 inches (The out of box height of the item. Height is measured as the vertical distance from the bottom of the item to the top as it would be primarily used or placed.)
- Product Width: 35 7/8 inches (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
- Product Depth: 22 inches (The out of box depth of the item. Depth is measured as the distance from the front of the item to the back as it would be primarily used or placed.)
- Exhaust Vent Location: Top
- Vent Type: Ducted
- Vent Style: External (External vents pull air from the room and move it directly outside through a dedicated duct system. Recirculating vents pull the air through a filter so that it can be cleaned before being recycled back into the room. Convertible vents can be reconfigured from external ventilation to recirculating via installation of certain parts.)
- General
- Brand: Whirlpool
- Model Number: UXL6036YSS
- Product Name: 36" Externally Vented Custom Range Hood Liner
- Color: Stainless Steel
- Color Finish: Stainless steel
- Dimensions
- Product Height: 11 1/2 inches (The out of box height of the item. Height is measured as the vertical distance from the bottom of the item to the top as it would be primarily used or placed.)
- Minimum Installation Height Above Cooktop: 12 inches
- Maximum Installation Height Above Cooktop: 36 inches
- Product Width: 35 7/8 inches (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
- Product Depth: 22 inches (The out of box depth of the item. Depth is measured as the distance from the front of the item to the back as it would be primarily used or placed.)
- Standardized Width: 36 inches (An approximated measurement (exact width may differ slightly) determined by the manufacturer in accordance with industry standards. Standardized sizes are intended to assist consumers when purchasing appliances and planning for installation.)
- Product Weight: 60 pounds (The out of box weight of the item.)
- Duct Shape: Round
- Round Duct Diameter: 6 inches
- Duct Length: 420 inches
- Features
- Exhaust Vent Location: Top
- Vent Type: Ducted
- Vent Style: External (External vents pull air from the room and move it directly outside through a dedicated duct system. Recirculating vents pull the air through a filter so that it can be cleaned before being recycled back into the room. Convertible vents can be reconfigured from external ventilation to recirculating via installation of certain parts.)
- Range Hood Type: Under cabinet
- Number of Fan Speeds: 3
- Temperature Sensor: true (Integrated sensor adjusts ventilation power as needed to accommodate high temperatures.)
- Control Type: Slide
- Delay Shut-Off: false (Use this feature after cooking to continue ventilating any fumes or odors. When time's up, the operation automatically shuts off.)
- Auto Fan Shut-Off: true
- Integrated Light(s): true
- Number of Lights: 4
- Bulb Type Required: Halogen
- Bulb(s) Included: true
- Maximum Bulb Wattage: 50 watts
- Filter Info
- Dishwasher-Safe Filter: true
- Removable Grease Filter: true
- Number of Filters: 3
- Electrical
- Voltage: 120 volts (Amount of power needed to support an electrical current.)
- Warranty
- Warranty - Parts: 1 year limited
- Warranty - Labor: 1 year limited
- Other
- UPC: 883049234380
Eliminate smoke and cooking odors with this 36" Whirlpool externally vented custom range hood liner that is designed for use with either a 600-cfm or 1200-cfm internal or in-line blower and features a 3-speed exhaust fan for customized use.
- Designed for use with a 600- or 1200-cfm internal or in-line blower: Allowing you to customize the performance of the ventilation system to remove smoke, steam and other odors from your kitchen (blower required, not included).
- 3 fan speeds: Let you control the ventilation level to suit your needs.
- Hidden slide controls: Offer simple operation and help maintain a sleek look.
- 4 halogen lights: Illuminate the cooktop for a clear view of cooking food. Night-light setting provides soft light when the hood is not in use.
- Removable, dishwasher-safe mesh grease filters: For simple cleaning.
- Auto-on sensor: Increases the maximum setting when an excessive amount of heat is detected and turns off when temperatures decrease.
- Withstands up to 108,000 BTUs: To accommodate a wide range of cooking needs.
- Galvanized stainless-steel finish: Offers a sleek, stylish look.
- Designed to fit 10" round ductwork: For ease of installation.
Whats Included
- 3 grease filters
- 36" Externally Vented Custom Range Hood Liner
- Owner's manual
- Screws, T-20 TORX adapter
