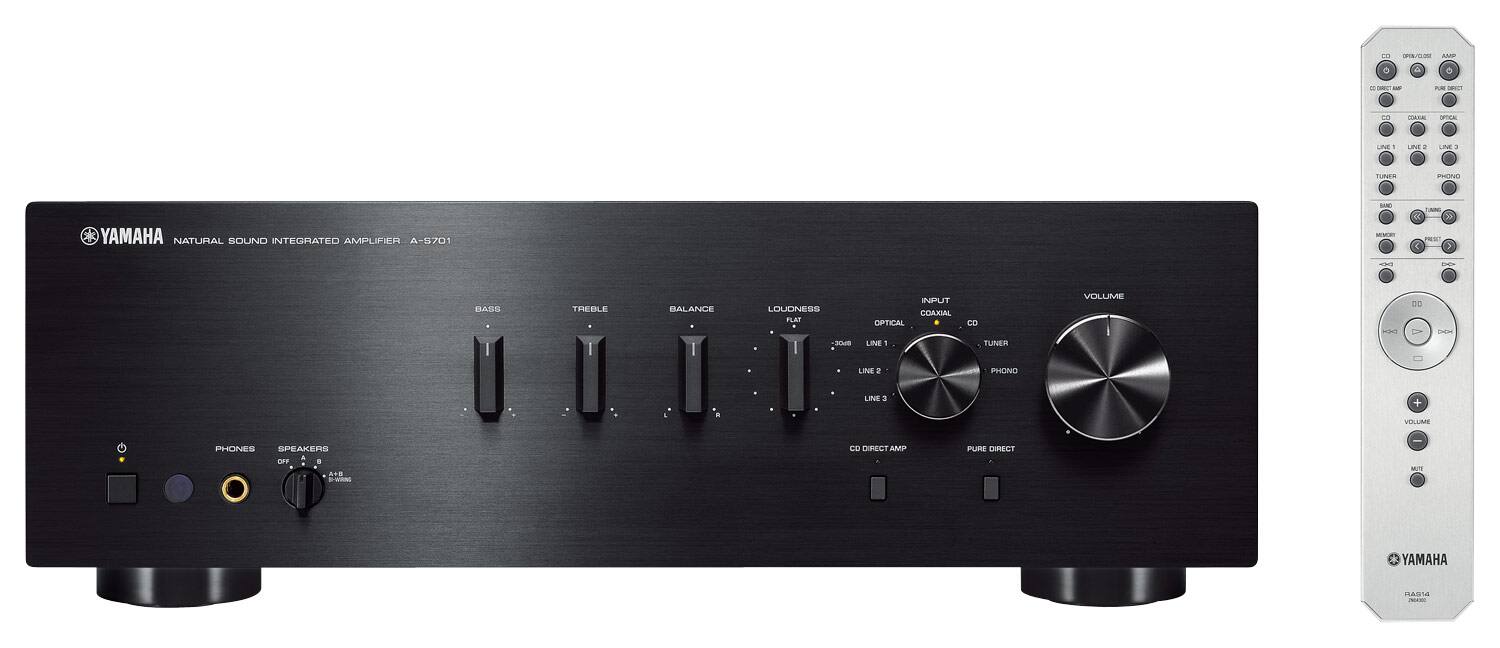

Yamaha - A-S701 320W 2-Ch. Integrated Amplifier - Black
FREE shipping to
More Buying Options
Related Item
Specifications
- Continuous Watts x Channel @ Ohms100 watts x 2 channelsNumber of Channels2Number of Audio Zones0Audio Only Inputs1 x Coaxial digital audio, 1 x Optical digital audio, 1 x PhonoAudio/Video InputsNo audio/video inputsNetwork Connector(s)No network connectors
- Key Specs
- Continuous Watts x Channel @ Ohms: 100 watts x 2 channels
- Number of Channels: 2 (The number of discrete channels of sound output. This can be a single number or multiple numbers separated by decimal(s). The first number is the primary, horizontally directed audio channels. The number after the first decimal, if applicable, is the number of subwoofer outputs or channels. The number after the second decimal, if applicable, is the number of height or atmospheric channels designed to immerse the listener by producing overhead sound effects.)
- Number of Audio Zones: 0 (Audio zones, typically designated by rooms in a home, are areas in which all speakers are dependent on the same sound source. Whether a zone encompasses one or multiple rooms, the receiver or preamp/processor is used to control all aspects of its audio and is able to select which zones receive sound.)
- Audio Only Inputs: 1 x Coaxial digital audio, 1 x Optical digital audio, 1 x Phono
- Audio/Video Inputs: No audio/video inputs (The number and type of HDMI inputs the product has.)
- Network Connector(s): No network connectors
- Audio/Video Outputs: No audio/video outputs (The number and type of HDMI outputs the product has.)
- General
- Brand: Yamaha
- Model Number: A-S701BL
- Product Name: A-S701 320W 2-Ch. Integrated Amplifier
- Color: Black
- Audio
- Continuous Watts x Channel @ Ohms: 100 watts x 2 channels
- Number of Channels: 2 (The number of discrete channels of sound output. This can be a single number or multiple numbers separated by decimal(s). The first number is the primary, horizontally directed audio channels. The number after the first decimal, if applicable, is the number of subwoofer outputs or channels. The number after the second decimal, if applicable, is the number of height or atmospheric channels designed to immerse the listener by producing overhead sound effects.)
- Number of Audio Zones: 0 (Audio zones, typically designated by rooms in a home, are areas in which all speakers are dependent on the same sound source. Whether a zone encompasses one or multiple rooms, the receiver or preamp/processor is used to control all aspects of its audio and is able to select which zones receive sound.)
- Surround Sound Supported: DTS TruSurround (Surround sound systems use multiple audio channels and speakers to create an immersive sound experience for the listener. There are also various proprietary technologies that imitate this kind of sound via a device's built-in speakers or soundbar.)
- Speaker A/B Switching: true (Allows a user to select between one of two sets of primary speakers.)
- Equalizer: false (Allows for the control of different frequencies within an audio signal, such as adjusting treble and bass levels.)
- Tuner Type(s): None
- Inputs
- Audio Only Inputs: 1 x Coaxial digital audio, 1 x Optical digital audio, 1 x Phono
- Video Only Inputs: No video only inputs (The number and type of video signal only inputs the product has.)
- Audio/Video Inputs: No audio/video inputs (The number and type of HDMI inputs the product has.)
- Network Connector(s): No network connectors
- Number of HDMI Inputs (Total): 0
- Number of USB Inputs: 0
- Outputs
- Video Only Outputs: No video only outputs (The number and type of video signal only outputs the product has.)
- Audio/Video Outputs: No audio/video outputs (The number and type of HDMI outputs the product has.)
- Speaker Connection Type: Binding posts
- Number of HDMI Outputs (Total): 0
- Features
- Remote Control Included: true
- Dimensions
- Product Height: 6 inches (The out of box height of the item. Height is measured as the vertical distance from the bottom of the item to the top as it would be primarily used or placed.)
- Product Width: 17.1 inches (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
- Product Depth: 15.25 inches (The out of box depth of the item. Depth is measured as the distance from the front of the item to the back as it would be primarily used or placed.)
- Product Weight: 24.7 pounds (The out of box weight of the item.)
- Warranty
- Warranty - Parts: 2 years
- Warranty - Labor: 2 years
- Other
- UPC: 027108948799
This Yamaha A-S701 A-S701BL 2-channel integrated amplifier features CD direct amplification with Pure Direct mode for detailed hi-fi sound. ToP-ART (Total Purity Audio Reproduction Technology) provides a direct signal path for quality audio.
- 320W maximum power: 160W x 2 @ 4 ohms, 1KHz, 0.7% THD for powerful sound. Also supports 200W RMS power (100W x 2 @ 8 ohms, 20Hz - 20kHz, 0.019% THD).
- Speaker A, B or A+B selection: Plus speaker terminals for up to 2 systems allows you to connect to speaker systems in different rooms and easily switch between them or play the same audio in multiple areas simultaneously.
- ToP-ART (Total Purity Audio Reproduction Technology): Utilizes a direct signal path, ART (Anti-Resonance and Tough) Base, solid center bar and custom-made power transformer to offer rich, high-quality sound.
- CD direct amplification: Enables a direct connection to your CD player (not included) for an optimal signal-to-noise ratio. Pure Direct mode bypasses the buffer amp and tone, loudness and balance controls for pure sound.
- Plug-and-play setup: Simplifies installation.
- Continuously variable loudness control: Allows you to select a desired volume level, provides optimal tonal balance at most listening levels and compensates for natural loss at high and low frequencies when playing music at low levels.
- Compatible with YBA-11 Bluetooth wireless adapter (not included): So you can wirelessly stream music with crystal clarity from compatible audio sources.
- 320W maximum power: 160W x 2 @ 4 ohms, 1KHz, 0.7% THD for powerful sound. Also supports 200W RMS power (100W x 2 @ 8 ohms, 20Hz - 20kHz, 0.019% THD).
- Speaker A, B or A+B selection: Plus speaker terminals for up to 2 systems allows you to connect to speaker systems in different rooms and easily switch between them or play the same audio in multiple areas simultaneously.
- ToP-ART (Total Purity Audio Reproduction Technology): Utilizes a direct signal path, ART (Anti-Resonance and Tough) Base, solid center bar and custom-made power transformer to offer rich, high-quality sound.
- CD direct amplification: Enables a direct connection to your CD player (not included) for an optimal signal-to-noise ratio. Pure Direct mode bypasses the buffer amp and tone, loudness and balance controls for pure sound.
- Plug-and-play setup: Simplifies installation.
- Continuously variable loudness control: Allows you to select a desired volume level, provides optimal tonal balance at most listening levels and compensates for natural loss at high and low frequencies when playing music at low levels.
- Compatible with YBA-11 Bluetooth wireless adapter (not included): So you can wirelessly stream music with crystal clarity from compatible audio sources.
Whats Included
- A-S701 320W 2-Ch. Integrated Amplifier
- AC power cable
- Remote
- Owner's manual
- A-S701 320W 2-Ch. Integrated Amplifier
- AC power cable
- Remote
- Owner's manual
