Yamaha - A-S701 320W 2-Ch. Integrated Amplifier - Silver
FREE shipping to
More Buying Options
Specifications
- Continuous Watts x Channel @ OhmsN/ANumber of Channels2Number of Audio Zones0Audio Only InputsUnbalanced RCANetwork Connector(s)No network connectors
- Key Specs
- Continuous Watts x Channel @ Ohms: N/A
- Number of Channels: 2 (The number of discrete channels of sound output. This can be a single number or multiple numbers separated by decimal(s). The first number is the primary, horizontally directed audio channels. The number after the first decimal, if applicable, is the number of subwoofer outputs or channels. The number after the second decimal, if applicable, is the number of height or atmospheric channels designed to immerse the listener by producing overhead sound effects.)
- Number of Audio Zones: 0 (Audio zones, typically designated by rooms in a home, are areas in which all speakers are dependent on the same sound source. Whether a zone encompasses one or multiple rooms, the receiver or preamp/processor is used to control all aspects of its audio and is able to select which zones receive sound.)
- Audio Only Inputs: Unbalanced RCA
- Network Connector(s): No network connectors
- General
- Brand: Yamaha
- Model Number: A-S701SL
- Product Name: A-S701 320W 2-Ch. Integrated Amplifier
- Color: Silver
- Audio
- Continuous Watts x Channel @ Ohms: N/A
- Maximum Watts x Channel @ Ohms: N/A (This is the maximum load the speaker, subwoofer or amp can drive.)
- Total Power Handling: 320 watts (How much amplifier (amplified) power (wattage) that can be handled before damaging the product.)
- Number of Channels: 2 (The number of discrete channels of sound output. This can be a single number or multiple numbers separated by decimal(s). The first number is the primary, horizontally directed audio channels. The number after the first decimal, if applicable, is the number of subwoofer outputs or channels. The number after the second decimal, if applicable, is the number of height or atmospheric channels designed to immerse the listener by producing overhead sound effects.)
- Number of Audio Zones: 0 (Audio zones, typically designated by rooms in a home, are areas in which all speakers are dependent on the same sound source. Whether a zone encompasses one or multiple rooms, the receiver or preamp/processor is used to control all aspects of its audio and is able to select which zones receive sound.)
- Minimum Frequency Response: 20 hertz (Describes the maximum range of frequencies or musical tones a product can reproduce, from very low tones to very high treble tones. The minimum frequency or musical tone the speaker can reproduce. High treble tones have higher frequencies while low tones and deep bass have lower frequencies.)
- Total Harmonic Distortion: 0.7 percent (Measurement of the harmonic sound distortion. The lower the percentage, the cleaner the sound.)
- Maximum Frequency Response: 20 kilohertz (Describes the maximum range of frequencies or musical tones a product can reproduce, from very low tones to very high treble tones. The maximum frequency or musical tone the speaker can reproduce. High treble tones have higher frequencies while low tones and deep bass have lower frequencies.)
- Amplifier Type: Integrated amplifiers
- Signal-to-Noise Ratio (SNR): 99 decibels (The ratio of the desired signal's strength to the level of background noise. A ratio higher than 1:1, which equates to greater than 0 decibels, indicates more signal than noise.)
- Bass Boost: None (Circuitry that boosts the bass response of the amplifier, improving audio reproduction enhancing the sound of low frequencies. Fixed boost means the level of bass response is preset, whereas variable boost allows the user to make adjustments.)
- Inputs
- Audio Only Inputs: Unbalanced RCA
- Video Only Inputs: No video only inputs (The number and type of video signal only inputs the product has.)
- Network Connector(s): No network connectors
- Line-Level Inputs: true (Also referred to as low-level inputs. Enables the amplifier to receive a sound signal from another device via RCA cables.)
- Outputs

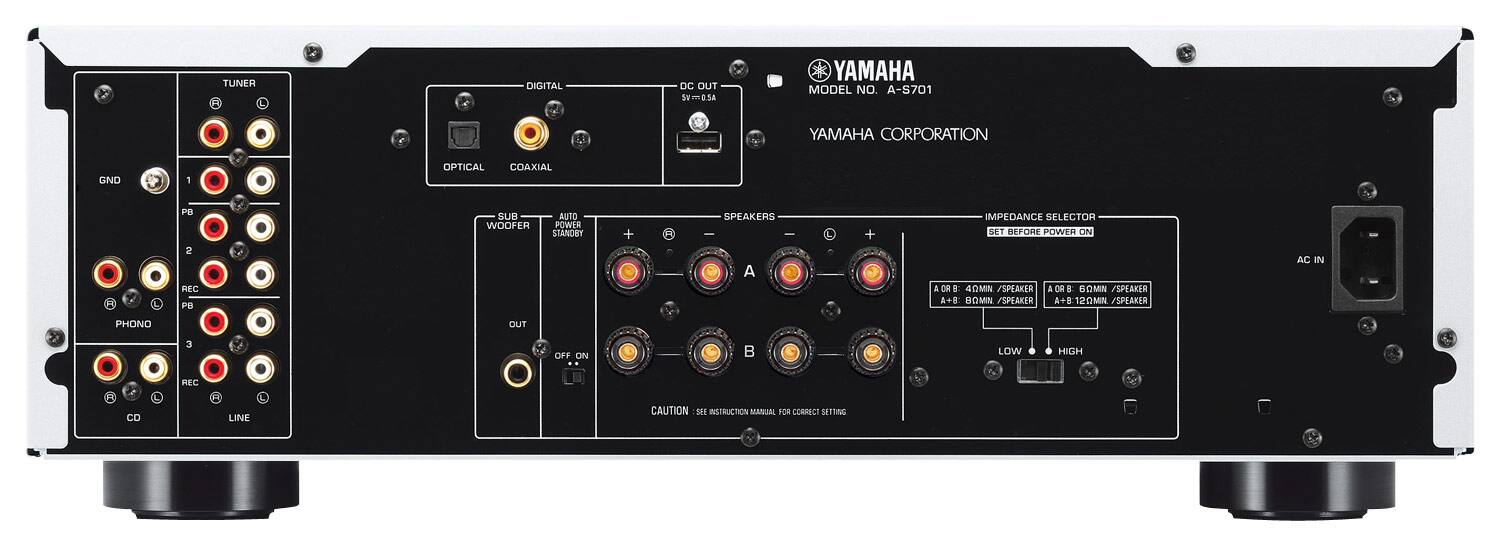

- Speaker Connection Type: Banana Jack/Screw Terminals
- Video Only Outputs: No video only outputs (The number and type of video signal only outputs the product has.)
- Features
- Bridgeable: false (Bridging an amplifier increases the power it supplies to the speaker(s).)
- Dimensions
- Product Height: 6 inches (The out of box height of the item. Height is measured as the vertical distance from the bottom of the item to the top as it would be primarily used or placed.)
- Product Width: 17.1 inches (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
- Product Depth: 15.25 inches (The out of box depth of the item. Depth is measured as the distance from the front of the item to the back as it would be primarily used or placed.)
- Product Weight: 24.7 pounds (The out of box weight of the item.)
- Warranty
- Warranty - Parts: 2 years
- Warranty - Labor: 2 years
- Other
- UPC: 027108948997
This Yamaha A-S701 A-S701SL 2-channel integrated amplifier features CD direct amplification with Pure Direct mode for detailed hi-fi sound. ToP-ART (Total Purity Audio Reproduction Technology) provides a direct signal path for quality audio.
- 320W maximum power: 160W x 2 @ 4 ohms, 1KHz, 0.7% THD for powerful sound. Also supports 200W RMS power (100W x 2 @ 8 ohms, 20Hz - 20kHz, 0.019% THD).
- Speaker A, B or A+B selection: Plus speaker terminals for up to 2 systems allows you to connect to speaker systems in different rooms and easily switch between them or play the same audio in multiple areas simultaneously.
- ToP-ART (Total Purity Audio Reproduction Technology): Utilizes a direct signal path, ART (Anti-Resonance and Tough) Base, solid center bar and custom-made power transformer to offer rich, high-quality sound.
- CD direct amplification: Enables a direct connection to your CD player (not included) for an optimal signal-to-noise ratio. Pure Direct mode bypasses the buffer amp and tone, loudness and balance controls for pure sound.
- Plug-and-play setup: Simplifies installation.
- Continuously variable loudness control: Allows you to select a desired volume level, provides optimal tonal balance at most listening levels and compensates for natural loss at high and low frequencies when playing music at low levels.
- Compatible with YBA-11 Bluetooth wireless adapter (not included): So you can wirelessly stream music with crystal clarity from compatible audio sources.
- 320W maximum power: 160W x 2 @ 4 ohms, 1KHz, 0.7% THD for powerful sound. Also supports 200W RMS power (100W x 2 @ 8 ohms, 20Hz - 20kHz, 0.019% THD).
- Speaker A, B or A+B selection: Plus speaker terminals for up to 2 systems allows you to connect to speaker systems in different rooms and easily switch between them or play the same audio in multiple areas simultaneously.
- ToP-ART (Total Purity Audio Reproduction Technology): Utilizes a direct signal path, ART (Anti-Resonance and Tough) Base, solid center bar and custom-made power transformer to offer rich, high-quality sound.
- CD direct amplification: Enables a direct connection to your CD player (not included) for an optimal signal-to-noise ratio. Pure Direct mode bypasses the buffer amp and tone, loudness and balance controls for pure sound.
- Plug-and-play setup: Simplifies installation.
- Continuously variable loudness control: Allows you to select a desired volume level, provides optimal tonal balance at most listening levels and compensates for natural loss at high and low frequencies when playing music at low levels.
- Compatible with YBA-11 Bluetooth wireless adapter (not included): So you can wirelessly stream music with crystal clarity from compatible audio sources.
Whats Included
- A-S701 320W 2-Ch. Integrated Amplifier
- AC power cable
- Remote
- Owner's manual
- A-S701 320W 2-Ch. Integrated Amplifier
- AC power cable
- Remote
- Owner's manual
Compare similar products
This Yamaha A-S701 A-S701SL 2-channel integrated amplifier features CD direct amplification with Pure Direct mode for detailed hi-fi sound. ToP-ART (Total Purity Audio Reproduction Technology) provides a direct signal path for quality audio.
The Marantz PM6007 2-Channel Integrated Amplifier is an upgraded successor of the PM6006. Features current feedback circuitry and a high-capacity power supply to drive even the most demanding speakers. The Current Feedback amplifier technology provides wide-bandwidth and high-speed sound reproduction, while the HDMS-SA3 delivers more dynamic, accurate and detailed sound. The PM6007 features A and B speaker outputs, for two sets of stereo speakers, or for bi-wiring with compatible stereo speakers, 5-line audio inputs, along with a headphone amplifier jack on the front panel, and the high-grade speaker connectors. Features high resolution D/A conversion which provides up to 192 kHz/24-bit resolution for optimum fidelity with high resolution audio file types. This stereo amp has a tone control function and a loudness feature that boosts the bass and treble response at low volume levels to achieve a more pleasing tonal balance. The Source Direct function bypasses unneeded circuit stages (such as the tone controls) for the most direct audio path from input to output. This unit is equipped with a remote power control function and easy setup guidelines so that you enjoy immersive music in just minutes
With ToP-ART (Total Purity Audio Reproduction Technology), this Yamaha A-S501 A-S501BL 2-channel integrated amplifier creates a direct signal path for clear audio transmission. Pure Direct mode delivers full-bodied, accurate sound reproduction.
Enjoy hi-fi audio with this Yamaha A-S801 A-S801BL integrated amplifier, which features ToP-ART (Total Purity Audio Reproduction Technology) for stunning sound quality and supports speaker A, B or A+B selection for flexible playback.
| Pros for Yamaha - A-S701 320W 2-Ch. Integrated Amplifier - Silver | |||
|---|---|---|---|
| Sound Quality | There were no pros for this product— | There were no pros for this product— | There were no pros for this product— |
Specs
Reviews
Customers are saying
Customers frequently mention the A-S701 320W 2-Ch. Integrated Amplifier's sound quality. Users have noted that the amplifier is made very solid, reminiscent of older amplifiers.
Customer Images
The vast majority of our reviews come from verified purchases. Reviews from customers may include My Best Buy members, employees, and Tech Insider Network members (as tagged). Select reviewers may receive discounted products, promotional considerations or entries into drawings for honest, helpful reviews.
- Rated 5 out of 5 stars
Nice Amp

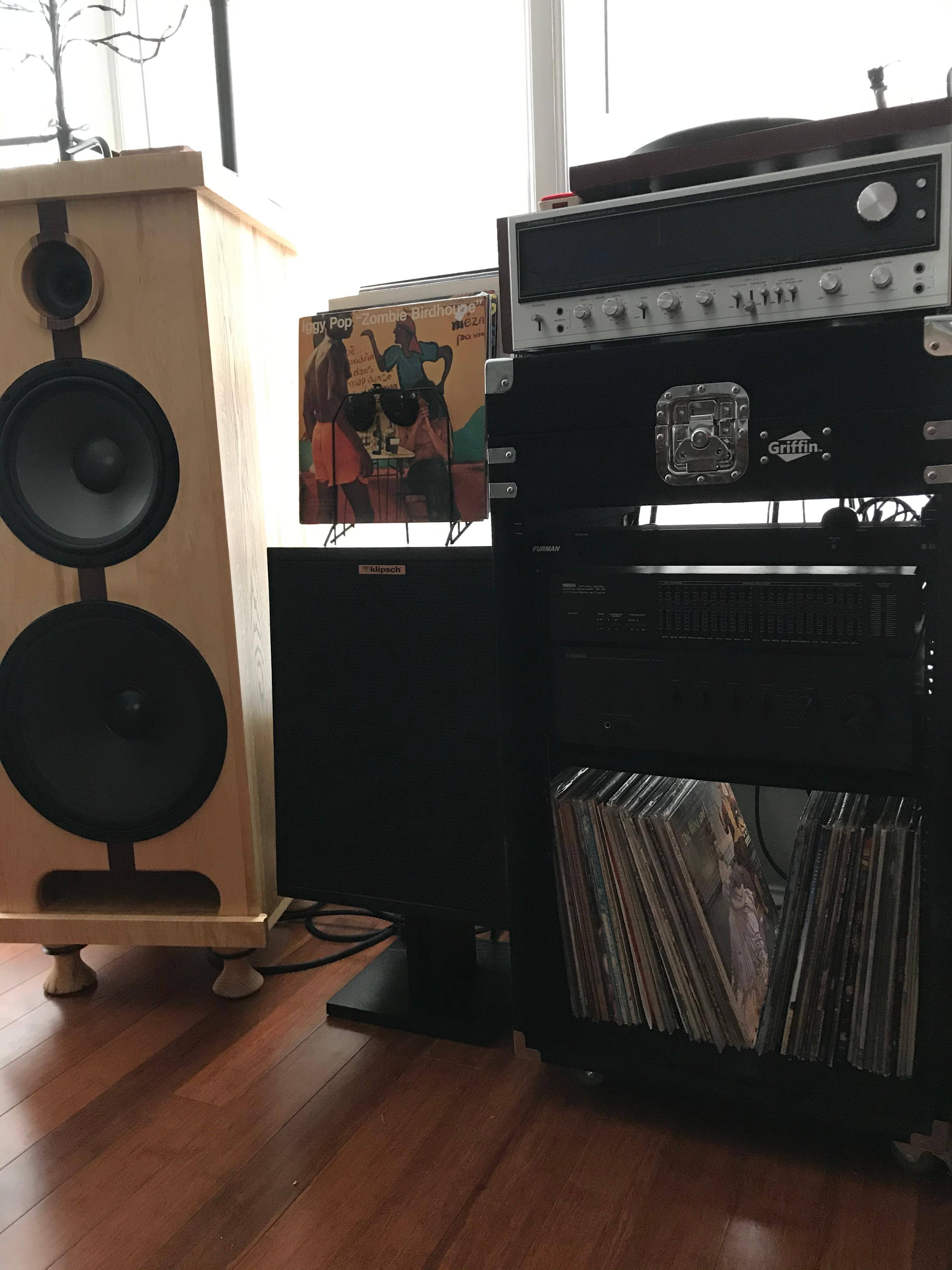

Yamaha has really done a nice job with this amp. I'm using it to power a very large pair of speakers that I built. I bought the Marantz first but had to return it because it couldn't get these speakers moving and it cost about 400 more than the Yamaha. I never have it up more than half way and I've already had the cops called on me twice and I live in a house on a corner lot. My neighbor says she can feel the bass in her house. Good clean sound.
This review is from Yamaha - A-S701 320W 2-Ch. Integrated Amplifier - Black
Posted by Levelwind
- Rated 5 out of 5 stars
700rx Yamaha
Great sounding amp with Yamaha quality shipping was fast
Posted by ChrisC
- Rated 5 out of 5 stars
Love Yamaha Amps
Beautiful sounding amp paired with Klipsch sub and Klipsch bookshelf speakers. More power than I needed but I may eventually go up to the Klipsch floor standing speakers with the bigger woofers. Good value, good sound, and plenty of options for inputs and tone controls.
This review is from Yamaha - A-S701 320W 2-Ch. Integrated Amplifier - Black
Posted by TKirby
