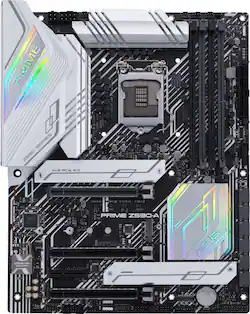

ASUS - PRIME Z590-A Socket LGA 1200 USB 3.2 Intel Motherboard
- Key Specs
- Form Factor: ATX (The size, arrangement, and physical configuration of the product.)
- Processor Socket: Socket LGA 1200 (Type of pin configuration that connects a CPU to a computer’s motherboard.)
- Number Of Memory Slots: 3
- General
- Product Name: PRIME Z590-A Socket LGA 1200 USB 3.2 Intel Motherboard
- Brand: ASUS
- Model Number: PRIME Z590-A
- Compatibility
- Form Factor: ATX (The size, arrangement, and physical configuration of the product.)
- Processor Socket: Socket LGA 1200 (Type of pin configuration that connects a CPU to a computer’s motherboard.)
- Processor Compatibility: Intel Core i9, Intel Core i7, Intel Core i5, Intel Core i3, Intel Pentium, Intel Celeron
- Slot
- Number Of Memory Slots: 3
- Dimensions
- Product Width: 244.09 millimeters (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
- Other
- UPC: 195553103879
ASUS Prime series motherboards are expertly engineered to unleash the full potential of 10th and 11th Generation Intel® Core™ processors. Boasting a robust power design, comprehensive cooling solutions and intelligent tuning options, Prime Z590-A provides daily users and DIY PC builders a range of performance tuning options via intuitive software and firmware features
- Processor compatibility: Intel® LGA 1200 socket: Ready for 10th and 11th gen Intel® Core™ processors
- Intelligent Control: ASUS-exclusive software and firmware utilities that simplify setup and improve performance: AI Overclocking, AI Cooling, AI Networking and Two-Way AI Noise-Cancelation
- Graphics: Integrated Graphics Processor
- Memory: 128GB, DDR4
- Audio: ROG SupremeFX 7.1 Surround Sound High Definition Audio CODEC
- Expansion slots: Intel® LGA 1200 socket: Ready for 10th and 11th gen Intel® Core™ processors
- AI Networking: GameFirst VI optimizes and organizes network bandwidth, effectively reducing jitter and eliminating spike lag to ensure smooth online gameplay
- Operating System: Windows® 10 64-bit
A: It supports both. There is 3 slots. From the top to bottom 1,2,3. 1 with heat sink is 4.0 and the middle and bottom with heat sink are 3.0.
Q: Does this board support tpm right out of the box. Is it win 11 ready
A: One has to enable it in the Bios. The name in the Bios is a bit different if I remember correctly. I have Windows 11 running on it now. There are a lot of hoops to get Windows 11 running. It is mostly Microsoft's restrictions. UEFI boot. A GPT partition is required. among other software constraints.
Q: does this motherboard only support a 10th and 11th cpu?
A: It is an Intel Motherboard. I am currently using an i9 11900k intel unlocked.
Q: does this support the 13th gen cpu?
A: 10th and 11th only.
Q: Does this motherboard support SLI?
A: Z590 motherboards do not support SLI.
Q: Does this support wake on lan?
A: Yes, it does.
Q: How fast a frequency memory will the Asus Prime Z590-A motherboard support?
A: Here's the full memory specification: 4 x DIMM, Max. 128GB, DDR4 DDR4 5333(OC)/5133(OC)/5000(OC)/4800(OC)/4700(OC)/4600(OC)/4500(OC)/4400(OC)/4266(OC)/4133(OC)/4000(OC)/3866(OC)/3733(OC)/3600(OC)/3466(OC)/3400(OC)/3333(OC)/3200/3000/2933/2800/2666/2400/2133 MHz Non-ECC, Un-buffered Memory* Dual Channel Memory Architecture Supports Intel® Extreme Memory Profile (XMP) OptiMem II * 10th Gen Intel® Core™ i7/i9 processors support 2933/2800/2666/2400/2133 natively, others will run at the maximum transfer rate of DDR4 2666MHz. * 11th Gen Intel® Core™ processors support 3200/2933/2800/2666/2400/2133 natively. * Refer to www.asus.com for the Memory QVL (Qualified Vendors Lists), and memory frequency support depends on the CPU types.
