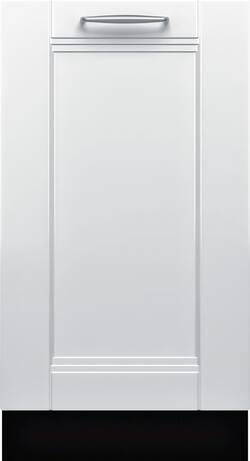

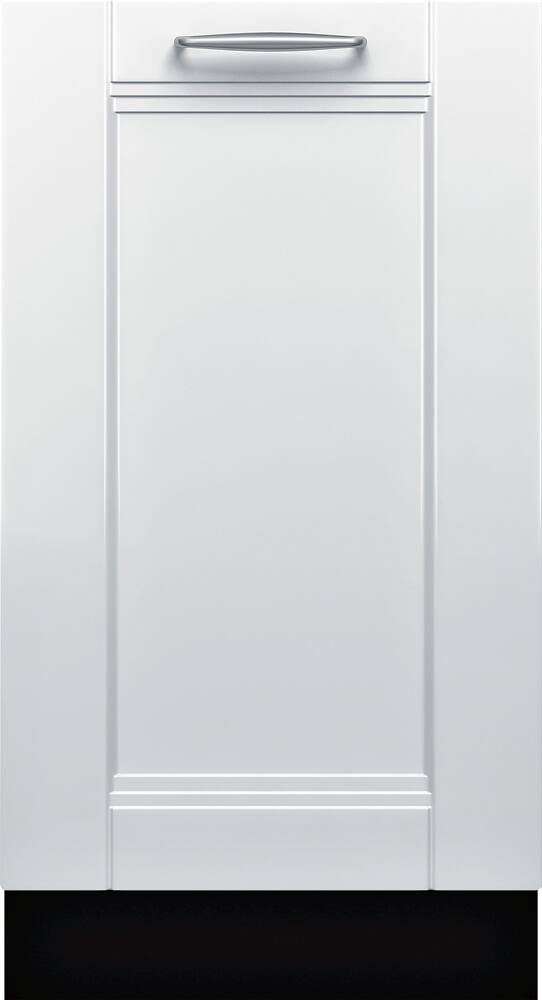

Bosch - 800 Series 18" Hidden Control Tall Tub Built-In Dishwasher with Stainless-Steel Tub - Custom Panel Ready
Model: SPV68U53UC
SKU: 9273025
This item is no longer available in new condition. See similar items below
- Key Specs
- Product Height: 32 1/16 inches (The out of box height of the item. Height is measured as the vertical distance from the bottom of the item to the top as it would be primarily used or placed.)
- Product Width: 17 5/8 inches (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
- Product Depth: 21 5/8 inches (The out of box depth of the item. Depth is measured as the distance from the front of the item to the back as it would be primarily used or placed.)
- Operating Sound Level: 44 decibels adjusted (Today's appliances are pretty quiet. To get a sense for how quiet you'll need, think about having a conversation in the same room. Choose from Not as Quiet (56 dBA or higher. You'll likely need to raise your voice); Quiet (50-55 dBA. Need to raise your voice slightly); Very Quiet (43-49 dBA. Easily have a conversation right next the appliance); and Nearly Silent (42 dBA or lower. You'll hardly know the appliance is on).)
- Number Of Racks: 3
- Tub Finish: Stainless steel (Certain coatings or materials on the inside of the dishwasher, such as stainless steel, are more durable, retain heat better, and can withstand higher temperatures than materials such as plastic. These higher quality materials may increase the appliance’s efficiency, but there may be also be extra initial cost. Some models marketed as Hybrid will use both materials in the tub, often using stainless steel on the interior door to increase durability on the part of the appliance with the most common wear and tear.)
- Place Setting Capacity: 10 (A basic place setting typically consists of a dinner plate, side plate, drinking glass, cutlery, and optional soup bowl and coffee cup. Full-size dishwashers typically hold 12-16 place settings. This does not include pots, pans, or other cookware.)
- App Compatible: false (The product can be connected to a program or software application on a mobile device, which then receives collected data from the product.)
- Color Finish: Custom
- General
- Product Name: 800 Series 18" Hidden Control Tall Tub Built-In Dishwasher with Stainless-Steel Tub
- Brand: Bosch
- Model Number: SPV68U53UC
- Vendor Collection: Bosch 800 Series (Part of a line of different product types, like kitchen appliances.)
- Color: Custom Panel Ready
- Color Finish: Custom
- Dimensions
- Product Height: 32 1/16 inches (The out of box height of the item. Height is measured as the vertical distance from the bottom of the item to the top as it would be primarily used or placed.)
- Product Width: 17 5/8 inches (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
- Product Depth: 21 5/8 inches (The out of box depth of the item. Depth is measured as the distance from the front of the item to the back as it would be primarily used or placed.)
- Product Weight: 75 pounds (The out of box weight of the item.)
- Cut-Out Dimensions
- Cut-Out Height: 32 1/8 inches (Minimum required height of the installation location for a standard installation of the product. This measurement will help you determine if the appliance will fit into the desired space and have the clearance necessary for proper operational use. Please refer to the manufacturer’s installation documentation for detailed measurement requirements.)
- Cut-Out Width: 17 3/4 inches (Minimum required width of the installation location for a standard installation of the product. This measurement will help you determine if the appliance will fit into the desired space and have the clearance necessary for proper operational use. Please refer to the manufacturer’s installation documentation for detailed measurement requirements.)
- Cut-Out Depth: 22 7/16 inches (Minimum required depth of the installation location for a standard installation of the product. This measurement will help you determine if the appliance will fit into the desired space and have the clearance necessary for proper operational use. Please refer to the manufacturer’s installation documentation for detailed measurement requirements.)
- Features
- Hard Food Disposer: false (This feature has blades to chop and disintegrate hard food particles, making them small enough to easily drain away. This prevents them from being recirculated back onto dishware and allows for easy maintenance.)
- Drying Method: Condenser drying (Appliances that use heat to dry the dishes will include a heating element or minerals which transform moisture into heat. A fan or vent then circulates the hot dry air throughout the tub during the drying cycle. This may reduce drying time and the risk of water spots. Appliances that use minerals to produce heat are considered more energy efficient than those that include a heating element. Appliances that use condensation drying are considered more energy efficient than those that use heated drying. Instead, high temperature water is produced during the final rinse cycle which warms the interior and eventually condensates and drains out of the machine.)
- Operating Sound Level: 44 decibels adjusted (Today's appliances are pretty quiet. To get a sense for how quiet you'll need, think about having a conversation in the same room. Choose from Not as Quiet (56 dBA or higher. You'll likely need to raise your voice); Quiet (50-55 dBA. Need to raise your voice slightly); Very Quiet (43-49 dBA. Easily have a conversation right next the appliance); and Nearly Silent (42 dBA or lower. You'll hardly know the appliance is on).)
- Delay Start: true (Allows you to program the appliance to automatically run at a later time. This feature helps you coordinate with your household’s water needs, noise preferences, and more. Additionally, operating your appliance during off-peak hours may reduce energy costs.)
- End-Of-Cycle Signal: true (An audible alert and/or visual indicator that notifies you when a pre-selected cycle is complete.)
- Child Lock: false (Setting that allows appliance to be temporarily locked to prevent use.)
- Filtered Water: true (Internal water filter(s) remove minerals and chemicals from hard water before the wash cycle. Filtered water is less likely to leave mineral deposits or stains, meaning your dishware will look cleaner for longer.)
- Water Soil Sensor: true (Feature that measures how dirty the water is throughout the wash cycle and adjusts the energy and water usage as needed. This can increase washing efficiency and may reduce energy costs.)
- Cycle Specifications
- Number of Cycles: 6 (Standard dishwashers have at least 3 cycles, each with different water pressure, speed, and temperature settings designed for particular loads.)
- Dishwasher Cycles: 6
- Options and Programs: Auto, Hand Wash, Normal, Pots & Pans, Quick, Rinse
- Sensor Wash: true (Feature that automatically senses the load's soil levels and adjusts the wash cycle as needed. This often results in reduced water usage, which in turn may reduce energy costs.)
- NSF-Certified Sanitization Cycle: false (Meets the National Sanitation Foundation (NSF) standards for performance and cleaning effectiveness. When operated on the sanitizing cycle, an NSF-Certified dishwasher reaches a final rinse temperature of 150⁰ Fahrenheit and achieves a minimum 99.999% percent reduction of bacteria.)
- Rack Features
- Number Of Racks: 3
- Third Rack Features: Adjustable height, Utensil separator (Aspects of third rack designed for better dishware organization, cleaning, and usability, such as adjustable height and tines, utensils separator, and utility basket.)
- Upper Rack Features: Adjustable height, Cup shelf (Aspects of upper rack designed for better dishware organization, cleaning, and usability, such as adjustable height and tines, cup clips, and stemware holders.)
- Lower Rack Features: Silverware basket (Aspects of lower rack designed for better dishware organization, cleaning, and usability, such as adjustable height and tines, utensils separator, and utility basket.)
- Design
- Panel Ready: true (Product is ready to be fit with a customized front panel that integrates with existing cabinetry and décor.)
- Panel(s) Included: false
- Dishwasher Type: Built-in dishwashers
- Tub Finish: Stainless steel (Certain coatings or materials on the inside of the dishwasher, such as stainless steel, are more durable, retain heat better, and can withstand higher temperatures than materials such as plastic. These higher quality materials may increase the appliance’s efficiency, but there may be also be extra initial cost. Some models marketed as Hybrid will use both materials in the tub, often using stainless steel on the interior door to increase durability on the part of the appliance with the most common wear and tear.)
- Control Type: Button
- Control Location: Top control
- Handle Type: Bar handle - not included
- Place Setting Capacity: 10 (A basic place setting typically consists of a dinner plate, side plate, drinking glass, cutlery, and optional soup bowl and coffee cup. Full-size dishwashers typically hold 12-16 place settings. This does not include pots, pans, or other cookware.)
- Included
- Power Cord Included: true (Connects your product to an electrical outlet, allowing for immediate use (provided that other installation requirements are met).)
- Integrated Water-Softener: true (A built-in water softener that automatically filters minerals from hard water to clean your dishes, reducing clouding, streaks, hard-water stains, or mineral deposit build-up.)
- Electrical Specification
- Estimated Annual Electricity Use: 259 kilowatt hours (Predicted amount of electricity needed to operate the product under average conditions for one year.)
- Estimated Annual Operating Cost: 31 United States dollars (Predicted cost of operating the product under average conditions for one year.)
- Amperage: 12 amperes (Strength of electrical current.)
- Voltage: 120 volts (Amount of power needed to support an electrical current.)
- Wattage: 1440 watts (Measurement of electrical power.)
- Certifications Listings & Approvals
- ENERGY STAR Certified: true (Devices carrying the ENERGY STAR service mark, such as computer products and peripherals, kitchen appliances, and other products, generally use 20% to 30% less energy than required by federal standards.)
- ADA Compliant: true (Meets standards set by the Disabilities Act (ADA) Standards for Accessible Design)
- Consortium for Energy Efficiency (CEE) Rating: CEE Tier 1
- Other
- UPC: 825225911753
Bosch 800 Series 18" Dishwasher: With options like eco, half-load, delicate, extra shine and sanitize, you can program this dishwasher to clean efficiently. A cutlery drawer for large utensils, 3-position RackMatic upper rack and variety of adjustable areas make organization simple.
- Streamlined style: Hidden electronic controls with a digital timer allow ease of use. InfoLight illuminates the floor underneath the dishwasher, so you know it's still running.
- Bar-style handle: For easy grasping.
- Keep your kitchen quiet: A low 44dBA sound level allows you to communicate with family or guests with minimal distractions.
- Maximize loading space: 3-position RackMatic adjustable upper rack and 2 flip-tine rows allows flexible placement. Also includes a vase holder and plastic item clips to secure lightweight accessories.
- Third-rack cutlery drawer: Allows you to arrange silverware and larger utensils horizontally to ensure they're properly cleaned.
- AquaStop Plus: Helps prevent messy water leaks.
- Easy-to-clean food filtration system: Helps prevent food from clogging the pump.
- Efficient 5-level wash system: Includes 6 wash cycles and 5 options, including eco, half-load, delicate, extra shine and sanitize for flexibility. A built-in water softener lets you enjoy spot-free results.
- Program the dishwasher in advance: Using the 24-hour delay function.
Whats Included
- 800 Series 18" Hidden Control Tall Tub Built-In Dishwasher with Stainless-Steel Tub
- Power cord
- Fill and drain hoses
- Owner's manual
Documents
- Energy_Guide_PDF
Q: What are the exact dimensions of the toe kick? (Height, and depth)
A: The toe kick dimensions are approximately 4" x 2".
A: Hi there, thank you for your question. The door is not changeable. However, the front panel on the door must be customized. You will have to work with a cabinet specialist of your choice on designing the front panel piece. This dishwasher does not ship with the custom panel shown in the picture.
Q: Can standard bosch panel be installed if unable to make custom door after unit arrives
A: Hi Dale. Thank you for your question. Dishwasher panels are not available to be purchased for a panel ready dishwasher.
Q: What are the exact dimensions of the dishwasher?
A: The exact dimensions of this dishwasher are Product Height 32 inches Product Width 17 5/8 inches Product Depth 21 5/8 inches Product Weight 75 pounds
Q: What size does the panel need to be??
A: undefined
Q: What size should the custom made door panel be?
A: undefined
Q: Is the handle included with the dishwasher or does it need to be ordered through the cabinet maker?
A: The bar style handle is included.
